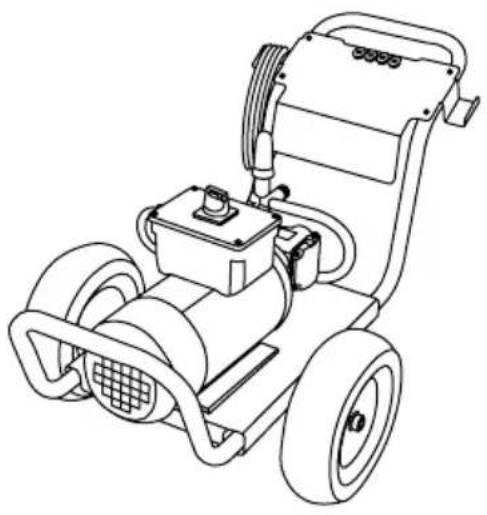

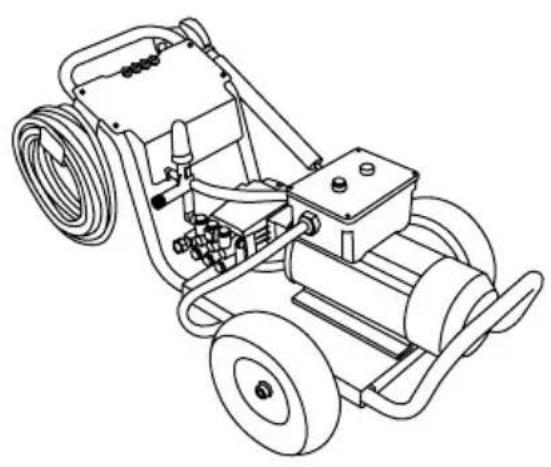

USER MANUAL IR2030012B Simpson

SAVE THIS MANUAL FOR FUTURE REFERENCE

Failure to follow the instructions and safety precautions in this manual can result in property damage, serious injury and/or death. NOTE: Photographs and line drawings used in this manual are for reference only and may not represent your specic model.If your pressure washer is not working or if there are parts missing or broken, please DO NOT RETURN IT TO THE PLACE OF PURCHASE. Contact our Customer Service Department by calling 1-877-362-4271 or emailing [e-mail] II THIS PAGE WAS INTENTIONALLY LEFT BLANK● All information in this publication was based on the latest product information available at the time of printing. The FNA Group reserves the right to update, change, and/ improve the product and this document at any time, without notice, and without incurring any obligation. ● This manual may cover more than one machine. The pictures and gures in the manual should be used for reference only. There may be di󰀨erences between your product and the pictures, drawings, and diagrams in this manual. DISCLAIMERS Page 1

SAVE THIS MANUAL FOR FUTURE USE

Write down the model number, serial number, and purchase date of this product in the spaces provided below then keep this manual with the purchase receipt(s) for future reference. Keep this manual for future reference. This manual should be considered a permanent part of the product and stay with it. This manual should be available to anyone operating the product(s) it covers. This manual should remain with the product(s) it covers if sold to a new owner. If the manual becomes damaged, lost, or otherwise unusable, you may download a new copy from the product pages at www.simpsoncleaning.com or contact customer support by calling 1-877-362-4271. Model Number: Serial Number: Purchase Date:Page 2

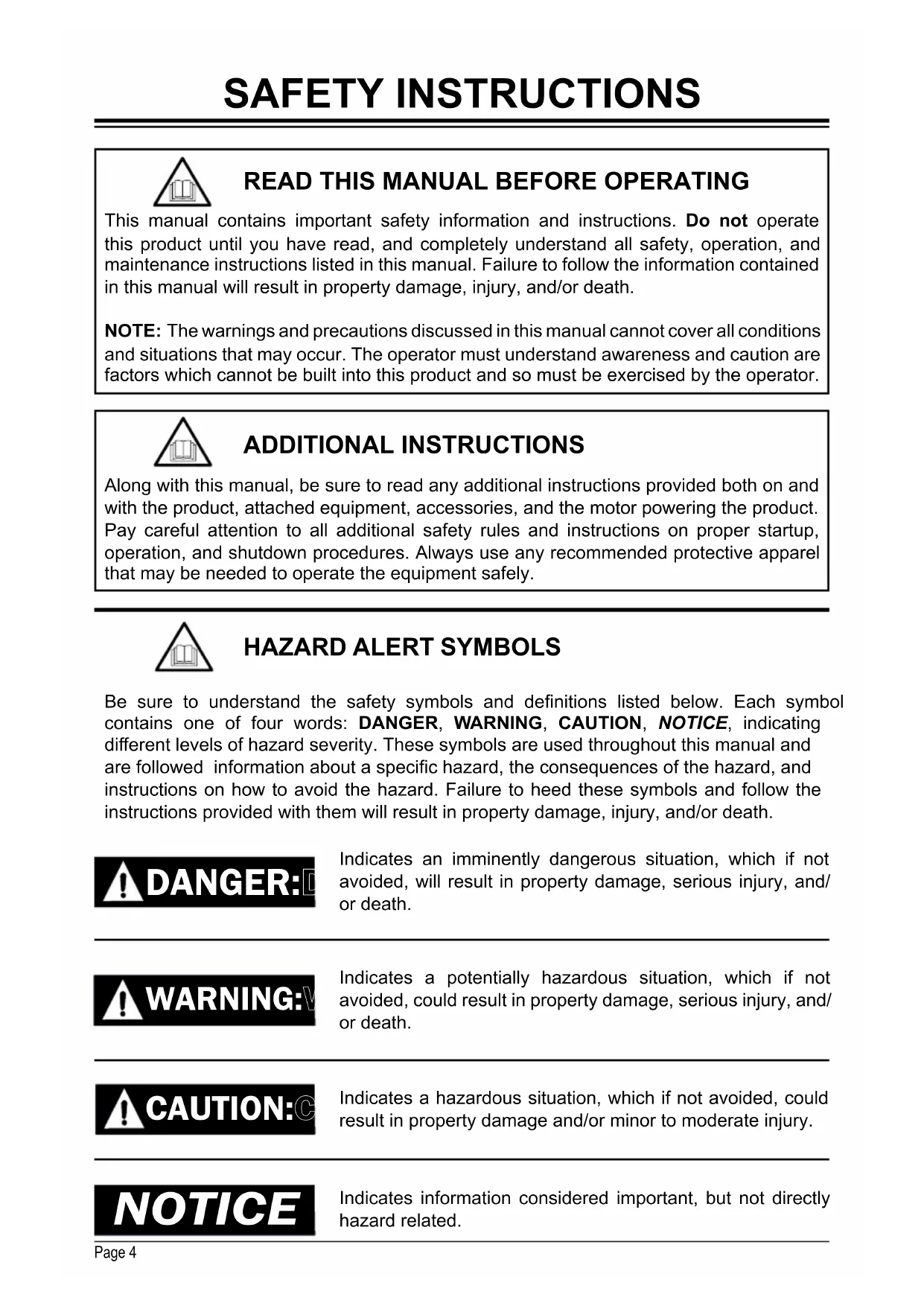

Read this Manual Before Operating

Additional Instructions

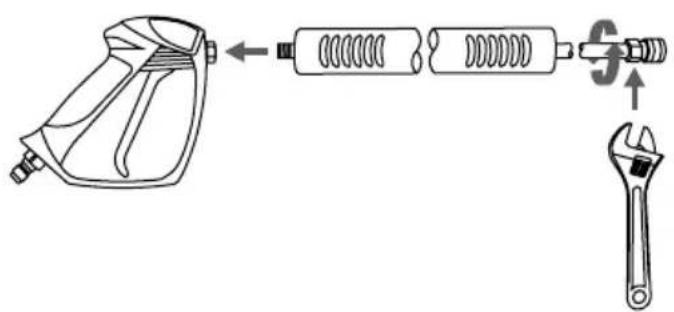

Assemble the Spray Gun

Adjusting Pressure HOUR METER

Cleaning the Pressure Washer

Nozzle Cleaning Water Inlet Filter

CAUTION:CAUTION: Page 4 This manual contains important safety information and instructions. Do not operate this product until you have read, and completely understand all safety, operation, and maintenance instructions listed in this manual. Failure to follow the information contained in this manual will result in property damage, injury, and/or death.NOTE: The warnings and precautions discussed in this manual cannot cover all conditions and situations that may occur. The operator must understand awareness and caution are factors which cannot be built into this product and so must be exercised by the operator.READ THIS MANUAL BEFORE OPERATINGADDITIONAL INSTRUCTIONSBe sure to understand the safety symbols and denitions listed below. Each symbol contains one of four words: DANGER, WARNING, CAUTION, NOTICE, indicating di󰀨erent levels of hazard severity. These symbols are used throughout this manual and are followed information about a specic hazard, the consequences of the hazard, and instructions on how to avoid the hazard. Failure to heed these symbols and follow the instructions provided with them will result in property damage, injury, and/or death.HAZARD ALERT SYMBOLSIndicates an imminently dangerous situation, which if not avoided, will result in property damage, serious injury, and/or death.Indicates a potentially hazardous situation, which if not avoided, could result in property damage, serious injury, and/ or death.Indicates a hazardous situation, which if not avoided, could result in property damage and/or minor to moderate injury.Indicates information considered important, but not directly hazard related. SAFETY INSTRUCTIONS Along with this manual, be sure to read any additional instructions provided both on and with the product, attached equipment, accessories, and the motor powering the product. Pay careful attention to all additional safety rules and instructions on proper startup, operation, and shutdown procedures. Always use any recommended protective apparel that may be needed to operate the equipment safely. NOTICEPage 5 Special consideration needs to be made to the safety of not just the operator of the pressure washer, but also people who may be adjacent to the area being cleaned. The best way to warn unsuspecting individuals is with signage and barriers. Barriers can be as simple as plastic tra󰀩c cones or barricades to using barrier belts around the area being cleaned. Remember, pressure washing can dislodge weak or broken pavement turning it into projectiles that may injure others. Keeping people clear of the area is the best way to avoid injury. Wet pavement can be slippery to unsuspecting individuals causing injury from slips and falls. High-pressure and low-pressure hoses can be trip hazards. Segregating the area and placing appropriate signage can reduce injury. Barrier examples KEEP OUT HIGH PRESSURE WASHING

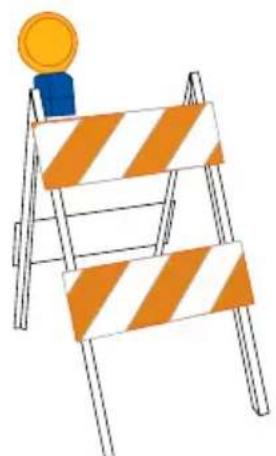

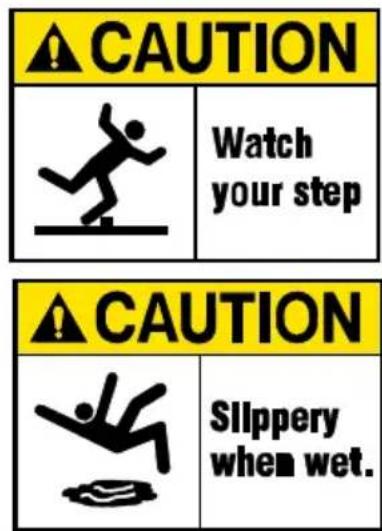

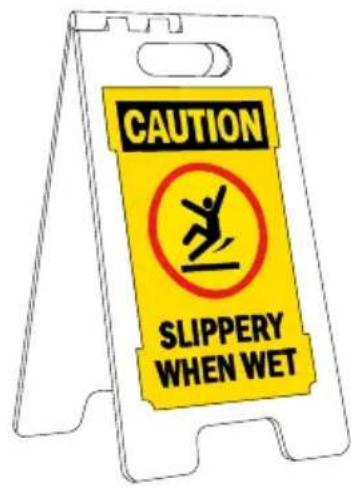

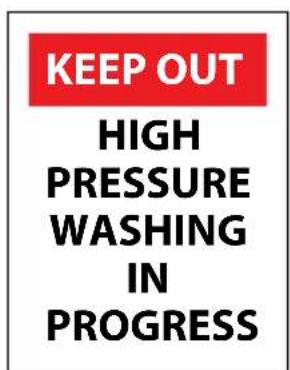

PROGRESS Sign examples When pressure washing in public areas, signs should be posted that indicate to stay clear of the area as high-pressure washing is being performed. Also, signs should be posted that the surface may be slippery and trip hazards may be present.

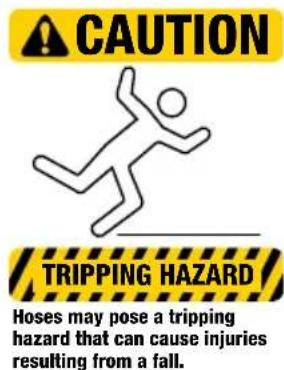

CAUTION:CAUTION: Hoses may pose a tripping hazard that can cause injuriesresulting from a fall. CAUTION TRIPPING HAZARDPage 6 This product can expose you to chemicals which are known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information on California Proposition 65, go to www.P65Warnings.ca.gov.

CALIFORNIA PROPOSITION 65 WARNING

● All information in this publication was based on the latest product information available at the time of printing. The FNA Group reserves the right to update, change, and/ improve the product and this document at any time, without notice, and without incurring any obligation. ● This manual may cover more than one machine. The pictures and gures in the manual should be used for reference only. There may be di󰀨erences between your product and the pictures, drawings, and diagrams in this manual. DISCLAIMERS PERSONAL PROTECTIVE EQUIPMENT (PPE) It is important to understand what personal protective equipment (PPE) should be utilized when using your pressure washer. Below is a list of PPE items that should be utilized at all times when using the pressure washer. Hearing - Ear plugs or mu󰀨s to protect your hearing. Vision - Safety goggles to protect your eyes. Clothing - Long pants to protected your legs from ying debris. Shoes - Shoes that fully cover your feet to protect against debris and over spray. NOTICE This appliance is not intended to be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.Page 7 UNPACKING Adding the pump breather cap (if applicable) A RED shipping plug is in the pump that must be replaced with a BLACK breather cap. The plug is easy to replace with the following steps:

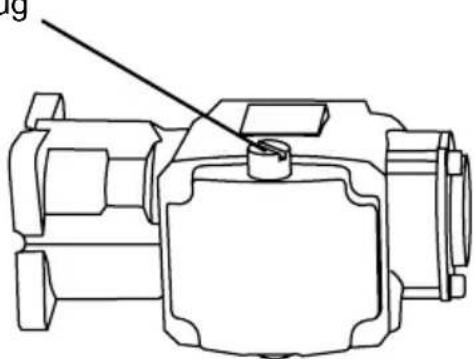

1. Using a bladed screw driver, remove the RED shipping plug from the top of the pump.

2. Hand thread the BLACK breather cap into the pump.

3. Snug the cap with your ngers.

RED shipping plug BLACK breather cap ASSEMBLY Follow the steps outlined in this section to unpack and assemble your pressure washer. If you have any questions regarding the unpacking or assembly of your pressure washer, please have your model number and serial number ready, then contact customer support at 1-877-362-4271 or email [e-mail].

1. Place the shipping carton on a solid, at surface.

2. Carefully cut the top of the carton open.

3. Carefully cut each corner of the carton from top to bottom.

4. Lay each side of the carton at on the ground.

5. Remove the contents of the carton.

WARNING! The threads on the lance and gun coupler can be easily cross threaded resulting in an improper assembly. An improper assembly of the gun and lance can result in personal injury. Do not use if the threads on the gun coupler and or lance are cross threaded. Hand thread the lance clockwise into the gun. Be careful not to cross-thread the gun and lance. Using an adjustable wrench, tighten the lance by placing the wrench on the ats of the nozzle quick-connector. Assemble the spray gunPage 8

Attempting to use the pressure washer incorrectly can result in motor and/or pressure washer damage, and may cause serious injury or death. To avoid these hazards, be sure to read, understand, and follow the steps outlined in the OPERATING CHECKLIST section of the owner’s manual and follow all the guidelines for proper use of the pressure washer. OPERATING CHECKLIST Organize accessories Place the spray gun and lance assembly into the holder on the dashboard.

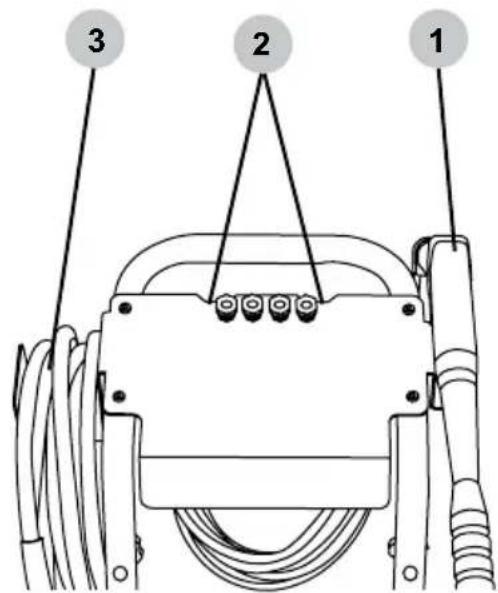

Push the nozzles into the rubber grommets on the dash- board. Note: the dashboard label indicates correct nozzle placement.

Hang the high-pressure hose on the holder.

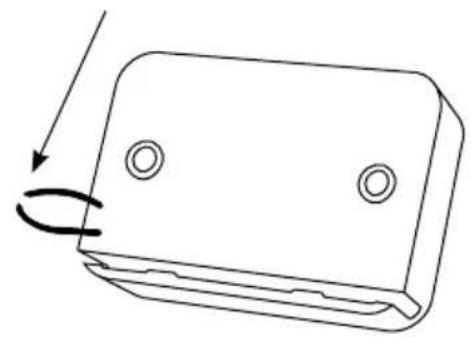

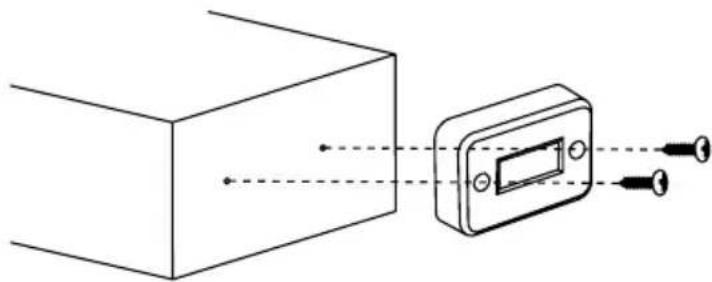

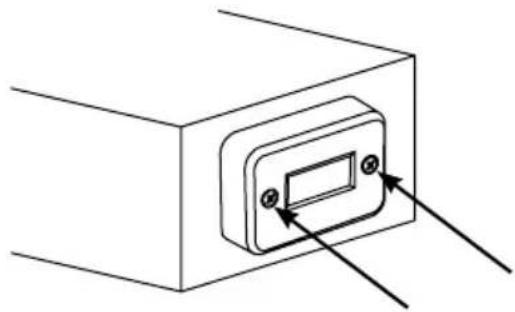

Activating the hour meter Using wire cutters, cut the wire loop, originating from the back of the hour meter, to activate it.

(If required) Place the screws back into the hour meter housing. Using the Philips screwdriver, tighten the screws into the control box housing.

(If the wire is not accessible) Using a Phillips screwdriver, remove the screws and the hour meter. After locating the wire loop, please follow Step #1. 2.Page 9 COMPONENT LOCATION

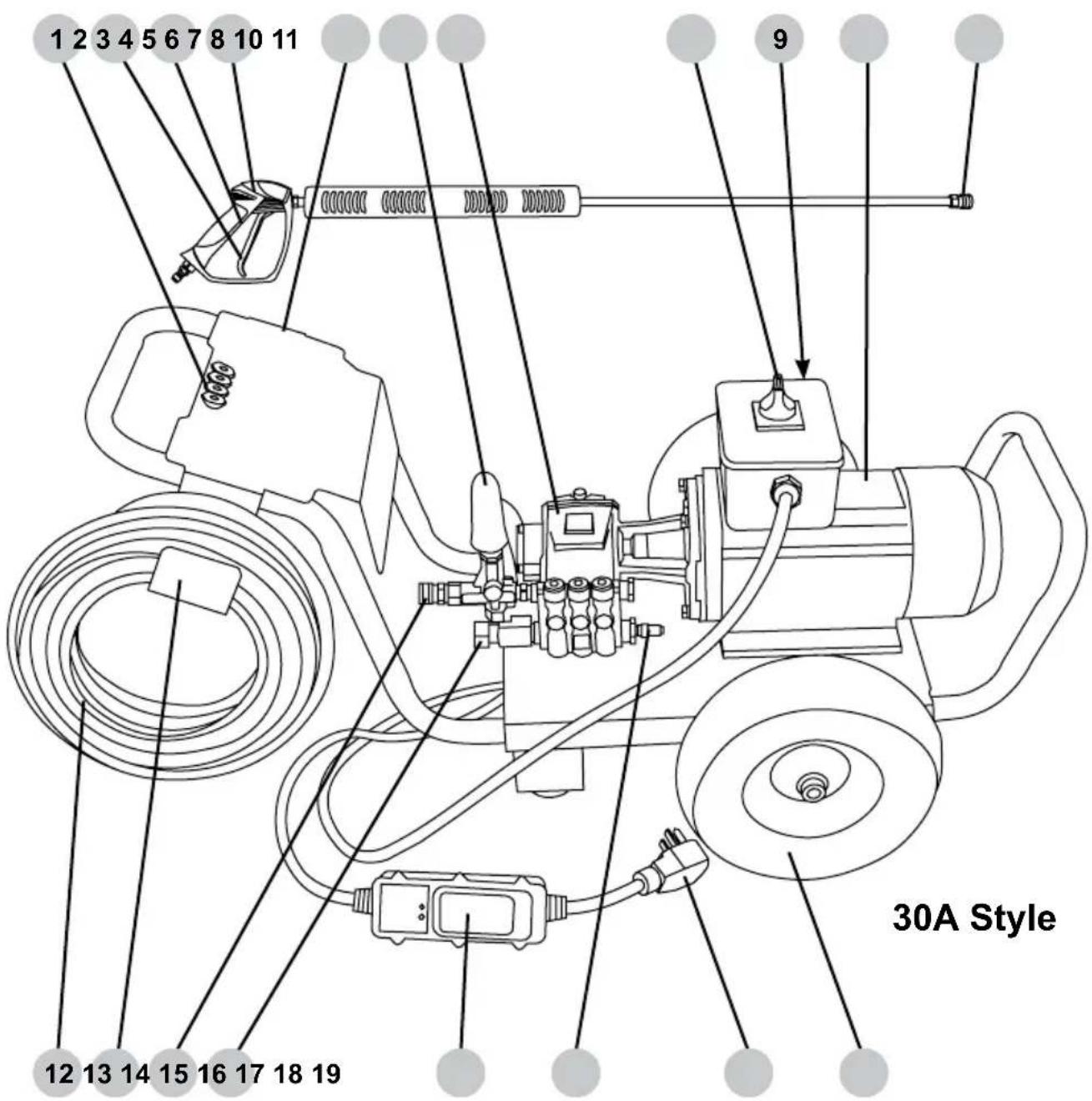

3. Spray gun trigger lock

2. Spray gun trigger

18. NEMA 6-30 male power supply plug

15. Garden hose coupler and lter

14. High-pressure pump outlet

12. High-pressure hose

3. Spray gun trigger lock

2. Spray gun trigger

19. NEMA 6-50 male power supply plug

16. Garden hose coupler and lter

15. High-pressure pump outlet

13. High-pressure hose

50A Style 10Page 11 Before connecting a water supply hose, be sure the water supply is capable of providing an uninterrupted source of clean, cold water at a minimum rate of 5 gallons per minute (GPM) and 20 pounds per square inch (PSI) of pressure. Once a proper water supply is secured, follow the instructions below to connect both the water supply and high-pressure hoses to the pressure washer. CONNECTING HOSES Verify the inlet screen is free of any dirt or debris and is in place with the convex side facing out.

Turn on the water supply and run for 30 seconds to purge any debris from the supply hose. Then, turn o󰀨 the water supply and thread the water supply hose into the pump inlet.

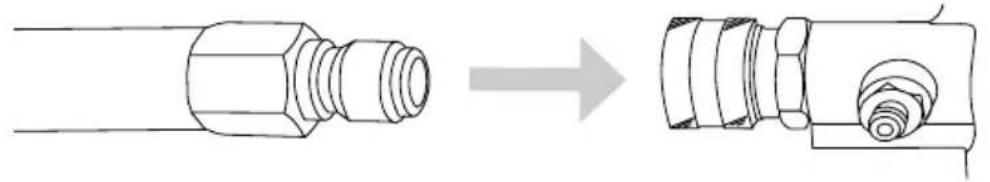

While pulling back on the pump outlet collar, insert the hose connector then release the collar. Gently tug on the hose to make sure it is locked.

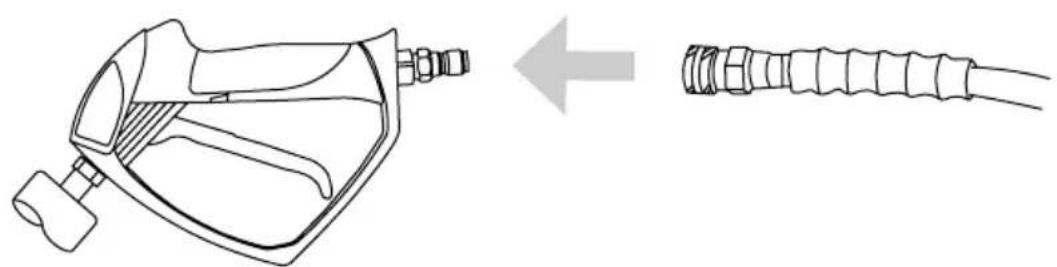

While pulling back on the hose outlet collar, insert the gun connector then release the collar. Gently tug on the hose to make sure it is locked. 4.WARNING:WARNING: NOTICE Page 12 A pressure washer pump is designed to operate with water owing through it. Water lubricates and cools the internal components of the pump. Running a pressure washer pump without water will severely damage the pump seals and other internal components. Damage caused by running a pressure washer pump without water is not covered under warranty. Be sure to follow the instructions below to correctly purge the air from your pressure washer pump before starting the engine.

PURGING AIR FROM THE PUMP

Running a pressure washer pump without water will severely damage the pump seals and other internal components. To avoid this hazard, make sure your water supply is uninterrupted and at least 5 GPM at 20 PSI, and always purge the air your pressure washer pump before starting the engine. PUMP PURGING The high pressures created by a pressure washer can cause uid injection injuries, severe lacerations, amputations, and / or death. To avoid these hazards, always aim the spray gun and lance in a safe direction when using the pressure washer and never attempt to touch a leak in a high-pressure hose or tting. INJECTION INJURY

1. Connect all the hoses by following the steps outlined in the CONNECTING HOSES

section of this manual then turn on the cold water source.

2. Aim the spray gun in a safe direction then squeeze and hold the trigger for at least 30

seconds or until the water runs steady and all the air is purged from the pump and hoses.

3. Check hoses and connections for leaks. If leaks are found, turn o󰀨 the machine, aim

the spray gun in a safe direction and squeeze the trigger to relieve any built up pressure in the system. Never attempt to touch a leak in a high-pressure hose or tting. Never attempt to repair a high-pressure hose. Engage the trigger lock.4.Page 13 NOZZLES Nozzle Selection Nozzle Installation To place a nozzle into the spray wand, pull the quick-connect coupler back, insert the nozzle, then release the coupler allowing it to snap back in place. Once installed, pull on the nozzle to make sure it secure.The nozzles supplied with the pressure washer have specic spray patterns designed to clean di󰀨erent surfaces. Using the incorrect nozzle can damage surfaces. Refer to the table below to select the correct nozzle before using the pressure washer. NOTE: The selection of nozzles included may vary with pressure washer models.High-pressure spray can damage plants and other surfaces. To avoid causing damage, cover plants before spraying near them, refer to the Nozzle Selection table in this manual for correct nozzle selection, and test surfaces before spraying to make sure they are strong enough to withstand high-pressure spray. SPRAY DAMAGE NOTICE If the motor is running, make sure the trigger lock is in the locked position before removing and installing nozzles. HIGH PRESSURE

PRESSURE LOW SOAP Yard tools, sidewalks, lawn furniture, unpainted siding, stucco, gutters, eaves, concrete, and brick surfacesGrills, driveways, concrete and brick walkways, unpainted brick and stuccoAuto, truck, RV, marine, wood, painted brick, painted stucco, vinyl, and painted sidingSafe on all surfaces. Always verify compatibility of cleaning solution(s) prior to use. SurfacesUses Intense cleaning of unpainted surfacesStandard cleaning nozzle for most applicationsCleaning painted or delicate surfacesApplies cleaning solutionsSpray pattern Color YellowGreenWhiteBlackPage 14 OPERATING CHECKLIST Location Operating Conditions Place the pressure washer on a level surface outside. Never use an extension cord with the electric pressure washer. If the power supply cord will not reach a receptacle, move the pressure washer closer to the receptacle.

Failure to inspect this product before use could create a hazardous situation resulting in product damage, serious injury, and/or death. To avoid these hazards, inspect the pressure washer before each use. Check for loose or damaged parts, signs of oil leaks, missing guards, plugged cooling vents, or any other condition that may a󰀨ect proper operation. Repair or replace all damaged or defective parts and keep all safety guards in place and in proper working order before using the pressure washer.

Untrained adults and children can be seriously injured or killed if allowed to incorrectly operate or play with running pressure washer. To avoid these hazards, be sure anyone operating the pressure washer receives proper instructions, understands safe operation, and has read the owner’s manual before operating this product. Do not let children operate the pressure washer without parental supervision. Keep children and pets away from the pressure washer while it is running. Always turn o󰀨 the pressure washer before leaving the area. UNTRAINED OPERATION

Spray can splash back or propel objects. Always wear properly rated eye protection such as safety goggles or face shield while spraying. (Safety glasses do not provide full protection).

Know how to stop the product and bleed pressures quickly. Be throughly familiar with the controls. Stay alert - watch what you are doing. Do not overreach or stand on unstable support. Keep good footing and balance at all times. Do not operate the product when fatigued or under the inuence of alcohol or drugs. Keep operating area clear of all persons. Before each use, check for loose or damaged parts, leaks, and/or any other condition that may a󰀨ect proper operation. Repair or replace all damaged and/or defective parts immediately. Always keep all safety guards in place and in proper working order. For safety reasons, the manufacturer recommends all maintenance and repairs be performed by an authorized service center. Before using the pressure washer, remove any excessive dirt and debris from the cooling vents of the motor. Always operate the pressure washer on a level surface and never move or tip the pressure washer while operating. Use the pressure washer only for its intended purpose. If you have questions about the proper use of your pressure washer, please contact customer support at 1-877-362-4271 or [e-mail] 15

The high pressures created by a pressure washer can cause uid injection injuries, severe lacerations, amputations, and / or death. To avoid these hazards, always aim the spray gun and lance in a safe direction when using the pressure washer and never attempt to touch a leak in a high-pressure hose or tting. INJECTION INJURY

STARTING THE PRESSURE WASHER

1. Connect the hoses as instructed on Page 11.

2. Turn on the water and purge the system of air as instructed on Page 12.

3. Insert the desired nozzle as instructed on Page 13.

4. Make sure the master ON/OFF switch is in the OFF (0) position.

30 ampere style 250v 30A 6-30R250v 50A 6-50R

5. Plug the electrical power cord into a grounded receptacle, rated for voltage and

current requirements of the pressure washer, that was properly installed in accordance with all local codes and ordinances.Page 16 OFF ONRESET TEST OFF ONRESET TEST 30 ampere style B). Press the TEST button. The OFF indicator light will now be illuminated. A). Press the RESET button. The ON indicator light will now be illuminated (ON). C). Press the RESET button. The ON indicator light will once again be illuminated (ON). OFF ONRESET TEST RESETPOWER ON TEST RESETPOWER ON TEST 50 ampere style A). Press the TEST button. The indicator light should now be dark (OFF). B). Press the RESET button. The indicator light will now be illuminated (ON).

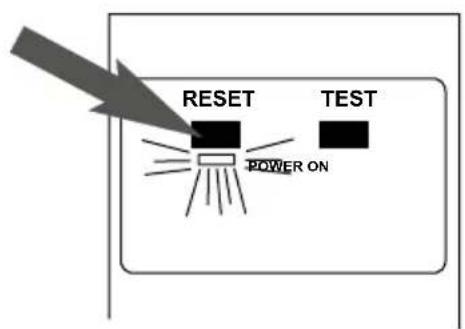

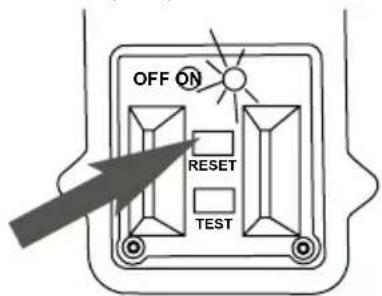

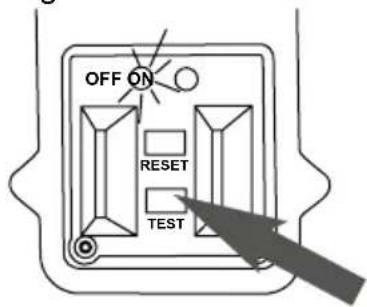

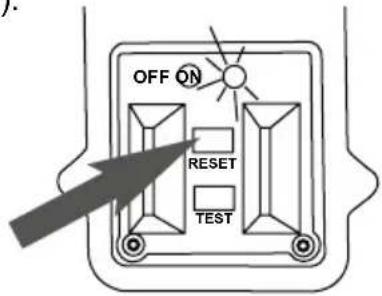

6. Test the GFCI by following the steps for your particular unit. NOTICE - DO NOT

use the pressure washer if the below tests fail. Improper connection of the equipment-grounding conductor can result in a risk of electrocution. Check with a qualied electrician or service personnel if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the product - if it will not t the outlet, have a proper outlet installed by a qualied electrician. Do not use any type of adapter with this product. ELECTROCUTION HAZARD This Product is Provided With A Ground Fault Circuit Interrupter Built Into The Power Cord or Plug. If Replacement Of The Ground Fault Circuit Interrupter Or Cord Is Needed, Use Only Identical Replacement Parts.

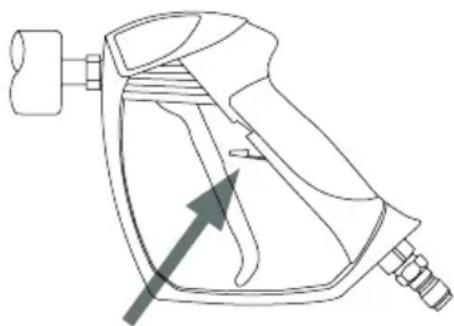

9. Point the gun in a safe direction, open the trigger lock and squeeze the trigger.

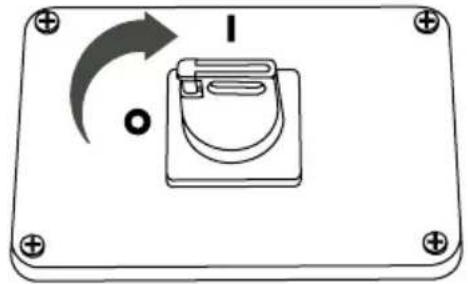

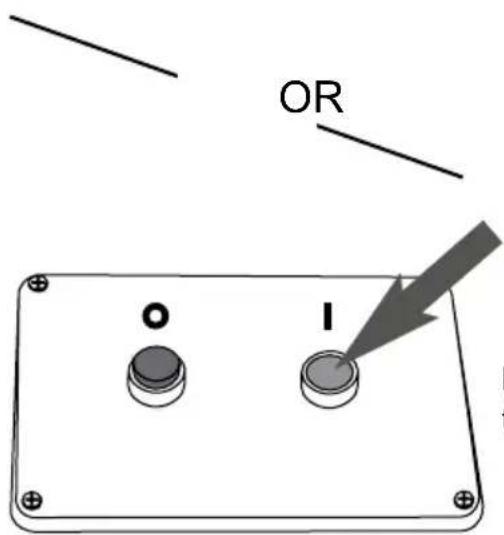

Rotate the switch clockwise to the “I” position to turn the pressure washer on. Press the GREEN button to turn the pressure washer on. ORORSOAP Page 18 Ensure that the outboard soap injector is connected to the washer high-pressure output.

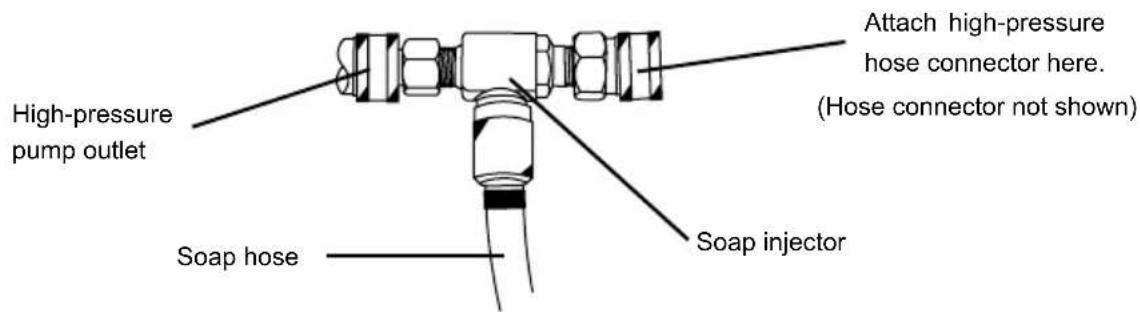

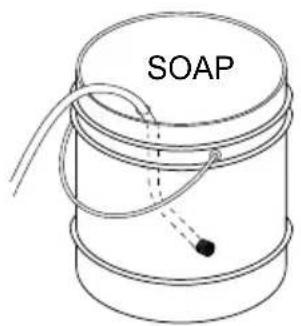

Soap hoseAttach high-pressure hose connector here.pump outletHigh-pressureSoap injector USING CHEMICALS (if equipped) NOTICE Pressure washing with volatile, ammable, or corrosive liquids could cause pressure washer damage, re, or explosion resulting in severe injury and/or death. To avoid these hazards, use only approved soaps and chemicals, do not attempt to pressure wash with volatile, ammable, or corrosive liquids, and NEVER use bleach. VOLATILE LIQUIDS Place the ltered end of the soap hose into a container of soap.

Insert the black nozzle into the spray wand per the Nozzle Installation section of this manual, page 13. NOTE: Soaps will not siphon if the black soap nozzle is not installed on the spray wand.

Make sure the trigger lock is in the locked position before removing and installing nozzles.

After using soap, place the ltered end of the soap hose into a container of clean water and run pressure washer drawing clean water through the hose and pump until the system is thoroughly rinsed. If soap or other chemicals remain in the pump, the pump could be damaged. Pump damage from soap or chemical residue is not covered under warranty. (Hose connector not shown)Page 19

TURNING OFF THE PRESSURE WASHER

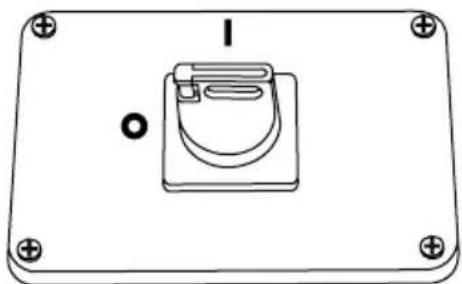

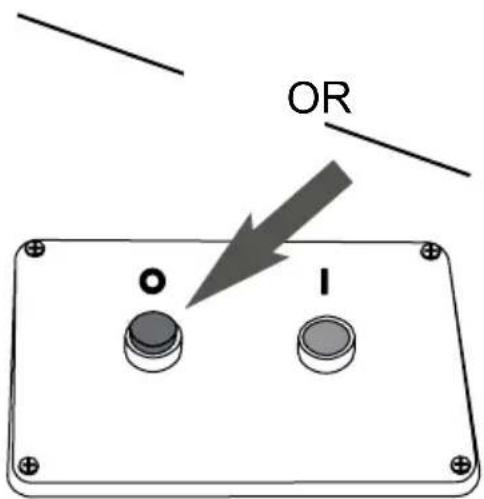

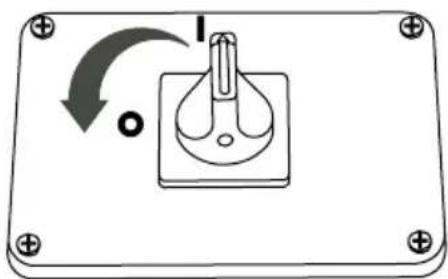

Rotate the switch counter- clockwise to the “O” position to turn the pressure washer o󰀨. Press the RED button to turn the pressure washer o󰀨.

1. Set the trigger lock on the spray gun.

2. Turn the pressure washer motor o󰀨.

3. Turn o󰀨 the water supply.

4. Release the trigger lock then squeeze the spray gun trigger to relieve the pressure

in the hose and pump. HOUR METER HOURS The hour meter keeps track of the time the pressure washer is running. The hour glass icon ashes when the motor is running to signify the meter is tracking the hours of operation. The digital time display shows the recorded hours of operation. Use this information for preventative maintenance intervals. For hour meter location see the COMPONENT LOCATION section of this manual.

• PSI - Pounds per square inch (PSI) is the unit to measure the pressure of water. In relation to a pressure washer, the higher the PSI number, the greater the pressure and stripping power produced.

• GPM - Gallons per minute (GPM) is the ow rate of water. In relation to a pressure washer, the greater the GPM, the greater the ow or rinsing power produced.

• CU - Cleaning units express the e󰀩ciency of the pressure washer. Cleaning units are calculated by multiply the PSI by the GPM. The higher the CU, the more e󰀩cient the pressure washer.

• Read all warning and instructions in this and all manuals that came with the pressure washer.

• Remove all toys, bikes, lawn furniture, etc. from the work area if they are not to be cleaned.

• Sweep any loose dirt and debris from the surface you will be pressure washing.

• Cover nearby plants to avoid damaging them with the pressure washer spray.

• Use caution when spraying windows. Always use the white, 40

nozzle and stay at least 4 feet away.

• Lay tarps down to collect paint chips and other debris blown o󰀨 by the spray. Exterior paints used before 1977 may contain lead and will produce chips that will need to be collected and disposed of at a hazardous waste facility.

• A wider spray equals faster cleaning, while a tighter spray equals deeper cleaning.

• Keep the nozzle about 4 feet away from siding to avoid damage.

• Start washing siding at the bottom and work your way up, then rinse from the top down.

• Avoid driving water up behind siding.

• Use overlapping strokes for even cleaning.

• Work in small areas to keep the soap from drying.

• Do not aim the nozzle straight at the surface. Hold the wand at a 45

angle to the surface at a distance that cleans well without causing damage. Adjusting Pressure The pressure setting is preset at the factory to achieve optimum pressure and cleaning. If you should need to lower the pressure, it can be accomplished by the following methods.

• Back away from the surface to be cleaned. The further you position the nozzle from the surface to be cleaned, the lower the pressure to reach the surface.

• Change to the white, 40

nozzle. This nozzle produces a lower pressure, wider width spray. NOTE: Do not overtighten the pressure control knob. If overtightened, the knob COULD break causing immediate loss of pressure and costly repairs not covered by the warranty. Your unit may be equipped with an additional feature that allows you to adjust the pressure. To lower the pressure, turn the knob counter- clockwise to the desired pressure. To return the pressure to the factory setting, turn the knob clockwise until it stops. Page 20TROUBLE SHOOTING Issue Possible Cause Solution Pressure washer will not start. The power supply cord is not connected. Plug the cord into a receptacle of the proper voltage and amperage. The house circuit breaker is tripped. Reset the circuit breaker. The GFCI equipped receptacle (if applicable) is tripped. Reset the GFCI by pushing the RESET button. The GFCI in the power supply cord is tripped. Reset the GFCI by pushing the RESET button. The master ON/OFF switch is in the OFF position. Move the switch to the ON position. The thermal switch has tripped. Turn the master ON/OFF switch to the OFF position. Allow the unit to cool for 30 minutes before trying the pressure washer once again. The pressure washer creates low or no water spray pressure. There is air in the hoses and/or pump. Refer to the PRIMING THE PUMP section of this manual to remove air from pump and hoses. The water supply is insu󰀩cient. Make sure the water supply pressure is at least 5 gpm @ 20 PSI. The nozzle is clogged. Clean nozzle per the MAINTENANCE section of this manual. The water inlet screen is clogged. Clean the water inlet screen per the MAINTENANCE section of this manual. Detergent fails to mix with the spray. Transparent tube is clogged or cracked. Clean or replace the transparent tube. Transparent tube is not attached to the pump. Attach the transparent tube to the detergent connector on the pump. Incorrect nozzle used. Install the black soap nozzle on the wand. Detergent too thick. Add water to the detergent to make it the consistency of water. Page 21Page 22 For safety reasons, the manufacturer recommends all pressure washer service and repairs be performed by an authorized service center. All warranty replacements or repairs must be performed by an authorized distribution or service center. To nd an authorized service center near you, make a warranty claim, or get authorized warranty repair, call 1-877-362- 4271 or email [e-mail]. It is the responsibility of the owner and/or operator to have all scheduled maintenance completed before operating the pressure washer. Be sure to follow the inspection and maintenance recommendations as listed in all the manuals that came with this unit. Before each use, check pressure washer for leaks, loose or damaged parts, and any other condition that may a󰀨ect proper operation. Be sure all safety guards are in place and in proper working order. Inspect all air vents and cooling slots to ensure they are clean and unobstructed. Repair or replace all damaged or defective parts immediately. For safety reasons, the manufacturer recommends all pressure washer service and repairs be performed by an authorized service center. Never attempt to repair a high-pressure hose. Always clean the pressure washer with the motor o󰀨 and cool. To clean the pressure washer, rst use an air compressor set at no more than 25 PSI to clear dirt and debris from the pressure washer surfaces, vents, and cooling slots. Then, wipe the exterior clean with a damp cloth. MAINTENANCE Maintenance Connections Cleaning the Pressure Washer NOTICE Water can damage the pressure washer electrical components if allowed to enter through cooling slots or other holes. Damage caused by water intrusion is not covered under warranty. To avoid electrical / motor water damage, do not use a pressure washer, garden hose, or any other sources of running water to clean the pressure washer motor, and never submerge the pressure washer in any liquids. CLEANING NOTICE Using chemical cleaners and/or corrosive liquids can damage the pressure washer seals and internal components. Damage caused by chemical cleaners and corrosive liquids is not covered under warranty. To avoid these hazard, only used approved cleaning chemicals, never use bleach, and always run clean water through the pressure washer after using cleaning chemicals. CHEMICAL CLEANERS Hose, spray gun, and pump connections should be cleaned and lubricated with a thin lm of lithium grease regularly to prevent o-ring damage and leaks.If a nozzle becomes clogged, the pump may pulsate and spray patterns could change. If the nozzle is not cleaned, excessive pressure may develop possibly damaging the pump, or other accessories. Inspect nozzles before using them and follow the instructions in this section for the proper nozzle cleaning procedure. Nozzle Cleaning

1. Shut o󰀨 the pressure washer.

2. Turn o󰀨 the water supply.

Point the Spray gun in a safe direction and squeeze the trigger to relieve water pressure.

4. Set the trigger lock.

5. Remove the nozzle from the lance quick connector.

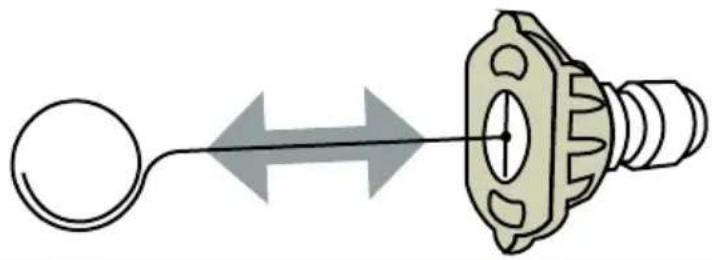

Clear any obstructions from the nozzle by inserting the nozzle cleaning tool provided.

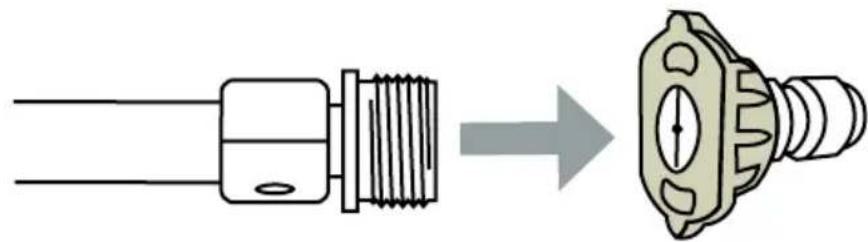

7. Rinse any loose debris from the nozzle by directing a running garden hose into the output

of the nozzle for at least 30 seconds. Before each use, check the inlet lter and clean by following the steps below. Never operate the pressure washer without the inlet lter properly installed. Water Inlet Filter

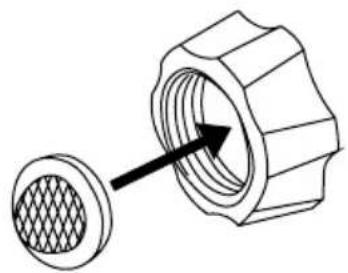

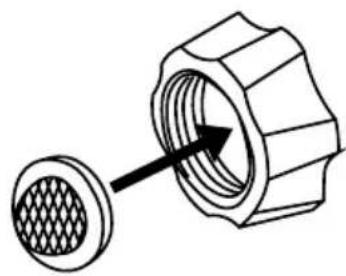

1. Remove the lter from the garden hose coupler.

2. Use a water from a running garden hose to clean both sides of the lter.

3. Insert the cleaned lter into the pump inlet with the convex side facing out.

Page 23STORING THE PRESSURE WASHER

3. Remove trapped water from the high-pressure hose; coil for storage.

4. Hold the gun in a vertical plane and squeeze the trigger to remove trapped water.

2. Disconnect the high-pressure hose from the pump and the gun.

5. Protect the pump by using SIMPSON

6. Store the pressure washer and its accessories in a cool, dry location out of direct

1. Squeeze the trigger to relieve stored pressure in the pump and hose.

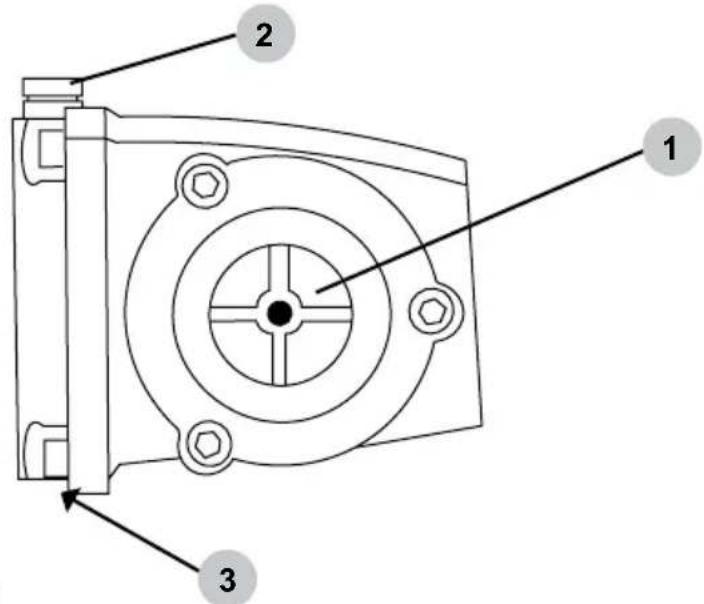

Page 24 Note: The pump was lled with oil at the factory. The preferred oil is SIMPSON Premium Pump Crankcase Oil. If this oil is not available, an SAE 15W-40 oil may be used. Change the oil after the rst 50 hours of operation and every 100 hours thereafter or every 3 months. Pump Maintenance

3. Oil drain plug (not shown)

1. Loosen the pump oil ll plug / vent cap.

2. Place a container under the oil drain plug.

3. Remove the oil drain plug.

4. After the oil has drained, insert the oil drain plug; tighten securely.

5. For AAA™ pumps, rell with SIMPSON

Premium Pump Crankcase Oil. If this oil is not available, an SAE 15W-40 oil may be used.

6. Make sure the oil level meets but does not exceed the dot in the center of the sightglass.

7. Insert the oil ll plug; tighten securely.

How to change the pump oilPage 25 USING SIMPSON

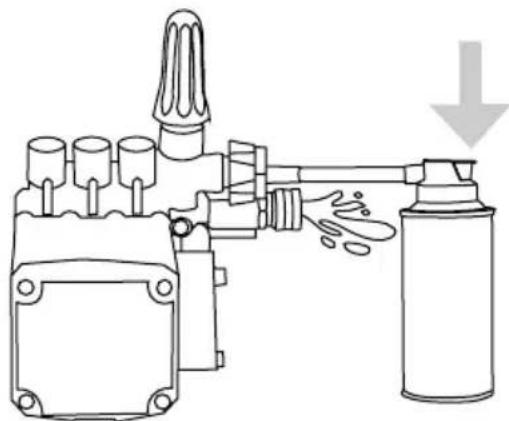

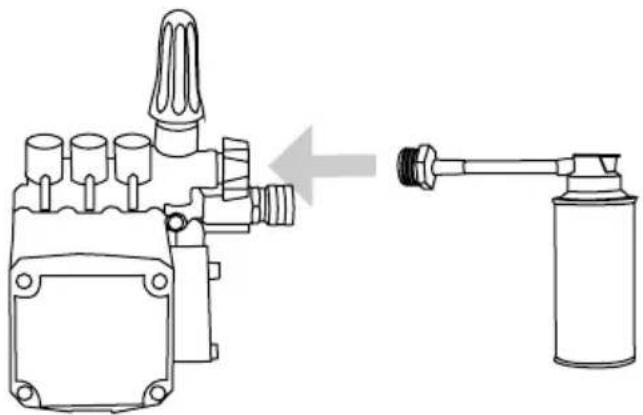

PUMP GUARD NOTICE Leaving water inside the pump during freezing weather will cause severe damage to the pump. To avoid costly damage, always treat the pump with SIMPSON Pump Guard to remove the trapped water and to ll the pump with a lubricating, antifreeze solution. PUMP DAMAGE SIMPSON Pump Guard (purchase separately) is formulated to protect your pump during long-term storage and from freezing damage. Pump Guard should be used throughout the season to keep the seals pliable and well lubricated. Before storing the unit for winter or for when there is a chance of freezing weather, use pump guard to remove all traces of water from the internal cavities while lling them with an antifreeze solution. Simply use Pump Guard by following these easy steps:1. Screw the Pump Guard adapter into the garden hose input on the pump. 2. Press and hold down on the button until all the water and the Pump Guard starts to come out of the high pressure port.3. Unscrew the Pump Guard from the pump then prepare the pressure washer for storage as outlined in STORAGE AND TRANSPORTATION.Page 26 LIMITED WARRANTY Commercial / Industrial / Rental Products WARRANTY COVERAGE TERMS: The manufacturer of this product agrees to repair or replace designated parts that prove defective within the warranty period listed below at the manufacturers sole discretion. Specic limitations/extensions and exclusions apply. This warranty covers defects in material and workmanship and not parts failure due to normal wear, depreciation, abuse, acciden

tal damage, negligence, improper use, maintenance, water quality and storage. To make a claim under the terms of the warranty, all parts said to be defective must be retained and available for return upon request to a designated Warranty Service Center for warranty inspection. The judgments and decisions of the manufacturer concerning warranty claims are nal. There warranties pass through to the end user and are non-transferable. As a factory authorized and trained Warranty Service Center, the factory will honor the terms of all component warranties and satisfy claims of the appropriate warranty provisions. Normal wear items included, but are not limited to, items such as valve and seals, which are not covered by this warranty. This warranty replaces all warranties, express or implied, including without limitation any warranties of merchantability or tness for a particular purpose and all such warranties are hereby disclaimed and excluded by the manufacturer. The manufacturer’s warranty obligation is limited to repair and replacement of defective products as provided herein and the manufacturer shall not be liable for any further loss, damages, or expenses - including damages from shipping, accident, abuse, acts of God, misuse, or neglect. Neither is damage from repairs using parts not purchased from the manufacturer or alterations performed by non-factory authorized personnel. Failure to install and operate equipment according to the guidelines put forth in the instruction manual shall void warranty. THIS WARRANTY DOES NOT COVER: Damage resulting from shipping (claims must be led with freighter), accident, abuse, acts of God, misuse or neglect. This war- ranty also does not cover damage from repairs or alterations performed by non-factory authorized personnel or failure to install and operate equipment according to the guidelines put forth in the instruction manual. The manufacturer will not be liable to any persons for consequential damage, for personal injury or for commercial loss. RESPONSIBILITY OF ORIGINAL PURCHASER (INITIAL USER): To process a warranty claim on your SIMPSON® pressure washer, report the concern to 1-877-362-4271 or cservice@fna-group. com for authorization and direction to the nearest authorized service center in your area. Retain original cash register receipt as proof of purchase for warranty work. Use reasonable care in the operation and maintenance of the product as described in the Owner’s Manual. WHAT THIS WARRANTY DOES NOT COVER:

• Damage due to chemical deterioration, scale build up, salt water, rust, corrosion or thermal expansion

• Damage caused by parts or accessories not obtained from an authorized dealer or not approved by the manufacturer

• Normal wear of moving parts or components a󰀨ected by moving parts

• Consumable parts such as: Fuel lter, air lter, spark plug(s), recoil starter rope, oil and lubricant(s)

• Normal periodic maintenance work such as carburetor cleaning and engine oil draining WARRANTY COVERAGE PERIODS: ELECTRIC MOTOR

• ONE (1) year from date of purchase HIGH PRESSURE PUMP (DEFECTS IN MATERIAL AND WORKMANSHIP)

• FIVE (5) years from date of purchase FRAME (DEFECTS IN MATERIAL AND WORKMANSHIP)

• FIVE (5) years from date of purchase ACCESSORIES (DEFECTS IN MATERIAL AND WORKMANSHIP)

• Nozzles, hoses, spray guns, wands, tires, rubber feet: Ninety (90) days from date of purchasePage 27 NOTES THIS PAGE WAS INTENTIONALLY LEFT BLANKPart Number 7120501 / ENGLISH REV C - 10/2023
