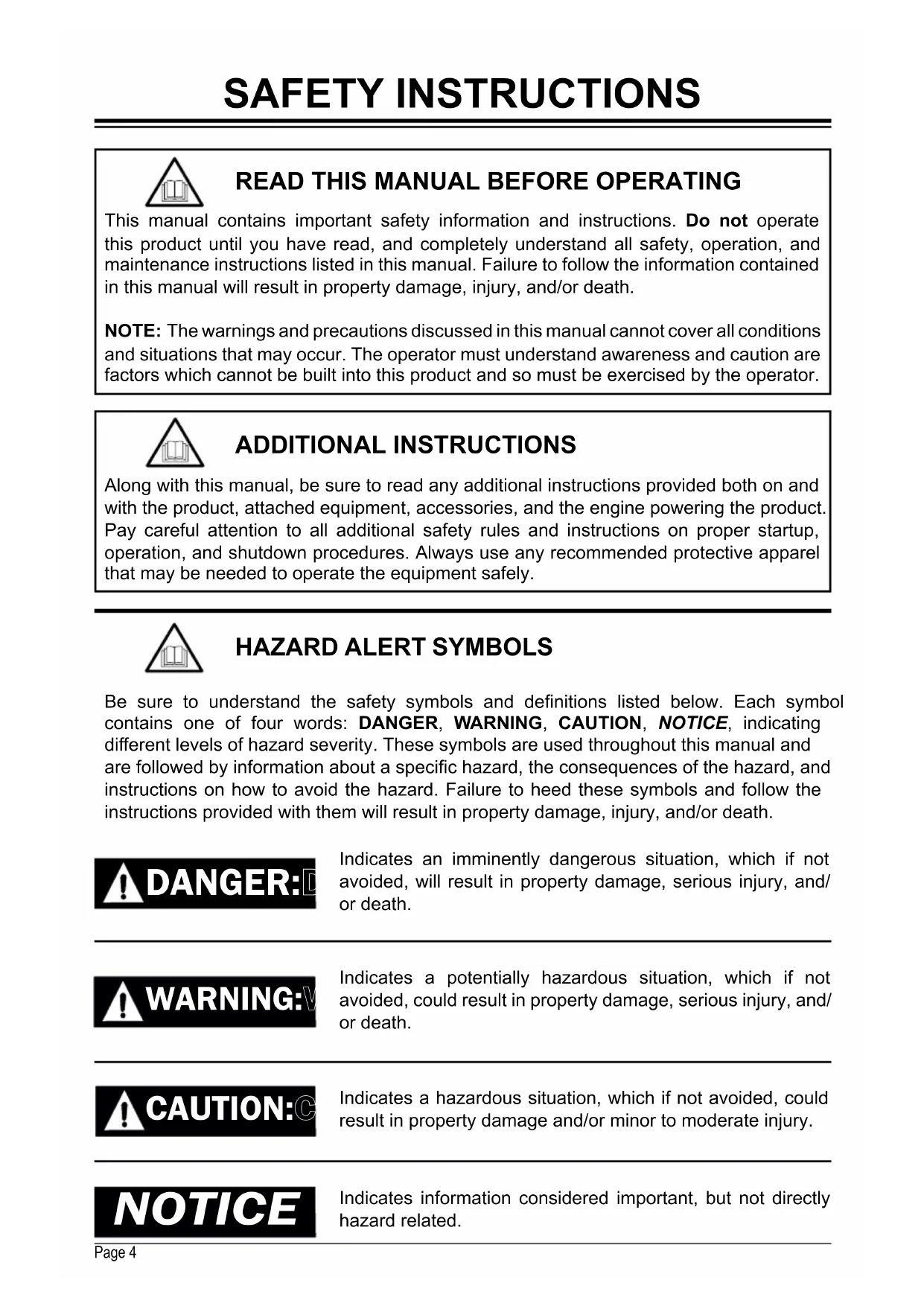

Hazard Alert Symbols Additional Instructions Read this Manual Before Operating SAFETY INSTRUCTIONS Remove Pump Breather Seal Assemble the Spray Gun ASSEMBLY Nozzle Placement

OPERATING CHECKLIST Location High Altitude Operation Operating Conditions

Trailer Rear-view Dual-cylinder Hot Water Unit High-pressure Pump Components COMPONENT LOCATION Single-cylinder Hot Water Unit Trailer Overall Prole Single-cylinder Engine Controls

Storing for Two Months or Less Storing for More Than Two Months Transportation

ENGINE PREPARATION Oil - Single-cylinder Oil - Dual-cylinder Oil - Diesel Fuel - Gasoline Fuel - Diesel

Gasoline Engine - Dual-cylinder

Gasoline Engine - Single-cylinder

Starting the Burner Filling the Burner Fuel Tank

CAUTION:CAUTION: This manual contains important safety information and instructions. Do not operate this product until you have read, and completely understand all safety, operation, and maintenance instructions listed in this manual. Failure to follow the information contained in this manual will result in property damage, injury, and/or death.NOTE: The warnings and precautions discussed in this manual cannot cover all conditions and situations that may occur. The operator must understand awareness and caution are factors which cannot be built into this product and so must be exercised by the operator.READ THIS MANUAL BEFORE OPERATINGBe sure to understand the safety symbols and denitions listed below. Each symbol contains one of four words: DANGER, WARNING, CAUTION, NOTICE, indicating di󰀨erent levels of hazard severity. These symbols are used throughout this manual and are followed by information about a specic hazard, the consequences of the hazard, and instructions on how to avoid the hazard. Failure to heed these symbols and follow the instructions provided with them will result in property damage, injury, and/or death.HAZARD ALERT SYMBOLSIndicates an imminently dangerous situation, which if not avoided, will result in property damage, serious injury, and/or death.Indicates a potentially hazardous situation, which if not avoided, could result in property damage, serious injury, and/ or death.Indicates a hazardous situation, which if not avoided, could result in property damage and/or minor to moderate injury.Indicates information considered important, but not directly hazard related. SAFETY INSTRUCTIONS ADDITIONAL INSTRUCTIONSAlong with this manual, be sure to read any additional instructions provided both on and with the product, attached equipment, accessories, and the engine powering the product. Pay careful attention to all additional safety rules and instructions on proper startup, operation, and shutdown procedures. Always use any recommended protective apparel that may be needed to operate the equipment safely. NOTICEPage 5 Special consideration needs to be made to the safety of not just the operator of the pressure washer, but also people who may be adjacent to the area being cleaned. The best way to warn unsuspecting individuals is with signage and barriers. Barriers can be as simple as plastic tra󰀩c cones or barricades to using barrier belts around the area being cleaned. Remember, pressure washing can dislodge weak or broken pavement turning it into projectiles that may injure others. Keeping people clear of the area is the best way to avoid injury. Wet pavement can be slippery to unsuspecting individuals causing injury from slips and falls. High-pressure and low-pressure hoses can be trip hazards. Segregating the area and placing appropriate signage can reduce injury. Barrier examples KEEP OUT HIGH PRESSURE WASHING

PROGRESS Sign examples When pressure washing in public areas, signs should be posted that indicate to stay clear of the area as high-pressure washing is being performed. Also, signs should be posted that the surface may be slippery and trip hazards may be present.

CAUTION:CAUTION: Hoses may pose a tripping hazard that can cause injuriesresulting from a fall. CAUTION TRIPPING HAZARDPage 6 This product and the engine exhaust can expose you to chemicals which are known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information on California Proposition 65, go to www.P65Warnings.ca.gov.

The air lter element and air box assembly may contain polycyclic aromatic hydrocarbons (PAHs). Some PAHs may cause cancer. To avoid exposure to PAHs, wear gloves when performing air lter maintenance. ● All information in this publication was based on the latest product information available at the time of printing. The FNA Group reserves the right to update, change, and/or improve the product and this document at any time, without notice, and without incurring any obligation. ● This manual may cover more than one machine. The pictures and gures in the manual should be used for reference only. There may be di󰀨erences between your product and the pictures, drawings, and diagrams in this manual. DISCLAIMERS PERSONAL PROTECTIVE EQUIPMENT (PPE) It is important to understand what personal protective equipment (PPE) should be utilized when using your pressure washer. Below is a list of PPE items that should be utilized at all times when using the pressure washer. Hearing - Ear plugs or mu󰀨s to protect your hearing. Vision - Safety glasses or goggles to protect your eyes. Clothing - Long pants to protect your legs from ying debris. Shoes - Shoes that fully cover your feet to protect against debris and over spray. NOTICE This appliance is not intended to be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.Page 7

UNPACKING / TONGUE INSTALLATION

Follow the steps outlined in this section to uncrate and assemble your pressure washering trailer. If you have any questions regarding the unpacking or assembly of your pressure washering trailer, please have your model number and serial number ready, then contact customer support at 1-877-362-4271 or email [e-mail].

1. Unfasten and unwrap tongue assembly from the trailer crate.

Installing the Trailer Tongue (if applicable)

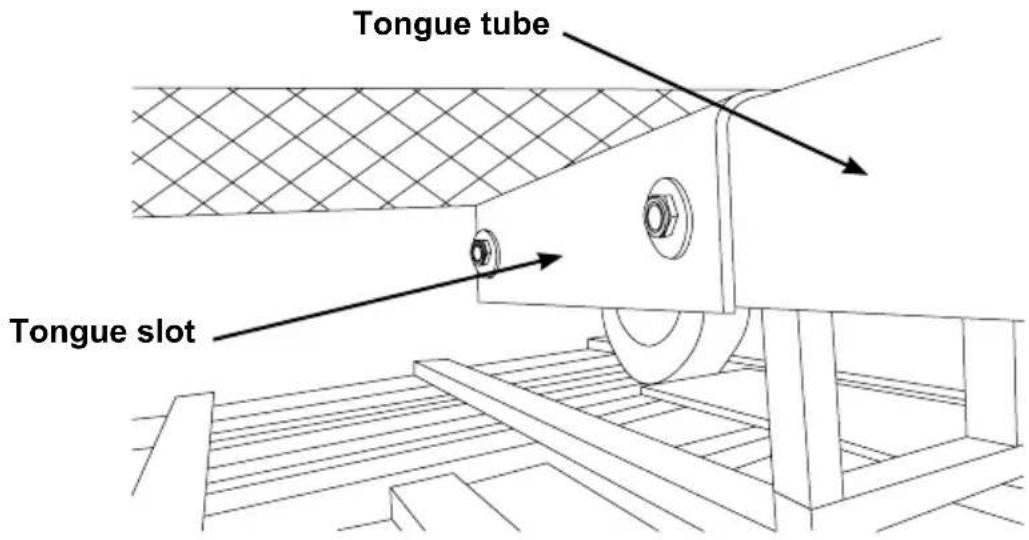

2. Slide tongue assembly into the slot located under the front section of the trailer.

Tongue slot Tongue tube

3. Slide lighting cable through tongue tube to the front of the tube.

4. Review the routing of the lighting cable through tongue to make sure it is not

pinched, stretched, tangled or hung up.

5. The hardware is located on the front wire mesh tray. Mount tongue hardware

through the tongue support angles and tongue tube; tighten. Grade 8 Hex Bolts Grade 8 Flat Washers Grade 8 Lock Nuts Trailer TonguePage 8

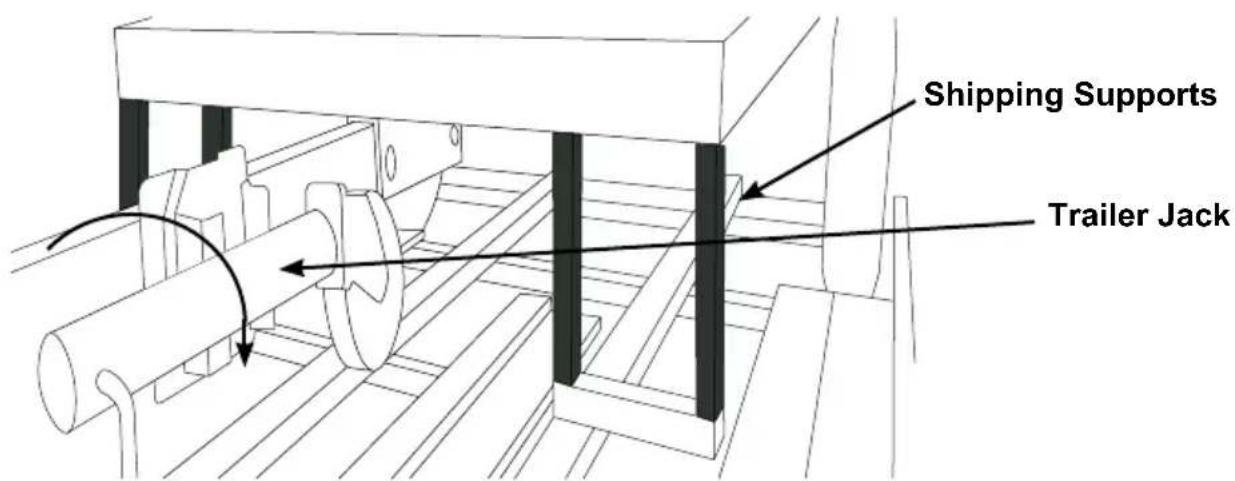

6. Swivel down the jack. Crank the jack down further to take weight o󰀨 of the front

wooden shipping supports. With the weight removed, the supports can be removed. Shipping Supports Trailer Jack

7. Remove ratchet tie down strap from rear of the trailer.

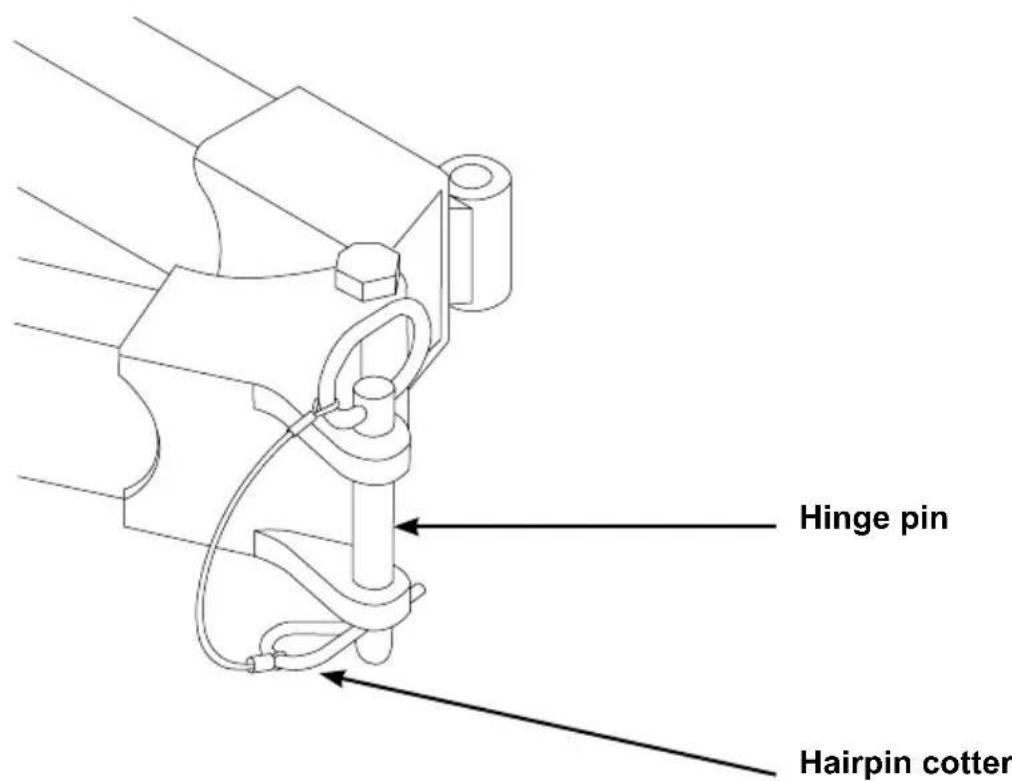

Breakaway Hinge Trailer Tongue (if equipped) The breakaway hinge trailer tongue has been installed for you at the factory. The purpose of the hinge is to allow you to fold the tongue back when not in use, allowing the trailer length to be shortened for storage. When you are ready to tow the trailer, swing the tongue forward then lock the hinge with the hinge pin; secure it with the hairpin cotter. Once the trailer tongue is connected to the tow vehicle hitch ball, connect the safety chains to the tow vehicle. Hinge pin Hairpin cotter Be sure to read and completely understand the SIMPSON

‘Trailer Operations Manual’, P/N 7114734, before towing the trailer.Nozzle placement Remove the colored quick-connect nozzles from the plastic bag and insert them into the rubber grommets next to their corresponding color on the label. WARNING! The threads on the lance and gun coupler can be easily cross threaded resulting in an improper assembly. An improper assembly of the gun and lance can result in personal injury. Do not use if the threads on the gun coupler and or lance are cross threaded. Hand thread the lance clockwise into the gun. Be careful not to cross-thread the gun and lance. Using an adjustable wrench, tighten the lance by placing the wrench on the ats of the nozzle quick-connector. Trigger lock Trigger Assemble the spray gun Page 9 ASSEMBLY Adding the pump breather cap (if applicable) A RED shipping plug is in the pump that must be replaced with a BLACK breather cap. The plug is easy to replace with the following steps:

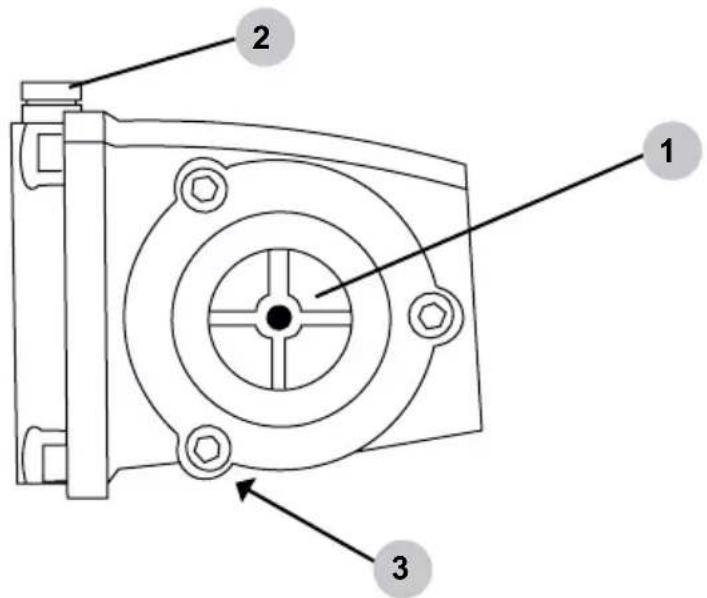

1. Using a bladed screw driver, remove the RED shipping plug from the top of the pump.

2. Hand thread the BLACK breather cap into the pump.

3. Snug the cap with your ngers.

RED shipping plug BLACK breather capPage 10 BATTERY CONNECTIONS The pressure washer does not come with a battery. You must install a U1 or Group 24 sized battery as applicable before using the pressure washer.

1. Remove the cover from the battery box.

2. Carefully place the battery into the battery box.

3. Place the red, positive (+) battery cable onto

the positive (+) battery post. Tighten.

4. Place the black, negative (-) battery cable

onto the negative (-) battery post. Tighten.

5. Place the cover back onto the battery box.

WARNING! Always remove the black, negative (-) battery cable rst and always connect the black, negative (-) battery cable last.

Attempting to start the engine incorrectly or using the pressure washer incorrectly can result in engine and/or pressure washer damage, and may cause serious injury or death. To avoid these hazards, be sure to read, understand, and follow the steps outlined in the OPERATING CHECKLIST section of the owner’s manual before starting the engine, and follow all the guidelines for proper use of the pressure washer.

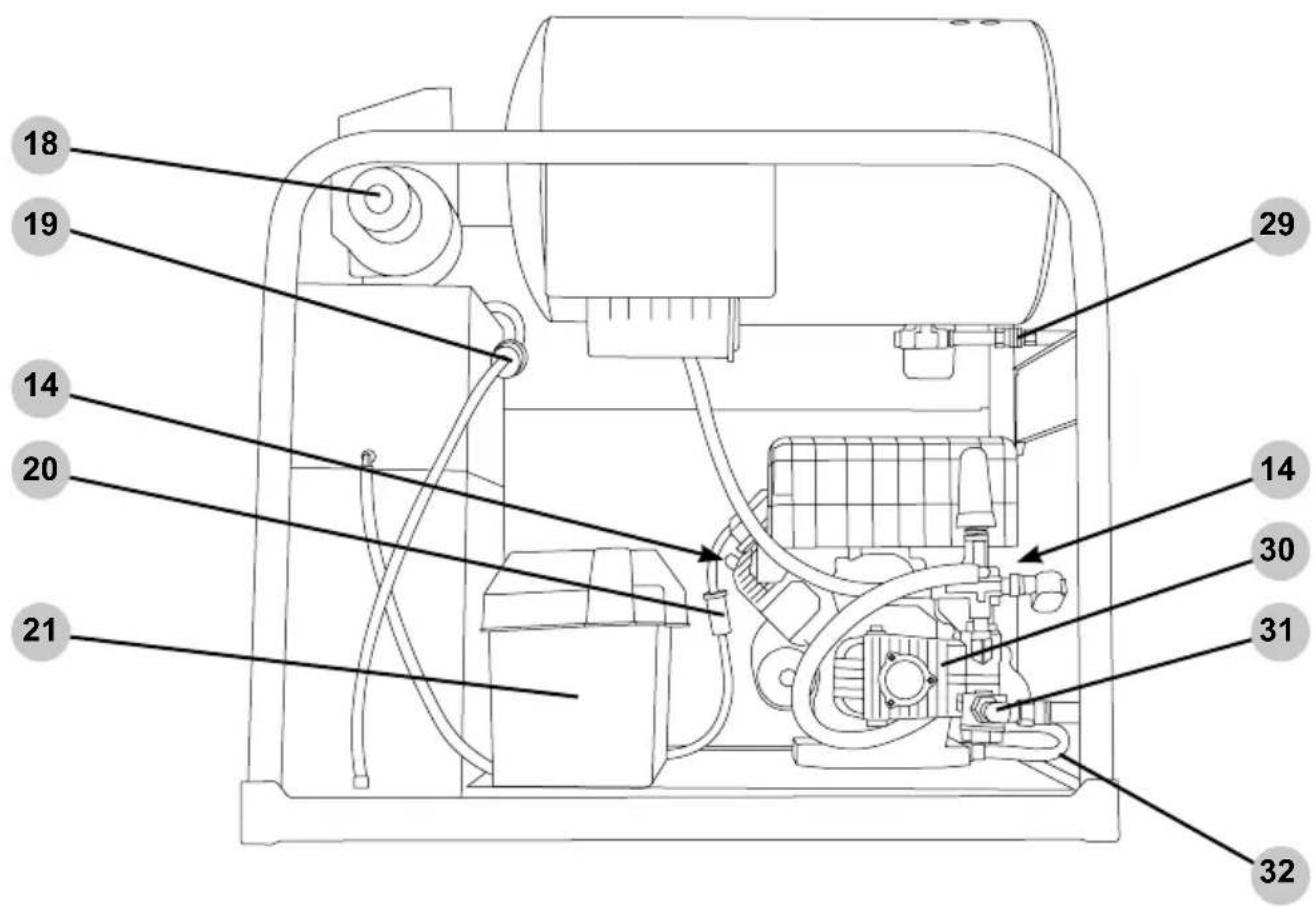

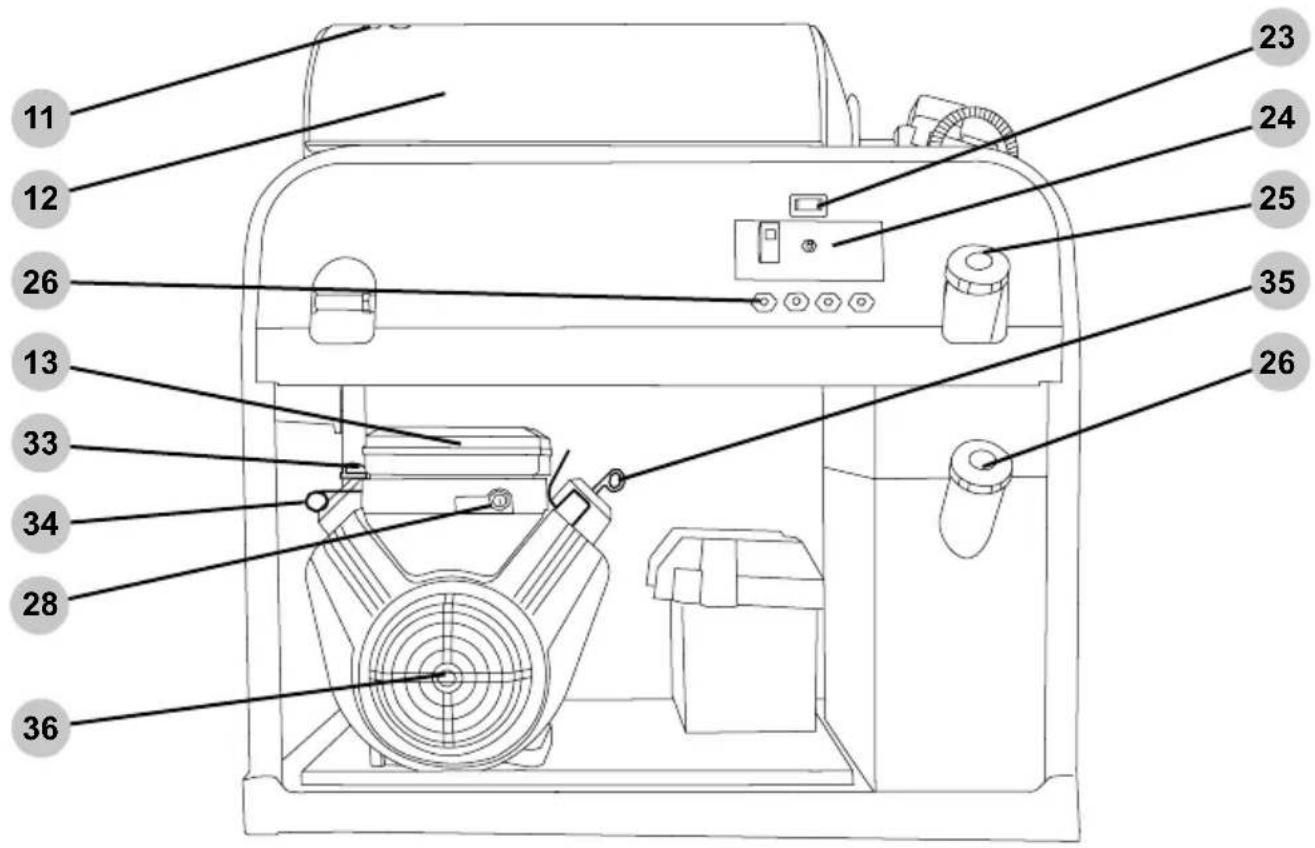

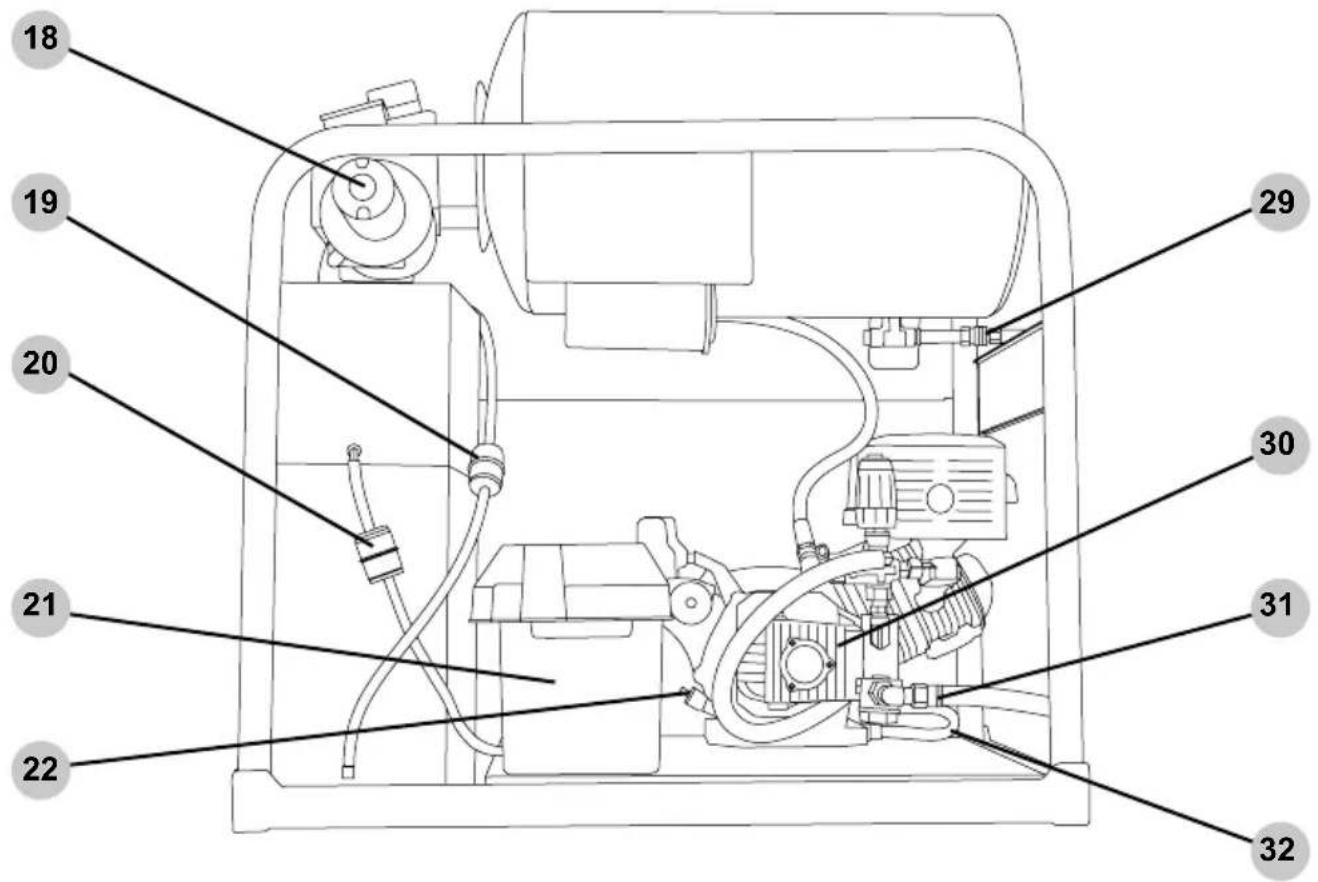

36Page 14 High-pressure pump components (pump style and components may vary) Single-cylinder engine controls

1. Hot water heating unit

13. Engine air lter housing

17. Single-cylinder engine

30. High-pressure pump

32. Engine oil drain hose

35. Engine oil dipstick

36. Dual-cylinder engine

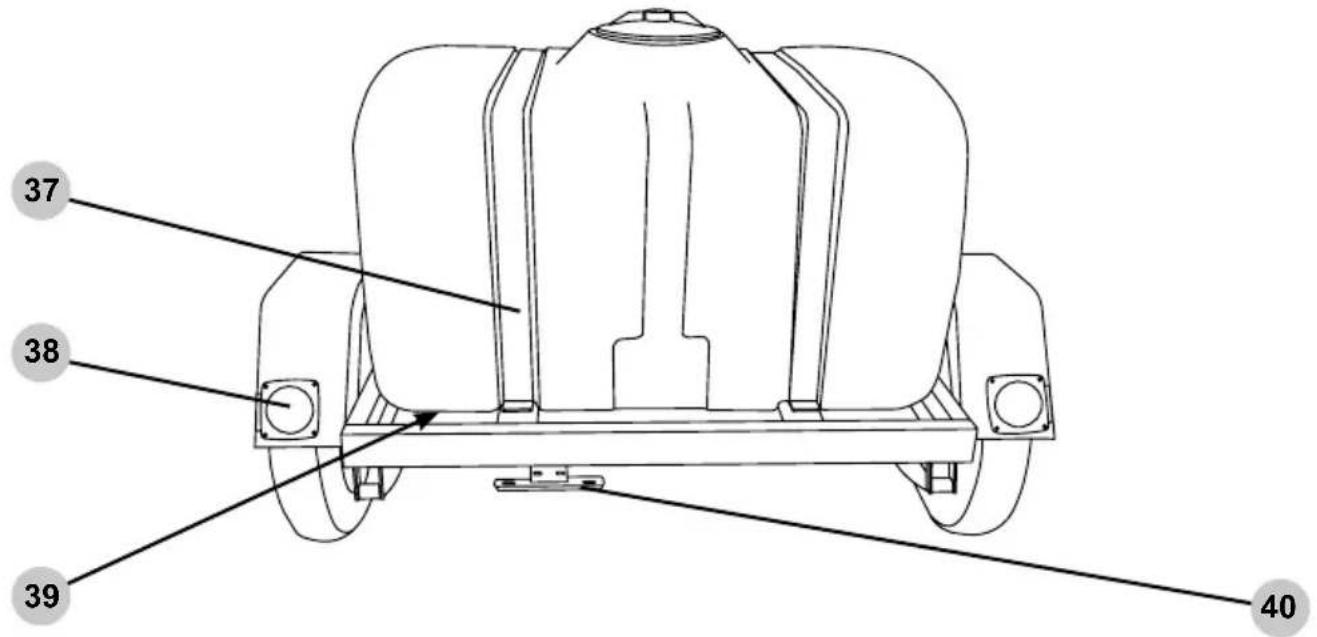

38. Brake lights (red)

40. License plate holder

39. Water tank valve (not shown)

41. High-pressure hose to the heater

43. Oil sight glass (if applicable)

42. Pump oil ller / dip stick

44. Pump oil drain plug

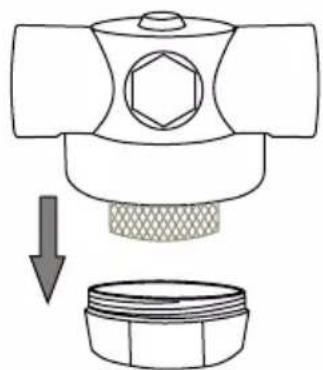

48. Water lter housing

50. Engine throttle (if equipped)

49. Water inlet hose from the tank.

52. Engine fuel valveTurn on the water supply and run for 5

seconds to purge any debris from the supply hose. Then, turn o󰀨 the water supply and thread the water supply hose into the tank ller hose.

Turn on the water supply. Allow the tank to ll to the FULL level. 3. Rotate the tank valve to the CLOSED position. 1. Page 16

FILLING THE WATER TANK

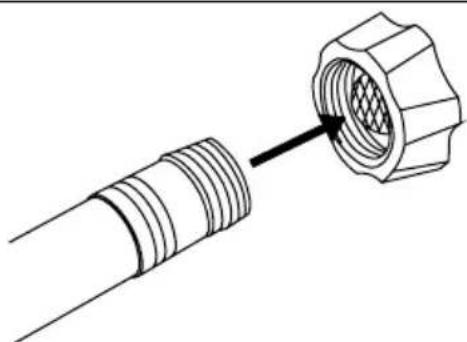

The water used in the tank should be clean, potable water. Do not use recycled, gray or pond water. These types of water will quickly clog the water lter and may lead to pump damage. Never use any types of water cleaners / conditioners in the tank. These may lead to costly pump repairs that are not covered under warranty. To reduce the possibility of contamination always protect against backow when connected to the potable water system. A backow preventer may be required in some municipalities. The backow preventer should be connected between the source system hose bib and the water supply hose. BACKFLOW PREVENTION

Located beneath the water tank, is a three-way valve. This valve allows you to control the ow of water from the tank, including draining the tank during freezing weather. When the valve handle is perpendicular to the valve body, the valve is in the closed position (no water will ow from the tank). Placing the valve handle parallel to the valve body, the valve is open allowing water to ow in the direction of the arrow on the valve handle. When the arrow is pointing toward the hose leading to the high-pressure pump, the tank is ready to supply water to the pump. Placing the handle with the arrow pointing toward the open connection, the tank will now drain allowing the tank to be cleaned or in preparation for freezing weather. CLOSED OPEN, PRESSURE WASHING OPEN, TANK DRAININGOnce the tank is lled, turn the water supply o󰀨 then disconnect the water supply hose.

DO NOT move the trailer unless the water supply hose is disconnected! Damage to the tank ller hose, the water supply hose and the water system hose bib will occur. Page 17 A pressure washer pump is designed to operate with water owing through it. Water lubricates and cools the internal components of the pump. Running a pressure washer pump without water will severely damage the pump seals and other internal components. Damage caused by running a pressure washer pump without water is not covered under warranty.

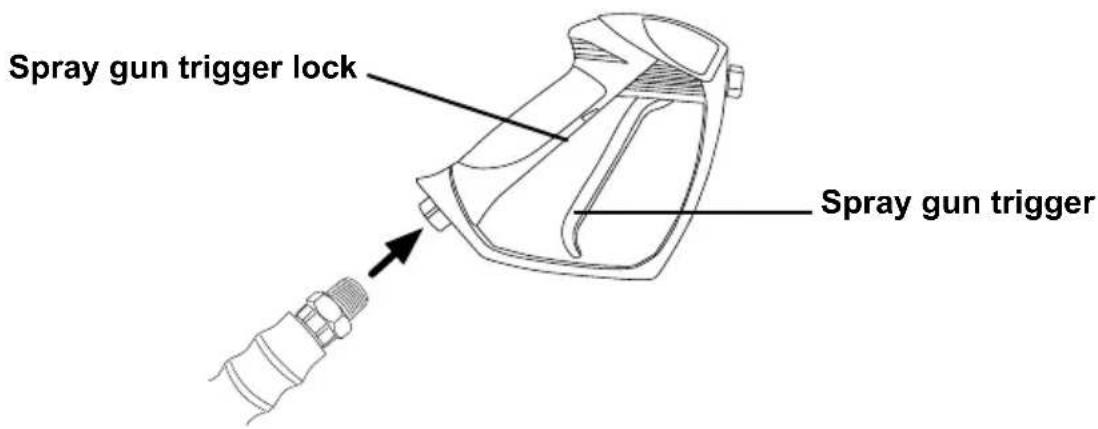

CONNECTING THE SPRAY GUN

NOTICE Running a pressure washer pump without water will severely damage the pump seals and other internal components. To avoid this hazard, make sure the water tank is lled with enough water for the application. Never allow the tank to be pumped dry, severe pump damage will occur. PUMP PURGING

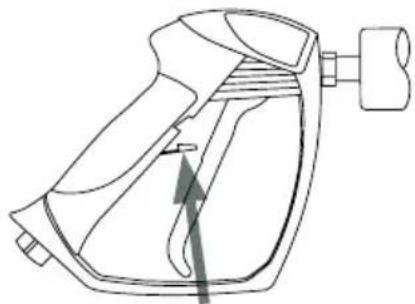

The high pressures created by a pressure washer can cause uid injection injuries, severe lacerations, amputations, and / or death. To avoid these hazards, always aim the spray gun and lance in a safe direction when using the pressure washer and never attempt to touch a leak in a high-pressure hose or tting. INJECTION INJURY Engage the trigger lock.2. Spray gun trigger Spray gun trigger lock Thread the high-pressure hose into the gun.1.Page 18 NOZZLES Nozzle Selection Nozzle Installation To place a nozzle into the spray wand, pull the quick-connect coupler back, insert the nozzle, then release the coupler allowing it to snap back in place. Once installed, pull on the nozzle to make sure it secure.The nozzles supplied with the pressure washer have specic spray patterns designed to clean di󰀨erent surfaces. Using the incorrect nozzle can damage surfaces. Refer to the table below to select the correct nozzle before using the pressure washer. NOTE: The selection of nozzles included may vary with pressure washer models.High-pressure spray can damage plants and other surfaces. To avoid causing damage, cover plants before spraying near them, refer to the Nozzle Selection table in this manual for correct nozzle selection, and test surfaces before spraying to make sure they are strong enough to withstand high-pressure spray. SPRAY DAMAGE NOTICE If the engine is running, make sure the trigger lock is in the locked position before removing and installing nozzles.

PRESSURE LOW SOAP Yard tools, sidewalks, lawn furniture, unpainted siding, stucco, gutters, eaves, concrete, and brick surfacesGrills, driveways, concrete and brick walkways, unpainted brick and stuccoUnpainted metal and concrete DO NOT use on wood.Auto, truck, RV, marine, wood, painted brick, painted stucco, vinyl, and painted sidingSafe on all surfaces. Always verify compatibility of cleaning solution(s) prior to use. SurfacesUses Spray PatternSpot cleaning hard, unpainted surfaces and high-reach areasIntense cleaning of unpainted surfacesStandard cleaning nozzle for most applicationsCleaning painted or delicate surfacesApplies cleaning solutions Color Red YellowGreenWhiteBlackPage 19 SOAP USING CHEMICALS (If equipped) NOTICE Pressure washing with volatile, ammable, or corrosive liquids could cause pressure washer damage, re, or explosion resulting in severe injury and/or death. To avoid these hazards, use only approved soaps and chemicals, do not attempt to pressure wash with volatile, ammable, or corrosive liquids, and NEVER use bleach. VOLATILE LIQUIDS Before connecting the outboard soap injector, the heating system needs to be cooled down by allowing water to ow for two minutes with the burner OFF. After the cool down, turn the engine OFF then squeeze the trigger to RELIEVE PRESSURE.

1. Disconnect the hose reel inlet hose from the high-pressure

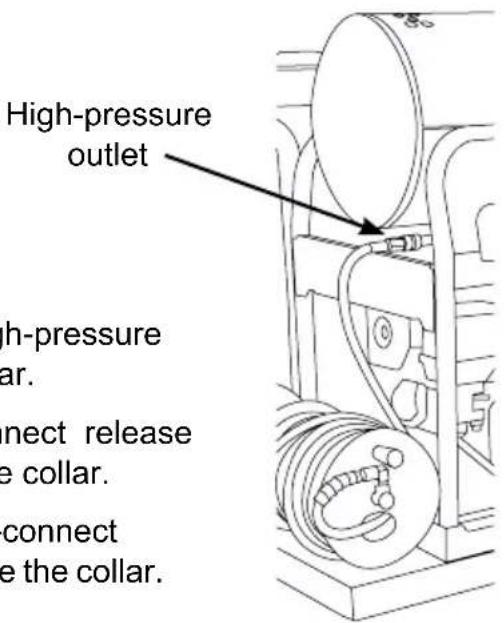

outlet by pulling back on the quick-connect release collar. High-pressure outlet

2. Pull back on the high-pressure outlet quick-connect release

collar then insert the outboard soap injector; release the collar.

3. Pull back on the outboard soap injector outlet quick-connect

release collar then insert the hose reel inlet hose; release the collar.

4. Place the ltered end of the siphon hose

into a container of soap.

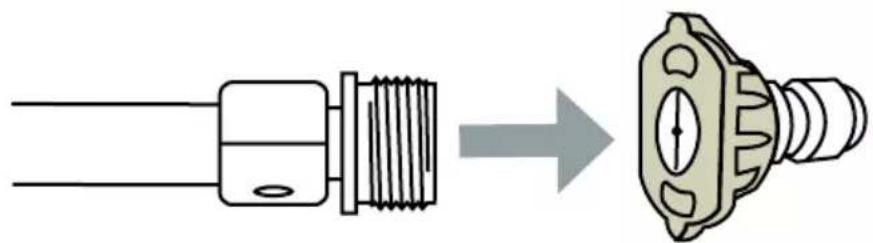

Insert the black nozzle into the spray wand per the Nozzle Installation section of this manual. NOTE: Soaps will not siphon if the black soap nozzle is not installed on the spray wand.

6. After using soap, place the ltered end of the siphon hose into a container of clean

water and run the pressure washer drawing clean water until the system is thoroughly rinsed. If soap or other chemicals remain in the injector or siphon hose, the injector could be damaged. Damage from soap or chemical residue is not covered under warranty. High-pressure outlet Hose reel inlet hose Soap injectorSiphon hosePage 20 OPERATING CHECKLIST Location Place the pressure washer on a level surface outside in a well-ventilated area before operating. Keep all ammable materials at least ve feet away from all sides of the product. ● Never use pressure washer inside a house, garage, or any other kind of enclosure even if doors and windows are open. Run engine outside at least 20 feet (6 meters) away from windows, doors, and vents. Carefully consider wind direction and air currents when using pressure washer outside to avoid breathing in engine exhaust. ● Following the manufacturer’s instructions and recommendations, install battery operated carbon monoxide alarms in any occupied buildings near the running engine. ● If you experience headache, nausea, dizziness, sleepiness, or weakness while pressure washer is running, move to fresh air and seek medical attention immediately.

Engine exhaust contains carbon monoxide, an odorless, colorless, poisonous gas. Running an engine indoors will kill you in minutes. Never use this product inside a house, garage, or any other kind of enclosure even if doors and windows are open. Run engine outside at least 20 feet (6 meters) away from windows, doors, and vents. Carefully consider wind direction and air currents when using this product outside to avoid breathing in engine exhaust. Always use a carbon monoxide detector in any occupied buildings near the running engine. TOXIC FUMESPage 21 High Altitude Operation Operating Conditions This engine will have proper engine performance and emission control when it is operated at or below an altitude of 5000 feet (1524 meters). This engine requires a high-altitude carburetor kit to ensure proper engine performance and emission control when operated at altitudes above 5000 feet (1524 meters). Operating the machine with the wrong engine conguration above 5000 feet (1524 meters) may increase its emissions, decrease fuel e󰀩ciency, and hurt performance. To obtain a high altitude carburetor kit, contact your nearest authorized service center. Before each use, check for loose or damaged parts, leaks, and/or any other condition that may a󰀨ect proper operation. Repair or replace all damaged and/or defective parts immediately. Always keep all safety guards in place and in proper working order. For safety reasons, the manufacturer recommends all maintenance and repairs be performed by an authorized service center. Before starting engine, remove any excessive dirt and debris from cooling vents, exhaust, and starter recoil areas. Always operate the pressure washer on a level surface and never move or tip the pressure washer while operating. Use pressure washer only for its intended purpose. If you have questions about the proper use of your pressure washer, please contact customer support at 1-877-362-4271 or [e-mail]. NOTICE Operating the engine with a high-altitude carburetor jet kit at an altitude below 5000 feet (1524 meters) will cause the engine to run too hot. Overheating the engine could result in serious engine damage. To avoid this hazard, make sure the correct carburetor kit is installed and the air/fuel mixture is set correctly for your altitude. ALTITUDE

Untrained adults and children can be seriously injured or killed if allowed to incorrectly operate or play with running pressure washer. To avoid these hazards, be sure anyone operating the pressure washer receives proper instructions, understands safe operation, and has read the owner’s manual before operating this product. Do not let children operate the pressure washer without parental supervision. Keep children and pets away from the pressure washer while it is running. Always turn o󰀨 the pressure washer before leaving the area. UNTRAINED OPERATION

Failure to inspect this product before use could create a hazardous situation resulting in product damage, serious injury, and/or death. To avoid these hazards, inspect the pressure washer before each use. Check for loose or damaged parts, signs of oil or fuel leaks, missing guards, plugged cooling vents, or any other condition that may a󰀨ect proper operation. Repair or replace all damaged or defective parts and keep all safety guards in place and in proper working order before using the pressure washer. INSPECT BEFORE OPERATINGPage 22

The high pressures created by a pressure washer can cause uid injection injuries, severe lacerations, amputations, and / or death. To avoid these hazards, always aim the spray gun and lance in a safe direction when using the pressure washer and never attempt to touch a leak in a high-pressure hose or tting. INJECTION INJURY CAUTION:CAUTION: A running engine produces heat. The surfaces of the engine, other related components, and engine exhaust gas get hot enough to cause mild moderate burns or ignite materials on contact. To avoid burns, do not touch engine surfaces or exhaust gases while operating and allow engine to cool completely before moving, touching, or performing any maintenance. To avoid a re, keep all ammable materials at least ve feet away from all sides of the product. HOT SURFACES

This product has many parts that move at high speeds. Moving parts can cause crushing injuries, broken bones, severe lacerations, and/or traumatic amputations. To prevent injury, never place ngers, hands, feet, or other body parts near running engine. Never operate product with covers, shrouds, or other guards removed. Do not wear loose-tting clothing, dangling drawstrings, or any other hanging items that could become entangled in moving parts while operating. Tie up long hair and remove jewelry before operating. MOVING PARTSPage 23 OIL Single-cylinder (if applicable) ENGINE PREPARATION NOTICE The engine is shipped from the factory without oil. Running the engine without oil will result in severe engine damage and void the warranty. To avoid causing engine damage and voiding the warranty, ll the engine with the recommended oil type before starting.

FILL ENGINE BEFORE USE

NOTICE Oil is a major factor in the performance and service life of any engine. Using the incorrect oil may damage the engine and void the warranty. To avoid causing engine damage and voiding the warranty, check and change oil as required using the correct engine oil.

USE CORRECT ENGINE OIL

NOTICE This manual is a guide on how to use the pressure washer and it’s components. The manual for your engine is the repository for all the information you need for the safe operation and maintenance of the engine. Read and understand the Engine Operator’s manual before using the engine.

READ THE ENGINE MANUAL

Before using the pressure washer, you must ll the engine with the correct type and quantity of lubricating oil. When checking and lling the engine with oil, make sure the pressure washer trailer is sitting on a level surface. Use the Engine Operator’s manual during the following steps: Upper Oil Limit Lower Oil Limit

1. Remove the dipstick from the engine.

While the style may di󰀨er from the one shown at the right, all will have indication marks to show the correct oil level within the crankcase.

2. The Engine Operator’s Manual

contains important information as to the weight of oil for your given operating conditions. Typically, SAE 10W-30 API SG or newer, engine oil will su󰀩ce for most operating conditions. If you operate in high temperatures or very dirty conditions, consult the Engine Operator’s Manual for oil recommendation.Page 24

1. Check oil with the trailer level and the engine o󰀨.

2. Remove the oil dipstick; wipe it clean with paper towel.

3. Insert the clean dipstick into the spout fully.

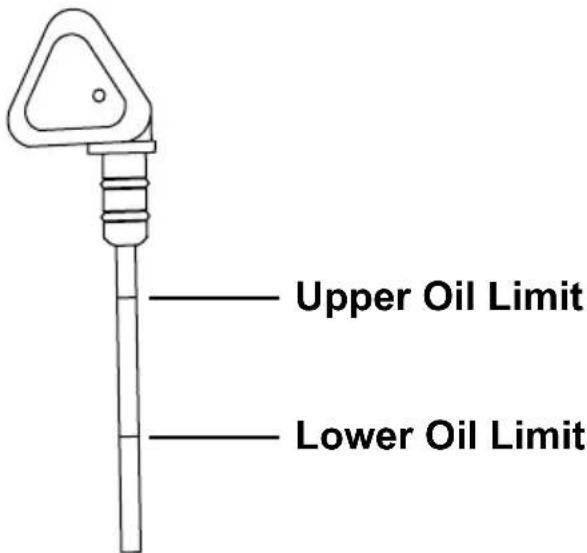

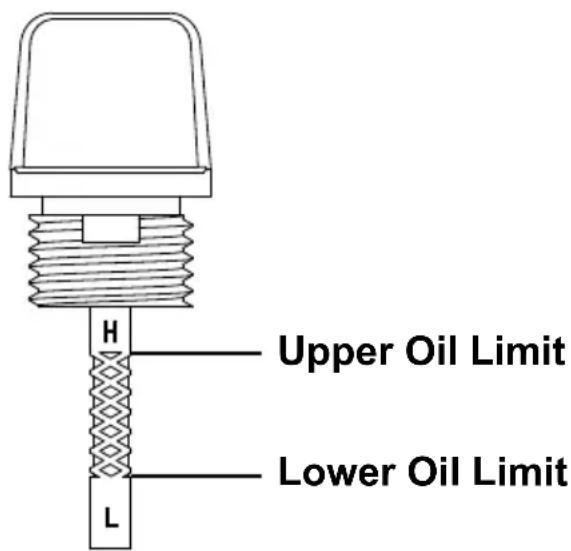

4. Remove the dipstick. The oil level should be at, but not above, the full or high mark.

5. If the oil level is low, add the recommended oil to the crankcase until the level reaches

the full or high mark on the dipstick. See the engine manual for the recommended oil.

6. Place the dipstick back into the spout fully.

NOTICE Oil is a major factor in the performance and service life of any engine. Using the incorrect oil may damage the engine and void the warranty. To avoid causing engine damage and voiding the warranty, check and change oil as required using the correct engine oil.

USE CORRECT ENGINE OIL

The engine is shipped from the factory without oil. Running the engine without oil will result in severe engine damage and void the warranty. To avoid causing engine damage and voiding the warranty, ll the engine with the recommended oil type before starting.

FILL ENGINE OIL BEFORE USE

NOTICE Dual-cylinder engine (if applicable)

3. Fill the crankcase with the correct type and quantity of oil, DO NOT overll. Place

the dipstick into the engine, but do not screw down (where applicable). Remove the dipstick to verify the oil level. If the level is low, carefully add a small quantity of oil then check the level once again with the dipstick.

4. Once the correct level is met, hand tighten the dipstick into the engine body.

NOTICE The low oil sensor (if equipped) will automatically stop the engine when the oil level falls below the safe limit. To avoid an unexpected shutdown, check the oil level regularly, ll to the upper limit, and always operate engine on a level surface. LOW OIL SENSORDiesel engine (if applicable) Page 25 Oil drain plug DipstickOil ller cap High “full” mark Low mark Oil dipstick Oil lter Before using the pressure washer, you must ll the engine with the correct type and quantity of lubricating oil. When checking and lling the engine with oil, make sure the pressure washer trailer is sitting on a level surface. Use the Engine Operator’s manual during the following steps:

1. Remove the dipstick from the engine.

While the style may di󰀨er from the one shown at the right, all will have indication marks to show the correct oil level within the crankcase.

2. The Engine Operator’s Manual

contains important information as to the weight of oil for your given operating conditions. Typically, SAE 15W-40 or ISO 100 engine oil will su󰀩ce for most operating conditions. If you operate in high temperatures or very dirty conditions, consult the Engine Operator’s Manual for oil recommendation.

3. Fill the crankcase with the correct type and quantity of oil, DO NOT overll. Place

the dipstick into the engine, but do not screw down (where applicable). Remove the dipstick to verify the oil level. If the level is low, carefully add a small quantify of oil then check the level once again with the dipstick. Upper Oil Limit Lower Oil LimitPage 26

4. Once the correct level is met, make sure the dipstick is tight within the engine block.

NOTICE The low oil sensor (if equipped) will automatically stop the engine when the oil level falls below the safe limit. To avoid an unexpected shutdown, check the oil level regularly, ll to the upper limit, and always operate engine on a level surface.

Engine Fuel Gasoline LOOK BEFORE YOU PUMP! It is imperative to use fresh (less than 30 day old) gasoline with a minimum octane rating of 87 and a maximum ethyl alcohol level of 10%. Add fuel to the pressure washer by following these steps:

1. Check fuel with the engine o󰀨 and the pressure washer trailer on a level surface.

2. Remove the fuel cap to verify the fuel level. For the fuel cap location, see the

COMPONENTS LOCATION section of this manual.

3. Use clean, fresh, regular unleaded gasoline with a minimum octane rating of 87.

Do not mix fuel and oil! Only use fuel with a maximum ethyl alcohol level of 10%. E15, E20 and E85 are not approved fuels. ENGINE DAMAGE MAY OCCUR BY USING THESE FUELS.

4. Do not ll the fuel tank

above the maximum fuel level to allow room for use expansion.

5. Replace the fuel cap.

Never run the engine or pressure washer without the fuel cap(s) installed. Maximum fuel level Engine mounted tank Frame mounted tank Maximum fuel level NOTE: Using a fuel stabilizer (sold separately) when storing gasoline can help to prevent problems related to ethanol alcohol blended gasoline. Always follow the instructions on the bottle and mix throughly.Page 27 NOTICE Old gasoline can create deposits that clog fuel systems causing hard starting and poor performance. Damage caused by old fuel is not covered by warranty. To minimize deposits, avoid old fuel related performance issues, and prevent costly repair work, do not use gasoline that is older than 30 days. OLD GASOLINE NOTICE Using gasoline with an alcohol blend greater than 10% (E10) will damage the engine. Damage caused by using an alcohol blend of 15% (E15), 85% (E85), or any other alcohol blend higher than 10% (E10) is not covered under warranty. To avoid engine damage caused by an alcohol blend that is too high, use gasoline with 10% (E10) alcohol or lower. ALCOHOL BLENDS NOTICE The use of fuel system cleaning additives can damage the engine and fuel systems. Damage caused by the use of fuel system cleaning additives is not covered by warranty. To avoid engine and fuel system damage, do not use any fuel system cleaning additives. GASOLINE ADDITIVES

Gasoline is highly ammable and gasoline vapors are extremely explosive. Fire and explosions can cause severe burns and/or death. Keep gasoline away from ames, sparks, and other ignition sources. Refuel outdoors in a well-ventilated area with the engine stopped and cool. Wipe up any spilled gasoline and allow engine to dry before starting. Keep a re extinguisher handy while refueling. Do not operate engine with leaks in the fuel system. Do not store gasoline near other ammable materials. REFUELING NOTICE It is important to prevent gum deposits from forming in essential fuel system parts, such as the carburetor, fuel lter, fuel hose or tank during storage. Alcohol-blended fuels attract moisture, which leads to separation and formation of acids during storage. Acidic fuel and gum deposits can damage the engine’s fuel system while in storage. Damage caused by the use of old, stale, or contaminated fuel are not covered under warranty. GASOLINE STORAGEPage 28 Diesel Engine Add fuel to the pressure washer by following these steps:

1. Check fuel with the engine o󰀨 and the pressure washer trailer on a level surface.

2. Remove the fuel cap to verify the fuel level. For the fuel cap location, see the

COMPONENTS LOCATION section of this manual.

3. Use fresh, high-quality #2 diesel

fuel for the engine. Fill the tank to a maximum of 1” below the ller neck to allow room for expansion. Maximum fuel level

4. Replace the fuel cap. Never run

the engine or pressure washer without the fuel cap(s) installed.5. Slide the choke to CHOKE for starting a COLD engine. Slide to RUN for a warm engineCHOKE RUN Page 29

Attempting to start the engine incorrectly or using the pressure washer incorrectly can result in engine and/or pressure washer damage, and may cause serious injury or death. To avoid these hazards, be sure to read, understand, and follow the steps outlined in the OPERATING CHECKLIST section of the owner’s manual before starting the engine, and follow all the guidelines for proper use of the pressure washer. OPERATING CHECKLIST NOTICE Running the pressure washer for more than two minutes without the spray gun trigger pulled will overheat the pump and possibly cause damage. The thermal relief valve will open and spray water to help cool the pump as it overheats. To avoid overheating the pump, shut o󰀨 the engine if not being used for longer than two minutes. PUMP DAMAGE Starting the Engine (Single-cylinder engine) 1. Complete the steps in the OPERATING CHECKLIST and ENGINE PREPARATION sections of this manual before starting the engine. Failure to do so could cause damage to the pump or engine. If needed, refer to your Engine Owner’s Manual for specic starting instructions. 2. Turn the engine switch to the ON position. 3. Slide the fuel valve to the ON position.4. Slide the throttle to the RUN position (if equipped). OFF

The water tank should be lled with water and the spray gun/lance assembly attached to the high-pressure hose. Place the tank valve in the OPEN position.NOTE: The starting position of the choke will vary depending on the engine temperature. If starting a cold engine, move the choke lever towards the CHOKE position. If starting a warm engine, move the choke lever towards the RUN position.

Rapid retraction (also known as kickback) of the engine recoil starter cord will pull your hand and arm towards the engine faster than you can let go of the handle resulting in sprains, broken bones, lacerations, and/or traumatic amputations. Kickback is often caused by internal engine failure, and/or improper starting techniques. To avoid kickback follow the appropriate maintenance schedule, starting instructions and have repair work done by an authorized service center. RAPID RETRACTION 6A. (Manual start) Pull the recoil slowly until resistance is felt, then pull rapidly to start the engine. CHOKE RUN

7. Once the engine starts, slowly move the choke lever to RUN as the engine runs. If

the engine falters, move the choke toward CHOKE until the engine has warmed up.

8. Allow engine to warm for 1-2 minutes before using the product.

6B. (Electric start) Turn the key past the ON position to the START position. Allow the engine to start. If the engine does not start after 5 seconds. Release the key and allow the starter to cool for one minute.

Do not try to continuously crank the engine for more than ve seconds at one time. If the engine fails to start, allow the starter to cool for one minute before trying to restart the engine. Continuously trying to start the engine will damage the starter. STARTER DAMAGE Once the engine has started, allow the key to return to the ON position. Page 30 STARTPage 31 NOTE: The starting position of the choke will vary depending on the engine temperature. If starting a cold engine, move the choke lever towards the CHOKE position. If starting a warm engine, move the choke lever towards the RUN position.

Do not try to continuously crank the engine for more than ve seconds at one time. If the engine fails to start, allow the starter to cool for one minute before trying to restart the engine. Continuously trying to start the engine will damage the starter. STARTER DAMAGE Starting the Engine (Dual-cylinder engine)

1. Complete the steps in the OPERATING CHECKLIST and ENGINE PREPARATION

sections of this manual before starting the engine. Failure to do so could cause damage to the pump or engine. If needed, refer to your Engine Owner’s Manual for specic starting instructions.

4. Pull the choke out for starting a COLD engine.

Push in for a warm engine.

3. Slide the throttle to the RUN position (if equipped).

2. Prime the fuel line as described under the CHECKING FUEL section of this manual.

5. Turn the key past the ON position to the START

position. Allow the engine to start. If the engine does not start after 5 seconds. Release the key and allow the starter to cool for one minute.

6. Once the engine has started, allow the key to

return to the ON position.

START The water tank should be lled with water and the spray gun/lance assembly attached to the high-pressure hose. Place the tank valve in the OPEN position.Starting the Engine (Kohler Diesel Engine) NOTICE Running the pressure washer for more than two minutes without the spray gun trigger pulled will overheat the pump and possibly cause damage. The thermal relief valve will open and spray water to help cool the pump as it overheats. To avoid overheating the pump, shut o󰀨 the machine if not being used for longer than two minutes. PUMP DAMAGE Page 322. Turn the engine key to the 1st position.3. Wait for the orange Glow Plug light to turn o󰀨. 4. Turn the key to the 2nd position to start the engine. Once the engine has started, allow the key to return to the 1st position. WARNING: Allowing the starter to constantly crank will damage the starter! After a maximum of 20 seconds cranking, allow the starter to cool one minute before trying again. If the engine does not start after two attempts, refer to the TROUBLESHOOTING section for help.1. Completely read and understand the Engine Owner’s Manual you received along with this manual.x 1000x 1000 Glow plug light Engine key OFF Position OFFOFF Position 1

SSTTAARRTT 8. Allow engine to warm for 1-2 minutes before using the product.7. Slowly push the choke lever in as the engine warms. If the engine falters, pull the choke out until the engine has warmed up.The water tank should be lled with water and the spray gun/lance assembly attached to the high-pressure hose. Place the tank valve in the OPEN position.HOT WATER OPERATION

The surfaces around the burner exhaust and the discharged exhaust are VERY HOT. Keep away from this area. DO NOT allow the hoses to contact the burner exhaust in anyway. DO NOT allow children to operate or be in the vicinity of the pressure washer at any time.

The burner will shuto󰀨 every time you release the trigger. DO NOT use the pressure washer if the burner fails to shut o󰀨 when the trigger is released.

1. Check fuel with the engine o󰀨 and the pressure washer trailer on a level surface.

2. Remove the fuel cap to verify the fuel level. For the fuel cap location, see the

COMPONENTS LOCATION section of this manual.

3. Use fresh, high-quality #2 diesel

fuel for the burner. Fill the tank to a maximum of 1” below the ller neck to allow room for expansion. Maximum fuel level

4. Replace the fuel cap. Never run

the engine or pressure washer without the fuel cap(s) installed.

1. Complete the steps in the OPERATING CHECKLIST, WATER TANK VALVE,

FILLING THE WATER TANK and CONNECTING THE SPRAY GUN sections of this manual before turning on the engine.

2. Start the engine as outlined in STARTING THE ENGINE section of this manual.

3. Place the burner ON/OFF switch in the ON position.

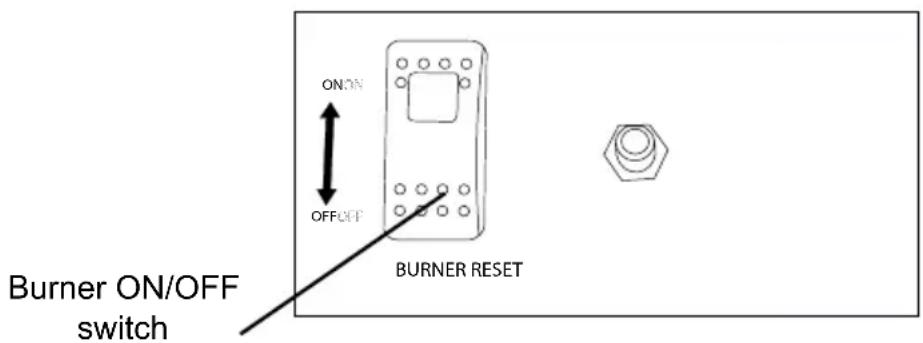

Burner ON/OFF switch

BURNER RESETOFFOFFONONSHUTTING DOWN THE SYSTEM

Page 34 NOTICE Allowing the tank to empty with the engine running will damage the pump. Damage caused by running the pump without water is not covered under warranty. To avoid this hazard always turn o󰀨 the engine before the tank is exhausted of water. PUMP DAMAGE NOTICE Using chemical cleaners and/or corrosive liquids can damage the pressure washer seals and internal components. Damage caused by chemical cleaners and corrosive liquids is not covered under warranty. To avoid these hazard, only used approved cleaning chemicals, never use bleach, and always run clean water through the pressure washer after using cleaning chemicals. CHEMICAL CLEANERS

1. Turn the burner control switch to OFF.

2. Squeeze the trigger and allow the water to ow until the spray wand becomes cool

to the touch, minimum of two minutes.

3. If you used soap or detergent, place the siphon hose into a bucket of clean water.

With the black nozzle attached to the wand, squeeze the trigger and allow water to ow until all signs of soap are gone.

5. Move the throttle to slow (if equipped). Turn the key or engine switch to OFF.

6. Turn the fuel valve to OFF or CLOSED (if equipped).

7. Squeeze the trigger to release any stored pressure from the hose.

8. Wind the high-pressure hose onto its reel.

9. Refer to the STORAGE section for proper short or long-term storage instructions.

• Read all warnings and instructions in this and all other manuals that may have come with the pressure washer.

• Remove all toys, bicycles, lawn furniture, etc. from the work area.

• Sweep any loose dirt and debris from the surface you will be pressure washing.

• Cover nearby plants to protect them from over spray and detergent.

nozzle when washing windows or painted items like automobiles. Always start far away and move closer with care.

• If you are using the pressure washer to prepare siding for painting and the existing paint my be from before 1977, lay down tarps to collect the paint chips. They may contain lead and need to be disposed of at a proper disposal facility.

• Use only detergents or soaps that are approved for pressure washer use.

• A wider spray equals faster cleaning, while a tighter spray equals deeper cleaning.

• Do not aim the nozzle straight at a surface. Hold the wand at a 45

angle to the surface at a distance that cleans well without causing damage.

• Keep the nozzle about four feet away from siding to prevent damage to the surface.

• Start washing at the bottom, move your way upward then rinse from the top down.

• Avoid driving water behind siding, trim and into window frames.

• When using soap, work on smaller areas and do not let the soap dry. HOUR METER (If equipped) HOURS The hour meter keeps track of the time the pressure washer is running. The hour glass icon ashes when the engine is running to signify the meter is tracking the hours of operation. The digital time display shows the recorded hours of operation. Use this information for preventative maintenance intervals. For hour meter location see the COMPONENT LOCATION section of this manual.

2Page 36 TROUBLESHOOTING Problem Probable Cause Remedy Battery dead (if equipped) Charge or replace battery, add electrolyte if battery is new NOTE: Probable causes are listed with the most likely cause rst. Repairs should be made by qualied service technicians only. Dirty battery contacts Clean contacts Battery cables disconnected Connect or replace damaged cables Engine, pump or gearbox is seized Identify, replace or repair seized part Key switch, solenoid or starter on engine defective Repair or replace faulty component Pump is seized Replace pump or bearing Engine will not start or crank over. (See Engine Owner’s Manual for further engine troubleshooting) Engine power switch is o󰀨 or defective Check engine power switch Low oil shutdown is activated (if equipped) Add oil to engine, check more frequently Fill with the appropriate fuel, bleed injector pump on diesel engines

POWER SYSTEM: GASOLINE OR DIESEL DRIVEN

Low on fuel Replace or clean fuel lter, bleed injector pump on diesel engines Fuel lter is clogged Gasoline engines only - Choke only as required Engine ooded or starved Drain and replace with fresh, clean fuel Old or dirty fuel Engine will not start but will crank over. (See Engine Owner’s Manual for further engine troubleshooting) Engine needs to be repaired Seek certied service Lower the pressure on the unit and check for correct engine speed (RPM) Operating in high elevation Replace with correct nozzle size Incorrect nozzle in lance Adjust unloader valve Unloader valve improperly adjusted Engine bogs down under load, whenever spray gun is triggered (See Engine Owner’s Manual for further engine troubleshooting)Page 37 Close soap valve or sub- merge detergent siphon tube into solution PUMPING SYSTEM Problem Probable Cause Remedy Clean valve assembly or replace gun Turn water on Debris in gun valve assembly Trigger gun leaks or will not shut o󰀨 Water turned o󰀨 Clean or replace with proper size nozzle Nozzle is plugged Chemical injection valve is open / hose not in solution Hot water coil obstructed Remove obstruction or descale the coil Open tting on high pres- sure pump until water ows Pump dry, needs to be primed Pump runs but there is no spray pressure Nozzle not installed Dual wand valve is open Dual wand valve must be closed and high pressure nozzle installed Replace hose or connector Install proper sized nozzle Pump runs but has low spray pressure Inlet strainer clogged Belt slippage Leaky discharge hose or quick connect connector Clean and check more frequently Replace with proper size nozzle Worn or wrong sized nozzle Tighten or replace worn belt Install pressure gauge on pump head to adjust pres- sure. Check valve seat on Unloader Valve Unloader valve worn or improperly adjusted Reseal ttings and inspect inlet hoses for air leaks Air leak in inlet plumbing Pump runs but there is erratic, uctuating pressure Inadequate incoming water supply Increase water supply ow Stuck inlet or discharge valves Clean out or replace worn valves Check ttings and hose for air tight seal, clean inlet strainer screen Restricted inlet or air entering the inlet plumbing on the pump Leaking high-pressure seals Replace seals Pressure feed the pump and replace low-pressure seals if water leaks from pump Leaking low-pressure sealsPage 38 Excessive crankshaft play or loud, knocking noise in pump Broken or worn bearing or connecting rod in crankcase Replace pump or bearing or connecting rod Locate point of oil leakage and replace damaged O-ring or seal Replace seals Replace seals Replace seals. Install cor- rect pump oil Loose drain plug or damaged seal Leaking crankshaft oil seal Leaking oil sight glass seal Leaking piston oil seal Repair or replace check valve Check valve malfunctioning Oil leaking from pump Water is emitted from chemical siphon tube Strainer clogged Detergent valve not open or clogged Strainer not submerged in solution Clean or replace. Rinse after each use. Open valve then clean. Replace if necessary Submerge strainer, replen- ish chemical if needed Detergent hose cut or kinked Inspect hose, replace if necessary Inlet injection will not siphon detergent Adjustable knob on injector is closed (if equipped) Open by turning counter clockwise Unit not in low pressure mode Open dual wand (if equipped) or install soap nozzle Detergent hose cut or kinked Inspect hose, replace as required Detergent strainer plugged or not submerged Check screen on strainer pickup tube Internal injector parts corroded or stuck Disassemble, clean or replace Outlet water temperature is too high Use with cold water only (150

maximum) Downstream injector will not siphon detergent Turn machine o󰀨 for ten minutes then restart. If problem persists, take unit to an authorized service center for diagnosis. Unloader failure / coil overheating / Excessive system pressure Pressure relief valve releasing water PUMPING SYSTEM cont. Problem Probable Cause RemedyPage 39

HEATING BURNER SYSTEM

Problem Probable Cause Remedy Turn switch to ON; thermo- stat ON (if equipped) Burner switch not set to ON Fill burner tank with #2 diesel or other approved fuel Diesel fuel level low Trigger on spray gun not pulled Squeeze trigger to re burner Clean and/or tighten fuel lter (Check fuel pressure) Fuel lter plugged Spray nozzle plugged Clean spray nozzle Reset overload, locate and correct source of overload Overload on burner motor tripped Nozzle not in wand Install nozzle in wand See pumping system troubleshooting Low water pump pressure Replace burner relayBurner relay faulty (12 volt burner only) Check fuel pressure, lter, fuel lines. Replace fuel pump and/or nozzle Fuel pump or nozzle stopped Burner will not re

Warning: High voltage

on igniter can cause electrical shock. Disconnect power before servicing. Check electrical continuity with pump spraying and burner ON Vacuum, ow, pressure or temperature switch faulty Replace fuel valve if it does not open when power is applied Fuel solenoid valve faulty Adjust generator RPM for proper voltage under full load conditions Low generator voltage output Set air band and fuel pressure to specications Fuel to air ratio out of adjustment Replace nozzle with one of proper size Fuel nozzle partially clogged Replace ignition transformer, clean and adjust electrodes Ignition transformer not providing spark to fuel Burner will not re, plus diesel fumes are emitted from the exhaust port

insulation. Unburned fuel can saturate it and cause a re. Set air band and fuel pressure to specications Fuel to air ratio out of adjustment Clean soot to improve air

Excessive soot on the coils Adjust RPM of generator (if equipped) Improper voltage at burner Burner res and smokesPage 40 Have battery load checked and load tested, charge if low and replace if necessary. Allow water to cool 2 minutes before shutting o󰀨 engine Battery voltage low Engine RPM should be 3600 RPM with no load RPM too low Check engine charging system - Must have 16 ampere output minimum Engine charging system is faulty Adjust electrodes to maximum 1/8” gap Electrodes misadjusted Fuel pump pressure should be approximately 100 to 140 PSI Fuel pump pressure too high Adjust for proper burn Air band open too far Check amp draw of burner motor - should be 13 amperes or less. Check amp draw of transformer, should be 4.2 amperes or less Burner amp draw too high Battery keeps losing voltage (For 12 volt burner systems) Problem Probable Cause Remedy Decrease fuel pump pressure and/or nozzle size Burner input too high for conditions Clean or replace nozzle of proper size. Descale coil and clear obstructions Water ow restricted Reset or replace temperature limit switch High temperature limit switch faulty or set too high Discharge water temperature exceeds recommended operating temperature Replace defective switch(es) Faulty ow, pressure or vacuum switch Replace solenoid Faulty fuel solenoid Burner continues to re even when trigger on spray gun is released Discharge water temperature not reaching maximum operating temperature Burner input too low for conditions Increase fuel pump pressure and/or nozzle size HEATING BURNER SYSTEM cont. For additional help or to nd your local authorized service location, call 1-877-362-4271 or email [e-mail] 41 For safety reasons, the manufacturer recommends all pressure washer service and repairs be performed by an authorized service center. All warranty replacements or repairs must be performed by an authorized distribution or service center. To nd an authorized service center near you, make a warranty claim, or get authorized warranty repair, call 1-877-362- 4271 or email [e-mail]. It is the responsibility of the owner and/or operator to have all scheduled maintenance completed before operating the pressure washer. Be sure to follow the inspection and maintenance recommendations as listed in all the manuals that came with this unit. Before each use, check pressure washer for leaks, loose or damaged parts, and any other condition that may a󰀨ect proper operation. Be sure all safety guards are in place and in proper working order. Inspect all air vents and cooling slots to ensure they are clean and unobstructed. Repair or replace all damaged or defective parts immediately. For safety reasons, the manufacturer recommends all pressure washer service and repairs be performed by an authorized service center. Never attempt to repair a high-pressure hose. Always clean the pressure washer with the engine o󰀨 and cool. To clean the pressure washer, rst use an air compressor set at no more than 25 PSI to clear dirt and debris from the pressure washer surfaces, vents, and cooling slots. Then, wipe the exterior clean with a damp cloth. MAINTENANCE Maintenance Connections Cleaning the Pressure Washer NOTICE Water can damage the pressure washer engine components if allowed to enter through cooling slots or other holes. Damage caused by water intrusion is not covered under warranty. To avoid engine water damage, do not use a pressure washer, garden hose, or any other sources of running water to clean the pressure washer engine, and never submerge the pressure washer engine in any liquids. CLEANING NOTICE Using chemical cleaners and/or corrosive liquids can damage the pressure washer seals and internal components. Damage caused by chemical cleaners and corrosive liquids is not covered under warranty. To avoid these hazard, only used approved cleaning chemicals, never use bleach, and always run clean water through the pressure washer after using cleaning chemicals. CHEMICAL CLEANERS Hose, spray gun, and pump connections should be cleaned and lubricated with a thin lm of lithium grease regularly to prevent o-ring damage and leaks.Page 42 If a nozzle becomes clogged, the pump may pulsate and spray patterns could change. If the nozzle is not cleaned, excessive pressure may develop possibly damaging the pump, or other accessories. Inspect nozzles before using them and follow the instructions in this section for the proper nozzle cleaning procedure. Before each use, check the inlet lter and clean by following the steps below. Never operate the pressure washer without the inlet lter properly installed. Nozzle Cleaning Water Inlet Filter (if equipped)

1. Shut o󰀨 the pressure washer.

2. Turn o󰀨 the water supply.

Point the spray gun in a safe direction and squeeze the trigger to relieve water pressure.

4. Set the trigger lock.

5. Remove the nozzle from the lance quick connector.

Clear any obstructions from the nozzle by inserting the nozzle cleaning tool provided.

7. Rinse any loose debris from the nozzle by directing a running garden hose into the output

of the nozzle for at least 30 seconds.

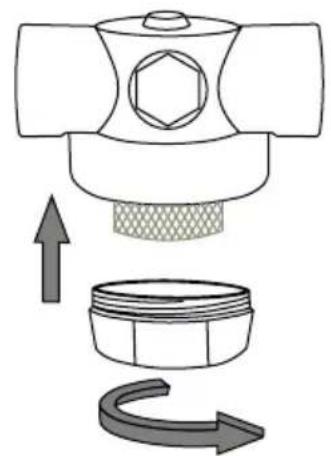

1. With the tank valve closed, unscrew the

housing cover on the bottom of the water lter.

2. Remove any debris from around the

mesh screen, inside the housing and the cover.Page 43

3. Turn the tank valve on for a few seconds

to ush any debris out of the hose line from the tank.

4. Thread the housing cover into the bottom

of the water lter housing; hand tighten. Note: The pump was lled with oil at the factory. The preferred oil is SIMPSON

Premium Pump Crankcase Oil. If this oil is not available, an SAE 15W-40 oil may be used. Change the oil after the rst 50 hours of operation and every 100 hours thereafter or every 3 months. Pump Maintenance

3. Oil drain plug (not shown)

1. Loosen the pump oil ll plug / vent cap.

2. Place a container under the oil drain plug.

3. Remove the oil drain plug.

4. After the oil has drained, insert the oil drain plug; tighten securely.

pumps, rell with SIMPSON

Premium Pump Crankcase Oil. If this oil is not available, an SAE 15W-40 oil may be used. For CAT Pumps

6. Make sure the oil level meets but does not exceed the dot in the center of the sightglass.

7. Insert the oil ll plug; tighten securely.

How to change the pump oil *** CAT Pumps

is a registered trademark of Diversied Dynamics Corporation.Page 44 Before each use, check engine for loose or damaged parts, signs of oil or fuel leaks, and/or any other condition that may a󰀨ect proper operation. Always keep all safety guards in place and in proper working order. Repair or replace all damaged or defective parts immediately. For safety reasons, the manufacturer recommends all engine service and repairs (including emission control devices and systems) be performed by an authorized service center. All warranty replacements or repairs must be performed by an authorized distribution or service center. To nd an authorized service center near you, obtain information about how to make a warranty claim, or to make arrangements for authorized warranty repairs, please call 1-877-362-4271 or email [e-mail]. For all other information on engine maintenance, refer to the engine manual. Engine Maintenance

STORAGE AND TRANSPORTATION

Storing for Two Months or Less

1. Fill fuel tank per the ENGINE PREPARATION section of this manual then add a fuel

stabilizer per the manufacturer’s recommendations. NOTE: Using a fuel stabilizer (sold separately) when storing gasoline may help prevent problems related to alcohol blended fuels in outdoor power equipment engines. Always follow the instructions provided by the fuel stabilizer manufacturer to mix and use correctly.

7. Using the three-way valve under the water tank, drain the tank.

2. Make sure the tank has enough water to run the pump for about ten minutes.

4. Start the engine per the STARTING section of this manual and run it for ten (10) minutes

to allow the stabilized fuel to circulate through the entire fuel system. Be sure to squeeze the trigger to keep water owing through the pump and spray gun to avoid overheating.

Turn the engine switch to the OFF position.

9. Store the trailer in a clean, dry area out of direct sunlight.

6. Squeeze the spray gun trigger to relieve the pressure in the hose and pump then drain

the high pressure hose.

Allow the engine to cool completely.

3. Complete the steps in the OPERATING CHECKLIST and CONNECTING SPRAY GUN

sections of this manualPage 45 Storing for More Than Two Months

1. Make sure the engine is completely cool.

2. Remove all the fuel from fuel tank, fuel lines, and carburetor by loosening the drain

screw at the bottom of the carburetor and draining fuel into an appropriate container.

3. With the spark plug(s) disconnected, change the engine oil.

4. Remove any dirt and debris from the area around the spark plug(s), then use a spark

plug socket or wrench to remove the spark plug(s).

5. Pour .5 ounces (15 ml) of new oil into the engine combustion chamber, then slowly

crank the engine by pulling the recoil two (2) times -or- use the electric starter for one second, to distribute oil and lubricate the cylinder.

6. Install the spark plug(s).

7. Unreel the high-pressure hose to drain it; respool onto the reel.

8. Using the three-way valve under the water tank, drain the tank.

9. Store the trailer in a clean, dry area out of direct sunlight.

Transportation Be sure to read and completely understand the SIMPSON

WARRANTY COVERAGE TERMS: The manufacturer of this product agrees to repair or replace designated parts that prove defective within the warranty period listed below at the manufacturer’s sole discretion. Specic limitations / extensions and exclusions apply. This warranty covers defects in material and workmanship and not parts failure due to normal wear, depreciation, abuse, accidental damage, negligence, improper use, maintenance, water quality or storage. To make a claim under the terms of the warranty, all parts said to be defective must be retained and available for return upon request to a designated Warranty Service Center for warranty inspection. The judgments and decisions of the manufacturer concerning the validity of warranty claims are nal. These warranties pass through to the end user and are non-transferable. As a factory authorized and trained Warranty Service Center, the factory will honor the terms of all component warranties and satisfy claims of the appropriate warranty provisions. This warranty replaces all other warranties, express or implied, including without limitation and warranties of merchantability or tness for a particular purpose and all such warranties are hereby disclaimed and excluded by the manufacturer. The manufac

turer’s warranty obligation is limited to repair and replacement of defective products and provided herein and the manufacturer shall not be liable for any further loss, damages, or expenses - including damages from shipping, accident, abuse, acts of God, misuse, or neglect. Neither is damage from repairs using parts not purchases from the manufacturer or alterations performed by non-factory authorized personnel. Failure to install and operate equipment according to the guidelines put forth in the instruction manual shall void warranty. THIS WARRANTY DOES NOT COVER: Damage resulting from shipping (claims must be led with freighter), accident, abuse, act of God, misuse, or neglect. This warranty also does not cover damage from repairs or alterations performed by non-factory authorized personnel or failure to install and operate equipment according to the guidelines put forth in the instruction manual. The manufacturer will not be liable to any persons for consequential damage, for personal injury, or for commercial loss. RESPONSIBILITY OF ORIGINAL PURCHASER (INITIAL USER): To process a warranty claim on your SIMPSON® pressure washer, report the concern to 1-877-362-4271 or [e-mail] for authorization and direction to the nearest authorized service center in your area. Retain original cash register sales receipt as proof of purchase for warranty work. Use reasonable care in the operation and maintenance of the product as described in the Operator’s Manual(s). WHAT THE WARRANTY DOES NOT COVER:

• Damage due to chemical deterioration, salt water, rust or corrosion

• Damage caused by parts or accessories not obtained from an authorized dealer or not approved by the manufacturer

• Normal wear of moving parts or components a󰀨ected by moving parts

• Consumable parts such as: Fuel lter, air lter, spark plug(s), recoil starter rope, oil and lubricant(s)

• Normal periodic maintenance work such as carburetor cleaning and engine oil draining

• Freeze damage ENGINE AND EMISSIONS CONTROL SYSTEM: Covered by the engine manufacturer warranty. See engine manual for further details. HIGH-PRESSURE PUMP (DEFECTS IN MATERIAL AND WORKMANSHIP): FIVE (5) year from the date of purchase. FRAME (DEFECTS IN MATERIAL AND WORKMANSHIP): ONE (1) year from the date of purchase. ACCESSORIES (DEFECTS IN MATERIAL AND WORKMANSHIP): Including nozzles, hoses, spray guns, wands, tires, feet Ninety (90) days from the date of purchase.Page 47 NOTES THIS PAGE WAS INTENTIONALLY LEFT BLANKPart Number 7112155 / ENGLISH REV B - 10/2023

DOMMAGES AU DÉMARREUR

DOMMAGES AU DÉMARREUR
