KTEN20DB - Kettle KITCHENAID - Free user manual and instructions

Product type	Kettle
Brand	KitchenAid
Model	KTEN20DB
Capacity	1.9 L
Material	Enameled steel
Style	D - Full ergonomic handle, push-button on handle, removable lid, rim
Dimensions (estimated)	Height: 23 cm, Diameter: 19 cm
Weight (estimated)	Approximately 1.5 kg
Power type	Gas, electric, or ceramic glass cooktop
Whistle function	Yes
Spout opening	Lever button on handle
Removable lid	Yes, for easy filling and cleaning
Care	Hand wash only, not dishwasher safe
Descaling	Boil water and white vinegar mixture
Safety	Do not leave on ceramic glass hob, do not slide, use medium to high heat
Usage	Household use only, not commercial
Warranty	Limited lifetime warranty (for original consumer)
Product registration	Recommended at www.KitchenAid.ca
Model number	KTEN20DB
Available colors	9 colors

Frequently Asked Questions - KTEN20DB KITCHENAID

What is the capacity of the KitchenAid KTEN20DB kettle?

The KTEN20DB kettle has a capacity of 1.9 liters.

Is this kettle compatible with induction cooktops?

No, this kettle is designed for gas, electric, and ceramic glass cooktops. To check induction compatibility, test with a magnet on the base.

Can I put the kettle in the dishwasher?

No, the kettle is not dishwasher safe. It must be hand washed with warm soapy water and dried thoroughly.

How do I descale the kettle?

To descale, fill the kettle with equal parts water and white vinegar. Bring to a boil, let simmer for 10 minutes, then rinse thoroughly. Repeat if necessary.

What should I do if the kettle does not whistle?

Ensure the water level is below the spout and the lid is properly in place. If the problem persists under warranty, contact KitchenAid.

What is the warranty on the KitchenAid kettle?

The kettle has a limited lifetime warranty for the original consumer, covering defects in material and workmanship under normal household use.

How do I register my product?

Register your kettle online at www.KitchenAid.ca to facilitate after-sales service.

Can I use the kettle to heat liquids other than water?

This kettle is designed only for heating water. Do not use it for other liquids such as milk or oil.

How can I avoid damaging the ceramic glass surface?

Never leave the kettle on a ceramic glass cooktop. Remove it and place on a heat-resistant surface like a wooden board. Always lift it, do not slide.

What accessories or spare parts are available?

For spare parts, contact KitchenAid customer service. The lid and spout are available. Check the official website.

USER MANUAL KTEN20DB KITCHENAID

Porcelain Enamel Kettle

Bouilloire émaillée

Tetera de esmalte de porcelana

INSTRUCTIONS

INSTRUCTIONS

INSTRUCCIONES

Exterior view of a modern stainless steel kettle with a handle and spout (no text or symbols visible)

WELCOME TO THE WORLD OF KITCHENAID.

We're committed to helping you create a lifetime of delicious meals for family and friends. To help ensure the longevity and performance of your kettle, keep this guide handy. It will empower you with the best way to use and care for your product. Your satisfaction is our #1 goal. Remember to register your product online at www.KitchenAid.com/support.

Exterior view of a modern kitchen ke with a curved handle and label (no additional text or symbols)

TABLE OF CONTENTS

PARTS AND FEATURES....4

USING YOUR KETTLE....6

CARING FOR YOUR KETTLE....7

KETTLE GUIDE

Porcelain Enamel Kettle Guide....8

WARRANTY 9

PROOF OF PURCHASE & PRODUCT REGISTRATION

Always keep a copy of the itemized sales receipt showing the date of purchase of your kettle. Proof of purchase will assure you of in-warranty service. Before you use your kettle, please register online at www.KitchenAid.com/support. This will enable us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. The completion and submission of product registration information is not required to obtain your product warranty. Please complete the following for your personal records:

Model Number

Serial Number

Date Purchased

Store Name

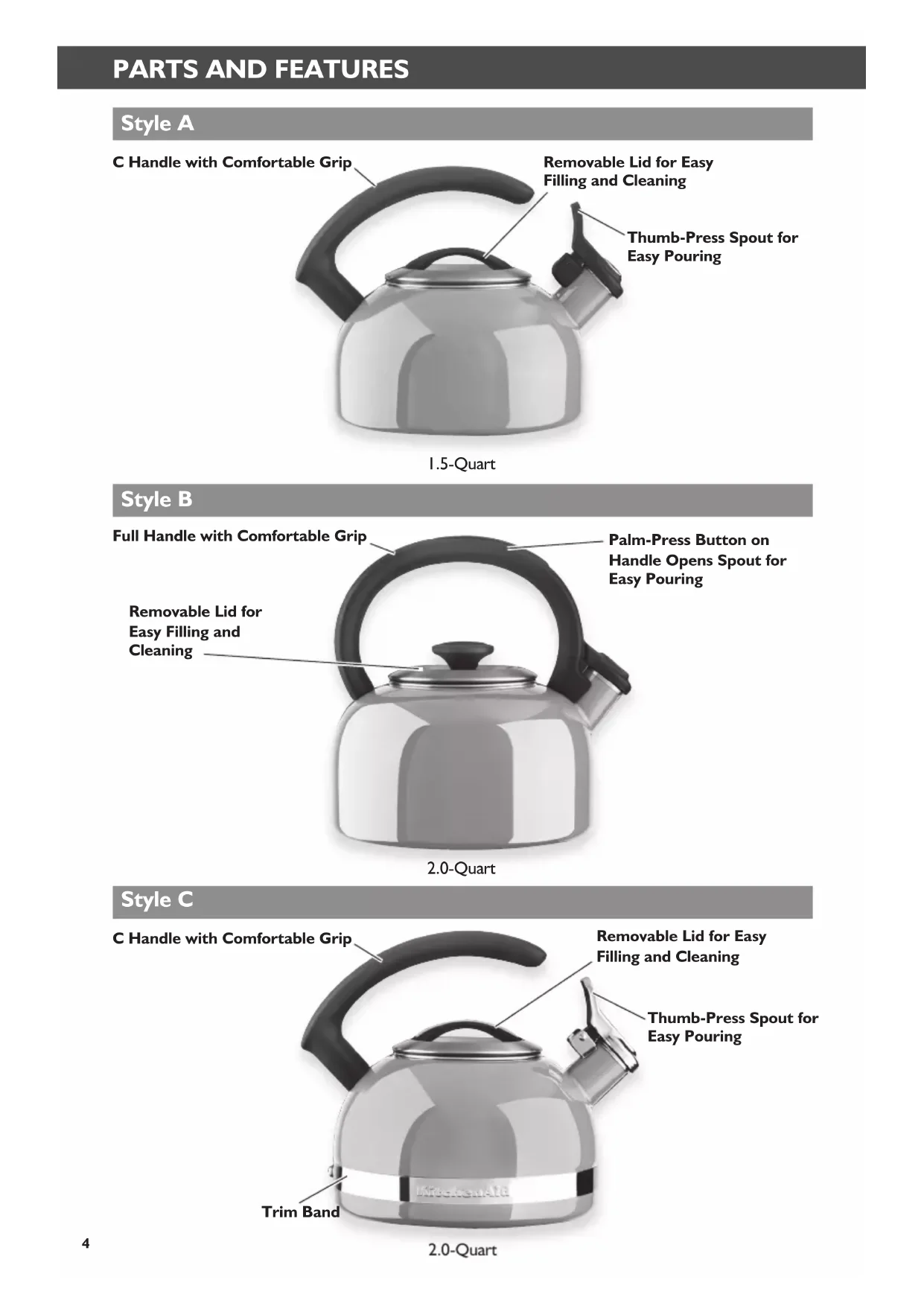

Style A

C Handle with Comfortable Grip

Double Grip Removable Filling and C

Removable Lid for Easy Filling and Cleaning

Thumb-Press Spout for Easy Pouring

1.5-Quart

Style B

Full Handle with Comfortable Grip

Removable Lid for Easy Filling and Cleaning

Grip Pale Han East

Palm-Press Button on Handle Opens Spout for Easy Pouring

2.0-Quart

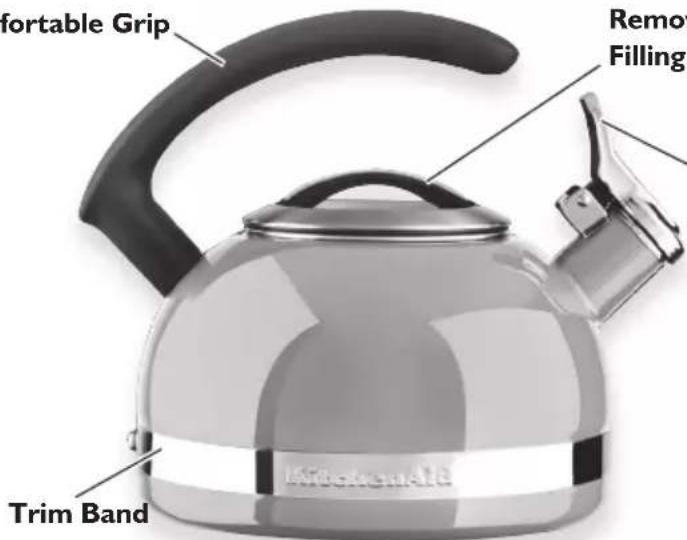

Style C

C Handle with Comfortable Grip

Fortable Grip Remove Filling Trim Band

Removable Lid for Easy Filling and Cleaning

Thumb-Press Spout for Easy Pouring

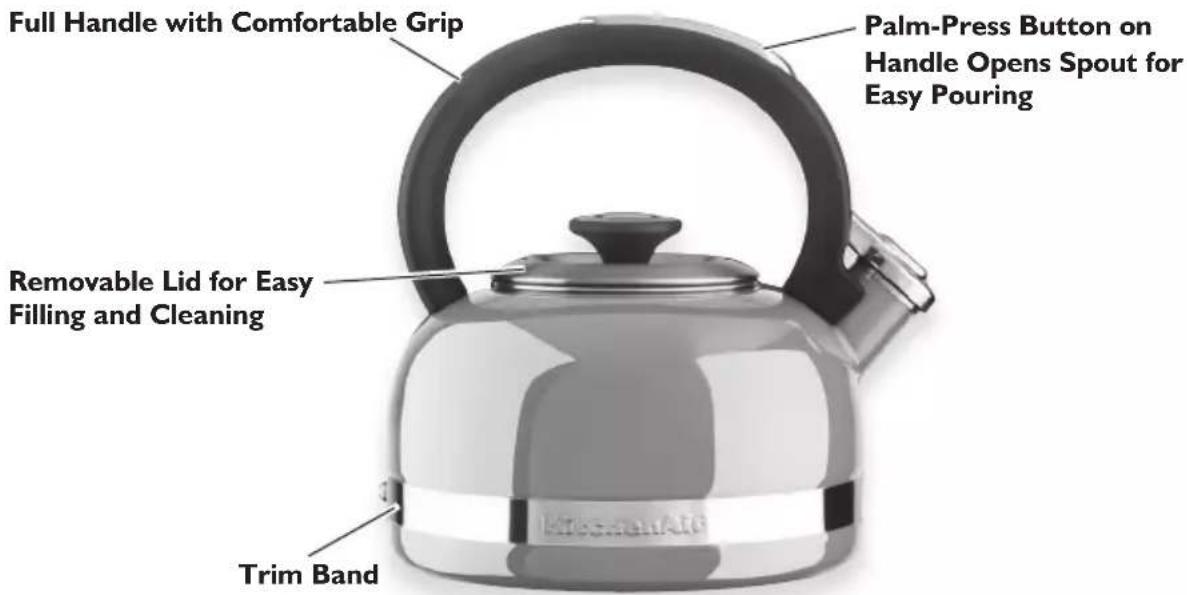

Style D

Full Handle with Comfortable Grip Palm-Press Button on Handle Opens Spout for Easy Pouring Removable Lid for Easy Filling and Cleaning Trim Band

2.0-Quart

Style E

Full Stainless Steel Handle with Comfortable Grip Removable Lid for Easy Filling and Cleaning Stainless Steel Thumb-Press Spout for Easy Pouring Trim Band Contoured Lip

2.0-Quart

USING YOUR KETTLE

• Before use, wash with hot, soapy water. Rinse and dry exterior.
  • Overheating can make kettles with porcelain enamel bottoms fuse to the surface of glass cooktop ranges, requiring the replacement of the glass cooktop. Do not leave the kettle on a glass cooktop; remove it, and place on a heat-resistant surface such as a cutting board.
• Always lift the kettle when removing it from the cooktop surface. Sliding or dragging may damage the cooktop surface or base of the kettle.
• This kettle is not intended for commercial or restaurant use.

• For best results, match the kettle base size with the cooktop burner size. Do not allow gas flames to extend up the side of the kettle.

• Avoid overfilling the kettle. Maximum fill level is below the bottom of the spout. The kettle should be at least half full before boiling. Do not allow the kettle to boil dry.

• Ensure that the kettle lid is securely seated on top of the kettle.
• For best results, heat the kettle on medium to medium high heat.
• When the kettle begins to whistle, the water is heated. For proper whistling to occur, ensure that the water level is below the spout of the kettle and that the lid is securely seated.
• Allow the kettle to cool on a heat-resistant surface. Do not leave kettle on a hot burner.

• Contact KitchenAid if the kettle fails to whistle while still under warranty.

• The kettle is not dishwasher safe. Hand wash only. Surface damage due to chemical interaction or cleaning agents including, but not limited to, scouring pads, abrasive cleaners, or automatic dishwashers is not covered under your product's limited warranty.

• For best results, empty the kettle and wash with hot soapy water after each use. Rinse and dry thoroughly.

• Do not use harsh abrasives or steel wool to clean the kettle exterior, as scratching may result.

• If mineral deposits form on the inside of the kettle due to hard water, fill kettle with equal amounts of water and white vinegar. Bring to a boil, reduce heat, and simmer for ten minutes. Pour out water and vinegar solution and rinse well. Repeat if necessary.

• The exterior of the porcelain-coated kettle can be cleaned with a soft sponge or any nonabrasive cleaning pad. Use warm, soapy water and rinse; then dry thoroughly.

Porcelain enamel kettle guide

The following guide lists all the kettles available in our porcelain enamel kettle line.

Kettle Size Features			Model Number
Style A
	1.5-Quart	C Handle with Comfortable Grip Thumb-Press Spout for Easy Pouring Removable Lid for Easy Filling and Cleaning	KTEN15AN (currently available in 9 colors)
Style B
	2.0-Quart	Full Handle with Comfortable Grip Palm-Press Button on Handle Opens Spout for Easy Pouring Removable Lid for Easy Filling and Cleaning	KTEN20BN (currently available in 9 colors)
Style C
	2.0-Quart	C Handle with Comfortable Grip Thumb-Press Spout for Easy Pouring Removable Lid for Easy Filling and Cleaning Trim Band	KTEN20CB (currently available in 9 colors)
Style D
	2.0-Quart	Full Handle with Comfortable Grip Palm-Press Button on Handle Opens Spout for Easy Pouring Removable Lid for Easy Filling and Cleaning Trim Band	KTEN20DB (currently available in 9 colors)
Style E
	2.0-Quart	Full Stainless Steel Handle with Comfortable Grip Stainless Steel Thumb-Press Spout for Easy Pouring Removable Lid for Easy Filling and Cleaning Trim Band Contoured Lip	KTEN20SB (currently available in 9 colors)

KITCHENAID KETTLE LIMITED LIFETIME WARRANTY

LIFETIME DURÉE DE VIE POR VIDA KitchenAid LIMITED WARRANTY • GARANTIE LIMITÉE GARANTÍA LIMITADA

Your KitchenAid kettle purchase is warranted to be free of defects in material or workmanship under normal household use when used according to the instructions furnished with the product. If the product is found to be defective upon receipt and examination, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “KitchenAid”) will provide, at its sole discretion, product or part replacement with an identical or similar item. This warranty is limited to the original consumer upon presentation of a dated proof of purchase, and coverage is not transferrable.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT OR PART REPLACEMENT AT OUR DISCRETION AS PROVIDED HEREIN. Warranty service may only be arranged by contacting the KitchenAid Customer eXperience Center. This limited warranty is valid in the United States, Canada and Puerto Rico and applies only when the cooking product is used in the country in which it was purchased.

WHAT IS NOT COVERED BY THIS WARRANTY

I. Damage from ordinary wear and tear such as scratches, dents, stains or discoloration to all surfaces, or other damage that does not impair the function of the kettle.
2. Damage due to improper handling, accident, abuse, misuse, fire, flood, theft, acts of God, neglect, corrosion, modification, exposure to extreme temperatures or failure to follow the manufacturer's use and care instructions.
3. Damage or breakage due to dropping or impact.
4. Shipping, freight or insurance fees to deliver replacement parts or return defective products to an Authorized KitchenAid Service Center.
5. Use of this product in commercial applications.
6. Minor imperfections or blemishes due to variations in paint, enamel, metals, plastic, silicone, ceramic or glass.
7. Replacement product or parts when used outside the United States, Canada or Puerto Rico.
8. Surfaces damage due to chemical interaction or cleaning agents including but not limited to scouring pads, abrasive cleaners or automatic dishwashers.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY LIMITED WARRANTY OF MERCHANTABILITY OR LIMITED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO I YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT OR PART REPLACEMENT AT OUR DISCRETION AS PROVIDED HEREIN. KITCHENAID SHALL NOT BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

Outside the 50 United States and Canada this warranty does not apply. If you need warranty service, contact the KitchenAid Customer eXperience Center at 1-888-801-1707 in the USA or 1-800-661-6721 in Canada.
