5KEK1835A - Kettle KITCHENAID - Free user manual and instructions

Product Type	Electric kettle
Brand	KitchenAid
Model	5KEK1835A
Capacity	1.5 L
Power Rating	1500 W
Voltage	120 V
Frequency	60 Hz
Material	Stainless steel
Temperature Control	Variable temperature settings (50°C - 100°C)
Keep Warm Function	Yes
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Cord Length	0.9 m
Dimensions (W x D x H)	20.3 x 22.9 x 26.7 cm
Weight	1.4 kg
Water Level Indicator	Yes
Lid Type	Locking lid with one-hand operation
Base Type	360° swivel base
Filter	Removable scale filter
Cleaning and Care	Descale regularly with vinegar or citric acid; wipe exterior with damp cloth
Safety Features	Auto shut-off and boil-dry protection
Spare Parts	Replacement lid, base, and filter available
Reparability	Not user-serviceable; contact KitchenAid for service
Warranty	2 years limited warranty

Frequently Asked Questions - 5KEK1835A KITCHENAID

How do I clean my KitchenAid kettle 5KEK1835A?

Unplug the kettle and let it cool. Wipe the exterior with a damp cloth. For descaling, fill with equal parts water and white vinegar up to the max line, boil, let sit for 15 minutes, then rinse thoroughly. Use only vinegar or citric acid; avoid harsh chemicals.

What temperature settings are available on the 5KEK1835A?

The kettle offers variable temperature control from 50°C to 100°C, allowing you to heat water to the ideal temperature for tea, coffee, or other beverages. Press the temperature button to cycle through presets or hold to manually adjust.

How do I use the keep warm function?

After heating water to your desired temperature, the kettle will automatically keep the water warm for up to 30 minutes. You can also press the keep warm button to toggle the feature on or off.

Why does my kettle turn off before boiling?

This may be due to the keep warm function or a lower temperature setting. Ensure the temperature is set to 100°C for a full boil. Also check if the kettle is properly seated on the base and that the lid is closed securely.

Can I use the kettle on a hob or stovetop?

No, this is an electric kettle designed for use on its powered base only. Do not place it directly on any heat source such as gas or electric stovetops.

How do I replace the scale filter?

Turn the kettle off and unplug. Open the lid and locate the filter at the spout. Pinch the filter to release it from its holder, then slide it out. Insert the new filter by sliding it into place until it clicks. Replacement filters can be purchased from KitchenAid or authorized retailers.

What capacity does the 5KEK1835A have?

The kettle has a capacity of 1.5 liters, which is enough for approximately 6 cups of water. Do not fill above the max line to avoid overflow.

Is the kettle cordless?

The kettle is cordless when lifted from the base. It sits on a 360° swivel base with a cord length of 0.9 m, making it easy to move and pour from any angle.

What safety features does the kettle have?

The kettle is equipped with auto shut-off and boil-dry protection. Auto shut-off turns off the kettle once the water reaches the set temperature or if the kettle is empty. Boil-dry protection prevents damage if the kettle is accidentally switched on without water.

How do I obtain spare parts or service for my KitchenAid kettle?

Spare parts such as lids, bases, and filters can be ordered from KitchenAid's website or through authorized dealers. For repairs, contact KitchenAid customer service or an authorized service center. Do not attempt to open the kettle yourself as it is not user-serviceable.

USER MANUAL 5KEK1835A KITCHENAID

Exterior view of a modern kitchen aid kit (no signage or text visible on the device body)

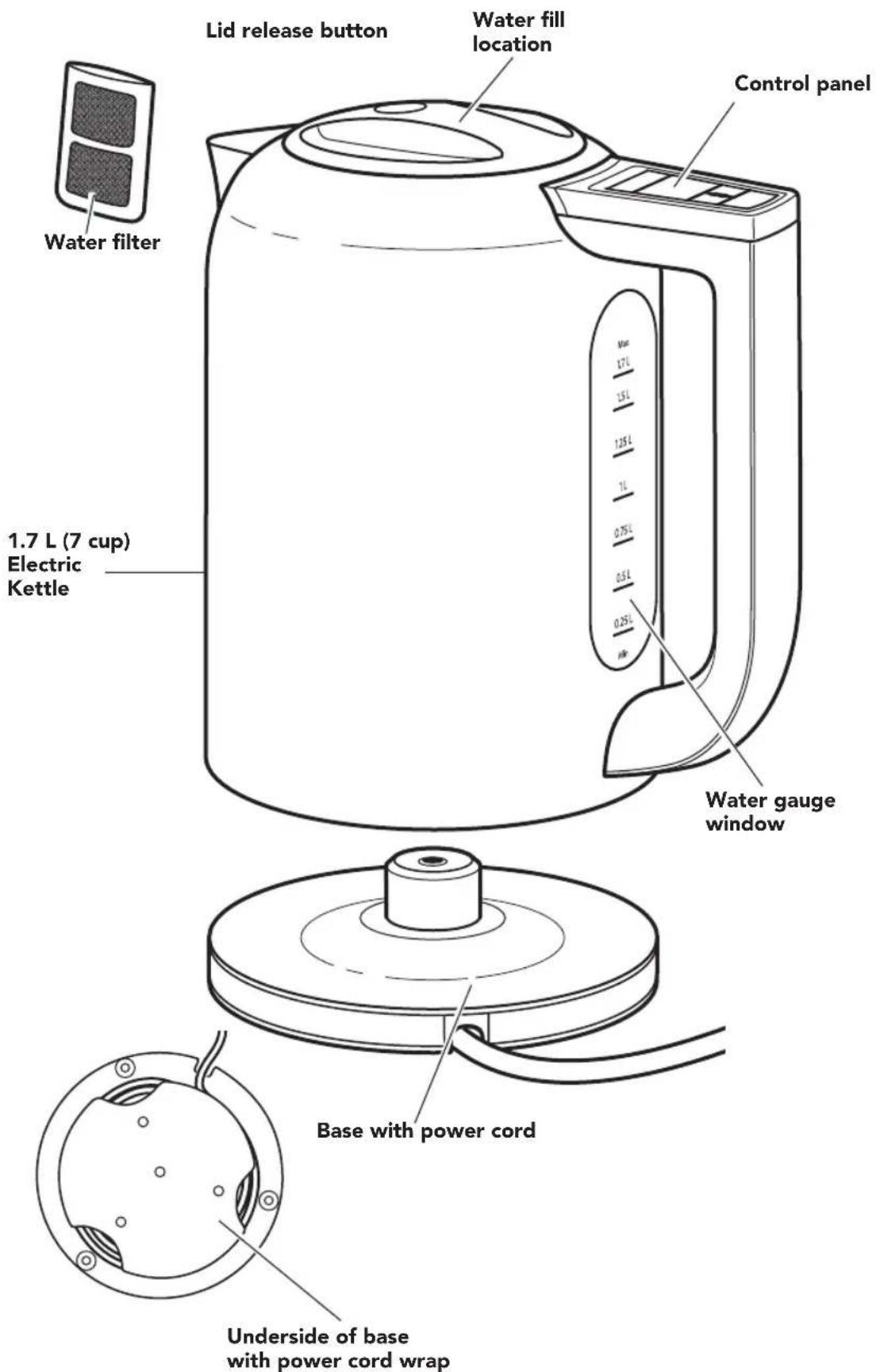

PARTS AND FEATURES

PARTS AND ACCESSORIES

2 | PARTS AND FEATURES

ELECTRIC KETTLE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions. Misuse of appliance may result in personal injury.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse cord, plugs or appliance in water or other liquid. Avoid spillage on the connector.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play with the appliance.
6. Close supervision is necessary when any appliance is used by or near children.

ELECTRIC KETTLE SAFETY

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2. Unplug Electric Kettle from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest Authorised Service Centre for examination, repair, or adjustment.
4. Use of replacement parts not recommended by manufacturer may result in fire, shock, or injury to persons.
5. Do not use outdoors.
6. Do not let cord hang over edge of table or counter, or touch hot surfaces.
7. To disconnect, turn any control to "OFF", then remove plug from wall outlet.
8. Do not place on or near a hot gas or electric burner, or in a heated oven.
9. The Electric Kettle should only be used to heat water.
10. Do not use Electric Kettle with loose or weakened handle.
11. Do not use the appliance for other than intended use.
12. Do not clean Electric Kettle with abrasive cleaners, steel wool, or other abrasive materials.
13. The Electric Kettle is only to be used with the stand provided.
14. Do not overfill kettle. If the kettle is overfilled, boiling water may be ejected.
15. The heating element surface is subject to residual heat after use. Do not touch hot surface. Use handles.
16. Scalding may occur if the lid is removed during the brewing cycles.

ELECTRIC KETTLE SAFETY

1. Refer to the “Care and Cleaning” section for instructions on cleaning the surfaces in contact with food.

2. This appliance is intended to be used in household and similar applications such as:

3. staff kitchen areas in shops, offices or other working environments;

4. farmhouses;
5. by clients in hotels, motels and other residential type environments;

6. bed and breakfast type environments.

7. The temperature of accessible surfaces may be high when the appliance is operating.

8. CAUTION: Do not operate the kettle on an inclined plane. Do not operate the kettle unless the element is fully immersed. Do not move while the kettle is switched on.
9. Visit www.KitchenAid.com.au or www.KitchenAid.co.nz website to download this instruction manual.

SAVE THESE INSTRUCTIONS

ELECTRIC KETTLE SAFETY

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Volts: 220-240 V

Hertz: 50-60 Hz

Wattage: 2400 W

NOTE: If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripped over a longer cord.

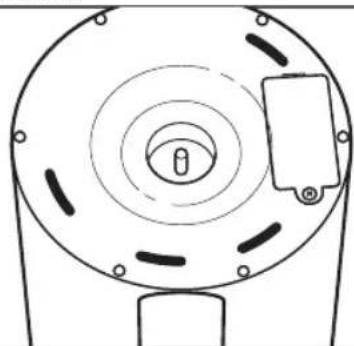

BATTERY ACTIVATION (OPTIONAL)

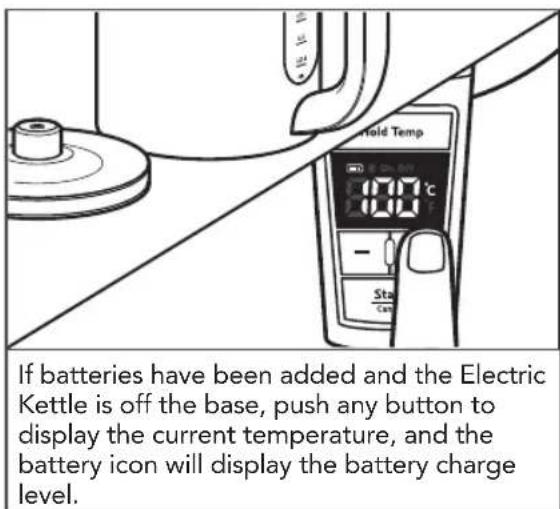

NOTE: If batteries have been added and the Electric Kettle is off the base, the display will show the current temperature of the water. Placing the Electric Kettle back on the base will allow full functionality of the kettle to change the temperature, heat, and hold temperature.

Technical line drawing of a mechanical component with concentric circles and a rectangular housing (no text or symbols)

1

To provide power to the display when the Electric Kettle is not on the base, insert 2 AA batteries (not included) in the battery housing on the underside of the kettle.

Before first use, fill the Electric Kettle to the maximum level, then boil and discard the water. The temperature can be displayed in Celsius (C) or Fahrenheit (F). To change setting, hold the "-" and "+" buttons down at the same time.

NOTE: The Electric Kettle is designed for water only. Do not put any other liquids or substances in the Electric Kettle.

FILLING THE ELECTRIC KETTLE WITH WATER

Line drawing of a hand pressing down on a kettle with a downward arrow indicating the process (no text or symbols)

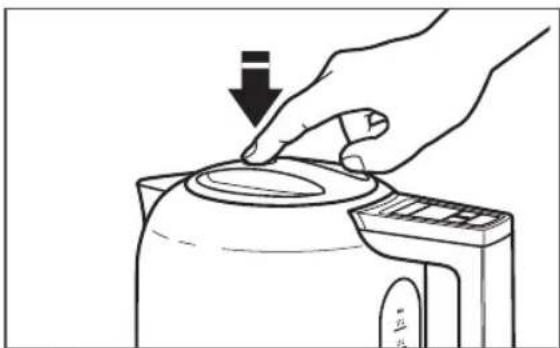

Open the lid of the Electric Kettle by pressing the Lid Release Button.

1

Fill Electric Kettle. The water level is displayed in .25 L increments. If there is no water in the kettle, the water drop icon will display and the alert tone will sound for 6 seconds. Remove water if it exceeds the "Max" line.

NOTE: There must be a minimum of .25 L of water for Electric Kettle to operate. Do not exceed the "Max" fill line.

Line drawing of a kitchen pot with a downward arrow indicating compression or cooling (no text or symbols)

3

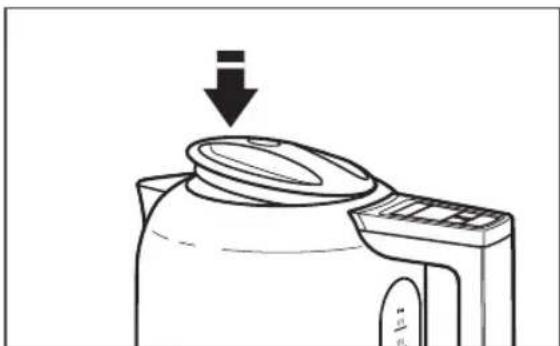

Push the lid down so it locks into the closed position. You will hear a clicking sound which indicates the lid is locked.

Diagram showing a mechanical press or stamping process with a downward arrow indicating motion (no text or symbols present)

4

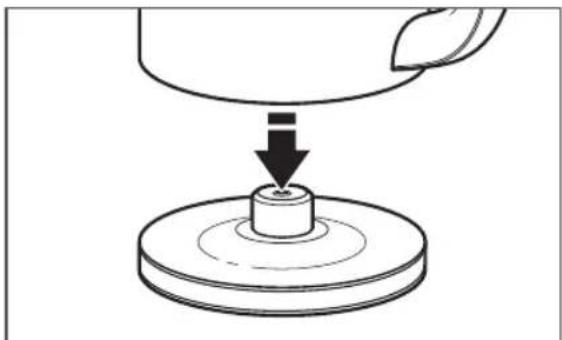

Place the Electric Kettle on the base.

°C °F
50 122
55 131
60 140
65 149
70 158
75 167
80 176
85 185
90 194
95 203
100 212

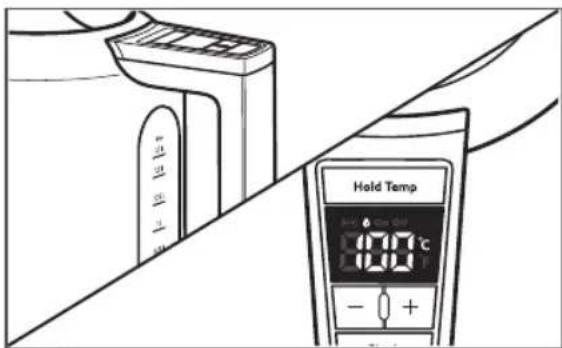

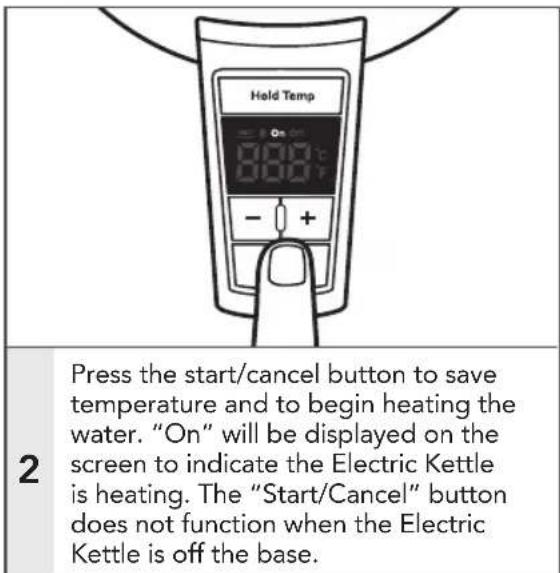

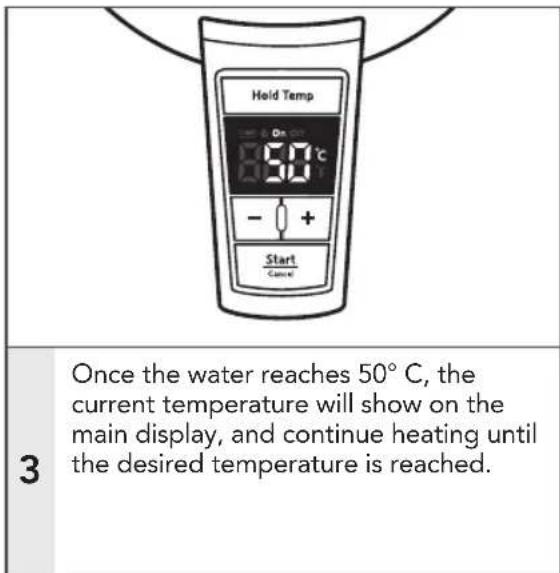

The Electric Kettle has eleven programmed temperature settings.

NOTE: The temperature will blink 5 times and return to standby after 5 seconds. This will continue until after the water temperature reduces below the desired temperature.

Use this guide for outstanding results from your KitchenAid Electric Kettle.

60°C 70°C 80°C	90°C 100°C
Delicate Tea Green TeaGyokuroSencha		Blooming Tea Black TeaEarl GreyEnglish Breakfast		Boil Water

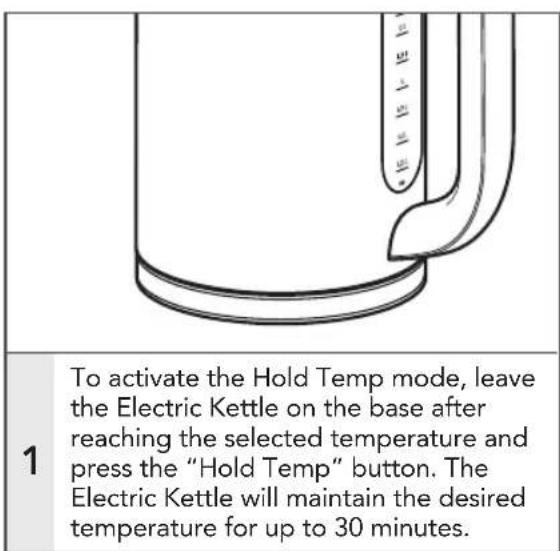

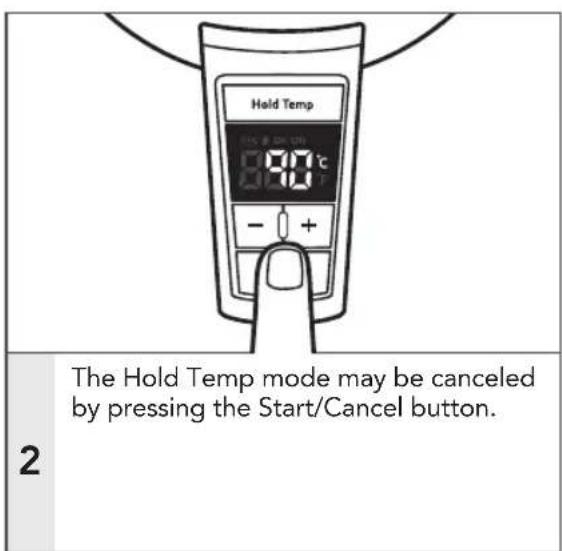

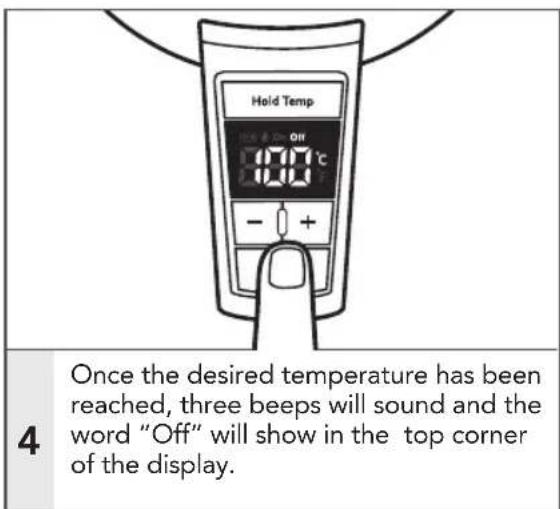

USING THE HOLD TEMP MODE

NOTE: Hold Temp mode works for all temperatures. When using Hold Temp mode at 100^ C, mode will activate at 92^ C and 100^ C depending on altitude.

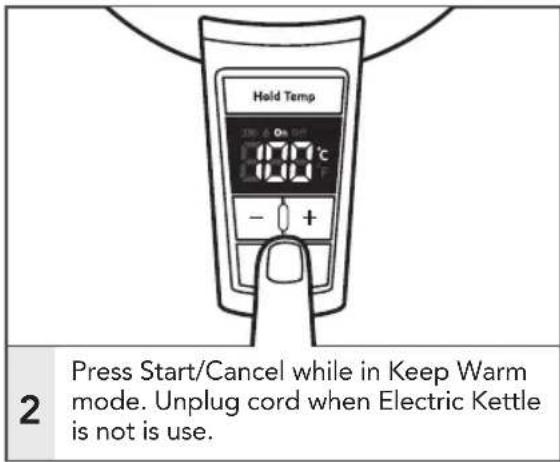

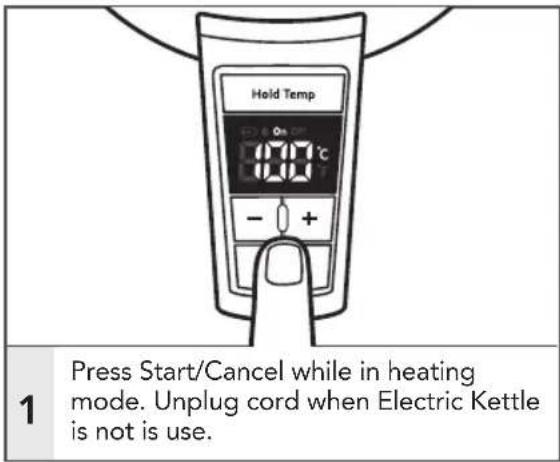

The Electric Kettle can be turned off in several ways:

CARE AND CLEANING

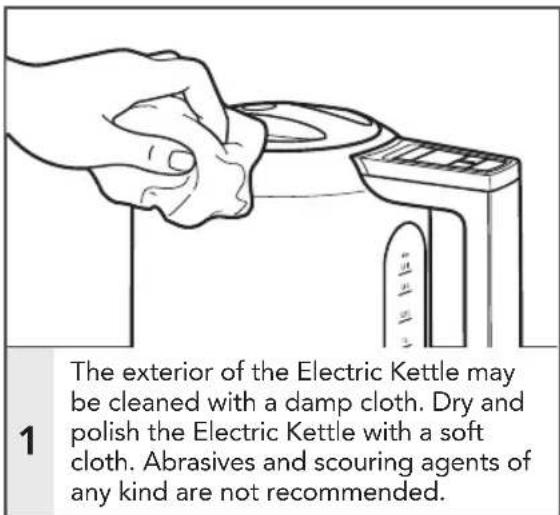

CLEANING THE EXTERIOR

IMPORTANT: Before cleaning, always disconnect the Electric Kettle from the electrical outlet. Make sure the Electric Kettle has cooled completely.

CARE AND CLEANING

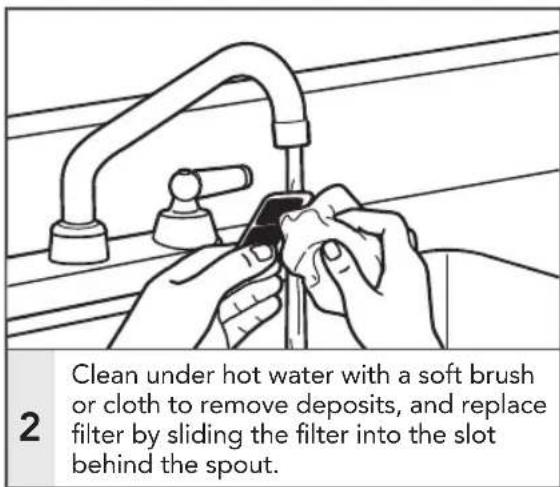

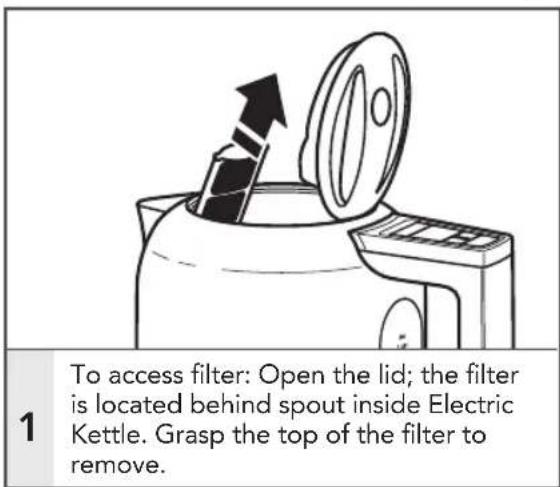

CLEANING THE FILTER

The Electric Kettle features a removable mesh filter that traps scale deposits for cleaner water. The filter will need to be cleaned periodically—more often if you have hard water.

NOTE: If calcium deposits remain on the filter, let it stand overnight in a solution of water and white vinegar. Rinse the filter thoroughly and replace in the Electric Kettle.

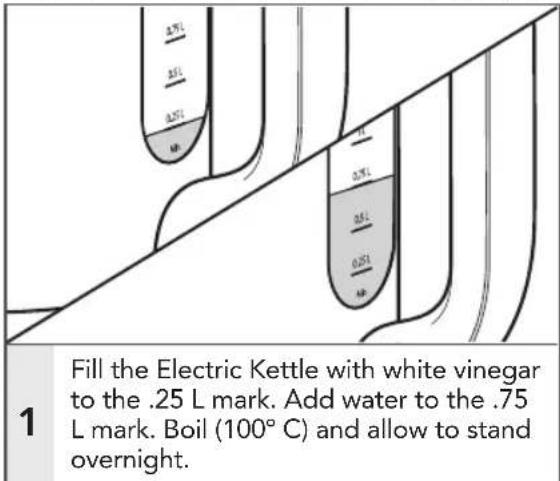

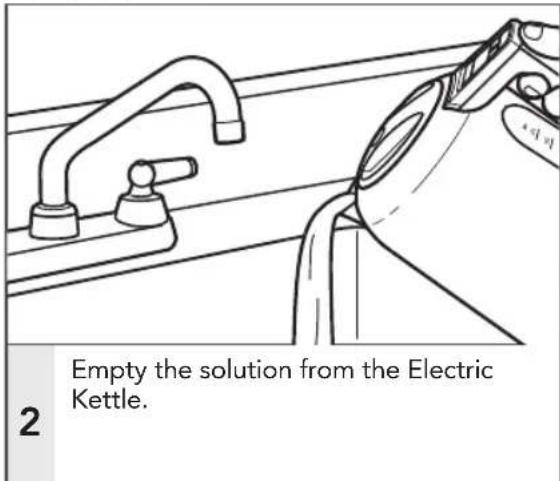

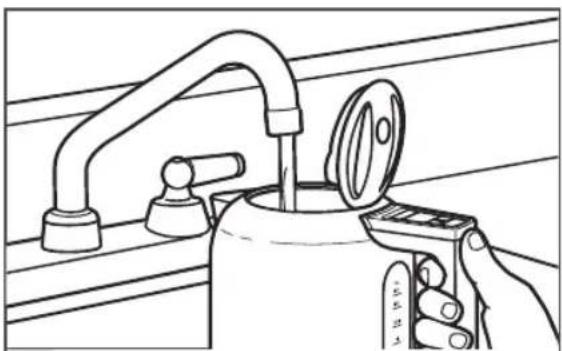

REMOVING MINERAL DEPOSITS FROM THE INTERIOR

To get the best performance from your Electric Kettle, decalcification will be necessary. Calcium deposits may form on the interior metal parts of the Electric Kettle. The cleaning interval will depend on the hardness of the water you put in the Electric Kettle.

CARE AND CLEANING

Line drawing of a hand using a tool to clean or wash a bottle, with no text or symbols present.

3 Fill the Electric Kettle with water, bring to a boil and drain out the water. Repeat this step twice. The Electric Kettle is now ready to use.

SERVICE

CUSTOMER SERVICE

In Australia:

For any questions, or to find the nearest Authorised KitchenAid Service Centre, please find our contact details below.

NOTE: All service should be handled locally by an Authorised KitchenAid Service Centre.

Toll free number: 1-800-990-990

Phone number: 02 49026500

Address Australia:

KitchenAid Australia Pty Ltd

6-8 Billbrooke Close

Cameron Park NSW 2285, Australia

Phone: [phone]

Mobile: [phone]

Email: [e-mail]

In New Zealand:

Website: www.KitchenAid.co.nz

Email: [e-mail]

Phone: [phone]

In other countries:

For all product related questions and after-sales matters, please contact your dealer to obtain the name of the nearest Authorised KitchenAid Service/Customer Centre.

For more information, visit our website at:

www.KitchenAid.com.au

Two horizontal bar designs with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

KitchenAid

©2018 All rights reserved.

Specifications subject to change without notice.

W10597348C 12/18
