Product Type	Electric Kettle
Brand	KitchenAid
Model	Artisan Electric Kettle
Capacity	1.7 L (7 cups)
Voltage	220-240 V
Frequency	50-60 Hz
Wattage	2400 W
Temperature Range	50°C to 100°C (122°F to 212°F)
Number of Temperature Settings	6
Display Type	LED with current temperature
Material	Stainless steel and plastic
Filter	Removable mesh filter
Battery Operation	2 AA batteries (not included) for off-base display
Hold Temp Mode	Yes, up to 30 minutes
Automatic Shutoff	Yes
Boil-Dry Protection	Yes (alert tone and icon)
Lid Type	Push-button release, lockable
Water Level Indicator	Water gauge window with .25 L increments
Control Panel	+, -, Start/Cancel, Hold Temp buttons
Base with Power Cord	Included, with cord wrap
Cord Length	Approximately 0.75 m (short cord)
Included Accessories	Kettle, base, filter, user manual
Use	For heating water only

Frequently Asked Questions - Artisan Electric Kettle KITCHENAID

How do I clean the exterior of the kettle?

Unplug the kettle and let it cool completely. Wipe the exterior with a damp cloth, then dry and polish with a soft cloth. Do not use abrasive cleaners or steel wool.

How do I descale the kettle to remove mineral deposits?

Fill the kettle with white vinegar to the 0.25 L mark, then add water to the 0.75 L mark. Boil the mixture and let it stand overnight. Empty, then rinse by boiling fresh water twice.

What temperature should I use for different types of tea?

Refer to the temperature guide: 60°C (140°F) for delicate teas, 70°C (158°F) for green tea, 80°C (176°F) for blooming tea, 90°C (194°F) for black tea, and 100°C (212°F) for boiling water.

How do I use the Hold Temp mode?

After the water reaches your desired temperature, press the Hold Temp button while the kettle remains on the base. The kettle will maintain that temperature for up to 30 minutes. Press Start/Cancel to cancel.

What does the battery do in the kettle?

Inserting 2 AA batteries (not included) allows the display to show the current water temperature even when the kettle is off the base. When on the base, full functionality is restored.

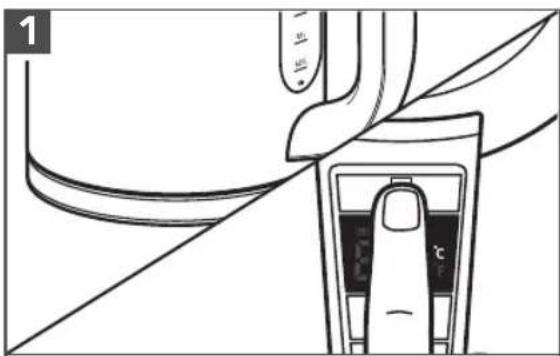

How do I change the temperature display between Celsius and Fahrenheit?

Press and hold the - and + buttons simultaneously to toggle between °C and °F.

Can I use the kettle on a stovetop?

No, the kettle is designed for use only with its included base. Do not place it on a gas or electric burner.

What is the maximum water level?

The maximum water level is indicated by the Max fill line on the water gauge window. Do not fill above this line to avoid boiling water ejection.

Can I heat other liquids like milk or soup in the kettle?

No, the kettle is intended for heating water only. Using it for other liquids may damage the appliance and poses a safety risk.

What should I do if the kettle does not heat?

Ensure the kettle is properly placed on the base and plugged into a working outlet. Check that there is at least 0.25 L of water; the kettle will not operate with less. If the problem persists, contact an Authorized Service Facility.

USER MANUAL Artisan Electric Kettle KITCHENAID

Exterior view of a modern kitchen aid kit (no signage or text visible on the device body)

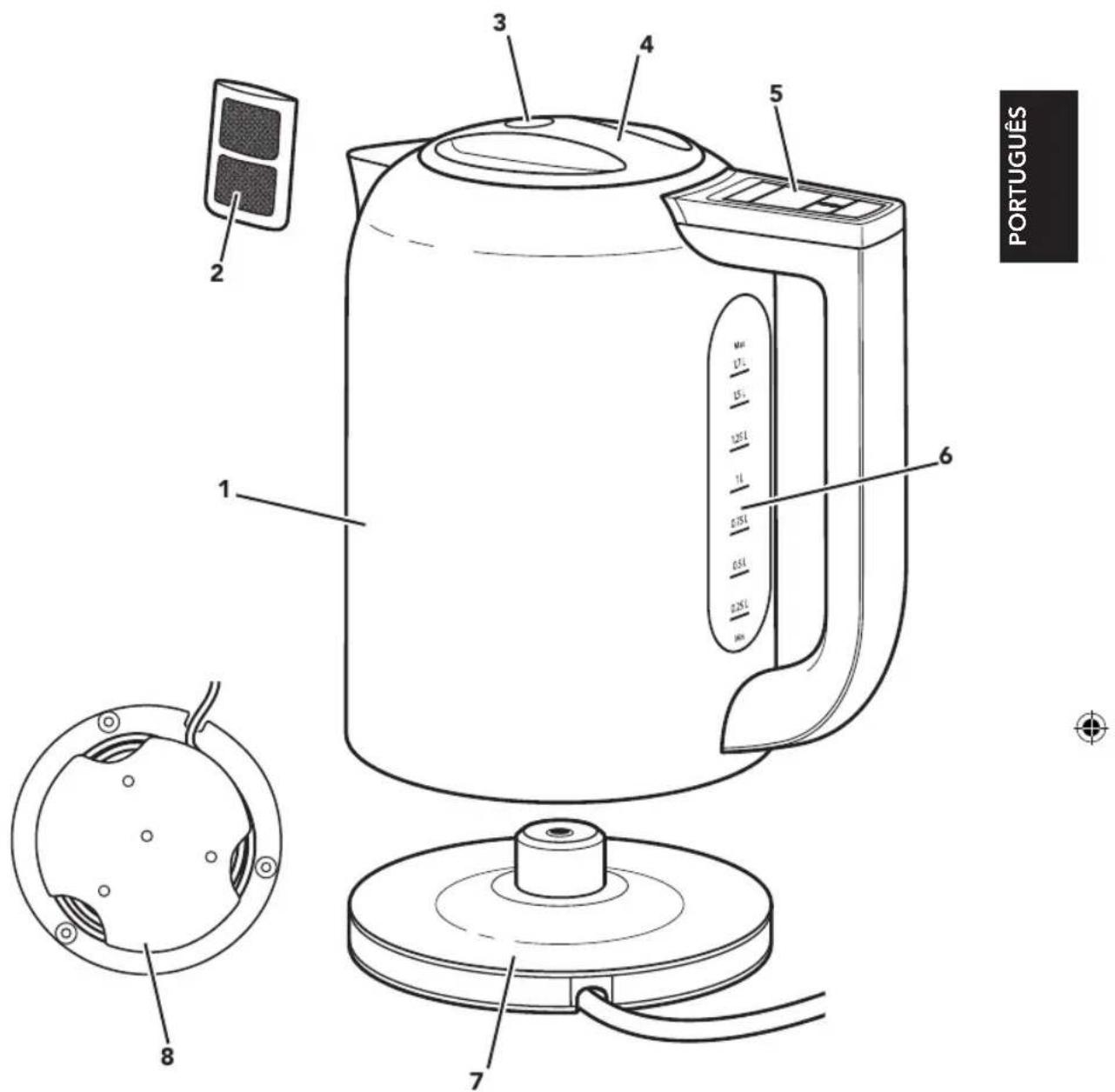

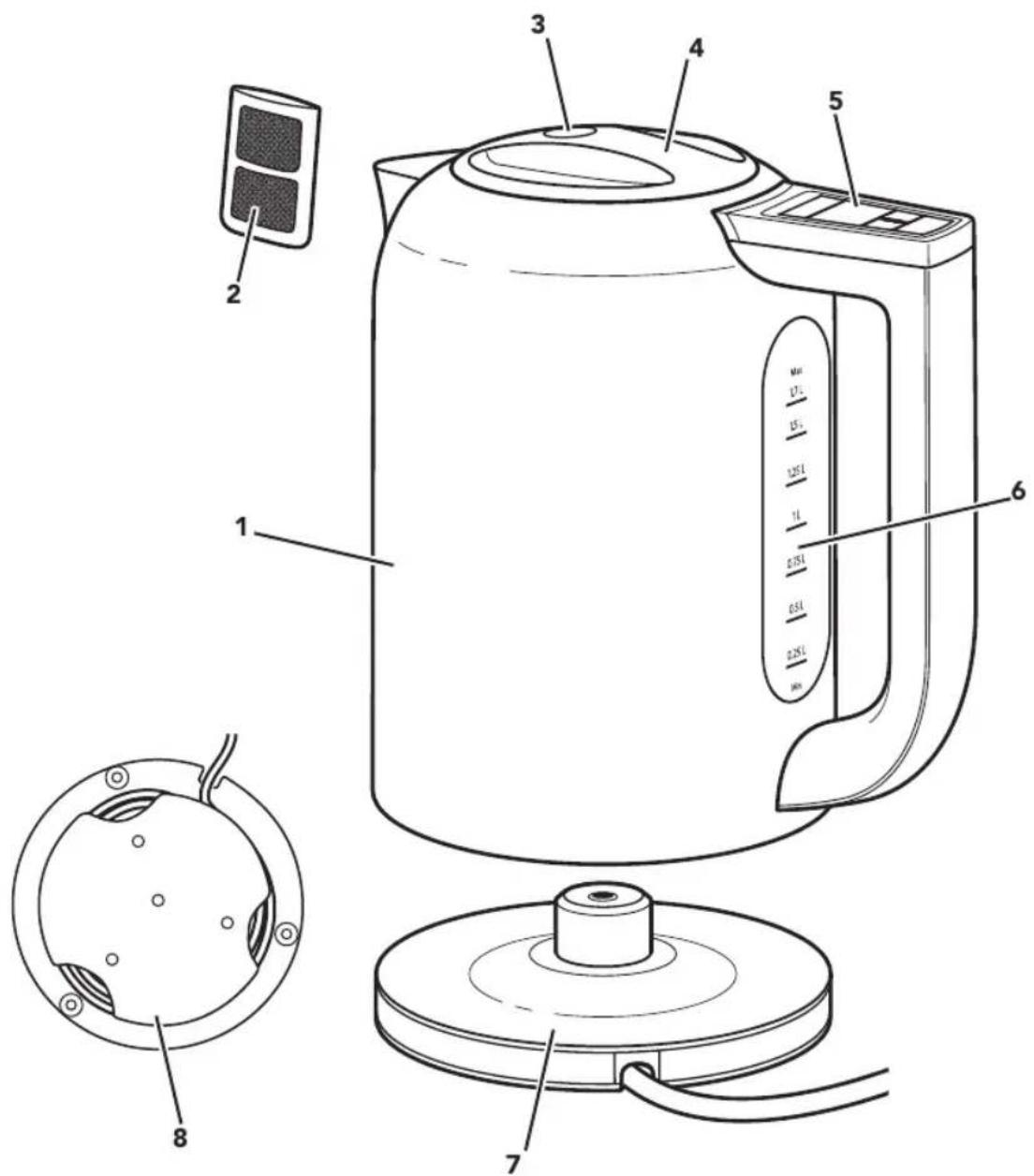

PARTS AND FEATURES

1 1.7 L (7 cup) Electric Kettle
2 Water filter
3 Lid release button
4 Water fill location

5 Control panel
6 Water gauge window
7 Base with power cord
8 Underside of base with power cord wrap

ELECTRIC KETTLE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions. Misuse of appliance may result in personal injury.
2. Do not touch hot surfaces. Use handles.
3. To protect against fire, electric shock and injury to persons do not immerse cord, plugs or appliance in water or other liquid. Avoid spillage on the connector.
4. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play with the appliance.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or adjustment.
8. Use of replacement parts not recommended by manufacturer may result in fire, shock, or injury to persons.
9. Do not let the cord hang over the edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner or in a heated oven.

ELECTRIC KETTLE SAFETY

1. Close supervision is necessary when any appliance is used by or near children.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. The Electric Kettle should only be used to heat water.
4. Do not use Electric Kettle without lid properly closed.
5. Do not use Electric Kettle with loose or weakened handle.
6. Do not clean Electric Kettle with cleaners, steel wool, or other abrasive materials.
7. Do not overfill kettle. If the kettle is overfilled, boiling water may be ejected.
8. This product is designed for indoor household use only. Not designed for commercial use.
9. The heating element surface is subject to residual heat after use. Do not touch hot surface. Use handles.
10. The appliance is only to be used with the base provided.
11. Refer to the "Care and Cleaning" section for instructions on cleaning the surfaces in contact with food.

12. This appliance is intended to be used in household and similar applications such as:

13. staff kitchen areas in shops, offices, or other working environments;

14. farmhouses;
15. by clients in hotels, motels and other residential type environments;
16. bed and breakfast type environments.

SAVE THESE INSTRUCTIONS

ELECTRIC KETTLE SAFETY

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Voltage: 220-240 Volts

Frequency: 50-60 Hertz

Wattage: 2400 Watts

NOTE: If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripped over a longer cord.

BATTERY ACTIVATION (OPTIONAL)

1

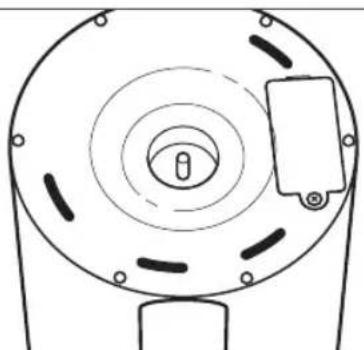

Technical line drawing of a mechanical component with concentric circles and a rectangular housing (no text or symbols)

To provide power to the display when the Electric Kettle is not on the base, insert 2 AA batteries (not included) in the battery housing on the underside of the kettle.

NOTE: If batteries have been added and the Electric Kettle is off the base, the display will show the current temperature of the water. Placing the Electric Kettle back on the base will allow full functionality of the kettle to change the temperature, heat, and hold temperature.

Before first use, fill the Electric Kettle to the maximum level, then boil and discard the water. The temperature can be displayed in Celsius (C) or Fahrenheit (F). To change settings, hold the "-" and "+" buttons down at the same time.

NOTE: The Electric Kettle is designed for water only. Do not put any other liquids or substances in the Electric Kettle.

FILLING THE ELECTRIC KETTLE WITH WATER

1

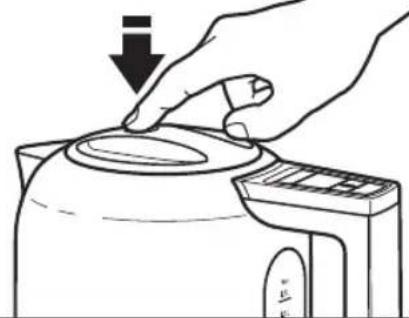

Line drawing of a hand pressing down on a kettle with a downward arrow indicating action (no text or symbols)

Open the lid of the Electric Kettle by pressing the lid release button.

2

Fill Electric Kettle. The water level is displayed in .25 L increments. If there is no water in the kettle, the water drop icon will display and the alert tone will sound for 6 seconds. Remove water if it exceeds the "Max" fill line.

NOTE: There must be a minimum of .25 L of water for the Electric Kettle to operate. Do not exceed the "Max" fill line.

3

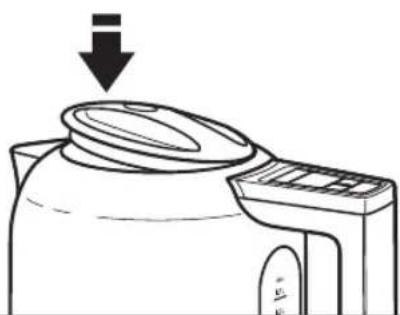

Line drawing of a kettle with a lid and handle, showing a downward arrow (no text or symbols)

Push the lid down so it locks into the closed position. You will hear a clicking sound which indicates the lid is locked.

4

Diagram showing a mechanical component being inserted into a circular base, with a downward arrow indicating the insertion direction (no text or symbols present)

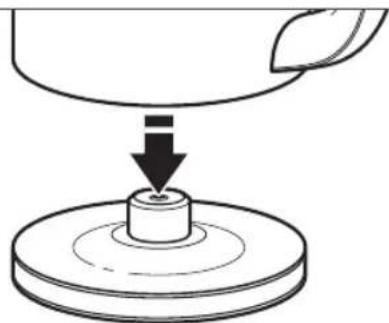

Place the Electric Kettle on the base.

Place the Electric Kettle on the base. The display will show the default temperature (100°C / 212°F). Press the "+" or "-" buttons to select your desired water temperature. See the "Temperature guide" for more information.

°C °F
50 122
60 140
70 158
80 176
90 194
100 212

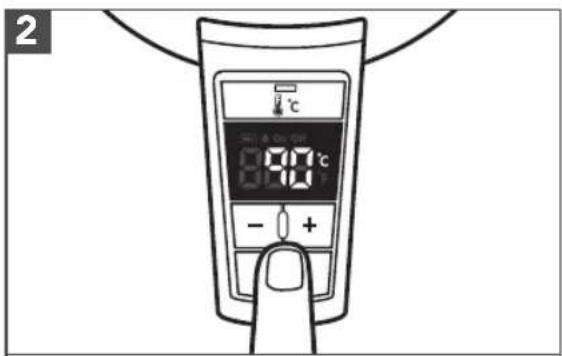

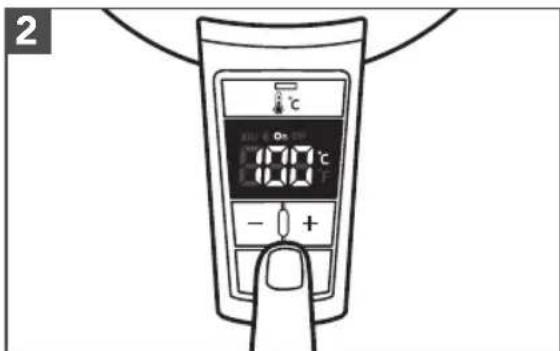

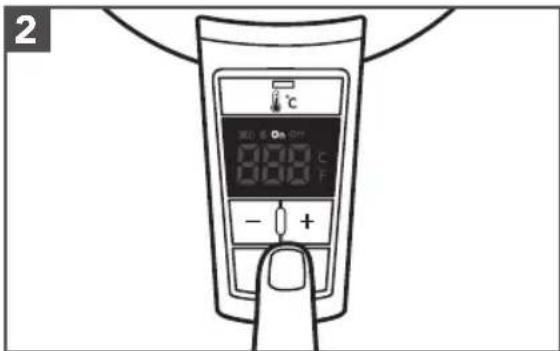

The Electric Kettle has 6 programmed temperature settings.

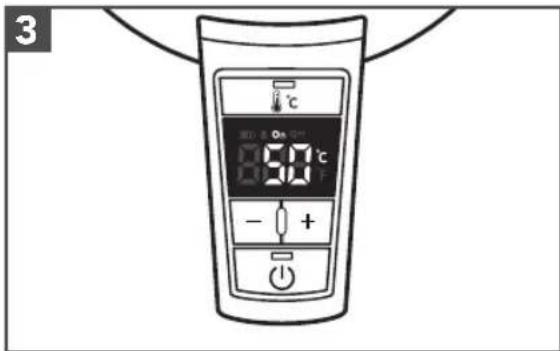

Press the START/CANCEL button to save temperature and to begin heating the water. "On" will be displayed on the screen to indicate the Electric Kettle is heating. The "Start/Cancel" button does not function when the Electric Kettle is off the base.

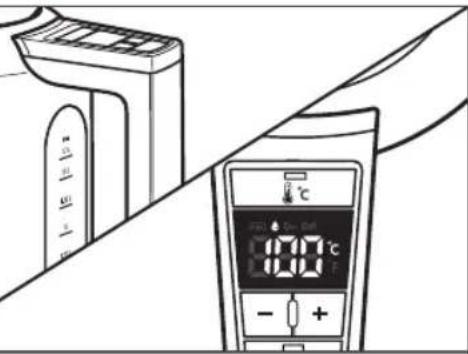

Once the water reaches 50^ C or 122^ F, the current temperature will show on the main display and continue heating until the desired temperature is reached.

Once the desired temperature has been reached, 3 beeps will sound and the word "Off" will show in the top corner of the display.

If batteries have been added and the Electric Kettle is off the base, push any button to display the current temperature and the battery icon will display the battery charge level.

NOTE: The temperature will blink 5 times and return to standby after 5 seconds. This will continue until after the water temperature drops below the desired temperature.

TEMPERATURE GUIDE

Use this guide for outstanding results from your KitchenAid Electric Kettle.

60°C (140°F) 70°C (158°F) 80°C (176°F) 90°C (194°F) 100°C (212°F)
Delicate Tea Green TeaGyokuroSencha	Blooming Tea Black TeaEarl GreyEnglish Breakfast			Boil Water
	White TeaSilver Needle	ChaiGreenWhite	Hot Chocolate Chai	Red
		Green TeaBenchaGenmaicha	Oolong Tea Herbal	TeaTisanes
				Instant Soup
				Oatmeal
				Rooibos Tea
				Yerba Maté

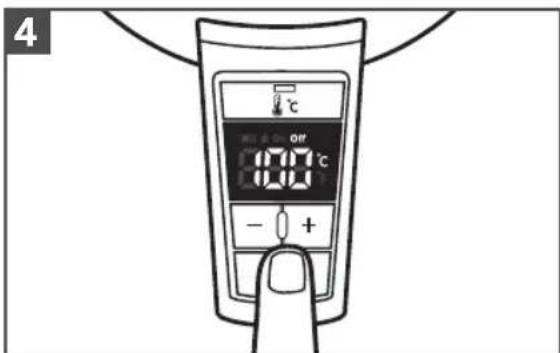

USING THE HOLD TEMP MODE

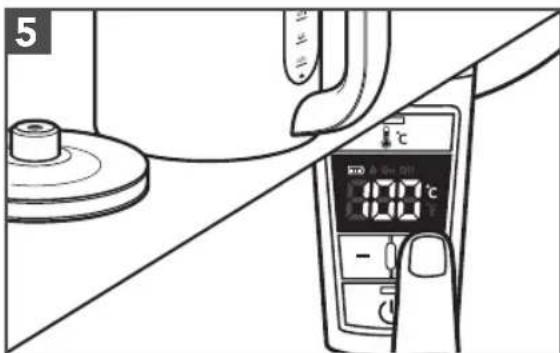

To activate the Hold Temp mode, leave the Electric Kettle on the base after reaching the selected temperature and press the HOLD TEMP button. The Electric Kettle will maintain the desired temperature for up to 30 minutes.

The Hold Temp mode may be canceled by pressing the START/CANCEL button.

NOTE: Hold Temp mode works for all temperatures. When using Hold Temp mode at 100^ C ( 212^ F), mode will activate at 92^ C ( 198^ F) and 100^ C ( 212^ F), depending on altitude.

The Electric Kettle can be turned off in several ways:

Press START/CANCEL while in heating mode. Unplug cord when Electric Kettle is not in use.

Press START/CANCEL while in Keep Warm mode. Unplug cord when Electric Kettle is not in use.

CARE AND CLEANING

CLEANING THE EXTERIOR

IMPORTANT: Before cleaning, always disconnect the Electric Kettle from electrical outlet. Make sure the Electric Kettle has cooled completely.

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

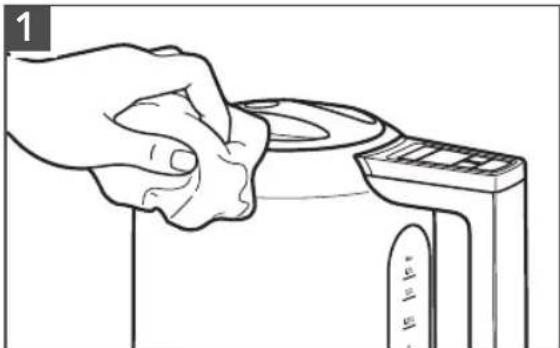

The exterior of the Electric Kettle may be cleaned with a damp cloth. Dry and polish the Electric Kettle with a soft cloth. Abrasives and scouring agents of any kind are not recommended.

CLEANING THE FILTER

The Electric Kettle features a removable mesh filter that traps scale deposits for cleaner water. The filter will need to be cleaned periodically—more often if you have hard water.

CARE AND CLEANING

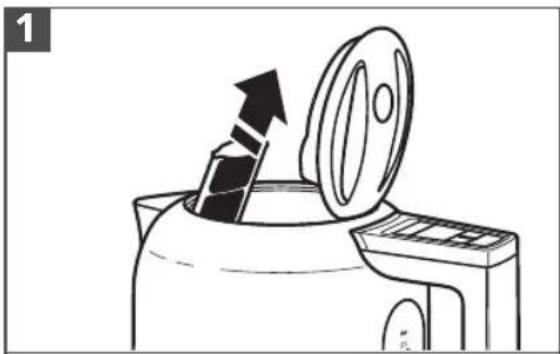

Line drawing of a kitchen appliance with a lid and arrow indicating upward motion (no text or symbols)

To access filter: Open the lid; the filter is located behind the spout inside Electric Kettle. Grasp the top of the filter to remove.

Line drawing of hands adjusting a wall-mounted fixture with a faucet (no text or symbols)

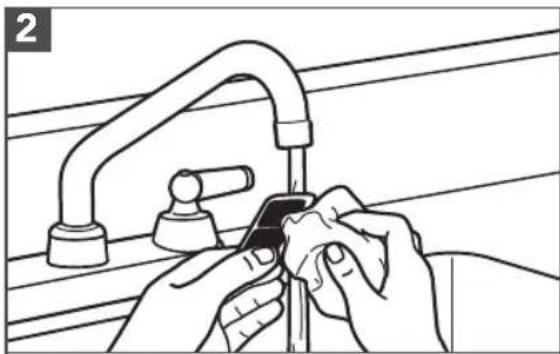

Clean under hot water with a soft brush or cloth to remove deposits. Replace filter by sliding the filter into the slot behind the spout.

NOTE: If calcium deposits remain on the filter, let it stand overnight in a solution of water and white vinegar. Rinse the filter thoroughly and replace in the Electric Kettle.

REMOVING MINERAL DEPOSITS FROM THE INTERIOR

To get the best performance from your Electric Kettle, decalcification will be necessary. Calcium deposits may form on the interior metal parts of the Electric Kettle. The cleaning interval will depend on the hardness of the water you put in the Electric Kettle.

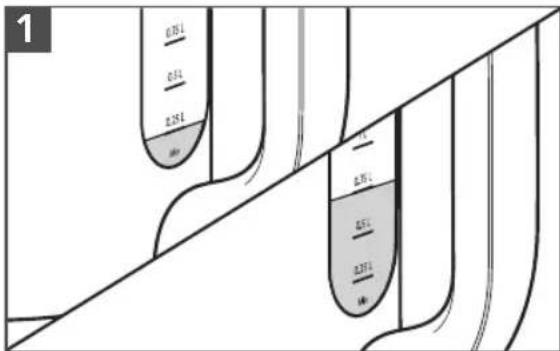

Fill the Electric Kettle with white vinegar to the .25 L mark. Add water to the .75 L mark. Boil (100° C/ 212° F) and allow to stand overnight.

Technical line drawing of a mechanical assembly with faucet and pipe (no text or symbols)

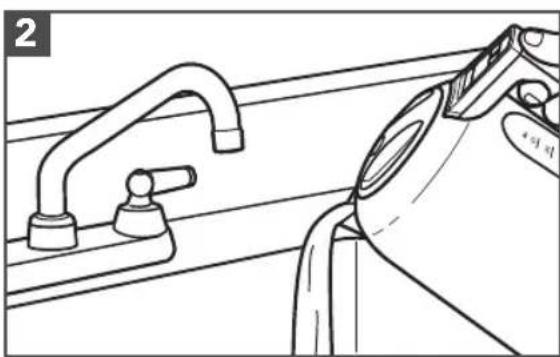

Empty the solution from the Electric Kettle.

Line drawing of a hand holding a water tap with a valve, next to a kitchen sink (no text or symbols)

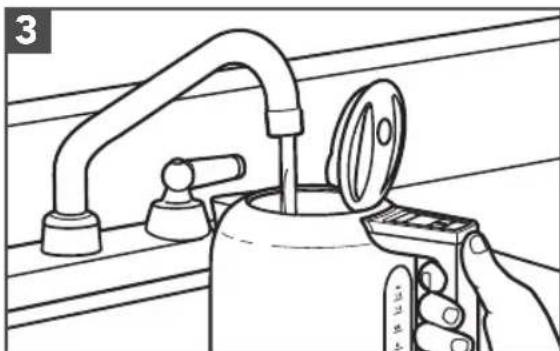

Fill the Electric Kettle with water, bring to a boil, and drain out the water. Repeat this step twice. The Electric Kettle is now ready to use.

©2020 All rights reserved.

Specifications subject to change without notice.
