Airpot 40410 - Drink dispenser PROCTOR SILEX - Free user manual and instructions

Brand	Proctor Silex
Model	Airpot 40410
Product type	Thermal beverage dispenser
Capacity (estimated)	1.8 L
Lining material	Insulating stainless steel
Dimensions (height x diameter)	Approximately 30 cm x 20 cm
Weight (estimated)	1.2 kg
Power supply	120 V, 60 Hz
Main functions	Dispensing hot and cold beverages, direct brewing into the lining
Pump	Removable, with locking tabs (OPEN/CLOSE)
Dispensing switch	On/Off
Dispensing button	Press to fill cup
Lid	With trigger and removable hinge
Maintenance and cleaning	Wash pump, lid, and lining with warm soapy water
Removable parts	Pump, lid, lining
Safety	Hot surfaces, do not leave unattended near children
Use	Household use only
Limited warranty	1 year (United States and Canada)
Customer service (United States)	1-800-851-8900, www.proctorsilex.com
Customer service (Canada)	1-800-267-2826, www.proctorsilex.ca

Frequently Asked Questions - Airpot 40410 PROCTOR SILEX

How to use the Airpot for the first time?

Before first use, follow the instructions in the Maintenance and cleaning section. Wash the pump, lid, and lining with warm soapy water, rinse and dry.

How to brew directly into the lining?

Preheat the lining with hot water (steps 1 and 2). Open the lid, remove the pump and place the lining under the coffee maker's filter basket. Follow the manufacturer's instructions for brewing. Once finished, replace the pump and close the lid.

Can I use the Airpot for cold beverages?

Yes. Follow the same procedure as for hot beverages but replace hot water with cold water.

How to clean the pump and lid?

Remove the pump by turning the tabs to OPEN and pull it out. Remove the lid by pressing the hinge and pulling upward. Wash both parts with warm soapy water, rinse and air dry.

The lid does not close properly, what to do?

Make sure the hinge is properly inserted into its support. Lower the lid until it clicks into place. If that doesn't work, remove and replace the lid.

What is the capacity of the Airpot 40410?

The capacity is not specified in the manual, but standard airpots of this type typically offer about 1.8 liters.

Does the appliance heat water?

No, the Airpot does not heat water. It is used to keep the temperature of hot or cold beverages. You must preheat the lining with hot or cold water depending on use.

How to replace the pump?

To remove the pump, turn the tabs counterclockwise to OPEN. Lift it out. To replace, align it and turn the tabs to CLOSE.

Where to find the full manual?

You can download the manual for free in PDF format from notice-facile.com or the official Proctor Silex website.

Does the warranty cover accidental damage?

The limited one-year warranty does not cover damage resulting from accident, misuse, or modification. It only covers defects in materials and workmanship.

USER MANUAL Airpot 40410 PROCTOR SILEX

Line drawing of a cylindrical container with lid and side ports (no text or symbols)

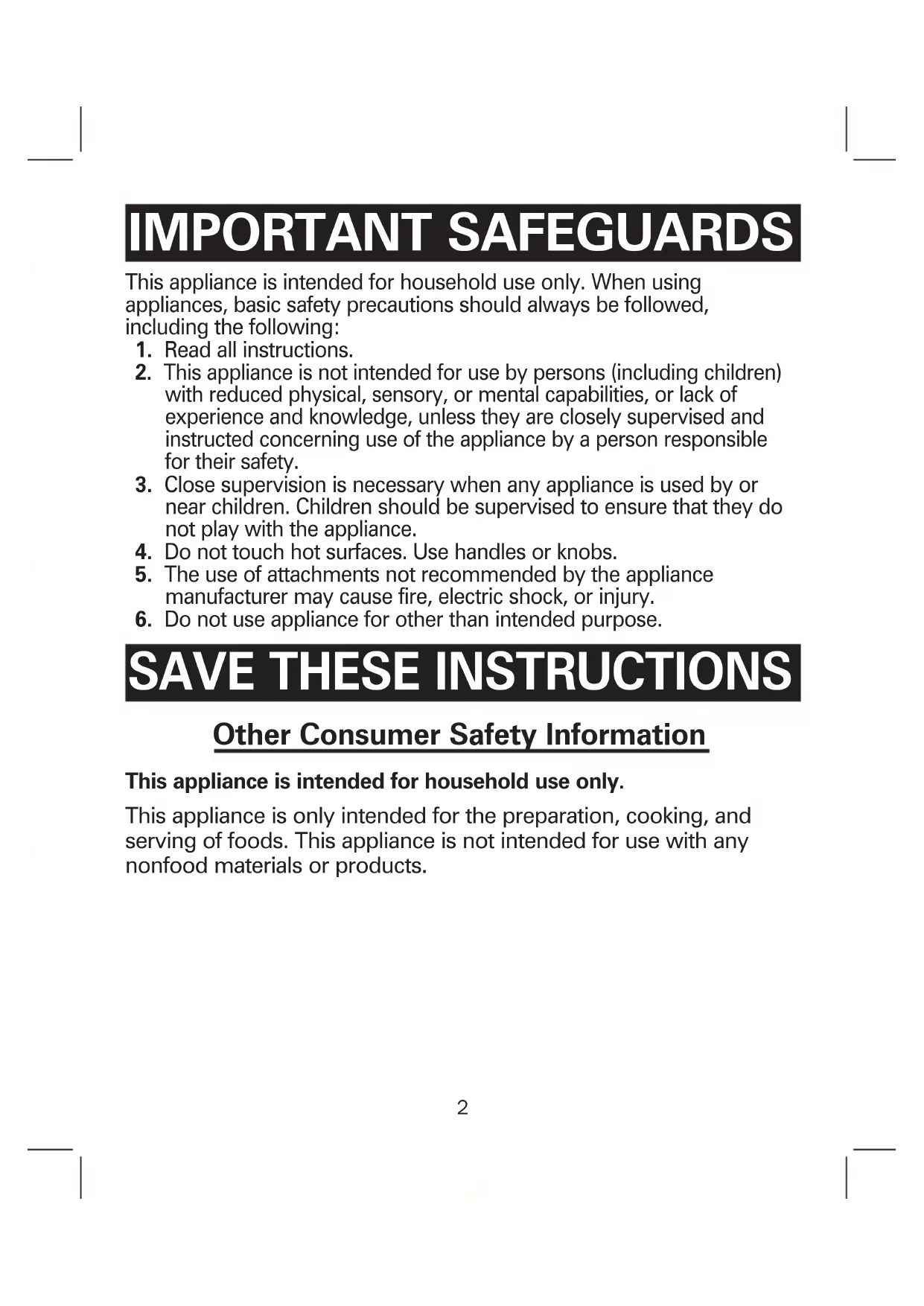

READ BEFORE USE

This appliance is intended for household use only. When using appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. The use of attachments not recommended by the appliance manufacturer may cause fire, electric shock, or injury.
6. Do not use appliance for other than intended purpose.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

This appliance is only intended for the preparation, cooking, and serving of foods. This appliance is not intended for use with any nonfood materials or products.

Parts and Features

Before First Use: Follow Care and Cleaning directions on page 6.

How to Use

1. Lift up the lid release and move the lid back until it rests in place. Using pump tabs, turn counterclockwise towards OPEN. Remove pump.
2. Fill thermal pot liner with hot water. Replace pump back into the pot liner, hold tabs, and turn clockwise towards CLOSE. Lower lid until it clicks into place.
3. After coffee has brewed, remove hot water and add coffee.
4. Slide dispensing lock to ON, place a coffee cup under the dispensing spout, and press dispensing button several times to fill your cup.

NOTE: For cold drinks, repeat the same process, replacing cold water for hot water.

Mechanical assembly diagram showing a valve mechanism with an arrow indicating direction (no text or symbols present)

How to Brew Directly Into Thermal Pot Liner

1. Preheat thermal pot liner with hot water as directed under "How to Use" on page 4, steps 1 and 2.

2. Open lid and remove pump.

3. Position the thermal pot liner directly under the coffee maker's brew basket. Follow manufacturer's instructions for brewing coffee.

4. When brewing is complete, carefully remove from under brew basket. Replace pump and close with tabs. Lower lid until it clicks into place. Move ON/OFF dispensing lock to OFF. Use the handle to move to next location.

Removing the Lid

1. Lift up on lid release and move lid back until it rests in place.

2. Press on the lines on lid hinge with one hand and pull lid straight up with your other hand to remove.

Line drawing of a hand holding a device with an upward arrow, no text or symbols present

Replacing the Lid

1. Insert lid hinge into the hinge holder.
2. Push straight down until you hear the lid click. Move lid down to close.

Diagram showing a device being inserted into a container with a downward arrow indicating process (no text or symbols present)

Care and Cleaning

1. Remove pump and lid as instructed on pages 4 and 5.
2. Wash lid and removable pump in hot, soapy water. Rinse and dry.
3. Add hot, soapy water to the thermal pot liner. Pour out; then rinse with water and air-dry.

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Mechanical assembly diagram showing a valve mechanism with an arrow indicating direction (no text or labels)

Illustration of a hand holding a device with an upward arrow, no text or symbols present

Diagram showing a device being lifted from a bag, with no visible text or symbols

Mechanical assembly diagram showing a valve mechanism with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a device with an upward arrow, no text or symbols present

Diagram showing a device with a bulb above it and a black arrow pointing to a button (no text or symbols present)

Cuidado y Limpieza
