HERZLICHEN GLÜCKWUNSCH!

Note: The dishwasher is not intended to be built in.

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

10 15 7 9 14 12 13 8 4 11 12

Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

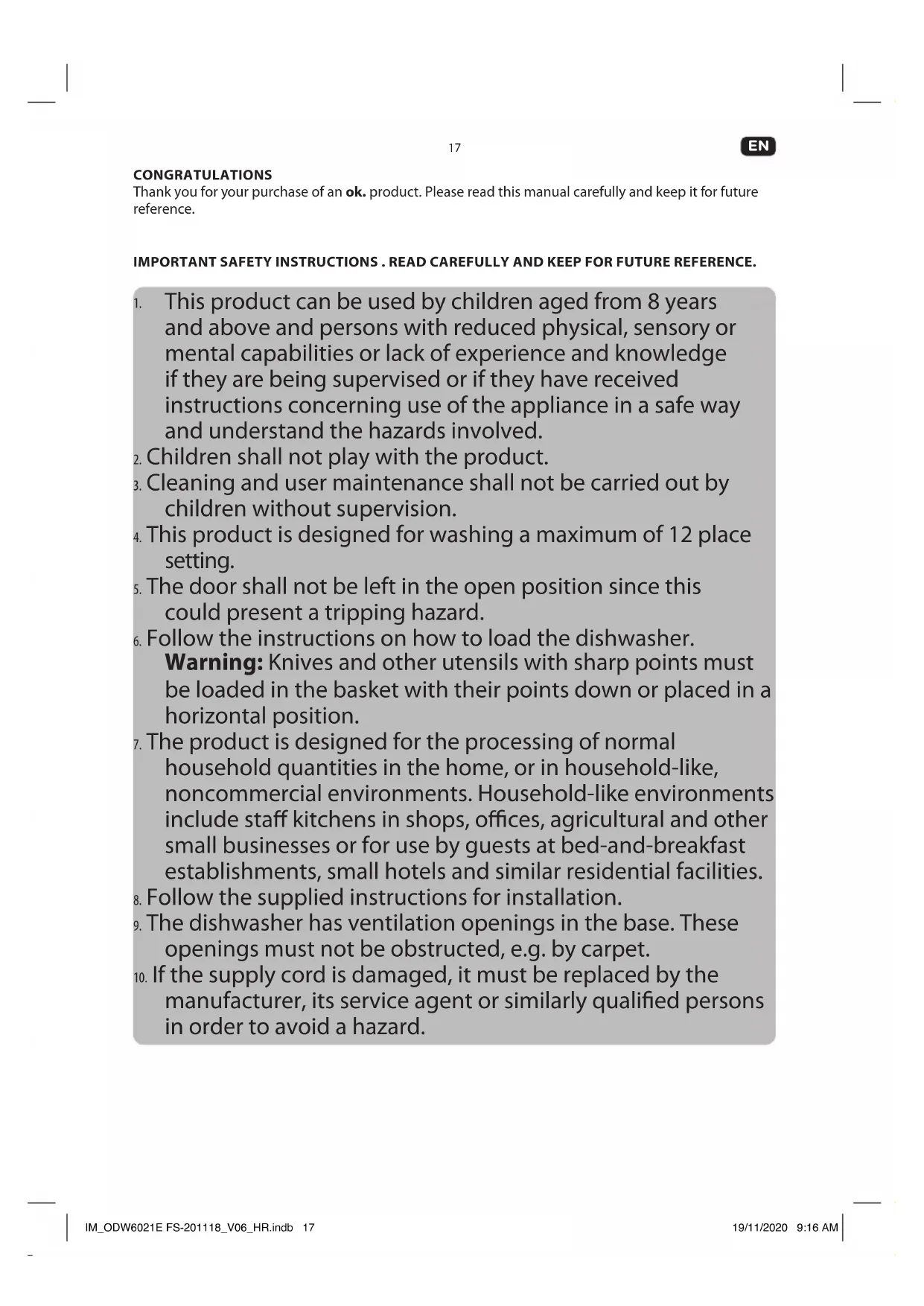

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or if they have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be carried out by children without supervision.
4. This product is designed for washing a maximum of 12 place setting.
5. The door shall not be left in the open position since this could present a tripping hazard.
6. Follow the instructions on how to load the dishwasher.
   Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
7. The product is designed for the processing of normal household quantities in the home, or in household-like, noncommercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
8. Follow the supplied instructions for installation.
9. The dishwasher has ventilation openings in the base. These openings must not be obstructed, e.g. by carpet.
10. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

EN

18

1. This product is connected to the water mains. Consider the minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions relevant for the installation of detachable hose-sets, use new hose-sets for installation. Do not reuse old hose-sets.

2. Follow the instructions in the chapter Cleaning and Care.

3. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

4. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

5. Never leave the product unsupervised while it is switched on.

6. Do not under any circumstances attempt to repair the product yourself (e.g. power supply cord has been damaged, product has been dropped during installation). For servicing and repairs, please consult an authorised service agent.

7. The mains voltage must match the information on the rating label of the product.

8. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

9. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

10. Only unplug from the power socket by the plug itself. Do not pull on the cord.

11. Unplug the product ...

12. when the product is not being used,

13. in case of malfunctions,
14. before attaching / detaching accessories and

15. before cleaning the product.

16. Use this product in dry indoor areas only and never outdoors.

17. This product is not intended for commercial use. It is designed for household use only.

INTENDED USE

This product is only intended for cleaning dishes and cutlery which are dishwasher proof or suitable for dishwashers. Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

WARRANTY AND SPARE PARTS

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

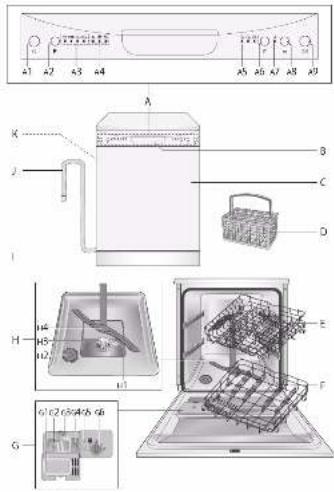

CONTROLS AND COMPONENTS

A. Operation panel

A1. On/off button ⏻

A2. Program selection button

A3. Program display ECO 90° 45°

A4. Signal LEDs - rinse aid water softener salt, water detector

A5. Timer display 3h 6h 9h

A6. Timer button ⏻

A7. Half load indicator 1/2

A8. Half load button 1/2

A9. Start/Pause button ▷ II

B. Handle

C. Door

D. Cutlery basket

E. Upper dish basket

F. Lower dish basket

G. Fill compartment

Detergent tab/powder compartment

G1. Cover

G2. Compartment for main washing

G3. Lock

G4. Compartment for pre-washing

Rinse aid compartment

G5. Fill indicator

G6. Rinse aid container

H. Inside

H1. Overflow bypass

H2. Salt container

H3. Water outlet with filter set

H4. Lower spray arm

Backside

1. Power cord with plug

J. Waste water hose (pre-assemble)

K. Hose for water inlet (pre-assemble)

Accessories

Funnel (not shown)

Content

1 x Dishwasher

1 x User manual

1 x Warranty card

BEFORE FIRST TIME USE

- Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

- Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

• After unpacking, please refer to chapter Cleaning and care.

EN

20

INSTALLATION

Note: The dishwasher is equipped with power cord and plug. Make sure before installation that a wall outlet is at the desired place of installation.

1 Consider the dimension of the product for placing and installation.

Place the dishwasher on an even, horizontal and steady surface. Ensure, that the product is absolutely levelled, by using a spirit level.

Note: The dishwasher is not intended to be built in.

2 The dishwasher must be connected to drainage.

1. The hose is already connected the waste water outlet at the back of the product. Cut the straps and unwind the hose.
2. Connect the end to a drainpipe (Option A or B). Observe the max. height of the outlet of the drainage hose.

Note:

A suitable hose holder is available as optional accessories.

3 Connect the water inlet to tap water supply (3/4") using the pre-assembled hose and make sure it is fastened tightly.

Note: If the water pipes are new or have not been used for an extended period of time, let the water run for a while to make sure, that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and the appliance might be damaged.

4 Connect the power plug to the mains.

Note: Before using the product for the first time, make sure, that all hydrophilic connections of the product are correctly sealed and connected to both the device as well as the water mains. Check all connections periodically to avoid possible leakage.

PREPARATION

Filling salt into the salt container

5 Depending on your tap water hardness (hardness degree) use additional salt (water softener). Always consider the suppliers instructions provided with the salt.

1. Remove the basket and then unscrew and remove the cap from the salt container.
2. Before first usage, fill 1.5 lt. of water into the salt container of your machine.
3. Place the end of the funnel (supplied) into the hole and pour in about 1.5 kg of salt. It is normal for a small amount of water to come out of the salt container.
4. After filling the container, screw the cap back on and ensure it is properly fastened.
5. Immediately after filling the salt into the salt container, a washing program must be started (rapid program suggested). Otherwise the filter system, pump or other important components of the machine may be damaged by salty water which voids the warranty.

Note: Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container has been filled.

Warning!

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the product. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty and is not liable for any caused damages.
• If salt has been spilled, a soak or a rapid program must be run to remove the excess salt.
• Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilt, from remaining at the bottom of the machine for any period of time, which may cause corrosion.
• The salt container must only be refilled when the salt warning light in the control panel comes on.

Adjusting salt consumption

6 1. Activate the setup mode: Close the door within 60 seconds after power ON, press the program P button and hold it for 5 seconds, the machine will enter the setup mode which is indicated by the blinking indicator light of salt.

1. Adjust the level of salt consumption: Press the program P button to select the proper setting according to your local environment. Follow the table below to find the correct setting. You can see the current setting, by observing, which program indicators light up.

Water Hardness level		Setting Digital display stalls
^^1)	mmol/ I^2)
0-5 0-0.9	4 1
6-11 1.0	2.0 2
12-17 2.1	3.0 3 *
18-22 3.1	4.0 4
23-34 4.1	6.0 5
35-55 6.1	9.8 6

1. The product will exit the setup mode automatically, 5 seconds after last setting/operation of switch.

Note:

^1) German degree of measurement for the water hardness
2) Millimol, international unit for water hardness
*) Factory setting

Contact your local water board for information on the hardness of your water supply.

EN

22

Adding detergent

• The dispenser must be refilled before the start of each wash cycle.

• For the correct amount follow the instructions provided with the detergent.

• Press the release button and the lid opens.

• Always add the detergent just before starting each wash cycle, otherwise it could get damp and will not dissolve properly.
• If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Consider the difference of the two compartments:

a) Compartment for the main wash cycle.
b) Compartment for the pre-wash cycle.

1. Close the lid and press it down until it locks in place.

Note: Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Filling the rinse aid dispenser

Your dishwasher is designed to use liquid rinse aids which are released during the final rinse to prevent water from forming droplets on your dishes.

1. Open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110 ml.

2. To open the dispenser, turn the cap towards the "open" (left) arrow and lift it out.

3. Pour the rinse aid into the dispenser, being careful not to overfill it.

Indicator Status
●	Full
◎	34 full
◎	12 full
◎	14 full
○	Empty

- Replace the cap by inserting it aligned with the "open" arrow and turning it towards the "closed" (right) arrow.

Note: Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

1. Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
2. If the rinse aid dispenser is empty the rinse aid signal lamp ✦ will turn on red.

Adjust the rinse aid dispenser

The dosage can be adjusted in 6 levels. Default level is 4. This setting is a recommendation.

Note:

• Set the dosage level higher, if stains remain on the dishes.
• Decrease the dosage if clouds or streaks remain on the dishes.
• Use a coin to change the setting.

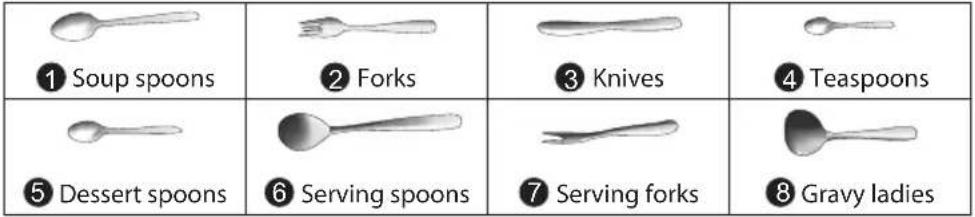

Observe the plan for placing cutlery into the cutlery basket. See table below for possible part designations.

Loading the dishwasher basket

• Only clean dishes and cutlery which are dishwasher proof or suitable for dishwashers. Follow the instructions of the manufacturers.
• Scrape off any large amounts of leftover food. Soften remnants of burnt-in food in pans, pots etc.
• It is not necessary to rinse the dishes under running water.

- Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/pans, etc. face down.
• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils must be stacked securely so they cannot tip over.
• All utensils must be placed in such a way that the spray arms can rotated freely during washing.
• Arrange small dishes in the upper basket, e.g. lightweight and delicate items such as saucers, cups, glasses, dessert bowls etc.
• Arrange large and heavy parts in the lower basket, such as plates, sheets, pots, bowls etc.

Note: Very small items should not be washed in the dishwasher as they could easily fall out of the basket and damage the appliance.

Warning!

• Long bladed knives stored in an upright position are a potential hazard.
• Do not let any item extend through the bottom of the baskets.
  • Always load sharp utensils with the sharp points down!
• Do not overload your dishwasher as this will impair the results.

EN

24

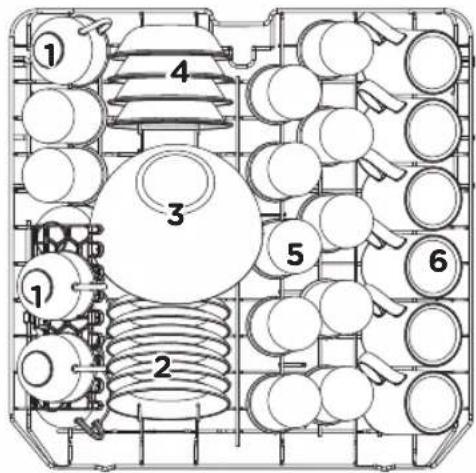

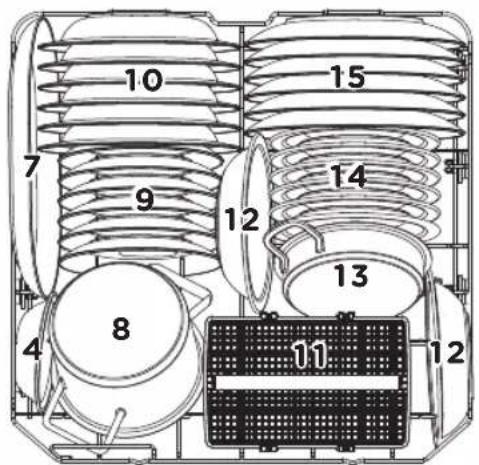

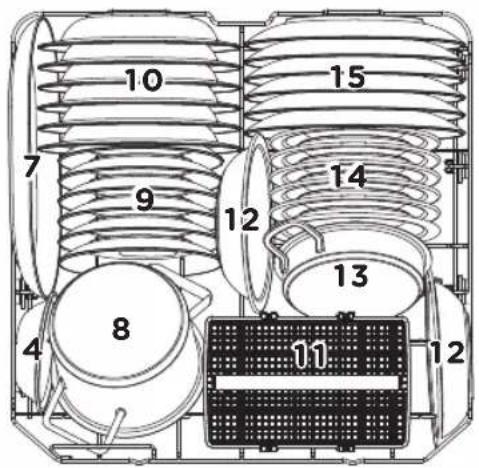

Observe the general plan for placing dishes and cutlery into the basket. See table below for possible part designations.

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

10 15 7 9 14 12 13 8 4 11 12

Upper basket Lower basket

Cups Saucers Glass bowls Dessert bowls Glasses
Mugs Oval platter Small pot Dessert dishes Soup plates
Cutlery basket Melamine bowls Oven pot			Melamine dessert plates	Dinner plates

OPERATION

Washing dishes

- Consider below steps to start the washing process:

1. Load the dishwasher basket.
2. Add detergent.

Important: Make sure the water-tap/water supply is open, the appliance is connected to the mains and the door is closed correctly.

1. Push the ⏻ switch to turn on the dishwasher.

2. Press the button P to choose your program, refer to chapter Choosing Program. If the dishwasher is not completely loaded, then you can additionally select the half load mode. This mode allows you to save both water and electricity when using the bottom and top basket of your dishwasher. Press the button 1/2 and the half load indicator lights up.

Note:

- This mode can only be used with the program setting Intensive, ECO and 90 min.

- We recommend to use the half load function if the dishes are only slightly soiled.

1. For a delayed start, please refer to chapter TIMER - DELAY WASHING. Push the ▷ || button to start the wash cycle.

- To stop the wash cycle push the button again.

Note: The program lights show the state of the dishwasher:

a) Program light on: standby or pause.
b) Program light blinking: washing process ongoing.

1. When the working cycle has finished, the dishwasher will give out an acoustical signal for 8 seconds, then stop.

2. Turn off the appliance using the button and shut off the water supply.

3. Open the door of the dishwasher.

Warning! It is dangerous to open the door when washing, because the hot water may scald you.

• Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot. They will also dry better.
• Unload the dishwasher.

Change/ pause the washing cycle

- You can modify the washing program when the dishwasher has just been started. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.

• Press the button and then the Program selection button P for more than 3 seconds. The machine will switch to standby mode.
• Change the program to the desired cycle setting.
• Press the button again to continue the washing process.

Note: If you open the door during washing, the machine will pause. When you close the door, the machine will continue working after 10 seconds.

- If you forgot a dish you can pause the process and add it, but make sure the detergent compartment has not already opened.

1. Press the button to pause the washing process.
2. After the spray arms have come to rest, you can open the door completely.
3. Add forgotten dishes.
4. Close the door and press the Button again and the dishwasher will continue after 10 seconds.

Recommendations on the type of detergent

Consider below notes in order to improve the cleaning result, while reducing the energy consumption as well as environmental impact:

• Dose the detergent, salt and rinse aid based on the recommendations / requirements of the supplier, while considering the mass and soiling level of the table-wares.
• Do not mix different detergents and / salts.
• Do you use detergents that as based on solvents or corrosive ingredients.
• Avoid overdosing, as this might damage the appliance.

Caution: An incorrect dosage of detergent, salt and other additives can damage the product and impair its correct function.

EN

CHOOSING PROGRAM

11 Program table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also shows various information about the programs.

Program	Information and purpose	Description of cycle	Detergent Pre/Main	Running time in min	Energy cons. in kWh	Water cons. in litre	Rinse aid
	For heaviest soiled crockery, and normally soiled pots, pans, dishes, etc. with dried on soiling.	Pre-wash 50 °C Wash 65 °C Rinse Rinse Rinse 65 °C Drying	4/16 g (1 or 2 pcs.)	205	1.621 17.8		★
ECO (*EN 60436)	This is standard programme; It is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.	Pre-wash Wash 45 °C Rinse 60 °C Drying	4/16 g (1 or 2 pcs.)	230 0.9	23 11.0		★
90 Min.	For lightly soiled crockery and glass.	Wash 60 °C Rinse Rinse 65 °C Drying	20 g (1 pc.)	90 1.3	5 11.5		★
Rapid	A shorter wash for lightly soiled loads and quick wash.	Wash 50 °C Rinse Rinse 45 °C	20 g (1 or 2 pcs.)	30 0.7	51 11.2	—

Note:

* ECO: This program is suitable to clean normally soiled tableware and for this use, it is the most efficient program in terms of its combined energy and water consumption. It is used to assess the compliance with the EU ecodesign legislation.

Note: The values given for programs other than the ECO program are indicative only.

TIMER - DELAY WASHING

12 The dishwasher is equipped with a timer function that enables subsequent rinsing. Choose from 3, 6, or 9 hours delay.

- Select the desired delay time with the delay button ⏻ (start time delay). The selected time will be indicated by a red LED. The washing process starts with the set delay.

CLEANING AND CARE

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the buttons).
• Clean the edge around the door using a soft, warm and damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Cleaning the filter assembly

The filter prevents larger remnants of food or other objects from entering the pump. Inspect the filters for blocking every time the dishwasher has been used.

13 The filter system consists of a coarse filter, a flat (main filter) and a micro filter (fine filter).

• Main filter A: Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.
• Fine filter B: This filter holds soil and food residue in the sump area and prevents it from being deposited on the dishes during the wash cycle.
• Coarse filter C: Larger items, such as pieces of bones or glass that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Disassemble and clean the filter according to following steps:

• Turn the filter cap (filter C) anti-clockwise and take off whole filter assembly.
  • Take out filters B and C.
  • Take out filter C.
• Wash filters under running water and remove all residues and foreign objects.
• Reassembling is done in reverse order. Make sure the filter assembly is installed correctly.

Note: Do not use the dishwasher with filter system not installed.

Cleaning the spray arms

14 The spray arms can be easily removed for periodic cleaning of the nozzles (approx. every two month), to prevent possible clogging.

• Grasp the middle of the spray arm, pull it upwards to remove it.
• Wash the arms under a jet of running water
• Return them carefully to their seat and make sure that the spray arms are installed correctly and can turn freely.

Descaling

Descaling is not necessary if the detergent is dosed correctly. If you want to descale the product, proceed according to the descaling agent manufacturer's instructions. You can obtain suitable descaling agents from retailers.

EN

28

ERROR CODES

Code Meaning Possible causes
The =_45^ is on.	Longer inlet time	Faucets is not openedWater intake is restrictedWater pressure is too low
The =_45^ and =_90^ indicators flicker frequently	Not reaching required temperature	Malfunction of heating elements
The ECO light flickers.	Overflow	Some component of dishwasher leaks
The ECO , =_45^ lights flicker	Not reaching required temperature	Malfunction of heating element

When an ERROR code appears and the problem cannot be resolved, please contact the customer service. The respective hotlines are noted in the provided warranty card.

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes Solution
Product does not work • Interrupted power supply • Check the power supply
Water isn't pumped from dishwasher	• Kink in drain hose • Check the drain hose
	• Filter is clogged • Check and clean the coarse filter
	• Kitchen sink is clogged • Check if the kitchen sink is draining well or call a service agent for help
Sud in the tub • Improper detergent	• Only use special dishwasher detergent
	• Spilled rinse aid • Wipe up rinse-aid spills
Stained tub interior	• Detergent with colourant was used	• Only use detergent without colourant
White film on inside surfact	• Hard water minerals	• Clean the interior with a damp sponge regularly
Rust stains on cutlery	• Cutlery are not corrosion resistant	• Do not wash these items in the dishwasher
	• A programme was not run after refilling salt	• Always run a short programme after adding salt
	• Softener lid is loose	• Check and properly close it
Problem Possible causes Solution
Knocking noise in the cabinet •	Spray arm is knocking against an item in the basket	• Interrupt the program and re-arrange the items
Rattling noise • Items of crockery are loose in the cabinet
Knocking noise in water pipes •	Caused by on-site installation or cross section of the piping	• This has no influence in the dishwasher function
Dishes aren't cleaned • Dishes not loaded correctly • Re-arrange the dishes
Cloudiness on glassware • Too much detergent • Use less detergent and choose shortest cycle for cleaning glasses
Black or grey marks on dishes •	Aluminum utensils have rubbed against dishes	• Use a mild abrasive cleaner
Detergent left in dispenser cups	• Detergent cups are blocked • Re-arrange the dishes
Dishes are not drying • Improper loading • Change the detergent product or add rinse aid

EN

30

TECHNICAL DATA

Power consumption 1760 - 2100 W

Rated voltage / frequency 220 - 240 V ~ 50 Hz

Water pressure (flow pressure) 0.4 - 10 bar / 0.04 - 1 MPa

Water temperature Cold

• This is a Dishwasher.
• See website below for detailed technical information or ask your vendor for specification sheet. www.ok-online.com.

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Notes concerning the energy- and water consumption of the dishwasher

• The eco program is suitable for cleaning normally soiled dishes. It is the most efficient program for this purpose in terms of combined energy and water consumption and is used to assess compliance with the EU ecodesign legislation.
• By loading the domestic dishwasher up to the capacity specified by the manufacturer, energy and water can be saved. Arrange the dishes correctly as described in the loading plans in these instructions. Improper loading causes inefficient dish-washing and possibly malfunctions.
• Manual pre-washing of the dishes leads to higher water and energy consumption and is not recommended.
• Washing dishes in a household dishwasher generally uses less energy and water than washing by hand, provided the household dishwasher is used in accordance with the manufacturer's instructions.
• Values for the program duration as well as the energy and water consumption of all programs that include an operating cycle can be found in the corresponding tables in these instructions.
• Observe the information on proper installation (including horizontal alignment, connection to the power supply, water connections) in these instructions.
• The use of cleaning agents, salt and other additives must be carried out properly. Incorrect dosage leads to increased environmental pollution and possibly damage to the device.
• Before each use, remove all foreign objects from the household dishwasher.
• Regular cleaning and compliance with the optimal cleaning intervals and measures to prevent limescale deposits, are important. Please refer to the chapter on Cleaning and care.
• Regular control of the filters and the optimal cleaning intervals are important. Please refer to the chapter on Cleaning and care.

ENHORABUENA

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

10 15 7 9 14 12 13 8 4 11 12

Cesta superior Cesta inferior

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

10 15 7 9 14 12 13 8 4 11 12

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

10 7 9 12 15 14 13 8 4 11 12

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

10 7 9 12 15 14 13 8 4 11 12
