Product type	Evaporative air cooler / Portable air conditioner
Brand	DOMO
Model	DO155A
Fan speeds	3 (Low, Medium, High)
Oscillation	Yes, left-right (adjustable)
Humidifier/cooler function	Yes, activatable by COOLER button
Water tank	Removable, with level indicator
Cooling packs	2 included, freeze before use
Filters	Honeycomb water filter + dust filter
Power supply	Mains, 220-240 V
Power	Not specified
Dimensions (approx.)	30 x 30 x 70 cm (estimate)
Weight (approx.)	5 kg (estimate)
Noise level	Not specified
Warranty	2 years (1 year for accessories and wear parts)
Customer service	[phone], [e-mail]
Filter maintenance	Cleaning monthly or bimonthly; leave to dry 4h
Tank cleaning	Once a month with mild detergent
Safety instructions	Do not immerse, unplug before maintenance, use indoors only
Repairability	Repair by manufacturer or authorized technician

Frequently Asked Questions - DO155A DOMO

How to turn on the DOMO DO155A air cooler?

To turn on the device, press one of the speed buttons: LOW (low), MID. (medium) or HIG. (high). The appliance will blow at the selected speed.

How to use the oscillation function?

Press the OSC. button to activate left-right oscillation. You can also manually tilt the ventilation grille up or down to adjust the direction of the airflow.

How to activate the humidifier or cooler mode?

Press the COOLER button to turn the function on or off. Make sure the water tank is filled between the min and max levels. For better cooling, first freeze the included cooling packs and place them in the tank.

How to clean the water filter (honeycomb)?

Remove the honeycomb filter, wash it in lightly soapy water with a soft cloth, rinse thoroughly to remove any soap residue, then let it dry for at least 4 hours before reinstalling.

How to clean the water tank?

Unplug the device, remove the water tank completely by releasing the pump locking device. Clean it with a mild detergent, rinse and let it dry completely. Make sure the pump is properly repositioned before using the device again.

What is the warranty of this device?

The device is guaranteed for 2 years from the date of purchase. Accessories and wearing parts are guaranteed for 6 months. The warranty requires presentation of the receipt.

Can I use the device outdoors?

No, the device is designed for indoor use only. Do not use or store it outdoors.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its authorized after-sales service, or a qualified technician to avoid any risk. Do not use the device in this condition.

How to install the casters?

Attach the casters by snapping them under the device as shown in the manual. They allow easy movement of the device.

Can the device be used without water?

Yes, the device can operate as a simple fan without water. Use the speed buttons (LOW, MID., HIG.) without activating the COOLER function. The humidifier/cooler mode requires water in the tank.

USER MANUAL DO155A DOMO

White DOWIO air conditioner unit with black ventilation slots and wheels (no visible text or symbols)

DO155A

Handleiding Air cooler
Mode d'emploi Air cooler
Gebrauchsanleitung Aircooler
Instruction booklet Air cooler
Manual de instrucciones Refrigerador de aire
Istruzioni per l'uso Raffrescatore d'aria
Návod k použití Mobilní ochlazovač
Návod na použitie Mobilný ochladzovač

Two black-and-white icons: a triangular warning sign with an exclamation mark and an open book (no text or symbols)

Simple line drawing of a vehicle chassis with four wheels (no text or symbols)

GEBRUIK

Technical line drawing of a mechanical device with a box and a vertical panel (no text or symbols)

Diagram showing a device with a grid panel and a close-up of its internal components (no text or symbols)

MILIEURICHTLIJNEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a vehicle chassis frame with no text or symbols

UTILISATION

Line drawing of a portable industrial machine with a smaller box and a separate panel, no text or symbols present.

Diagram showing a device with a grid panel and a close-up of its internal components (no text or symbols)

MISE AU REBUT

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

White plastic component with grid layout and two separate flat surfaces, no text or symbols visible

10

5 7 8 9

BEDIENFELD

Simple line drawing of a vehicle chassis with four wheels (no text or symbols)

GEBRAUCH

Technical line drawing of a mechanical device with a box and housing (no text or symbols)

Diagram showing a door mechanism and a plastic container with internal components, no text or symbols present.

ENTSORGEN

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

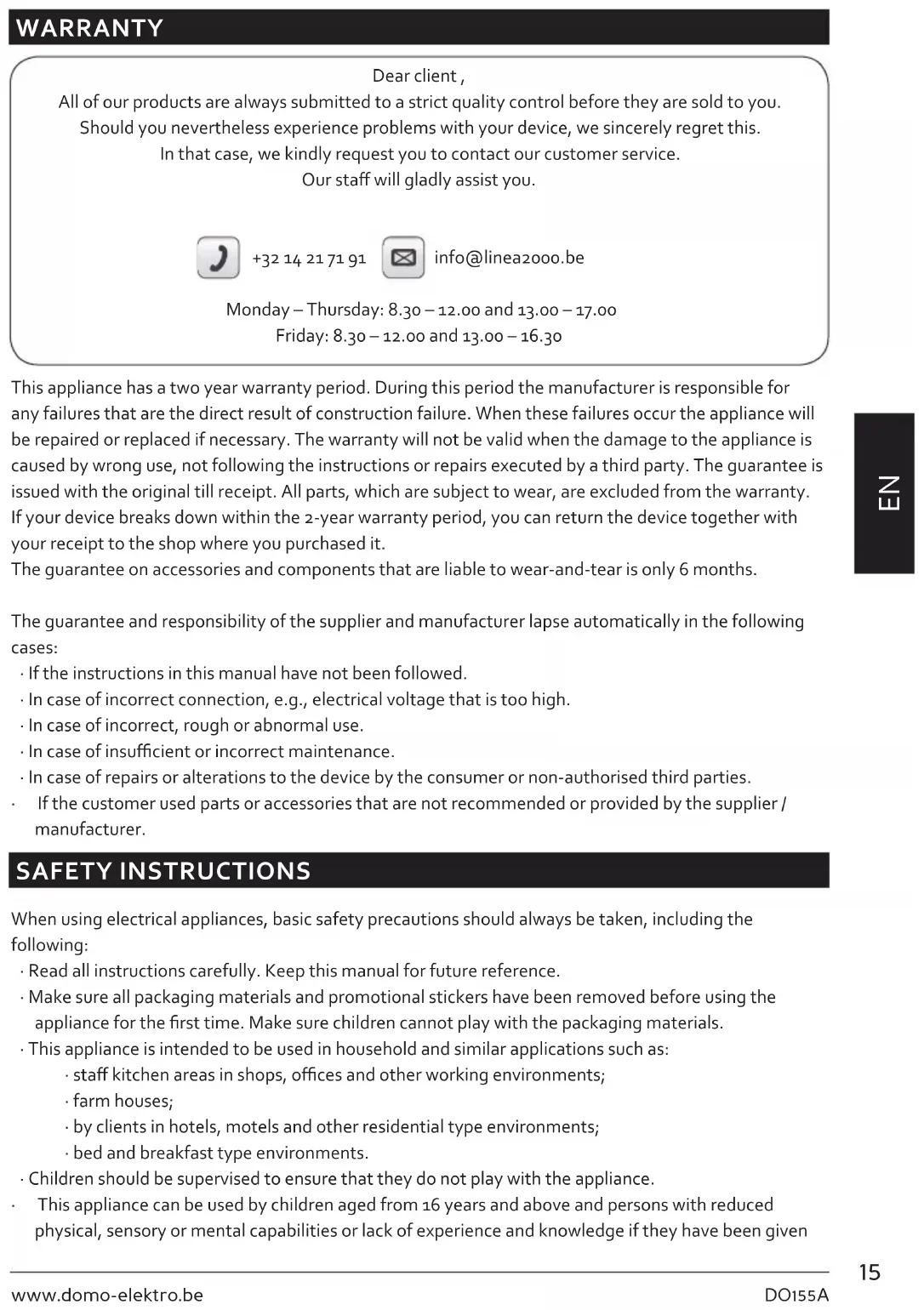

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Ensure that the fan is switched off from the supply mains before removing the guard.
  Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment.

To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Do not let power cord supply hang over the edge of counter, or touch hot surfaces.
  · Do not use this appliance for other than intended use.
  · Never leave the appliance unattended while it is functioning.
  · Do not place on or near a hot gas or electric burner, or in a heated oven.
  · Do not use or store this appliance outdoors.
• Do not move the appliance while in use.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

SAVE THESE INSTRUCTIONS

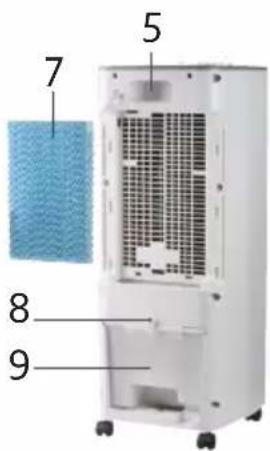

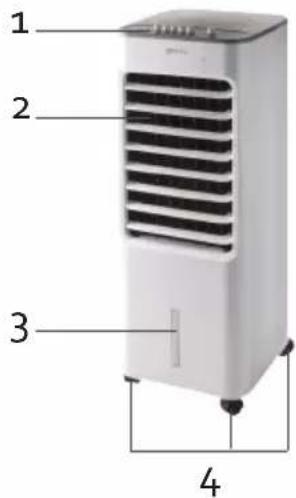

PARTS

1. Control panel
2. Air vent
3. Water level indication
4. Wheels
5. Handle
6. Dust filter
7. Honeycomb water filter
8. Water tank lock
9. Water tank
10. Refrigerating elements

1 2 3 4

Two white plastic components with grid patterns and numbered labels (6 and 10), no readable text or symbols beyond labels.

7 5 8 9

CONTROL PANEL

1. Off button: OFF
2. The setting (low-medium-high): LOW-MID.-HIG.
3. Oscillation button: OSC.
4. Vaporizer/cooler: COOLER

1 2 3 4 OFF LOW MID. HIG. OSC. COOLER.

BEFORE THE FIRST USE

Click the wheels in on the bottom of the device as shown in the image below.

Simple line drawing of a vehicle chassis with four wheels (no text or symbols)

USE

To get the device running, press one of the speed settings: low (LOW) - middle (MID.) - high (HIG.). The device will then blow at the speed you select.

OSCILLATION BUTTON

Press the oscillation button to change the direction of oscillation from left to right and vice versa. The direction of the installation can be adjusted by tilting the ventilation grill up or down.

VAPORIZER/COOLER

The air cooler can also be used as a vaporizer. This is recommended if your house has very dry air. You can turn this function on and off by pressing this button on the control panel.

The water level in the water reservoir must be between the minimum and maximum level. The water level can be viewed by means of the water level indicator on the front of the device. Freeze the cooling elements before placing in the water reservoir.

Line drawing of a laboratory apparatus with a vertical chamber and a rectangular base (no text or symbols)

Press the off button to turn off the device. Note: the cooler/humidifier must be turned on and off separately.

CLEANING AND MAINTENANCE

• Remove the plug from the socket before cleaning the appliance.
• Remove the honeycomb filter. Clean the filter every 1 or 2 months if the environment is susceptible to dust and dirt. Wash the filter in slightly soapy water, with a soft cloth. Rinse well, so that all soap residues are removed. Let the filter dry for at least 4 hours before placing it back into the air cooler.
  The dust filter can be cleaned with water and a soft brush. Dry thoroughly before placing it back.

- Clean the water tank once a month for an optimal and hygienic performance. Take the water reservoir out of the device and clean with mild detergent. Empty the water reservoir and let it dry completely. Note: you can completely remove the water reservoir from the device by releasing the lock on the pump. Make sure that the pump is always correctly replaced in the water reservoir before using the air cooler again.

- Regularly vacuum the air vent at the front to remove dust. Or wipe clean with a damp cloth.

Diagram showing a device with a grid panel and a close-up of its internal components (no text or symbols)

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Simple line drawing of a vehicle rear view with no text or symbols

USO

Line drawing of a portable industrial machine with a box and a separate unit (no text or symbols)

Diagram showing a device with a grid panel and a close-up of its internal components (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a vehicle chassis with no text or symbols

UTILIZZO

Line drawing of a refrigerator with wheels and a box, no text or symbols present

Diagram showing a device with a grid panel and a close-up of its internal components (no text or symbols)

MISURE AMBIENTALI

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Line drawing of a vehicle chassis frame with four wheels (no text or symbols)

POUŽITÍ

Technical line drawing of a mechanical device with a base and housing (no text or symbols)

Diagram showing a door handle and interior space with directional arrows indicating movement (no text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a vehicle chassis with four wheels (no text or symbols)

POUŽITIE

Line drawing of a machine with wheels and a small box, no text or symbols present

Diagram showing a device with a grid panel and an open storage unit, with a magnified inset highlighting the internal components (no text or symbols present)

OHL'AD NA ŽIVOTNÉ PROSTREDIE

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)
