USER MANUAL ErgoMixx MFQ36465 BOSCH

Line drawing of two electric handwheels with levers and coiled handles (no text or symbols)

1

Diagram of a device's internal components with blue lenses and a black arrow indicating a specific location (no text or symbols present)

2 a CLICK

b

Line drawing of a hand mixer with a whisk and a blue X mark, no text or symbols present

3 M 0 1 · 3 · 5

Illustration of a blue electric mixer blending liquid into a bowl (no text or symbols)

Pure diagram of a blue circular object with an arrow pointing right, no text or symbols present

Illustration of a blue hand mixer in a bowl with directional arrows indicating rotation (no text or symbols)

678

M 0 1 · 3 · 5

Illustration of hands using a power tool to install an electrical socket (no text or symbols visible)

Illustration of a hand washing machine with a black arrow pointing to the handle (no text or symbols)

C

Line drawing of a handheld electronic device with a stand and control panel (no text or symbols)

Diagram of a car interior showing a blue spherical object inside and a blue circular component with arrows indicating flow or movement (no text or symbols)

234 CLICK

Diagram showing a blue electric shaver above a graduated cylinder with liquid, indicating liquid level measurement.

Blue cable plugged into a wall socket with an arrow indicating direction (no text or symbols)

M 0 1·3·5

5

6

M 0 1 • 3 • 5

Illustration of hands using a power tool to install an electrical socket (no text or symbols present)

8 ① ① ②

					[y3y3]
	→	200 - 600 g		5	1 - 8 min
	→				2 - 5 min5
				1	30 s
		[6x8]	[6x8]		4 - 5 min5
			350 - 500 g		30 s1
			250 - 500 g		3 - 5 min5
	→	[7x9]		###	###
	+	###		###	###
	+ →	###		###
E
	√	⚠️ X	√
	⚠️ X	√	√
	⚠️ X	√	√

F

Illustration of a portable air purifier device with a blue belt and black arrow indicating motion (no text or symbols)

Diagram of a medical device with coiled tubing and a blue X mark, no text or symbols present

Illustration of a hair iron with a cord and a blue checkmark (no text or symbols)

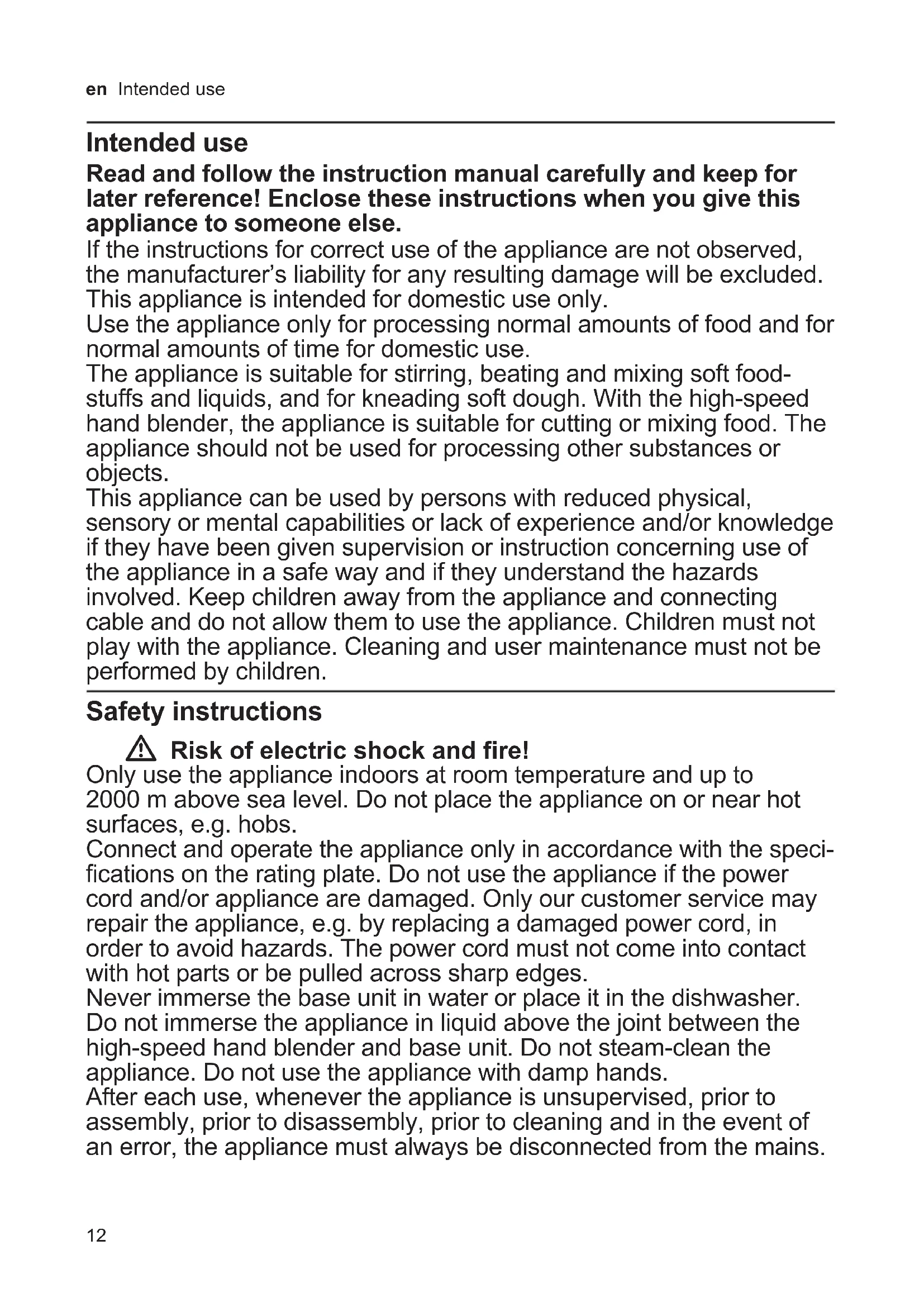

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is intended for domestic use only.

Use the appliance only for processing normal amounts of food and for normal amounts of time for domestic use.

The appliance is suitable for stirring, beating and mixing soft food-stuffs and liquids, and for kneading soft dough. With the high-speed hand blender, the appliance is suitable for cutting or mixing food. The appliance should not be used for processing other substances or objects.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children.

Safety instructions

⚠️ Risk of electric shock and fire!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. Do not place the appliance on or near hot surfaces, e.g. hobs.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards. The power cord must not come into contact with hot parts or be pulled across sharp edges.

Never immerse the base unit in water or place it in the dishwasher. Do not immerse the appliance in liquid above the joint between the high-speed hand blender and base unit. Do not steam-clean the appliance. Do not use the appliance with damp hands.

After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains.

Risk of injury!

Never connect the appliance to timer switches or remote-controllable sockets. If the power is interrupted, the appliance remains switched on and restarts when the power is restored. Switch off the appliance immediately. Never leave the appliance unattended while it is switched on! Never leave the appliance switched on for longer than is necessary to process the ingredients. Immediately after using the appliance, wait for it to stop. Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Do not attach or remove tools until the appliance is at a standstill – when switched off, the appliance continues running briefly. Do not operate the appliance at idle speed. Keep hands clear of rotating parts. Never grip the blade in the blender foot. Never clean blades with bare hands. Use a brush. Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating tools. Use the appliance only with genuine parts and accessories. Only insert tools of the same type (e.g. 2x kneading hooks) in pairs. Never simultaneously use tools and an accessory inserted in the rear aperture.

Risk of scalding!

Take care when processing hot food. Hot food may splash during processing.

Risk of harm to health!

Soiling on surfaces may be harmful to health. Follow the cleaning instructions. Clean surfaces which come into contact with food before each use.

⚠️ Important!

Before using the high-speed hand blender in a cooking pot, take the pot off the hotplate. The blender jug is not suitable for use in the microwave. It is essential to clean the appliance as described after each use or after it has not been used for an extended period.

→ "Cleaning" see page 15

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

Content

Intended use....12

Safety instructions....12

Overview....14

Operation....14

Cleaning 15

Troubleshooting....16

Disposal....16

Guarantee....16

Overview

→ Fig. A

3 5-level switch + instantaneous switching

1 Power cord
2 Cable clamp

For switching the appliance on and off and adjusting the operating speed.

0 = switched off

1 = lowest speed

5 = highest speed

M = instantaneous switching (highest speed), press left and hold down.

When using accessories in the rear aperture, the appliance can be operated using instantaneous switching only.

4 Ejector button

For removing the tools.

5 Apertures for inserting the tools with lock
6 Slider for actuating the lock

When the slider is actuated, either the aperture for inserting the tools (5) or the rear aperture (9) is released.

7 Release buttons

For removing accessories from the rear aperture. Press both buttons simultaneously.

8 Stand with cord tidy

For setting the appliance down when not in use and for winding up the power cord.

9 Rear aperture with lock

For inserting accessories, e.g. the high-speed hand blender.

Tools

10 Stirring whisks
11 Kneading hooks
On some models
12 High-speed hand blender
13 Blender jug with lid
14 Universal cutter

If an accessory is not supplied as standard, it can be ordered from customer service.

Accessories Order no.
High-speed hand blender
Plastic	657242
Stainless steel	657258
Universal cutter 659058

When using the accessories, follow the separate instruction manual for the accessories.

Operation

■ Before using the appliance for the first time, clean the base unit and tools.
■ Always unwind the power cord completely.

Important note: When the rear aperture is open, the appliance can be operated using instantaneous switching only. Selector switch 1-5 will not function. Move slider for actuating the lock in switch position 0 only.

Always observe the maximum quantities and processing times in the table.

→ Fig. D

Base unit with tools

Beating whisks

The beating whisks can be used to whisk egg whites or beat cream. They can also be used to make light dough, e.g. sponge mixture, cake mixture, pancake batter.

They should not be used to make mayonnaise. To make mayonnaise, use the high-speed hand blender.

Kneading hooks

The kneading hooks can be used to make different types of dough, e.g yeast dough, dough for pizzas or bread, pastry for strudel or shortcrust pastry.

The maximum processing quantity is 500 g flour and ingredients.

→ Fig. B

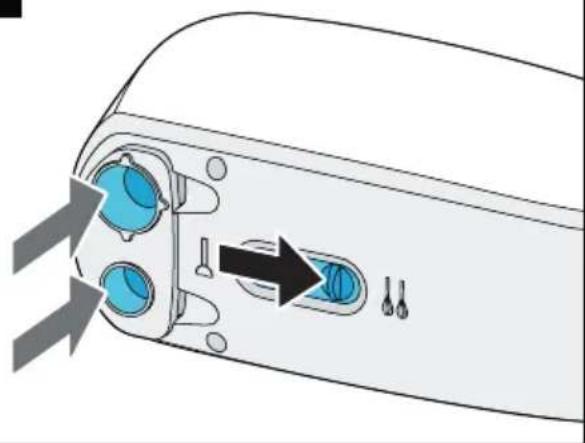

1. Move slider to position "8=". The apertures for inserting the tools are open, the rear aperture is closed.

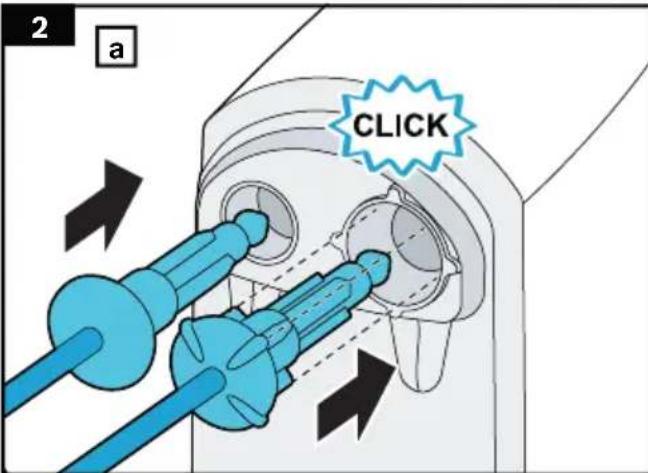

2. Insert the required pair of tools in the apertures and press on the tools until they engage.

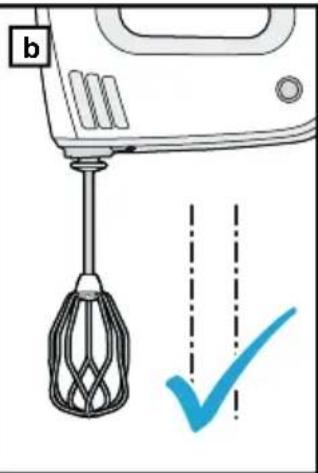

a. Note the shape of the plastic parts on the tools to avoid mixing them up.

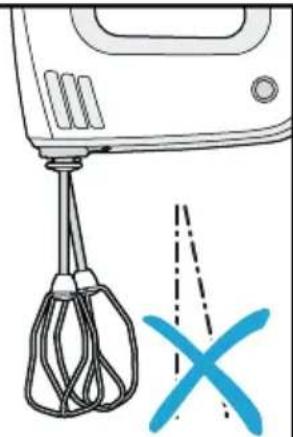

b. Insert tools one after the other to stop them from getting caught!

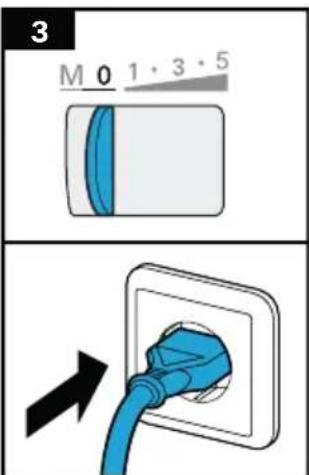

1. Insert the mains plug.
2. Insert the tools in the receptacle and switch the appliance on at the required level.

– Level 1, 2: for working in and mixing in.

– Level 3, 4, 5: for kneading and beating.

- Instantaneous switching M: for mixing or beating ingredients quickly.

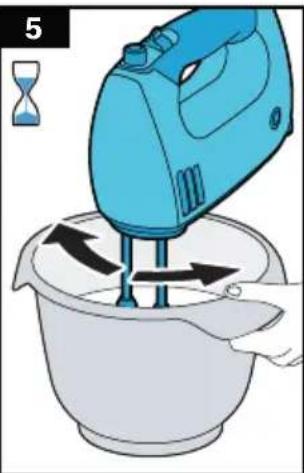

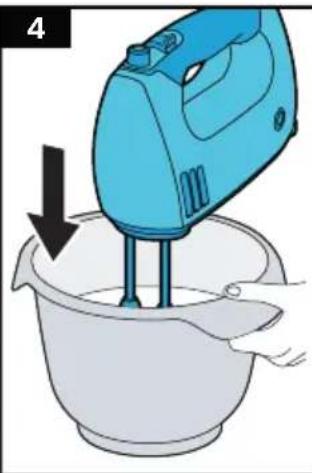

1. Move the mixer to and fro in the bowl while mixing. Never reach into the rotating tools.
2. As soon as the desired consistency is achieved, set the switch to 0 and wait for the appliance to come to a standstill.

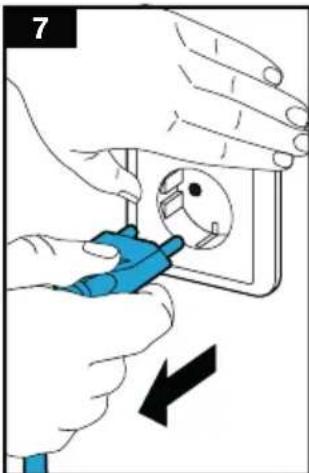

3. Pull out the mains plug.
4. Release and remove the tools by pressing the ejector button. The ejector button cannot be actuated unless the switch is in the 0 position.

Base unit with high-speed hand blender

The high-speed hand blender is suitable for blending mayonnaise (only whole eggs), sauces, mixed drinks, baby food, cooked fruit and vegetables. For puréeing soups.

Use the universal cutter for cutting/chopping raw food (onions, garlic, herbs).

→ Fig. ©

1. Move slider to position “▶”. The rear aperture is open, the apertures for inserting the tools are closed.

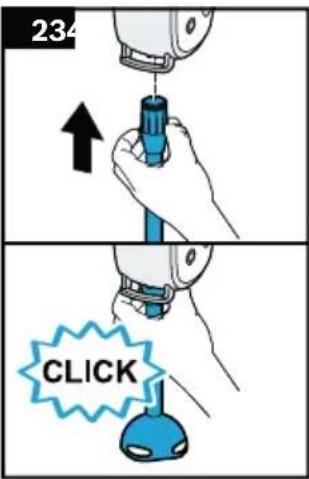

2. Insert the high-speed hand blender and lock into position.

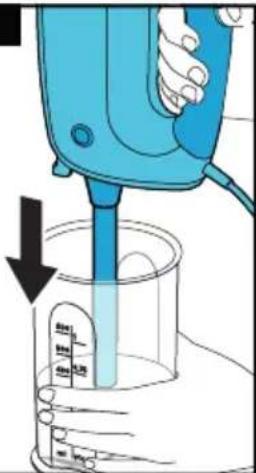

3. Place the high-speed hand blender in the receptacle. To prevent food from splashing, immerse the high-speed hand blender in the food before switching on the appliance.

Warning!

Do not immerse the appliance in liquid above the joint between the high-speed hand blender and base unit.

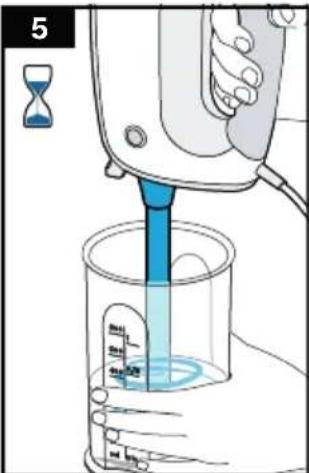

1. Insert the mains plug. Turn the switch to setting M and hold.
2. Process the ingredients as required.

Tip: The high-speed hand blender works better if there is some liquid between the ingredients being processed.

1. Release the switch.

Tip: To make cleaning the high-speed hand blender easier, after use place it in a receptacle containing clean water and briefly turn the switch to setting M several times.

1. Pull out the mains plug.

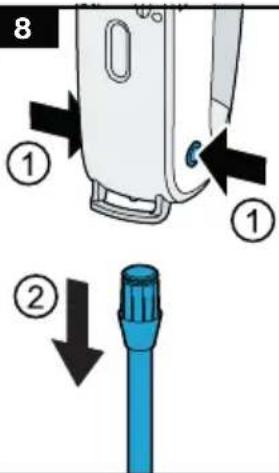

2. Remove the high-speed hand blender by simultaneously pressing both release buttons. When doing so, hold the lock of the rear aperture in place to prevent the high-speed hand blender from jamming.

Cleaning

The appliance and the accessories used must be thoroughly cleaned after each use.

→ Table E

Risk of electric shock!

Disconnect the mains plug before cleaning.

Warning!

■ Do not use cleaning agents containing alcohol or spirits.
■ Do not use sharp, pointed or metal objects.
■ Do not use abrasive cloths or cleaning agents.
■ Clean the base unit with a soft, damp cloth and then rub dry.

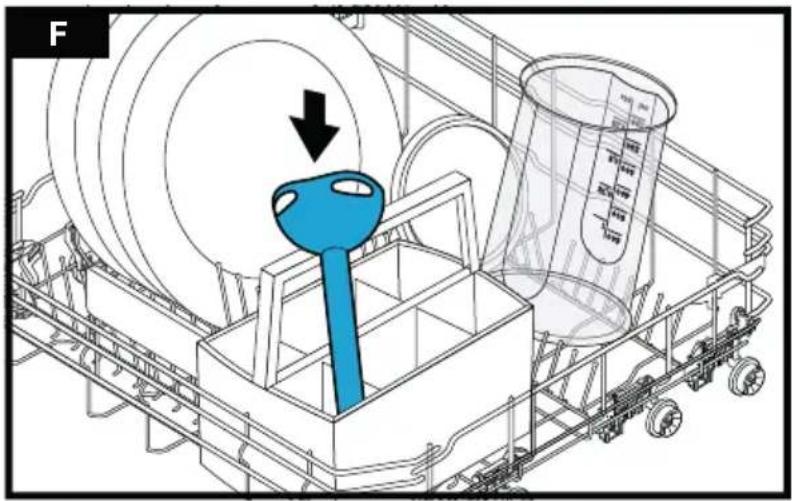

■ Clean the high-speed hand blender in the dishwasher or with a brush under running water. Never clean blades with bare hands. Leave the high-speed hand blender to dry in an upright position (blender foot blade at top) so that any water inside can run out. → Fig. F

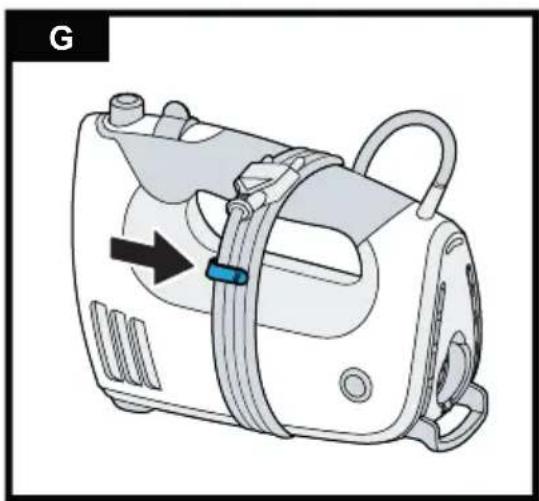

→ Fig. G

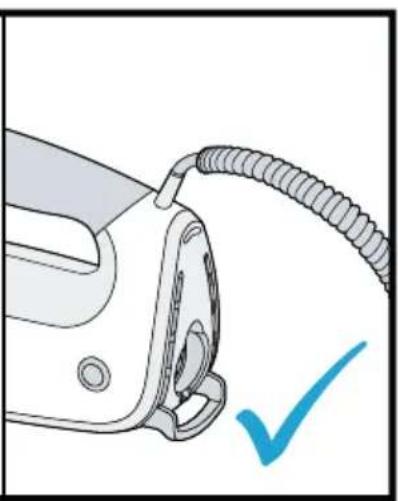

■ The power cord can be wound up for storage of the appliance.

en Troubleshooting

- Secure the mains plug with the cable clip.

Note:

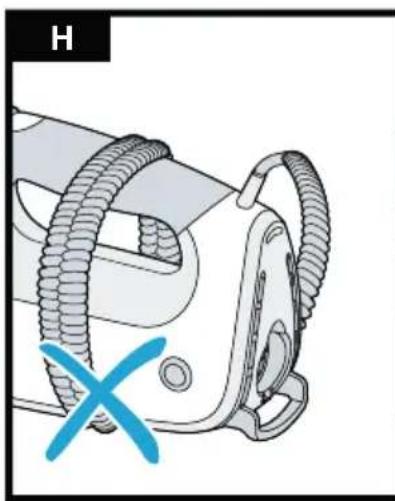

Appliances with a spiral cord: Never wind the cord around the appliance! → Fig. H

Troubleshooting

Problem:

Switch cannot be moved to Levels 1 to 5.

Remedy:

When the rear aperture is open, selector switch will not function between Levels 1 and 5.

Problem:

The slider can be moved only with difficulty or not at all.

Remedy:

Press slider inwards slightly and move.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
