Ninebot eKickscooter C2 - Electric scooter SEGWAY - Free user manual and instructions

Product type	Electric scooter
Brand	Segway
Model	Ninebot eKickscooter C2
Dimensions (L × W × H)	Approx. 910 × 400 × 960 mm
Folded dimensions (L × W × H)	Approx. 910 × 400 × 500 mm
Net weight	Approx. 10.4 kg
Max. payload	50 kg
Recommended age	6+
Required height	120 - 165 cm
Max. speed	Approx. 15 km/h
Theoretical range	Approx. 11 km
Max. slope	Approx. 5%
Tire type	7-inch shock-absorbing hollow core tires
Battery type	Lithium-ion, 54 Wh
Nominal voltage	21.6 V
Charging time	Approx. 3.3 h
Rated motor power	130 W
Max. motor power	160 W
Battery management system	Protection against overvoltage/undervoltage/short circuit/overcurrent/overheating
Protection rating	IPX4
Brake	Rear drum brake
Operating temperature range	-10 to 40 °C
Certifications	ANSI/CAN/UL-2272, UN/DOT 38.3, CE, UKCA

Frequently Asked Questions - Ninebot eKickscooter C2 SEGWAY

What speed modes are available on the Ninebot eKickscooter C2?

Three modes are available: D (Standard, 12 km/h), S (Sport, 16 km/h), and E (Propulsion assist, 16 km/h). To change mode, press the power button twice when the scooter is on.

How to turn the scooter on and off?

Press the power button to turn the scooter on. Hold the button for 2 seconds to turn it off.

What is the maximum payload and recommended age?

The maximum payload is 50 kg. The recommended age is 6 years and up, with a required height of 120 to 165 cm.

How to charge the battery and what is the charging time?

Use the provided charger (model NBW25D201000). Plug it into a wall outlet (100-240 V) and connect it to the charging port on the battery compartment. Full charging takes about 3.3 hours.

What do the icons on the dashboard mean?

The icons include: speedometer, speed mode (slow flashing for D, fast for S, solid for E), error notification, Bluetooth, temperature warning (battery >55°C or <0°C), lock reminder (abnormal movement), and battery power (5 bars). The first red bar indicates very low battery.

Can the scooter be used in the rain?

The protection rating is IPX4, meaning it is resistant to water splashes. Avoid immersion and do not use it in heavy rain.

How to fold the scooter?

Operate the quick-release lever on the stem, then fold the stem backward until it locks. Use the carabiner to secure it to the footrest if necessary.

What is the maximum speed in Standard and Sport mode?

In Standard mode (D), the maximum speed is 12 km/h. In Sport (S) and Propulsion assist (E) modes, it is 16 km/h.

What to do in case of an error or error code displayed?

The error notification icon lights up. Consult the manual for the specific error code. Generally, restart the scooter. If the problem persists, contact customer service.

How to maintain the scooter?

Clean it with a damp cloth, avoid abrasive products. Regularly check tire pressure (hollow core) and brake function. Store it at room temperature, away from frost.

USER MANUAL Ninebot eKickscooter C2 SEGWAY

(1) 02

EN EN

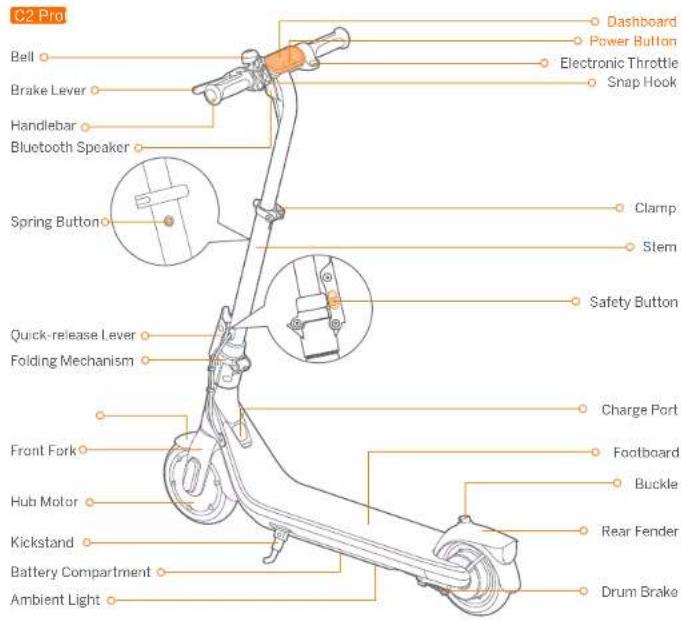

C2 Pro

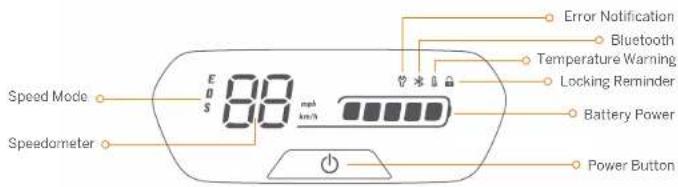

Dashboard & Power Button

Power Button: Press the button to power on the scooter press and hold the button for 2 seconds to power it off. When the scooter is on, press twice to switch between the speed mode. Press the lines to turn out off the ambient light.

Speedometer: I displays the current speed of the sample, as well as error ranges.

Speed Mode: There are three modes available. The top speed is as follows:

Mode	C2 / C2 Pro (Speed limit)	Indicator (For C2 only)
D (Standard mode)	12 km/h (7.5 mph)	Fastics slowly
S (Sport mode)	16 km/h (9.3 mph)	Fastics last
E (Power ass sting mode)	16 km/h (9.3 mph)	a ways on

Error Notification: It indicates that the error has deceased and
Bluetooth: It indicates that the controller has been successfully connected to the mobile device.
Temperature Warning: It includes that the battery temperature has reached 55°C (131°F) or is below 0°C (37°F).
* At this point, the vehicle cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the normal range.
Locking Reminder: When the light lights up, it means the scooter is looked. If abnormal movements are detected, the scooter will start being on and the last light will fall.
Battery power: The low battery power equals 5 bps.
* The battery power is very low when the first battery bar is red. Please charge your scooter immediately.

② Specifications

	Item Parameter
Product	Name	Ninebot eKickScooter C2 Ninebot e kickScooter C2 Pro.
	Model	051/03L	051/04L
	Length × Width × Height	Approx. 910 × 400 × 960 mm(35.8 × 15.7 × 37.5 m)	Approx. 910 × 400 × (885/960/1015)mm(35.8 × 15.7 × 34.5/37.8/40.7 m)
	Holeed, Length × Width × Height	Approx. 310 × 400 × 600 mm (35.8 × 15.7 × 19.7 m)
	Net Weight	Approx. 10.4 kg (22.9 lbs)	Approx. 10.7 kg (23.6 lbs)
Rider	Max. Payload	50 kg (110 lbs)
	Recommended Age	8+
	Required Height	120-165 cm (39" 50")
Machine	Max. Speed	Approx. 16 km/h (9.5 m·r)
	Theoretical Range ^11	Approx. 11 km (6.8 miles)	Approx. 17 km (10.6 miles)
	Riding I incl	Approx. 56 mins	Approx. 1.5 m
	Max. Slope	Approx. 5%
	Transverse Terrain	Mostly smooth roads or normal asphalt, tarmac roads
	Operating Temperature	-10~40°C (14~104°F)
	Storage Temperature	-10~50°C (14~122°F)
	F-Rating	IP×4
	Duration of Charging	Approx. 3.5 h	Approx. 4 h
Battery	Nominal Voltage	21.6 V=
	Max. Charging Voltage	25.2 V=
	Charging Temperature	30°C, 45°C (32.13°F)
	Nominal Capacity	54 Wh	108 Wh
	Nominal Energy	2500 mAh	5000 mAh
	Battery Management System	Protection against overvoltage/uncervoltage/sort circuit/overcurrent/overheat
Motor	Nominal Power 130 W		150 W
	Max. power 160 W		260 W
Charger	Model	NRW25D201D0D	NRW25D201D5N, FU
	Output Power	21.2 W	36.3 W
	Input Voltage	100 240 V - 50 60 Hz
	Max. Output Voltage	25.2 V=
	Rated Output	24.2 V= 1A	24.2 V= 1.5A
Tire	Tires	7-inch inner hollow shock-torsorbing tires

[1]. Theoret oil Range: leased while riding with a hot battery. 10 lbs (50 kg) has: 77°F (25°C); 70% of max speed on average on pavement. Some of the batteries that allow range to be used, like, members' standards are shown, although information are
21: Riding time under the testing conditions of theoretical range.

EN EN

③ Certifications

This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland.

The battery complies with UN/DOT 38.3.

The battery complies with ANSI/CAN/UL 2271.

European Union Compliance Statement

Information on Disposal for Users of Waste Electrical & Electronic Equipment

This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Please contact your local authority for further details of your nearest designated collection point.

Battery recycling information for Users

This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

there are separate collection systems for used batteries and accumulators.

Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.

Electromagnetic Compatibility Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU.

Restriction of the use of certain hazardous substances (RoHS) Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").

The Safety of Toy Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Toy Directive 2009/48/EC.

Radio Equipment Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.

CE

EU Authorised Representative:

Segway-Ninebot Europe

Dynamostraat 7, 1014 BN Amsterdam, The Netherlands.

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051403E, 051404E comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility 2014/30/EU. The Radio Equipment Directive 2014/53/EU, The Safety of Toy Directive 2009/48/EC and the RohS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863.

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051403E Comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility 2014/30/EU, The Safety of Toy

EN EN

Directive 2009/48/EC and the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863.

The declaration of conformity can be viewed at the following address: https://eu-en.segway.com/instruction-manuals

UK Compliance Statement

Electromagnetic Compatibility Regulations 2016

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Electromagnetic Compatibility Regulations 2016.

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.

Toys (Safety) Regulations 2011

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Toys (Safety) Regulations 2011.

Radio Equipment Regulations 2017

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017.

UKCA

UK Authorised Representative :

UKCA Experts Ltd.

Dept 302, 43 Owston Road Carcroft, Doncaster, DN6 8DA, United Kingdom

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051403E, 051404E comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016, Radio Equipment Regulations 2017, Toys (Safety) Regulations 2011 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051403E comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016, Toys (Safety) Regulations 2011 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012.

The declaration of conformity can be viewed at the following address: https://eu-en.segway.com/instruction-manuals

FR FR

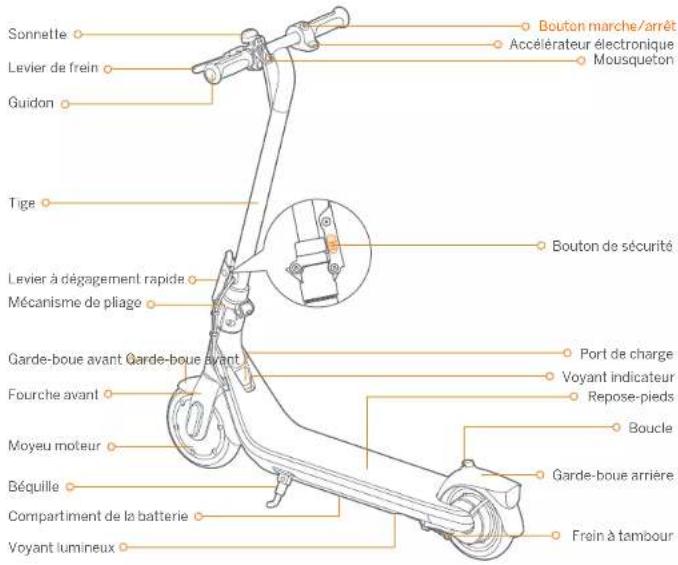

① Diagramme

Segway-Ninebot Europe

Dynamostraat 7, 1014 BN Amsterdam, Paesi Bassi.

Segway-Ninebot Europe

Dynamostraat 7, 1014 BN Amsterdam, Niderlandy.

De accu is conform UN/DOT 38.3.

Segway-Ninebot Europe

Segway-Ninebot Europe

Dynamostraat 7, 1014 BN Amesterdao, Países Baixos.
