Product type	Remote-controlled toy (RC car)
Brand	ARRMA
Model	Mojave
Scale	1:7
Dimensions (L x W x H)	Approximately 600 x 300 x 200 mm
Weight	Approximately 4.5 kg
Power	LiPo battery 3S to 6S (35C, 5000 mAh min.)
Transmitter	Spektrum STX2 (2.4 GHz, 4 AA batteries)
Receiver	Spektrum SPMSRX200
Speed controller (ESC)	ARRMA BLX Brushless, 3-6S, 6V/3A BEC
Motor	Brushless
Steering	Servo (waterproof)
Drivetrain	4WD, front/center/rear differentials
Main functions	Forward, brake, reverse, proportional steering
Water resistance	Yes (waterproof electronics, water splashes)
Minimum recommended age	14 years and up (adult supervision required)
Maintenance and cleaning	Clean after wet use, lubricate bearings, dry thoroughly
Safety	Read manual before use, do not use during thunderstorms, components hot after use
Spare parts and repairability	Exploded views available, official ARRMA parts
Warranty	6 months (according to local legislation), extension possible

Frequently Asked Questions - Mojave ARRMA

How to bind the transmitter to the receiver?

Insert the bind plug into the BIND port of the receiver, connect the battery, then turn on the transmitter while turning the steering wheel to the right. The receiver LED stops flashing when binding is successful. Remove the plug and turn everything off.

Which battery to use?

Use a 3S, 4S or 6S LiPo battery with a discharge rate of at least 35C and a capacity of 5000 mAh minimum. Fully charge before use.

How to adjust the ESC?

Connect the battery and turn on the transmitter. Press and hold the SET button on the ESC, then turn on the ESC. The red LED blinks. Release the button after the number of blinks corresponding to the desired setting (see table). Refer to the manual for values.

What to do if the vehicle does not respond?

Check the charge of the vehicle battery and transmitter batteries. Make sure the transmitter and receiver are bound. Move away from sources of interference (metal, other radios).
If the problem persists, perform a factory reset of the ESC by holding the SET button for 4 seconds.

Can I drive in rain or wet grass?

Yes, the vehicle is designed to withstand water splashes (puddles, snow, rain). However, it is not submersible. After wet use, perform the maintenance described in the manual: drying, bearing lubrication, etc.

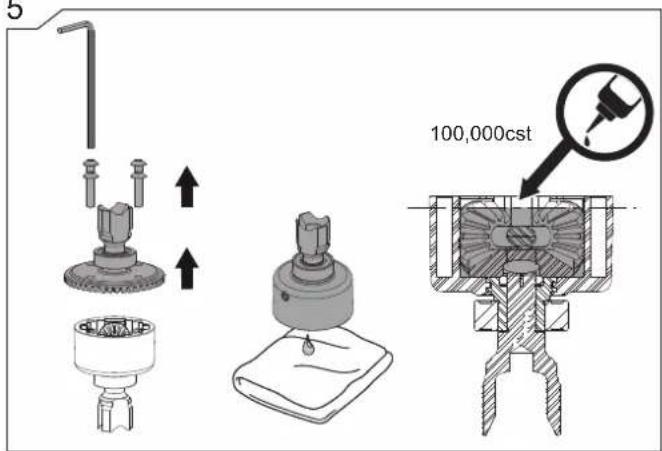

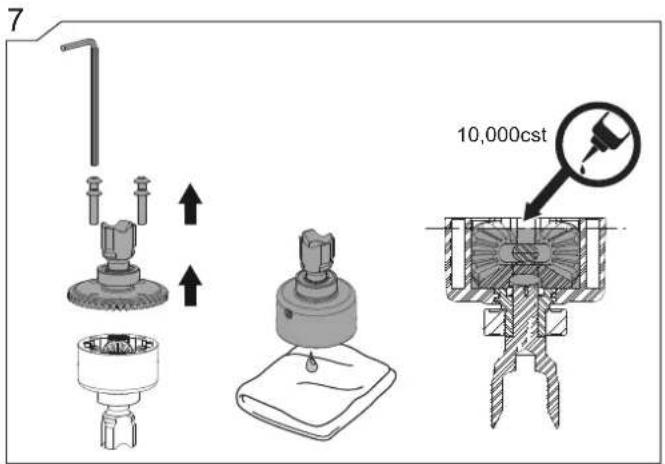

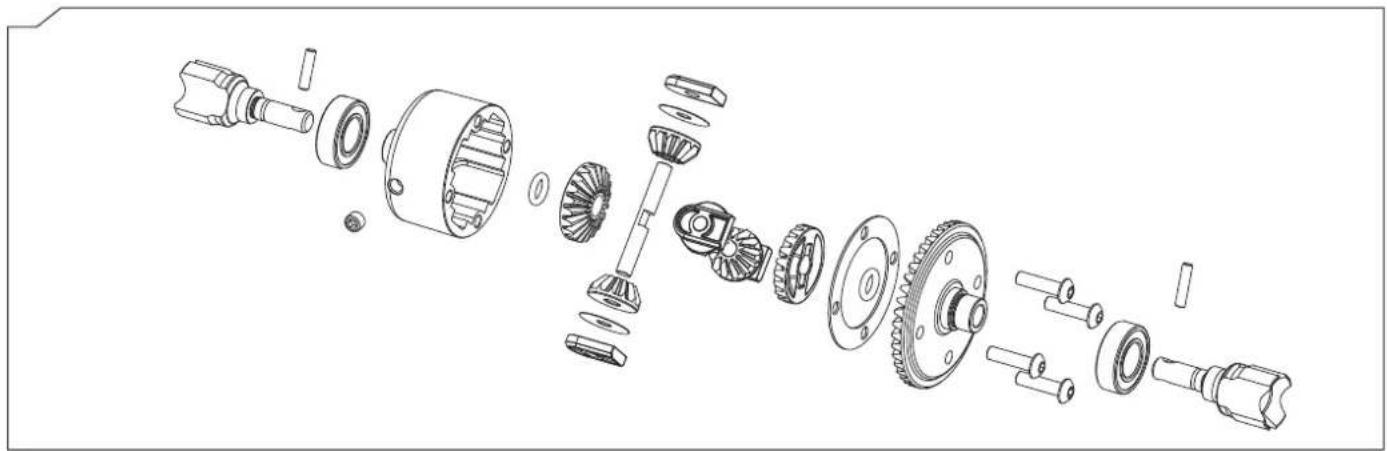

How to maintain the differentials?

Regularly check the condition and lubrication of the front, center, and rear differentials. Open the housings, clean and replace the grease if necessary. Refer to the maintenance pages of the manual.

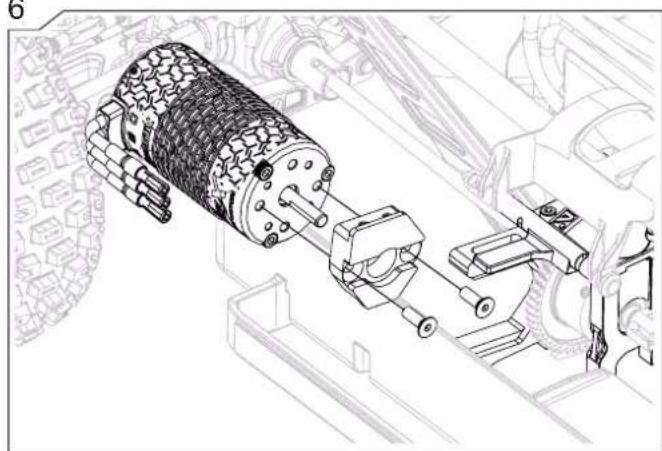

How to change the motor pinion?

Remove the body and roll cage. Loosen the motor, remove the existing pinion, install the new pinion respecting the center distance. Close and adjust the belt or drivetrain.

What tools are needed?

Allen keys 1.5 / 2.0 / 2.5 / 3.0 mm, socket wrenches 5 / 6 / 7 / 8 mm, turnbuckle wrench, long nose pliers, tire glue, brake cleaner, lubricant.

The vehicle gets very hot, is this normal?

Yes, after use the motor, ESC and battery may get hot. Do not touch these parts immediately after use. If the temperature exceeds 105°C, the ESC activates thermal protection. Let it cool before reusing.

Where can I find spare parts?

Official ARRMA parts are available from authorized dealers or on horizonhobby.com. Refer to the exploded view and parts list in the manual.

USER MANUAL Mojave ARRMA

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

WARNING AGAINST COUNTERFEIT PRODUCTS: Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM ktrum technology.

Age Recommendation: Not for children under 14 years. This is not a toy.

Safety Precautions and Warnings

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or property of others.

This model is controlled by a radio signal subject to interference from many sources outside your control. This interference can cause momentary loss of control, so it is advisable to always keep a safe distance in all directions around your model as this margin will help avoid collisions or injury.

• Never operate your model with low transmitter batteries.
  • Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Never operate the model in the street or in populated areas for any reason.
• Carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) you use.

• Keep all chemicals, small parts and anything electrical out of the reach of children.

• Never lick or place any portion of the model in your mouth as it could cause serious injury or even death.
  • Exercise caution when using tools and sharp instruments.
  • Take care during maintenance as some parts may have sharp edges.

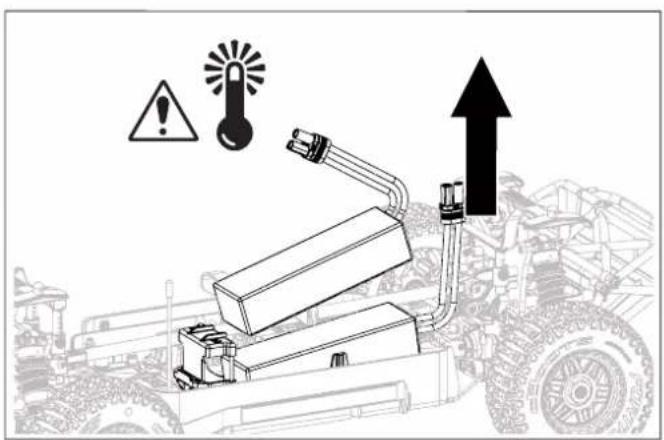

• Immediately after using your model, do NOT touch equipment such as the motor, electronic speed control and battery, because they generate high temperatures. You may burn yourself seriously touching them.
• Do not put fingers or any objects inside rotating and moving parts, as this may cause damage or serious injury.
• Always turn on your transmitter before you turn on the receiver in the car. Always turn off the receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the operation of the radio equipment.

WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS

Your new Horizon Hobby vehicle has been designed and built with a combination of waterproof and water-resistant components to allow you to operate the product in many "wet conditions," including puddles, creeks, wet grass, snow and even rain.

While the entire vehicle is highly water-resistant, it is not completely waterproof and your vehicle should NOT be treated like a submarine. The various electronic components used in the vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, however, most of the mechanical components are water-resistant and should not be submerged.

Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts in the electrical cables, will be susceptible to corrosion if additional maintenance is not performed after running in wet conditions. To maximize the long-term performance of your vehicle and to keep the warranty intact, the procedures described in the "Wet Conditions Maintenance" section below must be performed regularly if you choose to run in wet conditions. If you are not willing to perform the additional care and maintenance required, then you should not operate the vehicle in those conditions.

CAUTION: Failure to exercise caution while using this product and complying with the following precautions could result in product malfunction void the warranty.

General Precautions

• Read through the wet conditions maintenance procedures and make sure that you have all the tools you will need to properly maintain your vehicle.
• Not all batteries can be used in wet conditions. Consult the battery manufacturer before use. Caution should be taken when using Li-Po batteries in wet conditions.
• Most transmitters are not water-resistant. Consult your transmitter's manual or the manufacturer before operation.
• Never operate your transmitter or vehicle where lightning may be present.
• Do not operate your vehicle where it could come in contact with salt water (ocean water or water on salt-covered roads), contaminated or polluted water. Salt water is very conductive and highly corrosive, so use caution.
• Even minimal water contact can reduce the life of your motor if it has not been certified as water-resistant or waterproof. If the motor becomes excessively wet, apply very light

throttle until the water is mostly removed from the motor. Running a wet motor at high speeds may rapidly damage the motor.

- Driving in wet conditions can reduce the life of the motor. The additional resistance of operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or larger spur gear. This will increase torque (and motor life) when running in mud, deeper puddles, or any wet conditions that will increase the load on the motor for an extended period of time.

Wet Conditions Maintenance

- Drain any water that has collected in the tires by spinning them at high speed. With the body removed, place the vehicle upside down and pull full throttle for a few short bursts until the water has been removed.

CAUTION: Always keep hands, fingers, tools and any loose or hanging objects away from rotating parts when performing the above drying technique.

• Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can of compressed air, blow out any water that may be inside the recessed connector housing.
• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt off with a garden hose. Avoid rinsing the bearings and transmission.

NOTICE: Never use a pressure washer to clean your vehicle.

• Use an air compressor or a can of compressed air to dry the vehicle and help remove any water that may have gotten into small crevices or corners.
• Spray the bearings, drive train, fasteners and other metal parts with a water-displacing light oil. Do not spray the motor.
• Let the vehicle air dry before you store it. Water (and oil) may continue to drip for a few hours.
• Increase the frequency of disassembly, inspection and lubrication of the following: - Front and rear axle hub assembly bearings.
• All transmission cases, gears and differentials.
• Motor—clean with an aerosol motor cleaner and re-oil the bushings with lightweight motor oil.

HINWEIS

Warnings	2
Required 6
Kit Overview 7

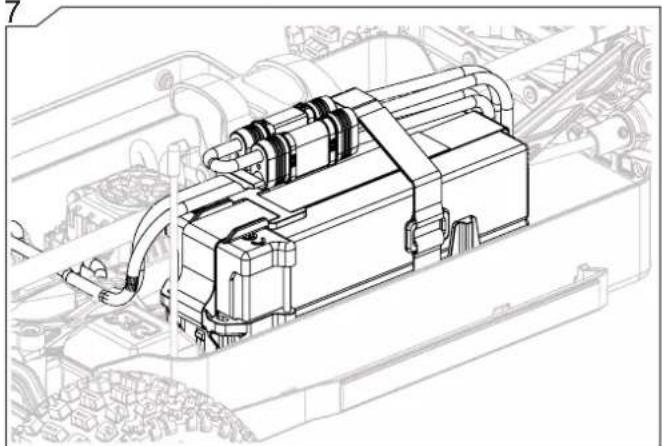

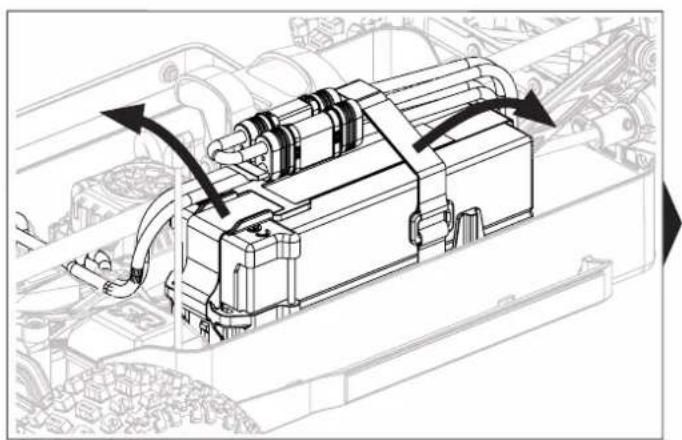

Battery Fitting 8
Running 10
Radio Gear 11
Recommended Tools 14
Electronic Speed Controller (ESC) 15

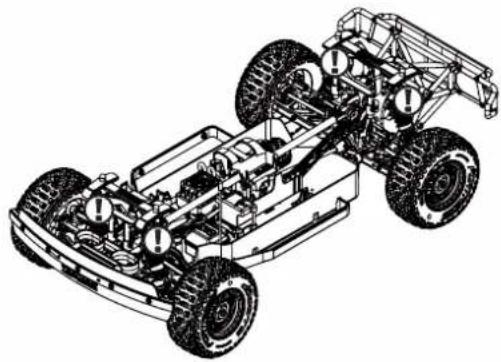

Maintenance Schedule 17

:

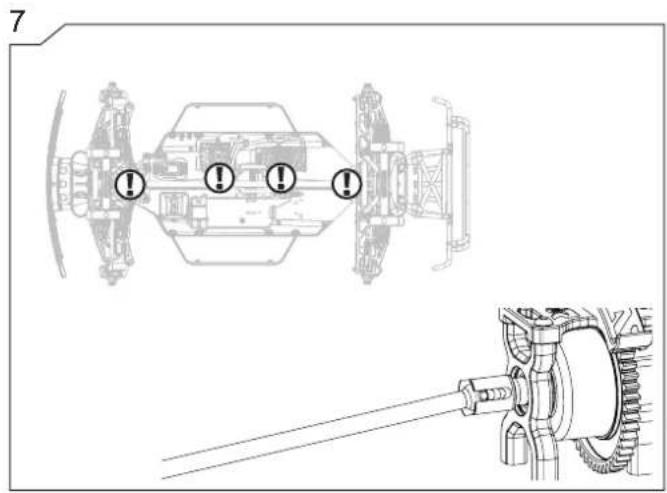

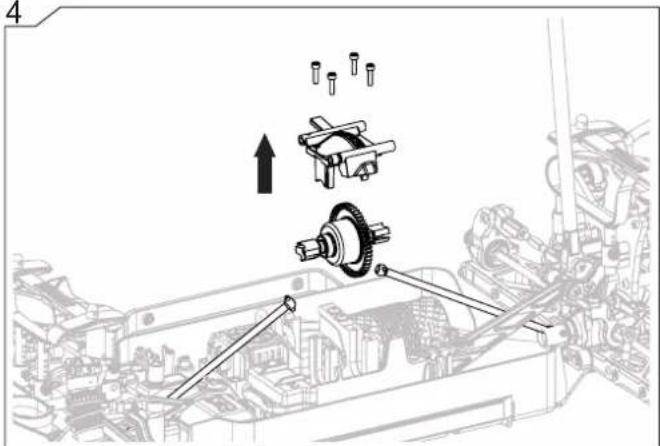

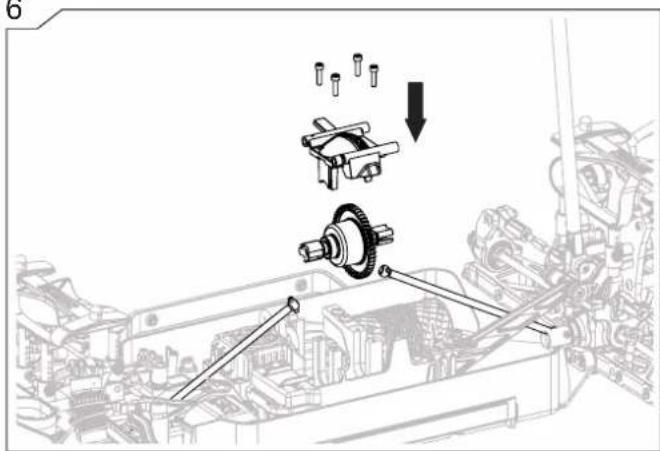

Center Differential Maintenance 18

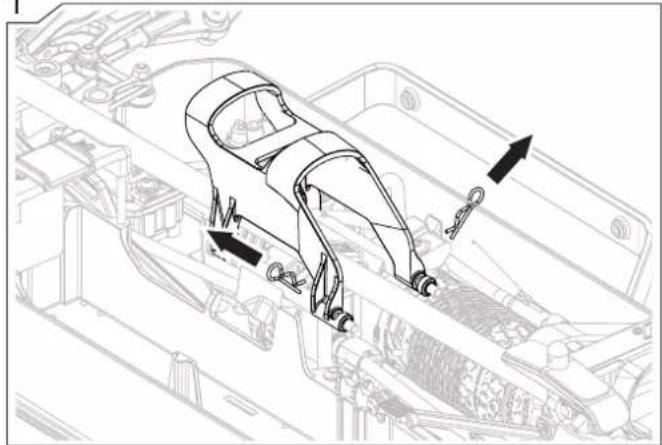

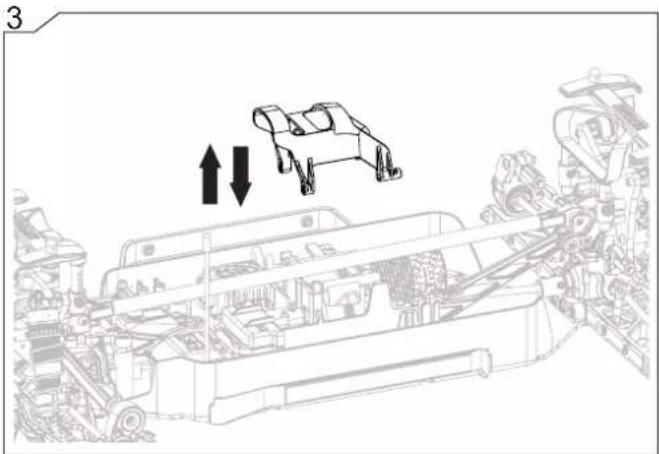

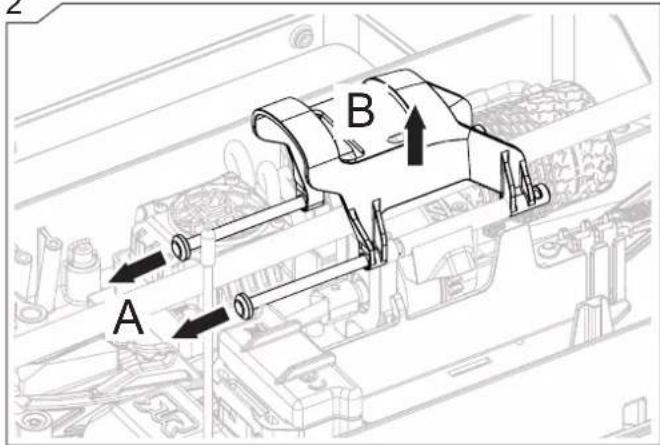

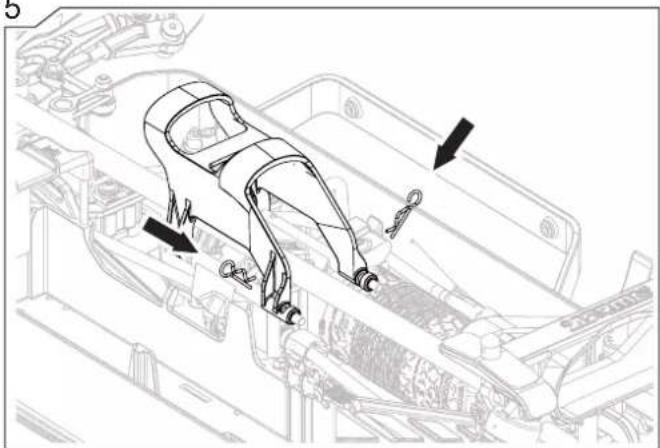

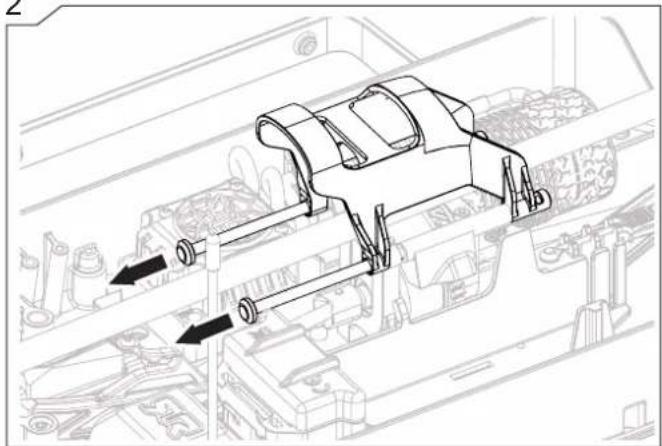

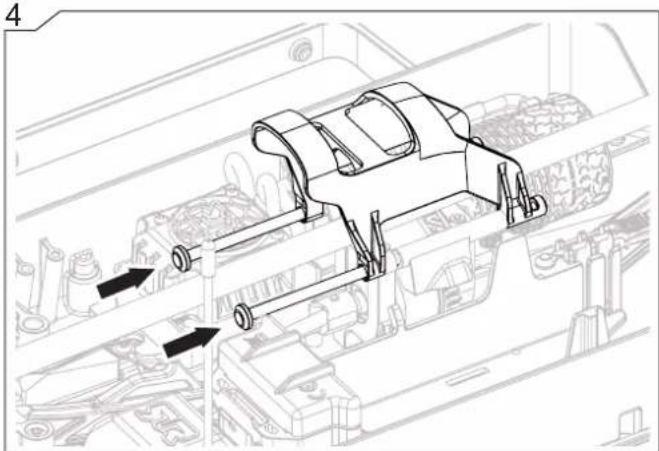

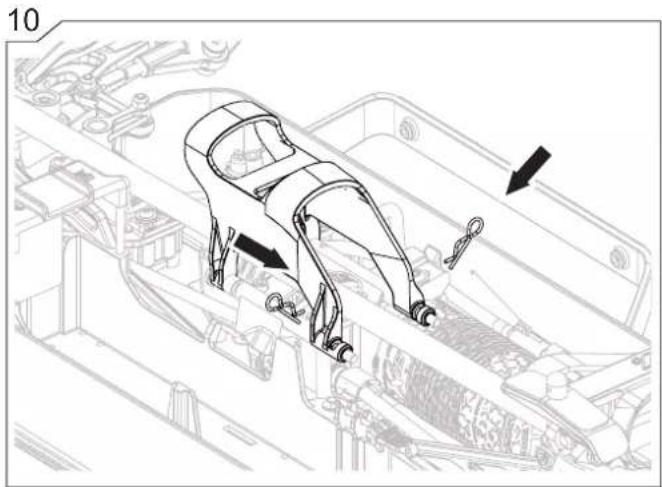

How To... Remove the roll over tower 20

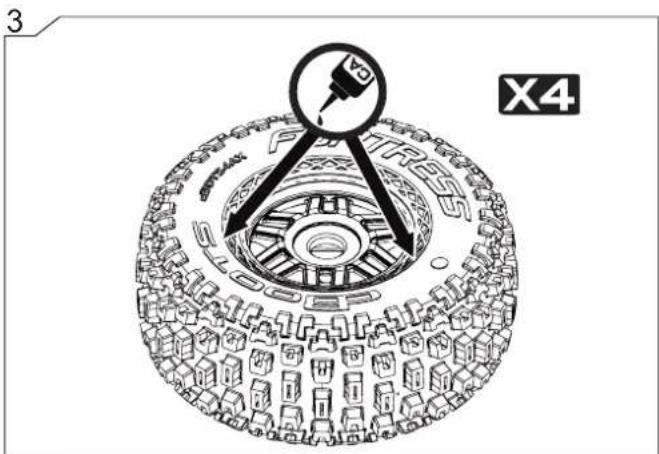

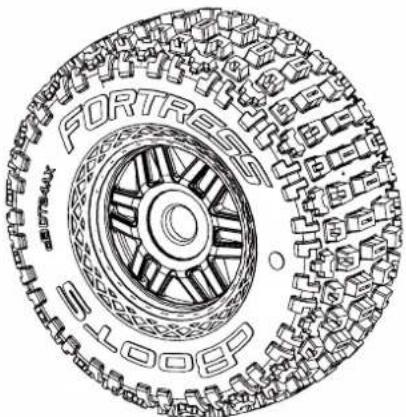

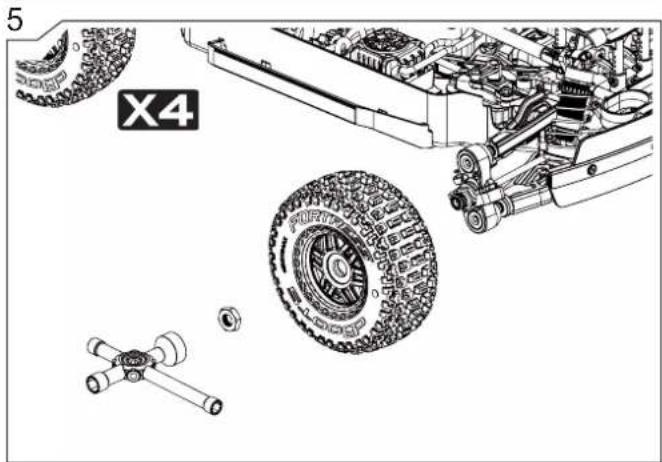

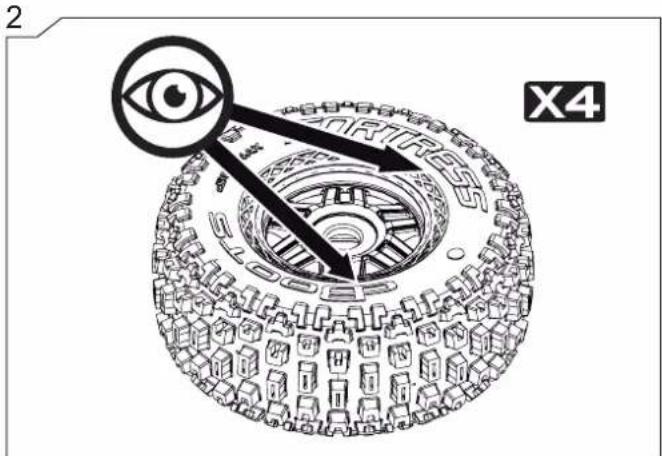

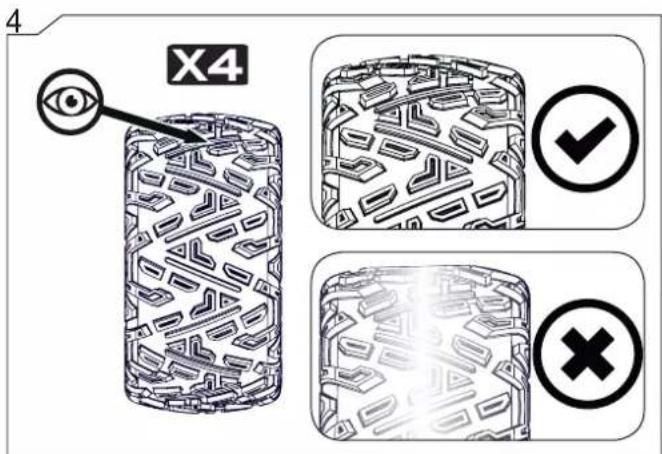

Wheel and Tire Maintenance 21

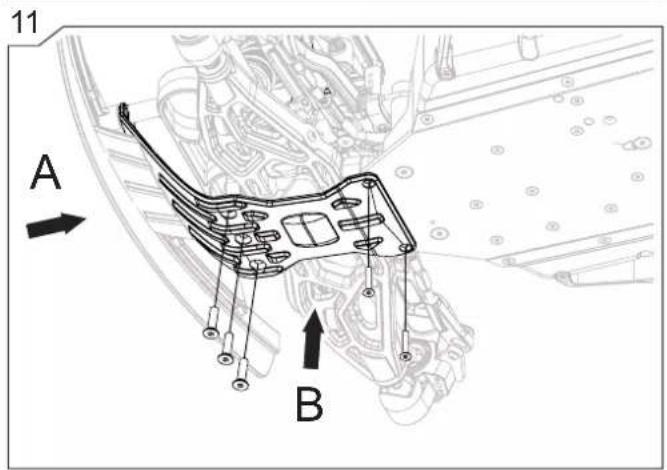

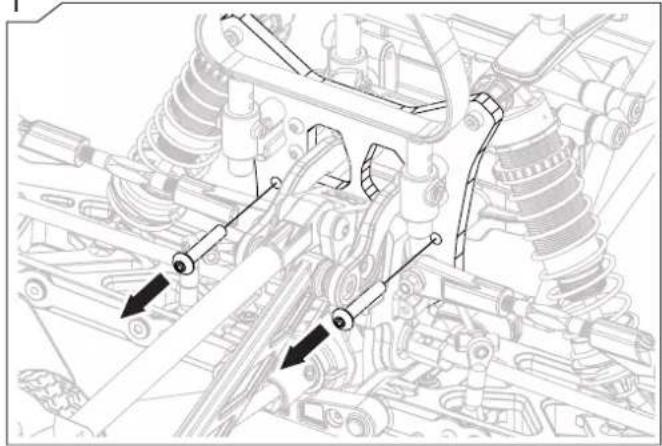

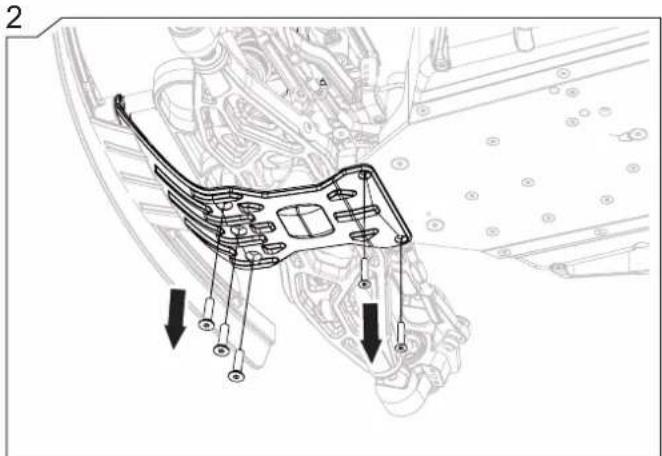

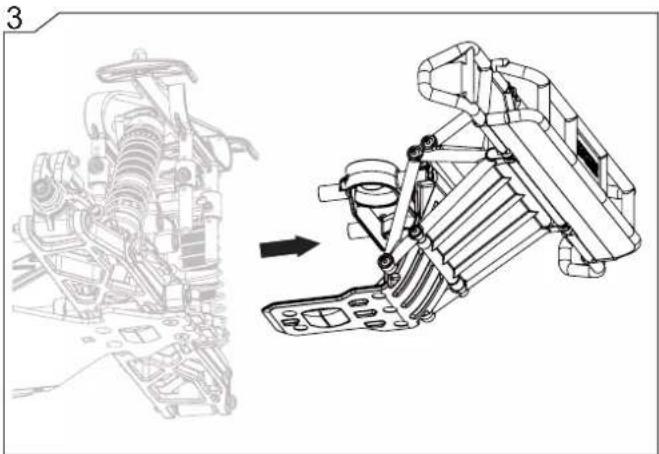

How To... Remove front bumper	22

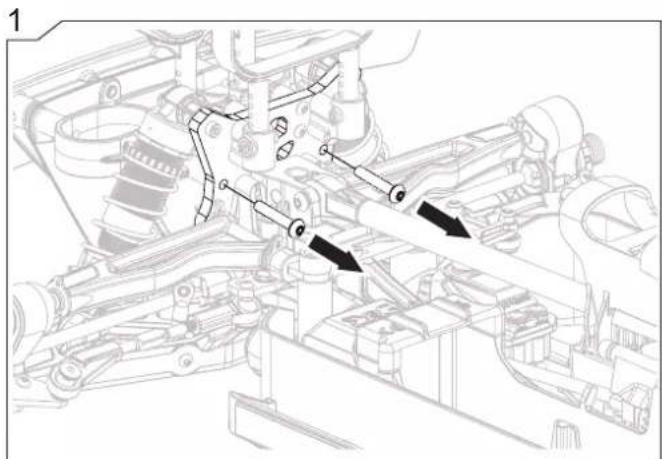

How To... Remove rear bumper	23

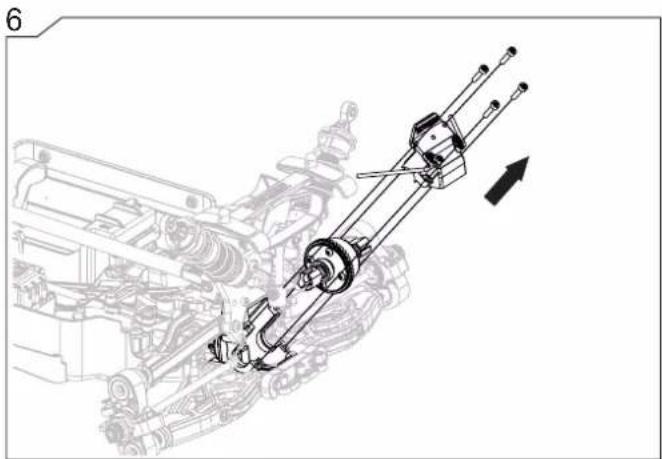

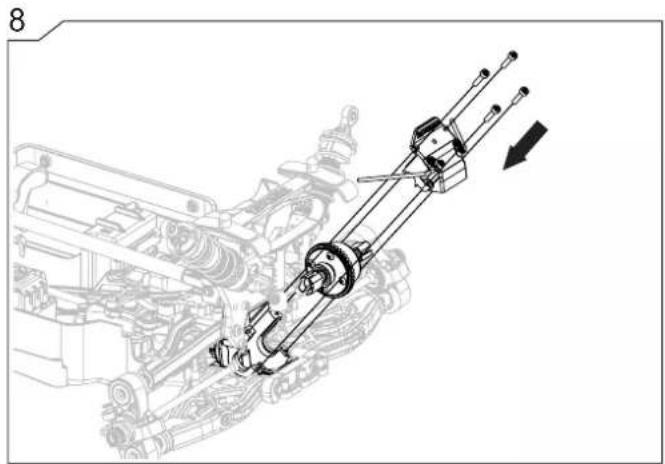

F/R Differential Removal and Replacement	24

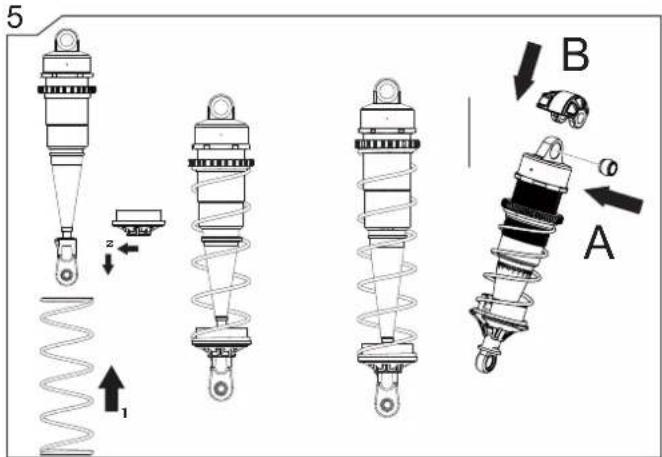

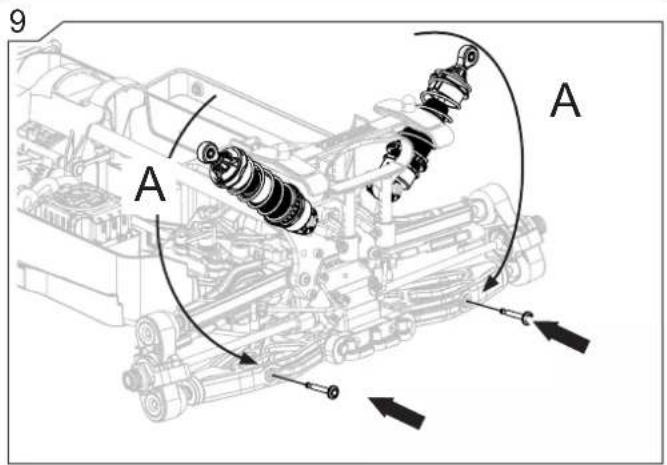

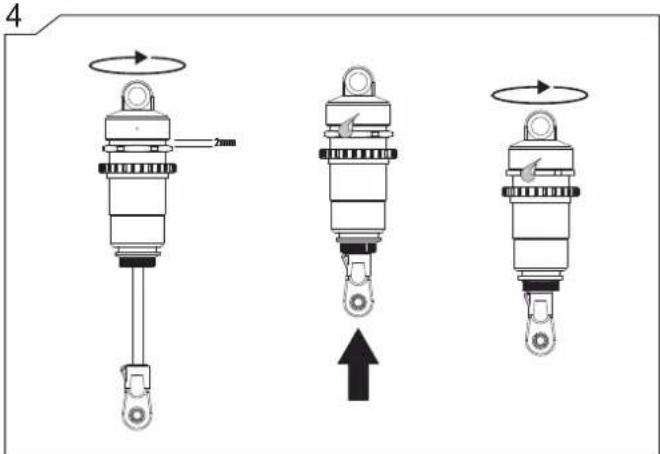

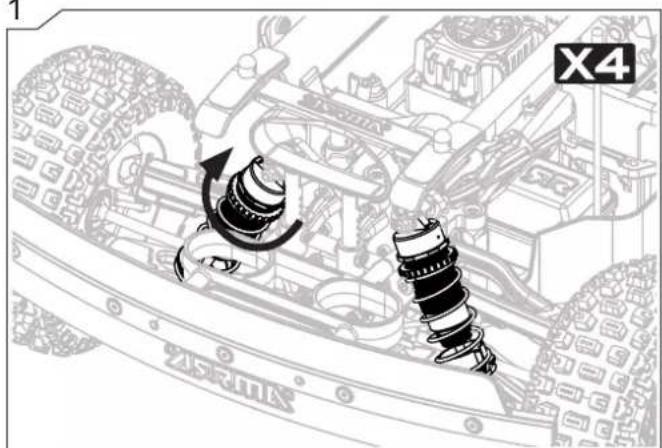

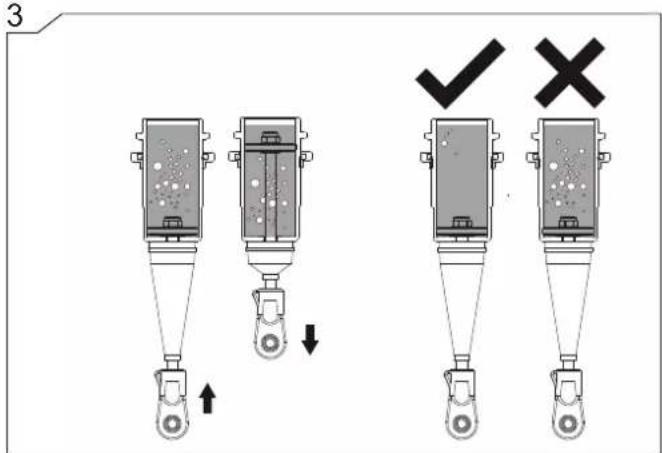

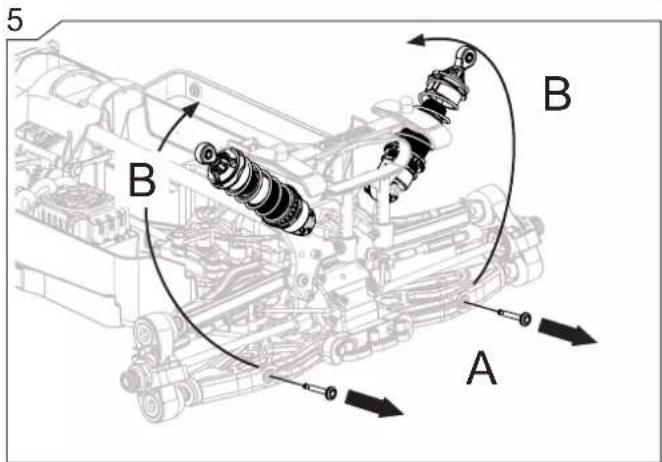

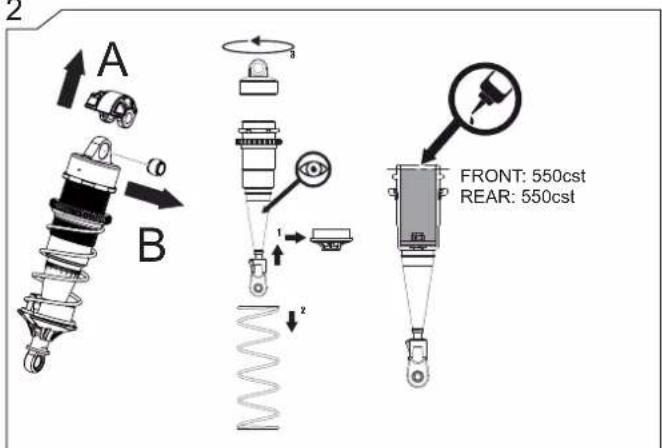

Shock Maintenance	26

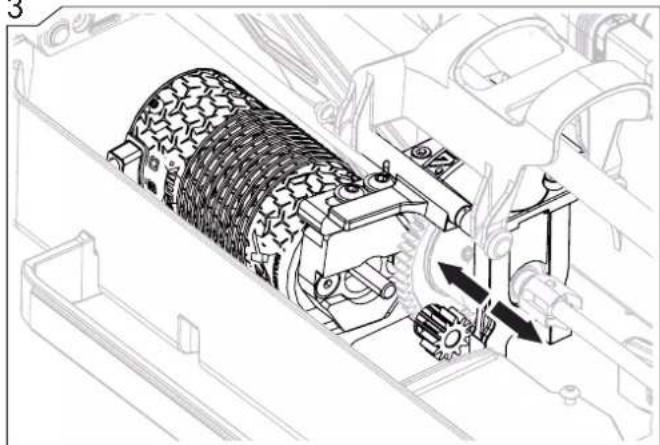

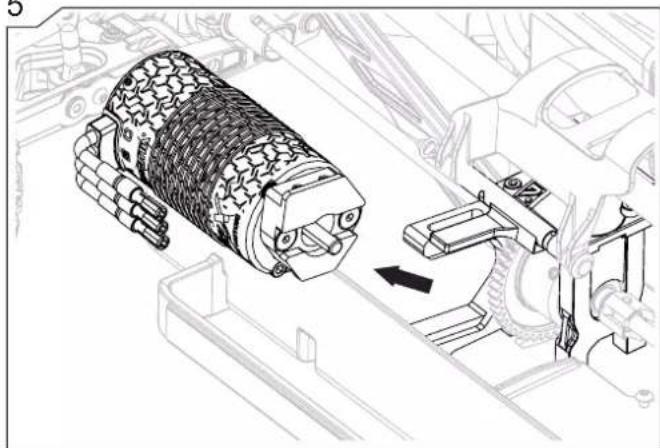

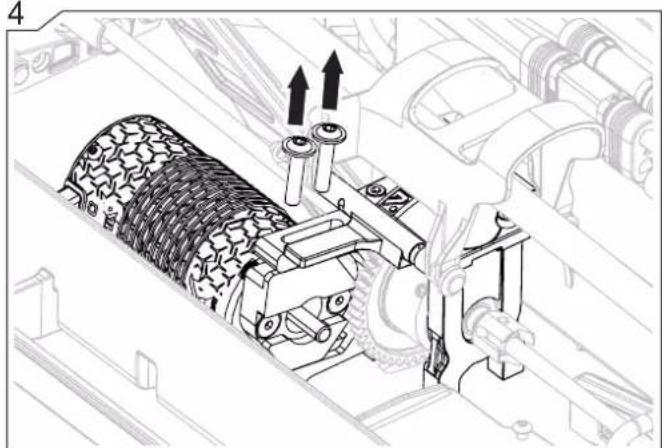

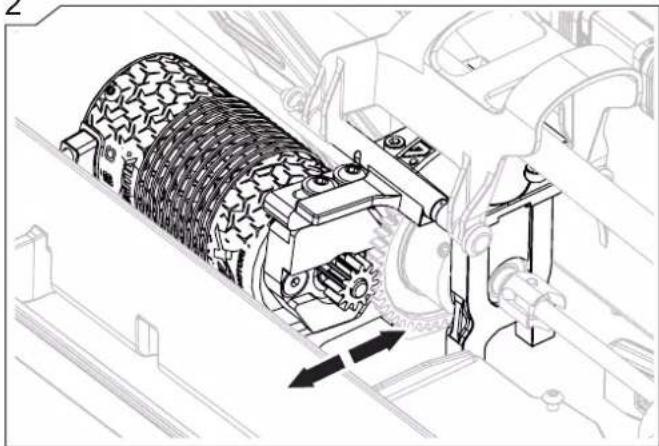

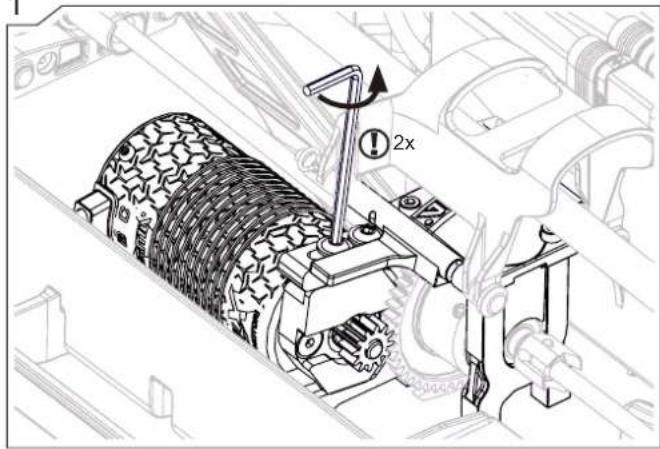

How To...Change the Pinion/Motor	27

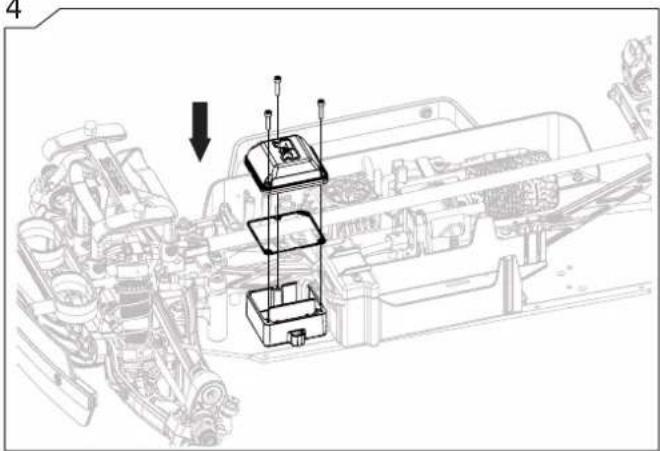

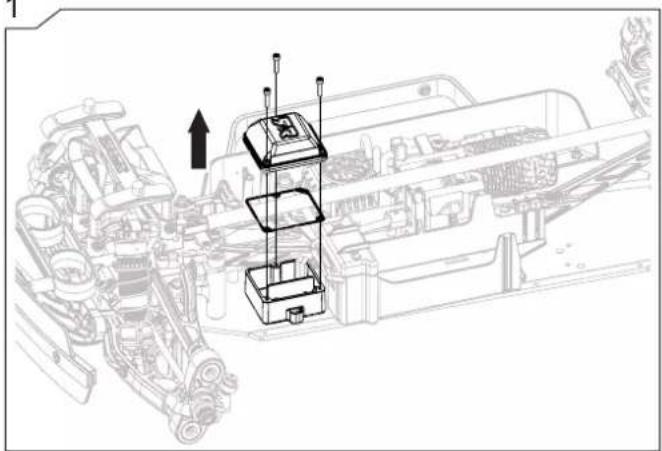

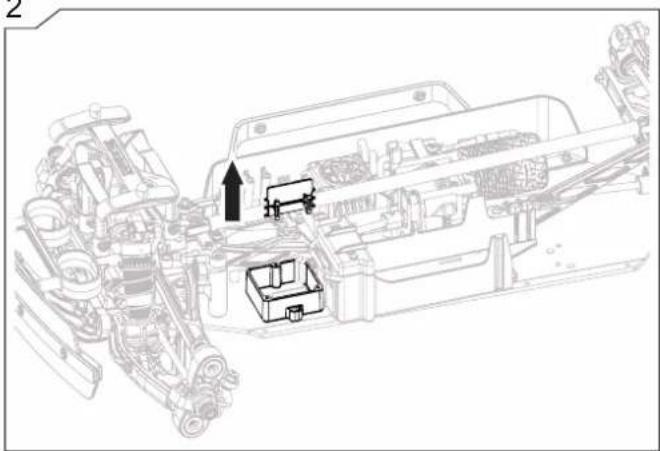

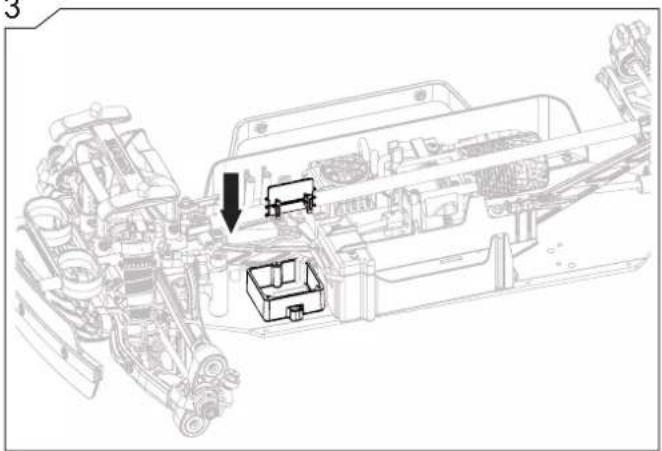

How To...Remove the Receiver	28

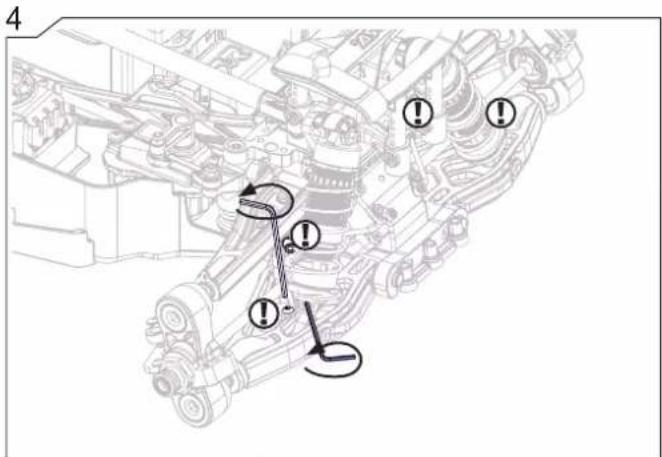

How To...Adjust Ride Height 29

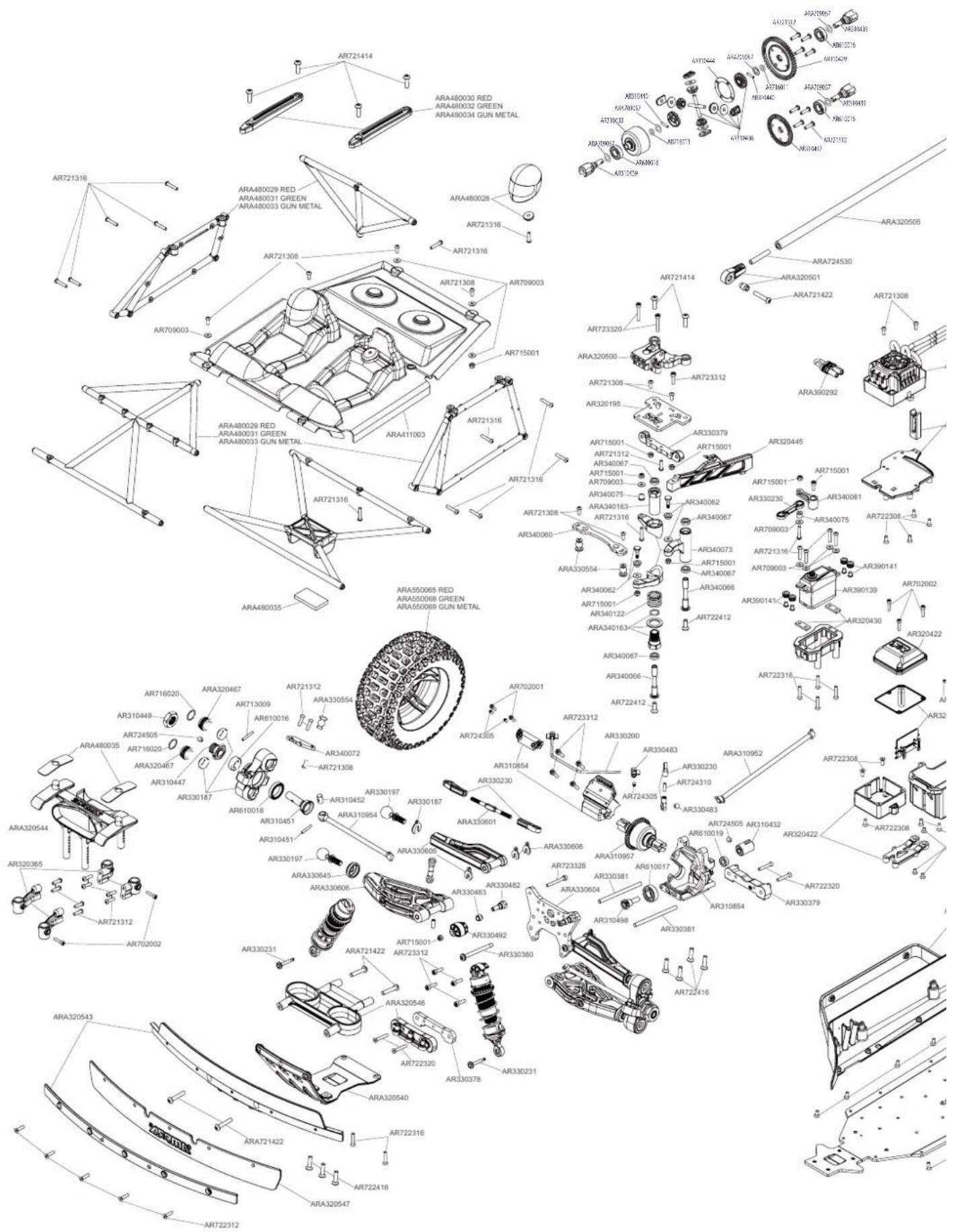

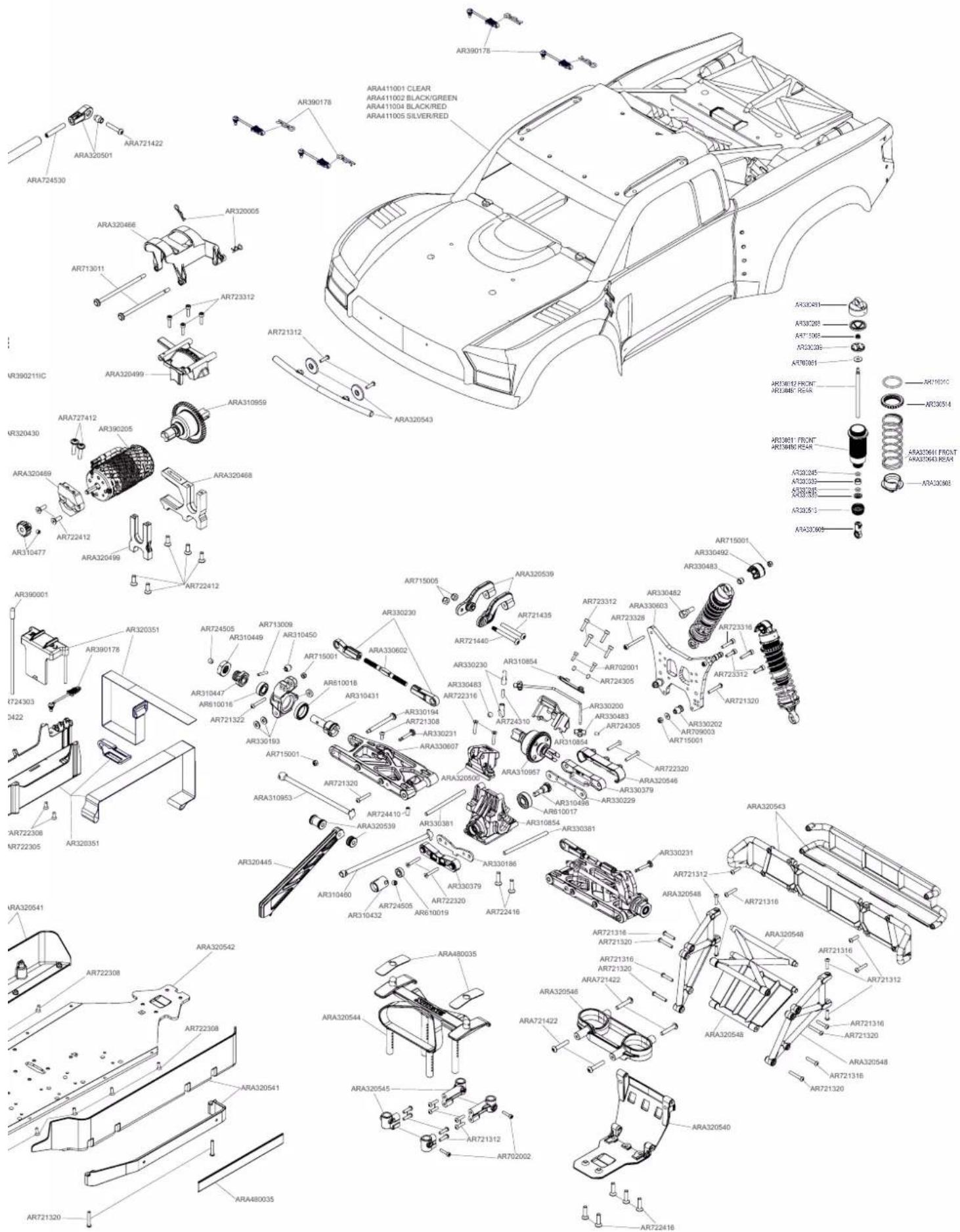

Exploded View	30

Inhalte
Seite

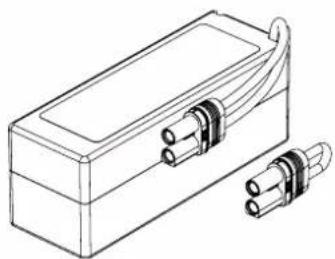

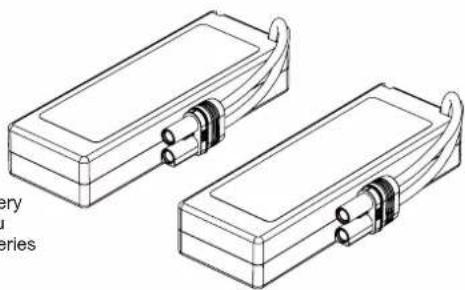

1x4S LiPo, 1x6S LiPo Battery

1x4S LiPo, 1x6S LiPo Akku

1x4S LiPo, 1x6S LiPo Batteries

Line drawing of a rectangular electronic device with two connectors and wires (no text or symbols)

EC5 / IC5

Technical line drawing of two rectangular electronic components with connectors and leads (no text or symbols)

2x2S LiPo, 2x3S LiPo Battery

2x2S LiPo, 2x3S LiPo Akku

2x2S LiPo, 2x3S LiPo Batteries

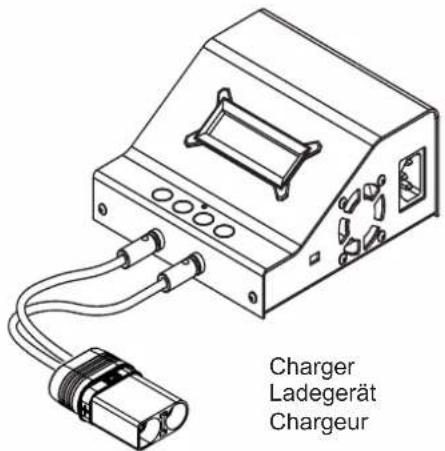

RECOMMENDED: DYNAMITE® Powerstage™ Stage 6 DYN1540

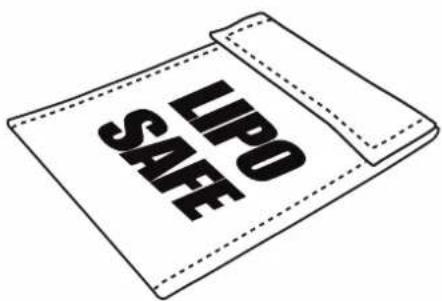

LiPo Charging Bag

LiPo Ladetasche

LiPo Sac Charge

EC5 ^TM / IC5 ^TM

Illustration of four cylindrical batteries arranged diagonally (no text or symbols)

AA batteries x4

AA Batterien x4

AA Batteries x4

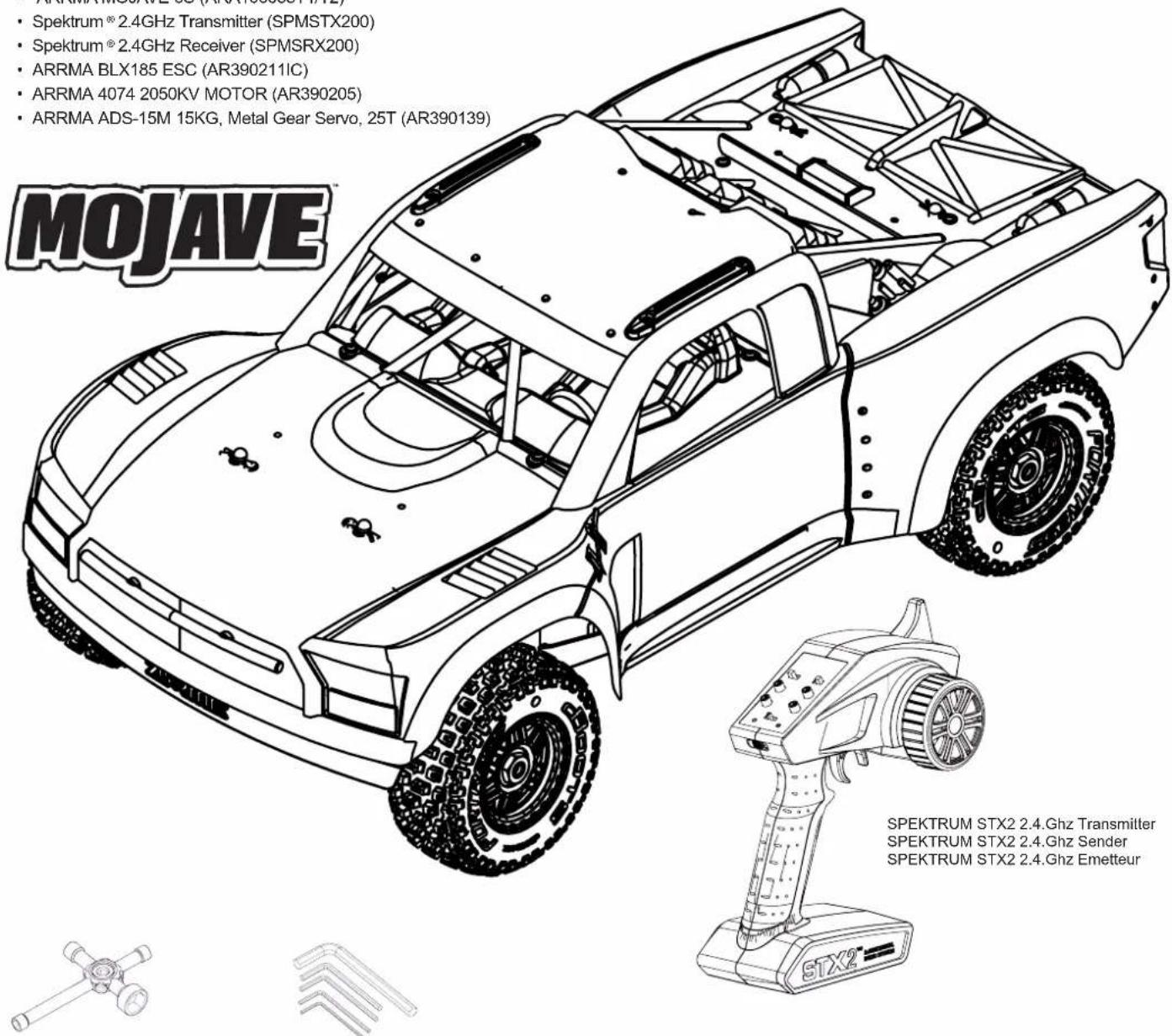

• ARRMA MOJAVE 6S (ARA106058T1/T2)
- Spektrum® 2.4GHz Transmitter (SPMSTX200)
- Spektrum® 2.4GHz Receiver (SPMSRX200)
• ARRMA BLX185 ESC (AR390211IC)
• ARRMA 4074 2050KV MOTOR (AR390205)
• ARRMA ADS-15M 15KG, Metal Gear Servo, 25T (AR390139)

Cross wrench Kreuzschlüssel Clé en croix

2.5mm 3.0mm2.0mm1.5mm 5.0mm
Hex Wrenches Sechskantschlüssel Clé hexagonale

Frequency:	2.4GHz
Battery:	AA x 4

Servo (AR390139)

Power Supply: 6V~7.2V

Output Torque: 15kg-cm (208oz-inch) at 7.2V, 14kg-cm(195oz-in) at 6.0V

Operating Speed: 0.14 sec/60 deg at 7.2V, 0.16 sec/60 deg at 6.0V

Size:	40mm x 38mm x 20mm
(Excluding mounting tabs)
Industry Standard size

Electronic Speed Control (ESC) (AR390211IC BLX185)

Input Voltage:	3S LiPo (11.1), 4S LiPo (14.8) or 6S LiPo (22.2V)
4274-size or smaller motor with the KV<2400

Electric Capacity:	150AMP Continuous current
BEC Voltage:	6V
Size:	57.5 x 59.5 x 38.9mm
Weight:	399.5g / 14.09oz

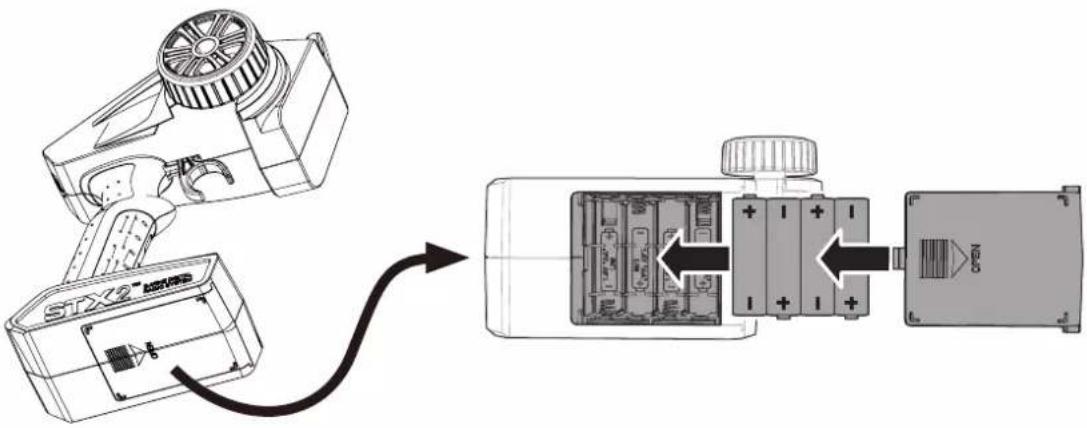

INSTALLING THE TRANSMITTER BATTERIES

This transmitter requires 4 AA batteries.

1. Remove the battery cover from the transmitter.
2. Install the batteries as shown.
3. Install the battery cover.

CAUTION: If using rechargeable batteries, charge only rechargeable batteries.

Charging non-rechargeable batteries may cause the batteries to burst, resulting in 0 persons and/or damage to property.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to national regulations.

INSTALLATION DES PILES DE L'ÉMETTEUR

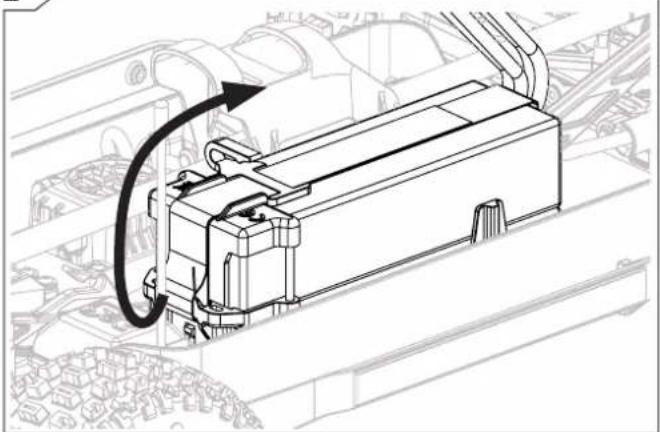

Technical line drawing of a mechanical device with a downward arrow indicating motion or assembly (no text or symbols present)

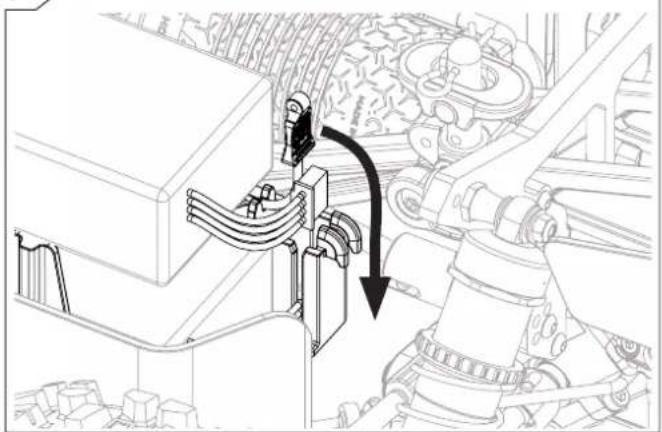

2

Technical line drawing of a mechanical component with an arrow indicating motion or assembly (no text or symbols present)

3

Technical line drawing of a mechanical assembly with a directional arrow indicating motion (no text or symbols present)

4

Technical line drawing of a mechanical assembly with no visible text or symbols

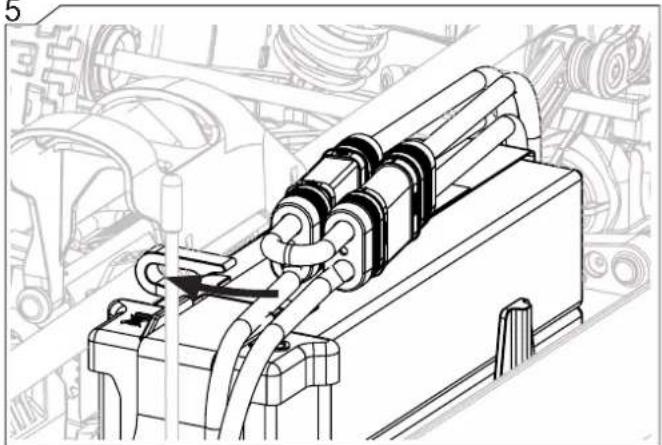

5

Technical line drawing of a mechanical assembly with rollers and tubing (no text or symbols)

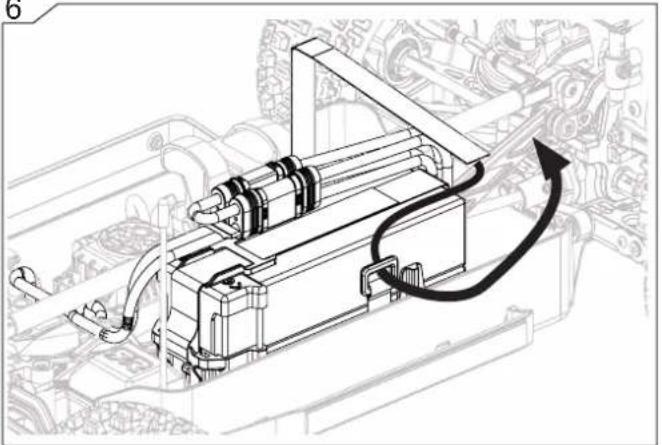

6

Technical line drawing of a mechanical assembly with no visible text or symbols

7

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

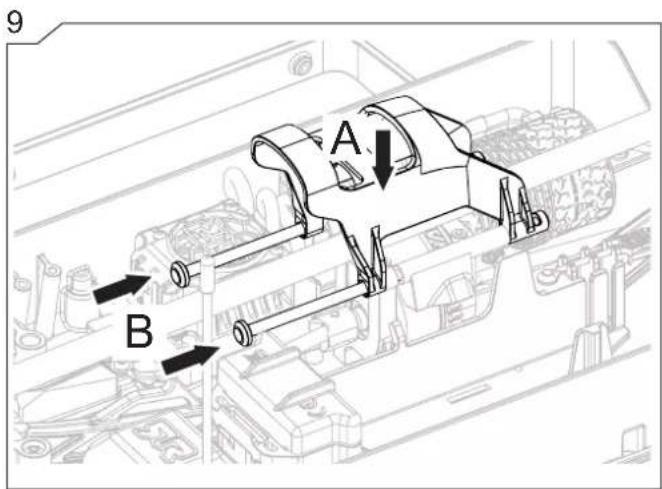

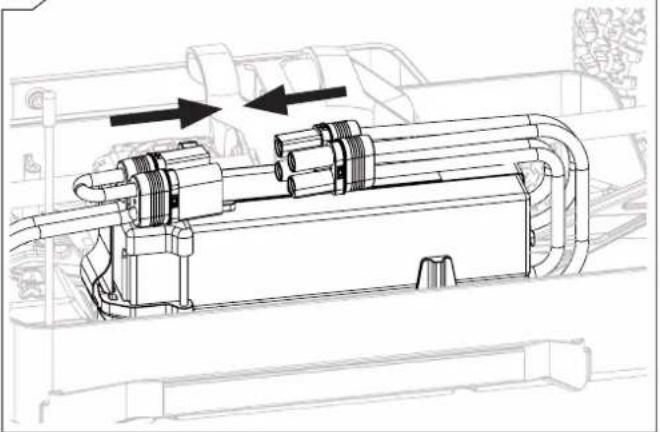

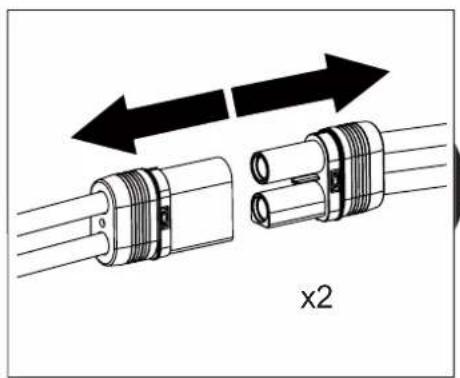

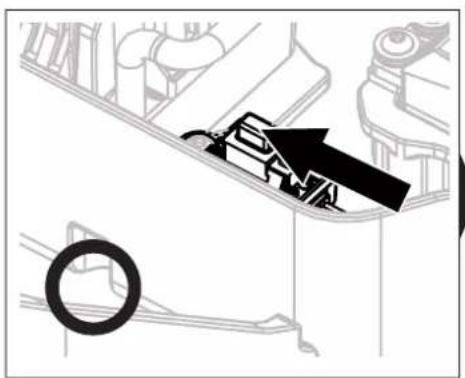

CAUTION: Connecting the battery to the ESC with reversed polarity will cause damage to the ESC, the battery or both. Damage caused by directly connecting the battery is not covered under warranty.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical component with an arrow pointing to it, no visible text or symbols

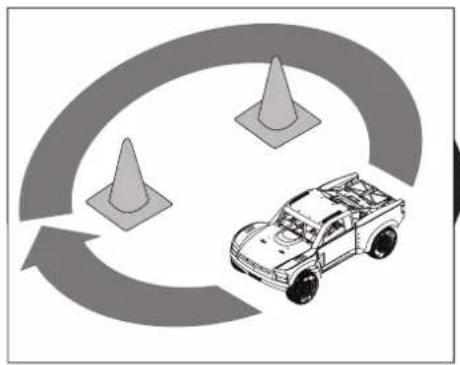

Illustration of a pickup truck with three traffic cones surrounding it, no text or symbols present.

Diagram showing a mechanical component with an arrow pointing to it, no visible text or symbols

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Diagram of two mechanical connectors with arrows indicating direction, labeled 'x2' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with directional arrows indicating motion or flow (no text or symbols present)

Illustration of a tractor with warning symbols and upward arrow, no readable text or labels present

STX2®

2.4GHZ DIGITAL

RADIO SYSTEM

SPEKTRUM®

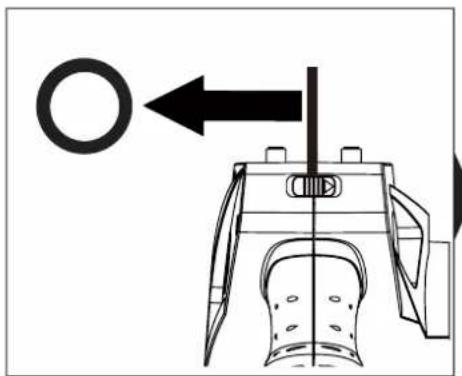

A. Servo Reversing

To reverse the Throttle (TH) or Steering (ST) channel, switch the position of the correlating switch—"N" is for normal, "R" is for reverse.

B. Throttle Trim

Adjusts the throttle neutral point

C. Steering Trim

Adjusts the steering center point. Normally, the steering trim is adjusted until the vehicle tracks straight.

D. THROTTLE RATE

Adjusts the end point of the throttle

E. STEERING RATE

Adjusts the end point of the steering

F. Indicator Lights

• Solid red lights: Indicates radio connectivity and adequate battery power
• Flashing red lights: Indicates the battery voltage is critically low. Replace batteries

G. Throttle Limit

Limits throttle output to 50/75/100% Select 50% or 75% for less experienced drivers or when you are driving the vehicle in a small area.

H. Antenna

I. Power Button

J. Throttle/Brake

K. Steering Wheel

A. Inversion de servo

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. The STX2 ^™ transmitter and SPMSRX200 receiver are bound at the factory. If you need to rebind, follow the instructions below.

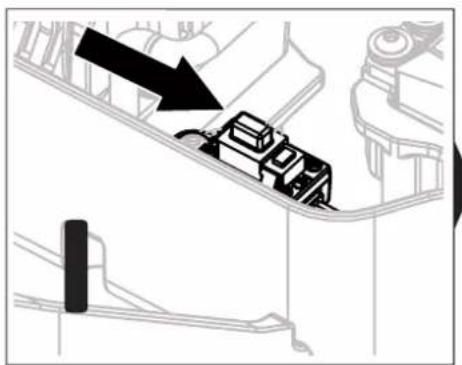

1. Insert the Bind Plug in the BIND port on the receiver.
2. Connect a fully charged battery pack to the ESC.
3. Power on the ESC. The red LED flashes, indicating the receiver is in bind mode.
4. Center the ST TRIM and TH TRIM dials on the transmitter.

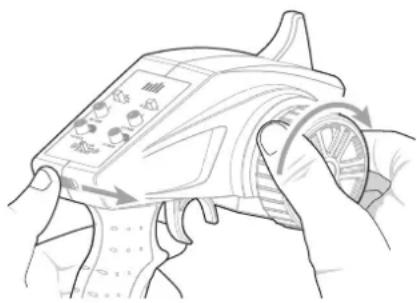

5. Turn the steering wheel to Full Right. Power the transmitter on while holding the steering wheel to the Right.
6. Release the steering wheel when the receiver LED stops flashing.
7. Remove the Bind Plug, then power off the receiver to save the settings.
8. Power off the transmitter.
9. Remove the bind plug and store it in a convenient place.

You must rebind when:

• Different failsafe positions are desired e.g., when throttle or steering reversing has been changed.
• Binding the receiver to a different transmitter.

Illustration of a hand holding a medical device with a circular dial and control buttons (no text or symbols visible)

2.4GHz TROUBLESHOOTING GUIDE

Problem Possible Cause Solution
The system will not connect	Your transmitter and receiver are too close together	Move transmitter 1 to 3 meters from receiver
	You are around metal objects Move to an area with less metal	with less metal
	The model selected is not the model bound to Check model selected and ensure you are bound to that model	Check model selected and ensure you are bound to that model
	Your transmitter was accidentally put into bind mode and is no longer bound to your receiver	Rebind your transmitter and receiver
The receiver goes into failsafe mode a short distance away from the transmitter	Check the receiver antenna to be sure it is not cut or damaged	Replace the receiver or contact Horizon Product Support
		Make sure your receiver antenna is in an antenna tube and is above the vehicle
The receiver quits responding during operation	Inadequate battery voltage	Charge batteries. Spektrum receivers require at least 3.5V to operate. An inadequate power supply can allow voltage to momentarily drop below 3.5V and cause the receiver to brown out and reconnect
	Loose or damaged wires or connectors between battery and receiver	Check the wires and connection between the battery and receiver. Repair or replace wires and/or connectors

Cross wrench

Kreuzschlüssel Clé en croix

Cloth
Lappen Chiffon

Illustration of a pair of needle tips (no text or symbols)

IMPORTANT: Only use fully charged LiPo batteries (4.2V per cell) to prevent battery/ ESC damage.

Connect batteries, turn on TX and press/hold the set button 'A'. Turn the switch on 'B' and release the set button when the RED light flashes on the ESC.

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1. TX in neutral - press set button (1 Green flash)

2. Sender in Neutralposition - drücken Sie den Knopf (1 grünes Blinksignal)

3. TX au point mort - appuyez sur le bouton de réglage (1 flash vert)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

If the ESC temperature exceeds 105 degrees Celsius/221 degrees Fahrenheit, the ESC will enter temperature protection mode and the green status LED will blink. Once the ESC has cooled down it will resume normal operation.

The ARRMA BLX brushless ESC is setup for use straight from the factory. If you want to alter the settings for your track or driving style please see the table and steps below:

Connect a battery. Press and hold the set button and turn on ESC. The RED LED will flash.

Technical illustration of a mechanical device with no visible text or symbols

Keep holding the set button and you will see the Green LED flash/beep (the number of Green flashes represents the Variable number)

Technical line drawing of a mechanical component with an upward arrow indicator (no text or symbols)

To enter the selected Variable, release the set button on the desired number of flashes/beeps.

Technical illustration of a mechanical device with no visible text or symbols

Using the tuning chart, press the 'set' button until the number of red LED flashes and short beeps equals the required value.

Technical line drawing of a mechanical component with no visible text or symbols

To save the setting, switch the ESC off. Restart the process to make more changes.

To reset the ESC to factory default settings connect a battery, turn on the transmitter and then turn the car on. Press and hold the set button for 4 seconds and release. The Red and Green lights will flash simultaneously to show you have reset the ESC. Switch the ESC off and factory reset is complete.

Number of battery packs used.

Duration vehicle has been used for.

Wheel and Tire Maintenance

Circular mechanical gear assembly diagram with no visible text or symbols

F/R Differential Removal and Replacement

Center Differential Maintenance

Mitteldifferential-Wartung

Tools required will appear in this box

Online Videos Available when you see this icon

Technical line drawing of a gear and shaft assembly (no text or symbols)

Check the areas highlighted in the image to the left after the duration of usage above. Replace parts where necessary to ensure maximum durability and enjoyment from your vehicle.

1

Technical line drawing of a car engine bay with directional arrows indicating movement or assembly (no text or symbols present)

2

3

Technical line drawing of a mechanical assembly with no visible text or symbols

4

5

6

Mechanical assembly diagram showing gear and shaft components with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism mounted on a vehicle engine (no text or labels visible)

Technical line drawing of a car head assembly with no visible text or symbols

Technical line drawing of a mechanical component with four arms and mounting holes (no text or symbols)

The below steps will show you how to remove the roll over tower

Technical line drawing of a car engine compartment with directional arrows indicating assembly or movement (no text or symbols present)

2

Technical line drawing of a mechanical assembly with arrows indicating directional components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

4

Technical line drawing of a mechanical assembly with arrows indicating motion or force directions (no text or symbols present)

5

Technical line drawing of a car interior with mechanical components and directional arrows indicating movement (no text or symbols)

Check the areas highlighted in the image to the left after the duration of usage above. Replace parts where necessary to ensure maximum durability and enjoyment from your vehicle.

Technical illustration of a mechanical assembly with labeled components (no readable text or symbols)

Illustration of mechanical parts including a pipe fitting, hex nut, notebook, and paintbrush (no text or symbols)

Remove front bumper

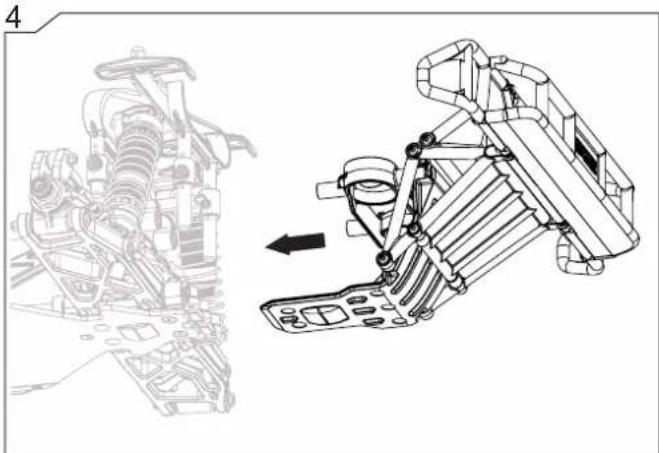

The below steps will show you how to remove the front bumper

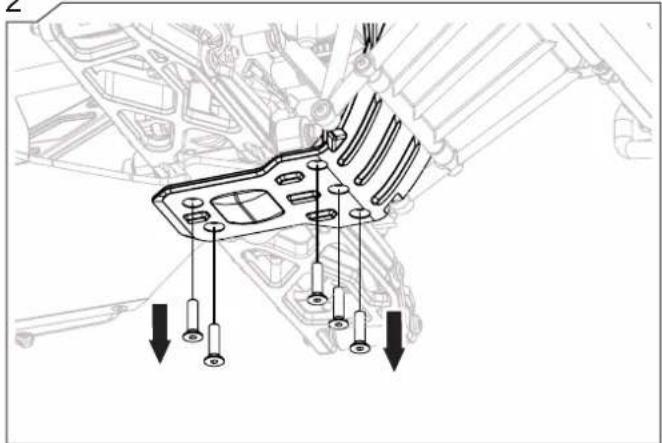

Technical line drawing of a mechanical assembly with no visible text or symbols

The below steps will show you how to remove the rear bumper

1

Technical line drawing of a mechanical assembly with springs and gears (no text or symbols)

2

Technical line drawing of a mechanical assembly with an arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with an arrow indicating motion direction (no text or symbols present)

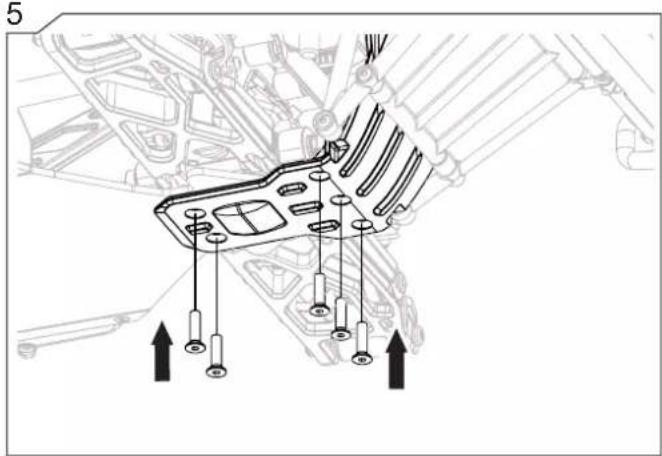

5

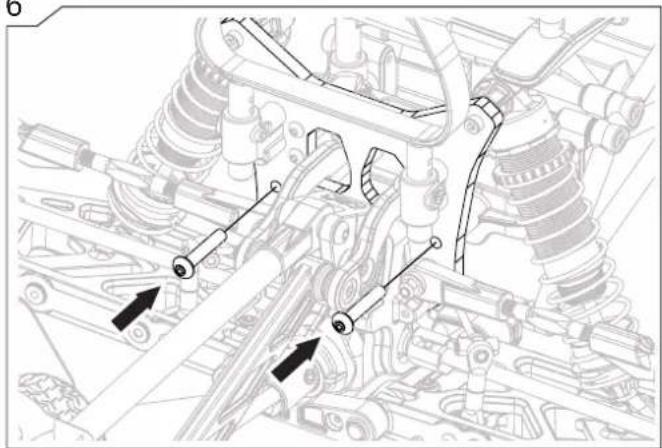

6

Mechanical assembly diagram showing linkage components and motion arrows (no text or labels)

Check the areas highlighted in the image to the left after the duration of usage above. Replace parts where necessary to ensure maximum durability and enjoyment from your vehicle.

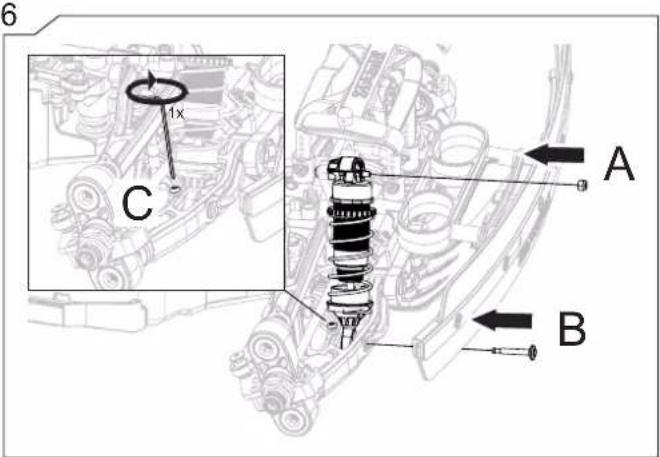

Technical line drawing of a mechanical gear assembly (no text or symbols)

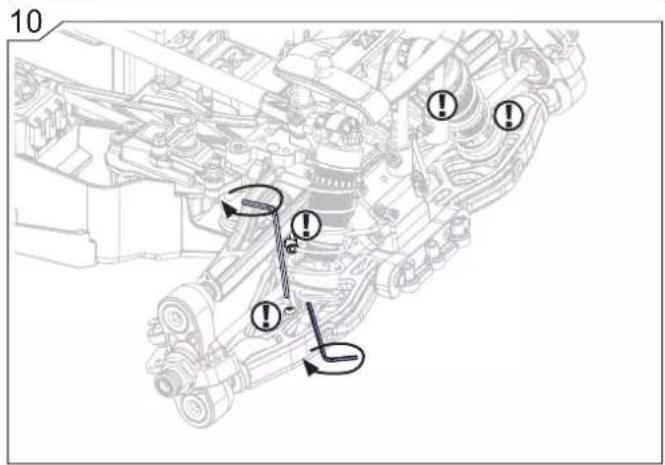

Technical line drawing of a mechanical assembly with no visible text or symbols

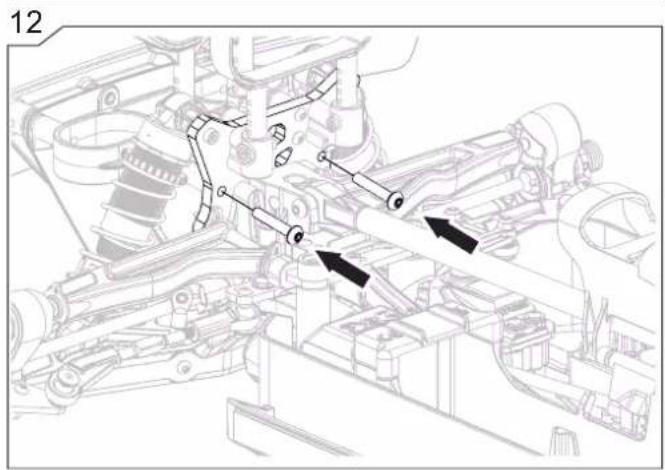

Technical line drawing of a mechanical assembly with exploded view and side view (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Exploded view diagram of a mechanical assembly showing disassembled gears and shafts (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a mechanical suspension or clutch assembly (no text or symbols visible)

Check the areas highlighted in the image to the left after the duration of usage above. Replace parts where necessary to ensure maximum durability and enjoyment from your vehicle.

2

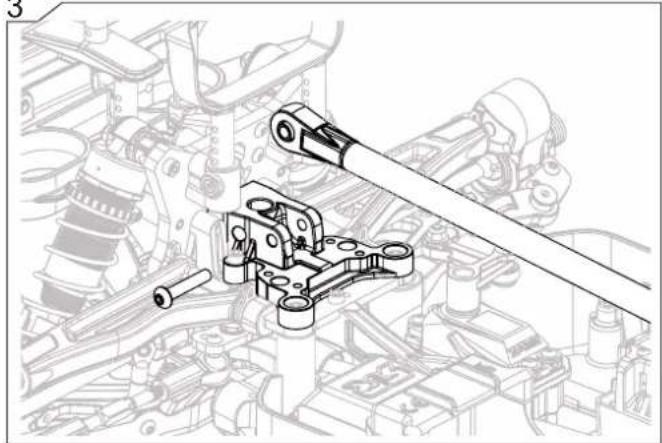

3

5

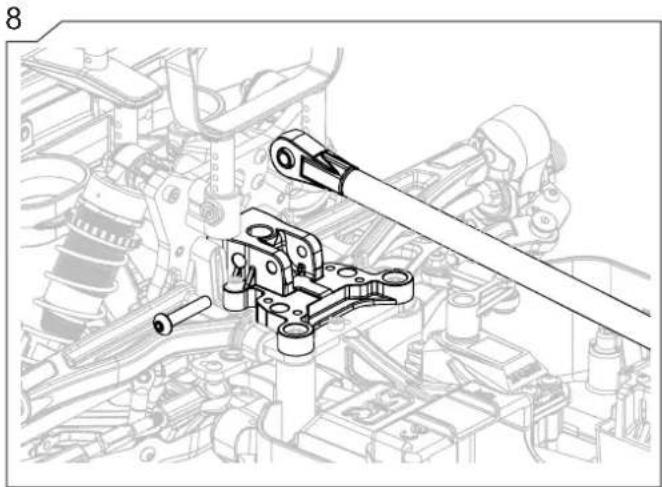

6

The below steps will help you to change the pinion which will alter the speed of the vehicle. Removing the motor can also be done at the same time.

Technical line drawing of a gear with teeth and central bore (no text or symbols)

1

2

Technical line drawing of a mechanical assembly with gears and shafts, showing motion direction (no text or symbols)

3

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

4

Technical line drawing of a mechanical assembly with gears and shafts, no visible text or symbols

5

Technical line drawing of a mechanical assembly with a cylindrical component and directional arrow (no text or symbols)

6

Technical line drawing of a mechanical assembly with gears and components (no visible text or symbols)

Technical line drawing of an engine bay with a highlighted component (no text or symbols)

The below steps will show you how to remove the Receiver for maintenance or troubleshooting.

Simple illustration of a screwdriver and hexagonal nut (no text or symbols)

1

Technical line drawing of a vehicle interior with a multi-level-mounted device and mechanical components (no text or symbols)

2

Technical line drawing of a mechanical assembly with internal components and a directional arrow (no text or symbols)

3

Technical line drawing of a mechanical assembly with internal components and a directional arrow (no text or symbols)

4

Technical line drawing of a mechanical assembly with a multi-tiered device and a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a vehicle chassis with visible suspension components and tire tracks (no text or labels)

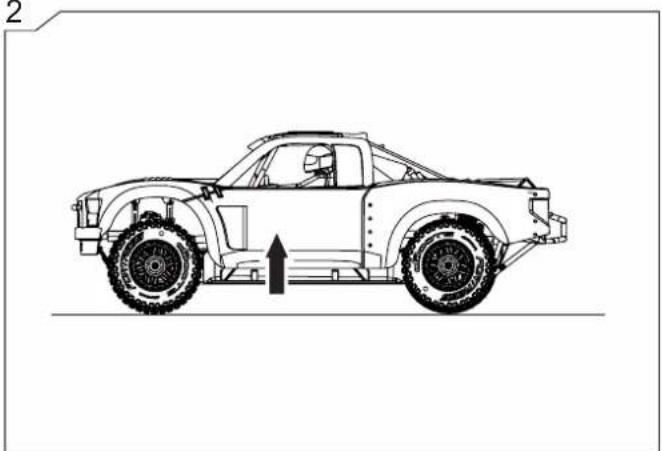

The below steps will help you to adjust the vehicle's ground clearance to suit the terrain you choose to drive on.

Side profile line drawing of a vintage sports car with visible suspension and wheelbase (no text or symbols)

1

Mechanical assembly diagram showing two gears and a cam mechanism (no text or labels)

2

Side-view line drawing of a pickup truck showing front wheel, side panel, and side door (no text or symbols)

Exploded View Explosionszeichnungen Vues Éclatées

Exploded View Explosionszeichnungen Vues Éclatées

EN

LIMITED WARRANTY

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the "Product") will be free from defects in materials and workmanship for a period of 2 years from the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with applicable technical regulations, or (vii) use that violates any applicable laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER'S INTENDED USE.

Purchaser's Remedy

Horizon's sole obligation and purchaser's sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support office.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notification or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notification. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of 12 hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier's checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon's Terms and Conditions found on our website http://www.horizonhobby.com/content/service-center.render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender's choice and at the sender's expense. Horizon will hold non-compliant Product for a period of 60 days from notification, after which it will be discarded. 10/2015

DE

Warnung

Warranty and Service Contact Information

Country of Purchase Horizon	Hobby Contact Information Address
United States of America	Horizon Service Center(Repairs and Repair Requests)	servicecenter.horizonhobby.com/RequestForm/	2904 Research RoadChampaign, Illinois 61822 USA
	Horizon Product Support(Product Technical Assistance)	[e-mail]877-504-0233
	Sales	[e-mail]800-338-4639
EU	Horizon Technischer Service	[e-mail][phone]	Hanskampring 9D 22885 Barsbüttel, Germany
	Sales: Horizon Hobby GmbH

FCC ID: 2AI3D-SS0001.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Horizon Hobby, LLC

2904 Research Rd., Champaign, IL 61822

[e-mail]

CE EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED and EMC Directives. A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance.

Operating Frequency: 2404-2476 MHz Max EIRP: 10dBm

Operating Frequency: 2404-2476 MHz Max EIRP: 10dBm

Operating Frequency: 2404-2476 MHz Max EIRP: 10dBm

Industry Canada Notice: IC: 21682-SSTC9202:

This device complies with Industry Canada license-exempt RSS standard(s). 1. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment complies with IC radiation exposure limits set forth for an controlled environment. In order to avoid the possibility of exceeding the IC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm during normal operation.

Industry Canada Notice: IC: 21682-SSTC9202:

Instructions for Disposal of WEEE by Users in the European Union

This product must not be disposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product.

Top-down technical line drawing of a vehicle chassis with visible suspension and suspension components (no text or symbols)

ARB200024386

ARRMA-RC.COM

©2019 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby, LLC. ARRMA, the ARRMA logo, INFRACTION, DSMR, Active, EC5, IC5, AVC, Active Vehicle Control, dBoots, DYNAMITE®, Powerstage™ and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Twitter® logos are trademarks of Twitter, Inc. Facebook® and its logo are trademarks or registered trademarks of Facebook, Inc. The YouTube® logo is a trademark of Google Inc. All other trademarks or registered trademarks are property of their respective owners. US 9,320,977. Other patents pending. 59511
