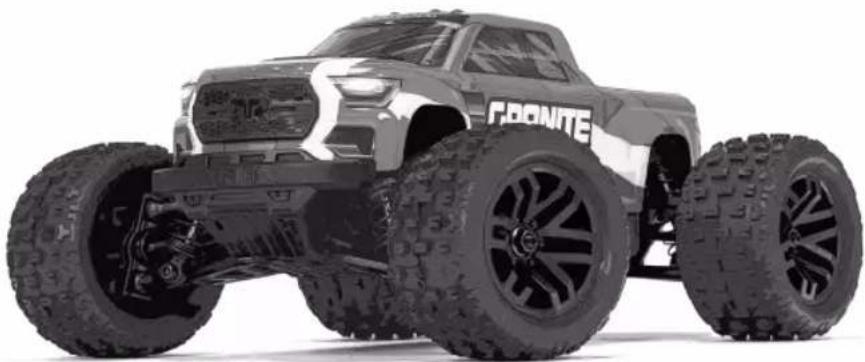

Product type	4WD off-road remote-controlled car
Brand	ARRMA
Model	Granite Grom Mega 380
Scale	1/16
Transmission	4 wheel drive (4WD)
Motor type	Brushed ARRMA Mega 380 28T motor
ESC controller	Spektrum SLT 2-in-1 25A with receiver
Steering servo	Spektrum metal gear servo 20T
Vehicle power	Spektrum LiPo battery 1400mAh 2S 7.4V 30C IC2
Transmitter power	4 AA batteries (not included)
Charger	Spektrum Mini USB-C 2S LiPo charger (SPMXC0040)
Radio technology	Spektrum 2.4 GHz SLT2
Range	Approximately 100 meters
Recommended age	14 years and up
Use in wet conditions	Yes (water-resistant, not waterproof)
Maintenance	Clean after wet use, lubricate bearings, check screws
Body	Clip-less
Box contents	Vehicle, transmitter, LiPo battery, USB-C charger, USB-C cable, manual
Warranty	6 months (according to local legislation)
Spare parts	Available at ARRMA-RC.com

Frequently Asked Questions - Granite Grom Mega 380 ARRMA

How to bind the transmitter to the receiver?

Turn on the ESC while holding the power button for 3 seconds until the LED flashes rapidly. Then turn on the transmitter. The ESC status LED stops flashing and stays on, indicating successful binding.

Which battery to use?

Use a 2S (7.4V) LiPo battery with IC2 connector, recommended Spektrum 1400mAh 30C. Only charge with the included charger or a suitable LiPo charger.

How to maintain the vehicle after use in water?

Remove the battery, dry the contacts. Rinse the wheels with clean water, use compressed air to dry. Lubricate the bearings and metal parts with an anti-moisture lubricant. Let dry before storage.

What to do if the vehicle stops responding?

Check the transmitter batteries, the vehicle battery charge, and that the transmitter and receiver are bound. If overheating, let the ESC cool down.

How to adjust the steering trim?

Use the steering trim button on the transmitter to adjust the steering so the vehicle goes straight without touching the steering wheel.

Can the vehicle be used on grass or dirt?

Yes, it is a 4WD off-road vehicle designed for grass, dirt, gravel, and even snow or puddles. Avoid salt water and deep submersion.

How to charge the battery?

Connect the USB-C charger to a power source (USB 5V/2A or QC 2.0/3.0 adapter recommended). Connect the battery to the charger. The orange LED indicates charging, green when complete. Never charge unattended.

What is the maximum speed?

Speed is not specified in the manual, but it is suitable for RC hobby (estimated: about 30-40 km/h). Use the throttle limiter to reduce speed initially.

How to replace the transmitter batteries?

Open the battery compartment on the back of the transmitter. Insert 4 AA batteries observing polarity. Use new alkaline batteries. Do not mix new and old batteries.

Where to find spare parts?

Visit the official website ARRMA-RC.com. You will find all spare parts, upgrades, and technical support.

USER MANUAL Granite Grom Mega 380 ARRMA

Black handheld toy with a circular head and mechanical components (no visible text or symbols)

Exterior view of a black and white Honda 300km utility vehicle (no signage or text visible)

Technical line drawings of a battery with internal components and a separate L-shaped component (no text or symbols)

1400mAh

2S 7.4v LiPo

SMART BATTERY

SPEKTRUM.

Innovative Spread Spectrum Technology

SMART

TECHNOLOGY

Black rectangular electronic device with a small port and cable, no visible text or symbols

SMART

USB CHARGER

WWW.ARRMA-RC.COM

WARNINGS

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

SAFETY PRECAUTIONS AND WARNINGS

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or property of others.

This model is controlled by a radio signal subject to interference from many sources outside your control. This interference can cause momentary loss of control, so it is advisable to always keep a safe distance in all directions around your model as this margin will help avoid collisions or injury.

• Never operate your model with low transmitter batteries.
  • Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Never operate the model in the street or in populated areas for any reason.
• Carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) you use.
• Keep all chemicals, small parts and anything electrical out of the reach of children. Never lick or place any portion of the model in your mouth as it could cause serious injury or even death.
  • Exercise caution when using tools and sharp instruments.

• Take care during maintenance as some parts may have sharp edges.
- Immediately after using your model, do NOT touch equipment such as the motor, electronic speed control and battery, because they generate high temperatures. You may seriously burn yourself by touching them.
- Do not put fingers or any objects inside rotating and moving parts, as this may cause damage or serious injury.
• Always turn on your transmitter before you turn on the receiver in the car. Always turn off the receiver before turning your transmitter off.
- Keep the wheels of the model off the ground when checking the operation of the radio equipment.

WARNING AGAINST COUNTERFEIT PRODUCTS: Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with

regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS

Your new Horizon Hobby vehicle has been designed and built with a combination of waterproof and water-resistant components to allow you to operate the product in many "wet conditions," including puddles, creeks, wet grass, snow and even rain.

While the entire vehicle is highly water-resistant, it is not completely waterproof and your vehicle should NOT be treated like a submarine. The various electronic components used in the vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, however, most of the mechanical components are water-resistant and should not be submerged.

Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts in the electrical cables, will be susceptible to corrosion if additional maintenance is not performed after running in wet conditions. To maximize the long-term performance of your vehicle and to keep the warranty intact, the procedures described in the "Wet Conditions Maintenance" section below must be performed regularly if you choose to run in wet conditions. If you are not willing to perform the additional care and maintenance required, then you should not operate the vehicle in those conditions.

CAUTION: Failure to exercise caution while using this product and complying with the following precautions could result in product malfunction and/or void the warranty.

General Precautions

- Read through the wet conditions maintenance procedures and make sure that you have all the tools you will need to properly maintain your vehicle.

- Not all batteries can be used in wet conditions. Consult the battery manufacturer before use. Caution should be taken when using Li-Po batteries in wet conditions.

- Most transmitters are not water-resistant. Consult your transmitter's manual or the manufacturer before operation.

- Never operate your transmitter or vehicle where lightning may be present.

- Do not operate your vehicle where it could come in contact with salt water (ocean water or water on salt-covered roads), contaminated or polluted water. Salt water is very conductive and highly corrosive, so use caution.

• Even minimal water contact can reduce the life of your

motor if it has not been certified as water-resistant or waterproof. If the motor becomes excessively wet, apply very light throttle until the water is mostly removed from the motor. Running a wet motor at high speeds may rapidly damage the motor.

- Driving in wet conditions can reduce the life of the motor. The additional resistance of operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or larger spur gear. This will increase torque (and motor life) when running in mud, deeper puddles, or any wet conditions that will increase the load on the motor for an extended period of time.

Wet Conditions Maintenance

- Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can of compressed air, blow out any water that may be inside the recessed connector housing.

- Remove the tires/wheels from the vehicle and gently rinse the mud and dirt off with a garden hose. Avoid rinsing the bearings and transmission.

NOTICE: Never use a pressure washer to clean your vehicle.

- Use an air compressor or a can of compressed air to dry the vehicle and help remove any water that may have gotten into small crevices or corners.

- Spray the bearings, drive train, fasteners and other metal parts with a water-displacing light oil or lubricant. Do not spray the motor.

- Let the vehicle air dry before you store it. Water (and oil) may continue to drip for a few hours.

- Increase the frequency of disassembly, inspection and lubrication of the following:

• Front and rear axle hub assembly bearings.
• All transmission cases, gears and differentials.
• Motor—clean with an aerosol motor cleaner and re-oil the bushings with lightweight motor oil.

- Drain any water that has collected in the tires by spinning them at high speed. With the body removed, place the vehicle upside down and pull full throttle for a few short bursts until the water has been removed.

NOTICE: This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

BATTERY CHARGER SAFETY PRECAUTIONS AND WARNINGS

DANGER: To reduce the risk of fire or electric shock, carefully follow these instructions.

WARNING: Before charging, read the instructions. Failure to follow all instructions many result in excessive heat, FIRE, and ultimately injury and property damage.

• For indoor use, do not expose to rain.
• Never leave charging batteries unattended. Disconnect charger if batteries become hot or puff.
• Never charge batteries overnight.
• Never leave batteries near fire, water, or in extreme temperatures.
• Never impact or alter the batteries.
• Never leave the charger and battery unattended during use.
• Never attempt to charge dead, damaged or wet battery packs.
• Never attempt to charge a battery pack containing different types of batteries.
• Never allow children under 14 years of age to charge battery packs.
• Never charge batteries in extremely hot or cold places or place in direct sunlight.
• Never charge a battery if the cable has been pinched or shorted.
• Never connect the charger if the power cable has been pinched or shorted.
• Never attempt to dismantle the charger or use a damaged charger.
• Never attach your charger to both an AC and a DC power source at the same time.
• Never connect the input jack (DC input) to AC power.
  • Always use only rechargeable batteries designed for use with this type of charger in the correct programming mode.
  • Always inspect the battery before charging.
  • Always keep the battery away from any material that could be affected by heat.
  • Always monitor the charging area and have a fire extinguisher available at all times.
  • Always end the charging process if the battery becomes hot to the touch or starts to change form (swell) during the charge process.
  • Always connect the charge cable to the charger first, then connect the battery to avoid short circuit between the charge leads. Reverse the sequence when disconnecting.
  • Always connect the positive red leads (+) and negative black leads (−) correctly.

• Always disconnect the battery after charging, and let the charger cool between charges.
• Always charge in a well-ventilated area.
• Always terminate all processes and contact Horizon Hobby if the product malfunctions.
- Charge only rechargeable batteries. Charging non-rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.

WARNING: Never leave charger unattended, exceed maximum charge rate, charge with non-approved batteries or charge batteries in the wrong mode. Failure to comply may result in excessive heat, fire and serious injury.

CAUTION: Use only with compatible batteries in the correct program mode. Not doing so can result in excessive heat and other related product malfunctions, which can lead to user injury or property damage. Please contact Horizon Hobby or an authorized retailer with compatibility questions.

WARNUNG

HINWEIS

At ARRMA we want you to love running your kit and make owning a high performance RC car as simple as possible. If you have any questions about running, maintaining, tuning or repairing your ARRMA product there are two options for you to use to get help and advice. Visit ARRMA-RC.com for support, parts and upgrades for your kit. If you can't find what you're looking for then you can always email us at supportUSA@ARRMA-RC (USA) or [e-mail] (ROW) 24hrs a day and we will do our best to help you with your query.

Hilfestellung

Quick Start Guide	13
How to Drive 16
2-in-1 Electronic Speed Control and Receiver Unit 19
Radio Gear 20
Troubleshooting 23
Warranty Information 50

INHALT

Close-up of hands adjusting a CRIMATE electric vehicle tire, no visible text or symbols on the vehicle itself

Close-up of a CRANTIS electric vehicle with a hand adjusting its body, labeled A and B (no text or symbols on the vehicle itself)

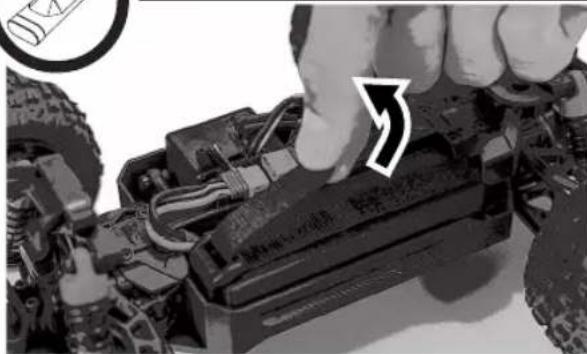

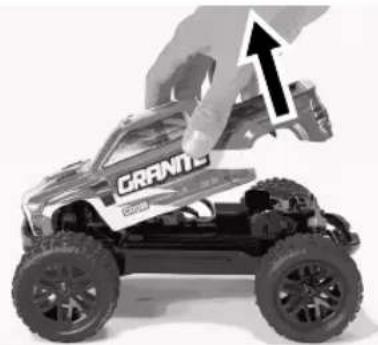

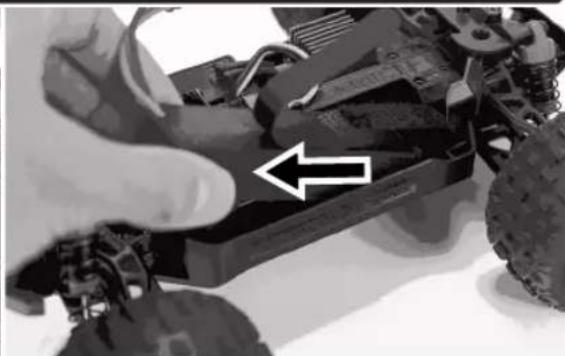

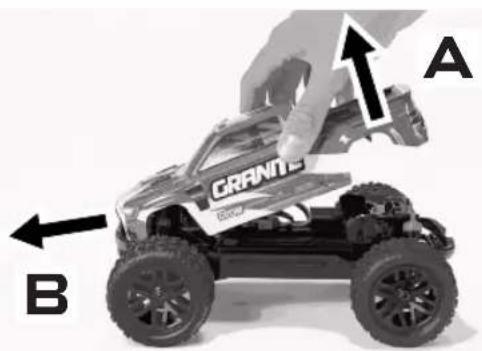

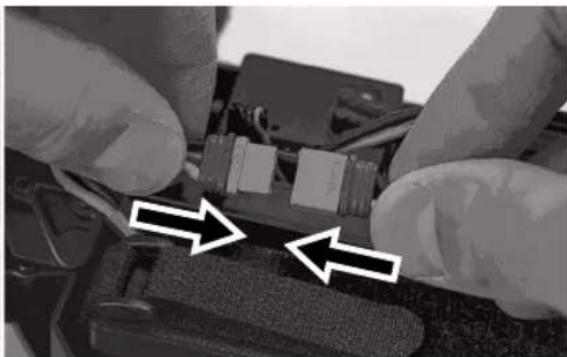

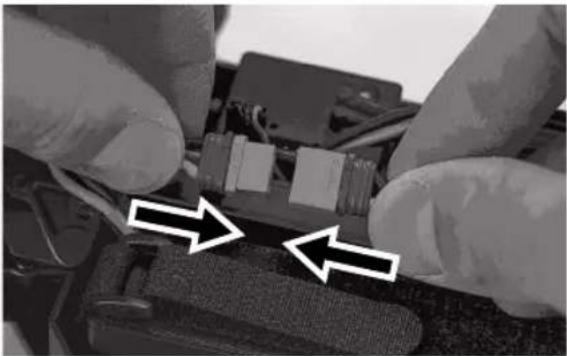

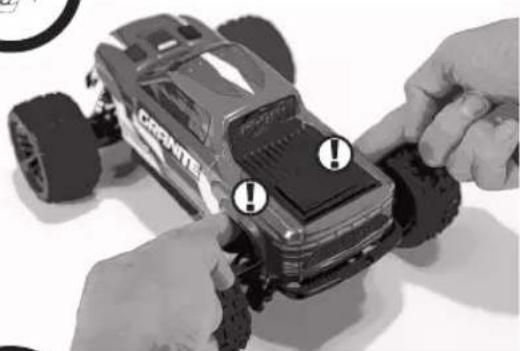

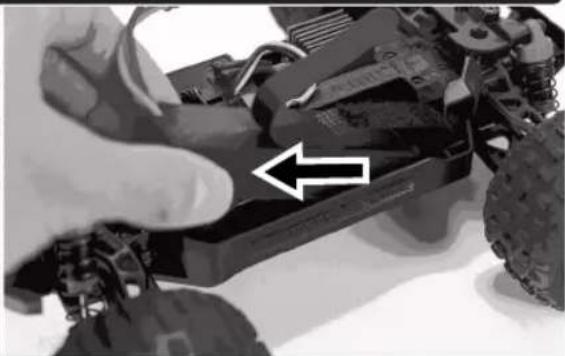

REMOVE CAR BATTERIES

Close-up of a hand adjusting a small electronic device with visible wiring and battery (no text or symbols)

Close-up of a hand adjusting a small mechanical component with visible wiring and a white arrow pointing to it (no text or symbols)

CHARGE CAR BATTERIES

Hand holding a white electrical socket with a star symbol, pointing to a wall-mounted socket (no text or labels visible)

*Not supplied.

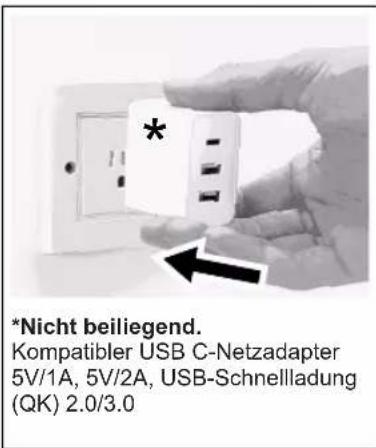

Compatible USB C Power Adaptor 5V/1A, 5V/2A, USB Quick Charge (QC) 2.0/3.0

Close-up of a hand inserting a plug into a white wall socket (no text or symbols visible)

Close-up of hands holding a small electronic component with an arrow pointing to it (no visible text or symbols)

Close-up of hands holding a black USB flash drive with a separate USB port, showing a black arrow pointing to the port (no text or symbols visible)

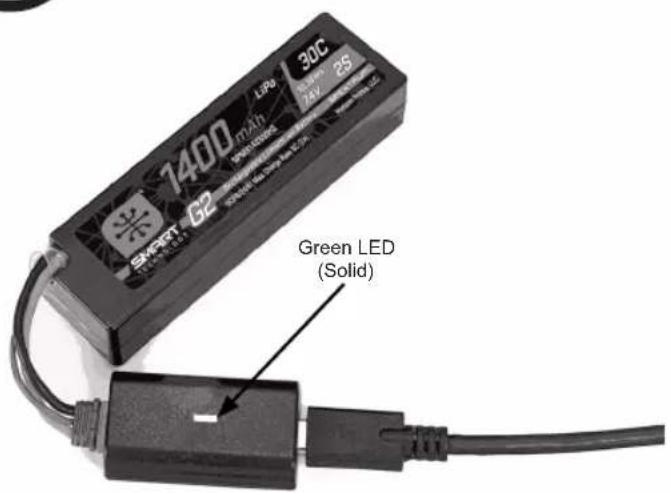

LED Charger Codes

LED Behaviour Explanation

Solid RED Charging Error - check connection

Solid Orange Charging

Solid Green Charge Complete

Orange/Green Flashing Ready to Charge

We recommend that you use a 20W+ USB C Power Adaptor with QC 2.0/3.0 for the quickest charge time of under 1.5 hours. Using a typical mobile phone USB C Power Adaptor (5V/1A, 5V/2A) will produce longer charge times.

When the charger is powered on, without a battery connected, the LED will either be WHITE (slow charge mode) or BLUE (fast charge mode)

CAUTION: Do not use USB ports on computers/laptops. Only use USB Power Adaptors from mains power sockets.

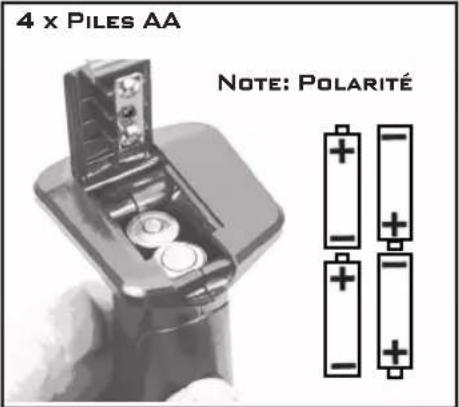

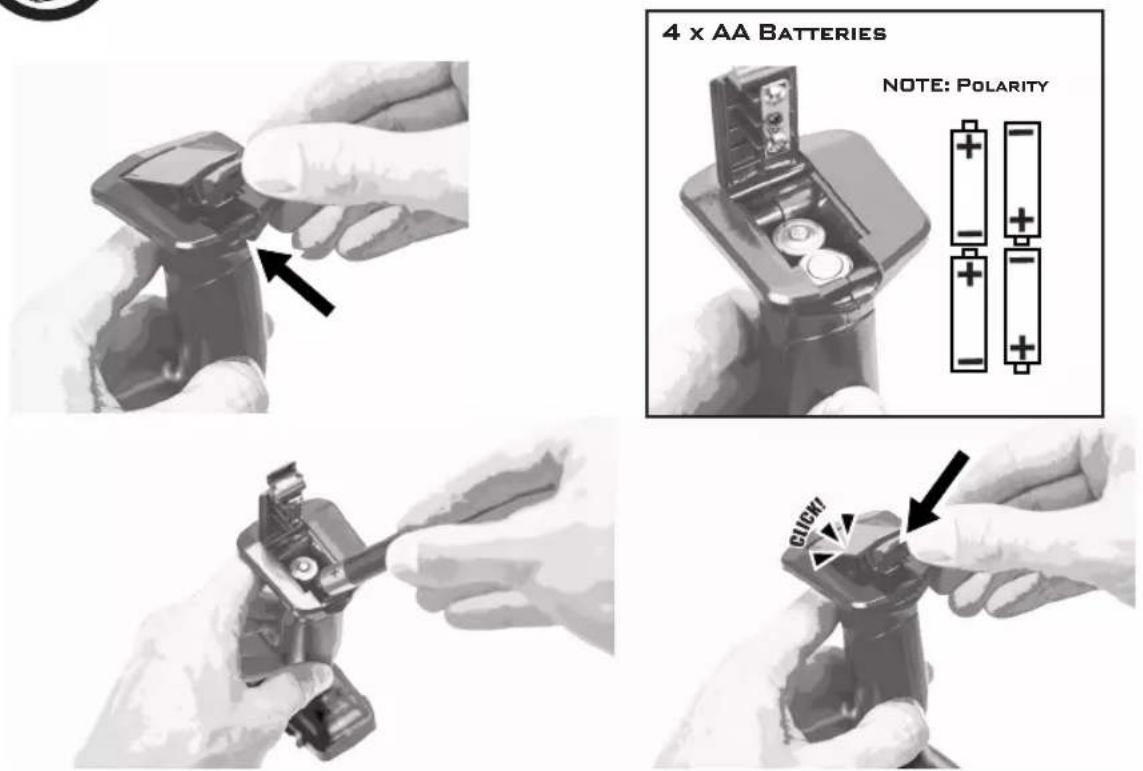

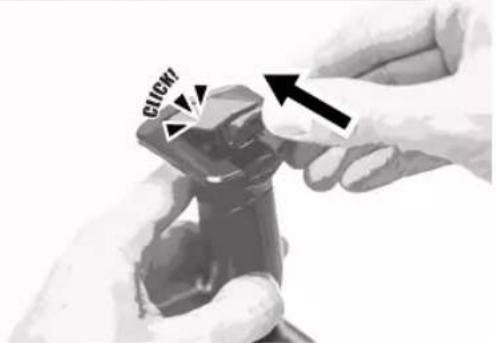

INSTALL AA BATTERIES IN CONTROLLER

CAUTION: Only charge rechargeable batteries. Charging non-rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to national regulations.

FULLY CHARGED BATTERIES

Close-up of hands holding a small mechanical component with an arrow pointing to it (no visible text or symbols)

Hand inserting a plug into a white electrical outlet with a black arrow indicating direction (no text or symbols visible)

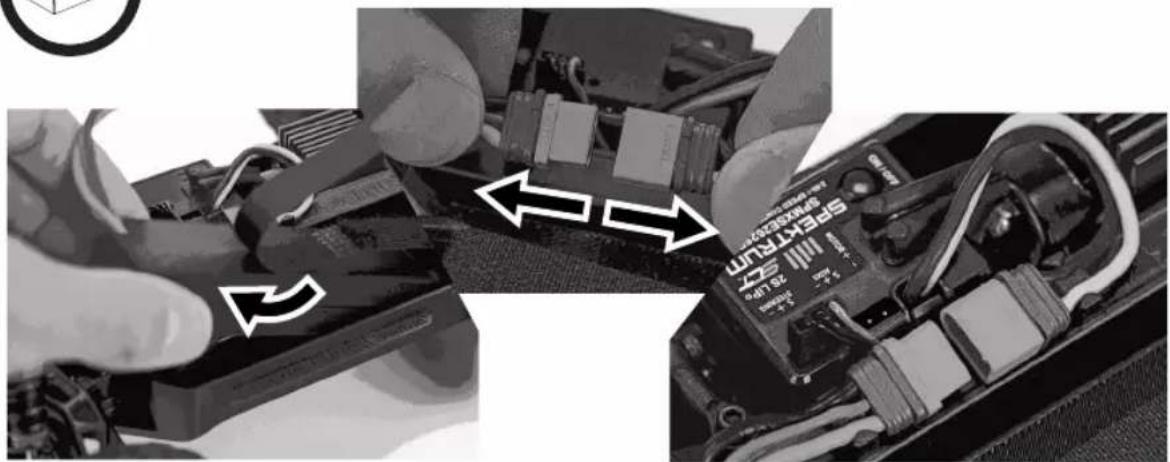

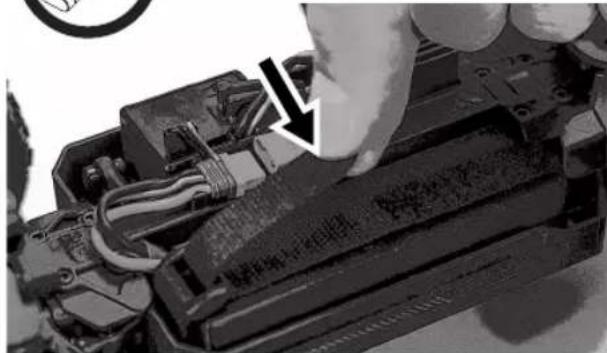

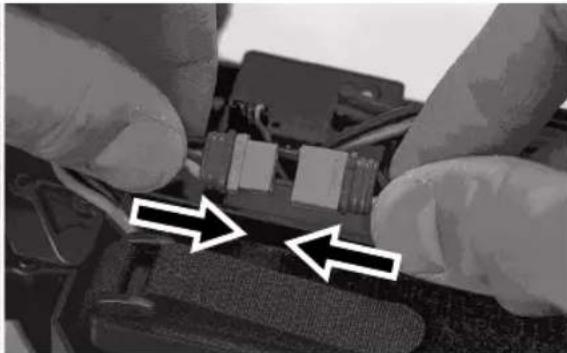

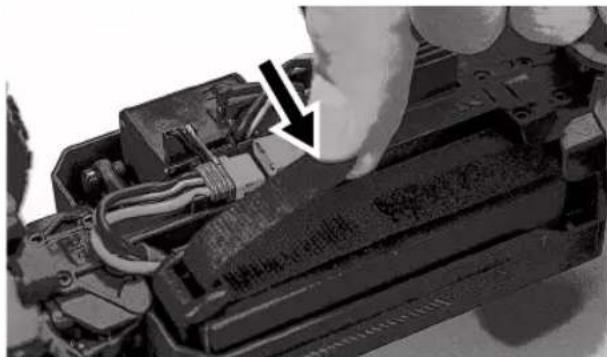

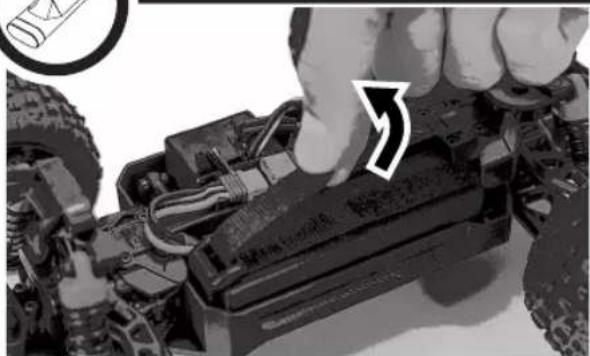

INSTALL CHARGED BATTERIES IN CAR

Close-up of a hand using a screwdriver to adjust internal components on an electronic circuit board (no visible text or symbols)

Close-up of hands installing or adjusting a component with two arrows pointing to specific parts (no text or symbols visible)

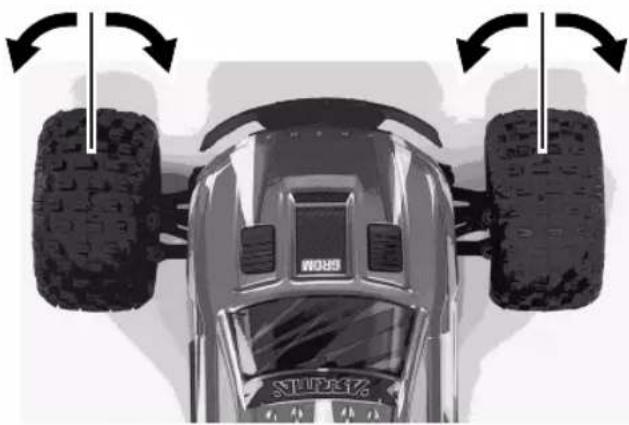

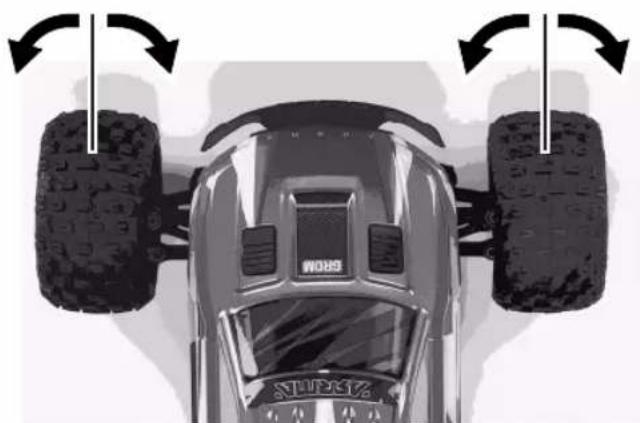

STEERING NEUTRAL

Top-down view of a toy car with two large tires and a 'WORI' branding on the side (no text or symbols on the car itself)

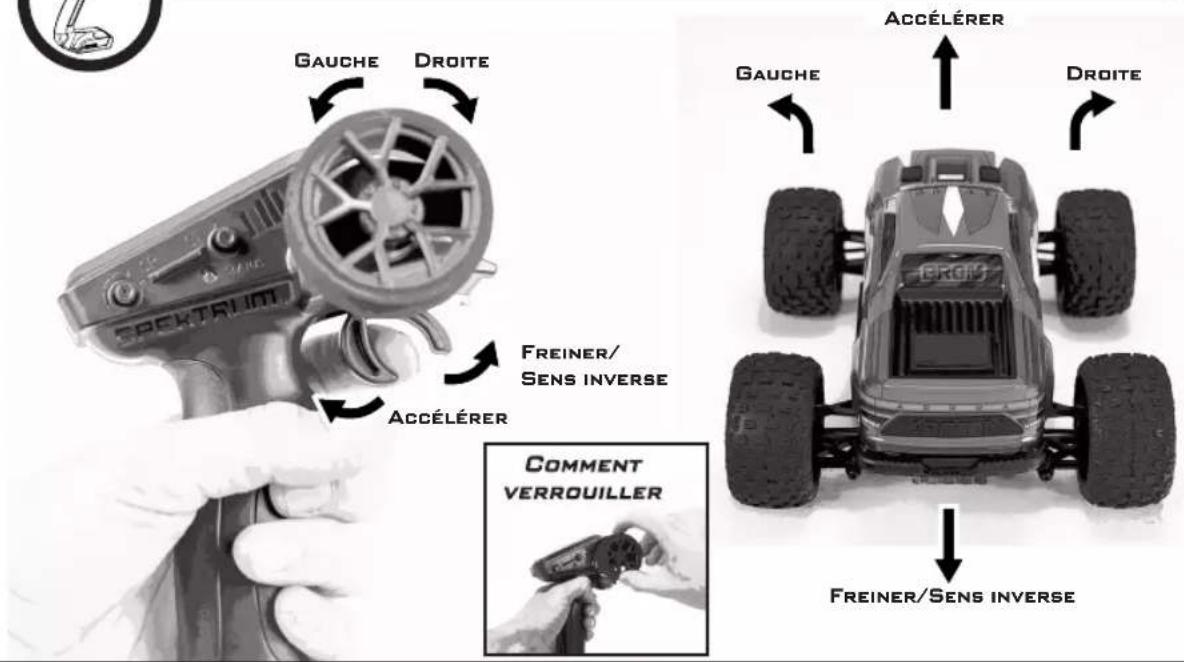

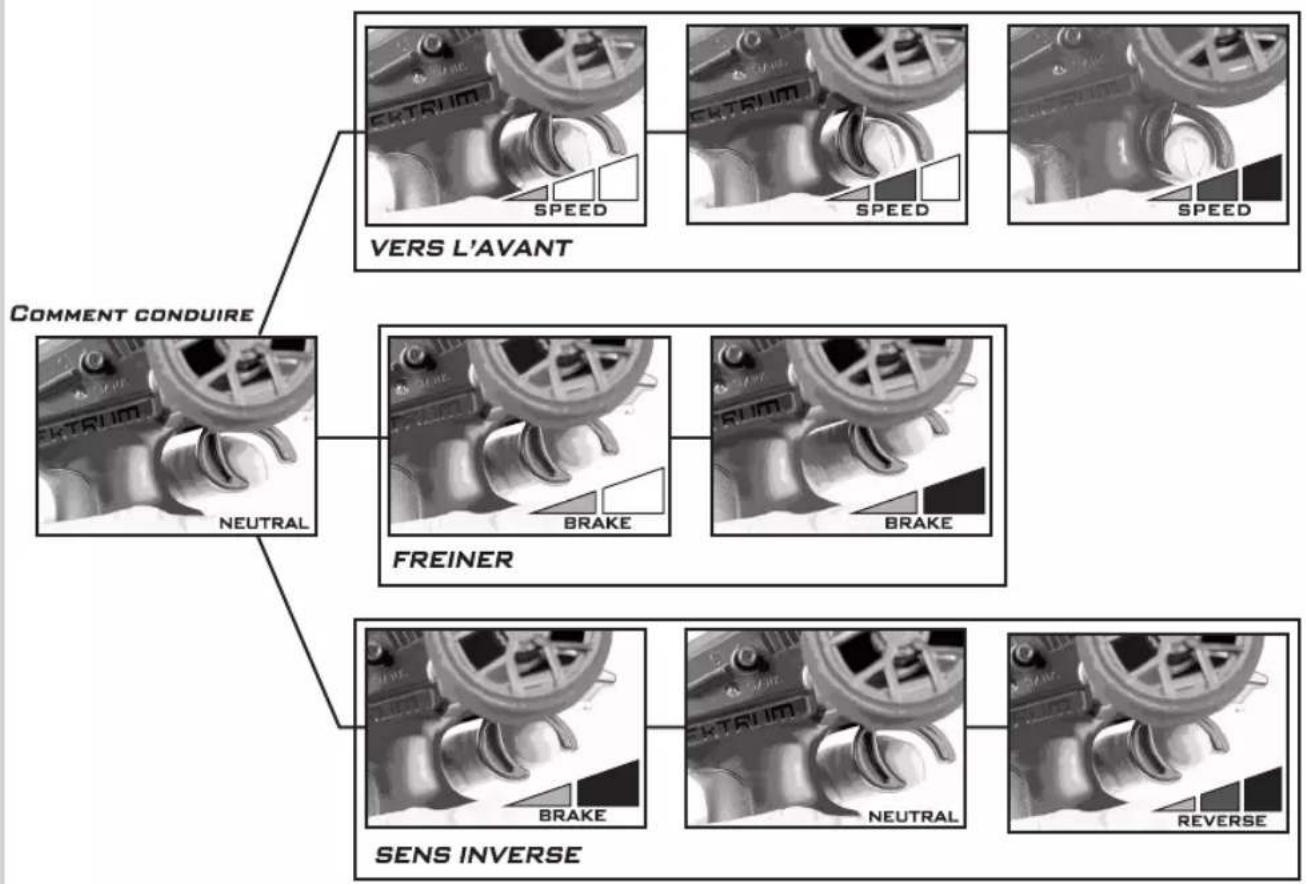

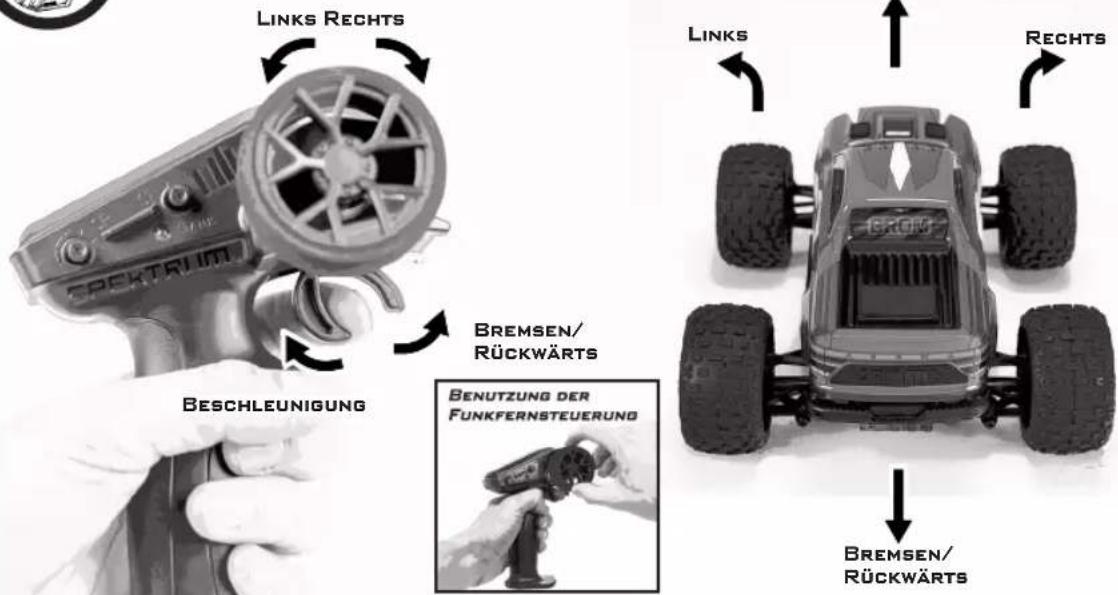

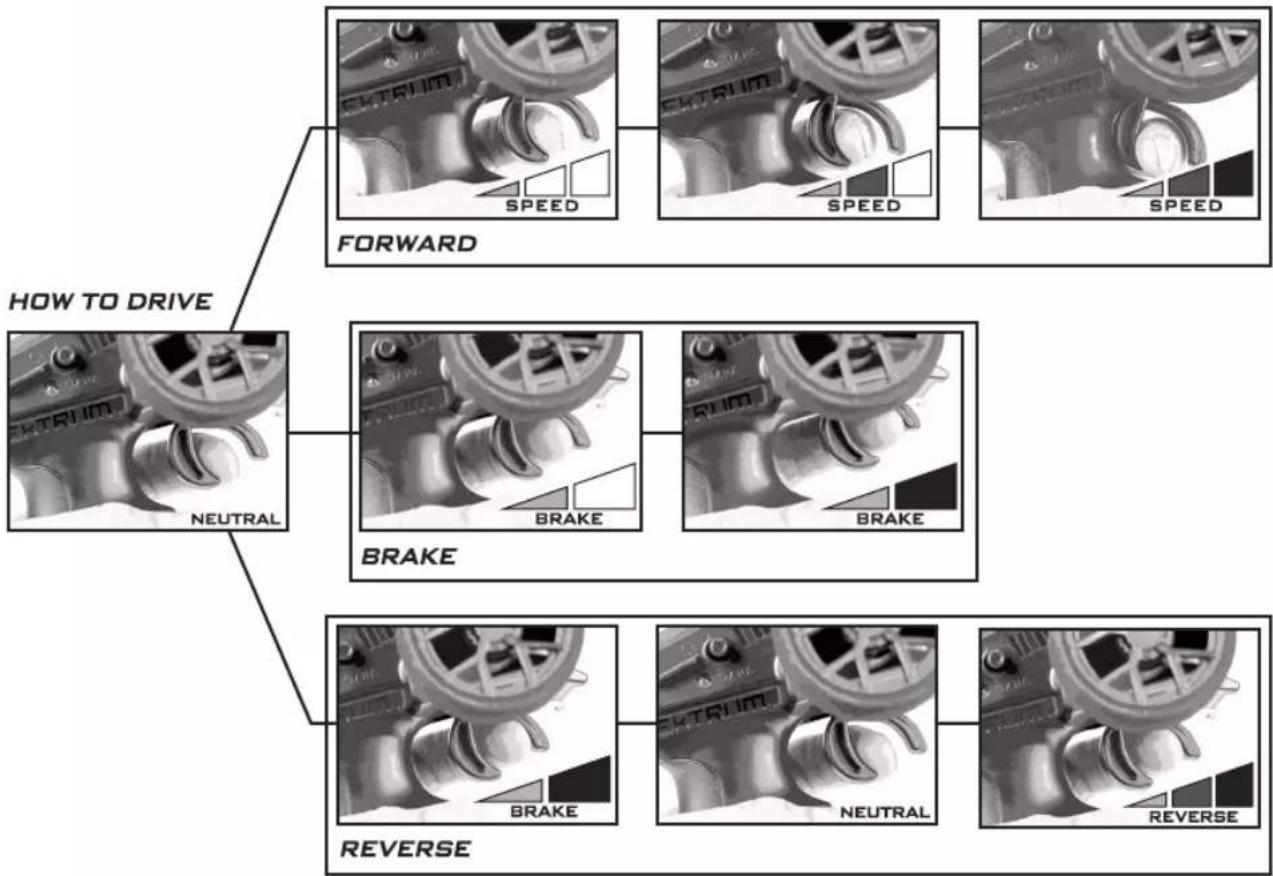

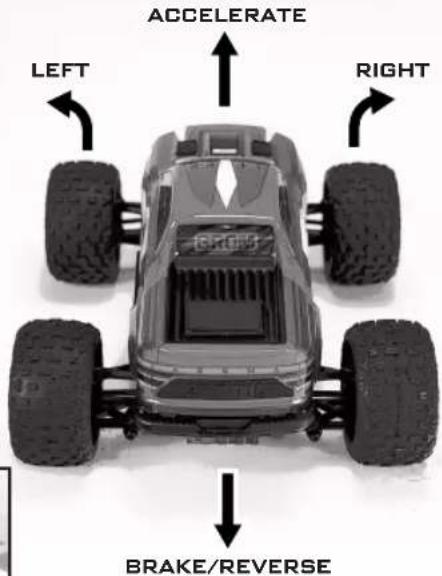

How to Drive


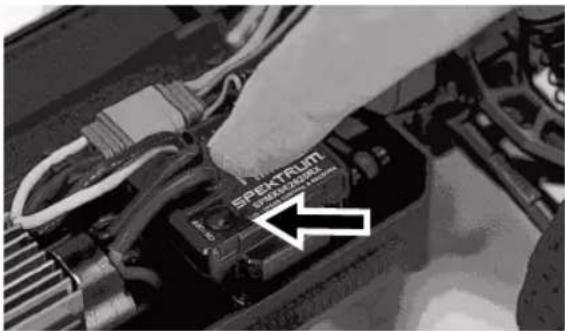

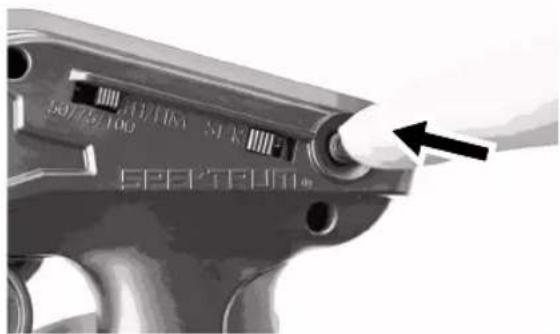

POWER ON

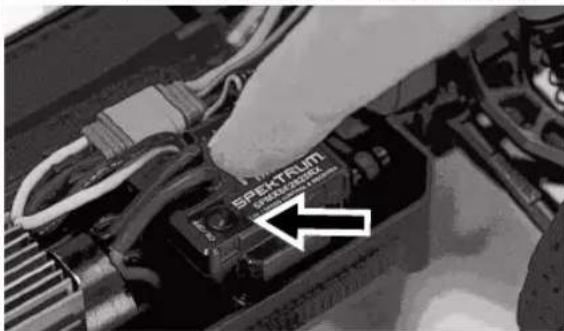

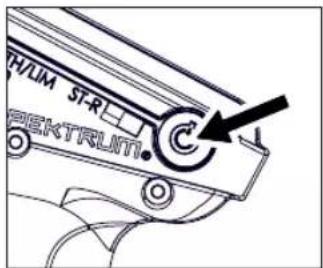

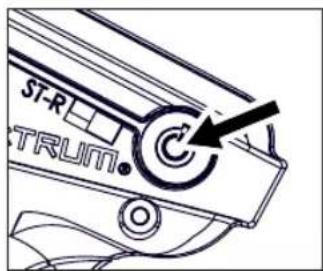

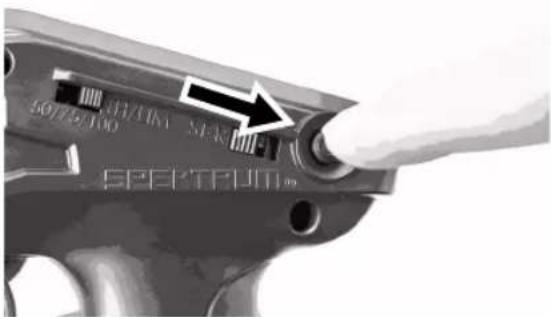

CONTROLLER ON FIRST

CAR ON SECOND

NOW GET BASHING!

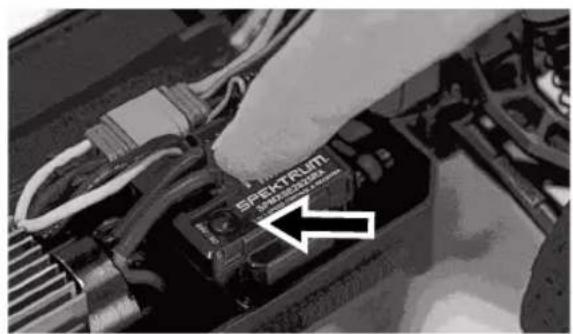

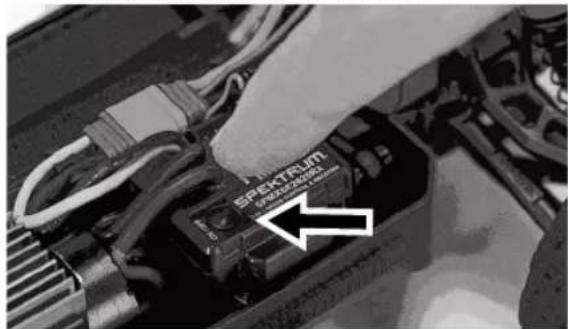

POWER OFF

CAR OFF FIRST

Close-up of a car engine bay with visible wiring and a white arrow pointing to a component labeled 'SPEKTRVM' (no readable text beyond label)

Due to the Speed and Performance of your ARRMA vehicle we recommend following the maintenance guide below:

• After every few runs check the gluing of the tire to the wheel, clean and re-glue where required.
- Frequently check the whole vehicle for loose or missing screws and fittings. Use thread lock on any replacement screws that fix into metal parts or threads.
- Remove the wheels occasionally and check behind the wheel mounting hex for debris that might have been wrapped around the axles and is causing extra drag.

Frequently check rotating parts are free from any obstructions such as stones or grass that might restrict their rotation which can lead to the over stress of the motor or speed controller.

After 10-15 runs remove the motor from the vehicle, Re-oil the motor shaft bushes with some bush / lightweight oil, a couple of drops on both bushes will aid the speed and longevity of your motor.

The vehicles shock absorbers will wear quicker if used in dirty dusty conditions. Replace oil and seals as required to keep good shock damping to maintain the performance and handling of your vehicle.

A well maintained vehicle will keep the strength and reliability expected from your ARRMA vehicle.

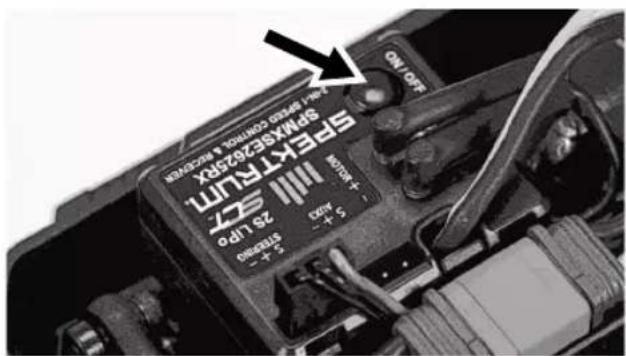

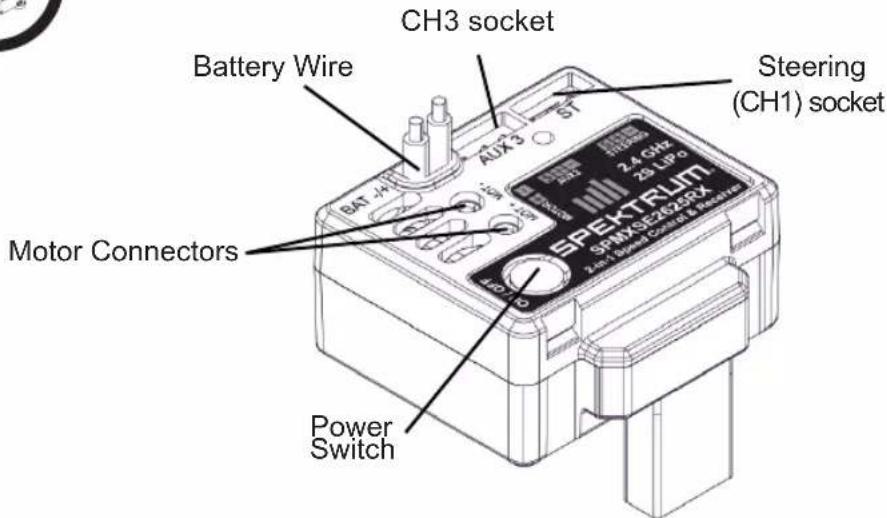

2-IN-1 ESC AND RECEIVER UNIT

ESC Specifications

Input Voltage 2S LiPo (7.4v) BEC Output 6.0v/3A Max

Throttle Setup

Do not move the throttle when switching the model on as the ESC will automatically set the throttle neutral.

Temperature Protection

If the ESC temperature exceeds 110 degrees Celsius, the ESC will enter temperature protection mode and the LED will blink. Once the ESC has cooled down it will resume normal operation.

TROUBLESHOOTING GUIDE

Problem and LED Indicator	Error Mode Possible Causes Solution
Motor won't operate. LED flashes slowly short single pulses.	LVC has been activated.	Battery voltage is below the LVC setting.	Verify the battery is charged.
Motor won't operate. LED flashes quickly with short single pulses.	The ESC is in thermal shutoff mode.	The ESC is taking too much load.	Turn off the ESC and allow it to cool before resuming operation. Consider making changes to gear ratio to reduce load to the ESC.

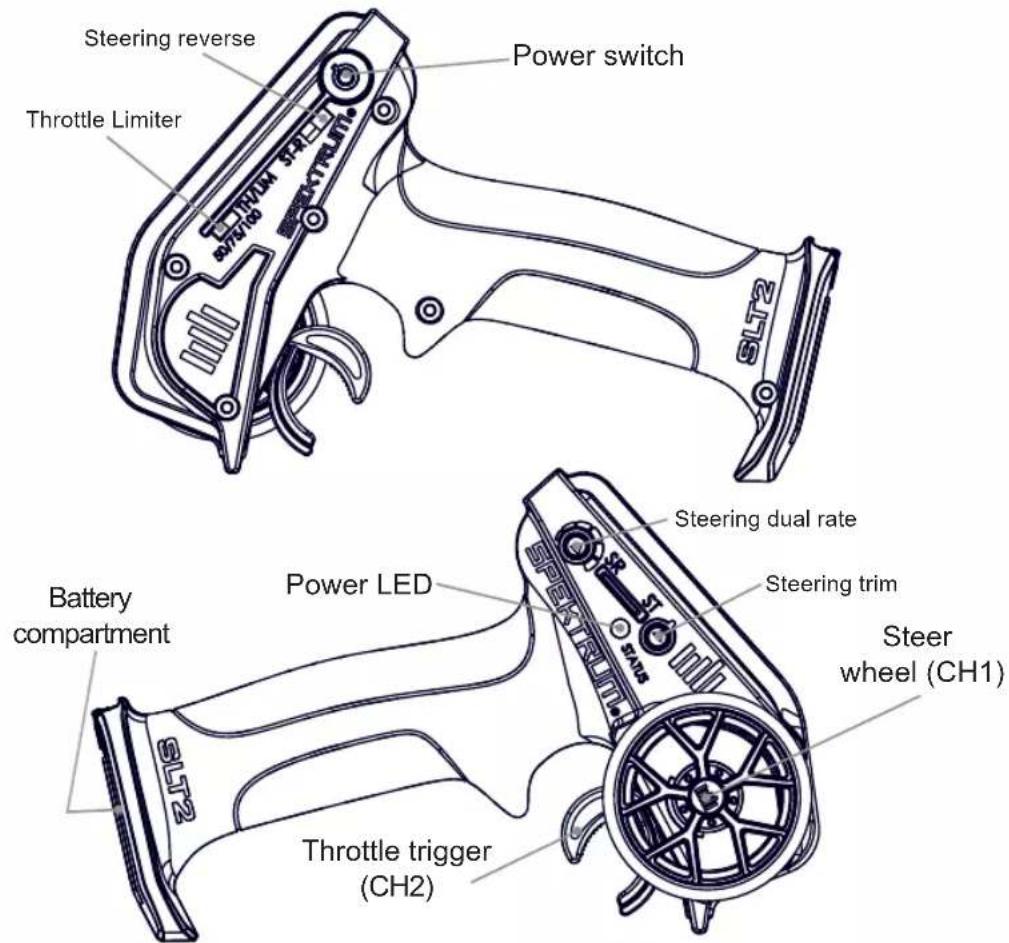

RADIO GEAR

SPEKTRUM ^* SLT2 2CH

2.4GHZ DIGITAL RADIO SYSTEM

*Not available separately

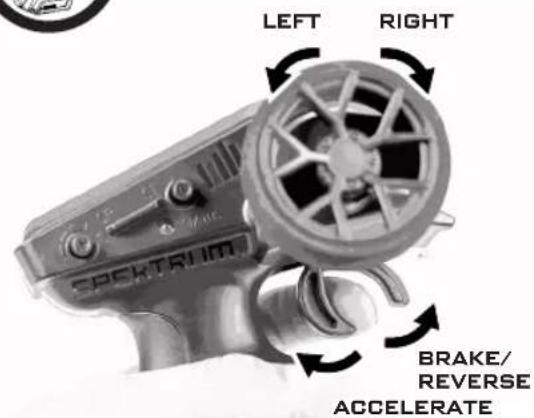

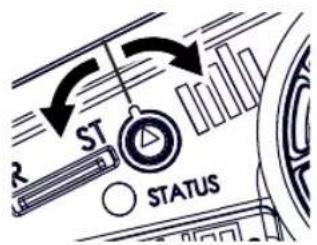

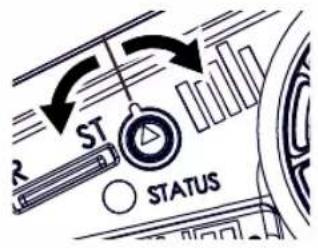

STEERING TRIM ST RATE

Top-down diagram of a car showing four wheels and a vehicle head, with arrows indicating airflow or motion direction (no text or symbols)

Top-down diagram of a vehicle showing four wheels and two arrows indicating light or motion (no text or symbols)

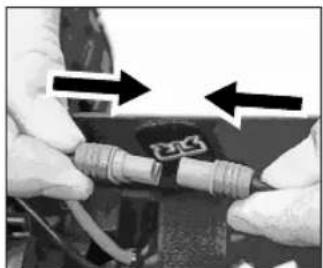

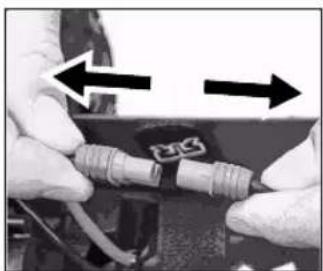

BATTERY STATUS

If battery status LED is flashing, the batteries need to be replaced.

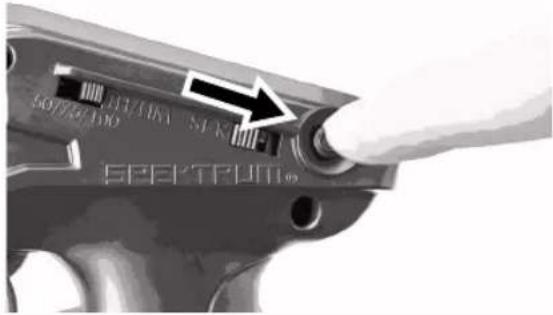

FACTORY DEFAULTS

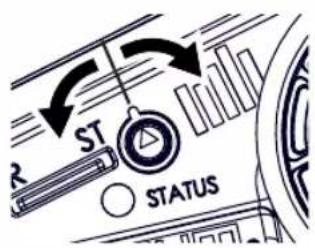

BINDING

Close-up of hands adjusting a mechanical component with arrows indicating direction (no visible text or symbols)

Connect a fully charged battery pack to the ESC.

Power on the ESC and hold the power button for 3 seconds. LED will flash rapidly

Power the transmitter on.

Isometric line drawing of a mechanical device with no visible text or symbols

The ESC Status LED will stop flashing and remain solidly lit.

Power off the transmitter.

Close-up of hands connecting a mechanical component with wires, showing directional arrows (no text or symbols)

Disconnect the battery.

FCC ID: BRWSPMSLT200F

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORISED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.

Horizon Hobby, LLC

2904 Research Road,

Champaign, IL 61822

Email: [e-mail]

Web: HorizonHobby.com

EU Manufacturer of Record:

Horizon Hobby, LLC 2904 Research Road, Champaign, IL 61822

EU Importer of Record: Horizon Hobby, GmbH Hanskampring 9

22885 Barsbüttel Germany

Hereby, Horizon Hobby, LLC declares that the device is in compliance with the following: European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU; European Union Registration, Evaluation, Authorization and Restriction of Chemicals European Radio Equipment Directive (RED) 2014/53/EU Low Voltage Directive (LVD) 2014/35/EU, RoHS 3 Directive -

Amending 2011/65/EU Annex II 2015/863, 2014/30/EU EMC Directive

This product contains batteries that are covered under the 2006/66/EC European Directive, which cannot be disposed of with normal household waste. Please follow local regulations

The full text of the EU declaration of conformity is available at the following internet address: http://www.horizonhobby.com/content/support-render-compliance.

Wireless frequency range and wireless output power:

TRANSMITTER:

Frequency Band: 2403-2480 MHz

Max EIRP: 13.66 dBm

Industry Canada Notice: IC: 6157A-SPMSLT200F

CAN ICES-3 (B)/NMB-3(B)

This device contains license-exempt transmitter(s)/receivers(s) that comply with Innovation, Science, and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following 2 conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This appliance is labeled in accordance with European Directive 2012/19/EU concerning waste of electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

Problem Possible Cause Solution

Vehicle does not move	Batteries are incorrectly installed in transmitter	Check transmitter batteries and refit - see model/transmitter manual
	Weak, damaged or no drive battery in model Install fresh	sh, charged batteries
	Frayed or broken motor or ESC wires	Check condition, reconnect and insulate
	ESC has shut down due to overheating	Stop driving and allow ESC or motor to cool down
	Electric motor is damaged	Replace with new unit - visit ARRMA-RC.com for advice and upgrades!
	Waterproof ESC is damaged	Replace with new unit - visit ARRMA-RC.com for advice and upgrades!
	Possible damage to transmission/drive-line	Check components and replace - visit ARRMA-RC.com for advice
	ESC low voltage cutoff has activated to protect batteries	Remove drive battery, leave to cool down if necessary, and re-charge
Vehicle does not reverse	Waterproof ESC is damaged	Replace with new unit - visit ARRMA-RC.com for advice and upgrades
Short runtime	Battery damaged or not fully charged Check condition,	replace or recharge
	Electric motor dirty or damaged	Clean, check condition and/or replace - visit ARRMA-RC.com for more information
Sluggish performance	Battery damaged or not fully charged Check condition,	replace or recharge
	Electric motor dirty or damaged	Clean, check condition and/or replace - visit ARRMA-RC.com for more information
	Drivetrain dirty or damaged	Clean, check condition and/or replace - visit ARRMA-RC.com for more information
No control of vehicle or short range	Transmitter batteries are weak or fitted incorrectly	Check transmitter batteries and refit - see page 14
	Servo wires to receiver loose or connected incorrectly	Reinstall signal wires to the 2-In-1 Unit
	Transmitter and receiver unit are not 'bound' correctly	Transmitter and receiver need to be bound - see page 21
Steering/Throttle operation intermittent	ESC has shut down due to overheating	Stop driving and allow ESC or motor to cool down
	Transmitter and receiver unit are not 'bound' correctly	Check for sources of interference and re-bind transmitter/receiver - page 21
Vehicle wanders left/right without steering input	Steering trim setting out Adjust steering trim - see page 20
	Damaged steering components	Check components and replace - visit ARRMA-RC.com for advice
	Drivetrain dirty or damaged	Clean, check condition and/or replace - visit ARRMA-RC.com for more information
Steering/Throttle operation reversed	Check that the wires from the ESC to the motor are connected correctly	Reconnect in the correct orientation (red to red and black to black) ensuring fit is tight; if not pinch female connector with pliers
Limited steering angle	Transmitter steering dual-rate set incorrectly Adjust transmitter dual-rate - page 20
	Damaged steering components	Check components and replace - visit ARRMA-RC.com for advice
S040 Charger does not charge battery	USB Cable Damaged	Check and replace USB Cable if damaged or not working on known source.
	USB Power Adaptor input weak/damaged	Check specification and replace USB Power Adaptor - page 13
	SMART battery or charger damaged	Replace with new unit - visit spektrumrc.com for advice and upgrades

Close-up of hands installing a new CAGR47E remote remote vehicle on a tire (no text or symbols visible)

Black-and-white photo of a CRANTIS electric vehicle with a hand inserting a package into it (no visible text or symbols)

AUTOBATTERIEN ENTFERNEN

Close-up of a hand adjusting a small electronic vehicle chassis with visible wiring and components (no text or symbols)

Close-up of a hand holding a small toy car with visible wheels and a white arrow pointing to the side (no text or symbols)

AUTOBATTERIEN LADEN

Hand inserting a plug into a white wall socket with three ports, no text or symbols visible

Close-up of hands holding a small electronic component with an arrow pointing to it (no visible text or symbols)

Close-up of hands holding a black USB flash drive and a USB port, with an arrow pointing to the port (no text or symbols visible)

LED-Ladecodes

Close-up of a hand using a screwdriver to adjust internal components on an electronic circuit board (no visible text or symbols)

Close-up of hands installing or adjusting a component with visible wiring and arrows indicating direction (no text or symbols)

LENKUNG NEUTRALPOSITION

Top-down view of a toy car with two large tires and a 'JUNUST' license plate, shown with rotational arrows (no text or symbols on the vehicle itself)

WIE MAN FÄHRT

Close-up of a hand inserting a component into a vehicle chassis, with no visible text or symbols.

Hol DIR JETZT BASHIN!

AUSSCHALTEN

Close-up of a mechanical component with wiring and a white arrow pointing to a labeled part (no readable text or symbols)

ALLES SICHER ... BIS ZUM NÄCHSTEN MAL!

ROUTINEWARTUNG

Top-down schematic of a vehicle showing four wheels and a single exhaust pipe (no text or symbols)

ST RATE

Top-down diagram of a car showing four wheels and a light source, with arrows indicating direction (no text or symbols)

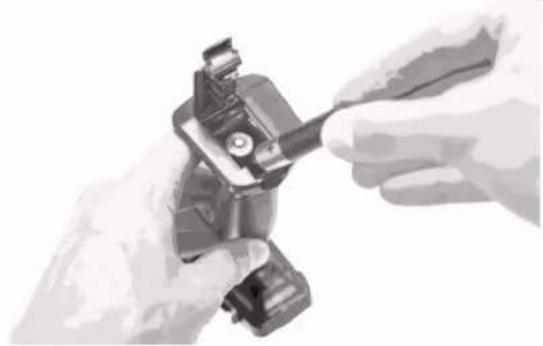

BATTERIE-STATUS

Close-up of hands connecting a cable to a component with arrows indicating direction (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Close-up of hands holding a small electronic component with two arrows indicating direction (no text or symbols visible)

RETIRER LE CORPS (SANS CLIP)

Close-up of hands adjusting a CRAMTE electric vehicle chassis (no visible text or symbols)

Hand placing a CRANT-branded toy car into a black-and-white photo (no visible text or symbols)

RETIRER LES BATTERIES DE VOITURE

Close-up of a hand adjusting a small electronic vehicle chassis with visible wiring and components (no text or symbols)

Close-up of a hand adjusting a small black toy vehicle with visible wiring and a white arrow pointing to the side (no text or symbols)

CHARGER LES BATTERIES DE VOITURE

Hand holding a white electrical socket with three buttons and an asterisk, pointing to the socket (no text or symbols visible)

Hand inserting a plug into a white socket with three leads (no text or symbols visible)

Close-up of hands holding a small object with an arrow pointing upward (no visible text or symbols)

Close-up of hands holding a black USB flash drive and a USB cable, with an arrow pointing to the cable (no text or symbols visible)

Close-up of hands adjusting a black mechanical component with an arrow pointing to it (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands holding a small mechanical component with an arrow pointing to it (no visible text or symbols)

Hand inserting a cable into a white wall socket with three leads (no text or symbols visible)

INSTALLER LES BATTERIES CHARGÉES DANS LA VOITURE

Close-up of a hand using a screwdriver to adjust internal components on an electronic circuit board (no visible text or symbols)

Close-up of hands installing or adjusting a component with two arrows pointing to specific parts (no text or symbols visible)

NEUTRE DE DIRECTION

Top-down view of a Honda GT with two large tires, showing tire rotation arrows (no text or symbols)

COMMENT CONDUIRE

ALLUMER

RADIOCOMMANDE EN PREMIER

Close-up of a hand inserting a component into an engine compartment, with no visible text or symbols.

MAINTENANT BASHING !

ÉTEINDRE

VOITURE EN PREMIER

Close-up of a mechanical component with visible wiring and a labeled component (no readable text or symbols)

RADIOCOMMANDE EN SECOND

STOCKAGE

TOUT EN SÉCURITÉ... JUSQU'À LA PROCHAINE FOIS !

MAINTENANCE RÉGULIÈRE

Top-down diagram of a vehicle showing four wheels and a car with arrows indicating flow or movement (no text or symbols)

ST RATE

Top-down diagram of a vehicle showing four wheels and a directional arrow, with no text or symbols present.

ÉTAT DE LA BATTERIE

Close-up of hands holding a connector with arrows indicating direction (no visible text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Close-up of hands holding a mechanical connector with arrows indicating direction (no text or symbols visible)

Empty white square frame with gray border and corner markers, no text or symbols present

WARRANTY INFORMATION

LIMITED WARRANTY

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the "Product") will be free from defects in materials and workmanship for a period of 2 years from the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with applicable technical regulations, or (vii) use that violates any applicable laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER'S INTENDED USE.

Purchaser's Remedy

Horizon's sole obligation and purchaser's sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_service-centerRender-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support office.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notification or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notification. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of 12 hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier's checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon's Terms and Conditions found on our website

http://www.horizonhobby.com/content/_service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender's choice and at the sender's expense. Horizon will hold non-compliant Product for a period of 60 days from notification, after which it will be discarded.

GARANTIEINFORMATIONEN

Warnung

INFORMATIONS DE GARANTIE

Facebook logo icon (no text or symbols present)

Simple icon of a retro television with antenna (no text or symbols)

Silhouette of a bird in flight (no text or symbols)

Gray play button icon with white triangle (no text or symbols)

ARB100042341

ARRMA-RC.COM

©2023 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby, LLC. ARRMA, the ARRMA logo, GRANITE GROM, Smart and SLT2 are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
