USER MANUAL KRATON 6S V5 ARRMA

ARRMA-RC.COM ©2020 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby, LLC. ARRMA, the ARRMA logo, KRATON, MOJAVE, TYPHON, NOTORIOUS, DSMR, EC5, IC5, dBoots and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Twitter® logos are trademarks of Twitter, Inc. Facebook® and its logo are trade- marks or registered trademarks of Facebook, Inc. The YouTube® logo is a trademark of Google Inc. All other trademarks or registered trademarks are property of their respective owners. US 9,930,567. US 10,419,970. Other patents pending. BEDIENUNGSANLEITUNG

Age Recommendation: Not for children under 14 years. This is not a toy. WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and mainte- nance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. WARNING AGAINST COUNTERFEIT PRODUCTS: Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology. NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support tab or resources for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superﬁcial injury. CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury. NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or property of others. This model is controlled by a radio signal subject to interference from many sources outside your control. This interference can cause momentary loss of control, so it is advisable to always keep a safe distance in all directions around your model as this margin will help avoid collisions or injury.

Never operate your model with low transmitter batteries.

Always operate your model in open spaces away from full-size vehicles, traffic and people.

Never operate the model in the street or in populated areas for any reason.

Carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) you use.

Keep all chemicals, small parts and anything electrical out of the reach of children.

Never lick or place any portion of the model in your mouth as it could cause serious injury or even death.

Exercise caution when using tools and sharp instruments.

Take care during maintenance as some parts may have sharp edges.

Immediately after using your model, do NOT touch equipment such as the motor, electronic speed control and battery, because they generate high temperatures. You may burn yourself seriously touching them.

Do not put ﬁngers or any objects inside rotating and moving parts, as this may cause damage or serious injury.

Always turn on your transmitter before you turn on the receiver in the car. Always turn off the receiver before turning your transmitter off.

Keep the wheels of the model off the ground when checking the operation of the radio equipment. Safety Precautions and Warnings Your new Horizon Hobby vehicle has been designed and built with a combination of waterproof and water-resistant components to allow you to operate the product in many “wet conditions,” including puddles, creeks, wet grass, snow and even rain. While the entire vehicle is highly water-resistant, it is not completely waterproof and your vehicle should NOT be treated like a submarine. The various electronic components used in the vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, how- ever, most of the mechanical components are water-resistant and should not be submerged. Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts in the electrical cables, will be susceptible to corrosion if additional maintenance is not performed after running in wet conditions. To maximize the long-term performance of your vehicle and to keep the warranty intact, the procedures described in the “Wet Conditions Maintenance” section below must be performed regularly if you choose to run in wet conditions. If you are not willing to perform the additional care and maintenance required, then you should not operate the vehicle in those conditions. CAUTION: Failure to exercise caution while using this product and complying with the following precautions could result in product malfunction and/or void the warranty. General Precautions

Read through the wet conditions maintenance procedures and make sure that you have all the tools you will need to properly maintain your vehicle.

Not all batteries can be used in wet conditions. Consult the battery manufacturer before use. Caution should be taken when using Li-Po batteries in wet conditions.

Most transmitters are not water-resistant. Consult your transmitter’s manual or the manufacturer before operation.

Never operate your transmitter or vehicle where lightning may be present.

Do not operate your vehicle where it could come in contact with salt water (ocean water or water on salt-covered roads), contaminated or polluted water. Salt water is very conductive and highly corrosive, so use caution.

Even minimal water contact can reduce the life of your motor if it has not been certiﬁed as water-resistant or waterproof. If the motor becomes excessively wet, apply very light throttle until the water is mostly removed from the motor. Running a wet motor at high speeds may rapidly damage the motor.

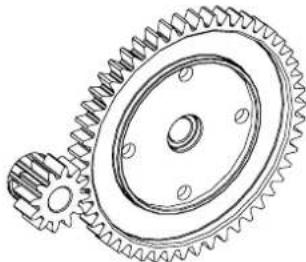

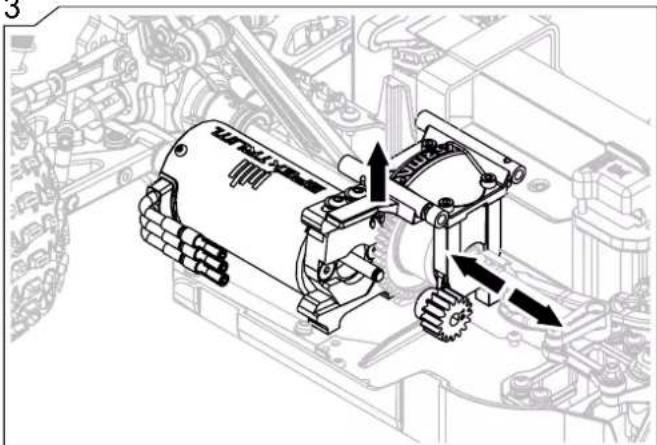

Driving in wet conditions can reduce the life of the motor. The additional resistance of operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or larger spur gear. This will increase torque (and motor life) when running in mud, deeper puddles, or any wet conditions that will increase the load on the motor for an extended period of time. Wet Conditions Maintenance CAUTION: Always keep hands, ﬁngers, tools and any loose or hanging objects away from rotating parts when performing the above drying technique.

Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can of compressed air, blow out any water that may be inside the recessed connector housing.

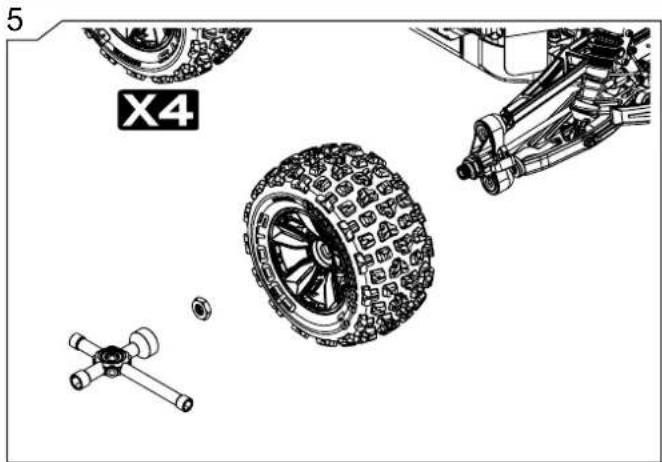

Remove the tires/wheels from the vehicle and gently rinse the mud and dirt off with a garden hose. Avoid rinsing the bearings and transmission. NOTICE: Never use a pressure washer to clean your vehicle.

Use an air compressor or a can of compressed air to dry the vehicle and help remove any water that may have gotten into small crevices or corners.

Spray the bearings, drive train, fasteners and other metal parts with a water-displacing light oil. Do not spray the motor.

Let the vehicle air dry before you store it. Water (and oil) may continue to drip for a few hours.

Increase the frequency of disassembly, inspection and lubrication of the following: - Front and rear axle hub assembly bearings. - All transmission cases, gears and differentials. - Motor—clean with an aerosol motor cleaner and re-oil the bearings with lightweight motor oil.WWW.ARRMA-RC.COM WWW.ARRMA-RC.COM ©2020 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby LLC

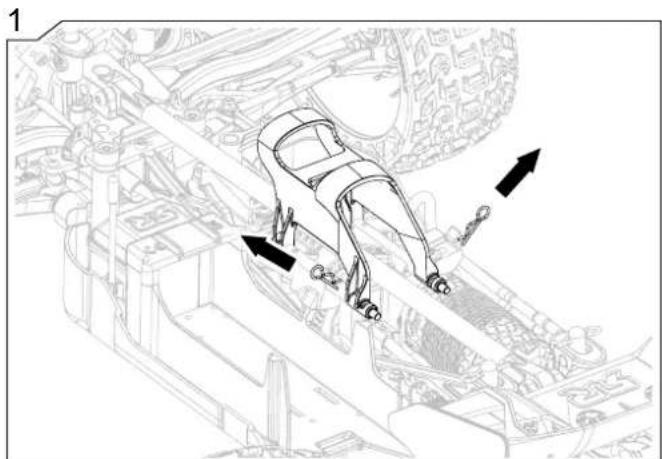

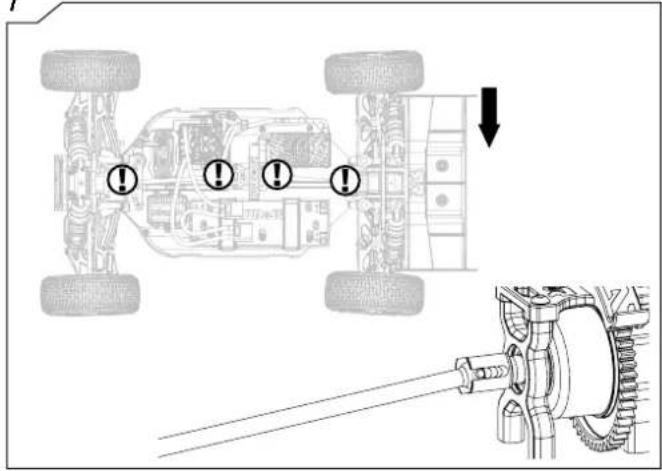

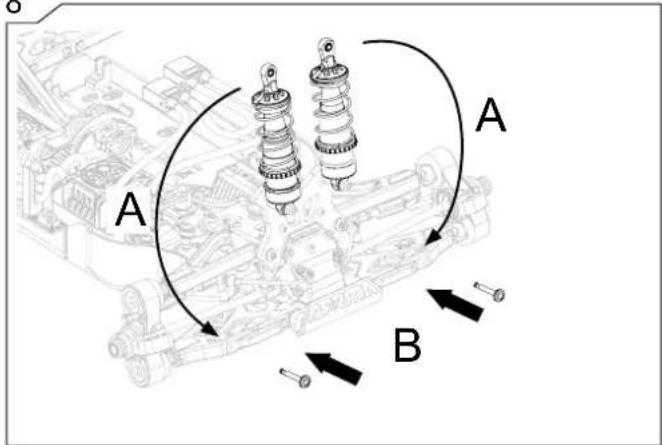

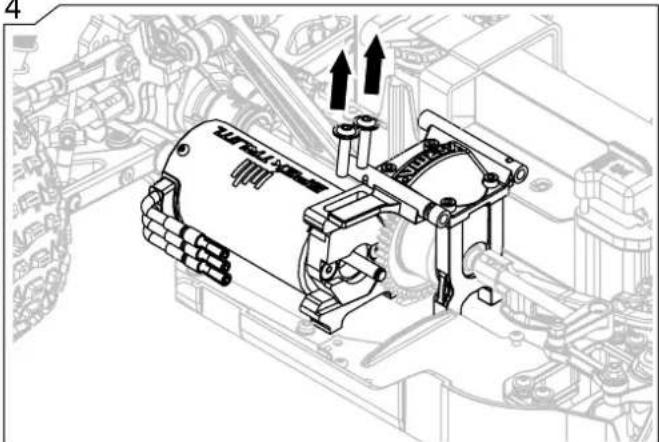

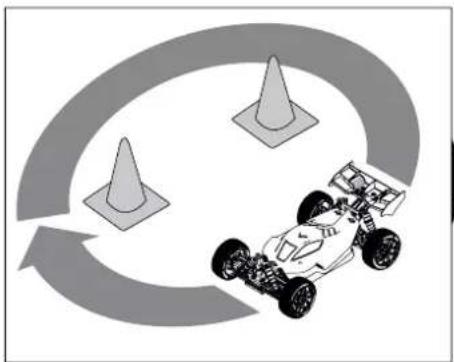

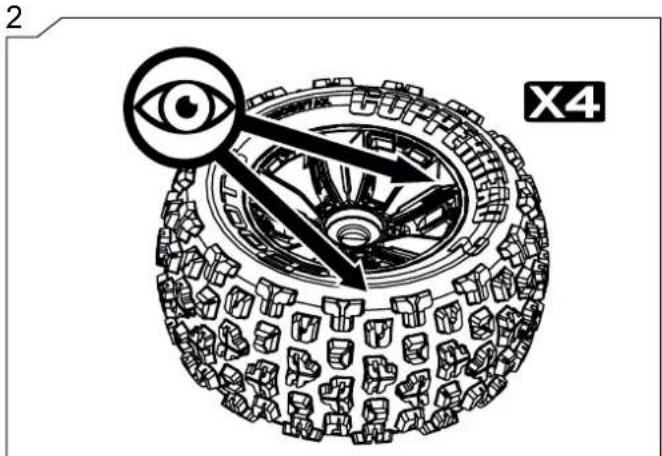

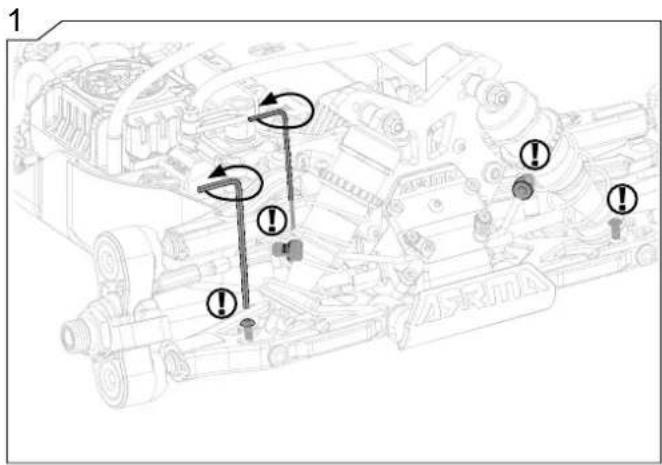

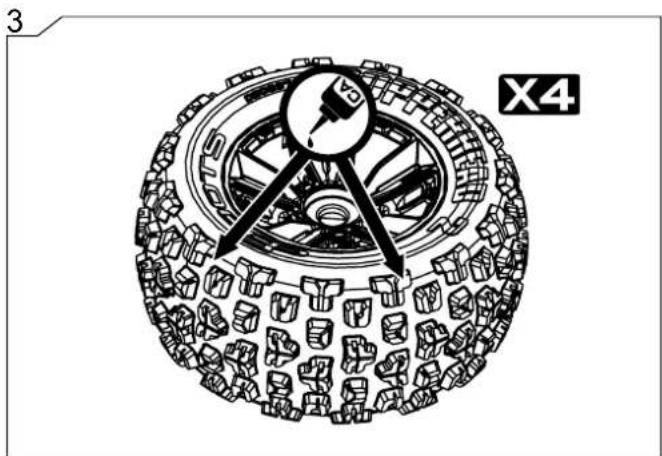

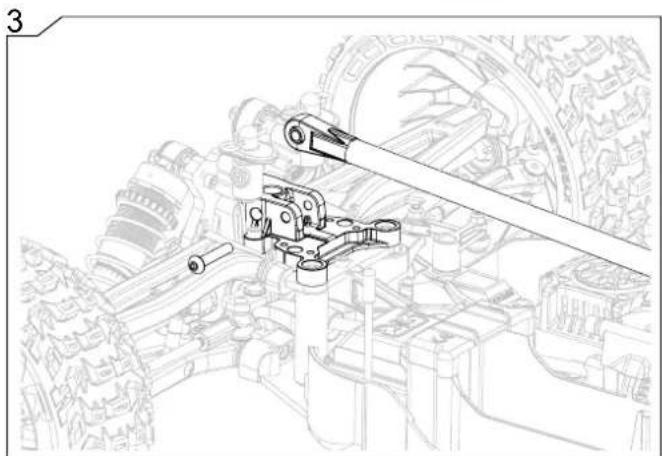

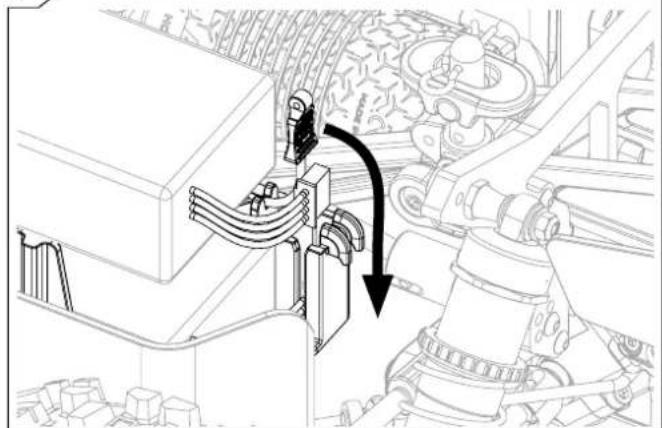

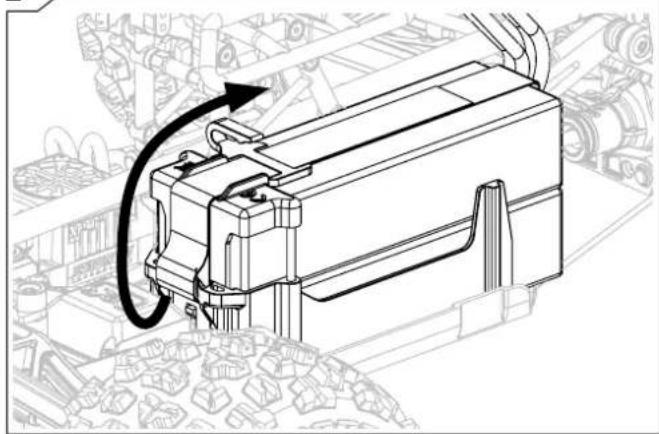

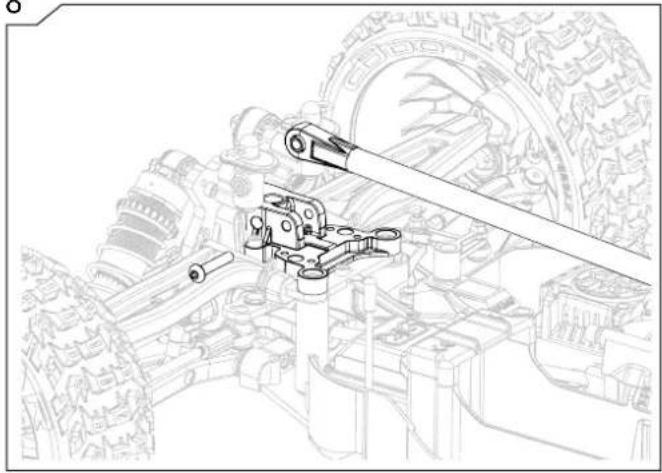

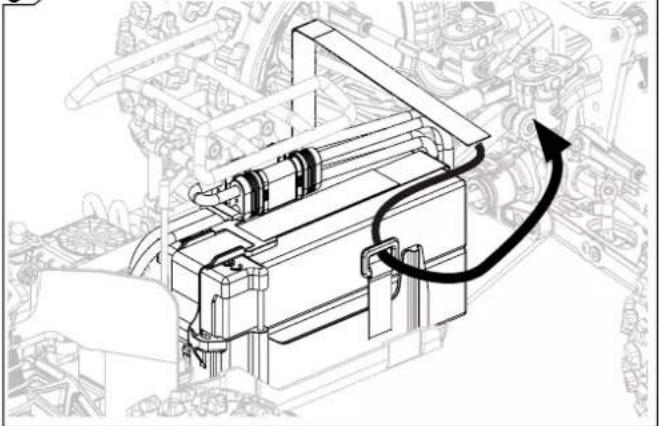

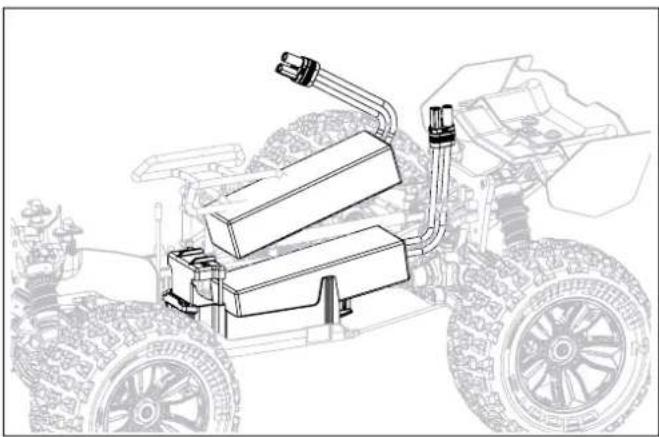

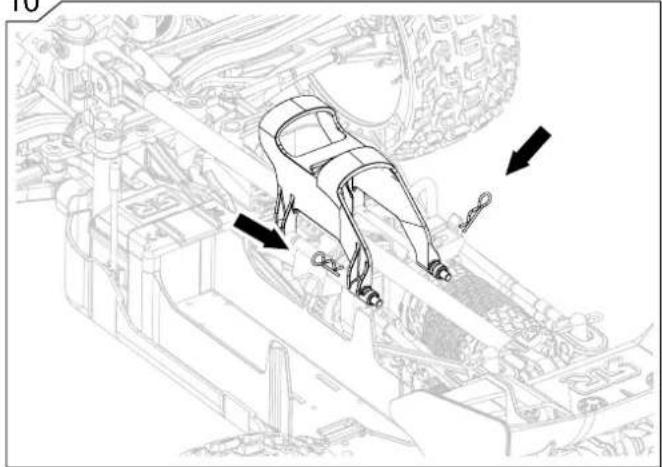

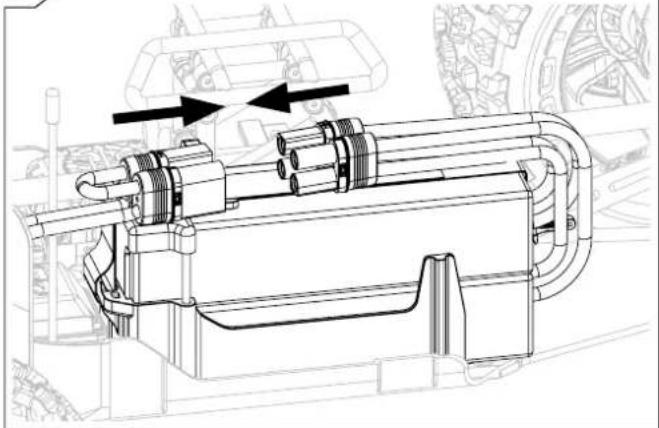

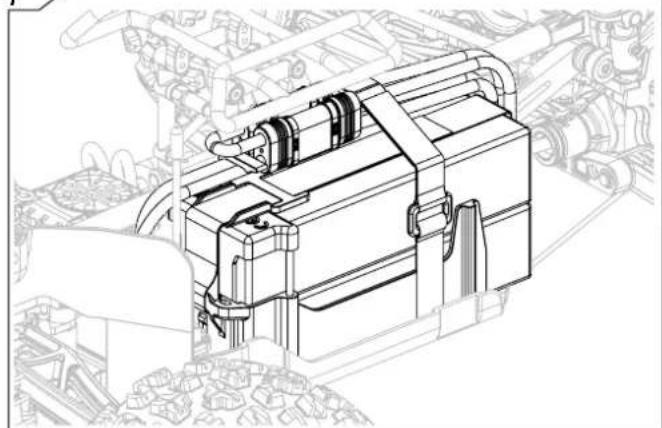

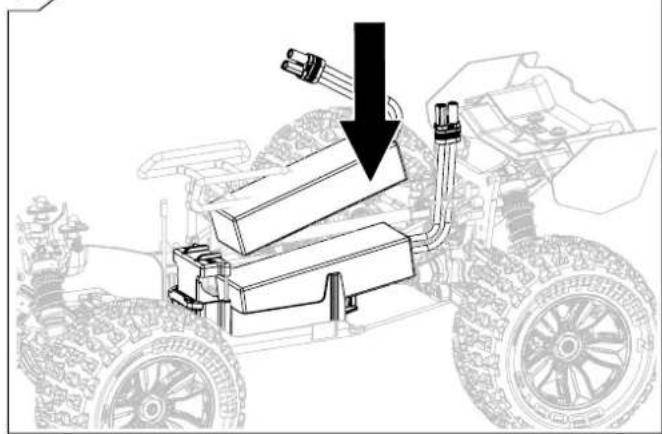

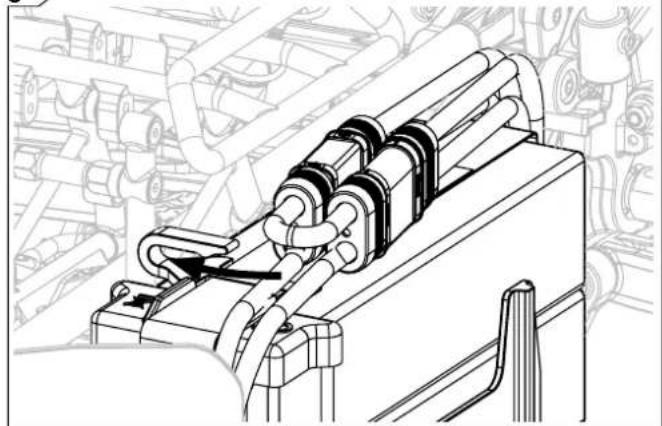

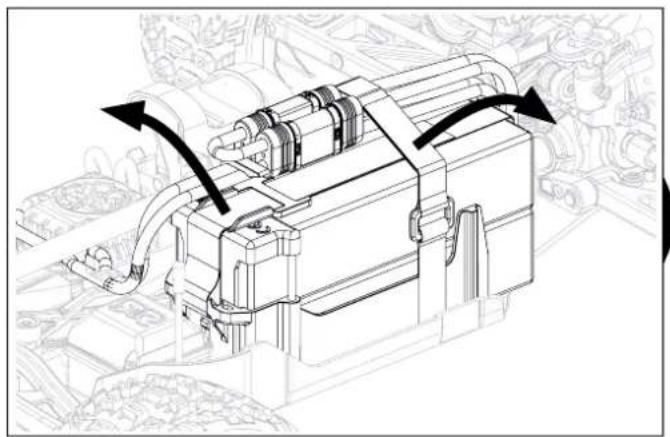

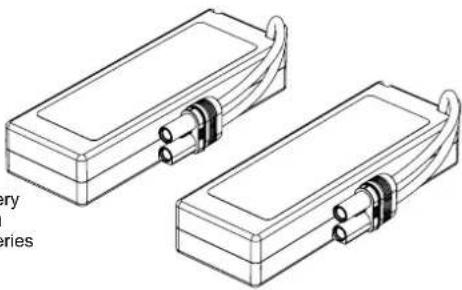

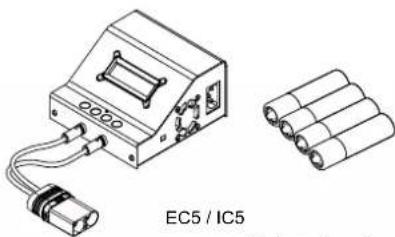

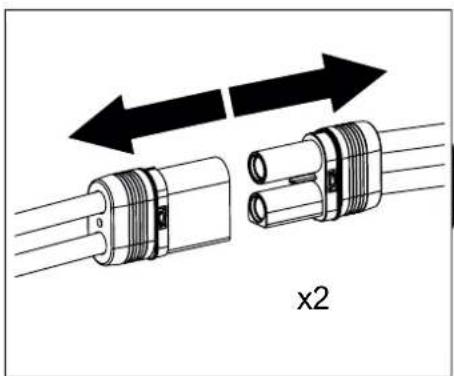

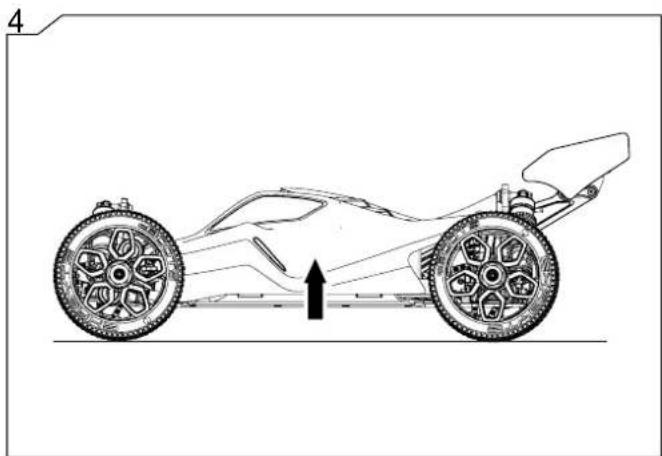

Battery Fitting Einsetzen Der Akkus Raccordement De BatterieWWW.ARRMA-RC.COM WWW.ARRMA-RC.COM ©2020 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby LLC

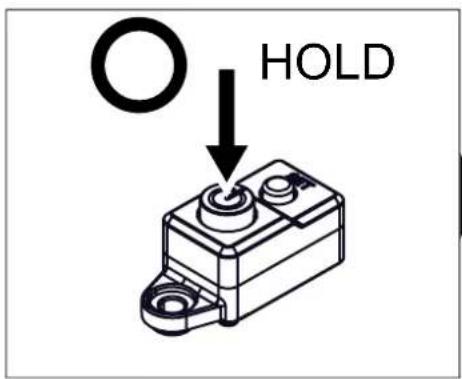

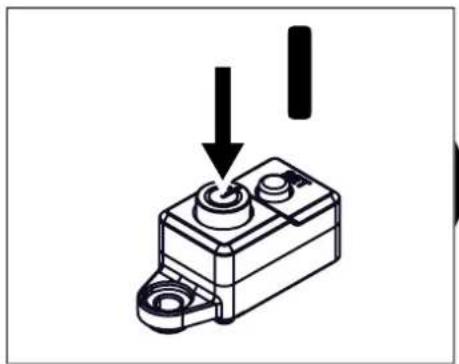

HOLDWWW.ARRMA-RC.COM

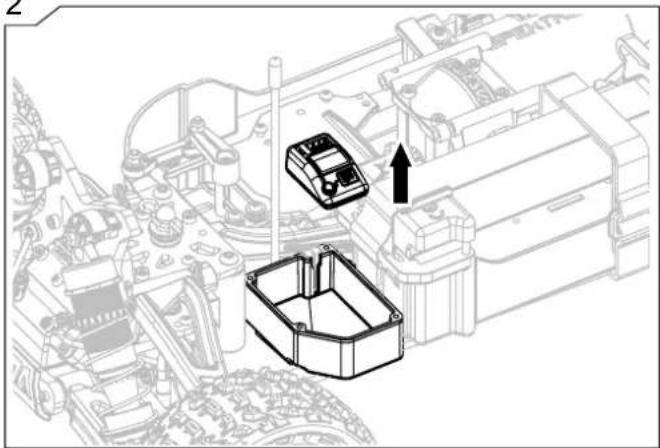

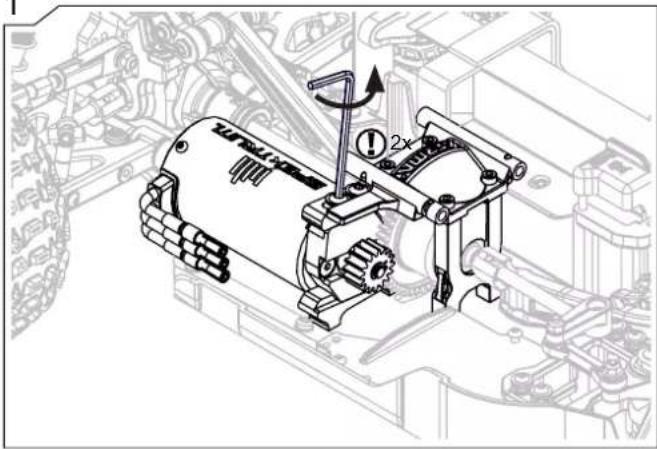

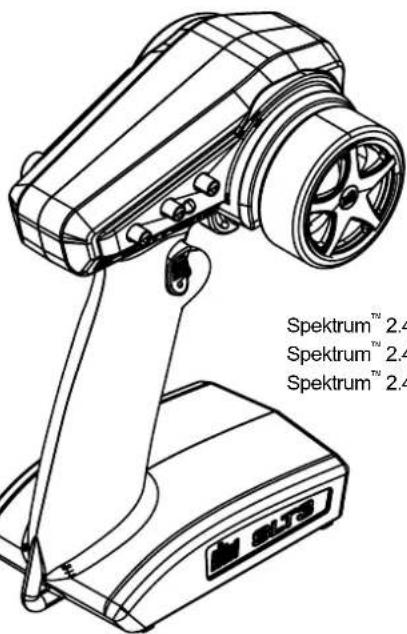

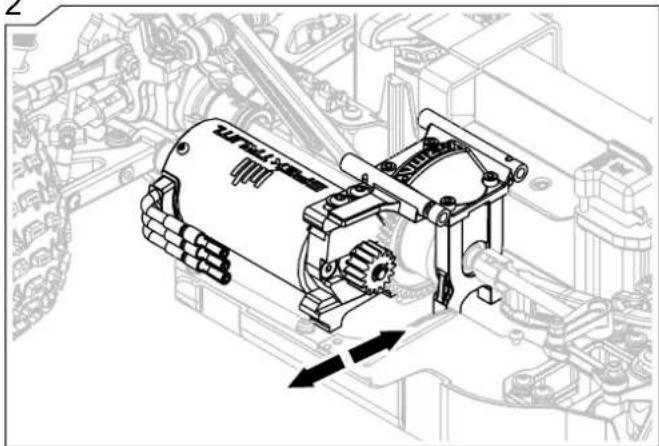

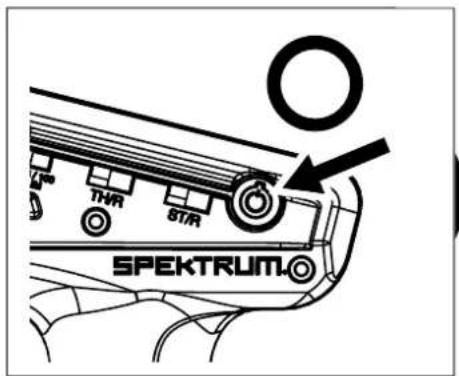

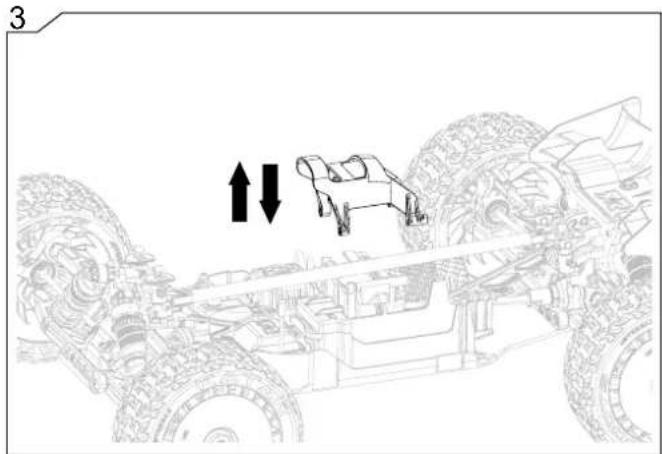

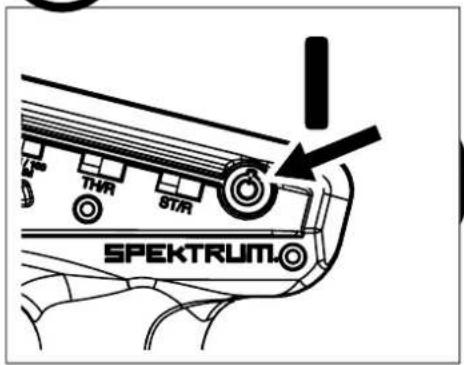

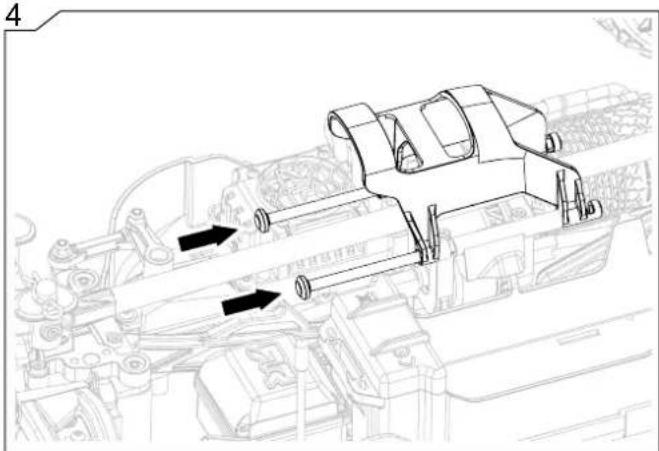

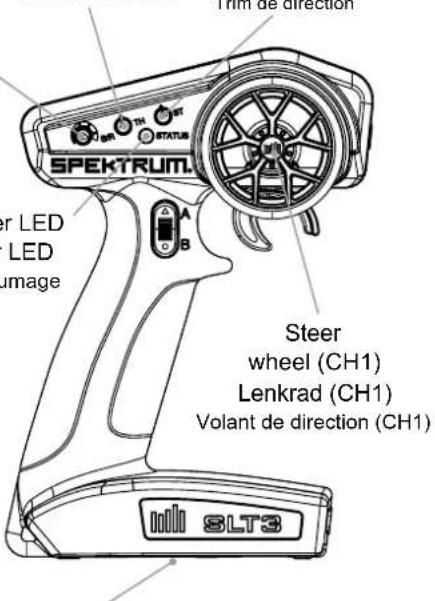

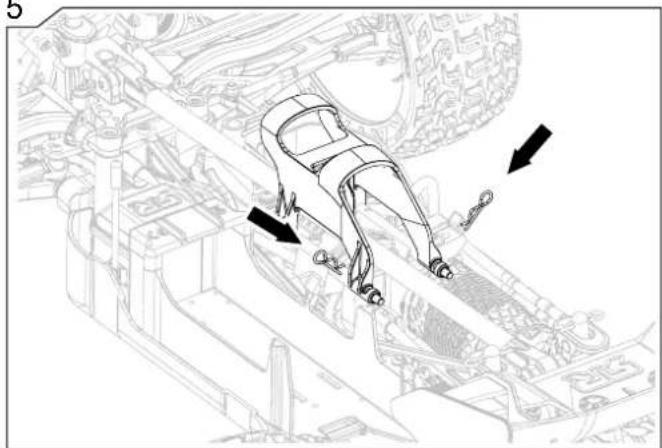

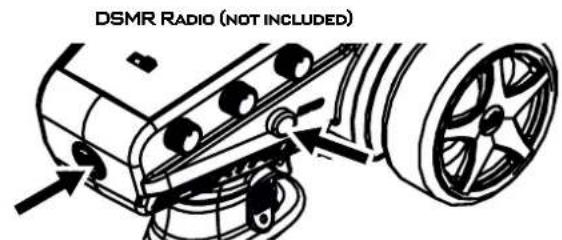

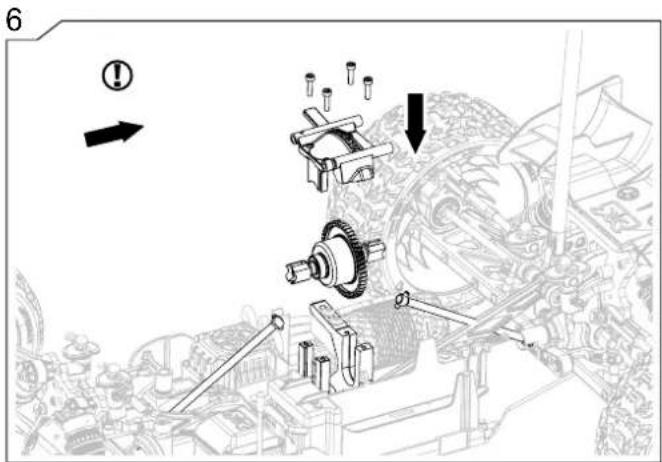

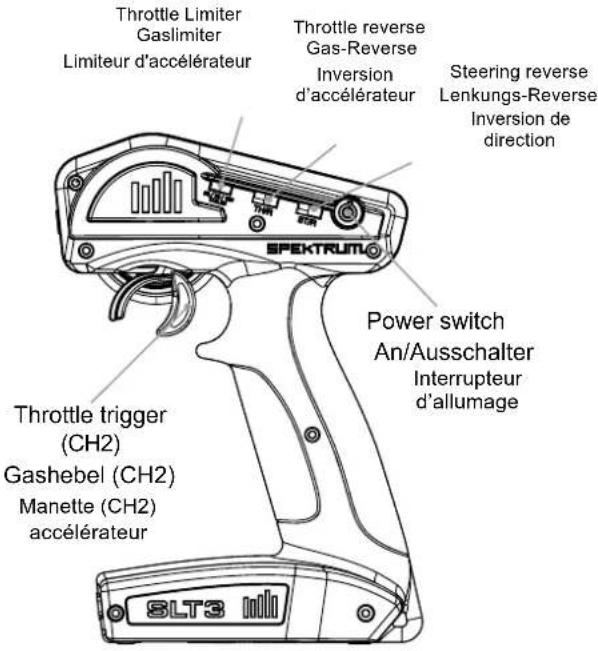

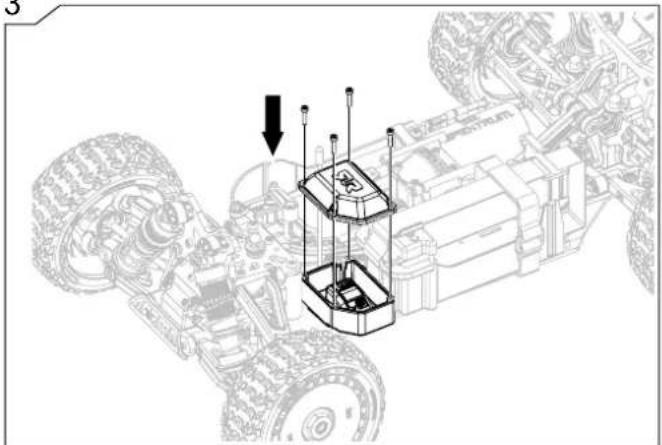

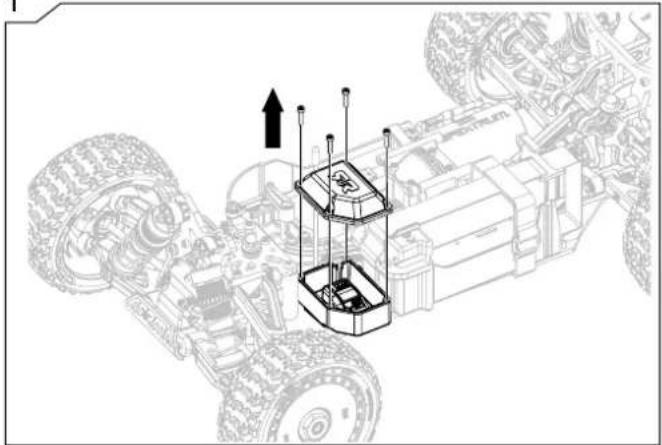

Radio Gear Fernsteuer Ensemble radio TRANSMITTER FUNCTIONS FUNKTIONEN DES SENDERS FONCTIONS DE L’ÉMETTEUR Battery compartment Steer wheel (CH1) Power switch Power LED Throttle trigger (CH2) Steering reverseSteering trimThrottle trimSteering dual rateThrottle reverse Throt t le Trim Throttle Trim: factory default neutral, adjustment is not necessary. Battery Status If battery status LED is ashing, the batteries need to be replaced. Steering Trim ST Rate

TH STTH LIM50/75/100

LED Indicator LED Code ESC turned On, LED indicator is O󰀨Throttle trigger is in the neutral zoneRed LED illuminatedESC is operating in forward throttleRed and Green LED illuminatedESC is at full throttle, full brake or full reverseLED ashes red with short single pulsesLVC protection activatedLED ashes green with short single pulsesThe ESC is in thermal shuto󰀨 modeLED ashes green with three short pulses repeatingThe ESC has exceeded the continuous current limitLED ashes green with four short pulses repeatingThe ESC has failed the self testLED ashes green with ve short pulses repeatingCapacitor temp has been exceeded

TROUBLESHOOTING GUIDE Problem and LED Indicator Error Mode Possible Causes Solution Motor won’t operate. LED ashes red with short single pulses. LVC has been activated. Battery voltage is below the LVC setting. Verify the battery is charged. Motor won’t operate. LED ashes green with short single pulses. The ESC is in thermal shuto󰀨 mode. The ESC is taking too much load. Turn o󰀨 the ESC and allow it to cool before resuming operation. Consider making changes to gear ratio to reduce load to the ESC. Motor won’t operate. LED ashes green with four short pulses repeating. The ESC has failed the self test. The ESC is damaged. Send the ESC to a Horizon Hobby service center for service. Motor won’t operate. LED ashes green with ve short pulses repeating. Capacitor temp has been exceeded There is too much load on the drive system for the ESC to support. Consider changing the battery or gearing to reduce the load on the ESC, or change your driving habits to reduce the load. No throttle or steering on start up. LED ashes red with single short pulse repeating. N/A Throttle trim not at neutral. Turn o󰀨 ESC. Adjust throttle trim on transmitter to neutral. Turn back on.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.Horizon Hobby, LLC 2904 Research Rd.,Champaign, IL 61822Email: compliance@horizonhobby.comWeb: HorizonHobby.comWWW.ARRMA-RC.COM ©2020 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby LLC

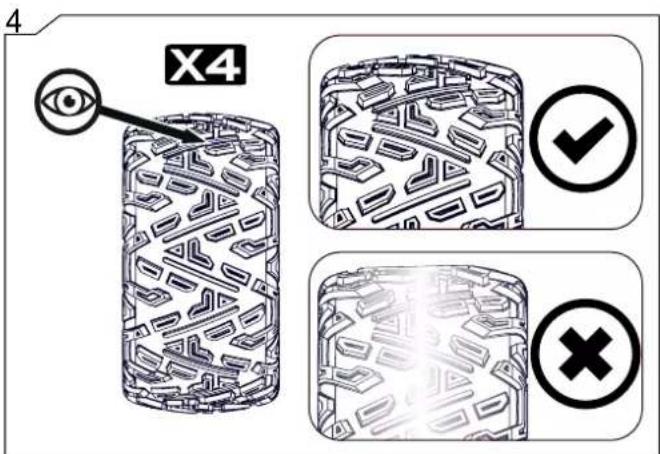

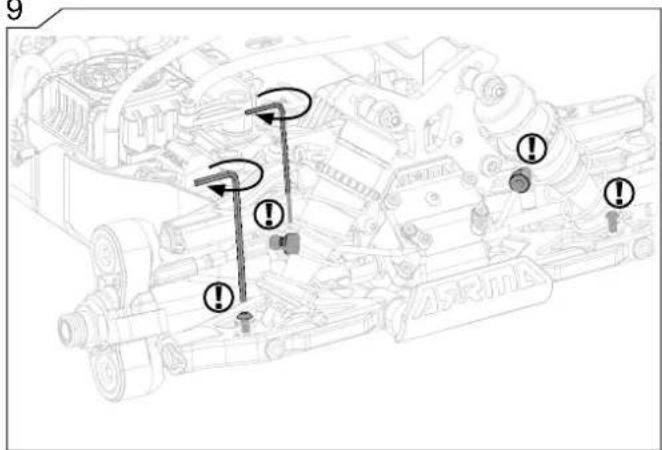

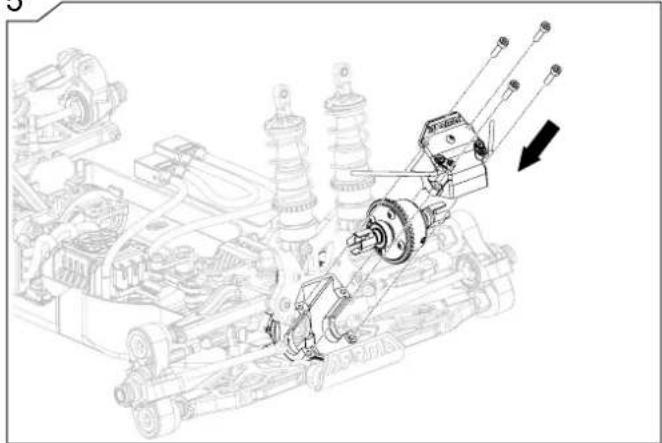

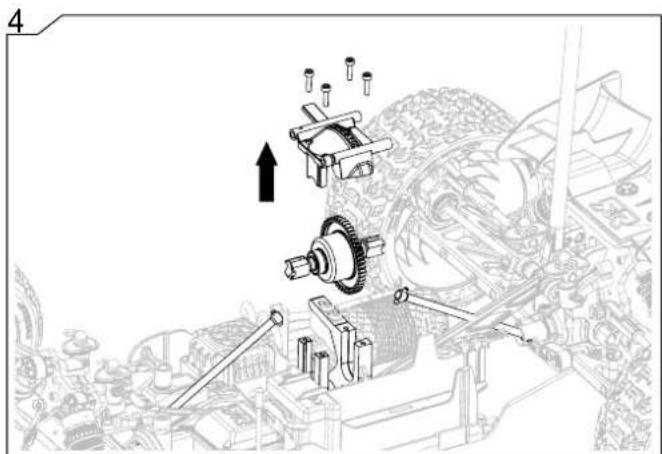

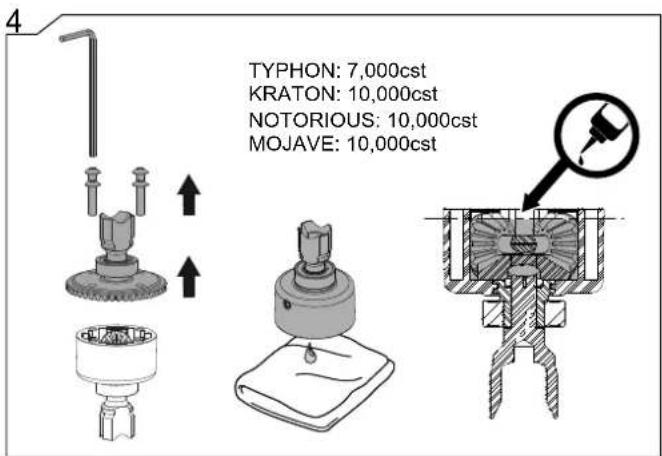

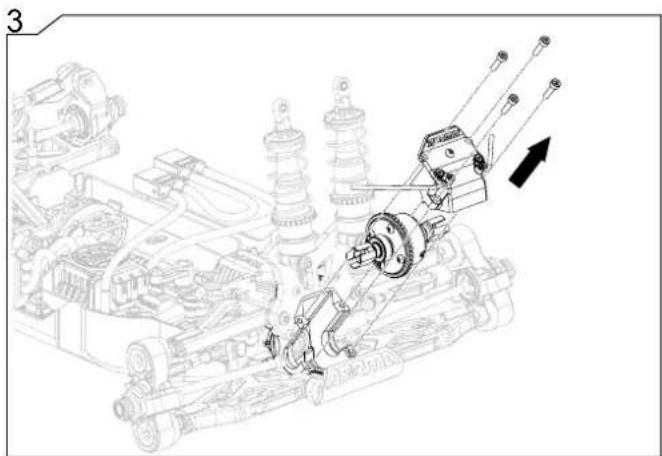

TYPHON: 7,000cstKRATON: 10,000cstNOTORIOUS: 10,000cstMOJAVE: 10,000cstWWW.ARRMA-RC.COM ©2020 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby LLC

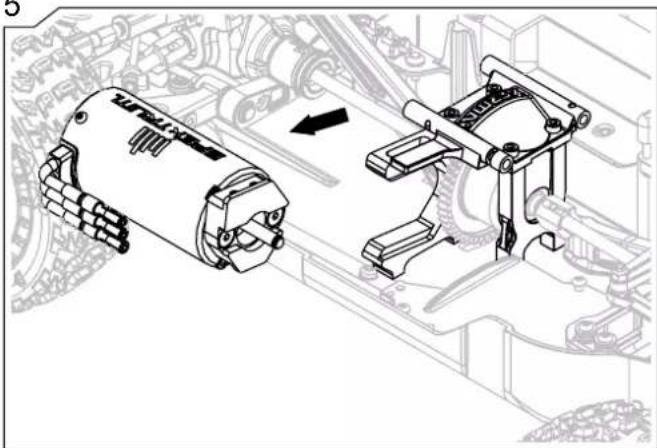

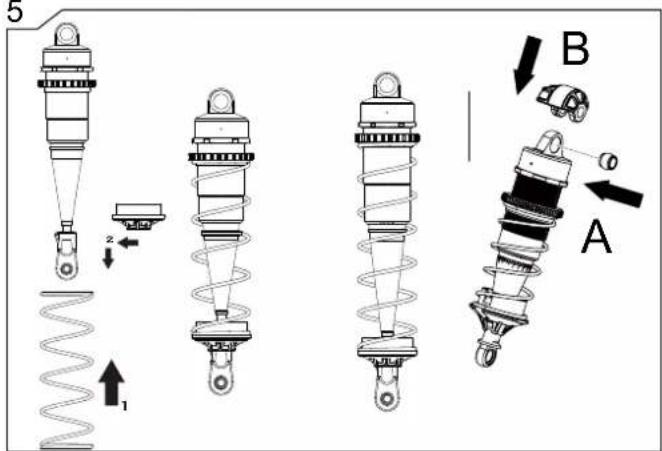

5WWW.ARRMA-RC.COM WWW.ARRMA-RC.COM

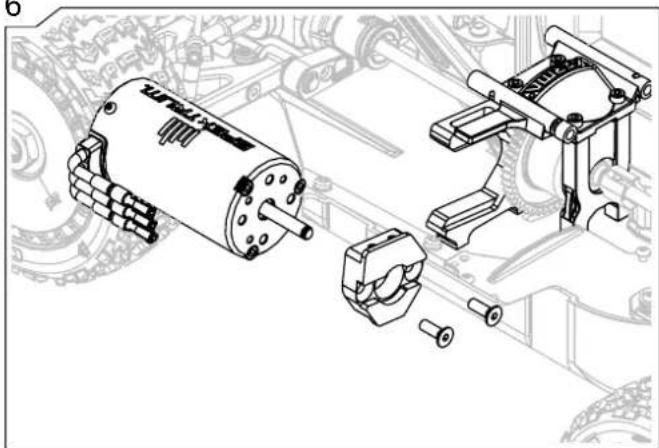

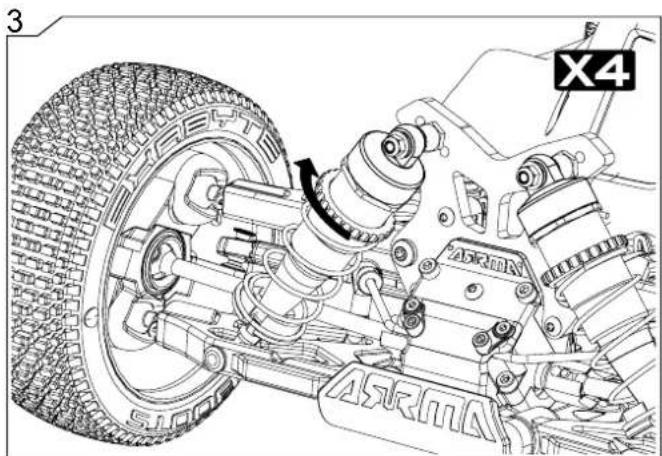

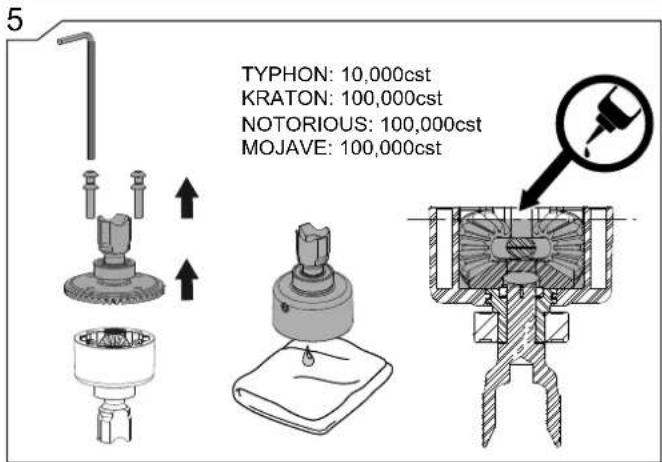

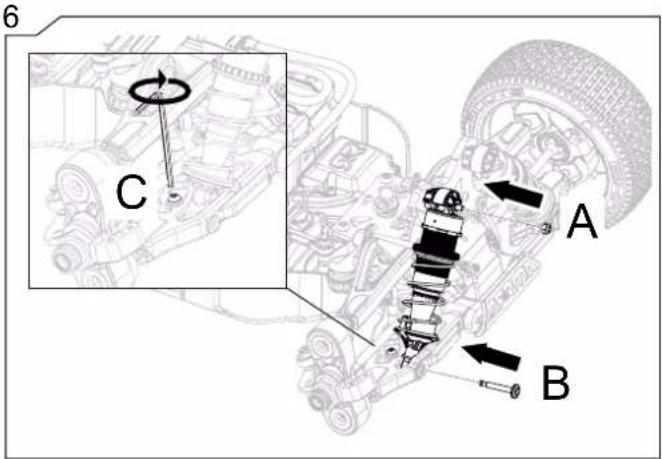

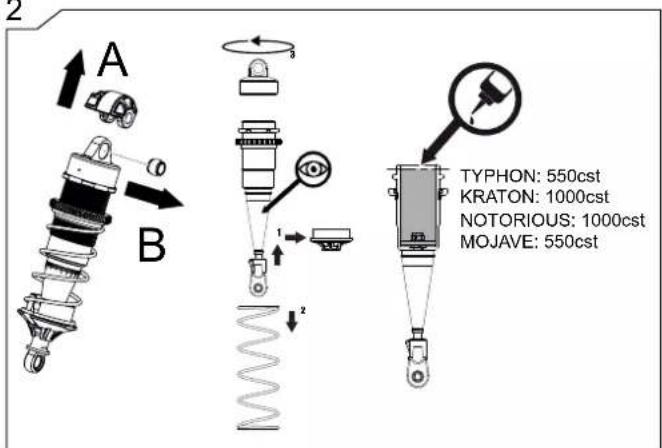

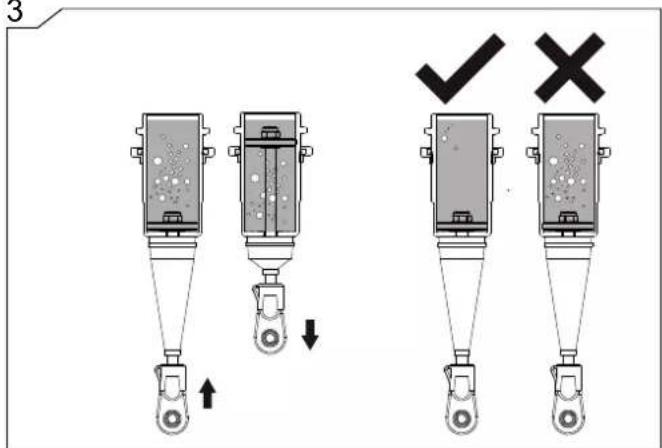

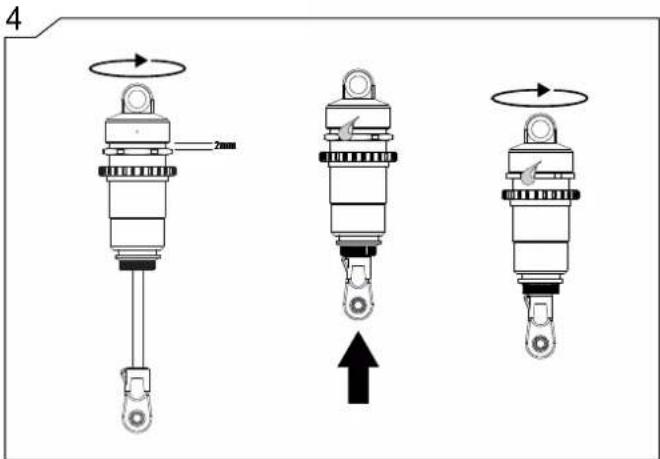

TYPHON: 550cst KRATON: 1000cst NOTORIOUS: 1000cst MOJAVE: 550cstWWW.ARRMA-RC.COM ©2020 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby LLC

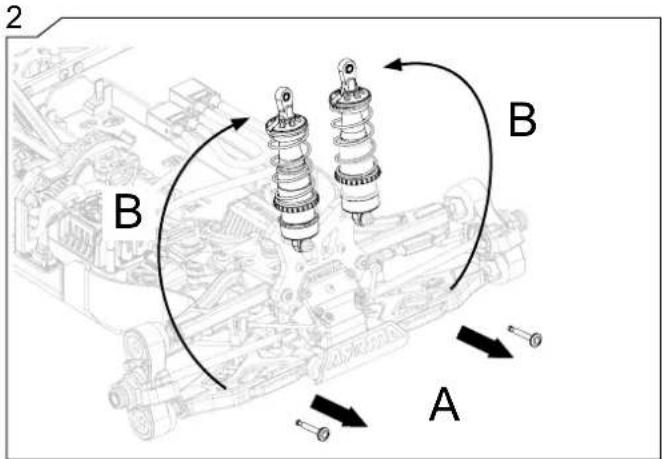

BWWW.ARRMA-RC.COM WWW.ARRMA-RC.COM

3WWW.ARRMA-RC.COM WWW.ARRMA-RC.COM

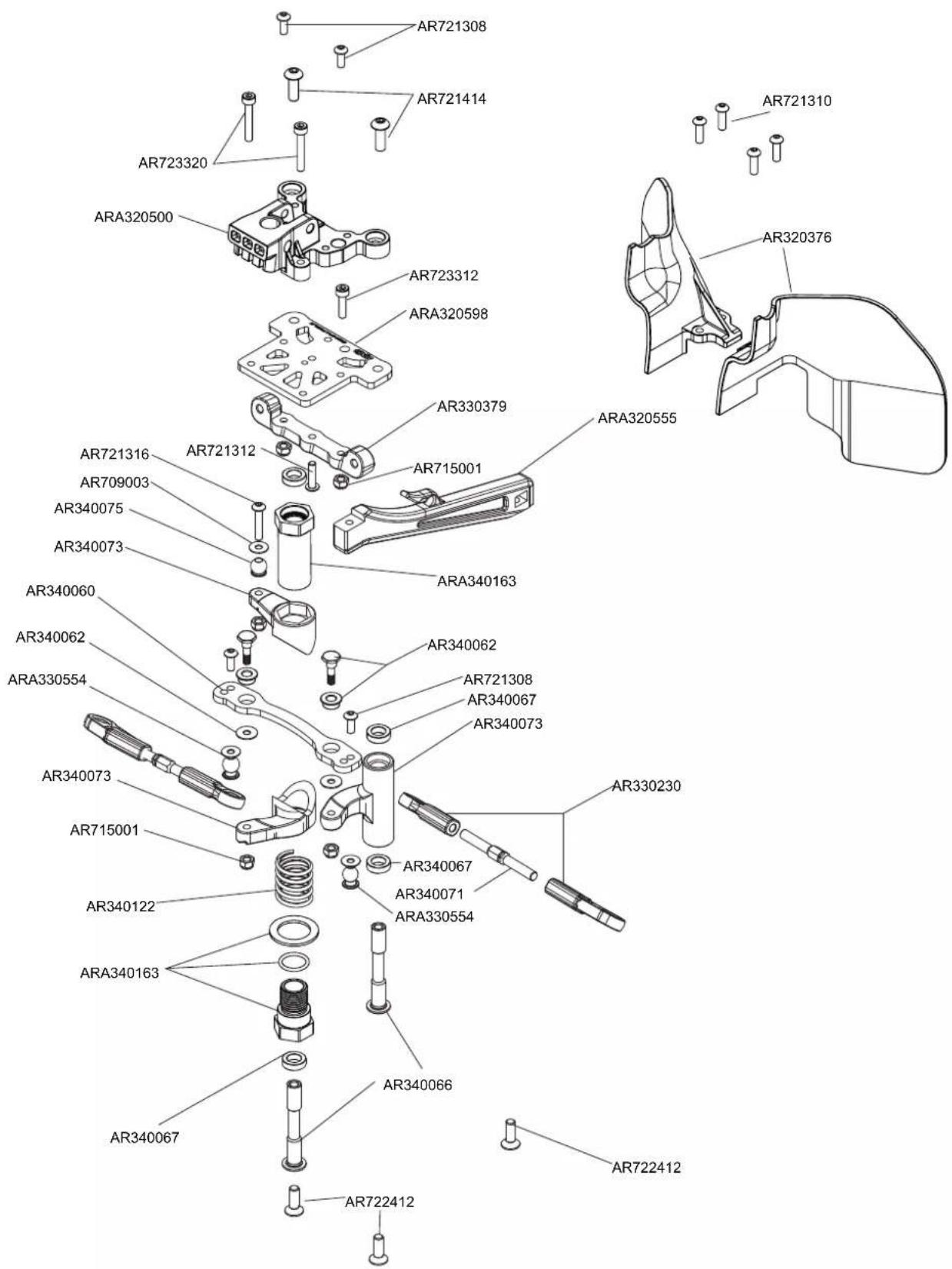

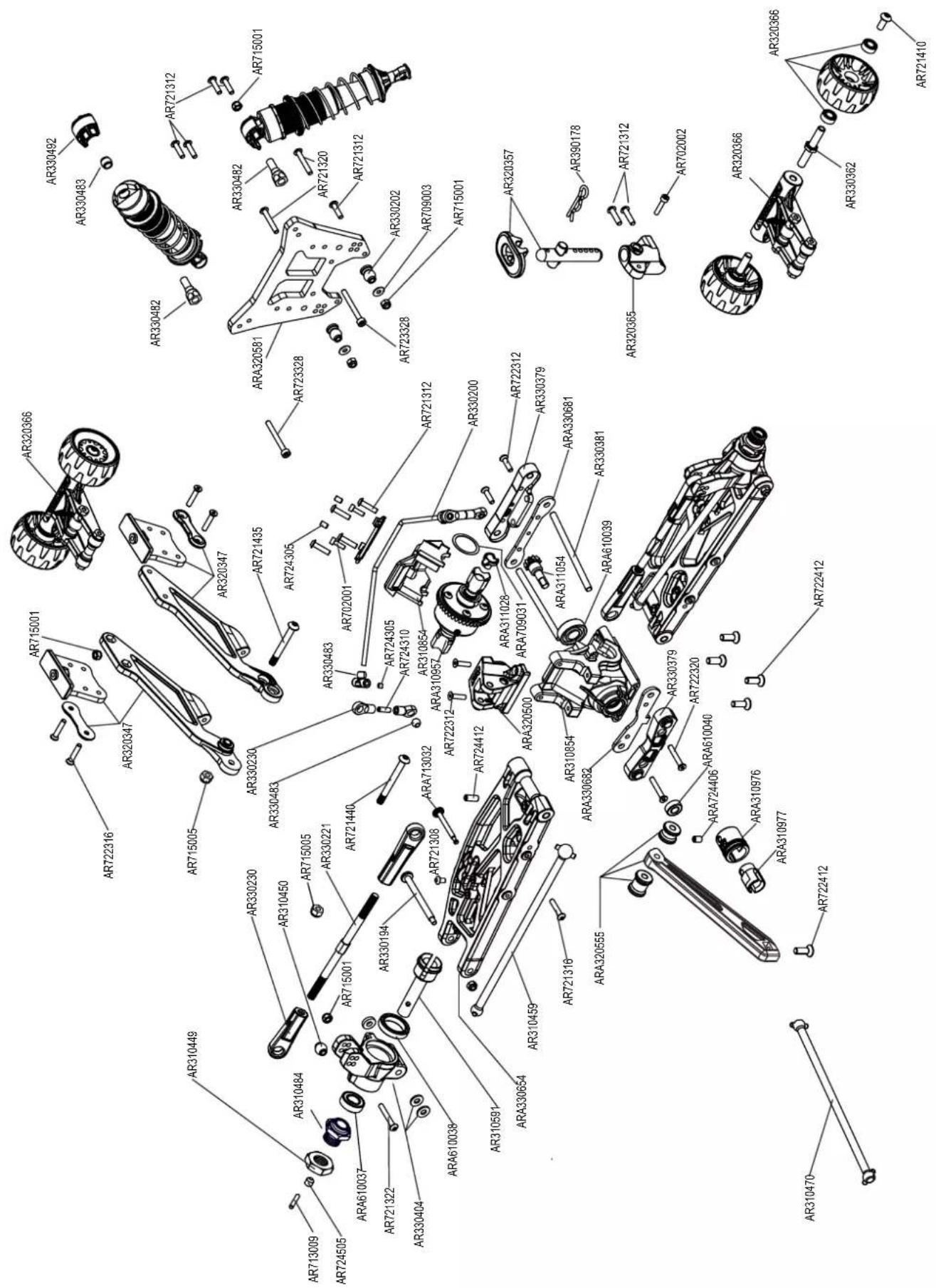

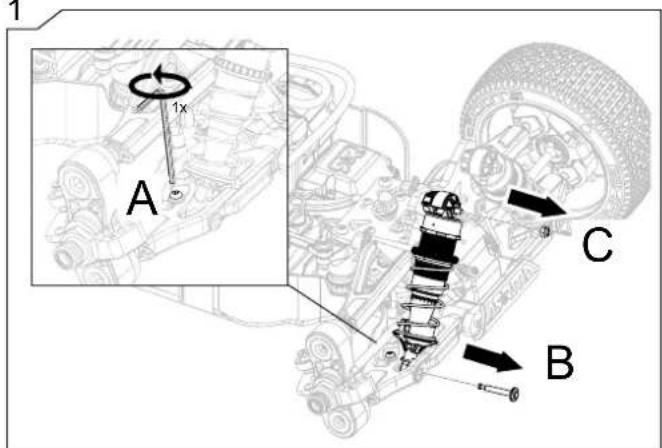

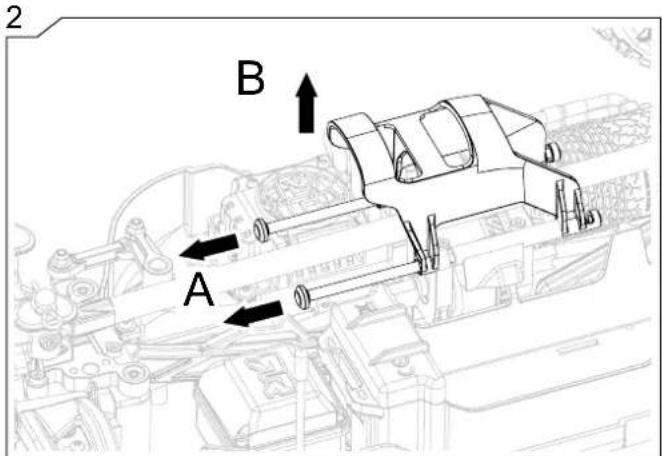

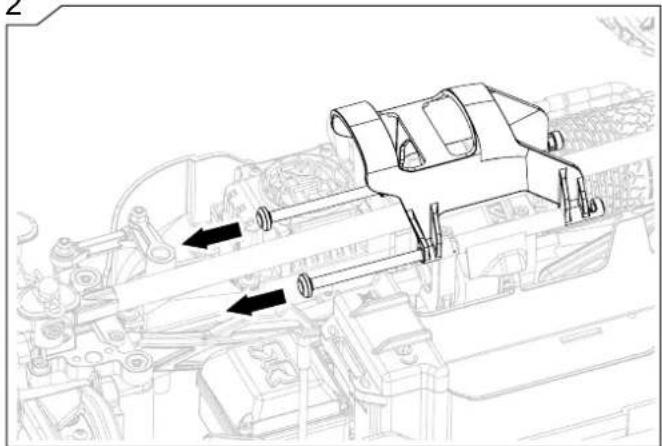

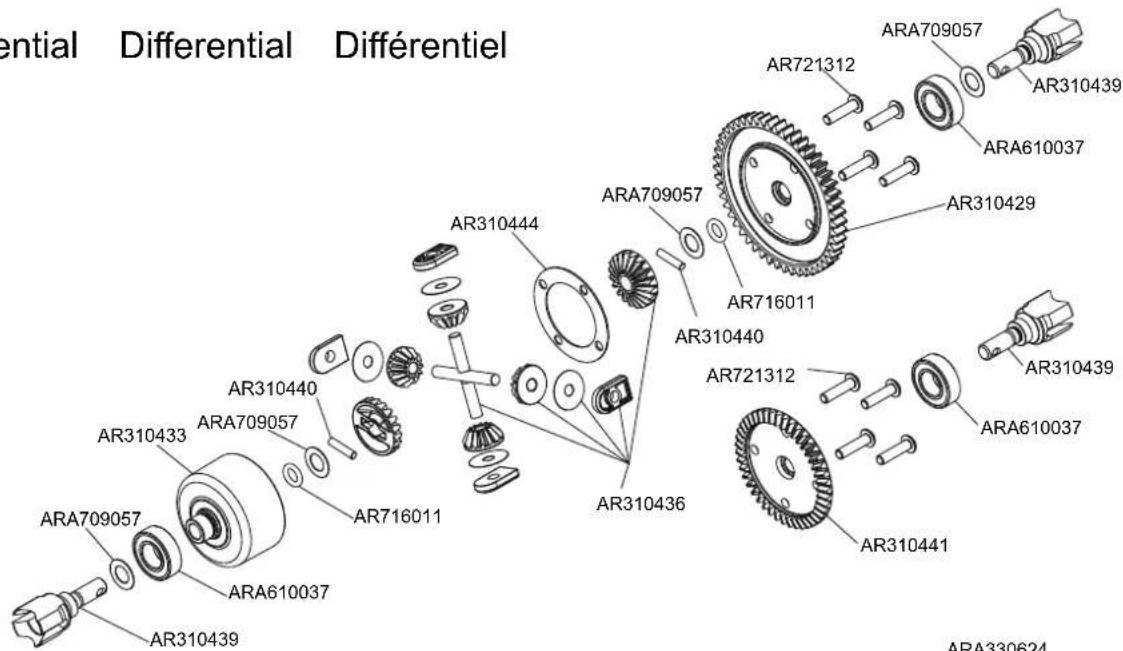

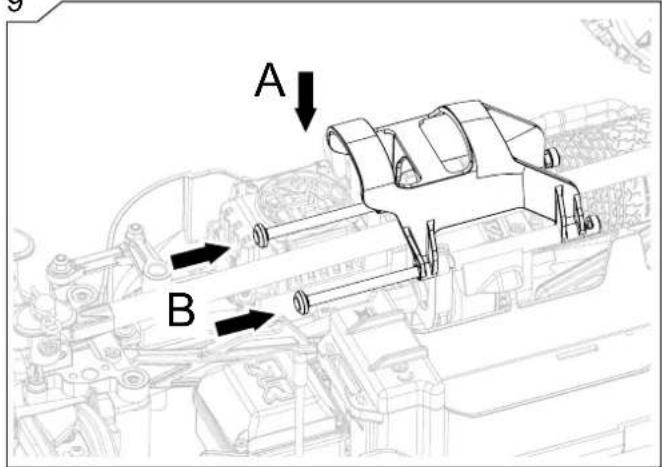

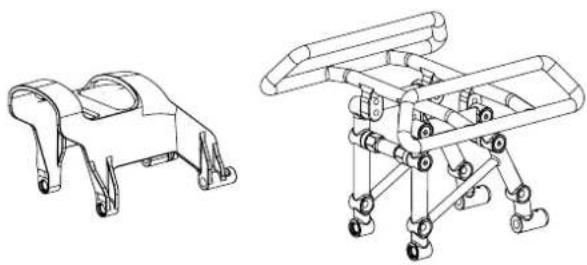

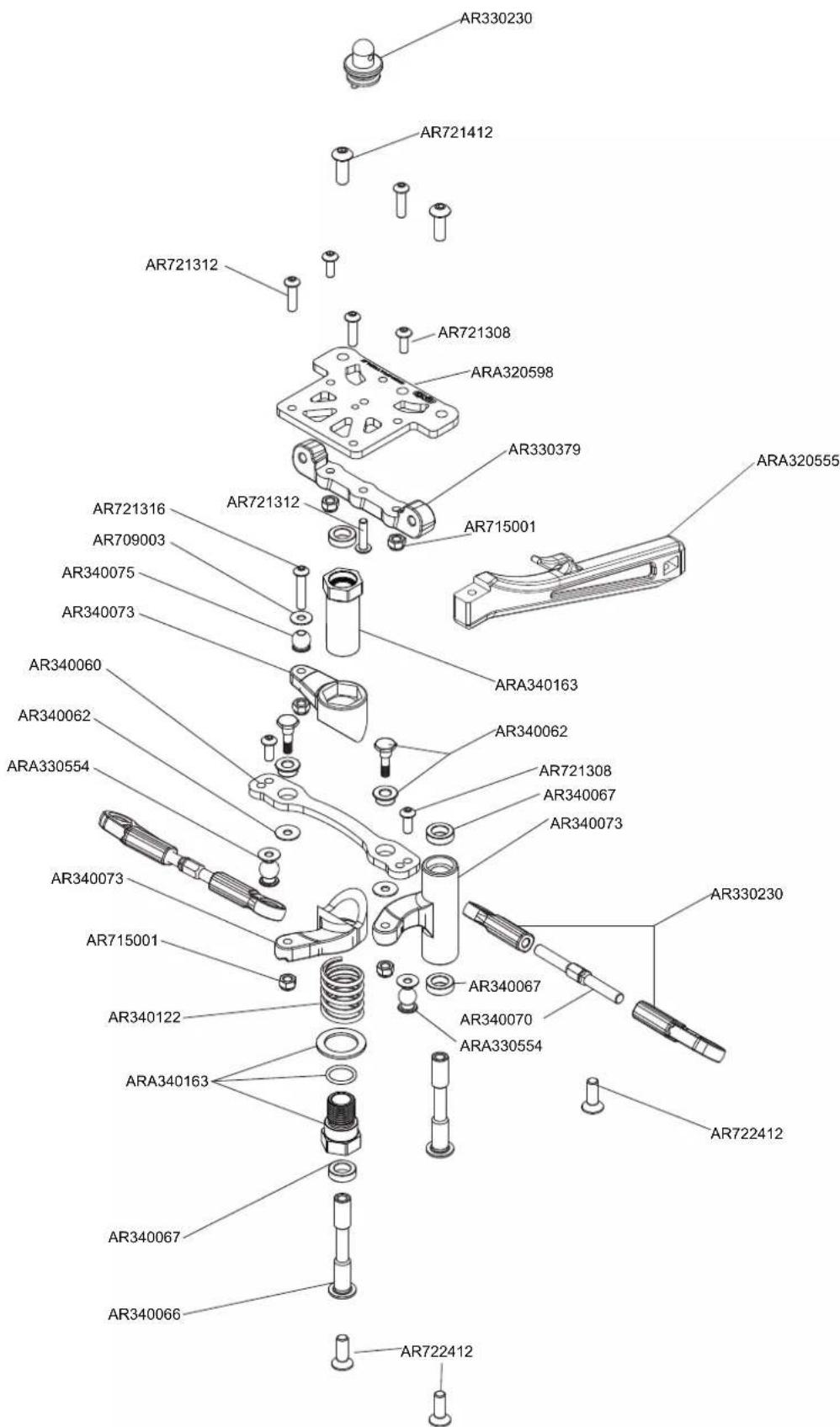

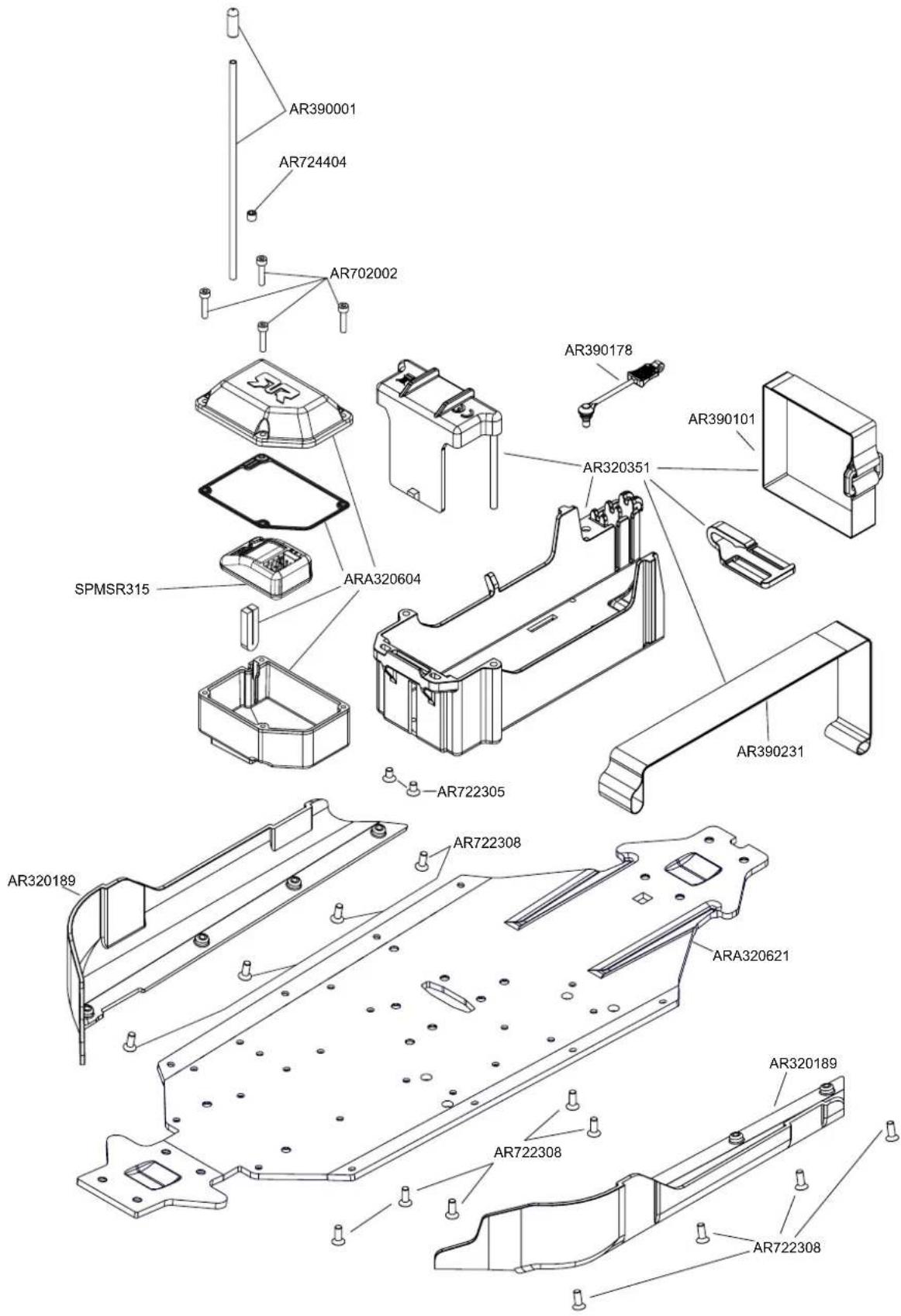

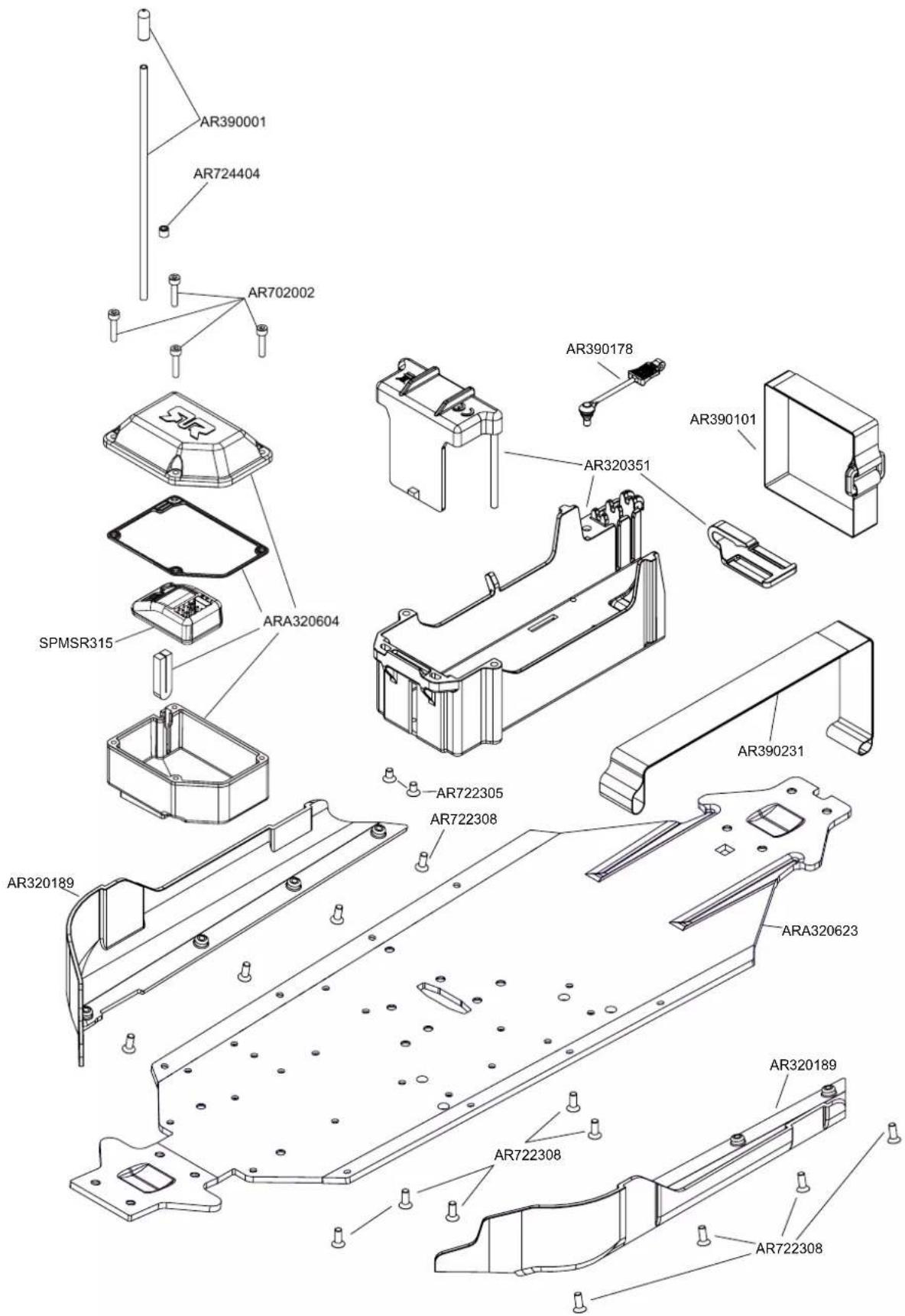

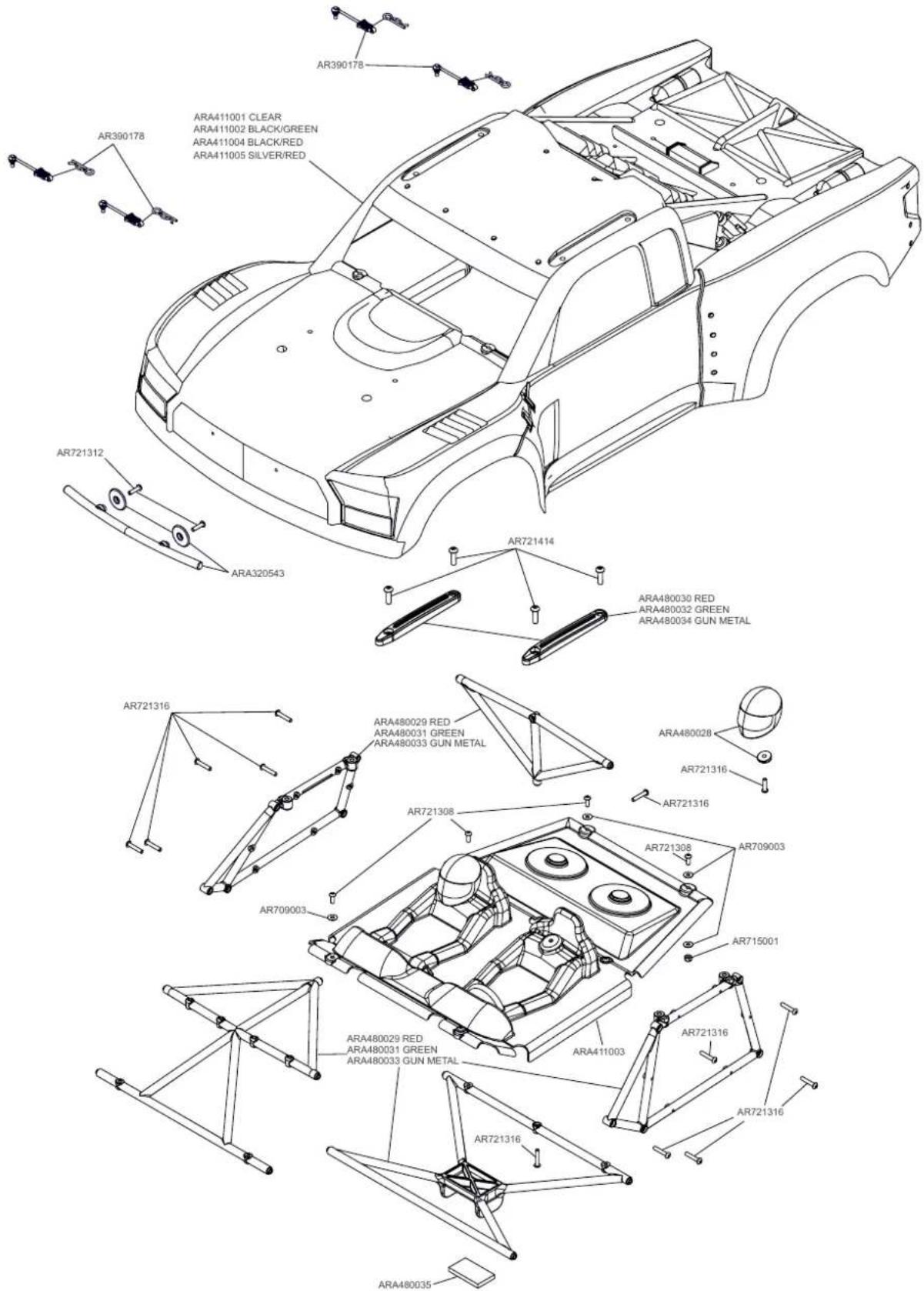

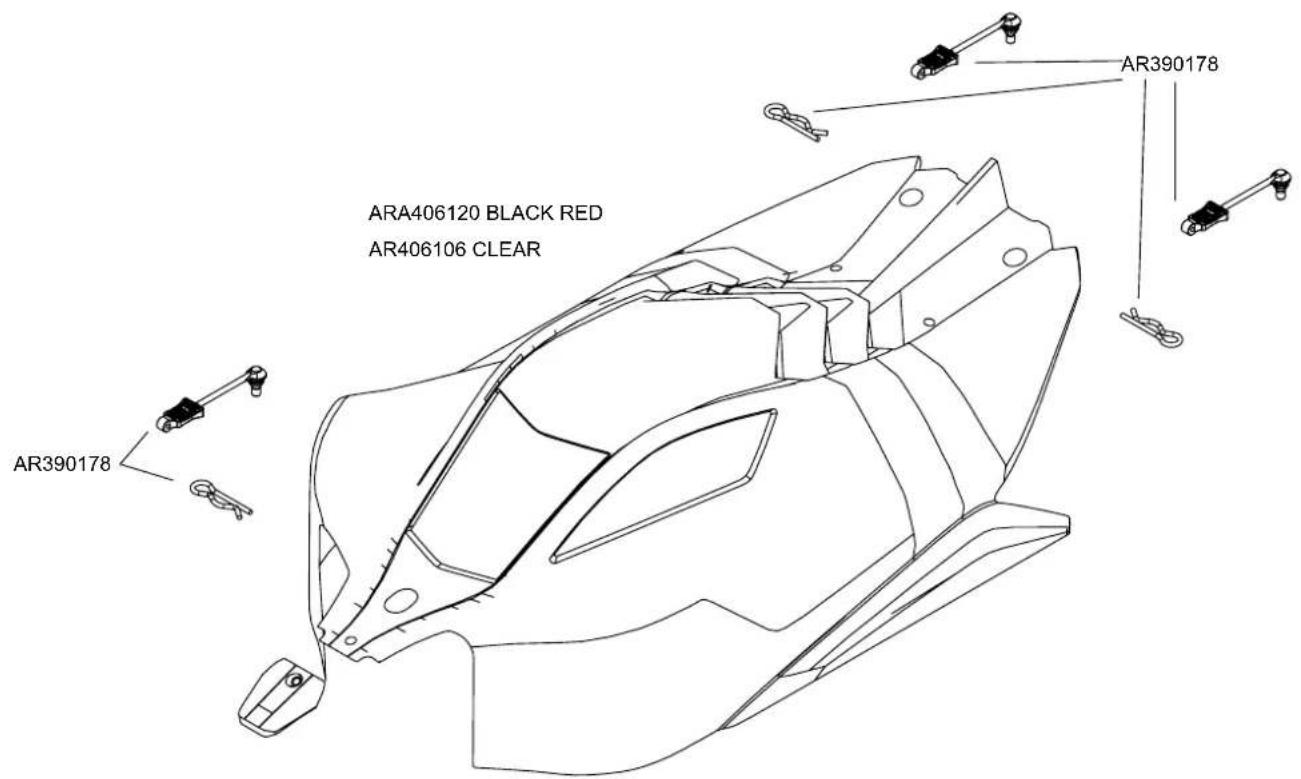

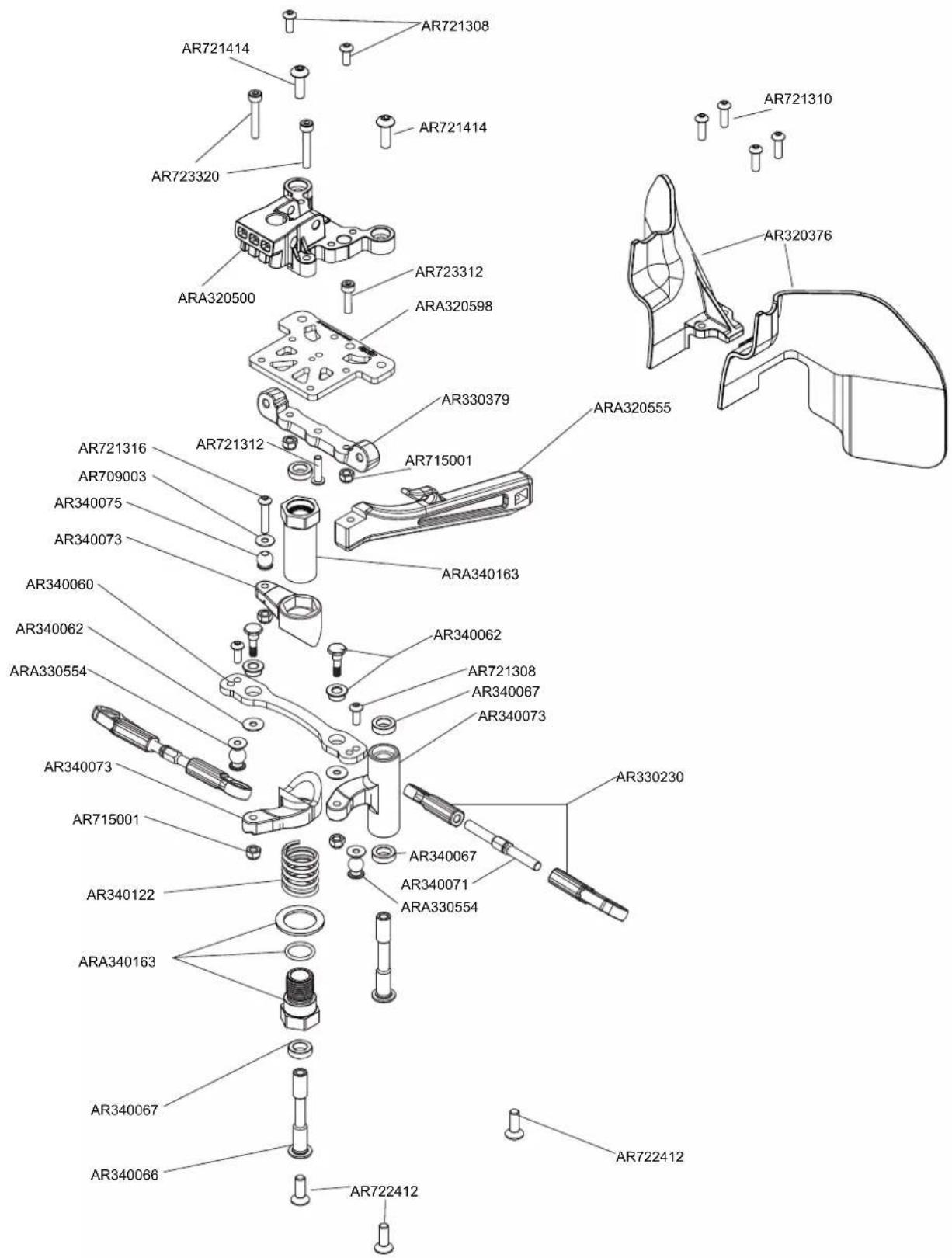

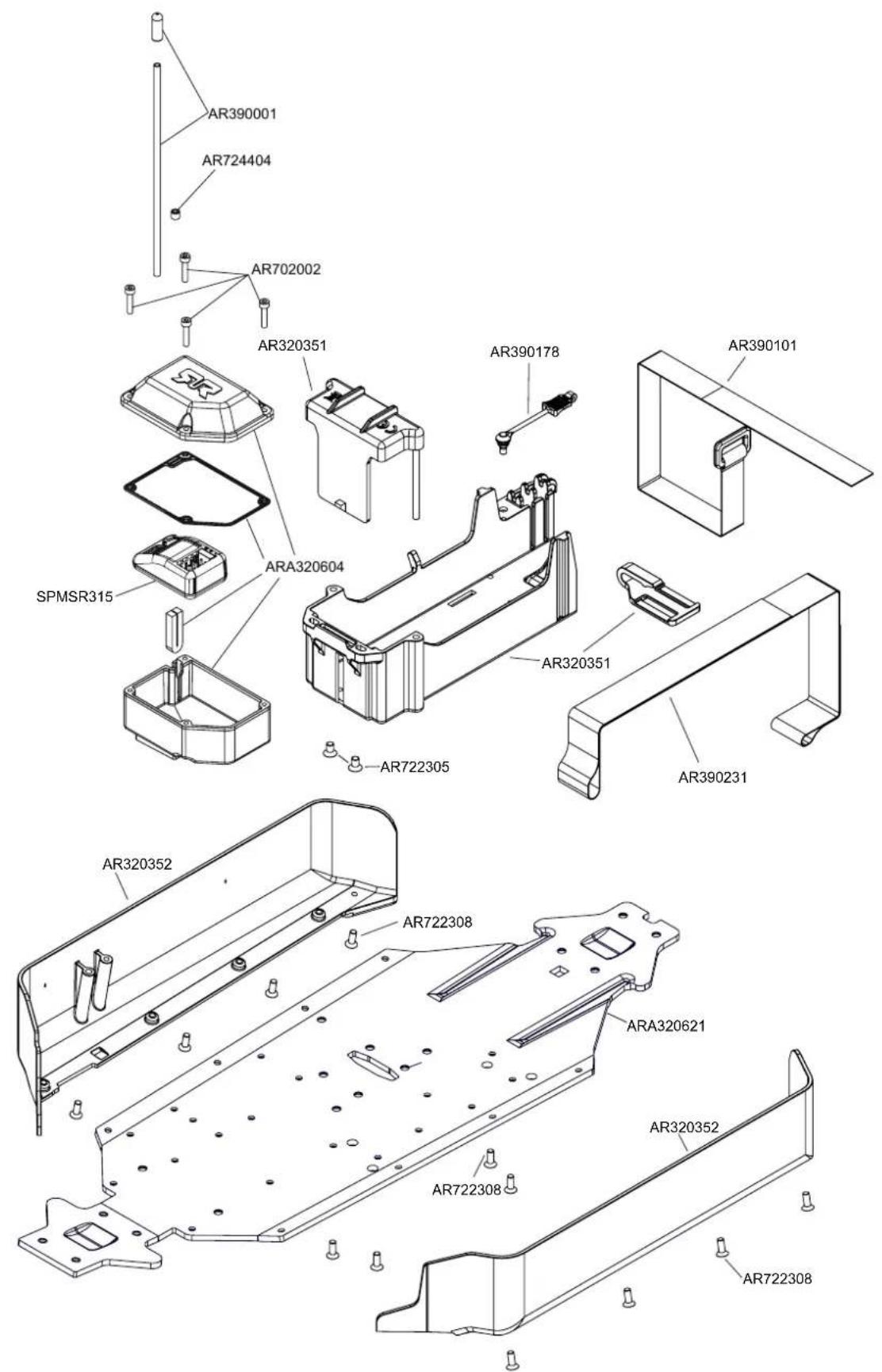

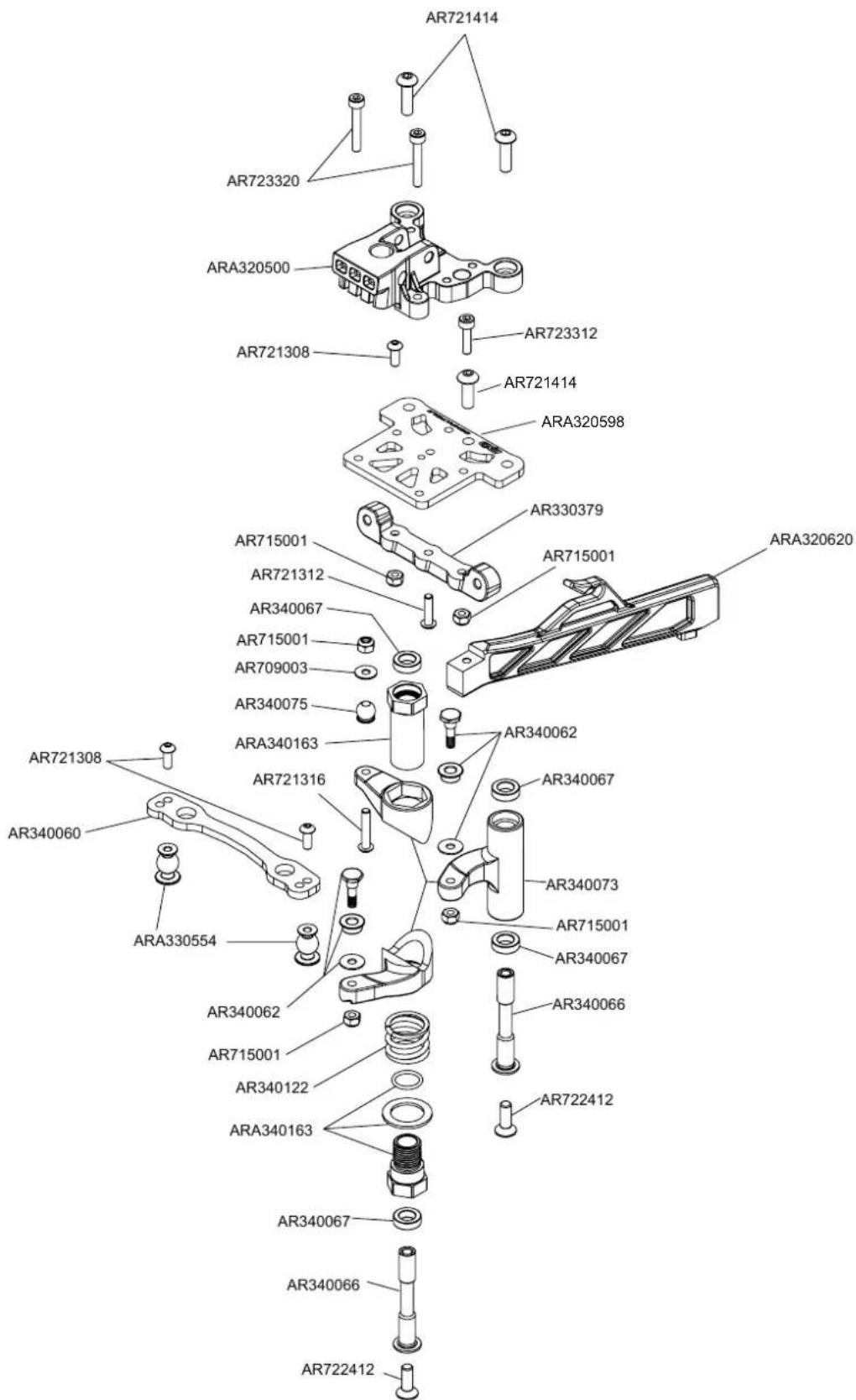

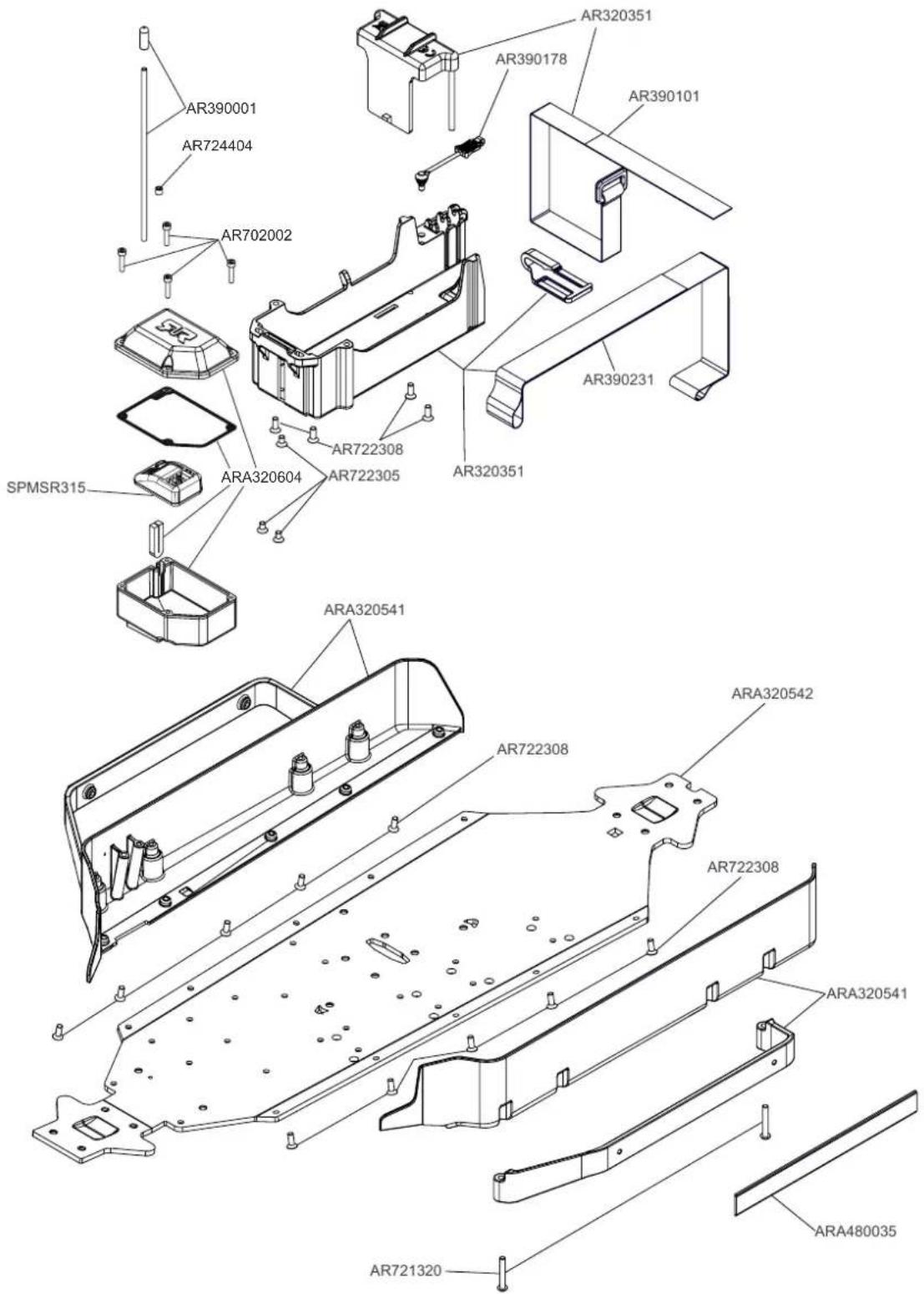

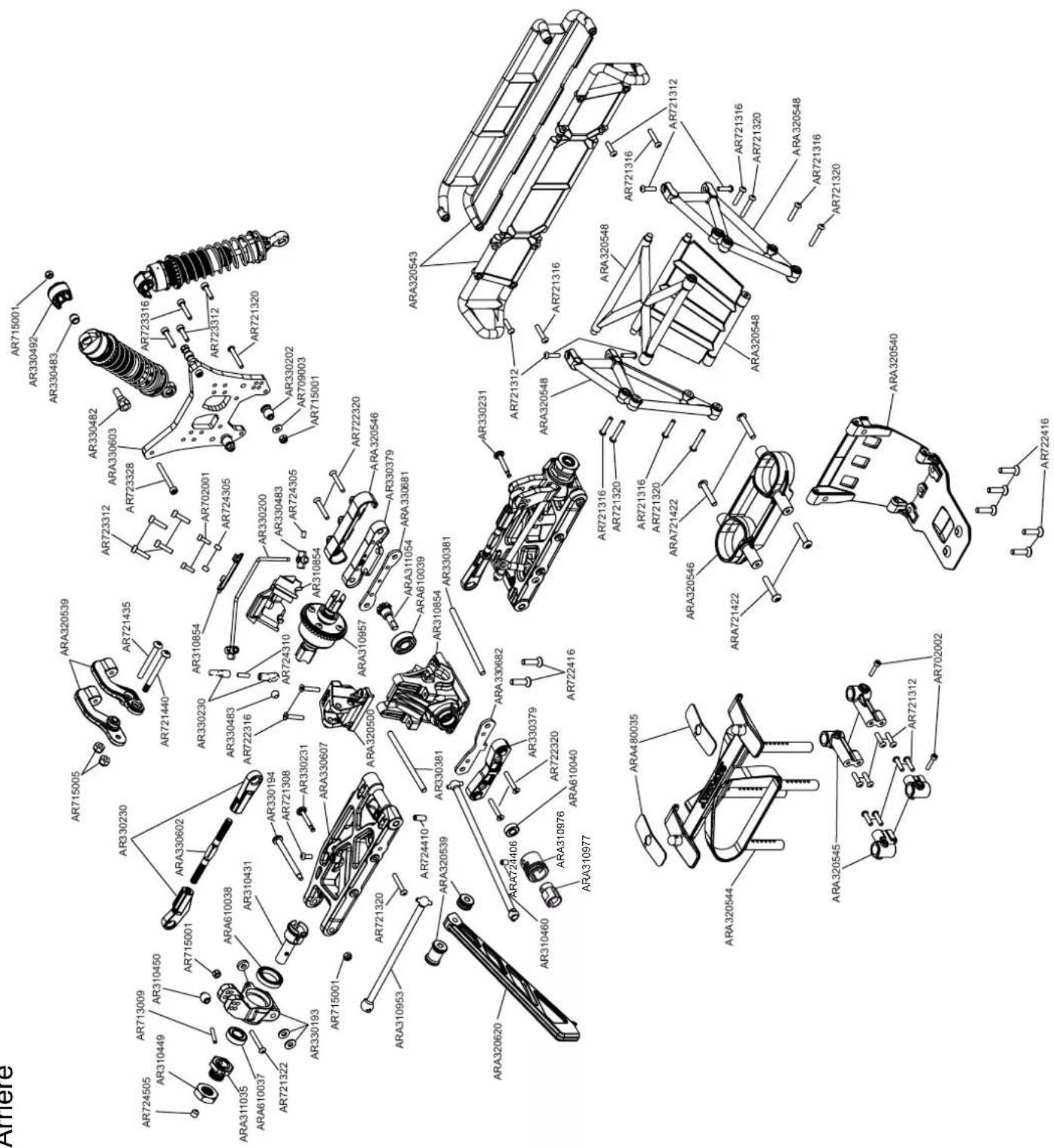

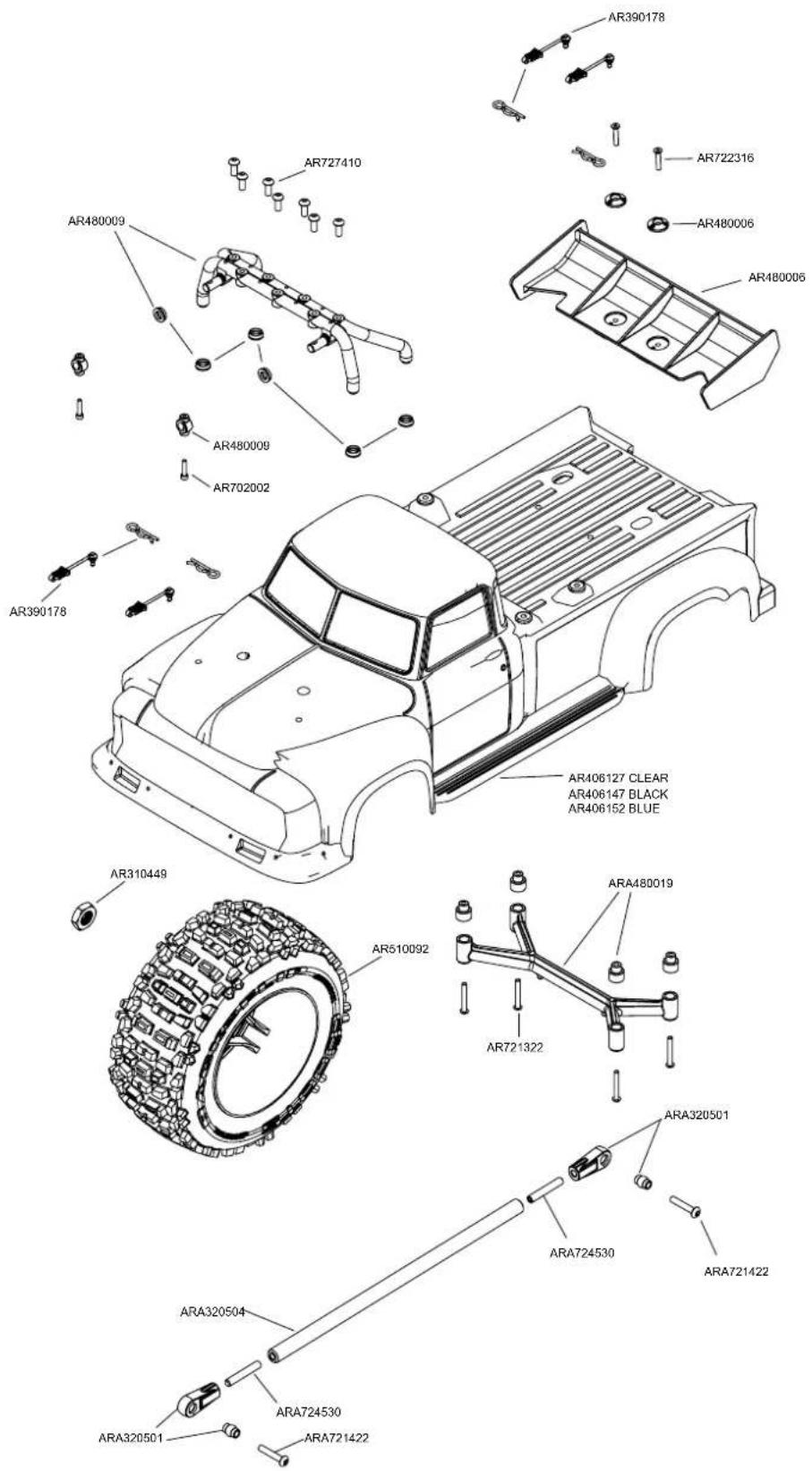

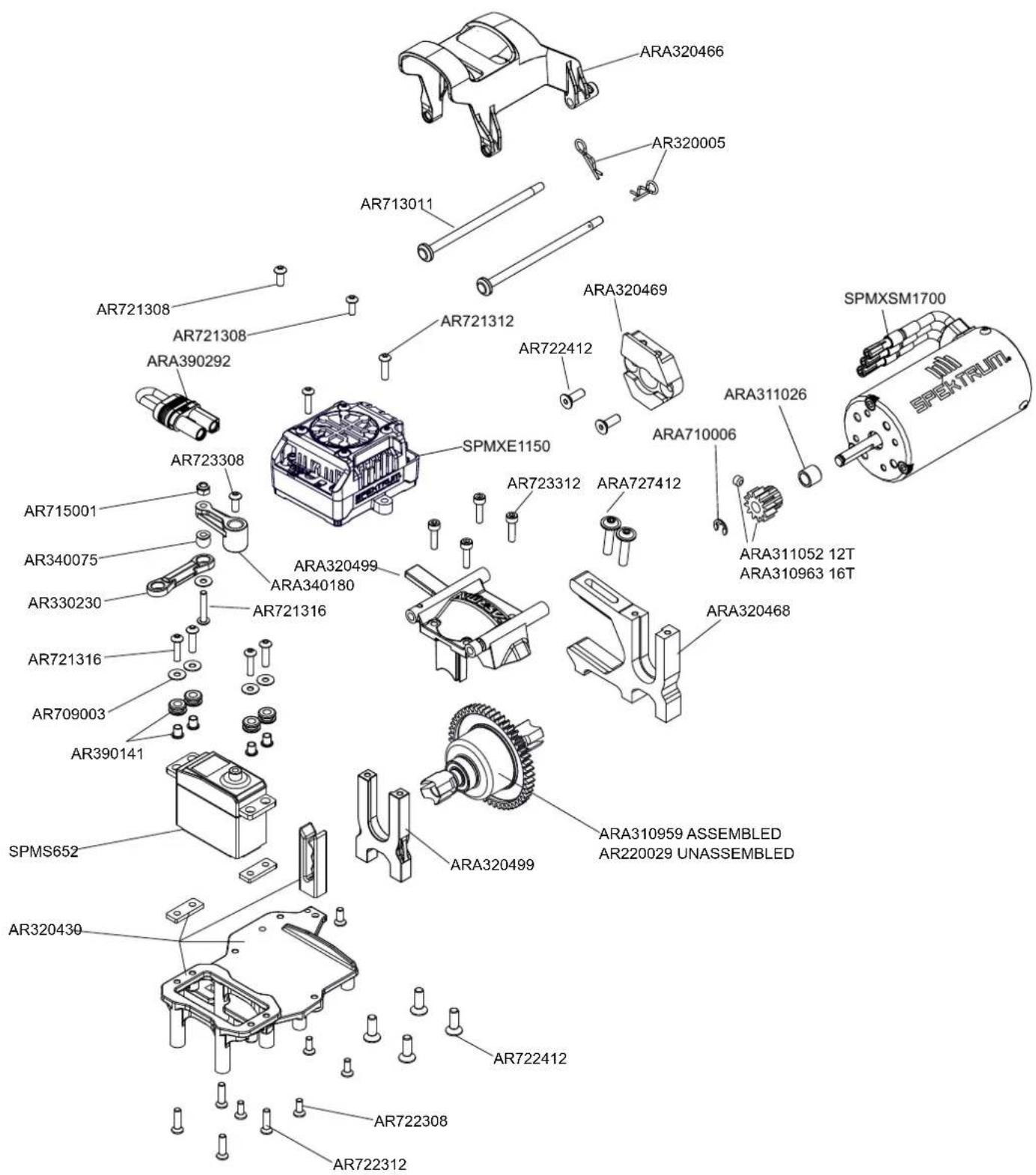

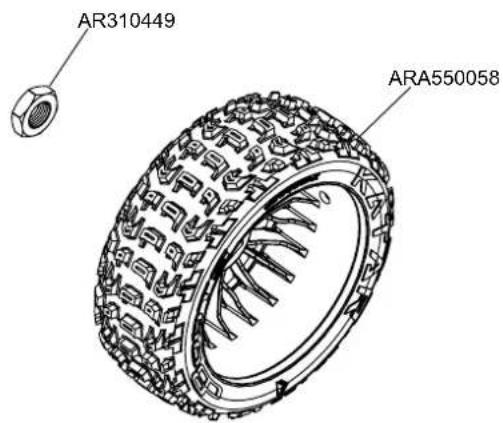

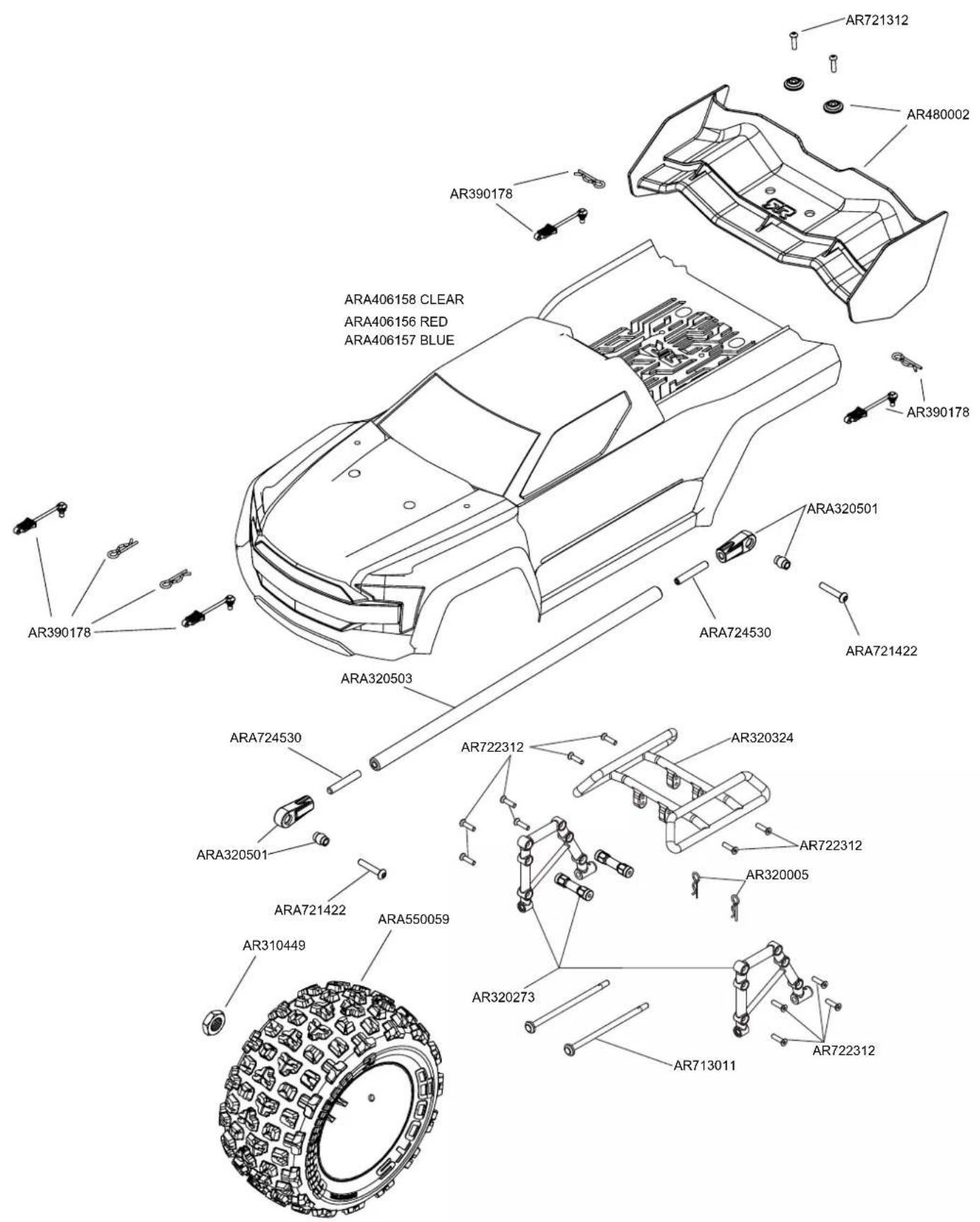

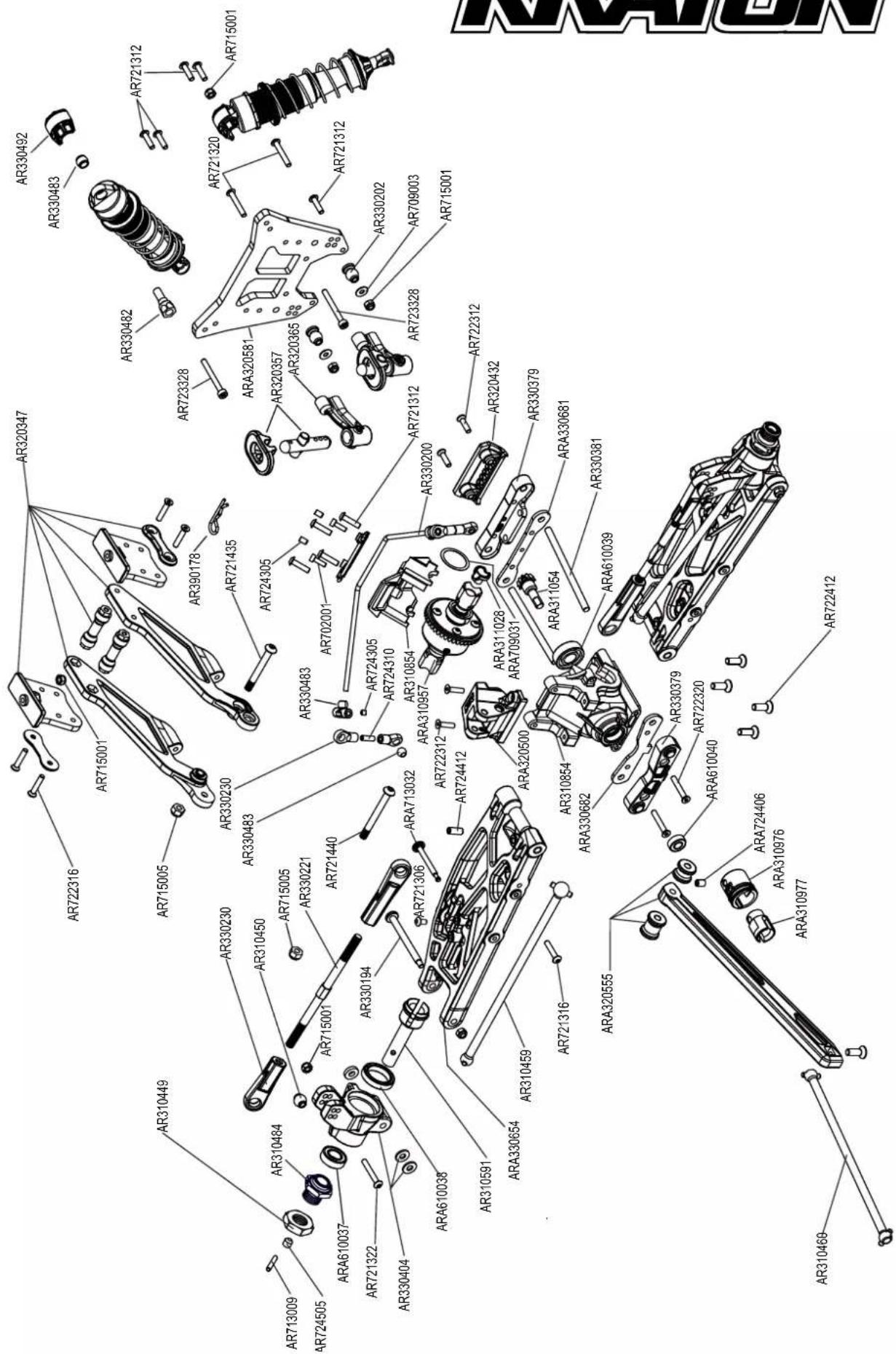

AR390178WWW.ARRMA-RC.COM

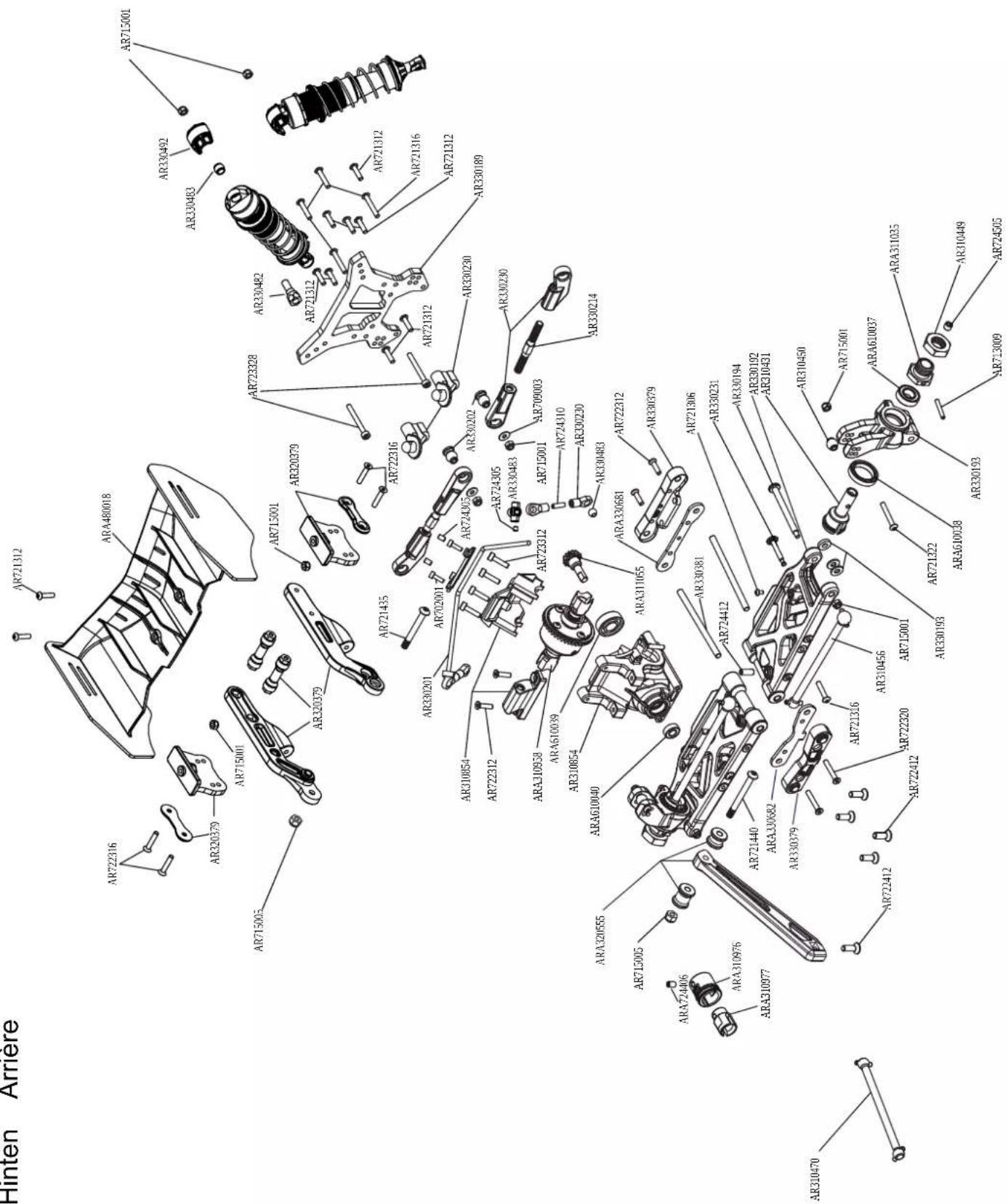

ARA724406WWW.ARRMA-RC.COM

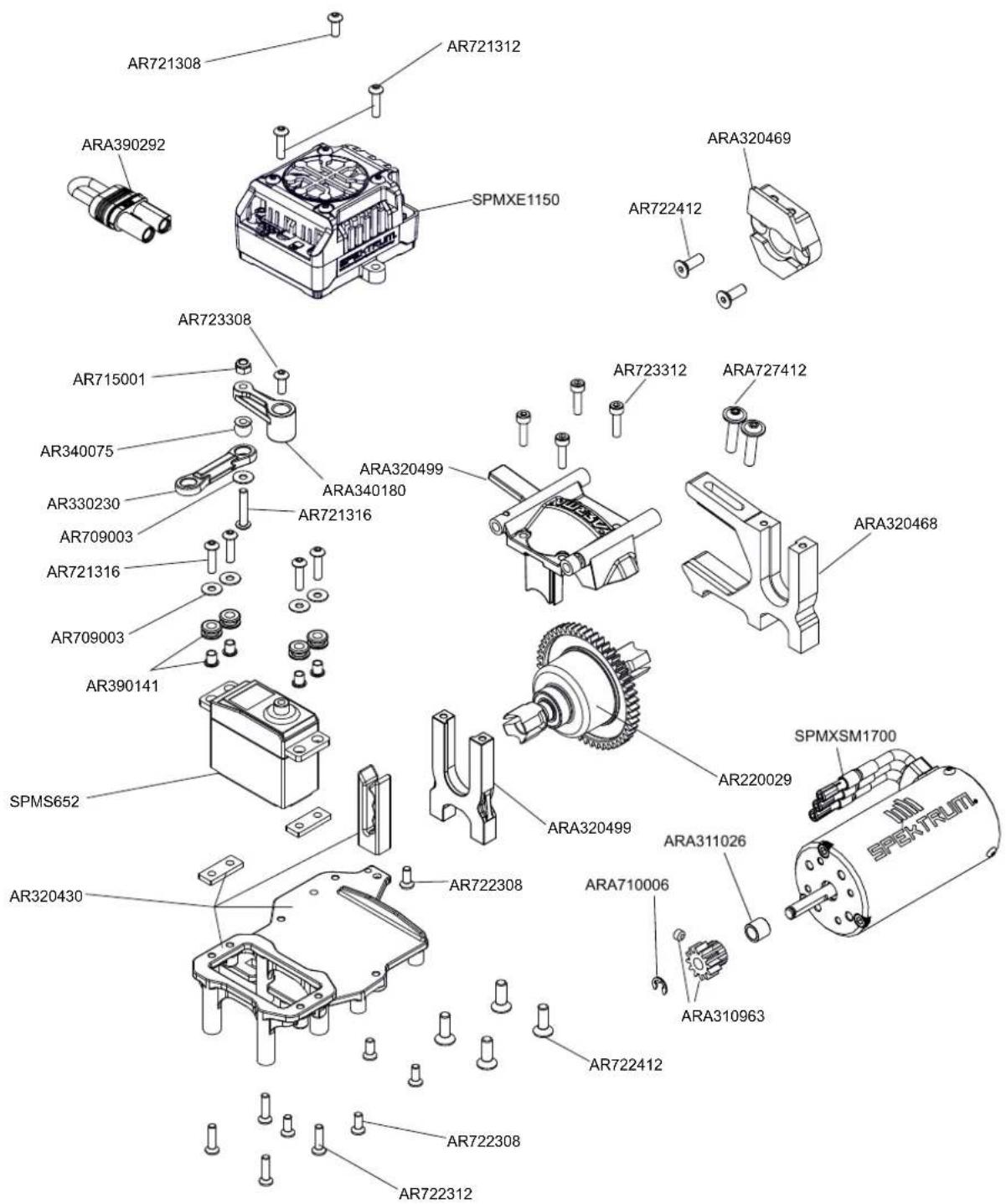

ARA710006WWW.ARRMA-RC.COM

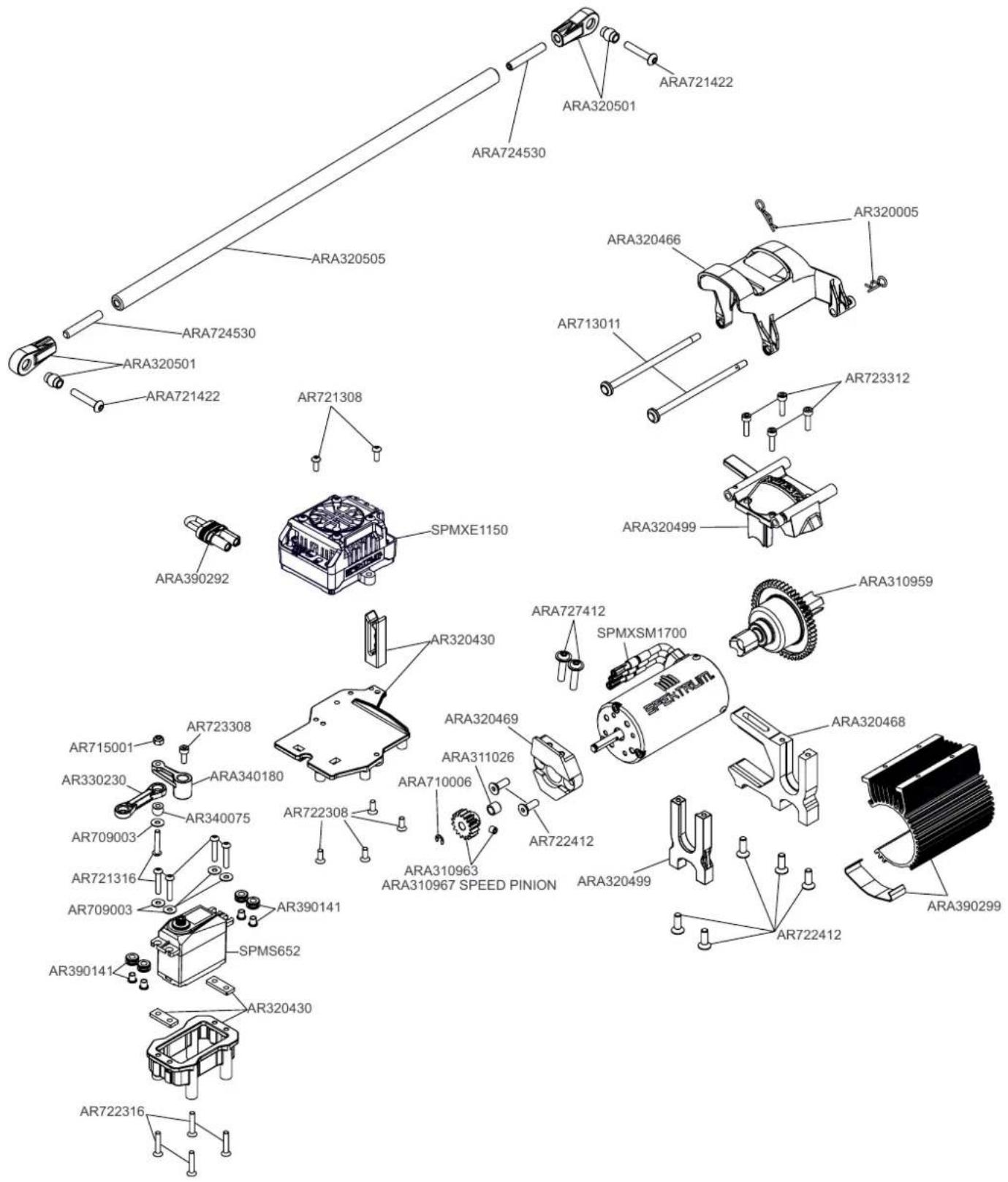

AR390141WWW.ARRMA-RC.COM

ARA724406WWW.ARRMA-RC.COM

©2020 Horizon Hobby, LLC. ARRMA RC is a trade name of Horizon Hobby Ltd. Horizon Hobby Ltd is a subsidiary of Horizon Hobby, LLC. ARRMA, the ARRMA logo, KRATON, MOJAVE, TYPHON, NOTORIOUS, DSMR, EC5, IC5, dBoots and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Twitter® logos are trademarks of Twitter, Inc. Facebook® and its logo are trade- marks or registered trademarks of Facebook, Inc. The YouTube® logo is a trademark of Google Inc. All other trademarks or registered trademarks are property of their respective owners. US 9,930,567. US 10,419,970. Other patents pending. BEDIENUNGSANLEITUNG
