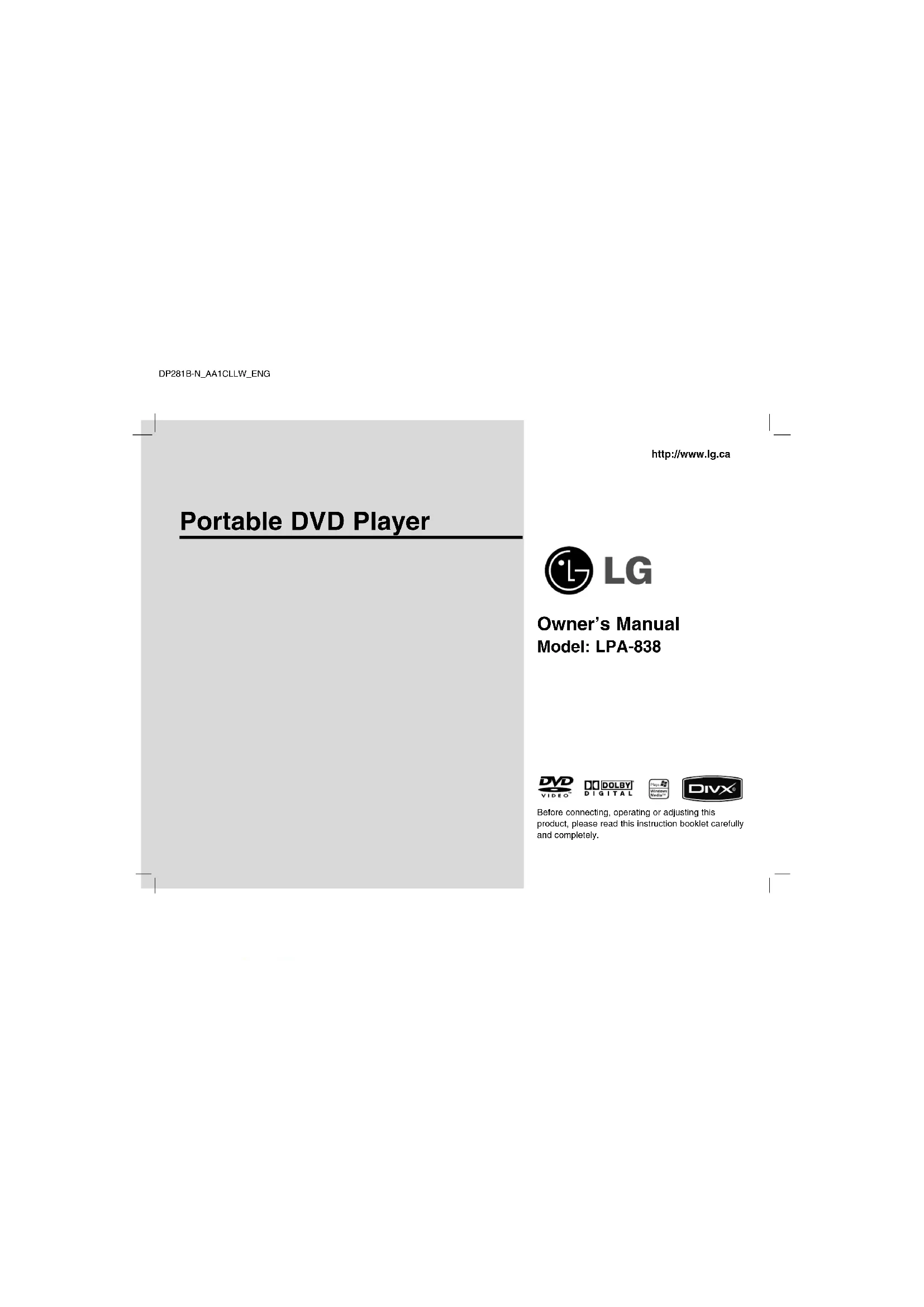

USER MANUAL LPA-838 LG

Portable DVD Player Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely. Owner’s Manual Model: LPA-838

DP281B-N_AA1CLLW_ENG

http://www.lg.caThis lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulat- ed dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to per- sons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and mainte- nance (servicing) instructions in the literature accompanying the product.

WARNING : Do not install this equipment in a confined space such a

bookcase or similar unit. CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to. CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Should the unit require mainte- nance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. NOTES ON COPYRIGHTS: It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs on a VCR, picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engi- neering or disassembly is prohibited. Safety Precautions

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.3 CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or dam- aged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deteriora- tion, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible. Safety Precautions (Continued) IntroductionCAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorpo- rated in this product will protect you if you observe the following procedures for installation, use, and servicing. This product does not contain any parts that can be repaired by the user. DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PER- SONNEL ONLY.

1. Read these instructions. - All these safety and operating instructions should

be read before the product is operated.

2. Keep these instructions. - The safety, operating and use instructions should

be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instruc-

tions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this apparatus near water. – For example: near a bath tub, wash

bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water.

6. Clean only with dry cloth. – Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install in accordance with the man-

ufacturer’s instructions. - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over- heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is pro- vided or the manufacturer’s instructions have been adhered to.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A ground- ing type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obso- lete outlet.

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the product.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with apparatus. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.

13. Unplug this product during lightning storms or when unused for long

14. Refer all servicing to qualified service personnel. Servicing is required

when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Do not use volatile liquids such as insecticide spray near the unit.

• Do not leave rubber or plastic products in contact with the unit for a long period of time. since they leave marks on the surface. Cleaning the unit To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild deter- gent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit. Maintaining the Unit The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use. For details, please contact your nearest authorized service center.8 Before Use (Continued) Types of Playable Discs DVD (8 cm / 12 cm disc) Video CD(VCD) (8 cm / 12 cm disc) Audio CD (8 cm / 12 cm disc) In addition, this unit plays DVD±R/RW and Dual disc, CD-R/RW, SVCD, USB that contains audio titles, DivX, MP3, WMA, and/or JPEG files. This indicates a product feature that is capable of playing DVD-RW discs recorded with Video Recording format. NOTES

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD

R/RW) discs cannot be played on the unit.

• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.

Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions. Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner. Regional Code This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labelled same as the rear of the unit or “ALL”. Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit’s regional code or the disc cannot play.

• If you try to play a DVD with a different regional code from your player, the message “Check Regional Code” appears on the TV screen. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc.9 Introduction Identification of Controls Main Unit a LCD screen b Speaker c LCD MODE: NORMAL → 4:3 mode → OFF d Function Buttons

• COLOR/BRIGHT: Selects the mode of LCD adjustment Brightness → Color → OFF

• ENTER: Confirms menu selection. f Disc Lid g OPEN button: Push this button to open the Disc lid. Touch Pad Operation The buttons from c to e are touch pad type button that is operated with brief touch. When you operate the button on the touch pad, you should follow the directions as below.

1. Touch the ENTER button on the touch pad to light up the e

2. Touch a button you want to operate. The e buttons will be off

in 10 seconds after the operation. Precautions in using the touch pad

• The LEDs on the touch pad lights only when the power of the unit is on.

• Use the touch pad with clean and dry hands.

• Do not press the button on the touch pad with too much force.

• Do not touch the button on the touch pad with any conductive material.

g10 Main Unit a Volume Control b Earphones jacks c COAXIAL jack d AV IN/OUT jack NOTE If the VIDEO IN signal is not connected in AV IN mode, this unit will automatically power off in 10 minutes to prevent battery dis- charge. e DC IN Connect the AC adapter or Automotive adapter. f Remote sensor Receive the signal from the Remote Control for operation. g Battery charge indicator h (POWER): Switches the player ON or OFF. i Playback buttons

• x ( STOP ): Stops playback.

• B/X ( PLAY/PAUSE ): Starts playback/ Pauses playback temporarily.

• . (Reverse SKIP/SEARCH ) Search backward*/ go to beginning of current chapter or track or go to previous chapter or track.

• > (Forward SKIP/SEARCH) Search forward*/ go to next chapter or track.

• Press and hold button for about two seconds. j USB: Connect an USB Flash Drive. Identification of Controls (continued) abcde fg h i j11 Introduction

POWER: Switches DVD Player ON or OFF. AUDIO: Selects an audio language. SUBTITLE: Selects a subtitle language. ANGLE: Selects a DVD camera angle, if available. Reverse SKIP/SEARCH ( . ): Search backward*/ go to beginning of current chapter or track or go to previous chapter or track. Forward SKIP/SEARCH ( > ): Search forward*/ go to next chapter or track.

• Press and hold button for about two seconds. SLOW ( t / T ): Reverse/ Forward slow playback.

PAUSE/STEP ( X ): Pauses playback temporarily/ press repeatedly for frame-by-frame playback. PLAY (N): Starts playback. STOP ( x ): Stops playback. 0-9 number buttons: Selects numbered items in a menu. PROG.: Places a track on the program list. CLEAR: Removes a track number on the program list or a mark on the MARKER SEARCH menu.

TITLE: Displays title menu, if available. REPEAT: Repeat chapter, track, title all. A-B: Repeat sequence. ZOOM: Enlarges video image. MARKER: Marks any point during playback. SEARCH: Displays MARKER SEARCH menu. RANDOM: Plays tracks in random order. Identification of Controls (continued) Remote Control

• Do not expose the Remote Control sensor to bright light.

• Do not place obstacles between the Remote Control sensor and the Remote Control. V Replacing the button-type battery The battery normally lasts for about a year. Replace the battery if the Remote Control fails to operate the unit when used within the operation range. Button-type battery (Lithium battery)

1. Pinch the battery holder clip together then pull the tab to

remove the battery holder.

2. Insert the battery with the + facing in the same direction as the

+ on the battery holder.

3. Replace the battery holder with battery into the Remote Control

unit making sure that it is fully inserted. NOTES

• Replace Remote Control unit battery with 3V micro lithium cells such as CR. 2025 or its equivalent.

• Dispose of battery safety in accordance with local laws. Do not dispose of in fire. Identification of Controls (continued)

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, dis- assemble, incinerate, or heat above 100 °C (212 °F). Replace the battery with Matsushita Elec. Ind. Co., Ltd. (Panasonic), part no. CR. 2025 only. Use of another battery may present a risk of fire or explo- sion. Dispose of used batteries. Keep batteries away from children. Do not disassemble or dispose of in fire.13 Introduction Connect the AC adapter. a Connect the AC Adapter to the DC IN jack on the unit. b Connect the AC adapter to the wall outlet. Caution

• Do not connect the power plug to a power outlet other than that indicated on the label, as this can result in a risk of fire or electric shock.

• Do not connect or disconnect the power plug with wet hands. Doing so may cause electric shock.

• Do not use an AC adapter other than one specified, as it can cause a fire or damage to the player. AC adapter

• This AC adapter operates on 100-240V~ 50/60Hz. 1.5A

• Contact an electrical parts distributor for assistance in selecting a suitable AC plug adapter or AC cord set.

• Manufactured by WANLIDA Digital Technology Co., Ltd. Power Connections

b14 Connect the Automotive adapter This unit and its automotive adapter are designed for use in vehi- cles that have 8.5-16 volt, negative ground electrical systems. (This is standard for most vehicles.) If your vehicle has a different type of electrical system, the DC power system cannot be used. a Connect the automotive adapter to the DC IN jack on the unit. b Connect the automotive adapter to the car’s cigarette lighter socket. Caution

• To prevent electrical shock and possible damage to your unit or vehicle, always unplug the automotive adapter from the cigarette lighter socket before you remove the plug from your unit.

• A 3 amp. 250V fuse for protection is installed in the automotive adapter.

• While the engine is being started, disconnect the automotive adapter from the car’s cigarette lighter socket.

Do not operate your unit when the car battery is discharged. Peak current from the car generator may cause the DC fuse to blow.

• If the vehicle’s supply voltage drops below approximately 10 volts, your unit may not work properly.

• Do not leave your unit in a place where the temperature exceeds 70°C (158°F), or the pick-up device may be damaged. Examples include: - Inside a car with the windows closed and in direct sunshine. - Near a heating appliance. Automotive adapter

• This automotive adapter operates on DC 8.5-16V.

• Contact an electrical parts distributor for assistance in selecting a suitable automotive adapter.

• Manufactured by WANLIDA Digital Technology Co., Ltd. Power Connections (continued) Cigarette lighter socket.

b15 Battery Pack Charge the battery pack before using it for the first time.

Attaching the battery pack a Match the hooks of the battery pack into the holes on the bottom of the player. b Press and slide the battery pack until the hooks click. NOTES

• Do not detach the battery pack during playback.

• Be careful not to drop the battery pack.

Detaching the battery pack a Press the PUSH knob. b Pull the battery pack until the hooks click. Power Connections (continued) ATTENTION The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this bat- tery into the municipal waste stream. Check with your local solid waste/officials for details in your area for recycling options or proper disposal.

Hooks It balances the device so the unitwill not fall backwards when youopen the cover. Turn it counterclockwise afterremoving the batteries. Introduction16

Charging the battery pack

1. Attach the battery pack to the player.

2. Connect the AC power adapter to the player and

the plug into an AC outlet.

3. During recharging, charge indicator is red. If recharging is

complete, charge indicator changes to green color. CAUTION Take the following precautions to avoid liquid leakage, overheating, etc.

• Do not use any unauthorized parts.

• Use the authorized AC adapter when recharging battery.

• Do not expose to high temperature above 60°C (140°F).

• Do not attempt to dismantle or modify the unit.

• Excessive impact may cause the unit to malfunction.

• Do not disassemble; dispose of properly.

• Do not short-circuit. NOTE Charging a battery only happens when the power is off. The battery will not be charged when it is naturally or purposely discharged. Because the unit cannot perceive battery voltage, even if you attached the battery. When you are in this situation, power on the unit and then power off again. Then battery charge will proceed.

Recharging and play times

• When Brightness control is set to initial mode. - using the headphones and volume center. - The playing time may be different depending on the kinds of disc.

Press “Display” to display the battery status on the screen. If using the AC adapter, battery display does not appear. If the battery capacity is not enough, “Check Battery Status” or “ ” is displayed on the screen and then the power is automatically turned off after a few minute.

If play time dramatically reduces after recharging The battery pack has reached the end of its service life (it can be recharged about 300 times).

If the unit is not used for a long time

• Detach the battery pack. (Even if the unit is off, it still uses some power. This can lead to over discharging of the battery and malfunction.)

• Recharge the battery pack when you are ready to use it again. Power Connections (Continued) Full Low Recharge Battery Pack Player Connect the AC adapter cord Charge indicator Recharging Play time without Playback Approx. Approx.

3.5 hour 5.0 hours*17

Introduction You can rotate LCD clockwise an angle of 180 degrees. However, if you turn it by force, it can cause serious damage. After rotating LCD completely, you can fold the LCD screen as shown above. Rotating the LCD18

1. Prepare the power supply.

Press OPEN to open the disc lid and insert a disc with the side you want to play label up. Close the disc lid by hand.

• If the disc is placed in upside down (and it is a single-sided disc), “CHECK DISC” or “DISC ERROR” appears on the screen.

• After playing back all of the chapters in the title, the unit automatically stops and returns to the menu screen.

4. Press PLAY(N) to playback.

• Place a disc with the playback side down on the spindle, and push gently on the center of the disc so it goes into position.

• If you are not using the LCD on this unit, select OFF to conserve power.

• The LCD is turned off if you close the unit.

• The picture shown on the LCD depends on the display mode and the size recorded on the disc.

Changing the size of the picture Use the LCD MODE button to change the picture mode. The mode is shown on the unit’s display as follows. NORMAL → 4:3 mode → OFF NOTE May appear to differ according to kind of disc. Select a MODE Selects a mode among DISC, AV IN or USB.

1. Press MODE button on the unit.

The mode selection menu appears on the screen.

DISC: The disc menu or playback picture for the disc appears on the screen .

• AV IN: A picture from external device appears on the screen.

• USB: A file or folder list in USB Flash Drive appears on the screen. Playing a DiscAdvanced Operations

On-Screen Display Displaying Disc Information on-screen You can display various information about the disc loaded on-screen.

1. Press DISPLAY to show various

playback information. The items displayed differ depending on the disc type or playing status.

2. You can select an item by pressing v / V and change or select

the setting by pressing b / B.

Title (Track) – Current title (or track). number/total number of titles (or tracks).

Chapter – Current chapter number/total number of chapters.

Time – Elapsed playing time.

Audio – Selected audio language or channel.

Subtitle – Selected subtitle.

Angle – Selected angle/total number of angles. NOTE If no button is pressed for a few seconds, the on-screen display disappears. Initial Settings By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 20 to 24. To display and exit the Menu: Press SETUP to display the menu. A second press of SETUP will take you back to initial screen. To go to the next level: Press B on the Remote Control. To go back to the previous level: Press b on the Remote Control. General Operation

1. Press SETUP. The Setup menu appears.

2. Use v / V to select the desired option then press B to move to

the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).

3. Use v / V to select the second desired option then press B to

move to the third level.

Use v / V to select the desired setting then press ENTER to confirm your selection. Some items require additional steps.

5. Press SETUP or PLAY(N) to exit the Setup menu.20

LANGUAGE Menu Language Select a language for the Setup menu and on-screen display. Disc Audio / Subtitle / Menu Select the language you prefer for the audio track (disc audio), subtitles and the disc menu. Original: Refers to the original language in which the disc was recorded. Other: To select another language, press numeric buttons and then ENTER to enter the corresponding 4-digit number accord- ing to the language code list on the page 41. If you enter the wrong language code, press CLEAR. Off (for Disc Subtitle) – Turn off Subtitle. DISPLAY TV Aspect 4:3: Select when a standard 4:3 TV is connected. 16:9: Select when a 16:9 TV is connected. NOTE If the TV Aspect option is set to 16:9, the Display Mode setting is automatically set to Widescreen. Display Mode Display Mode setting works only when the TV Aspect mode is set to “4:3”. LetterBox: Displays a wide picture with bands on the upper and lower portions of the screen. Panscan: Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. Initial Settings21 Advanced Operations AUDIO Each DVD disc has a variety of audio output options. Set the play- er’s AUDIO options according to the type of audio system you use. Dolby Digital / DTS / MPEG Bitstream: Select “Bitstream” if you connect the unit’s DIGITAL OUT jack to an amplifier or other equipment with a Dolby Digital, DTS or MPEG decoder. PCM (for Dolby Digital / MPEG): Select when connected to a two-channel digital stereo amplifier. DVDs encoded in Dolby Digital or MPEG will be automatically downmixed to two-chan- nel PCM audio. Off (for DTS): If you select “Off”, the DTS signal is not output through the DIGITAL OUT jack. Sample Freq. (Frequency) If your receiver or amplifier is NOT capable of handling 96 kHz signals, select 48 kHz. When this choice is made, this unit auto- matically converts any 96 kHz signals to 48 kHz so your system can decode them. If your receiver or amplifier is capable of handling 96 kHz signals, select 96 kHz. When this choice is made, this unit passes each type of signal through without any further processing. Check the documentation for your amplifier to verify its capabilities. DRC (Dynamic Range Control) With the DVD format, you can hear a program’s soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect. Vocal Set to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc mix into normal stereo sound. Initial Settings (continued)22 Initial Settings (continued) LOCK (Parental Control) Rating Blocks playback of rated DVDs based on their content. Not all discs are rated.

1. Select “Rating” on the LOCK menu then press B.

2. To access the Rating, Password and Area Code features, you

must input the 4-digit password you created. If you have not yet entered a password you are prompted to do so. Input a 4-digit code and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR.

3. Select a rating from 1 to 8 using the v / V buttons.

Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. Unlock: If you select unlock, parental control is not active and the disc plays in full. NOTE If you set a rating for the unit, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alterna- tive must have the same rating or a lower one. If no suitable alternative is found, playback stops. You must enter the 4-digit password or change the rating level in order to play the disc.

4. Press ENTER to confirm your rating selection, then press

SETUP to exit the menu.23 Advanced Operations Initial Settings (continued) Password You can enter or change password.

1. Select Password on the LOCK menu then press B.

2. To make a new password:

If you forget your password If you forget your password, you can clear it using the following steps:

1. Press SETUP to display the Setup menu.

2. Input the 6-digit number “210499” and the password is cleared.

Area Code Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 42.

1. Select “Area Code” on the LOCK menu then press B.

2. Follow step 2 as shown previous page (Rating).

3. Select the first character using v / V buttons.

4. Press ENTER and select the second character using v / V

5. Press ENTER to confirm your area code selection.24

Initial Settings (continued) OTHERS The PBC, B.L.E, DivX(R) VOD settings can be changed. PBC Set Playback Control (PBC) to On or Off. On: Video CDs with PBC are played according to the PBC. Off: Video CDs with PBC are played in the same way as Audio CDs. B.L.E. (Black Level Expansion) To select the black level of playback pictures. Set your preference and monitor’s ability. On: Expanded grey scale. (0 IRE cut off) Off: Standard grey scale. (7.5 IRE cut off) DivX(R) VOD We provide you the DivX

VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX

VOD service. For more information, visit www.divx.com/vod.

1. Select “DivX(R) VOD” option then press B.

2. Press ENTER while “Select” is selected and the registration

code will appear. Use the registration code to purchase or rent the videos from DivX

VOD service at www.divx.com/vod. Follow the instructions and download the video onto a disc for playback on this unit.

3. Press ENTER to exit.

NOTE All the downloaded videos from DivX

VOD can only be played back on this unit.25 Advanced Operations If a menu screen is displayed Use the bB v Vbuttons to select the title/chapter you want to view, then press ENTER to start. Press TITLE or MENU to return to the menu screen. Use the number buttons to select the track you want to view and press RETURN to return to the menu screen. Menu settings and operating procedures may differ. Follow the instructions on the each menu screen. You also may set PBC to Off (See “PBC” on page 24). NOTES

• If parental control is set and the disc is not within the rating settings you must input the password. (See “LOCK Menu” on page 22-23.)

• DVDs may have a region code. Your unit does not play discs that have a region code different from your unit. Unless stated otherwise, all operations described use the Remote Control. Some features may also be available on the Setup menu. Resume Play When play is stopped, the unit records the point where STOP was pressed (RESUME function). Press PLAY(N) and play will resume from this point. Moving to another TITLE When a disc has more than one title, you can move to another title. Press DISPLAY during playback or resume play then the appropriate number (0-9) or use b / B to move to another title. Moving to another CHAPTER/TRACK During playback, press SKIP/SEARCH (. or >) to go to the next chapter/track or to return to the beginning of the current chapter/track. Press SKIP . twice briefly to step back to the previous chapter/track. Search

1. Press and hold SKIP/SEARCH (. or >) for about two

seconds during playback. The player will now go into SEARCH mode.

2. Press and hold SKIP/SEARCH (. or >) repeatedly to select

the required speed. DVD, DivX disc: 4 steps Video CD, MP3, WMA, Audio CD: 3 steps

1. Press SLOW (t or T) during playback.

The player will enter Slow mod

DVD disc: 4 steps Video CD, DivX: 4 steps (forward only)

2. To exit slow motion mode, press PLAY(N).

DivXVCDDVD ALL ALL DVD ALL VCD DVD General Features26 Still Picture and Frame-by-Frame Playback During playback, press PAUSE/STEP(X) to pause playback. Press PAUSE/STEP(X) repeatedly to play Frame-by-Frame. ( Remote Control Only ) To exit still motion mode, press PLAY(N). Time Search To start playing at any chosen time on the disc:

1. Press DISPLAY during playback. The time search box shows

the elapsed playing time.

2. Use v / V to select the time search box and “-:--:--” appears.

3. Input the required start time in hours, minutes, and seconds

from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers.

4. Press ENTER to confirm. Playback starts from the selected

time. Repeat A-B During playback, each press of A-B button to select point A and point B and repeats a sequence from point A (Starting point) to point B (End point). Press A-B again to cancel. Repeat During playback, press REPEAT repeatedly to select a desired repeat mode. DVD Video Discs: Chapter/Title/Off Video CDs, Audio CD, DivX/MP3/WMA discs: Track/All/Off NOTES

• On a Video CD with PBC, you must set PBC to Off on the setup menu to use the repeat function (See “PBC” on page 24).

• If you press SKIP (>) once during Repeat Chapter (Track) playback, the repeat playback cancels. Zoom During watching pictures, press ZOOM to enlarge the video image (3 steps). You can move through the zoomed picture using bBvVbuttons. Press CLEAR to exit. NOTES Zoom may not work on some DVDs. DivXVCDDVD ALL ACDDivXVCDDVD DivXVCDDVD DivXVCDDVD ALL General Features (continued)27 Advanced Operations General Features (continued) Title Menu If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may appears. Disc Menu Press MENU and the disc menu is displayed. Press MENU again to exit. Changing the Audio Language Press AUDIO repeatedly during playback to hear a different audio language or encoding method. With DVD-RW discs recorded in VR mode that have both a main and a Bilingual audio channel, you can switch between Main (L), Bilingual (R), or a mix of both (Main + Bilingual) by pressing AUDIO. Press AUDIO repeatedly during playback to hear a different audio channel (STEREO, LEFT, or RIGHT). Camera Angle During playback of DVD disc contains scenes recorded different camera angles, press ANGLE repeatedly to select a desired angle. TIP The angle indicator will blink on the screen during scenes recorded at different angles as an indication that angle switching is possible. Subtitles Press SUBTITLE repeatedly during playback to see the different subtitle languages. NOTE If there is no information or there is a code that can not read in the DivX file, “ 1 ” etc are displayed. DivXDVD DVD VCD DivXDVD DVD DVD28 Additional features Marker Search To enter a Marker You can start playback from up to nine memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine markers. To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker search

menu appears on the screen.

2. Within 9 seconds, press b / B to select a marker number that

you want to recall or clear.

3. Press ENTER and playback starts from the marked scene. Or,

Press CLEAR and the marker number is erased from the list.

4. You can play any marker by inputting its number on the marker

• Some subtitles recorded around the marker may fail to appear (DVD).

• All the markers are cleared when the power is turned off or the disc is removed.

• The marker is not stored when the DVD or title menu is dis- played on the screen. Last Scene Memory This unit memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled. NOTES This unit does not memorize the scene of a disc if you switch off the unit before commencing to play the disc. Screen Saver/Auto Power Off The screen saver appears when you leave the unit in Stop mode for about five minutes. If the Screen Saver is displayed for five minutes, the unit automatically turns itself off. VCD1.1 ACDDVDDivXVCDDVD29 Advanced Operations This unit can play Audio CDs or MP3/WMA files. MP3/ WMA/ Audio CD Once you insert an MP3/WMA files recorded media or Audio CD, a menu appears on the TV screen. Press v / V to select a track/file then press PLAY(N) or ENTER and playback starts. You can use variable playback functions. Refer to page 25-26. ID3 TAG

• When playing a file containing information such as track titles, you can see the information by pressing DISPLAY. [ Title, Artist, Album, Year, Comment ]

• If there is no information, “NO ID3 TAG” appears on the display. TIPS

• If you are in a file list on the MUSIC menu and want to return to the Folder list, use the v / V to highlight and press ENTER.

• Press MENU to move to the next page.

• On a CD with MP3/WMA, JPEG and MOVIE file, you can switch MUSIC, PHOTO and MOVIE menu. Press TITLE and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted. MP3 / WMA file compatibility with this unit is limited as follows:

• Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)

• Bit rate: within 8 - 320kbps (MP3),

• The unit cannot read an MP3/WMA file that has a file extension other than “.mp3” / “.wma”.

• CD-R physical format should be ISO 9660

• If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.

• File names should have a maximum of 16 letters and must incor- porate an .mp3 or .wma extension.

• They should not contain special letters such as / ? * : “ < > l etc.

• The total number of files on the disc should be less than 650.

• This unit requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre- recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible play- back. Playing an Audio CD or MP3/WMA file30 The program function enables you to store your favorite tracks from any disc in the player memory. A program can contain 30 tracks.

1. Insert an Audio CD or MP3/WMA files recorded media. AUDIO

CD or MUSIC menu appears.

2. Press PROG. The mark will appear

NOTE Press PROG. again, then the mark will disappear to exit the Program Edit mode. Audio CD Menu MP3/WMA Menu

3. Select a track on the “List”, then press ENTER to place the

selected track on the “Program” list. Repeat to place additional tracks on the list.

Select the track you want to start playing on the “Program” list.

5. Press PLAY(N) or ENTER to start. Playback begins in the

order in which you programmed the tracks. Playback stops after all of the tracks on the “Program” list have played once.

To resume normal playback from programmed playback, select a track of AUDIO CD (or MUSIC) list and then press PLAY(N

Repeat Programmed Tracks Press REPEAT to select a desired repeat mode.

• Track: repeats the current track

• All: repeats all the tracks on programmed list.

• Off(No display): does not play repeatedly. NOTE If you press > once during Repeat Track playback, the repeat playback cancels. Erasing a Track from Program List

1. Press PROG. and the mark will appear

2. Use vVb Bto select the track that you wish to erase from

3. Press CLEAR. Repeat step 1-3 to erase additional tracks on

the program list. Erasing the Complete Program List

1. Press PROG. and the mark will appear

2. Use vVb Bto select “Clear All”, then press ENTER.

NOTE The programs are also cleared when the power is off or the disc is removed.

appears on the TV screen.

2. Press v / V to select a folder, and press ENTER. A list of files

in the folder appears. If you are in a file list and want to return to the previous Folder list, use the v / V buttons on the remote to highlight and press ENTER.

3. If you want to view a particular file, press v / V to highlight a

file and press ENTER or PLAY(N).

4. While viewing a file, you can press STOP(x) to move to the

previous menu (PHOTO menu). TIPS

• Press MENU to move to the next page.

• There are three Slide Speed options : >>> (Fast), >> (Normal) and > (Slow). Use vVbBto highlight the . Then, use b / B to select the option you want to use.

• On a CD with MP3/WMA, JPEG and MOVIE file, you can switch MUSIC, PHOTO and MOVIE menu. Press TITLE and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted.

• While watching a picture, press RETURN to hide the help menu. Slide Show Use vVbBto highlight the (Slide Show) then press ENTER. Still Picture

1. Press PAUSE/STEP(X) during slide show.

The unit will now go into pause mode.

2. To return to the slide show, press PLAY(N) or press

PAUSE/STEP(X) again. Viewing a JPEG file32 Moving to another file Press SKIP/SEARCH (. or >) or cursor (b or B) once while viewing a picture to advance to the next or previous file. Zoom During watching pictures, press ZOOM to enlarge the image (3 steps). You can move through the zoomed picture using bBvVbuttons. Press CLEAR to exit. To rotate picture Press v / V during showing a picture to rotate the picture clock- wise or counter clockwise. To listen to MP3/WMA music while watching picture

1. Insert the disc containing the two types of file in the unit.

2. Press TITLE to display PHOTO menu.

3. Press v / V to select a photo file.

5. While viewing a file, you can press STOP(x) to move to the

previous menu (PHOTO menu). TIP To listen to only the desired music while watching picture, pro- grammed the desired files from the “MUSIC” menu and then pro- ceed as above

JPEG disc compatibility with this unit is limited as follows:

• Depending upon the size and number of JPEG files, it could take a long time for the unit to read the disc’s contents. If you don’t see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 2M pixels as 2760 x 2048 pixels and burn another disc.

• The total number of files and folders on the disc should be less than

• Some discs may be incompatible due to a different recording format or the condition of disc.

• Ensure that all the selected files have the “.jpg” extensions when copying into the CD layout.

• If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” file.

• File names without “.jpg” extension will not be able to be read by this unit. Even though the files are shown as JPEG image files in Windows Explorer. Viewing a JPEG file (continued)33 Advanced Operations This unit will play DVD-RW discs recorded using the Video Recording (VR) format.

1. Insert a disc and close the tray. The DVD-VR menu appears

and playback starts.

• This unit will play DVD-R/RW disc that is recorded using the DVD-Video format that have been finalized using a DVD-recorder. Unfinalized DVD- R/RW discs cannot be played in this unit.

• Some DVD-VR disc are made with CPRM data by DVD RECORDER. Player does not support these kinds of discs. What is ‘CPRM’? CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast programs. CPRM stands for Content Protection for Recordable Media. Playing a DVD VR format Disc34 This unit can play DivX files.

1. Insert a DivX file recorded media. The MOVIE menu appears

2. Press v / V to select a folder, and press ENTER. A list of files

in the folder appears. If you are in a file list and want to return to the Folder list, use the v / V buttons on the remote to high- light and press ENTER.

3. If you want to view a particular file, press v / V to highlight a

file and press ENTER or PLAY(N). You can use variable play- back functions. Refer to page 25-28.

4. Press STOP(x) to stop the playback. The Movie menu

appears. Notice for displaying the DivX subtitle If the subtitle does not display properly during playback, press and hold SUBTITLE about 3 seconds then press b / B to select anoth- er language code until the subtitle is displayed properly. TIPS

• Press MENU to move to the next page.

• On a CD with MP3/WMA, JPEG and MOVIE file, you can switch MUSIC, PHOTO and MOVIE menu. Press TITLE and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted.

• The disc subtitle may not be displayed properly, if a DivX subtitle is downloaded through the internet.

• If the disc subtitle setup menu does not have the DivX subtitle language you are going to play, the subtitle language may not be displayed properly.

• The DivX subtitle file name has to be identified with the DivX file name to display by this unit. Playing a DivX Movie file35 Advanced Operations DivX disc compatibility with this unit is limited as follows:

• Available resolution size of the DivX file is under 720x576 (W x H) pixel.

• The file name of the DivX subtitle is limited to 56 characters.

• If there is impossible code to express in the DivX file, it may be dis- played as " _ " mark on the display.

• If the frame rate is over 30 frames per second, this unit may not operate normally.

• If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

• If the file is recorded with GMC, the unit supports only 1-point of the record level.

GMC? GMC is the acronym for Global Motion Compensation. It is an encod- ing tool specified in MPEG4 standard. Some MPEG4 encoder, like DivX , have this option. There are different levels of GMC encoding, usually called 1-point, 2- point, or 3-point GMC. Playable DivX file ".avi ", ".mpg ", ".mpeg " Playable Subtitle format SubRip(*.srt/*.txt) SAMI(*.smi) SubStation Alpha(*.ssa/*.txt) MicroDVD(*.sub/*.txt) SubViewer 2.0(*.sub/*.txt) TMPlayer(*.txt) Dvd Subtitle System(*.txt) VobSub (*.sub) → Sub/idx, stream based format. Playable Codec format "DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ", "MP43 ", "3IVX ". Playable Audio format "Dolby Digital ", "DTS ", "PCM ", "MP3 ", "WMA ".

• Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)

• Bit rate: within 8 - 320kbps (MP3),

1. Connect the USB Flash Drive to the USB port on the unit after

The mode selection menu appears on the screen.

3. Select the USB using b / B buttons and press ENTER.

The file or folder list in USB Flash Drive appears on the screen.

4. If you want to change the other mode, select the other mode in

mode selection menu. To Remove the USB Flash Drive from the unit

1. Follow step 4 as shown above, to exit the menu.

• Do not extract the USB Flash Drive in operating.

• Music files (MP3/WMA), image files (JPEG) and DivX files can be played.

• The total number of files in a USB Flash Drive should be less than 650 files.

• Some USB Flash Drive is not supported on this unit.

• This unit supports only USB Flash Drive.

• This unit can support USB1.1. For details on each operations item, refer to relevant page. (See pages 25-35) Playing an USB Flash Drive37 Connections The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. If this occurs, position the player away from the TV, VCR, or radio, or turn off the unit after removing the disc. AV output Connections Depending on your TV and other equipment there are various ways you can connect the unit. Please refer to the manuals of your TV, stereo system or other devices as necessary for additional connection information. AV output Connections to Your TV

1. Set the Mode selection menu to “USB” or “ DISC” mode.

2. Connect the black end of supplied AV cable to the AV IN/OUT

3. Connect the yellow end of supplied AV cable to the VIDEO

Input jack on your TV.

4. Connect the red and white ends of supplied AV cable to the

AUDIO Input jacks on your TV. NOTE Make sure the DVD player is connected directly to the TV and not to a VCR, otherwise the DVD image could be distorted by the copy protection system. Setting up the Player Audio/Video cable(Supplied) Rear of TV Right side of unit38 AV input Connections Connect the input jacks (Audio/Video) on the unit to the audio/video out jacks on your external device, using audio/video cables. AV input Connections to Your unit

1. Set the Mode selection menu to “AV IN” mode.

2. Connect the black end of supplied AV cable to the AV IN/OUT

3. Connect the yellow end of supplied AV cable to the VIDEO

Output jack on your external device.

4. Connect the red and white ends of supplied AV cable to the

AUDIO Output jacks on your external device. Setting up the Player (Continued) Audio/ Video cable (Supplied) External Device Right side of unitSetting up the Player (Continued)

Connections Amplifier(Receiver)

Audio Connection to Optional Equipment Connect the unit to your optional equipment for audio output. You must set the Mode selection menu to “USB” or “ DISC” mode. Amplifier equipped with 2-channel analog stereo or Dolby Pro Logic ll / Pro Logic: Connect the AV IN/OUT jacks on the unit to the audio left and right IN jacks on your amplifier, receiver, or stereo system, using the audio cables. Amplifier equipped with 2-channel digital stereo (PCM) or audio / video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS): Connect one of the unit Coaxial jack to the corresponding in jack on youramplifier. Use an optional digital audio cable. Digital Multi-channel sound A digital multi-channel connection provides the best sound quality. For this you need a multi-channel audio / video receiver that sup- ports one or more of the audio formats supported by your unit such as MPEG 2, Dolby Digital and DTS. Check the receiver man- ual and the logos on the front of the receiver. NOTES

If the audio format of the digital output does not match the capabil- ities of your receiver, the receiver produces a strong, distorted sound or no sound at all.

• Six Channel Digital Surround Sound via a digital connection can only be obtained if your receiver is equipped with a Digital Multi- channel decoder.

• To see the audio format of the current DVD in the on-screen dis- play, press AUDIO. Coaxial cable (Not supplied)Audio/ Videocable (Supplied) and/or Right side of unit40 Troubleshooting Symptom No power. No picture on the LCD or TV (including video from another unit). No sound. The unit does not start playback. No response when but- tons are pressed. The Remote Control does not work properly. Correction

• Plug the power cord into the wall outlet securely.

• Recharge the battery.

• Connect the video cable into the jacks securely.

• Set the MODE correctly. While you are viewing video from other equipment, set the MODE to A/V IN mode.

• Select a LCD mode other than OFF.

• Select the appropriate video input mode on the TV so the picture from the unit appears on the screen.

• Select the correct input mode of the audio receiver so you can listen to the sound from the unit.

• Connect the audio cable into the jacks securely.

• Insert a playable disc. (Check the disc type and Regional code.)

• Cancel the Rating function or change the rating level.

• “ ” may appear on the screen during operation.

• Operate the Remote Control within about 23 ft (7 m). Cause

• The power cord is disconnected.

• The battery is discharged.

• The video cable is not connected securely.

• The MODE selection is not set correctly.

• LCD mode is set to OFF.

• The TV is not set to receive DVD signal output.

The equipment connected with the audio cable is not set to receive DVD signal output.

• The audio cables are not connected securely.

• An unplayable disc is inserted.

• The Rating level is set.

• Some discs prohibit certain operations.

Hungary HU India IN Indonesia ID Israel IL Italy IT Jamaica JM Japan JP Kenya KE Kuwait KW Libya LY Luxembourg LU Area Code Malaysia MY Maldives MV Mexico MX Monaco MC Mongolia MN Morocco MA Nepal NP Netherlands NL Netherlands Antilles AN New Zealand NZ Nigeria NG Norway NO Oman OM Pakistan PK Panama PA Paraguay PY Philippines PH Poland PL Portugal PT Romania RO Russian Federation RU Area Code Saudi Arabia SA Senegal SN Singapore SG Slovak Republic SK Slovenia SI South Africa ZA South Korea KR Spain ES Sri Lanka LK Sweden SE Switzerland CH Thailand TH Turkey TR Uganda UG Ukraine UA United States US Uruguay UY Uzbekistan UZ Vietnam VN Zimbabwe ZW43 Reference General Power supply: DC 9.5V (AC adapter terminal), DC 7.4V (Battery) Power consumption: 12W with battery Net Weight: 1.87 lbs (0.85 kg) (without battery pack) External dimensions (W x D x H):

Earphone terminal: ø3.5mm stereo mini jack x 2 Liquid Crystal Display Panel size: 8 inches wide (diagonal) Projection system: R.G.B. stripe Driving system: TFT active matrix Resolution: 800 x 480 x 3 (effective pixel rate: more than 99.99%) Accessories
