Product type	Electric breast pump
Brand	Neno
Model	Angelo
Dimensions	82 x 67 x 64 mm
Weight	392 g
Power supply	110-240 V, 50-60 Hz; output 5 V, 1 A
Battery	Li-ion 3.7 V, 1400 mAh, rechargeable via USB
Battery life	Approximately 30 minutes per full charge (2 hours charging)
Operating modes	Stimulation, Expression, Relaxation
Suction levels	9 levels per mode (from L1 to L9, pressure from 6 to 46 kPa depending on mode)
Features	Built-in timer, automatic shutdown after 30 min, memory settings, adjustable backlight
Kit contents	Breast pump, breast shield, connector, suction cup, valve, milk bottle, teat, cap, USB cable
Materials	Silicone (shield, valve, membrane), ABS plastic, glass or plastic for bottle
Care and cleaning	Clean after each use, disinfect once a day; detachable parts washable by hand or in dishwasher (top rack)
Consumable parts	Membrane (every 8 weeks), valve (every 2-3 months), teat (every 6 months), tubing (if damaged)
Safety	Do not use during pregnancy; keep away from children; do not repair yourself; stop if pain occurs
Warranty	24 months (excluding consumable parts)
Repairability	Not user serviceable (warranty void); spare parts available

Frequently Asked Questions - Angelo Neno

How to use the Neno Angelo breast pump for the first time?

Before first use, charge the device for 2 hours via the USB cable. Then, clean and disinfect all parts that come into contact with milk (bottle, teat, valve, membrane). Assemble the breast pump as indicated in the manual (Fig. C) and start with stimulation mode.

What are the different modes available and what are they for?

The device offers three modes: Stimulation (rapid pumping to trigger milk flow), Expression (slower movements to extract milk), and Relaxation (imitates baby's sucking to completely empty the breast). Stimulation mode automatically switches to Expression mode after 2 minutes.

How to adjust the suction power?

Use the + and - buttons on the control panel to increase or decrease suction. There are 9 levels (L1 to L9) in each mode. Start at a low level and gradually increase until you feel slight discomfort (not pain), then reduce by one level.

What to do if suction is weak or absent?

Check that all parts are correctly assembled and that the parts (valve, membrane) are clean and undamaged. Disassemble and reassemble the device following the assembly instructions. If the problem persists, replace the consumable parts.

How to clean and disinfect the breast pump?

After each use, clean all parts that come into contact with milk with hot soapy water. Once a day, disinfect them by boiling, steaming, or using a sterilizer. Do not use abrasive cleaners. Allow to dry completely before reassembling.

When should the membrane and valve be replaced?

Replace the membrane every 8 weeks (or 3-4 weeks if used more than 3 times/day). Replace the valve every 2-3 months (or 4 weeks with intensive use). The teat should be changed every 6 months. Regularly check for cracks or deformations.

The breast pump turns off by itself after a while, is that normal?

Yes, the device has a built-in timer and automatically shuts off after 30 minutes of use for safety reasons. You can turn it back on if needed.

Can I use the breast pump during pregnancy?

No, it is strictly not recommended to use the breast pump during pregnancy as it may cause premature labor. Use it only after birth.

How to charge the battery and how long does it last?

Plug the provided USB cable into a 5V/1A power source. Full charge takes about 2 hours. The battery provides approximately 30 minutes of continuous use. The battery icon on the screen indicates the remaining level.

What to do if milk has overflowed from the bottle?

Turn off and unplug the device immediately. Wipe the breast pump with a damp cloth (not wet), then dry all parts before reassembling. Use a larger capacity bottle if necessary.

USER MANUAL Angelo Neno

Close-up of a baby pump device with a transparent plastic cover and brand logo (no visible text or symbols on the device itself)

Table of contents

Spis treści

5 Instrukcja obsługi
10 User manual
15 Bedienungsanleitung
20 Manuel de l'utilisateur
26 Návod k použití
31 Používatel'ská príručka
36 Használati utasítás
41 Användarhandbok
46 Käyttäjän käsikirja
51 Brukerhåndbok
56 Brugermanual
61 Gebruikershandleiding
66 Manual del usuario
72 Manuale utente
77 Manual de utilizare

A

Labeled diagram of a cleaning or packaging device with numbered parts for identification

B

1 2 3 4 5 6 7 8

C

Diagram showing a sequence of cleaning steps for a baby bottle, labeled with numbered arrows.

D

Pure technical line drawing of a symmetrical mechanical component without any text or symbols

Line drawing of a hand holding a bottle, partially enclosed in a square frame (no text or symbols)

Simple line drawing of a circular device with internal components and no text or symbols

Simple line drawing of a bottle with a funnel and cap (no text or symbols)

E

INSTRUKCJA OBSŁUGI

Szanowny Kliencie,

Thank you for buying the electronic breast pump Neno Angelo. Please refer to the user manual before use.

01. SAFETY

1. Do not use the breast pump during pregnancy – it can cause preterm birth.
2. Do not use the pump if you suffer from chronic diseases or hypersensitivity, which could make it painful for you to use.
3. Before each use make sure that no part of the breast pump is damaged. Do not use the device if any of its elements are visibly damaged.
4. Keep the pump out of reach of children and animals.
5. Due to hygienic reasons, only one person should use breast pump.
6. Keep the pump elements away from running water.
7. Avoid exposing the device to mechanical damage caused by, for example, dropping it.
8. Keep the silicone parts away from hot surfaces, to avoid deformation of the material.
9. Before storing the expressed milk make sure to clean and sterilize the breast pump each time.
10. Do not clean the device with abrasive cleaners.
11. Do not try to repair the breast pump yourself, it will cause loss of warranty.
12. If the breast pump causes you pain and discomfort during use, turn it off and move it away from your breast.
13. Do not plug the device into a voltage higher than stated in the specification.

02. CHARGING

Charge the breast pump 2 hours before first use. To charge, connect the pump to the output with the USB cable. The battery icon on the display will appear full when charging is complete.

03. DESCRIPTION OF MODES

Stimulation mode:

L1 – 6 kPa; L2 – 13 kPa; L3 – 18 kPa; L4 – 22 kPa ; L5 – 24 kPa ; L6 – 29 kPa; L7 – 31 kPa; L8 – 34 kPa ; L9 – 36 kPa ;

Expression mode:

L1 – 22 kPa; L2 – 26 kPa; L3 – 28 kPa; L4 – 31 kPa ; L5 – 33 kPa ; L6 – 38 kPa ; L7 – 40 kPa; L8 – 43 kPa; L9 – 46 kPa;

Let-down mode:

L1 fast - 14 kPa; L1 slow - 22 kPa ; L2 fast - 14 kPa ; L2 slow - 24 kPa ; L3 fast - 14 kPa; L3 slow - 28 kPa ; L4 fast - 14 kPa; L4 slow - 30 kPa; L5 fast - 14 kPa; L5 slow - 33 kPa; L6 fast - 14 kPa; L6 slow - 38 kPa; L7 fast - 14 kPa; L7 slow - 40 kPa ; L8 fast - 14 kPa; L8 slow - 43 kPa ; L9 fast - 14 kPa ; L9 slow - 46 kPa ;

Permissible difference ±5 Kpa.

04. ELEMENTS

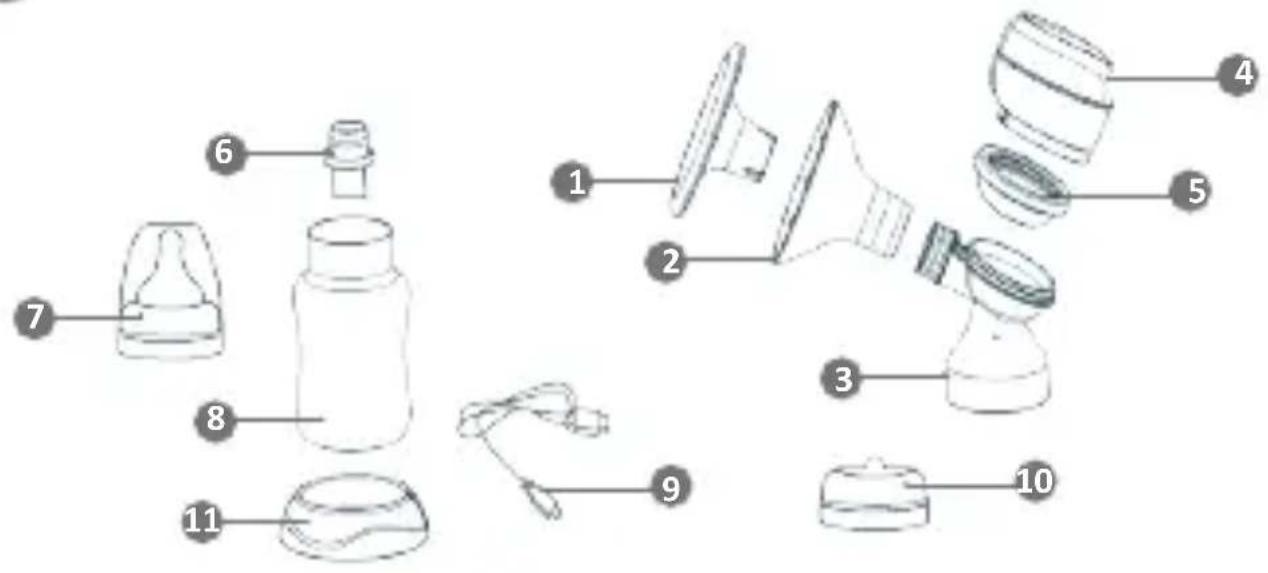

SEE FIG. A

1. Cap
2. Breast shield
3. Connector
4. Pumping device
5. Suction Bowl
6. Valve
7. Milk bottle
8. Set with bottle teat
9. Charging Cable
10. Bottle lid

05. DESCRIPTION OF ICONS AND BUTTONS

1. Power button:

Press and hold the button for 2 seconds to turn the device on or off.

2. Mode change:

To change modes press the button SEE FIG. E. The device will automatically switch from stimulation to expression mode after 2 minutes. Additionally, the breast pump saves previous settings and is equipped with a timer. After turning on the device, the last used settings will appear. The device will automatically turn off after 30 minutes of use.

3. Suction power:

To increase the suction power, press the + button on the panel; to decrease the suction power, press the - button on the panel (Stimulation mode: L1-L9;

Expression mode: L1-L9; let-down mode L1-L9)

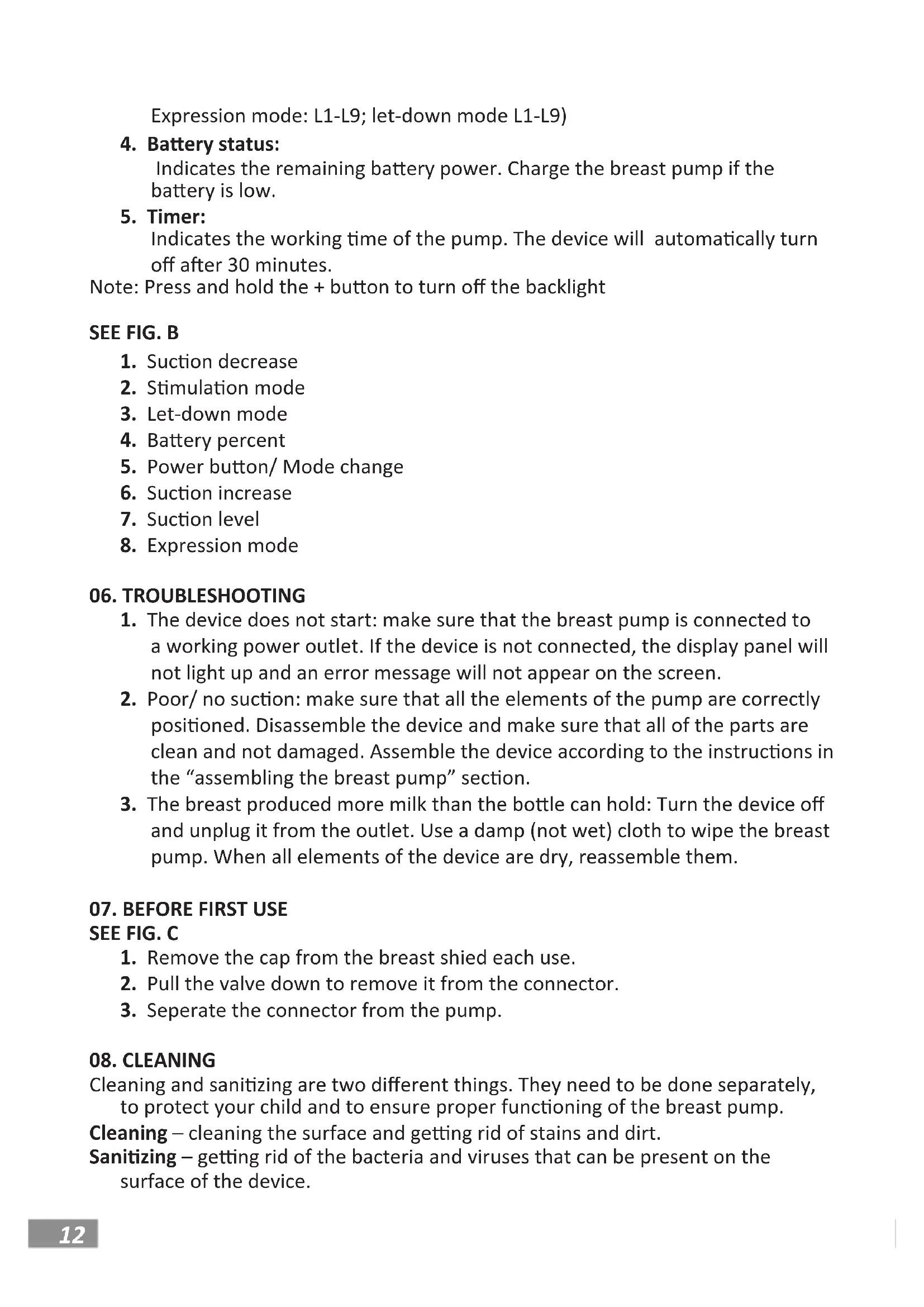

4. Battery status:

Indicates the remaining battery power. Charge the breast pump if the battery is low.

5. Timer:

Indicates the working time of the pump. The device will automatically turn off after 30 minutes.

Note: Press and hold the + button to turn off the backlight

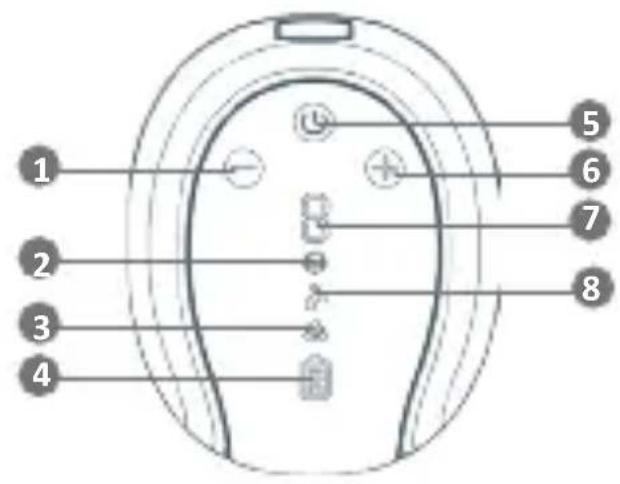

SEE FIG. B

1. Suction decrease
2. Stimulation mode
3. Let-down mode
4. Battery percent
5. Power button/ Mode change
6. Suction increase
7. Suction level
8. Expression mode

06. TROUBLESHOOTING

1. The device does not start: make sure that the breast pump is connected to a working power outlet. If the device is not connected, the display panel will not light up and an error message will not appear on the screen.
2. Poor/ no suction: make sure that all the elements of the pump are correctly positioned. Disassemble the device and make sure that all of the parts are clean and not damaged. Assemble the device according to the instructions in the “assembling the breast pump” section.
3. The breast produced more milk than the bottle can hold: Turn the device off and unplug it from the outlet. Use a damp (not wet) cloth to wipe the breast pump. When all elements of the device are dry, reassemble them.

07. BEFORE FIRST USE

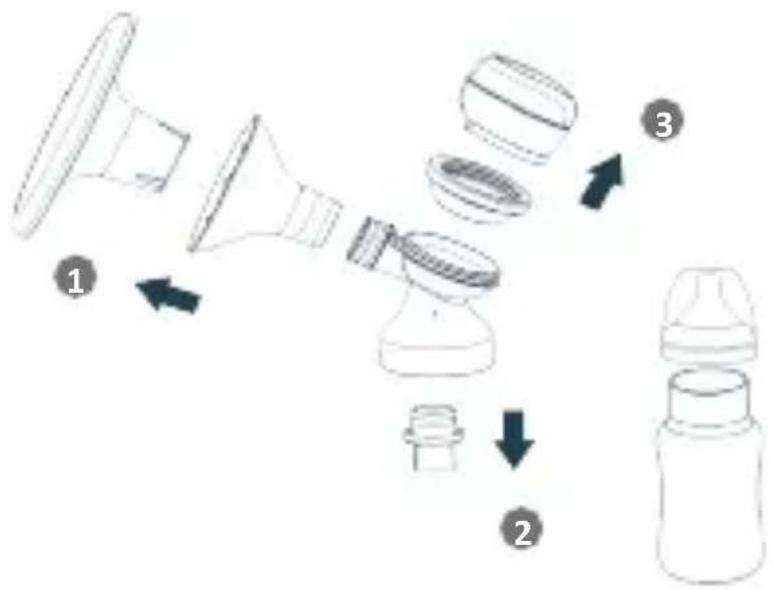

SEE FIG. C

1. Remove the cap from the breast shied each use.
2. Pull the valve down to remove it from the connector.
3. Seperate the connector from the pump.

08. CLEANING

Cleaning and sanitizing are two different things. They need to be done separately, to protect your child and to ensure proper functioning of the breast pump.

Cleaning – cleaning the surface and getting rid of stains and dirt.

Sanitizing – getting rid of the bacteria and viruses that can be present on the surface of the device.

	Breast shield Breast pump elements (connector, suction cap, suction bowl)	The bottle and teat
Before first use Cleaning and sanitizing	Cleaning and sanitizing	Cleaning and sanitizing
After each use Cleaning Cleaning	Cleaning
Once a day Sanitizing Sanitizing Sanitizing

09. REPLACEMENT OF CONSUMABLE PARTS

Consumable parts are subject to natural wear and tear during use of the breast-pump and are therefore not covered by the manufacturer's warranty.

Worn parts of the breastpump that come into contact with milk should be replaced. A worn part has a crack, is deformed, or you notice discolouration or a marked change in colour.

a. Replace the membrane every 8 weeks (if you use the breastpump 1-3 times a day) or every 3-4 weeks (if you use the breastpump more than 3 times a day).
b. Replace the valve every 2-3 months (if you use the breastpump 1-3 times a day) or every 4 weeks (if you use it more than 3 times a day).
c. The breastshield should be replaced every 6 months if you use the breastpump more than 3 times a day.
d. Replace the tube only if moisture gets into the tube or if it is damaged.

10. ASSEMBLING THE BREAST PUMP

1. Wash your hands thoroughly with water and soap before touching the breast and the breast pump.
2. Connect the breast shield, suction bowl and suction cap to the connector.
3. Connect the breast shield to the connector.
4. Connect the valve to the connector.
5. Place the valve in the connector and screw the milk bottle onto the connector by turning it clockwise until it sits tightly in place.

Tips:

a. Before each use, check the parts of the breast pump for damage. If any of the parts appear to be damaged, replace them with new ones.
b. Before each use, check if all the parts of the device are clean.
c. To avoid damaging the breast pump, make sure that all its elements are dry before use.

11. LONG-TERM STORAGE

1. The breast pump has a built-in battery accumulator. To save the accumulator from damage, the device switches into a storage mode after a long period of

inactivity. To turn the storage mode off, plug the device into a power outlet and charge it for 2 hours.

1. Before you put the breast pump away for a long time, make sure that:

a. All components of the breast pump are clean.

b. The pumping device is clean.

c. The battery is fully charged.

12. USING THE BREAST PUMP

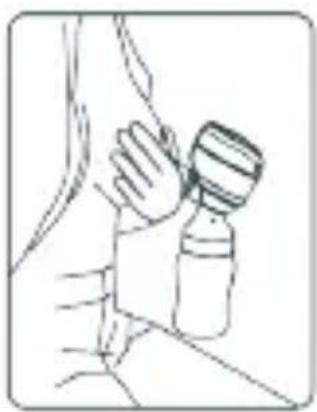

SEE FIG. D

1. Place the breast shield on the breast so that the nipple is inside the drain canal.
2. Use your thumb and index finger to press the breast shield onto your breast. Support your breast with your hand.
3. Turn on the breast pump by pressing the power button and select a mode on the display.
4. After use, press the power button to turn off the breast pump and place a lid on the breast shield to keep it from accumulating dust.

a. The breast pump starts work in the stimulation mode. Set a comfortable suction level for you, using the +/- buttons Stimulation mode – fast pumping that mimics the natural sucking motion of a child and stimulates the milk flow.

b. After 2 minutes, the breast pump will automatically switch to the expression mode. Set the highest most comfortable suction level for you using the +/- buttons. If the milk begins to ?ow out of your breast before 2 minutes pass, press the change mode button to switch to manual milk expression.

Expression mode – slower pump motions that gently suck the milk out of the breast.

c. When using the expression mode, increase the sucking power until you feel a slight discomfort (not pain) and lower the suction power by one level.

The let down – mode mimics the same sucking pattern of baby by programing the suction speed and strength of suction. It can be used after expression mode to help mothers to empty the breast and increase your milk supply.

13. SPECIFICATION

Input power: 110-240V 50-60Hz

Output power: 5V 1A

Battery: 3.7 1400mAh Li-ion

Pump size: 82x67x64mm

Weight: 392g

14. WARRANTY CARD

The product is covered by a 24-month warranty.

The terms of the guarantee can be found at: https://neno.pl/warranty

Details, contact and website address can be found at: https://neno.pl/kontakt

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.

DE

BEDIENUNGSANLEITUNG

https://neno.pl/warranty

06. PROBLEEMOPLOSSING

Producent/Manufacturer:

KGK TREND Sp. z o.o.

(dawniej/ formerly

KGK Trade Sp. z o.o. Sp. K.)

ul. Ujastek 5b,

31-752 Kraków, Polska

Made in PRC
