Product Type	Tri-band AX7800 WiFi Router
Dimensions	220 x 135 x 45 mm
Weight	480 g
Power Supply	12 V, 3 A power adapter (max 36 W)
WiFi Standards	IEEE 802.11a/b/g/n/ac/ax (tri-band: 2.4 GHz, 5 GHz-1, 5 GHz-2)
Maximum Data Rate	Up to 7800 Mbit/s (tri-band)
Ports	1 x WAN 2.5 Gbit/s, 3 x LAN Gigabit, 1 x USB 3.2 Gen 1x1
Main Features	AiMesh (mesh), AiProtection, QoS, VPN Fusion, parental controls, media server, DDNS, firewall, URL/keyword filtering
Management	Web interface (http://expertwifi.net), ASUS Router app
Operating Temperature	0 °C to 40 °C
Operating Humidity	50 to 90%
Care and Cleaning	Clean with a soft, dry cloth. Do not use chemicals or abrasives.
Safety	Do not expose to water, do not open the case, use only the provided adapter. Keep away from heat sources.
Spare Parts and Repairability	Included parts: power adapter, RJ45 cable, wall mounting kit. Not user serviceable, contact ASUS support.
General Information	Brand: ASUS, Model: ExpertWiFi EBM68, Warranty: varies by country (see warranty card)

Frequently Asked Questions - ExpertWiFi EBM68 ASUS

How to reset the router to factory settings?

Go to Settings > Administration > Restore/Save/Upload Settings and click Restore. You can also press and hold the Reset button on the back for 5 seconds.

What are the default username and password to access the management interface?

The default username and password are both admin (lowercase). The login username and password are different from the WiFi SSID and security key.

How to configure the router for the first time?

Plug in the router, connect it to your modem via the WAN port, then open a browser and go to http://expertwifi.net. Follow the setup wizard which will automatically detect your connection type (DHCP, PPPoE, static IP).

What should I do if I cannot access the Internet?

Check that the WAN cable is properly connected and the WAN LED is on. Restart the modem and router. If the problem persists, check WAN settings in Settings > WAN > Internet Connection. Contact your ISP if needed.

How to update the router firmware?

Download the latest firmware from the ASUS website (asus.com). Log into the interface, go to Settings > Administration > Firmware Update, click Browse to select the file, then Upload. The router will reboot automatically.

How to set up a guest WiFi network?

In the interface, go to Self-Defined Network > Guest Network. Enable it and configure the network name (SSID) and security. You can also set a limited access duration (30 min, 1 hr, etc.).

The 5 GHz WiFi does not appear on my device, what should I do?

Make sure your device supports the 5 GHz band (802.11a/n/ac/ax standard). Check in the router's WiFi settings that the 5 GHz band is enabled and the SSID is not hidden. Try changing the channel in Settings > Wireless > General.

How to set up a VPN server on the router?

Go to VPN Server and choose the type (PPTP, OpenVPN, IPSec or WireGuard). Enable the server and add user accounts with username and password. You can also use VPN Fusion to connect multiple clients to different tunnels.

How to use the AiMesh feature?

Make sure you have at least two compatible ASUS routers. On the main router, go to AiMesh > Topology and click Add Node. Follow the instructions to connect the second router (via WiFi or Ethernet cable). The mesh network optimizes automatically.

What should I do if I forgot the WiFi password or SSID?

Log into the management interface via an Ethernet cable (default address: 192.168.50.1). Go to Dashboard, click the router icon, then change the SSID and security key. You can also reset the router to factory settings (see question 1).

USER MANUAL ExpertWiFi EBM68 ASUS

Line drawing of a generic electronic device labeled 'ASUS' with no additional text or symbols

F22959

Première Édition

Décembre 2023

3.1 Service Adaptive QoS....20

3.2 Administration....23

3.14 Applications USB....60

3.17.2 Dual WAN (Double WAN)....80

3.18.3 Pontage WDS....95

Diagram of a network device rear panel with labeled ports and connection points

Front view of a rectangular electronic device labeled 'ASUS' at the bottom (no additional text or symbols visible)

1.5 Pré-requis

Diagram of two ASUS devices connected via dotted lines to a globe and power outlet (no text or symbols)

Welcome to ExpertWiFi EBM68 Cinder & New Network advanced@dbias

REMARQUES:

ASUS | BUSINESS Internet Connection type Please select the Internet connection type from the options below. If you do not know the Internet connection type, contact your ISP. Automatic IP > PPPoE > Static IP > DHCP Option Private

ASUS : BUSINESS Internet ISP Account Setting Enter the username and password for your Internet connection information. These settings were given by your Internet Service Provider (ISP). Username: Password Previous Next

/ISUB | BUSINESS > Internet Static IP Your ISP should give you the information about IP, subnet mask, gateway, and DNS address. If not, please contact your ISP. IP Address 192.168.1.215 Subnet Mask 255.255.255.0 Default Gateway 192.168.1.1 DNS Server1 192.168.1.1 DNS Server2 Previous Next

REMARQUES:

3.1 Service Adaptive QoS

Quality of Service (QoS) ensures bandwidth for prioritized tasks and applications. Adaptive QoS ensures industrial and outdoor bandwidth on both wind and worker connections for prioritized applications and tasks via pre-defined, drag-and-drop prompts gaming, media streaming, Vash web surfing and file transferring. Traditional QoS areas include robust and robust/hardware on back wireless and wireless connections for prioritized applications and help via manual user-refining/gamsters. Bluetooth Linker links you to test links on broadband and audio signals. To make QoS functions, click the QoS while switch and kill in the upload and download. OSSCAD In-line Grid Installing Grid may take email minutes. Grid Type R Adaptive Grid: Traditional Grid: Bandwidth printer Bandwidth Setting R Automatic Setting: 13 Manual Setting Select a mode that best save your current network usage, or customs a menu. Games Media Streaming Web Surfing Layers-Form-Home Work-Form-Home Customize Apply

UHS History where clients UHS Surfing History UHS URL: All clients Access Site MAC Address / Client Name Domain name Clear Refresh Export

3.1.4 Vitesse internet

Internet Speed This service is provided by Outfall. It detects the download and upload speed from your motor to the Internet. This test takes approximately one minute to complete. By using this service, you agree to order purchase website. 2023/106 16:55 Chunghwa Mobile Monthly Testing Download 94.46 Upload 94.78 Mega Log 下载 Add History Time Download [ Mbps ] Upload [ Mio ] Feng [ m ] Add [ Pkt ] No Test Results.

3.2 Administration

Expert/AM EMMB supports several operation modes to meet different requirements. Please select the mode that match your situation.

- Wireless router mode / AI/Mesh Router mode (Default)

Access Print(AP) mode / AiMesh Router in AP mode

© AIMesh Node

AtMesh router mode is a traditional mode with AtMesh functionality, which connects to the Internet via PPPGE, DHCP, PPPT, LTR or SDK, IP and switches the wireless network to LAN clients or devices. In this mode, NAT, FWD, and DHCP server are enabled by default. UPVP and Dynamic DNS are supported for SOHO and home assets. Select this mode if you are a first-time use or you are not currently using any wired/wireless routers.

You can add AI Mesh nodes to form an AI Mesh WiFi system to provide extra WiFi coverage.

Save

Table: 1. The latest software version includes updates from the process version. 2. Configuration parameters will keep their settings during the hardware security upgrade process. 3. In case the upgrade process fails, [openVISA] (580000) then the emergency mode automatically. The (3D) signals at the front of [openVISA] (580000) will indicate such a situation. Please visit NVIDIA i360000 Center to download NVIDIA i360000. I have been updated. Check on (i360000) for more information. 4. Get the latest software version from the NVIDIA i360000 5. Regarding data collection by firmware/security upgrades, please refer to "IASUS PRIVATE" NETICO (for firmware/security upgrades) or "Administration = Privacy" page. Auto-Dynamic Upgrade Auto-Dynamic Upgrade Automatically install system updates within (after they have been downloaded). Some updates addressing important security needs or maintaining equal regulatory requirements on off for downloaded and immediate automaticity, yet if "IASUS PRIVATE" is highlighted. Security upgrade Security Upgrade Security upgrade improves security measures that currently update its security file and scans to protect against reliable, multi-contents, and emerging threats in order to secure the user and ensure system quality. Note: Updates addressing important security issues or meeting legal regulations requirements will be downloaded and installed automatically, even if "Security upgrade" is turned off. Hardware Version C:\WINDOWS\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\Windows\Microsoft\ Windows Server Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: w12345729999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999 88 Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: www.i36012222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222 88 Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: [e-mail] Copyright: www.i3sxtv.com Copyright: www.i3sxtv.com

This function allows you to save current settings of ExperTMH: EBITM to a file, or load settings from a file. Factory default: Restore Initialize all the settings, and clear all the data log for AIProtection, Traffic Analysis, and Web History. Save setting: Save setting Click on this checkbox if you want to share the config file for debugging. Since the original passwords in the config file will be removed, please do not import the file into your router. Restore setting: Upload

3.2.5 Feedback (Commentaires)

We enhance your authentication, comments, suggestions and better help about iOS products. Key Region: Your local Address * Key Information to usings? System Log Setting: Digital Log Staff Log Active subuser Properties New Date: My own device Network Provider type: Please select... Network Provider Information: Select Community Settings * In Section of Data Collection - Change from Web • Agency product the data information (the code only). From new version of my iOS model, between media (MACS) and other internet access, mode system information; this line is custom for the Facebook format to adopt or diagnose and improve problems of my iOS model and to analyze its usage for the purpose of desktop network and installation of new details with services (AMD), and also applies to the ADS (Facebook) logo. Help • Make how any questionnaire in any's people named local technical support. (Shen China Life Insurance Co., Ltd.)

AlProtection Network Protection with Trend Micro protocols against network registry to secure your network from unvlaid access. AlProtection UNO Router Security Assessment Notious line blocking Pass to access to block manual protection to protect your network from chains, phishing, spms, attack, hosting, and unrevenance attacks. Two little IPs The Two-Italy simulation Prevention System protects any device connected to the network from span or 200x attacks. Tailed blocks manualising packets protect your router from network vulnerability activity, such as thresholded reimbursed, attack mining, and reactivities. Additionally, two little IPs detect suppression outgusting packets from infected devices and include bad attack attacks. Infected Device Prevention and Blocking This feature prevents infected devices from having endowed by bitmets or surable attacks which might deal your personal information or attack other devices.

AiProtection AIPROTECTION Network Protection with Trend Micro protects against network exploits to secure your network from unwanted access. AiProtection FAQ Router Security Assessment Malicious Sites Blocking Restrict access to known malicious websites to protect your network from malware, phishing, spam, adware, hacking, and ransomware attacks. Two-Way IPS The Two-Way Intrusion Prevention System protects any device connected to the network from spam or ODoS attacks. It also blocks malicious incoming packets to protect your router from network vulnerability attacks, such as Shellshocked, Heartbleed, Bitcoin mining, and ransomware. Additionally, Two-Way IPS detects suspicious outgoing packets from infected devices and avoids botnet attacks. Infected Device Prevention and Blocking This feature prevents infected devices from being enslaved by botnets or zombie attacks which might steal your personal information or attack other devices.

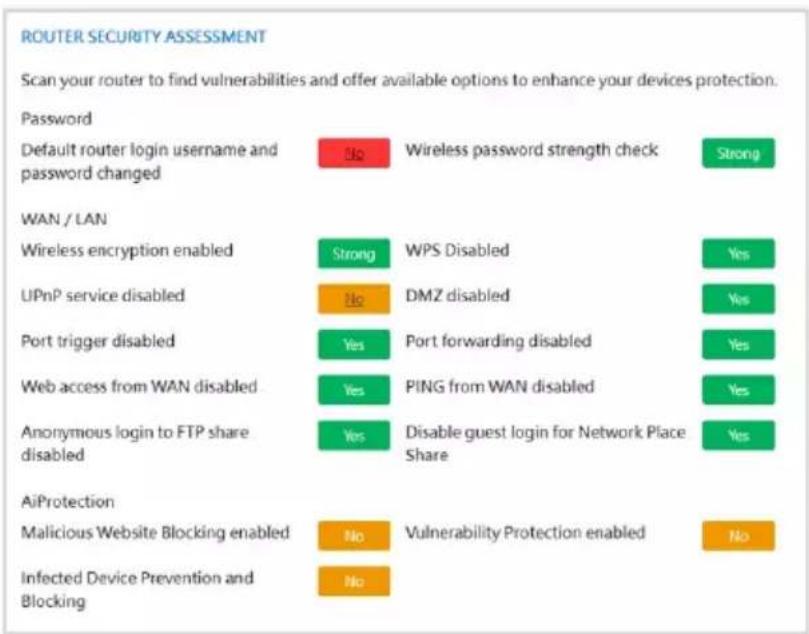

ROUTER SECURITY ASSESSMENT Scan your router to find vulnerabilities and offer available options to enhance your devices protection. Password Default router login username and password changed No Wireless password strength check Strong WAN / LAN Wireless encryption enabled Strong WPS Disabled Yes UPnP service disabled No DMZ disabled Yes Port trigger disabled Yes Port forwarding disabled Yes Web access from WAN disabled Yes PING from WAN disabled Yes Anonymous login to FTP share disabled Yes Disable guest login for Network Place Share Yes AiProtection Malicious Website Blocking enabled No Vulnerability Protection enabled No Infected Device Prevention and Blocking No

MAGLICIOUS SITES BLOCKING Security Event 0 Inaction SOURCE COUNT No Event Detected

TWO WITH IRS SOPINITY EVENT 0 POTRCTION SOURCE COUNT No Event Detected

INFECTED DEVICE PREVENTION AND BLOCKING Security Event 0 Prelution SOURCE COUNT No Event Detected

3.5 Tableau de bord

Web & App Filter allows you to block access to unwanted websites and apps. To use web & app Filters: 1. Is the [Clients Name] column, select the client whose network usage you want to control. The client name can be modified in networking or app files. 2. Check the unwanted content categories. 3. Click the shot (I) lock to add note then click apply. If you want to double the first temporarily and check the check box in front of note. Web & App Filters Client List (Max User) 66 Client Name (MAC Address) Content Category Add / Delete Adult Edit details from content to prevent children from calling sites that correct material of a new user and map version. Instant Message and Communication Create user link with or complete or messaging apps to prevent content from beginning, standard to social networking sites. POP and File Transfer Do blocking POP and File Thethering you can make sure new networks has a better quality of take excessive. Screening and Entertainment Do blocking streaming and entertainment currently you can and the linking into client space allows. No data at 00:00 Apply TREND WATER

By enabling BlockAll Devices, all of the connected devices will be blocked from Internet access. Enable block all devices This feature allows you to set up a scheduled line for specific devices' Internet access. 1. In [Client Name] column, select a device you would like to manage. You can also manually key in MAC address in this column. 2. In the [Add / Delete] columns, click the plus() scope to add the client. 3. In (Time Management) column, click the add icon to add a schedule. 4. Click [Apply] to save the configurations. Enable Time Scheduling System Time Fri, Oct 06 14:42:29 2023 Client Unit (Max User : M) Select all Time Client Name (MAC Address) Time Management Add / Delete No data to tests Apply

3.7 Pare-feu

Enable the telegrams protect your local-new network against attacks from factors, the firewall filters the recommended outgoing packets based on the filter rules. 001.20163598-001 Email Format: @ Tce: 01%o Enable Call extension: @ Tce: 01%o Logget packet type: Home ✓ Respond Call Info single request from NAM: @ Tce: 01%o Basic Config Enable Full download Email size: @ Tce: 01%o Inbound Firewall Bits (Main Limit - 01&) Source ID: Port Range: Protocol: Auto Create No Direction Data Mail (Through) All outbound traffic cooling files that happy on your sales is allowed, as well as closed in order traffic, any other inbound traffic plus the specifically allowed here. You can have the service or file to allow traffic from any sample float, a subset car also be specified, (2001)111112122010704 For each type Basic Config Enable Full Linkset: @ Tce: 01%o Service Server List: Please select ✓ Inbound Firewall Bits (Main Limit - 01&) Service Name: Rengay b/CDD: Layer ID: Port Range: Protocol: Auto Create TCP ✓ ①

Help in the keyword for the input that you want to add. For example, enter "100" as the list. The URL files will block the https://onation.000.com, https://onon.000.com/sen.com/sen.com. SaaS Config Enable URL File Enabled - PC Enabled File Table Type Empty List URL File 12.5 (File Edit - No) URL Files List Auto Create No other items Apply

Keyword Filter allows you to block the clients' access to outgoing packets containing the specified keywords. Limitations of the following functions: 1. Compressed outgoing traffic and FTP transmission technology cannot be filtered, low fees, free sales, etc. 2. Mbps outpages cannot be filtered. Basic Certifying: Exclude Sequence Filter Obstacles With Closed Received Filter not (this label is 14) Password Filter unit Auto Delete To Data transfer Apply

The Network Service Provider (Nexx Ltd) will provide packet streamers and send to these devices using specific network services. Cut examples. If you cannot want the device to cover the Internet services, Eays on 30 or the destination port. The traffic that uses port 50 will be blocked but https can not be blocked. Leave the source IP field location to apply this link to all LARs. Deep List Instances During the scheduled duration, clients in the Deep List current access via the specified network service. After the specified duration, all clients in LARs are access the specified network services. Above LARs: During the scheduled duration, clients in the Above LARs ONCF use the specified network. NOTES: If you are allowed for the Nexx Ltd's website available then request will be able to access the Internet or any Internet service. Network service provider Enable Network Service Provider □ Log □ No. Client table type Deep List User - Cnsp Applications Open (Defined) Close as Connection User or client filter D User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ User □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use □ Use \nClose as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection User or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Close as Connection Users or client filter Nexx Ltd. Nominee Delivery Tools (After Model - 10) Server IP Full Range Destination IP Full Range Protocol Just : Delete To down if below Apply

3.8 IPv6 (Protocole IPv6)

Configure the LAN routing of ExpertWRF ESMAG Host Name ExpertWRF_ESMAG-DCDD ExpertWRF ESMAG's Domain Name: IP Address: 192.169.50.1 Subnet Mask 335.255.253.0 Apply

DNC System Load Configuration Products is protected to the automatic configuration used in networks. The DNC serve can assign each client as if address and/or other the client of the DNC serve if and default gateway is superior. Moreover supports up to 30% address by your requirements. MISCELL ALABE OF WORK THE MSCI-150 Menu Security Enable the DNC serve: 90000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Use CPU (26.82%) Control Settings If Top Setting Address: 927463632 If Next Setting Address: 9274636334 Last Next Generation: 95445 Next Generation: 95445 CPU and MSCI Server Settings CPU Server 1: 1 CPU Server 2: 1 After Set Method I: 1 additional from data set 193 Word Server: 1 Manual Assignment Device Manual Assignment name: C:\Users\Top Minorly Assigned IP: Invest the MSCI for User Model (193) Cased serve (26.82%) : 1 / Process: 26.82 Server (Application) Final serve (Application) : Local Center for 16.82.16.22.23 ✓

This function allows you to add reading rules into ExportWIFI (EMRIS). It is useful if you connect several readers (booked ExportWIFI EMRIS to share the same connection to the Internet. Bank Config Enable static routes Yes No State Review List (Max Limit : 30) Network Host IP Network mask Gateway Email MyData Add / Delete No. Date in Table Apply

To watch IPTV, the WAN port must be connected to the Internet. Please go to WAN - Dual WAN to confirm that WAN port is assigned to primary WANL LAN Port Select ISP Profile None Choose IPTV STI Port None Special Applications Use DHCP routes Microsoft Enable multicast routing Disable UDP New/Usedo 0 Apply

Setting ExportMIFI EBIT/68 switch control Jumbo Frame Enable Bonding/ Link aggregation Enable Enable Bonding (BCC3a) support for your wired client and then connect it to your Router's LAN5 and LAN2 port. Apply

3.9.6 VLAN

VLAN Profile VLAN Profile here refers to create a VLAN only network. If you want to create VLAN with DHCP please go to Self-defined network. Profile List Network Name (SSO) VLAN ID Port isolation Add /Delete

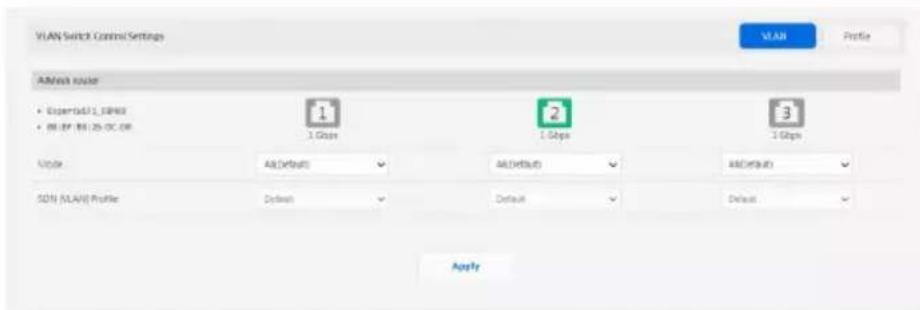

VLAN Switch Control Settings VLAN Profile Address route • EspecialD1_SP60 • MELF 88.25-0C-0B 1 GHz 2 3 U/die A(A(Default) A(A(Default) A(A(Default) SOS (MLAV) Profile Default Default Default Apply

CHOOSE A DEFINED NETWORK Employees Set up safe and secure network Guest Portal Create captive portal for digital marketing. Guest Network Provide scheduled or one time access network... Scheduled Network Plan the daily or weekly online time for wireless network. IoT Network Easily separate a network for your IoT devices VPN Network Establish a secure internet connection Scenarios Explorer Customized Network

3.11.1 Employé

Employee Network Name (SSID) Security Password RADIUS Setting Authentication Method WPA2-Personal Wireless Security More Config Apply

Guest Portal Network Name (SSVD) Portal Type Free WiFi Brand Name Brand Name Welcome to our WiFi service (the "Service"). By accessing and using this Service, you represent and acknowledge that you are of legal age, and you have I have read and agree to the Team of Service Continue More Config Apply

VPN Network Network Name (SGIC) Wireless Security VPN VPN CLIENT There is no VPN profile now: Click [Go Setting] below to VPN setting page and create Go Setting → VPN SERVER WireGuard VPN Go Setting → More Config Apply

Customized Network Network Name (SSID) Wireless Security More Config Apply

3.14 Applications USB

Set this account and permission of artwork phantyming net us Note (If you want using Windows 10. Use this Web is available to Web-1. Client to ensure you choose access to filter stored within the networks. Create Direct User group type Customs your password in necessary setting or network packet format Device name: Control wifi_2008-0133 Add Group: WORKGROUP Maximum number of document connections: 0 Apply http://www.wpt.org/10.0.19 Export WiFi 00063 R/N R No None

Get the account and permission of FTP services. Username: 2001 My name: https://www.10.10/10.10/10.10/ <|vision_start|> user account Copyright: https://www.10.10/10.10/10.10/ Connect to: http://www.10.10/10.10/10.10/ Maximum number of concurrent connections: 5 Description set on FTP Group: LPTG Apply Export: 2001 E8968 A/70 M S No Save

The network printer server supported methods (L) AUS/ET printer sharing (L) LPR in play printer AUS/ET printer sharing (Windows NT only) (N) Use LPR to access the sharing platform (AC) (Windows) Use LPR to access the sharing platform (AC) (MAC) http://www.p58.net Download Status

ASUS Printer Setup Utility - InstallShield Wizard Extracting Files The contents of this package are being extracted. Please wait while the InstallShield Wizard extracts the files needed to install ASUS Printer Setup Utility on your computer. This may take a few moments. Extracting UsService34.exe... < Back Next > Cancel

ASUS Printer Setup Utility This utility will help you set up the USB printer. Connect your PC with the router through wired/wireless connection, then connect your printer to the router and power on it. Click "Next" to start printer installation. USB LAN Next Cancel

Found New Hardware Wizard Welcome to the Found New Hardware Wizard Windows will search for current and updated software by looking on your computer, on the hardware installation Ⓗ, or on the Windows Update Web site (with your permission). Read our privacy policy Can Windows connect to Windows Update to search for software? ○ Yes, this time only ○ Yes, now and every time I connect a device ○ No, not this time Click Next to continue. < Back Next > Cancel

Printers and Faxes File Edit View Favorites Tools Help Back Search Folders Address Printers and Faxes Go Printer Tasks Add a printer Set up Faxing See Also Troubleshoot printing Get help with printing Other Places Control Panel Scanners and Cameras Canon MPI 40 series Printer 0 Ready

Add a device Add a printer Devices (5) ASUS GAMING MOUSE GX900 ASUS PM17TS DT 1M1 G2 ENGLISH-PC USB Keyboard Printers and Faxes (2) Fax Microsoft XPS Document Writer

Add Printer What type of printer do you want to install? Add a local printer Use this option only if you don't have a USB printer. (Windows automatically installs USB printers when you plug them in.) Add a network, wireless or Bluetooth printer Make sure that your computer is connected to the network, or that your Bluetooth or wireless printer is turned on. Next Cancel

Add Printer Choose a printer port A printer port is a type of connection that allows your computer to exchange information with a printer. Use an existing port: LPT1: (Printer Port) Create a new port: Type of port: Standard TCP/IP Port Next Cancel

Add Printer Type a printer hostname or IP address Device type: TCP/IP Device Hostname or IP address: 192.168.1.1 Port name: 192.168.1.1 ✓ Query the printer and automatically select the driver to use Next Cancel

Add Printer Additional port information required The device is not found on the network. Be sure that: 1. The device is turned on. 2. The network is connected. 3. The device is properly configured. 4. The address on the previous page is correct. If you think the address is not correct, click Back to return to the previous page. Then correct the address and perform another search on the network. If you are sure the address is correct, select the device type below. Device Type Standard Generic Network Card Custom Settings... Next Cancel

Add Printer Additional port information required The device is not found on the network. Be sure that: 1. The device is turned on. 2. The network is connected. 3. The device is properly configured. 4. The address on the previous page is correct. If you think the address is not correct, click Back to return to the previous page. Then correct the address and perform another search on the network. If you are sure the address is correct, select the device type below. Device Type Standard Genetic Network Card Custom Settings... Next Cancel

Add Printer Install the printer driver Choose your printer from the list. Click Windows Update to see more models. To install the driver from an installation CD, click Have Disk. Manufacturer Kyocera Lanier Lexmark Microsoft UPC Printers Lexmark X422 (MS) Lexmark X543 PS (MS) Lexmark X544 PS (MS) Lexmark X642e (MS) This driver is digitally signed. Tell me why driver signing is important Windows Update Have Disk... Next Cancel

Add Printer Type a printer name Printer name: Lemark X544 PS (IMS) This printer will be installed with the Lemark X544 PS (IMS) driver. Next Cancel

Add Printer You've successfully added Lexmark X544 PS (MS) To check if your printer is working properly, or to see troubleshooting information for the printer, print a test page. Print a test page Finish Cancel

3.14.5 Modem USB

Switch to USB model to use a TCP/IP USB network (zhengshen Android phone as a USB master. Main Config Enable USB Mode Select USB Device Java API configuration Java Telecommunications Standards VOCMA/LATM2: LTE API Server performance Internet Data History FTP Language Password Authentication Name DNS location USB Dataset Auto USB F/U E Special Requirements from FTP Select free TT Local Java - IP Files Speed/Alt TF value Java - IP Files Apply

3.15 VPN Fusion

VPN Fusion SERVER LIST 0:18 Add profile Internet Connection Connected Default Connection SET START: Because your online security comes first. Add profile HOW TO BE TAY

Add profile Connection Name VPN authorization Surbush® 3-Year VPN Plus 82% off +2 months free VPN 20-Day Money-Base Customer Use VRN OfficeType Surfactant Create an account Region Private Key Device Assign devices to the profile Apply and EnableView

3.15.2 Connexion Internet

VPN Fusion SERVER LIST 0:16 Add profile Internet Connection Connected Default Connection Internet WAN Status Connected WANSET 192.168.1.101 Connection type Automatic IP Apply to all devices Device Assign devices to this profile Apply all settings

3.16 Serveur VPN

3.16.1 PPTP

Username and Password Username Password Static Route (* Optional) Network/Host IP Network OK

VPN Server SERVER LIST VPN Server PPTP VPN Server OpenVPN VPN Server IPSec VPN VPN Server WireGuard VPN OpenVPN VPN Details General HOW TO SETUP Server Port Flucts connect to block * Due to security comments, we suggest using a port from 1924 to 50000 RSA Connection 1924 bit 2546 bit Client will use VPN to access Local network only Internet and local network VPN Client (See Unit: 16) admin Apply all settings

REMARQUE : Pour plus d'informations, consultez https://www.asus.com/support/FAQ/1008713/.

3.16.3 VPN IPSec

Export:WAVI (SEMIS supports several connection types to WAN (wide area network). These types are selected from the dropdown menu besides WAN Connection Type. The setting fields differ depending on the connection type was selected. Add Traffic WAN Index WAN Type WAN Internet Settings Profile Internet WAN Connection Type Automatic IP Enable WAN Yes Off Enable NAT Yes Off Enable UNT Yes Off BEX 3Q Enable Off, No VLAN (1) 0 [2 - 4756]

DuperWAN: IBM40 provides DualWAN support. Select Follower mode to use a secondary WAN for backup network access. Select load balancer mode to optimize bandwidth, maximize throughput, minimize response time, and prevent data block for both WAN connections. Dual WAN (LAN) Basic Coding Enable Dual WAN Primary WAN Secondary WAN Dual WAN Mode Auto Network Detection Detailed explanations are available on the .ABE Europe "One LAN" which may help you use this function effectively. Detect Interval Every 3 seconds Follower Trigger Condition When the current WAN split 2 continuous times, follower to Secondary WAN Fallback Trigger Condition When the Primary WAN is detected to have an active internet connection using a physical cable for 4 continuous times, feedback to the Primary WAN. Network Monitoring ○ DNS Query ○ Ping Apply

Port Trigger allows pass to temporarily open data ports when LAN devices require unrestricted access to the Internet. There are two methods for opening incoming data ports: port forwarding and port trigger. Port forwarding opens the specified data ports at all the time and devices must use static IP addresses. Port trigger only opens the incoming port when a LAN device requests access to the trigger port. Unlike port forwarding, port trigger does not require static IP addresses for LAN devices. Port forwarding allows multiple devices to share a single open port and port trigger only allows one client at a time to access the open port. Port 1 - Box Label: LAN Basic Certing Enable Port Trigger Yes No Well-Known Applications Please select Trigger Port List ( Max Limit : 32 ) Description Trigger Port Prostatic Incoming Port Protocol Scale No data in table Apply

Virtual Server / Port forwarding allows remote computers to connect to a specific computer or service within a private local area network (LAN). For a faster connection, some P2P applications (such as Biffennt), may also require that you set the port forwarding setting. Please refer to the P2P application's user manual for details. You can open the multiple port or a range of ports in router and redirect data through these ports to a single client on your network. If you want to specify a Port Range for clients on the same network, enter the Service Name, the Port Range (e.g., 10.000.10.3000), the LAN IP address, and leave the local Port blank. When your network's firewall is disabled and you set 80 as the HTTP server's port range for your WAN setup, then your http server/web server would be in conflict with ExpertWith EBMISO's web user Interface. Virtual1 Server / Port Forwarding LAN Basic Config Enable Port Forwarding OFF Port Forwarding List (Max Limit | 64) Service Name External Port Internal Port Internal IP Address Protocol Source IP Cast Delete No data in Data Add profile

Quick Select Famous Server List Please select Famous Game List Please select Custom Configuration Service Name * Optional Protocol TCP External Port Internal Port * Optional Internal IP Address Source IP * Optional * External Port The External Port accepts the following formats 1. Port ranges using a colon * between the starting and ending port, such as 300 350. 2. Single ports using a comma * between individual ports, such as 566,789. 3. A Mix of port ranges and single ports, using colors * and commas * , such as 1015 1024 3021. * Source IP If you want to open your port to a specific IP address from the internet, input the IP address you want to specify in the Source IP field. Cancel OK

Virtual DMS allows you to expose one computer to the Internet, so that all the internal packets will be restructured in the computer you set. It is useful while you can some applications that use uncertained incoming ports. Please use it carefully. Special Applications • Some applications require special handler against NAT. These special handlers are checked to default. • Please add a tag to port forwarding list for USB Link access properly on FTP service. DMS 7.40 Exhibit: DMS □ Yes □ No Apply

DOS (Dynamic Domain Name System) is a service that allows network clients to connect to the wireless router, even with a dynamic public IP address, through its registered domain name. The wireless router is embedded with the ASUS DOS service and other DOS services. The current server uses a Private ID for some details, please refer to https://doi.org. DOS "Please join your own portal with online security when you enable DOS and allow services to be successfully over the Internet. Take time to enhance security for your types and services, and keep your users' and deliver software up to date.

3.17.7 NAT Passthrough

Enable NAT Passthrough to allow a Virtual Private Network (VPSN) connection to pass through the router to the network clients. RFTP Passthrough Enable ✓ L2TP Passthrough Enable ✓ (PSec Passthrough) Enable ✓ KISP Passthrough Enable ✓ HL323 Passthrough Enable ✓ SIP Passthrough Enable ✓ PPROE Array Disagree ✓ FTP AUG port 2021 Apply

3.18 WiFi

3.18.1 Général

Set up the website related information tables Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: https://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-10001 Name: http://t-2001 Name: http://t-2001 Name: http://t-2001 Name: http://t-2001 Name: http://t-2001 Name: http://t-2001 Name: http://t-2001 Name: http://t-2001 Name: http://t-2001 Name: http://t-256666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666 Name: http://t-255555555555555555555555555555555555555555555555555555555555555555555555555555555 Name: http://t-28888888888888888888888888888888888888888888888888888888888888888888 Name: http://t-29333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333 Name: http://t-29777777777777777777777777777777777777777777777777777777777777 Name: http://t-29999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999 Name: http://t-2444444444444444444444444444444444444444444444444444444444444444444444444444444444444444 Name: http://t-222222222222222222222222222222222222222222222222222222222222 Name: http://t-211111111111111111111111111111111111111111111111111111111111 Name: http://t-2000000000000000000000000000000000000000000000000000 Name: http://t-25888888888888888888888888888888888888888888888888888 Name: http://t-25777777777777777777777777777777777777777777777777 Name: http://t-25555555555555555555555555555555555555 Name: http://t-2444444444444444444444444444444444 Naner Day September November December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December August Naner Day September November December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December December

WPS (WiFi Protected Setup) provides easy and secure establishment of a wireless network. You can configure WPS here via the PIN code or the WPS button. Enable WPS Current Frequency 3.4 GHz Connection Status idle Configured Enabled Reset Pressing the reset button resets the network name (SSID) and WPM encryption key. AP PIN Code 7x856967 You can easily connect a WPS client to the network in either of these two ways: • Method1: Click the WPS button on this interface (or press the physical WPS button on the router), then press the WPS button on the client's WLAN adapter and wait for about three minutes to make the connection. • Method2: Start the client WPS process and get the client PIN code. Enter the client's PIN code on the Client PIN code field and click Start. Please check the user manual of your wireless client to see if it supports the WPS function. If your wireless client does not support the WPS function, you have to configure the wireless client manually and set the same network Name (SSID), and security settings as this router: Push button Client PIN Code WPS Method Start

Insgesat normal PDF - Insges distribution spread function allow your total PDFs to be connected to an access point monthly which may be combined with a register number. Name: The function only supports (Open Program PDFs) from the PDFs. From the PDFs to the PDFs is used in the information matrix. Since the corresponding information without any other data points are available, you can continue to test. Data type to modify. Please note that this is done by the source file. To enable PDFs by adding the linkless signal, please follow these steps: 1. Click PDFs using the PDFs in mode and write address of PDFs in terms of PDFs. 2. Draw it the PDFs in mode and write PDFs to create a format file named PDFs. 3. Try to use the linkless file to find the linkless file list and open the linkless PDFs to ensure that PDFs are required. 4. To get the link functions, please go to enhanced settings / Windows 1. Command and assign the server channel bandwidth, control of format, or extension channel to every quarter in the network. You are currently using the PDFs channel links with PDFs as proxy. You are currently using the PDFs channel. Do you say. Basic coding: 2.0 PDF MAC 5.0 PDF MAC 8.0 PDF MAC None All options Apply PDFs Correct to PDFs at No Remove PDFs from Unit 4: Restore PDF List Not close ✓ No data = select

Wireless MAC file allows you to control packets from devices with specified MAC address in your Wireless LAN. Back Config Band 2.4 GHz Enable MAC Filter Yes: No Apply

This section allows you to set up additional parameters for authorizing wireless clients through RADIUS server. It is required while you select "Authentication Method" is "Wireless - General" at "WPA Enterprise / WPA2-Enterprise". Server IP Address Server Port 4612 Connection Secret Apply

Wireless Professional Setting allows you to set up additional parameters for wireless, but default values are recommended. Band 2.4 GHz Broadband Enable details ○ Yes □ No Enable solution schedule ○ Yes □ No Set AP located ○ Yes □ No Rearing agent ncase ○ Discounted clients with RFS (set run) ✓ No ✓ Broadband passency ncase ○ Enable CMF (Accepting) ncase ○ Multiscale Rate(Yes) Auto ○ Preventive Type Long ○ AMPOU ATS ncase ○ RTS Threshold 2047 ○

This feature allows you to run off the cluster wireless gateway at times when you do not need wireless connections. Fri. Oct 06, 16:30:2020 GAS MON TUE WED THU FSL SAT Officer Schedule Clear all Cancel Apply

You can add devices into roaming deny list, and the devices will not be loaned between Address nodes. Back Control Enable roaming deny list ■ Yes □ No Routing Block List (Max Limit 1.04) Client Name (MAC Address) Add / Delete Ex: 58-AP-882-26-07-CX No data in table Apply

Before you get started, please check the model name and hardware version from the label. 1. Please confirm the label at the bottom of your router model shows H/W Version, different hardware version needs different firmware version to process restoration. 2. Download firmware from ASUS support site: https://www.asus.com/support For example, if your label shows "RT-AC66U_B1", firmware of "RT-AC66U" is not available for restoration. FileName: 1 Browse... Status: After locating the firmware file, click Upload

Internet Options General Security Privacy Content Connections Programs Advanced Home page To create home page tabs, type each address on its own line. https://www.mcn.com/?PC=UFC1 Use current Use default Use new tab Startup Start with tabs from the last session Start with home page Tabs Change how webpages are displayed in tabs. Tabs Browsing history Delete temporary files, history, cookies, saved passwords, and web form information. Delete browsing history on exit Delete... Settings Appearance Colors Languages Fonts Accessibility OK Cancel Apply

DOSO Network: VOLT Configuration Protocol 4.0.1.2.2 for the activities configuration used in networks. The DOS network can design each client on IP address and continue the client of VOLT/OSO as an IP and default gateway to Proportion, DOSO supports up to 217 IP address for your website. VOLTDA: NISI@OSO, PT: JACOB, 201-0367_5112_538 New Config Product for DOS Server Map Type Type: iOS (Windows) (Portion Name) IP User Setting Address 102 668 562 IP User Setting Address 102 668 56254 IP User ID (OSO) 86800 Data Catalog DNS and OOSO Server Setting DNS Server 1 DNS Server 2 Address (user): IP addition from e-mail: PDS IP User DNS Server Virtual Assignment Virtual Event Assignment Unit: MP Recently Assigned IP server the DOSO Web Link (Link: USB) Used by: iOS (OSO) (Portion) IP address: DOSO Server (Optical) Port Node: https://www.osos.com/ iOS: www.osos.com or ©

Left for the entire object information details. Enable Smart Camera Smart Camera Style Start Capture To Open Smart Capture Send 14.25% Current Memory (300) Auto_34_389960 View 300 View Mode Size Compatibility: User touch when transmitting Auto_34/389960 or mode please check [OK] View Input Effect Delete Target other Time Authentication Services HPQ Process Affixation A23 HPQ Pro Selecting Access Send Unselected Management System Delete Group app Access Support 400

This function allows you to save current settings of ExportHARUSDMSE to a file, or load settings from a file. Factory default Restart Initialize all the settings, and cover all the data log for Afforestation, Traffic Analysis and Web History. Save setting Save setting Click on this checkbox if you want to share the config file for debugging. Since the original password in the config file will be removed, please do not import the file into your routes. Receive setting Upload

Internet Options General Security Privacy Content Connectors Programs Advanced To set up an Internet connection, click Setup. Setup Dial-up and Virtual Private Network settings Access RD Network Resources - Go to vpn as Add... Add VPN... Remove... Settings Choose Settings if you need to configure a proxy server for a connection. Never dial a connection Dial whenever a network connection is not present Always dial my default connection Current None Set default Local Area Network (LAN) settings LAN Settings do not apply to dial-up connections. Choose Settings above for dial-up settings. LAN settings OK Cancel Apply

Local Area Network (LAN) Settings Automatic configuration Automatic configuration may override manual settings. To ensure the use of manual settings, disable automatic configuration. □ Automatically detect settings □ Use automatic configuration script Address Proxy server □ Use a proxy server for your LAN (These settings will not apply to dial-up or VPN connections). Address: Port: 80 Advanced □ Bypass proxy server for local addresses OK Cancel

Sous MAC OS

Network and Sharing Center Control Panel Home View your basic network information and set up connections View your active networks Change adapter settings corpnet.asus Access type: Internet Change advanced sharing Domain network Connections Ethemet Change your networking settings Set up a new connection or network Set up a broadband, dial-up, or VPN connection; or set up a router or access point. Troubleshoot problems Diagnose and repair network problems, or get troubleshooting information.

Ethernet Status General Connection IPv4 Connectivity: Internet IPv6 Connectivity: No network access Media State: Enabled Duration: 03:29:31 Speed: 1.0 Gbps Details... Activity Sent — Received Bytes: 71,424,646 | 70,727,241 Properties Disable Diagnose

Ethernet Properties Networking Authentication Connect using: Intel(R) Ethernet Connection (2) (219-V) Configure... This connection uses the following items: On S Packet Scheduler Internet Protocol Version 4 (TCP/IPv4) Microsoft Network Adapter Multiplexor Protocol Microsoft LLDP Protocol Driver Internet Protocol Version 6 (TCP/IPv6) Link-Layer Topology Discovery Responder Link-Layer Topology Discovery Mapper I/O Driver Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks.

Internet Protocol Version 4 (TCP/IPv4) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: .... Submit mask: .... Default gateway: .... Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: .... Alternate DNS server: .... Validate settings upon exit Advanced... OK Cancel

Sous MAC OS

Internet Options General Security Privacy Content Connections Programs Advanced To set up an Internet connection, click Setup. Setup Dial-up and Virtual Private Network settings Access RD Network Resources - Go to vpn-as Add... Add VPN... Remove... Choose Settings if you need to configure a proxy server for a connection. Never dial's connection Dial whenever a network connection is not present Always dial my default connection Current None Set default Local Area Network (LAN) settings LAN Settings do not apply to dial-up connections. Choose Settings above for dial-up settings. LAN settings OK Cancel Apply

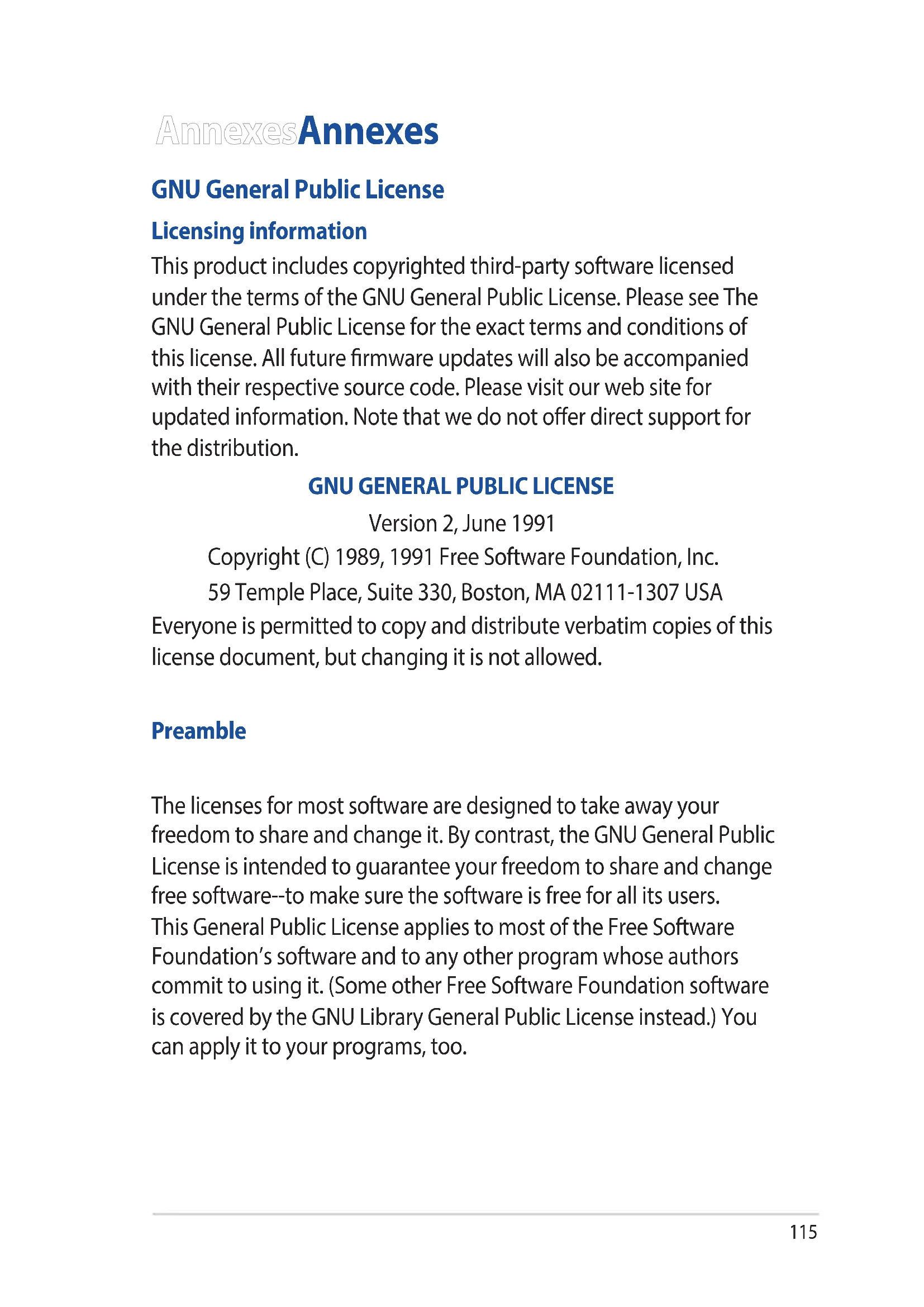

GNU General Public License

Licensing information

This product includes copyrighted third-party software licensed under the terms of the GNU General Public License. Please see The GNU General Public License for the exact terms and conditions of this license. All future firmware updates will also be accompanied with their respective source code. Please visit our web site for updated information. Note that we do not offer direct support for the distribution.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.

59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

Terms & conditions for copying, distribution, & modification

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.

Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

1. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

2. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission.

For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11 BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12 IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

Service et assistance
