Product Type	Self-Cleaning Electric Range
Brand	Whirlpool
Model	YWFE745H0FS
Dimensions (W x D x H)	76.2 cm x 66 cm x 91.4 cm (30 in x 26 in x 36 in)
Weight	Approximately 90 kg (200 lb)
Power Supply	120/240 V, 40 or 50 A, single phase
Cooktop Type	Ceramic Glass
Number of Burners	4 or 5 (depending on model)
Oven Capacity	Approximately 5.0 cu ft (142 L)
Cleaning Technology	AquaLift (low-temperature steam cleaning)
Main Functions	Baking, broiling, AquaLift cleaning, convection baking (depending on model)
Care and Cleaning	Regular cleaning with mild soap; AquaLift program for oven; scraper for ceramic glass cooktop
Safety	Anti-tip bracket included, control lockout (depending on model)
Spare Parts and Repairability	Racks, light bulbs, AquaLift cleaning kits (ref. W10423113RP)
Supplied Accessories	Anti-tip bracket, screws, oven racks, broiler pan (depending on model)
Country of Manufacture	United States / Mexico (depending on model)
Warranty	1 year parts and labor (depending on region)

Frequently Asked Questions - YWFE745H0FS WHIRLPOOL

How to use the AquaLift cleaning program?

Remove all racks and wipe excess soil. Pour 500 mL of distilled water into the cold oven bottom, close the door, then press AQUALIFT SELF CLEAN and START. Let it run for 40 minutes, then wipe up residual water with a sponge.

How to install the anti-tip bracket?

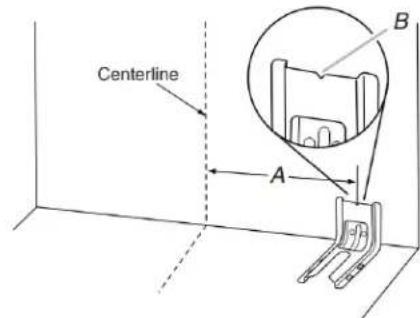

Position the bracket against the wall or floor 31.9 cm from the center, drill two 3 mm holes, then screw it in with the provided #12 x 1 1/8 screws. Then slide the range so that the rear foot engages into the bracket.

How to clean the ceramic glass cooktop?

Use a cooktop scraper at 45° to remove warm soil. Let cool, apply affresh cleaner and rub with the blue pad. Let dry, then polish with a dry cloth.

How to remove the oven door?

Open the door fully, pinch the hinge locks forward on both sides, close the door halfway, then lift it off. To replace, insert the suspension arms, open the door and lock the hinges.

How to level the range?

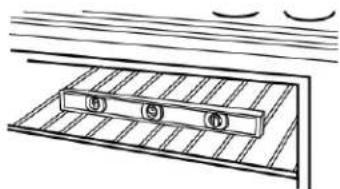

Place a level inside the oven. If the range is not level, pull it forward to release the rear foot, then adjust the leveling legs with a wrench or pliers. Push it back and check that the foot is engaged in the bracket.

What cleaning products to use on stainless steel?

Use a non-abrasive cleaner like affresh for stainless steel. Rub in the direction of the grain with a soft cloth. Avoid scouring pads and bleach.

What to do in case of error code F9 or F9 E0?

This code may indicate faulty power cord wiring. Turn off the power and contact a qualified electrician to inspect the power circuit.

How to remove the storage drawer?

Pull the drawer to the stop, lift the front and remove it. To replace, place the back on the slides, lower the front and push until the slides engage.

Can I use aluminum foil in the oven?

Do not line the oven bottom with aluminum foil, as it may damage the heating elements. Use only to cover dishes on racks, without touching the walls.

How to verify that the anti-tip bracket is properly engaged?

Slide the range forward, check that the bracket is fastened, then push it back. Gently tilt the front: if you feel immediate resistance, the rear foot is engaged. If it lifts more than 1.3 cm without resistance, re-engage it.

USER MANUAL YWFE745H0FS WHIRLPOOL

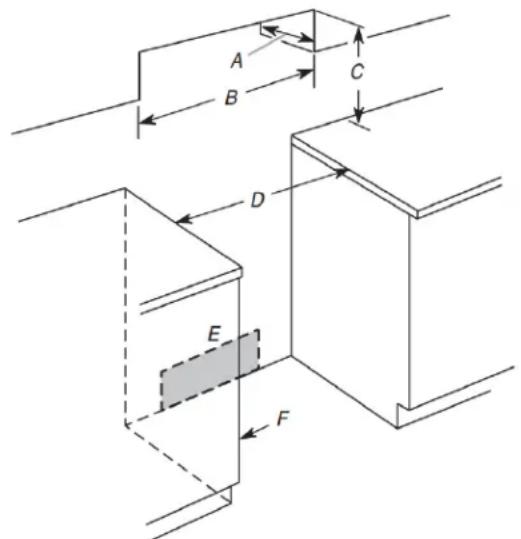

Location Requirements 6

Electrical Requirements 7

INSTALLATION 8

Unpack Range 8

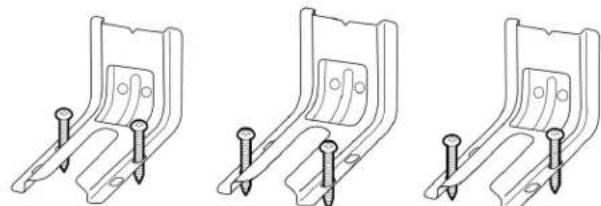

Install Anti-Tip Bracket 8

Verify Anti-Tip Bracket Is Installed and Engaged. 9

Level Range 10

Warming Printer or Premium Storage Printer (on some

models) 10

StorageDrawer(on some models) 11

Oven Door. 11

Complete Installation 12

Moving the Range. 12

SECURITE DE LA CUISINIÈRE 13

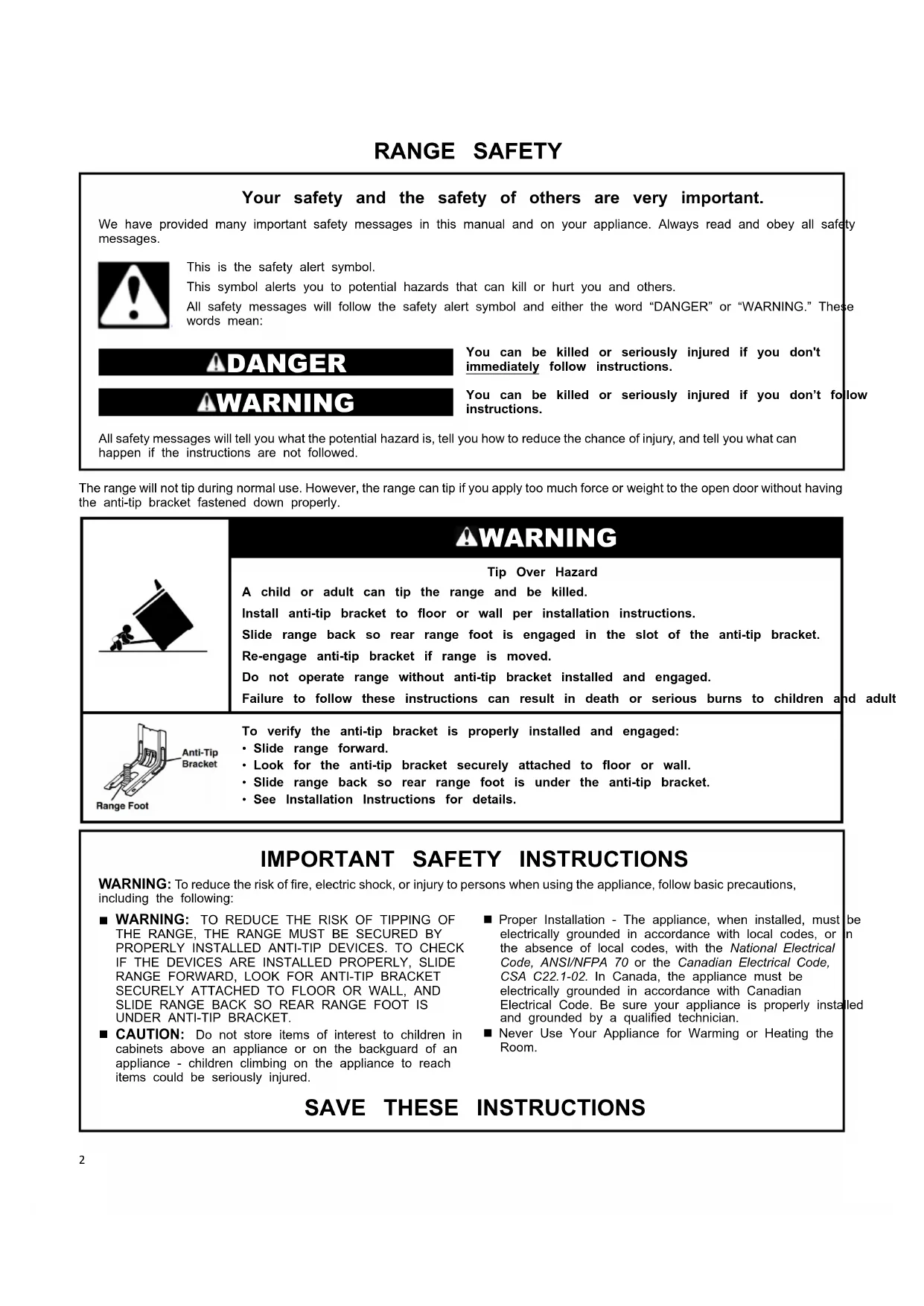

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

ADANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without having the anti-tip bracket fastened down properly.

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adult

To verify the anti-tip bracket is properly installed and engaged:

• Slide range forward.
• Look for the anti-tip bracket securely attached to floor or wall.
• Slide range back so rear range foot is under the anti-tip bracket.
• See Installation Instructions for details.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic precautions, including the following:

WARNING: TO REDUCE THE RISK OF TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR OR WALL, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET.
CAUTION: Do not store items of interest to children in cabinets above an appliance or on the backguard of an appliance - children climbing on the appliance to reach items could be seriously injured.

• Proper Installation - The appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1-02. In Canada, the appliance must be electrically grounded in accordance with Canadian Electrical Code. Be sure your appliance is properly installed and grounded by a qualified technician.
• Never Use Your Appliance for Warming or Heating the Room.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

• Do Not Leave Children Alone - Children should not be left alone or unattended in area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
  Wear Proper Apparel - Loose-fitting or hanging garments should never be worn while using the appliance.
• User Servicing - Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.
  Storage in or on Appliance - Flammable materials should not be stored in an oven or near surface units.
  This appliance is not intended for storage.
• Do Not Use Water on Grease Fires - Smother fire or flame or use dry chemical or foam-type extinguisher.
• Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).
  Use Only Dry Potholders - Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
  DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS - Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are the coil elements, the cooktop, and surfaces facing the cooktop.
• Use Proper Pan Size - This appliance is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.
• Never Leave Surface Units Unattended at High Heat Settings - Boilover causes smoking and greasy spillovers that may ignite.
  Make Sure Reflector Pans or Drip Bowls Are in Place - Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.
• Protective Liners - Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.
  Glazed Cooking Utensils - Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature.
• Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units - To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

Do Not Soak Removable Heating Elements - Heating elements should never be immersed in water.
Do Not Cook on Broken Cook-Top - If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact a qualified technician immediately.
Clean Cooktop With Caution - If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.
Use Care When Opening Door - Let hot air or steam escape before removing or replacing food.
Do Not Heat Unopened Food Containers - Build-up of pressure may cause container to burst and result in injury.
Keep Oven Vent Ducts Unobstructed.
Placement of Oven Racks - Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.
DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN - Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns - among these surfaces are oven vent openings and surfaces near these openings, oven doors and windows of oven doors.
Care must be taken to prevent aluminum foil and meat probes from contacting heating elements.

For self-cleaning ranges -

• Do Not Clean Door Gasket - The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.
• Do Not Use Oven Cleaners - No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.
  Clean Only Parts Listed in Manual.
  Before Self-Cleaning the Oven - Remove broiler pan and other utensils.

For units with ventilating hood -

Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate on hood or filter.
- When flaming foods under the hood, turn the fan on.

For smart enabled ranges and ovens

Remote operation - This appliance is configurable to allow remote operation at any time. Do not store any flammable materials or temperature sensitive items inside, on top or near surface units of the appliance.

SAVE THESE INSTRUCTIONS

RANGE MAINTENANCE AND CARE

Clean Cycle

AquaLift® Self-Cleaning Technology

AquaLift® Technology is an innovative cleaning solution that utilizes heat and water to release baked-on spills from the oven in less than 1 hour. This new cleaning technology is a low-heat, odor-free alternative to traditional self-cleaning options.

Allow the oven to cool to room temperature before using the Clean cycle. If your oven cavity is above 200^ (93^) , it will appear in the display, and the Clean cycle will not be activated until the oven cavity cools down.

To Clean:

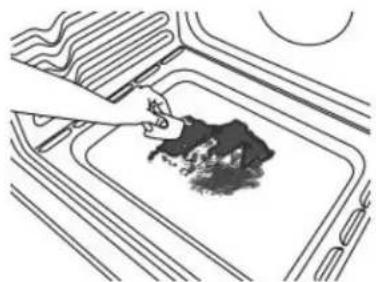

1. Remove all racks and accessories from the oven cavity, and wipe excess soil. Use a plastic scraper to remove easily removed soils

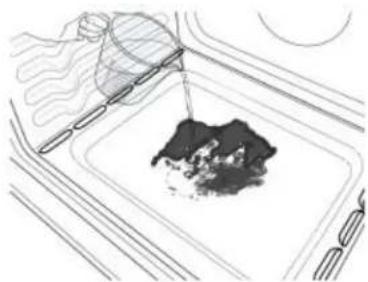

1. Pour distilled or filtered water onto the bottom of the empty oven, and close the oven door.

IMPORTANT: Do not use chemicals or other additives with the water. Do not open the oven door during the Clean cycle. The water on the oven bottom is hot.

1. Press CLEAN or AQUALIFT SELF CLEAN and then START on the oven control panel.
2. Allow 40 minutes for cleaning and cool down. A beep will sound when the Clean cycle is complete.

3. Press CANCEL, CANCEL UPPER or OFF at the end of the cycle. Cancel, Cancel Upper or Off may be pressed at any time to stop the Clean cycle.

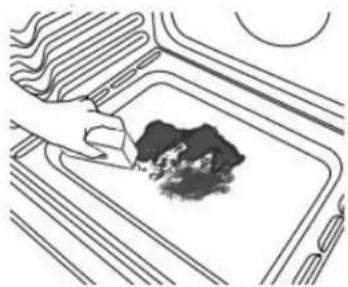

4. Remove the residual water and loosened soils with a sponge or cloth immediately after the Clean cycle is complete. Much of the initial 2 cups (16 oz [500 mL]) of water will remain in the oven after the cycle is completed. If additional soils remain, leave a small amount of water in the oven bottom to assist with the cleaning.

1. If any soils remain, remove them with a non-scratch scrubbing clean sponge or plastic scraper. Additional Clean cycles may be run to help remove the stubborn soils.

IMPORTANT: Do not use oven cleaners. The use of chemicals, including commercial oven cleaners or metal scouring pads, may cause permanent damage to the porcelain surface of the oven interior.

NOTES:

The range should be level to ensure that the entire surface of the bottom of the oven cavity is covered by water at the beginning of the Clean cycle.
For best results, use distilled or filtered water. Tap water may leave mineral deposits on the oven bottom.
Before removing the residual water and loosened soils at the end of the Clean cycle, insert a cloth or paper towel between the lower edge of the oven door and the front frame to keep water from spilling onto the front of the range and the floor.
Soil baked on through several cooking cycles will be more difficult to remove with the Clean cycle.
Nonabrasive scrub sponges or eraser style cleaning pads (without cleaners) can be effective for cleaning the oven cavity walls, oven door and oven bottom for difficult soils. For best results, moisten the pads and sponges before use.
Run an additional Clean cycle for stubborn soils.
- Affresh® Kitchen Appliance Cleaner and affreshCooktop Cleaner may be used to clean the oven bottom, walls, and door when the oven has finished the cycle and returned to room temperature. If affreshCooktop Cleaner is used, it is recommended to wipe out the cavity with distilled water as well. Refer to the Quick Start Guide for ordering information.
Additional AquaLift® Technology Cleaning Kits may be obtained by ordering Part Number W10423113RP. Refer to the Quick Start Guide for ordering information.
For assistance with AquaLiftTechnology, call 1-877-258-0808 in the U.S.A. or 1-800-807-6777 in Canada, or visit our website at http://whirlpoolcorp.com/aqualift.

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are off and the oven and cooktop are cool. Always follow label instructions on cleaning products.

Soap, water, and a soft cloth or sponge are suggested first, unless otherwise noted.

EXTERIOR PORCELAIN ENAMEL SURFACES (on some models)

Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the entire range is cool. These spills may affect the finish.

Cleaning Method:

Glass cleaner, mild liquid cleaner, or nonabrasive scrubbing pad: Gently clean around the model/serial/rating plate because scrubbing may remove numbers.
■ Affresh Kitchen and Appliance Cleaner Part Number W10355010 (not included):

See the Quick Start Guide for contact information.

STAINLESS STEEL (on some models)

NOTE: To avoid damage to stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners, Cooktop Cleaner, steel-wool pads, gritty washcloths, or abrasive paper towels. Damage may occur to stainless steel surfaces, even with one-time or limited use.

Cleaning Method:

Rub in direction of grain to avoid damaging.

■ Affresh® Stainless Steel Cleaner Part Number W10355016 (not included):

See the Quick Start Guide for contact information.

METALLIC PAINT (on some models)

Do not use abrasive cleaners, cleaners with bleach, rust removers, ammonia, or sodium hydroxide (lye) because paint surface may stain.

CERAMIC GLASS COOKTOP CLEANING Cleaning Method:

To avoid damaging the cooktop, do not use steel wool, abrasive powder cleansers, chlorine bleach, rust remover, or ammonia.

1. Remove food/residue with the Cooktop Scaper.

For best results, use the Cooktop Scaper while the cooktop is still warm but not hot to the touch. It is recommended to wear an oven mitt while scraping the warm cooktop.
Hold the Cooktop Scaper at approximately a 45^ angle against the glass surface and scrape the residue. It will necessary to apply pressure in order to remove the residue.

1. Allow the cooktop to cool down completely before proceeding to Step 2.

2. Apply a few dime-sized drops of Cooktop Cleaner to the and affected areas.

• Rub affresh ^ Cleaner onto the cooktop surface with the blue Cooktop Cleaning Pad. Some pressure is needed to remove stubborn stains.
  ■ Allow the cleaner to dry to a white haze before proceeding to Step 3.

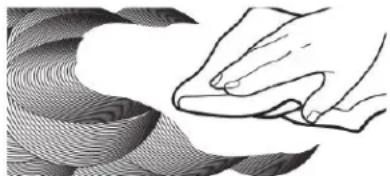

• Polish with a clean, dry cloth or a clean, dry paper towel.

Repeat steps 1 through 3 as necessary for stubborn or burned-on stains.

The Complete Cooktop Cleaner Kit is available for order including the following:

Cooktop Scaper
■ Affresh® Cooktop Cleaner
Blue Cooktop Cleaning Pads
See the Quick Start Guide for ordering information.

COOKTOP CONTROLS

To avoid damage to the cooktop controls, do not use steel wool, abrasive cleansers, or oven cleaner.

To avoid damage, do not soak knobs. When replacing knobs, make sure knobs are in the Off position.

On some models, do not remove seals under knobs.

Cleaning Method:

Soap and water: Pull knobs straight away from control panel to remove

CONTROL PANEL AND OVEN DOOR EXTERIOR

To avoid damage to the control panel, do not use abrasive cleaners, steel-wool pads, gritty washcloths, or abrasive paper towels.

Cleaning Method:

Glass cleaner and soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel.
■ Affresh Kitchen and Appliance Cleaner Part Number W10355010 (not included):

See the Quick Start Guide for contact information.

be OVEN RACKS

Cleaning Method:

Steel-wool pad
For racks that have discolored and are harder to slide, a light coating of vegetable oil applied to the rack guides will help them slide
- Dishwasher (steam rack water reservoir only, not racks): Although the water reservoir is durable, it may lose its shine and/or discolor when washed in a dishwasher

STORAGE DRAWER OR WARMING DRAWER (on some models)

Check that storage drawer or warming drawer is cool and em before cleaning.

Cleaning Method:

Mild detergent

OVEN CAVITY

Depending on your model, use Aquafinechnology or Self-Clean cycle regularly to clean oven spills.

Do not use oven cleaners

Food spills should be cleaned when oven cools. At high temperatures, foods react with porcelain. Staining, etching, pitting or faint white spots can result.

Cleaning Method:

Clean cycle: See "Clean Cycle" first.

INSTALLATION INSTRUCTIONS REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Tape measure
Flat-blade screwdriver
Phillips screwdriver
Level
Hammer
Hand or electric drill
Wrench or pliers
Marker or pencil
■ Flashlight

Masking tape
1/4" (6.4 mm) drive ratchet
1/4" (6.4 mm) nut driver
3/8" (9.5 mm) and 5/16" (8 mm) nut driver
1/8" (3.2 mm) drill bit (for wood floors)
Tin snips or large wire cutters (for cutting ground strap if necessary)

Parts supplied

Check that all parts are included.

A. Anti-tip bracket

B. #12 x 1/8" (4.1 cm) screws (2)

• Anti-tip bracket must be securely mounted to floor or wall. Thickness of flooring may require longer screws to anchor bracket to floor.

Parts needed

Check local codes. Check existing electrical supply. See "Electrical Requirements" section.

It is recommended that all electrical connections be made by a licensed, qualified electrical installer.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located on the frame behind a top corner of the door or either side of the drawer.

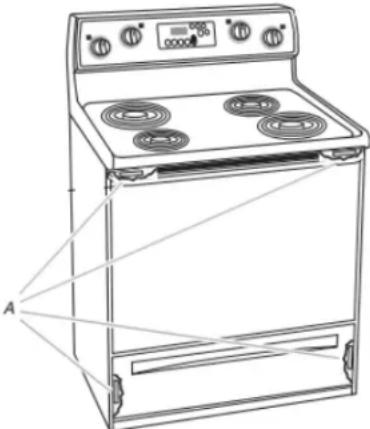

A. The model/serial/rating plate is located on the frame behind a top corner of the door or either side of the drawer.

• To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5'' (12.7 cm) beyond the bottom of the cabinets.
  Cabinet opening dimensions that are shown must be used. Given dimensions are minimum clearances.
  The anti-tip bracket must be installed. To install the anti-tip bracket shipped with the range, see "Install Anti-Tip Bracket" section.
  Grounded electrical supply is required. See "Electrical Requirements" section.

IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194^ (90^) .

Mobile Home - Additional Installation Requirements

The installation of this range must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280). When such standard is not applicable, use the Standard for Manufactured Home Installations, ANSI A225.1/NFPA 501A or with local codes.

In Canada, the installation of this range must conform with the current standards CAN/CSA-Z240.1-latest edition, or with local codes.

Mobile Home Installations Require:

• When this range is installed in a mobile home, it must be secured according to the instructions in this document.

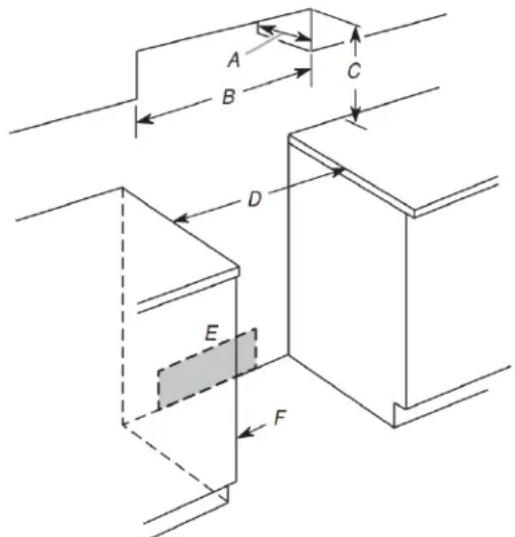

Cabinet Dimensions

Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth, 24" (61.0 cm) base cabinet depth and 36" (91. cm) countertop height.

IMPORTANT: If installing a range hood or microwave hood combination above the range, follow the range hood or microwave hood combination installation instructions for dimensional clearances above the cooktop surface.

A freestanding range may be installed next to combustible walls with zero clearance.

A. 13^ (33.0 cm) max. upper cabinet depth
B. 30^ (76.2 cm) min. opening width
C. For minimum clearance to top of cooktop, see NOTE*
D. 30^ (76.2 cm) min. opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet, 7" (17.8 cm) max. from floor.
F. Cabinet door or hinges should not extend into the cutout.

*NOTE: 24" (61.0 cm) minimum when bottom of wood or metal * cabinet is covered by not less than 1/4" (0.64 cm) flame retardage millboard covered with not less than No. 28 MSG sheet steel, (0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.

30'' (76.2 cm) minimum clearance between the top of the cooking platform and the bottom of an uncovered wood or metal cabinet.

Electrical Requirements

If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path is adequate and wire gauge are in accordance with local codes.

Be sure that the electrical connection and wire size are adequate and in conformance with CSA Standard C22.1, Canadian Electrical Code, Part 1 - latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

Canadian Standards Association

178 Rexdale Blvd.

Toronto, ON M9W 1R3 CANADA

• Check with a qualified electrical installer if you are not sure the range is properly grounded.

Range Rating* Specified Rating of Power Supply Cord Kit and Circuit Protection
120/240 V 120/208 V Amps
8.8 - 16.5 kW 7.8 - 12.5 kW	40 or 50**
16.6 - 22.5 kW 12.6 - 18.5 kW	50

• The NEC calculated load is less than the total connected load listed on the model/serial/rating plate.

** If connecting to a 50 A circuit, use a 50 A rated cord with kit. For 50 A rated cord kits, use kits that specify use with a nominal 1 (34.9 mm) diameter connection opening.
A time-delay fuse or circuit breaker is recommended.
This range is equipped with a CSA International Certified Power Cord intended to be plugged into a standard 14-50R wall receptacle. Be sure the wall receptacle is within reach of a range's final location.

• Do not use an extension cord.

INSTALLATION

Unpack Range

AWARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

1. Remove shipping materials, tape and film from range.
2. Remove oven racks and parts package from inside oven.
3. Do not remove the shipping base at this time.

A. Shipping base

4. On Ranges Equipped with a Storage Printer:

Remove the storage drawer. See the "Storage Drawers" section. Use a 1/4" (6.4 mm) drive ratchet to lower the rear leveling legs one-half turn. Use a wrench or pliers to lower front leveling legs one half turn.

B

A. 1 / 4'' (6.4 mm) drive ratchet

B. Rear leveling leg

C. Wrench or pliers
D. Front leveling leg

On Ranges Equipped with a Warming Printer or Premium Storage Printer:

On ranges equipped with a warming drawer or premium storage drawer, the rear legs cannot be accessed by removing the warming drawer or premium storage drawer. It will be necessary to adjust the rear legs from outside the range. Use wrench or pliers to lower the front and rear leveling legs one half turn.

A. Rear leveling leg
B. Wrench or pliers
C. Front leveling leg

Install Anti-Tip Bracket

AWARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

1. Remove the anti-tip bracket from where it is taped inside the storage drawer or warming drawer.

2. Determine which mounting method to use: floor or wall. If you have a stone or masonry floor, you can use the wall mounting method. If you are installing the range in a mobile home, you must secure the range to the floor.

3. Determine and mark centerline of the cutout space. The mounting can be installed on either the left-side or right-side the cutout. Position mounting bracket against the wall in the cutout so that the V-notch of the bracket 9 / 16 = 1231.9 cm) from centerline as shown.

A. 12^9 / 16 (31.9 cm)

B. Bracket V-notch

1. Drill two 1/8 (3 mm) holes that correspond to the bracket holes of the determined mounting method. See the following illustrations.

Floor Mounting

Rear Position Front Position Diagonal (2 options)

Wall Mounting

1. Using the Phillips screwdriver, mount anti-tip bracket to the wall or floor with the two #12/8 (41.3 mm) screws provided.
2. Move range close enough to opening to allow for final electrical connections. Remove shipping base, cardboard or hardboard from under range.
3. Move range into its final location, making sure rear leveling slides into anti-tip bracket.

1. Move range forward onto shipping base, cardboard or hardboard to continue installing the range using the following installation instructions.

Verify Anti-Tip Bracket Is Installed and Engaged

On Ranges Equipped with a Storage Printer:

1. Remove the storage drawer. See "Storage Drawer" section.
2. Use a flashlight to look underneath the bottom of the range.
3. Visually check that the rear range foot is inserted into the slot of the anti-tip bracket.

On Ranges Equipped with a Warming Printer or Premium Storage Printer:

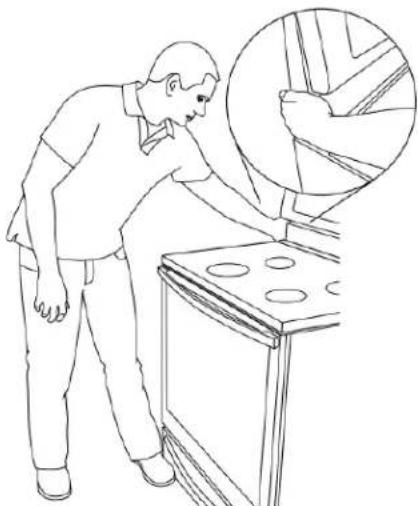

1. Place the outside of your foot against the bottom front of the warming drawer or premium storage drawer, and grasp the lower right or left side of the control panel as shown.

NOTE: If your countertop is mounted with a backsplash, it may be necessary to grasp the range higher than is shown in the illustration.

1. Slowly attempt to tilt the range forward.

If you encounter immediate resistance, the range foot is engaged in the anti-tip bracket.

1. If the rear of the range lifts more than 1/2 (1.3 cm) off the floor without resistance, stop tilting the range and lower it gently back to the floor. The range foot is not engaged in the anti-tip bracket.

IMPORTANT: If there is a snapping or popping sound when lifting the range, the range may not be fully engaged in the bracket. Check to see if there are obstructions keeping the range from sliding to the wall or keeping the range foot from sliding into the bracket. Verify that the bracket is held securely in place by the mounting screws.

1. Slide the range forward, and verify that the anti-tip bracket is securely attached to the floor or wall.

2. Slide range back so the rear range foot is inserted into the slot of the anti-tip bracket.

IMPORTANT: If the back of the range is more than 2^ (5.1 cm) from the mounting wall, the rear range foot may not engage the bracket. Slide the range forward and determine if there is an obstruction between the range and the mounting wall. If you need assistance or service, refer to the Quick Start Guide for contact information.

1. Repeat steps 1 and 2 to ensure that the range foot is engaged in the anti-tip bracket.

If the rear of the range lifts more than 1/2 (1.3 cm) off the floor without resistance, the anti-tip bracket may not be installed correctly. Do not operate the range without anti-tip bracket installed and engaged. Please refer to the Quick Start Guide for contact information.

Level Range

Determine if you have Aqualiftechnology or Steam Clean by referring to the "Range Maintenance and Care" section.

For Ranges with AquaLife technology or Steam Clean:

1. Place level on the oven bottom as indicated in one of the tw figures below depending on the size of the level. Check with the level: side to side and front to back.

1. If range is not level, pull range forward until rear leveling leg is removed from the anti-tip bracket.
2. Follow the directions in Style 1 or Style 2, depending on the style of drawer supplied with the range.

For Ranges without AquaLlnechnology or Steam Clean:

1. Place a standard flat rack in oven.
2. Place level on the rack and check levelness of the range, first side to side; then front to back.

1. If range is not level, pull range forward until rear leveling leg removed from the anti-tip bracket.
2. Follow the directions in Style 1 or Style 2, depending on the style of drawer supplied with the range.

Style 1: Ranges Equipped with a Storage Printer

Use a 1/4" drive ratchet, wrench or pliers to adjust leveling legs up or down until the range is level. Push range back into position. Check that rear leveling leg is engaged in the anti-tip bracket.

Style 2: Ranges Equipped with a Warming Printer or Premium Storage Printer:

Use a wrench or pliers to adjust leveling legs up or down until the range is level. Push range back into position. Check that rear leveling leg is engaged in the anti-tip bracket.

NOTE: Range must be level for satisfactory baking performance and best cleaning results using AquatLife technology and Steam Clean functions.

Warming Printer or Premium Storage Printer (on some models)

Remove all items from inside the warming drawer or premium storage drawer, and allow the range to cool completely before attempting to remove the drawer.

Remove:

1. Open the warming drawer or premium storage drawer to its fully open position.
2. Using a flat-blade screwdriver, gently loosen the warming drawer or premium storage drawer from the glide alignment notch and lift up the drawer alignment tab from the glide.

A. Flat-blade screwdriver
B. Drawer alignment tab
C. Drawer glide notch

1. Repeat Step 2 on the other side. The warming drawer or premium storage drawer is no longer attached to the drawer glides. Using both hands, pick up the warming drawer or premium storage drawer to complete the removal.

To Replace:

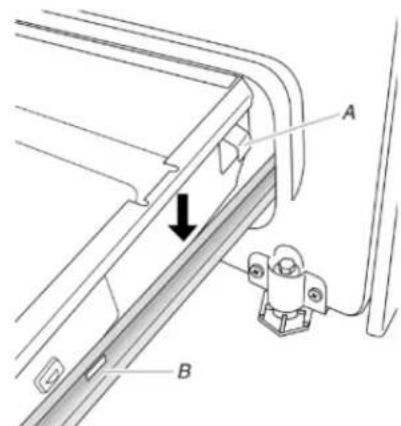

1. Align the forward drawer notches with the notches in the is drawer glides on both sides. Place the rear alignment tabs into the drawer glides on both sides.

A. Drawer alignment tab
B. Drawer glide notch

1. Push the warming drawer or premium storage drawer in all the way.
2. Gently open and close the warming drawer or premium storage drawer to ensure it is seated properly on the glides on both sides.

Storage Printer (on some models) Oven Door

The storage drawer can be removed. Before removing, make sure normal range use, it is not suggested to remove the oven drawer is cool and empty. door. However, if removal is necessary, make sure the oven is off and cool. Then follow these instructions. The oven door is heavy.

To Remove:

1. Pull the storage drawer straight back to the drawer stop.

A. Drawer stop notch

To Remove:

1. Open oven door all the way.
2. Pinch the hinge latch between two fingers and pull forward. Repeat on other side of oven door.

A. Hinge latch

1. Lift up the front of the drawer and pull the drawer out.

To Replace:

1. Close the oven door as far as it will shut.
2. Lift the oven door while holding both sides.

Continue to push the oven door closed and pull it away from

1. Lift up the front of the drawer and place the rear of the drawer the oven door frame.
   inside the range so that the drawer stop notch is behind the drawer glide.
2. Lower the drawer so that the edge of the slide rail drops into the slot in the drawer glide.
3. Slowly push the drawer into the range.

A. Engage drawer glide.

NOTE: When properly installed, the rear slides on the bottom of the drawer will engage the base rails and the drawer will not tip when items are placed in the drawer.

To Replace:

1. Insert both hanger arms into the door.

1. Open the oven door.
   You should hear a "click" as the door is set into place.
2. Move the hinge levers back to the locked position. Check that the door is free to open and close. If it is not, repeat the removal and installation procedures.

Complete Installation

1. Check that all parts are now installed. If there is an extra part go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. Check that the range is level. See the "Level Range" section
5. Use a mild solution of liquid household cleaner and warm water to remove waxy residue caused by shipping material. Dry thoroughly with a soft cloth. For more information, read the "Range Maintenance and Care" section.
6. Read the Quick Start Guide and online Control Guide.

AWARNING

Electrical Shock Hazard

Electrically ground appliance.

Failure to do so could result in death, fire, or elec shock.

1. Plug power cord into appropriate outlet. Turn power on.
2. Turn on surface burners and oven. See the Quick Start Guide and online Control Guide for specific instruction on range operation.

If range does not operate, check the following:

Household fuse is intact and tight; or circuit breaker has not tripped.
- Range is plugged into an outlet.
Electrical supply is connected.

IMPORTANT: If the range control displays an F9 or F9, E0 error code, the electrical outlet may be miswired. Contact a qualified electrician to verify the electrical supply.

See the online Troubleshooting section.

When the range has been on for 5 minutes, check for heat. If range is cold, turn off the range and contact a qualified technician.

Moving the Range

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

When moving range, slide range onto cardboard or hardboard to avoid damaging the floor covering.

If removing the range is necessary for cleaning or maintenance:

1. Slide range forward.
2. Unplug the power supply cord.
3. Complete cleaning or maintenance.
4. Plug in power supply cord.
5. Check that the anti-tip bracket is installed and engaged. See the "Verify Anti-Tip Bracket Is Installed and Engaged" section.
6. Check that range is level.

SECURITE DE LA CUISINIÈRE

A freestanding range may be installed next to combustible walls with zero clearance.

Canadian Standards Association

178 Rexdale Blvd.

Toronto. ON M9W 1R3 CANADA
