USER MANUAL YWFES4530SW WHIRLPOOL

FREESTANDING ELECTRIC RANGE OWNER'S MANUAL

MANUEL D'UTILISATION DE LA CUISINIÈRE ÉLECTRIQUE AUTOPORTANTE

MANUAL DEL USUARIO DE LA ESTUFA AUTÓNOMA ELÉCTRICA

Table of Contents/Table des matières/Índice

RANGE SAFETY 2

Range Safety....2

RANGE MAINTENANCE AND CARE...5

General Cleaning....5

Steam Clean (on some models) .....6

INSTALLATION INSTRUCTIONS .....6

Installation Instructions 6

REQUIREMENTS......6

Tools and Parts 6

Location Requirements 6

Electrical Requirements - U.S.A.

Only....8

Electrical Requirements - Canada

Only....9

INSTALLATION 9

Unpack Range 9

Install Anti-Tip Bracket 10

Adjust Leveling Legs 11

Level Range 11

Electrical Connection - U.S.A.

Only 12

Verify Anti-Tip Bracket Is Installed

and Engaged 17

Storage Drawer 17

Oven Door 17

Complete Installation 18

Moving the Range.... 18

SÉCURITÉ DE LA CUISINIÈRE .....

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without having the anti-tip bracket fastened down properly.

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adult

Range Foot

To verify the anti-tip bracket is properly installed and engaged:

• Slide range forward.
• Look for the anti-tip bracket securely attached to floor or wall.
• Slide range back so rear range foot is under the anti-tip bracket.
  • See Installation Instructions for details.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic precautions, including the following:

■ WARNING: TO REDUCE THE RISK OF TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR OR WALL, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET.

■ WARNING: Danger of fire: Do not store items on the cooking surfaces. Never leave anything on the surface when unattended and not in use. Never place flammable plastic items on or near the surface.

■ CAUTION: Do not store items of interest to children in cabinets above an appliance or on the backguard of an appliance - children climbing on the appliance to reach items could be seriously injured.

■ Proper Installation - The appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1-02. In Canada, the appliance must be electrically grounded in accordance with Canadian Electrical Code. Be sure your appliance is properly installed and grounded by a qualified technician.

■ Never Use Your Appliance for Warming or Heating the Room.

■ Do Not Leave Children Alone - Children should not be left alone or unattended in area where appliance is in use. They should never be allowed to sit or stand on any part the appliance.

■ Wear Proper Apparel – Loose-fitting or hanging garments should never be worn while using the appliance.

■ User Servicing – Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.

■ Storage in or on Appliance – Flammable materials should not be stored in an oven or near surface units.

■ This appliance is not intended for storage.

■ Do Not Use Water on Grease Fires – Smother fire or or use dry chemical or foam-type extinguisher.

■ Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

■ Use Only Dry Potholders – Moist or damp potholders on surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel other bulky cloth.

■ DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are the coil elements, the cooktop, and surfaces facing the cooktop.

■ Use Proper Pan Size – This appliance is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.

■ Never Leave Surface Units Unattended at Higher Heat Settings – Cooking oils and animal fats are flammable, boilover may cause smoking, and greasy spillovers may or ignite.

■ Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.

■ Protective Liners – Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.

■ Glazed Cooking Utensils – Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature.

Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

Do Not Soak Removable Heating Elements – Heating elements should never be immersed in water.

■ Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact a qualified technician immediately.

- Clean Cooktop With Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.

■ Use Care When Opening Door – Let hot air or steam me escape before removing or replacing food.

■ Do Not Heat Unopened Food Containers – Build-up of pressure may cause container to burst and result in injury.

- Keep Oven Vent Ducts Unobstructed.

- Placement of Oven Racks – Always place oven racks in hotdesired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating or element in oven.

■ DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN – Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after each, use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of the oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns – among these surfaces are oven vent openings and surfaces near these openings, oven doors, and windows of oven doors.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic precautions, including the following:

■ Care must be taken to prevent aluminum foil and meat probes from contacting heating elements.

■ Before Self-Cleaning the Oven – Remove broiler pan and other utensils.

For self-cleaning ranges -

For units with ventilating hood -

■ CAUTION: DO NOT LEAVE FOOD OR COOKING UTENSILS, ETC., IN OVEN DURING THE PYROLYTIC SELF-CLEANING MODE OF OPERATION.

■ Clean Ventilating Hoods Frequently – Grease should not be allowed to accumulate on hood or filter.

- Do Not Clean Door Gasket – The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

■ When flaming foods under the hood, turn the fan on.

- Do Not Use Oven Cleaners – No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

or smart enabled ranges and ovens

Remote operation - This appliance is configurable to allow remote operation at any time. Do not store any flammable materials or temperature sensitive items inside, on top or near surface units of the appliance.

■ Clean Only Parts Listed in Manual.

SAVE THESE INSTRUCTIONS

RANGE MAINTENANCE AND CARE

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are off the oven and cooktop are cool. Always follow label instruction cleaning products.

Soap, water, and a soft cloth or sponge are suggested first, otherwise noted.

EXTERIOR PORCELAIN ENAMEL SURFACES (on some models)

Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the entire range is cool. These spills affect the finish.

Cleaning Method:

■ Glass cleaner, mild liquid cleaner, or nonabrasive scrubbing pad: Gently clean around the model/serial/rating plate because scrubbing may remove numbers.

■ Affresh ^®+ Kitchen and Appliance Cleaner Part Number W10355010 (not included):

See the Quick Start Guide for contact information.

STAINLESS STEEL (on some models)

NOTE: To avoid damage to stainless steel surfaces, do not soap-filled scouring pads, abrasive cleaners, Cooktop Cleaner, steel-wool pads, gritty washcloths, or abrasive paper towels. Damage may occur to stainless steel surfaces, even with one or limited use.

Cleaning Method:

Rub in direction of grain to avoid damaging.

■ Affresh ^® Stainless Steel Cleaner Part Number W10355016 (not included):

See the Quick Start Guide for contact information.

METALLIC PAINT (on some models)

Do not use abrasive cleaners, cleaners with bleach, rust removers, ammonia, or sodium hydroxide (lye) because paint surface may stain.

CERAMIC GLASS COOKTOP CLEANING

Cleaning Method:

IMPORTANT: Cooktop scrapers may damage the coating and potentially diminish cleaning performance.

1. Ensure that the cooktop has cooled to room temperature.

2. Cover food/residue with water for a minimum of 5 minutes. Ensure coverage over the entire affected area.

3. Wipe with a non-abrasive sponge.

NOTE: If water dries or food/residue persists on the cooking surface, repeat Steps 2 and 3.

COOKTOP CONTROLS

To avoid damage to the cooktop controls, do not use steel v abrasive cleansers, or oven cleaner.

To avoid damage, do not soak knobs. When replacing knobs, make sure knobs are in the Off position.

On some models, do not remove seals under knobs.

Cleaning Method:

■ Soap and water: Pull knobs straight away from control pane remove.

CONTROL PANEL AND OVEN DOOR EXTERIOR

To avoid damage to the control panel, do not use abrasive cleaners, steel-wool pads, gritty washcloths, or abrasive paper towels.

Cleaning Method:

■ Glass cleaner and soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel.
■ Affresh® Kitchen and Appliance Cleaner Part Number W10355010 (not included):

and See the Quick Start Guide for contact information.

^s COIL ELEMENTS (on some models)

Cleaning Method: unless

■ Damp cloth: Make sure control knobs are OFF and elements are cool.

Do not clean or immerse in water. Soil will burn off when hot.

BURNER BOWLS (on some models)

Before removing or replacing coil elements and burner bowls, make sure they are cool and the control knobs are in the OFF position.

Remove the coil element by pushing the edge of the coil element toward the receptacle. Lift it enough to clear the burner bowl. Pull the coil element straight away from the receptacle to remove. Lift out the burner bowl.

Cleaning Method:

Chrome burner bowls

Wash frequently in warm, soapy water. (It is not recommended to wash chrome bowls in a dishwasher.) A mild abrasive cleaner and a plastic scrubber can be used to remove stubborn stains.

For heavily soiled bowls, place an ammonia-soaked paper towel on the stains and allow to soak for a short time, then gently scrub with a plastic scrubber.

SURFACE UNDER COOKTOP (on some models)

The coil cooktop will lift up to provide easy access for cleaning beneath. Lift the cooktop by both front corners until the support locks into place.

Cleaning Method:

■ Glass cleaner, mild liquid cleaner or nonabrasive scrubbing pad.
■ Affresh ^® Kitchen and Appliance Cleaner Part Number W10355010 (not included):

See the Quick Start Guide for contact information.

To avoid damage to the range, do not remove the cooktop.

OVEN RACKS

Cleaning Method:

■ Steel-wool pad
■ For racks that have discolored and are harder to slide, a light coating of vegetable oil applied to the rack guides will help them slide.
Dishwasher (steam rack water reservoir only, not racks): Although the water reservoir is durable, it may lose its shine and/or discolor when washed in a dishwasher.

STORAGE DRAWER

Check that storage drawer is cool and empty before cleaning.

Cleaning Method:

■ Mild detergent

OVEN CAVITY

Depending on your model, use Steam Clean or Self-Clean cycle regularly to clean oven spills.

Do not use oven cleaners.

Food spills should be cleaned when oven cools. At high temperatures, foods react with porcelain. Staining, etching, pitting, or faint white spots can result.

Cleaning Method:

■ Clean cycle: See the "Self-Cleaning Cycle" or "Steam Clean Cycle" section.

Parts supplied

Check that all parts are included.

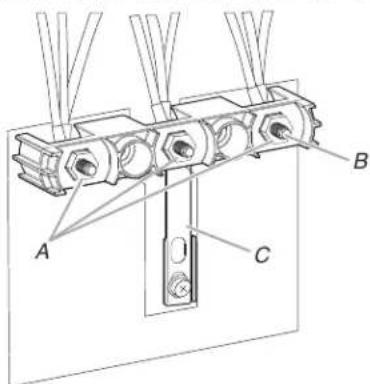

■ 3 - 10-32 hex nuts (attached to terminal block)

■ 3 - Terminal lugs

■ 3 - 10-32 hex nuts (attached to terminal block) ■ 3 - Terminal lugs

Steam Clean (on some models)

IMPORTANT: Do not use oven cleaners or any other additives with Steam Clean.

The Steam Clean feature is designed for light oven cavity bottom cleaning. Use the Steam Clean feature as soon as possible after spills occur. The longer a spill sits and dries in the oven, the more difficult it may be to remove.

Allow the range to cool to room temperature before using the Steam Clean feature. If your oven cavity is above 170^ F ( 77^ C), "HOT" will appear in the display and the Steam Clean feature will not activate until it cools down.

■ Remove all racks and accessories from the oven cavity.
■ For best results, pour 12 oz (355 mL) of distilled or filtered water onto the oven bottom.

■ The Steam Clean feature will take a total of 40 minutes. will appear in the display at the end of the cycle.

IMPORTANT: Since the water in the oven bottom is hot, do open the oven door during the Steam Clean cycle.

Press the Cancel keypad at any time to end the cycle. The will return to the time of day.

Helpful Hints

■ Once the Steam Clean cycle is complete, remove all remain water and debris in the bottom of the oven with a sponge cloth.

■ Wipe any remaining moisture from the oven door interior, ov cavity interior sides, and cooktop.

■ Use a soft brush or nylon scrubber to wipe the oven interd. This may help with more stubborn stains.

■ If any soil remains, run a second Steam Clean cycle to help loosen debris for easier removal.

■ Use the Steam Clean on small spills such as cheese or sa from pizza or snacks, or drips from casseroles.

■ Food spills containing sugar, proteins or starches may require vigorous scrubbing to remove most of the debris.

It is recommended to use distilled or filtered water, as tap water may leave mineral deposits on the oven bottom. Use cloth soaked with vinegar or lemon juice to remove any mineral deposits that may be left after the Steam Clean cycle

Technical line drawing of a mechanical bracket with labeled points A and B (no text or symbols beyond labels)

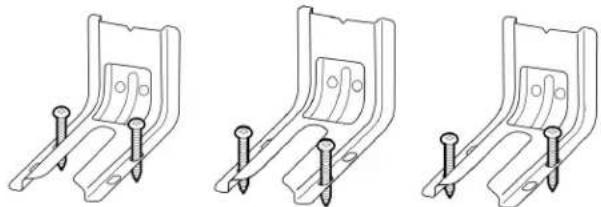

A. Anti-tip bracket
B. #12 x 18 " (41 mm) screws (2)

■ Anti-tip bracket must be securely mounted to floor or wall. Thickness of flooring may require longer screws to anchor bracket to floor.

“Parts needed

If using a power supply cord kit:

AUL listed power supply cord kit marked for use with ranges. The cord should be rated at 250V minimum, 40 A or 50 A t is marked for use with nominal (3.5cm) diameter connection opening and must end in ring terminals or open-end spade terminals with upturned ends.

■ A UL listed strain relief.

Check local codes. Check existing electrical supply. See the appropriate "Electrical Requirements" section.

Venis recommended that all electrical connections be made by a licensed, qualified electrical installer.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

■ To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface a units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that project cycle horizontally a minimum of 5 inches beyond the bottom of the cabinets.

It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located on the frame behind a top corner of the door or either side of the drawer.

■ The range should be located for convenient use in the kitchen.

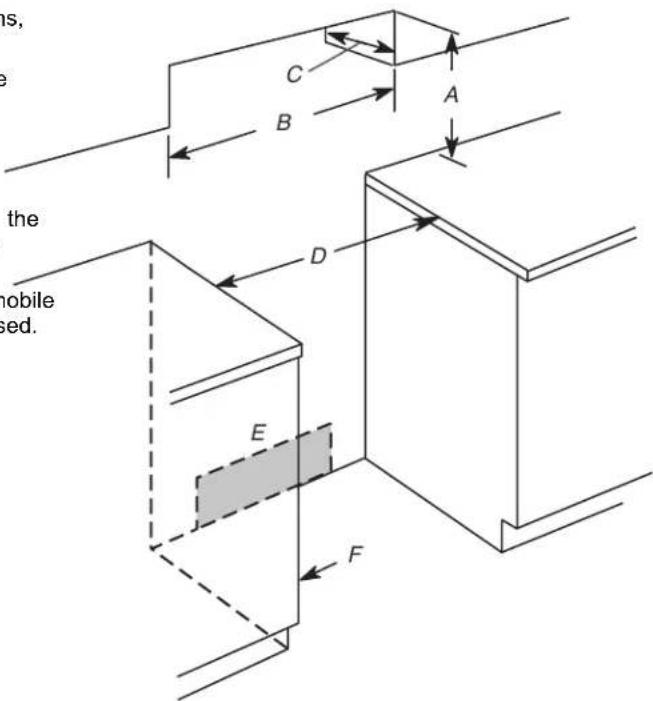

■ Recessed installations must provide complete enclosure of the sides and rear of the range.

■ All openings in the wall or floor where range is to be installed must be sealed.

■ Cabinet opening dimensions that are shown must be used. Given dimensions are minimum clearances.

■ The anti-tip bracket must be installed. To install the anti-tip bracket shipped with the range, see the "Install Anti-Tip Bracket" section.

■ Grounded electrical supply is required. See the appropriate "Electrical Requirements" section.

■ Contact a qualified floor covering installer to check that the floor covering can withstand at least 200°F (93°C).

■ Use an insulated pad or 1/4" (0.64 cm) plywood under range if installing range over carpeting.

INSTALLATION INSTRUCTIONS REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

■ Tape measure
■ Flat-blade screwdriver
■ Phillips screwdriver
Level
■ Hammer
■ Hand or electric drill
■ Wrench or pliers
■ Marker or pencil
■ Flashlight
■ Torque Wrench

■ Masking tape
■ 1/4" (6.4 mm) drive ratchet
■ 1/4" (6.4 mm) nut driver
■ 3/8" (9.5 mm) and 5/16" (8 mm) nut driver
■ 1/8" (3.2 mm) drill bit (for wood floors)
■ Tin snips or large wire cutters (for cutting ground-link strap if necessary)

IMPORTANT: To avoid damage to your cabinets, check with your Cabinet Dimensions

builder or cabinet supplier to make sure that the materials used cabinet opening dimensions shown are for 25" (64.0 cm) will not discolor, delaminate or sustain other damage. This overcountertop depth, 24" (61.0 cm) base cabinet depth and 36" has been designed in accordance with the requirements of UL (91.4 cm) countertop height.

and CSA International and complies with the maximum allowable wood cabinet temperatures of 194°F (90°C). IMPORTANT: If installing a range hood or microwave hood combination above the range follow the range hood or microwave

Mobile Home - Additional Installation Requirements

The installation of this range must conform to the Manufactured clearances above the cooktop surface.

Home Construction and Safety Standard, Title 24 CFR, Part 3280 freestanding range may be installed next to combustible walls (formerly the Federal Standard for Mobile Home Construction and zero clearance.

Safety, Title 24, HUD Part 280). When such standard is not applicable, use the Standard for Manufactured Home Installations, ANSI A225.1/NFPA 501A or with local codes.

In Canada, the installation of this range must conform with the current standards CAN/CSA-Z240.1-latest edition, or with local codes.

Mobile home installations require:

■ When this range is installed in a mobile home, it must be secured to the floor during transit. Any method of securing the range is adequate as long as it conforms to the standards listed above.

■ Four-wire power supply cord or cable must be used in a mobile home installation. The appliance wiring will need to be revised. See "Electrical Connection - U.S.A. Only" section.

as, e the mobile sed. C B A D E F

A. For minimum clearance to top of cooktop, see NOTE*
B. 30" (76.2 cm) minimum opening width
C. 13" (33.0 cm) maximum upper cabinet depth
D. 30" (76.2 cm) minimum opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet, 7" (17.8 cm) maximum from floor.
F. Cabinet door or hinges should not extend into the cutout.

*NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is covered by not less than 1/4" (0.64 cm) flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.

30" (76.2 cm) minimum clearance between the top of the cooking platform and the bottom of an uncovered wood or metal cabinet.

Electrical Requirements - U.S.A. Only

WARNING

Electrical Shock Hazard

Electrically ground appliance.

Failure to do so could result in death, fire, or ele shock.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path and wire gauge are in accordance with local codes.

Do not use an extension cord.

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70-latest edition and all local codes and ordinances

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with qualified electrician or service technician if you are in doubt whether the appliance is properly grounded. Do not modify power supply cord plug. If it will not fit the outlet, have a outlet installed by a qualified electrician.

Electrical Connection

To properly install your range, you must determine the type of electrical connection you will be using and follow the instruction provided for it here.

■ Range must be connected to the proper electrical voltage frequency as specified on the model/serial/rating plate. The model/serial/rating plate is located on the frame behind a corner of the door or either side of the drawer.

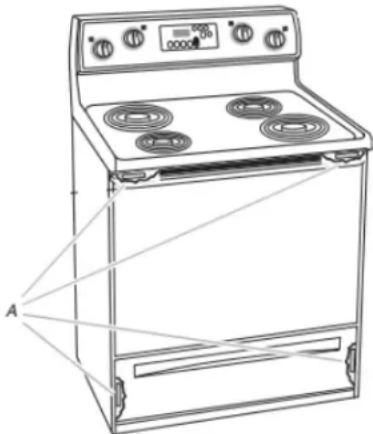

Line drawing of a simple electric stove with four burners and a digital display (no text or symbols)

A. The model/serial/rating plate is located on the frame behind a top corner of the door or either side of the drawer.

This range is manufactured with the neutral terminal connected to the cabinet. Use a 3-wire, UL listed, 40 or 50 A power supply cord (pigtail). See the following Range Rating chart. If local codes do not permit ground through the neutral, use a 4-wire power supply cord rated at 250 V, 40 or 50 A and investigated for use with ranges.

Range Rating*

Specified Rating of Power Supply Cord Kit and Circuit Protection

120/240 V 120/208 V Ampere

8.8-16.5 kW 7.8-12.5 kW 40 or 50**

16.6-22.5 kW 12.6-18.5 kW 50**

*The NEC calculated load is less than the total connected load listed on the model/serial/rating plate.

**For 50 A rated cord kits, use kits that specify use with a nominal 13/8'' (34.9 mm) diameter connection opening.

■ A circuit breaker is recommended.
■ The range can be connected directly to the circuit breaker box (or fused disconnect) through flexible or nonmetallic sheathed, copper or aluminum cable. See the "Electrical Connection - U.S.A. Only" section.
Allow 2 to 3 ft (61.0 cm to 91.4 cm) of slack in the line so t the range can be moved if servicing is ever necessary.
A UL listed conduit connector must be provided at each end of the power supply cable (at the range and at the junction box).
■ Wire sizes and connections must conform with the rating of the range.
■ The Tech Sheet is located on the back of the range inside a clear plastic bag.

a If connecting to a 4-wire system:

as to

The This range is manufactured with the ground connected to the neutral by a link. The ground must be revised so the green grouper wire of the 4-wire power supply cord is connected to the cabinet. See the "Electrical Connection - U.S.A. Only" section.

of Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC); mobile homes; and recreational vehicles, or an area where local codes prohibit grounding through the neutral conductor.

When a 4-wire receptacle of NEMA Type 14-50R is used, a matching UL listed, 4-wire, 250 V, 40 or 50 A, range power supp cord (pigtail) must be used. This cord contains 4 copper conductors with ring terminals or open-end spade terminals with upturned ends, terminating in a NEMA Type 14-50P plug on the supply end.

The fourth (grounding) conductor must be identified by a green or green/yellow cover and the neutral conductor by a white cover. Cord should be Type SRD or SRDT with a UL listed strain relief and be at least 4 ft (1.22 m) long.

4-wire receptacle (14-50R)

The minimum conductor sized for the copper 4-wire power cord are:

40 A circuit

2 No.-8 conductors

1 No.-10 white neutral
1 No.-8 green grounding

If connecting to a 3-wire system:

Local codes may permit the use of a UL listed, 3-wire, 250 V, 40-50 A range power supply cord (pigtail). This cord contains 3 copper conductors with ring terminals or open-end spade terminals with upturned ends, terminating in a NEMA Type 10-50P plug on the supply end. Connectors on the appliance end must be provided at the point the power supply cord enters the appliance. This uses a 3-wire receptacle of NEMA Type 10-50R.

This range is equipped with a CSA International Certified Power Cord intended to be plugged into a standard 14-50R wall receptacle. Be sure the wall receptacle is within reach of range's final location.

3-wire receptacle (10-50R)

Electrical Requirements - Canada Only

WARNING

Electrical Shock Hazard

Electrically ground appliance.

Failure to do so could result in death, fire, or electrical shock.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path is adequate and wire gauge are in accordance with local codes.

Be sure that the electrical connection and wire size are adequate and in conformance with CSA Standard C22.1, Canadian Electrical Code, Part 1 - latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

Canadian Standards Association 178 Rexdale Blvd.

Toronto, ON M9W 1R3 CANADA

■ Check with a qualified electrical installer if you are not sure the range is properly grounded.

Range Rating*

Specified

Rating of Power Supply Cord Kit and Circuit Protection

120/240

V

120/208

V

Amps

8.8-16.5 kW

7.8-12.5 kW

40 or 50**

16.6-22.5 kW

12.6-18.5 kW

50**

*The NEC calculated load is less than the total connected load listed on the model/serial/rating plate.

**For 50 A rated cord kits, use kits that specify use with a nominal 1^3/8 (34.9 mm) diameter connection opening.

■ A time-delay fuse or circuit breaker is recommended.

■ Do not use an extension cord.

INSTALLATION

Unpack Range

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

1. Remove shipping materials, tape and film from range.
2. Remove oven racks and parts package from inside oven.
3. Do not remove the shipping base at this time.

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

A. Shipping base

4. On Ranges Equipped with a Storage Drawer:

Remove the storage drawer. See the "Storage Drawer" section. Use a 1/4" (6.4 mm) drive ratchet to lower the rear leveling legs one-half turn. Use a wrench or pliers to lower front leveling legs one half turn.

Technical diagram showing two types of pipe fittings: a clamp and a crimping tool, with labeled parts A, B, C, D.

A. 1/4" (6.4 mm) drive ratchet

C. Wrench or pliers D. Front leveling leg

B. Rear leveling leg

Install Anti-Tip Bracket

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

1. Remove the anti-tip bracket from where it is taped inside the storage drawer.
2. Determine which mounting method to use: floor or wall. If you have a stone or masonry floor, you can use the wall mounting method. If you are installing the range in a mobile home, you must secure the range to the floor.
3. Determine and mark centerline of the cutout space. The mounting can be installed on either the left-side or right-side of the cutout. Position mounting bracket against the wall in the cutout so that the V-notch of the bracket _16 s (82.9 cm) from centerline as shown.

Technical diagram showing a mechanical bracket with labeled points A, B, and C, including an inset view of a component.

A. 12^9/_16 " (31.9 cm)
B. Bracket V-notch
C. Centerline

1. Drill two 1/8" (3 mm) holes that correspond to the bracket holes of the determined mounting method. See the following illustrations.

Floor Mounting

Three identical line drawings of a metal bracket with pins inserted, shown from different angles (no text or symbols)

Rear Position Front Position Diagonal (2 options)

Wall Mounting

1. Using the Phillips screwdriver, mount anti-tip bracket to the wall or floor with the two #12" x(411.3 mm) screws provided.
2. Move range close enough to opening to allow for final electrical connections. Remove shipping base, cardboard or hardboard from under range.
3. Move range into its final location, making sure rear leveling leg slides into anti-tip bracket.

Technical line drawing of a mechanical bracket with a spring-like component (no text or symbols)

1. Move range forward onto shipping base, cardboard or hardboard to continue installing the range using the following installation instructions.

Adjust Leveling Legs

1. If range height adjustment is necessary, use a wrench or to loosen the four leveling legs.

This may be done with the range on its back or with the supported on two legs after the range has been placed by a standing position.

NOTE: To place range back up into a standing position, put sheet of cardboard or hardboard in front of range. Using two or more people, stand range back up onto the cardboard or hardboard.

Level Range

Determine if you have Steam Clean by referring to the "Range Maintenance and Care" section.

Range with Steam Clean:

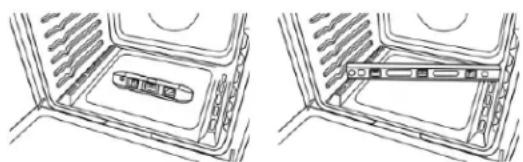

1. Place level on the oven bottom as indicated in one of the two figures below depending on the size of the level. Check with the level: side to side and front to back.

Technical line drawing showing two views of a device inside a storage unit (no text or symbols)

1. If range is not level, pull range forward until rear leveling leg i removed from the anti-tip bracket.
2. Follow the directions in Style 1.

For Ranges without Steam Clean:

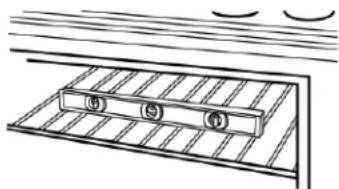

1. Place a standard flat rack in oven.
2. Place level on the rack and check levelness of the range, first side to side; then front to back.

Simple line drawing of a ladder with three circular components on one side (no text or symbols)

1. If range is not level, pull range forward until rear leveling leg i or removed from the anti-tip bracket.
2. Follow the directions in Style 1.

Style 1: Ranges Equipped with a Storage Drawer:

1. Measure the distance from the top of the counter to the
2. Measure the distance from the top of the cooktop to the bottom of the leveling legs. This distance should be the If it is not, adjust the leveling legs to the correct height. leveling legs can be loosened to add up to a maximum (2.5 cm). A minimum of 3/16" (5 mm) is needed to eng: anti-tip bracket.

Use a 1/4" drive ratchet, wrench or pliers to adjust leveling legs up. The down until the range is level. Push range back into position. Check that rear leveling leg is engaged in the anti-tip bracket.

NOTE: If height adjustment is made when range is standing, tilt the range back to adjust the front legs, and then tilt forward to adjust the rear legs.

1. When the range is at the correct height, check that there is adequate clearance under the range for the anti-tip bracket. Before sliding range into its final location, check that the anti-tip bracket will slide under the range and onto the rear leveling leg prior to anti-tip bracket installation.
   NOTE: If a Trim Kit will be used, the top of the cooktop should be higher than the counter. See the Installation Instructions included with the Trim Kit for the correct height.

Electrical Connection - U.S.A. Only ^4 .

Power Supply Cord

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Use a new 40 A power supply cord.

Plug into a grounded outlet.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Disconnect power.
2. Remove the terminal block cover screws located on the back of the range. Pull cover down and toward you to remove cover from range.

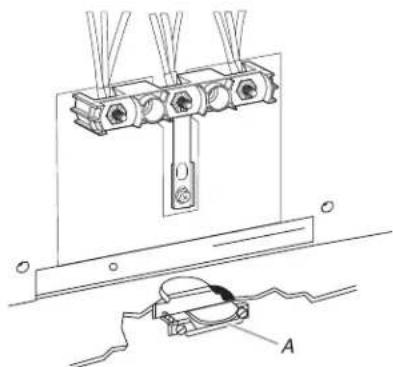

Technical diagram of a mechanical device with labeled components A, B, and C, showing internal structure and directional arrow.

A. Two mounting tabs each side
B. Terminal block cover
C. Hex-head screws

1. Remove the three 10-32 hex nuts from the terminal posts.

Technical diagram of a mechanical assembly with labeled components A, B, and C

A. 10–32 hex nuts
B. Terminal Posts
C. Ground Strap

Style 1: Power supply cord strain relief

■ Remove the knockout for the power supply cord.
■ Assemble a UL listed strain relief in the opening.

Technical line drawing of a mechanical assembly with mounting bracket and base plate (no text or symbols)

A. UL listed strain relief

■ Tighten strain relief screw against the power supply cord.

Diagram of a mechanical joint or clamping mechanism with no visible text or symbols

Style 2: Direct wire strain relief

■ Remove the knockout as needed for the flexible conduit connection.
■ Assemble a UL listed conduit connector in the opening.

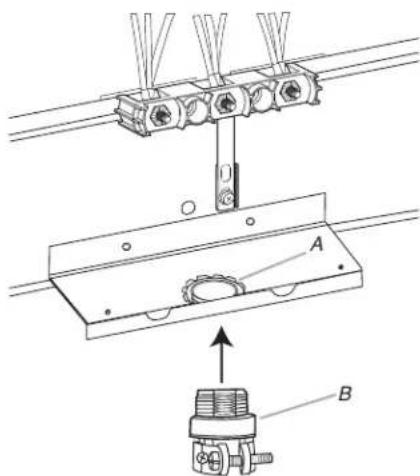

Technical diagram showing installation of a mechanical component with labeled parts A and B, including wiring and mounting details.

A. Removable retaining nut
B. Conduit

■ Tighten strain relief screw against the flexible conduit.

1. Complete installation following instructions for your type of 1. Part of metal ground strap must be cut out and removed.

electrical connection:

4-wire (recommended)

3-wire (if 4-wire is not available)

Electrical Connection Options

If your home has: And you will be connecting to: Go to Section:

4-wire receptacle A UL Listed, 250 V4-wire connection: (NEMA type 14-50R) minimum, 40 A, Power supply cord

4-wire direct

A circuit breaker 4-wire connection: box or fused Direct wire disconnect

A. 3/8" (1 cm)

B. 5" (12 cm)

3-wire receptacle A UL Listed, 250 ♂-wire connection: (NEMA type 10-50R) minimum, 40 A, Power supply cord

3-wire direct

A circuit breaker box or fused disconnect 3-wire connection: Direct wire

A. 3/8" (1 cm)

B. 3" (7.6 cm)

4-Wire Connection: Power Supply Cord

Use this method for:

■ New branch-circuit installations (1996 NEC)

■ Mobile homes

■ Recreational vehicles

In an area where local codes prohibit grounding through the neutral

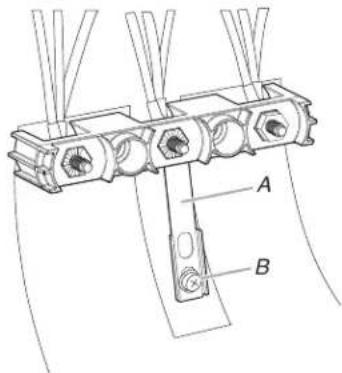

Technical diagram of a mechanical assembly with labeled parts A and B

A. Metal ground strap

B. Ground-link screw

1. Use a Phillips screwdriver to remove the ground-link screw from the back of the range. Save the ground-link screw and the end of the ground link under the screw.

2. Feed the power supply cord through the strain relief on the cord/conduit plate on bottom of range. Allow enough slack to easily attach the wiring to the terminal block.

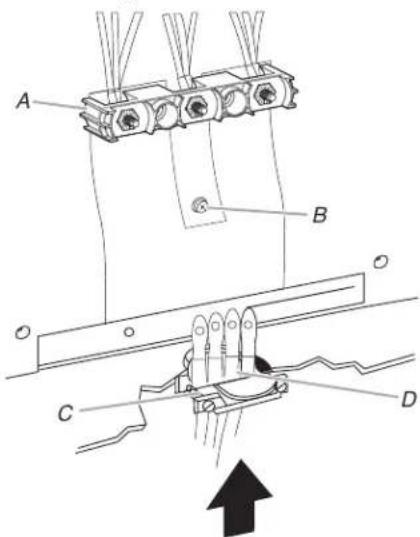

A B C D

A. Terminal block

B. Ground-link screw

C. UL listed strain relief D. Power supply cord wires

1. Use Phillips screwdriver to connect the green ground wire from the power supply cord to the range with the ground-link screw. The ground wire must be attached first.

2. Use 3/8" (9.5 mm) nut driver to connect the neutral (white)2. wire to the center terminal block post with one of the 10-32 hex nuts.

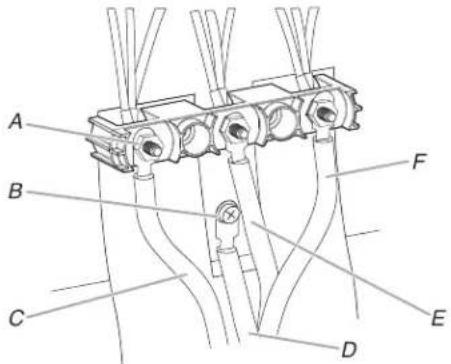

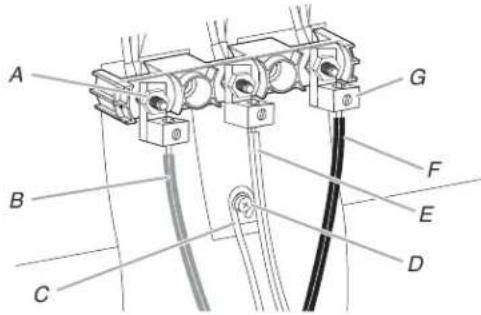

A B C D E F

A. 10-32 hex nut

D. Green ground wire

B. Ground-link screw

E. Neutral (center) wire

C. Line 2 (red)

F. Line 1 (black)

1. Connect line 2 (red) and line 1 (black) wires to the outer terminal block posts with 10-32 hex nuts.
2. Using a torque wrench, tighten the hex nuts to a recommended torque of 20 in-lbs (2.3 N-m).

NOTE: For power supply cord replacement, use only a power cord rated at 250 V minimum, 40 A or 50 A that is marked use with nominal 18 (3.5 cm) diameter connection opening, with ring terminals and marked for use with ranges.

1. Tighten strain relief screws.

IMPORTANT: Verify the tightness of the hex nuts.

1. Replace terminal block access cover.

3-Wire Connection: Power Supply Cord

Use this method only if local codes permit connecting chassis ground conductor to neutral wire of power supply cord.

1. Feed the power supply cord through the strain relief in the cord/conduit plate on bottom of range. Allow enough slack easily attach the wiring to the terminal block.

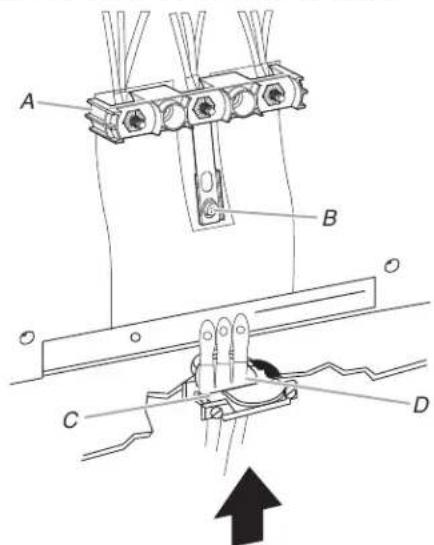

A B C D

A. Terminal block

C. UL listed strain relief

B. Ground-link screw

D. Power supply cord wires - large opening

Use 3/8" (9.5 mm) nut driver to connect the neutral (white) wire to the center terminal block post with one of the 10-32 hex nuts.

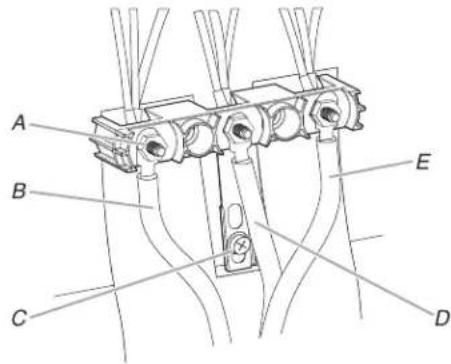

A B C D E

A. 10-32 hex nut

D. Neutral (white) wire

B. Line 2 (red)

E. Line 1 (black)

C. Ground-link screw

1. Connect line 2 (red) and line 1 (black) wires to the outer terminal block posts with 10-32 hex nuts.
2. Using a torque wrench, tighten the hex nuts to a recommended torque of 20 in-lbs (2.3 N-m).

NOTE: For power supply cord replacement, only use a power cord rated at 250 V minimum, 40 A or 50 A that is marked use with nominal/ (3.5 cm) diameter connection opening, with ring terminals and marked for use with ranges.

1. Tighten strain relief screws.

IMPORTANT: Verify the tightness of the hex nuts.

1. Replace terminal block access cover.

Direct Wire

WARNING

to

Electrical Shock Hazard

Disconnect power before servicing.

Use 8 gauge copper or 6 gauge aluminum wire.

Electrically ground range.

Failure to follow these instructions can result in death, fire, or electrical shock.

Direct Wire Installation: Copper or Aluminum Wire Pull the wires through the strain relief on bottom of range. This range may be connected directly to the fuse disconnect or Allow enough slack to easily attach wiring to the terminal circuit breaker box. Depending on your electrical supply, make the block. required 3-wire or 4-wire connection.

1. Strip outer covering back 3" (7.6 cm) to expose wires. Strip the insulation back 1" (2.5 cm) from the end of each wire.

A. 3/8" (1 cm) B. 3" (7.6 cm)

1. Allow enough slack in the wire to easily attach the wiring terminal block.

2. Complete electrical connection according to your type of electrical supply.

4-wire (recommended) 3-wire (if 4-wire is not available)

4-Wire Connection: Direct Wire

Use this method for:

■ New branch-circuit installations (1996 NEC)

■ Mobile homes

■ Recreational vehicles

■ In an area where local codes prohibit grounding through the neutral

1. Part of metal ground strap must be cut out and removed.

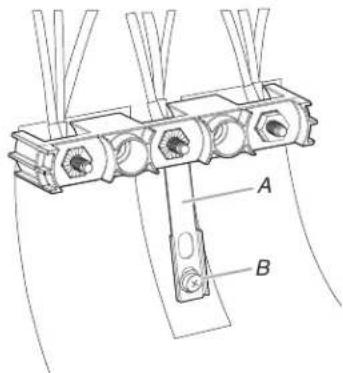

Technical diagram of a mechanical assembly with labeled parts A and B

A. Metal ground strap
B. Ground-link screw

1. Use a Phillips screwdriver to remove the ground-link screw from the back of the range. Save the ground-link screw and the end of the ground link under the screw.

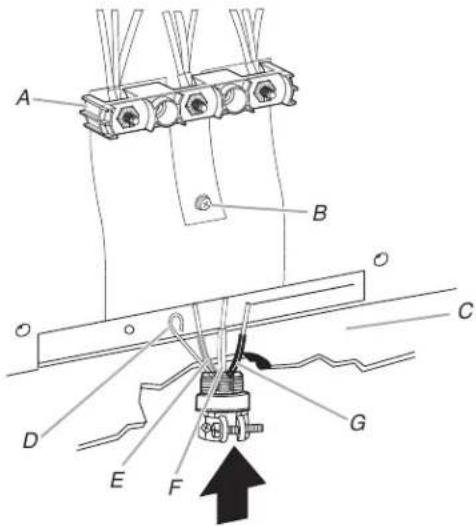

A B C D E F G

A. Terminal block
B. Ground-link screw
C. Cord/conduit plate
D. Bare (green) ground wire

E. Line 2 (red) wire
F. Neutral (white) wire
G. Line 1 (black) wire

minal lugs to line 1 (black), neutral (white), and line 2 s. Loosen (do not remove) the setscrew on the front terminal lug and insert exposed wire end through terminal lugs. Securely tighten setscrew to torque as the following Bare Wire Torque Specifications chart.

A B C D E

A. Terminal lug
B. Setscrew
C. Line 2 (red)

D. Neutral (white) wire
E. Line 1 (black) wire

Bare Wire Torque Specifications

Attaching terminal lugs to the terminal block - 20 lbs-in (2.3 N-m)

Wire Awg Torque

8 gauge copper 25 lbs-in (2.8 N-m)

6 gauge aluminum 35 lbs-in (4.0 N-m)

1. Use a hex or Phillips screwdriver to connect the bare (green) ground wire to the range with the ground-link screw and ground-link section. The ground wire must be attached first and must not contact any other terminal.

2. Use 3/8" nut driver to connect the neutral (white) wire to the center terminal block post with one of the 10-32 hex nuts.

Attach terminal lugs to line 2 (red), bare (green) ground, and line 1 (black) wires. Loosen (do not remove) the setscrew on the front of the terminal lug and insert exposed wire end through bottom of terminal lugs. Securely tighten setscrew to torque as shown in the following Bare Wire Torque Specifications chart.

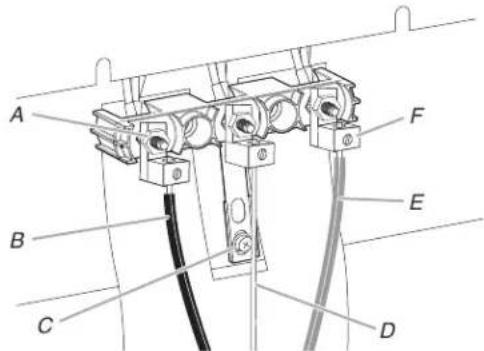

A B C D E F G

A. 10–32 hex nut

E. Neutral (white) wire

B. Line 2 (red)

F. Line 1 (black)

C. Bare (green) ground wire

G. Terminal lug

D. Ground-link screw

1. Connect line 2 (red) and line 1 (black) wires to the outer terminal block posts with 10-32 hex nuts.
2. Using a torque wrench, tighten the hex nuts to a recommended torque of 20 in-lbs (2.3 N-m).
3. Securely tighten hex nuts.

IMPORTANT: Verify the tightness of the hex nuts.

1. Replace terminal block access cover.

3-Wire Connection: Direct Wire

Use this method only if local codes permit connecting ground conductor to neutral supply wire.

1. Pull the wires through the conduit on cord/conduit plate on 3. Use 3/8" nut driver to connect the bare (green) ground wire to bottom of range. Allow enough slack to easily attach the wiring the center terminal block post with one of the 10-32 hex nuts to the terminal block.

A B C D E

A. Terminal lug

D. Bare (green) ground wire

B. Setscrew

E. Line 1 (black) wire

C. Line 2 (red) wire

Bare Wire Torque Specifications

Attaching terminal lugs to the terminal block - 20 lbs-in (2.3 N-m).

Wire Awg Torque

8 gauge copper 25 lbs-in (2.8 N-m)
6 gauge aluminum 35 lbs-in (4.0 N-m)

A B C D E F

A. 10-32 hex nut
D. Bare (green) ground wire
B. Line 2 (red)
E. Line 1 (black)
C. Ground-link screw
F. Terminal lug

1. Connect line 2 (red) and line 1 (black) wires to the outer terminal block posts with 10-32 hex nuts.
2. Using a torque wrench, tighten the hex nuts to a recommended torque of 20 in-lbs (2.3 N-m).
3. Securely tighten hex nuts.

IMPORTANT: Verify the tightness of the hex nuts.

1. Replace terminal block access cover.

Verify Anti-Tip Bracket Is Installed Oven Door and Engaged For normal range u door. However, if re

On Ranges Equipped with a Storage Drawer:

For normal range use, it is not suggested to remove the oven door. However, if removal is necessary, make sure the oven is off and cool. Then, follow these instructions. The oven door is heavy.

1. Remove the storage drawer. See "Storage Drawer" section.
2. Use a flashlight to look underneath the bottom of the rang
3. Visually check that the rear range foot is inserted into the of the anti-tip bracket.

To Remove:
i. Open oven door all the way.
2. Pinch the hinge latch between two fingers and pull forward. Repeat on other side of oven door.

Storage Drawer

The storage drawer can be removed. Before removing, make sure drawer is cool and empty.

To Remove:

1. Pull the storage drawer straight back to the drawer stop.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

A. Drawer stop notch

Diagram of a mechanical clamp or lever mechanism with labeled point A, showing motion lines and no readable text or symbols.

A. Hinge latch

1. Close the oven door as far as it will shut.
2. Lift the oven door while holding both sides.
   Continue to push the oven door closed and pull it away from the oven door frame.

Diagram showing two labeled arrows pointing to a mechanical component, indicating direction of movement or force.

1. Lift up the front of the drawer and pull the drawer out.

To Replace:

1. Lift up the front of the drawer and place the rear of the drawer inside the range so that the drawer stop notch is behind the drawer glide.

2. Lower the drawer so that the edge of the slide rail drops the slot in the drawer glide.

3. Slowly push the drawer into the range.

Tro Replace:

1. Insert both hanger arms into the door.

Technical line drawing of a mechanical assembly with an inset showing a component labeled A (no text or symbols present)

A. Engage drawer glide.

1. Open the oven door.

You should hear a "click" as the door is set into place.

1. Move the hinge levers back to the locked position. Check that tom the door is free to open and close. If it is not, repeat the will removal and installation procedures.

NOTE: When properly installed, the rear slides on the bottom the door is free to open and close. If it is not, repeat the of the drawer will engage the base rails and the drawer will removal and installation procedures. tip when items are placed in the drawer.

Complete Installation

When moving range, slide range onto cardboard or hardboard to avoid damaging the floor covering.

go back through the steps to see which step was skipped. If removing the range is necessary for cleaning or maintenance:

1. Check that you have all of your tools.
2. Dispose of/recycle all packaging materials.
3. Check that the range is level. See the "Level Range" section
4. Use a mild solution of liquid household cleaner and warm water to remove waxy residue caused by shipping material. Dry thoroughly with a soft cloth. For more information, see "Range Maintenance and Care" section.
5. Read the Quick Start Guide and online Control Guide.
6. Plug power cord into appropriate outlet. Turn power on.
7. Turn on surface burners and oven. See the Quick Start Guide and online Control Guide for specific instructions on range operation.

If Range Does Not Operate, Check the Following:

■ Household fuse is intact and tight; or circuit breaker has not tripped.
■ Range is plugged into a grounded outlet.
■ Electrical supply is connected.

IMPORTANT: If the range control displays an "F9" or "E0" error code, the electrical outlet in the home may be miswired. Disconnect power and contact a qualified electrician to verify the electrical supply.

■ See the online Troubleshooting section.

When the range has been on for 5 minutes, check for heat the range is cold, turn off the range and contact a qualified electrician.

For power supply cord-connected ranges:

1. Slide range forward.
   ion. Unplug the power supply cord.
2. Complete cleaning or maintenance.
3. Plug in power supply cord.
4. The Check that the anti-tip bracket is installed and engaged. See the "Verify Anti-Tip Bracket Is Installed and Engaged" section.
5. Check that range is level.

For direct-wired ranges:

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

at. Failure to do so can result in death or electrical shock.

Moving the Range

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

1. Disconnect power.
2. Slide range forward.
3. Complete cleaning or maintenance.
4. Check that the anti-tip bracket is installed and engaged. See the "Verify Anti-Tip Bracket Is Installed and Engaged" section.
5. Check that range is level.
6. Reconnect power.

SÉCURITÉ DE LA CUISINIÈRE

Technical line drawing of a mechanical bracket with labeled points A and B (no text or symbols beyond labels)

A. Bride antibasculement

B. Vis no 12 x 5% po (41 mm) (2)

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

Line drawing of a standard electric stove with four burners and a digital display (no text or symbols)

Canadian Standards Association

178 Rexdale Blvd.

Toronto, ON M9W 1R3 CANADA

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Technical diagram showing two types of pipe crimping tools labeled A, B, C, and D with their respective parts.

Three identical line drawings of a metal bracket with multiple screws, shown from different angles (no text or symbols)

Technical diagram showing a mechanical bracket with labeled points A, B, and C, including an inset view of a component.

A. 12^9/_16po (31,9 cm)

Technical line drawing of a mechanical bracket with a spring-like component (no text or symbols)

Technical line drawing of two views of a device interior showing internal components and ventilation ducts (no text or symbols)

Simple line drawing of a rectangular object with three circular elements on a grid-like surface, no text or symbols present.

Technical diagram of a mechanical assembly with labeled components A, B, and C, showing a downward force arrow and dimension annotations.

Technical diagram of a mechanical assembly with labeled components A, B, and C

Technical line drawing of a mechanical assembly with mounting bracket and base component (no text or symbols)

Diagram of a mechanical joint or clamping mechanism with no visible text or symbols

Technical diagram showing installation of electrical connectors with labeled components A and B

Technical diagram of a mechanical assembly with labeled parts A and B

Technical diagram of a mechanical assembly with labeled parts A and B

A B C D E F G

A B C D E F G

Technical diagram of a mechanical or electrical component with labeled parts A through F

A. Écrou 10-32 à

tête hexagonale

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical clamp or lever mechanism with directional arrow and labeled point A (no text or symbols beyond label)

Diagram showing a person holding a device with two arrows labeled 1 and 2 indicating direction of movement or force.

Remplacer :

Technical line drawing of a mechanical bracket with labeled points A and B (no text or symbols beyond labels)

A. Soporte antivuelco
B. Tornillos n.° 12 x5/4" (41 mm) (2)

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

Line drawing of a four-tier electric stove with control panel and indicator lights (no text or symbols)

Canadian Standards Association

178 Rexdale Blvd.

Toronto, ON M9W 1R3 CANADÁ

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Technical diagram showing two types of pipe crimping tools labeled A, B, C, and D with their respective parts.

Technical diagram showing a mechanical bracket with labeled points A, B, and C, including an inset view of a component.

Three identical line drawings of a metal bracket with pins inserted, shown from different angles (no text or symbols)

Technical line drawing of a mechanical bracket with a spring-like component (no text or symbols)

Technical line drawing showing two views of a device interior with internal components (no text or symbols)

Simple line drawing of a rectangular structure with three circular elements inside, placed on a grid-like surface (no text or symbols)

Technical diagram of a mechanical device with labeled components A, B, and C, showing internal structure and directional arrow.

Technical diagram of a mechanical assembly with labeled components A, B, and C

A. Tuerca hexagonal 10-32
B. Postes de terminales
C. Banda de tierra

Technical line drawing of a mechanical assembly with mounting bracket and base component (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Technical diagram showing installation of a mechanical component with labeled parts A and B, including wiring and mounting details.

Technical diagram of a mechanical assembly with labeled parts A and B

Technical diagram of a mechanical assembly with labeled parts A and B

A B C D E F G

Aluminio, calibre 6 35 lb-in (4,0 Nm)

A B C D E F G

A. Tuerca hexagonal 10–32

E. Hilo neutro (blanco)

B. Línea 2 (roja)

F. Línea 1 (negra)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with an inset showing a cross-section view (no text or symbols)

Mechanical diagram showing a clamp or tool with labeled point A, no text or symbols present

A. Traba de la bisagra

Diagram showing a hand holding a device with two arrows labeled 1 and 2 indicating direction of movement or force.

Para colocar:
