USER MANUAL eufyCam S211 eufy

Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners. 51005001822 V01 QUICK START GUIDE EUFYCAM 2

Connecting the HomeBase 2

8002 EN EN 03 GETTING STARTED For HomeBase 2 installation HomeBase 2 (T8010) Power Adapter for HomeBase 2 Ethernet Cable Metal Pin for Resetting For eufyCam 2 installation eufyCam 2 (T8114) Micro-USB Charging Cable Mounting Bracket Mounting Screws and Anchors PRODUCT OVERVIEW HomeBase 2

Indoor Mount Hook (for Indoor Mount)

1. Camera quantity and accessories vary

2. HomeBase 2 power adapter varies by region.04 EN EN 05

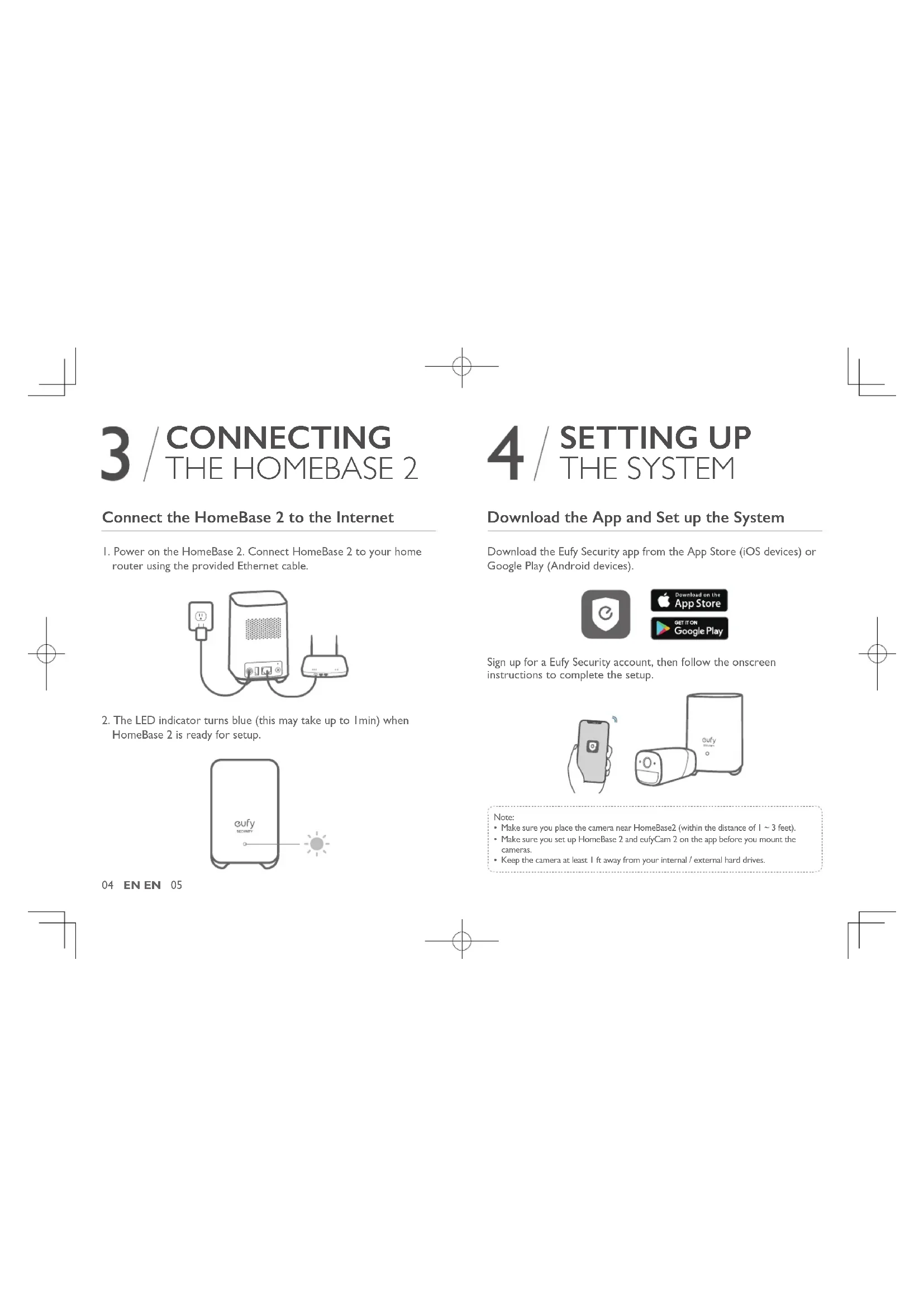

CONNECTING THE HOMEBASE 2 Connect the HomeBase 2 to the Internet

1. Power on the HomeBase 2. Connect HomeBase 2 to your home

router using the provided Ethernet cable.

2. The LED indicator turns blue (this may take up to 1min) when

HomeBase 2 is ready for setup. SETTING UP THE SYSTEM Download the App and Set up the System Download the Eufy Security app from the App Store (iOS devices) or Google Play (Android devices). Sign up for a Eufy Security account, then follow the onscreen instructions to complete the setup. Note:

• Make sure you place the camera near HomeBase2 (within the distance of 1 ~ 3 feet).

• Make sure you set up HomeBase 2 and eufyCam 2 on the app before you mount the cameras.

• Keep the camera at least 1 ft away from your internal / external hard drives.06 EN EN 07 MOUNTING THE CAMERA Find a Good Mounting Spot To find a spot to mount eufyCam 2, you need to test wireless signal strength.

Open the Eufy Security app, go to Camera Settings > Mounting Guide.

To test the wireless signal strength, take your camera and phone to the location where you want to mount the camera.

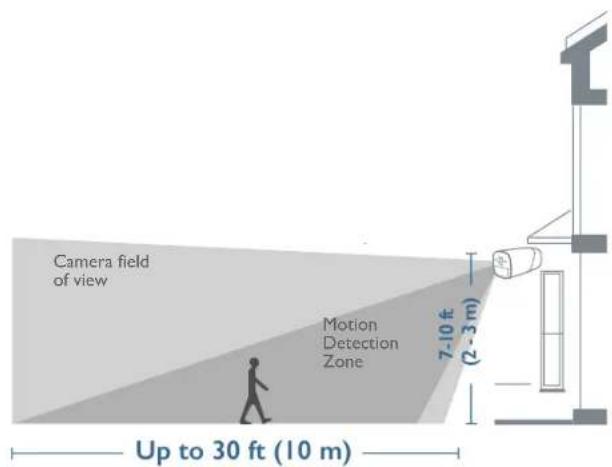

Move the camera as close to the HomeBase 2 as possible if the wireless. Select Height and Location Hang eufyCam 2 7-10 ft (2-3 m) above the ground. This height maximizes the detection range of the motion sensor of eufyCam 2. Avoid placing eufyCam 2 under direct sunlight. Up to 30 ft (10 m) 7-10 ft (2 - 3 m) Camera field of viewMotion Detection Zone08 EN EN 09 Mount the camera The camera can be mounted both indoors and outdoors.

1. Turn the knob of the mounting bracket clockwise to loosen and

2. Drill holes with a 15/64 inch (5.95mm) drill bit, then insert the

anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco. Mount the camera

3. Firmly screw the base of the mounting bracket onto the wall. Fasten

the ball knob of the bracket to the base of the bracket.

4. Tighten eufyCam 2 to the mounting bracket and adjust the viewing

angle by checking the live stream feed in the Eufy Security app. Tips:

1. The HomeBase 2 pairs up to 16 cameras, you can repeat the steps mentioned

above to add more eufyCam 2 cameras to meet different needs of use.

2. For troubleshooting, check Help on the Eufy Security App. Refer to App page for

LED indicator status.10 EN EN 11 CHARGING EUFYCAM 2 Charge eufyCam 2 Method 1 Method 2 5V USB Charger LED indication Charging time 12 hours Fully charged: Off Charging: Steady blue Mount the Camera Indoors Stick the camera directly to any flat surface made out of iron. Or you can use the indoor mount to mount the camera:

1. Drill a hole. Use the included anchor if it’s drywall and fasten the hook.

2. Hang the indoor mount on the hook.

3.Attach eufyCam 2 to the indoor mount and adjust the viewing angle. c12 EN EN 13 NOTICE FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help. FCC Radio Frequency Exposure Statement The device has been evaluated to meet general RF exposure requirements. The device can be used in xed/mobile exposure condition. The min separation distance is 20cm. Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. The following importer is the responsible party Company Name: Fantasia Trading LLC Address: 9155 Archibald Avenue, Suite 202, Rancho Cucamonga, CA 91730, USA Telephone:[phone] This product complies with the radio interference requirements of the European Community. Declaration of Conformity Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site www.eufylife.com Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The adapter shall be installed near the equipment and shall be easily accessible. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment. The suitable temperature for HomeBase 2 and accessories is -10°C-45°C. The suitable temperature for eufyCam 2 and accessories is -20°C-50°C. When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with a temperature that ranges from 5°C~25°C. Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the device and the guarantee article. This charger is for indoor use only The charger type is ASSA67W-120200, output voltage/current is 12Vdc/2A. The plug considered as disconnect device of adapter. RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body.

CAUTION RISK OF EXPLOSION IF BATTERY

IS REPLACED BY AN INCORRECT TYPE.
