USER MANUAL Safe Light Solar Panta

AS SEEN ON TV ORIGINAL M MEDIASHOP

PANCA® Safe Light

Solar

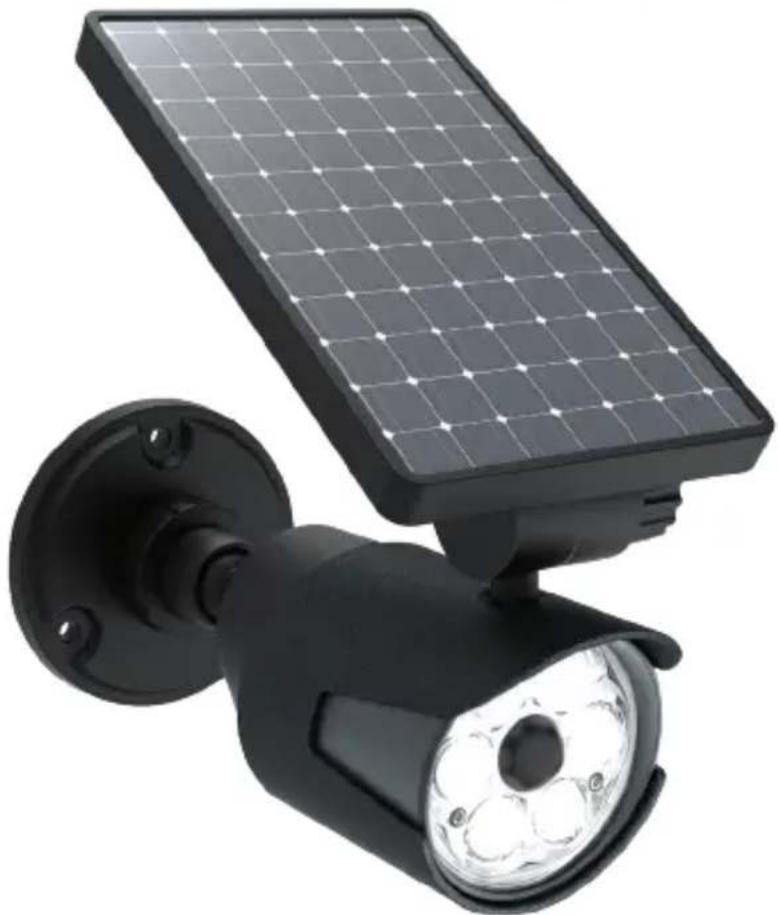

Exterior view of a black-and-white photo of a solar panel mounted on a wall-mounted security camera (no text or symbols visible)

Instructions for Use....09

Mode d'emploi....12

NOTE: Before installation, make sure the switch is switched to motion mode.

Delivery contents: 1 x Panta Safe Light Solar, 1 x ground stake, 3 x dowels, 3 x screws

1. Solar panel
2. Adjustable swivel arm
3. Mounting plate
4. Motion sensor
5. Motion mode/On/Off switch
6. Ground stake (consisting of 2 parts)
7. 3 x screws, 3 x dowels
   A: Ground stake tip
   B: Ground stake upper part

FR

CONTENU ET DÉSIGNATION DES PIÈCES

Contenu : 1 x Panta Safe Light Solar, 1 x piquet, 3 x vis, 3 x chevilles

Close-up of a black mechanical component with flange and threaded shaft (no text or symbols visible)

Close-up of a black mechanical component with threaded pins, no visible text or symbols

Close-up of a black mechanical component with a flanged shaft and bolted end (no text or symbols visible)

Mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

#E# ↓ ↓

Diagram showing a vertical structure with downward arrows indicating force or displacement, above a surface with scattered white particles (no text or symbols)

3D rendering of a mechanical component with labeled parts and directional arrows (no readable text or symbols)

#J

DE

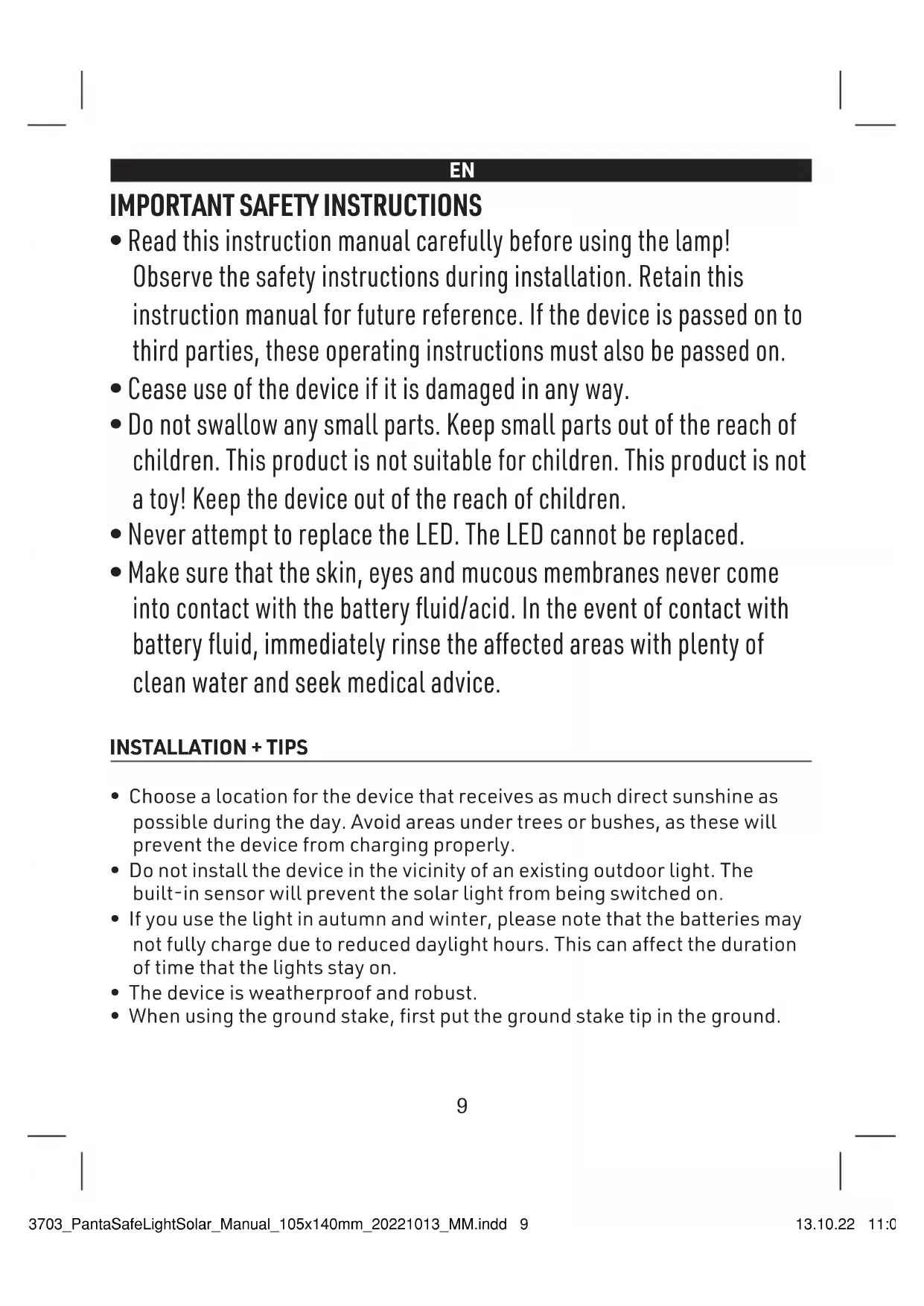

IMPORTANT SAFETY INSTRUCTIONS

• Read this instruction manual carefully before using the lamp! Observe the safety instructions during installation. Retain this instruction manual for future reference. If the device is passed on to third parties, these operating instructions must also be passed on.
• Cease use of the device if it is damaged in any way.
• Do not swallow any small parts. Keep small parts out of the reach of children. This product is not suitable for children. This product is not a toy! Keep the device out of the reach of children.
• Never attempt to replace the LED. The LED cannot be replaced.
• Make sure that the skin, eyes and mucous membranes never come into contact with the battery fluid/acid. In the event of contact with battery fluid, immediately rinse the affected areas with plenty of clean water and seek medical advice.

INSTALLATION + TIPS

• Choose a location for the device that receives as much direct sunshine as possible during the day. Avoid areas under trees or bushes, as these will prevent the device from charging properly.
• Do not install the device in the vicinity of an existing outdoor light. The built-in sensor will prevent the solar light from being switched on.
• If you use the light in autumn and winter, please note that the batteries may not fully charge due to reduced daylight hours. This can affect the duration of time that the lights stay on.
• The device is weatherproof and robust.
• When using the ground stake, first put the ground stake tip in the ground.

WALL INSTALLATION

1. Remove the mounting plate (3) from the device by turning it anti-clockwise (#A).
2. Hold the mounting plate (3) against the desired surface, and mark the holes with a pencil. When you are sure, drill the holes in the desired positions
3. Fasten the mounting plate (3) with the supplied screws + dowels (#B).
4. Align the arm of the device with the opening on the mounting plate. Turn the rotary knob clockwise again to tighten and fix in place (#C).
5. Important: Make sure that you always align the solar panel toward the source of solar radiation! Swing the swivel arm (2) to receive the light as needed (#D).

1. The mounting plate (3) must be attached to the device.

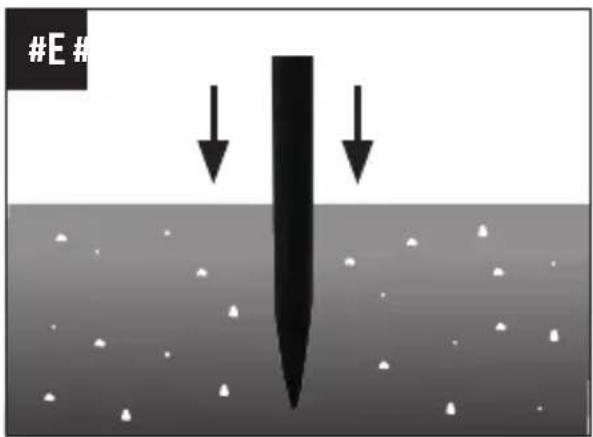

2. First insert the ground stake tip into the ground. Pay attention to the type of ground. If the ground is too hard, this can damage the ground stake (#E).
3. Now attach the top part (upper part of the ground stake) to the top of the ground stake (#F).
4. Place the mounting plate (3) on the ground stake and carefully attach it (#G).
5. Now align the solar panel. Important: Make sure that you always align the solar panel toward the source of solar radiation! Swing the swivel arm (2) to receive the light as needed (#H).

USE

• Important: Before using the device for the first time, expose it to direct sunlight for at least 6 hours to charge it. If there is insufficient sunlight, the battery may take longer to charge.
• As soon as it gets dark, the light switches on automatically when movement is detected. The light stays on for 30 seconds, and turns off when motion is no longer detected.
• The solar light does not turn on in daylight. The battery will be charged during this time.

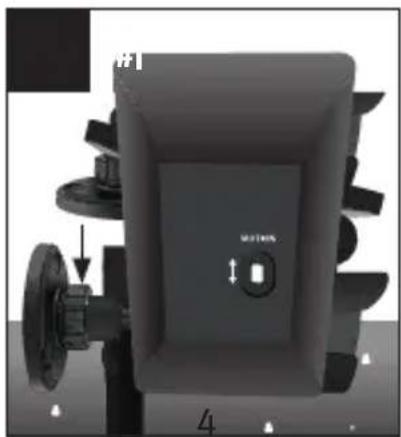

• Similarity to a surveillance camera (#I): Once the switch is in the MOTION

(ON) position, the red LED light on the front will flash, simulating a surveillance camera.

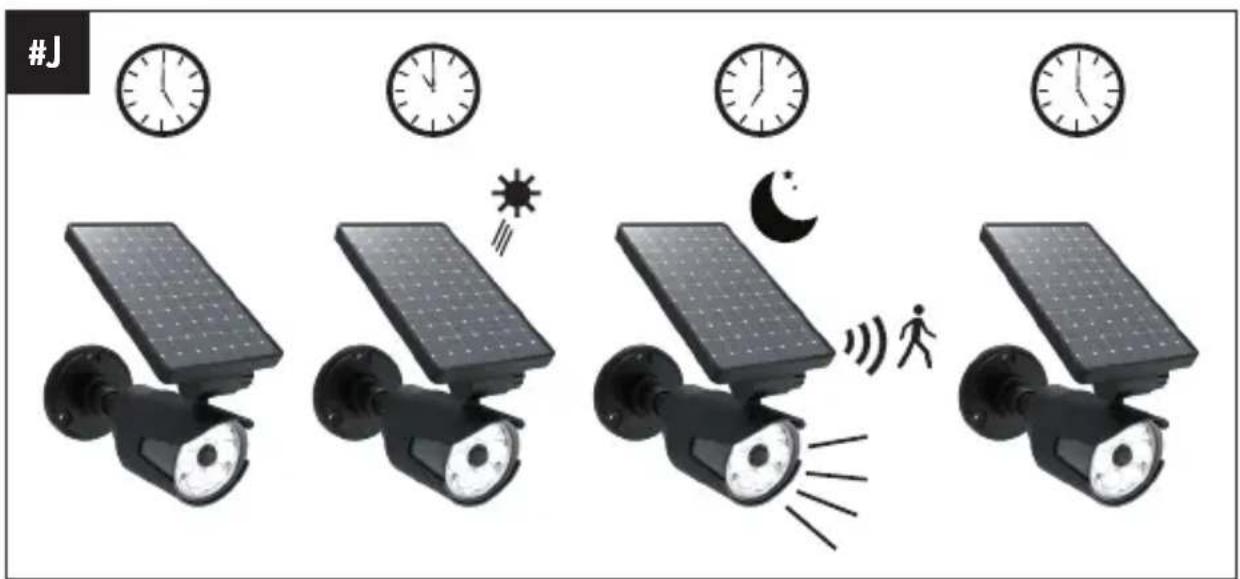

CHARGE RHYTHM (#J)

5:00 Uhr, Morning – The device starts charging.

11:00 Uhr, Midday – The device charges automatically during the day.

19:00 Uhr, Evening/Night – The device turns on automatically as soon as motion is detected.

5:00 Uhr, Morning - The device starts charging.

IMPORTANT: These times may vary depending on the season.

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The light does not turn on.	The device is not sufficiently charged.	Choose a place with optimal sun exposure - the device needs to be charged for at least 6 hours.
	The device is in the OFF position.	Switch the device to the motion mode position.
	The device has been placed next to another strong light.	Do not install the device in the vicinity of an existing outdoor light. The built-in sensor will prevent the solar light from being switched on.
	The device has been placed under a tree or vegetation.	Avoid areas under trees or bushes, as these will prevent the device from charging properly.
	The solar panel is dirty. Clean	the solar panel with a soft cloth.

TECHNICAL DATA

• LED: 8 x
  • Solar panel: 5.5 V, 300 mA
• Sensor range: up to 7.5 m
  • Lighting duration: 30s
• Battery: 1 x Lithium ion battery 3.7V == 1800mAh
• Charging time: min. 6 hrs

Made in China

FR

CONSIGNES DE SÉCURITÉ IMPORTANTES

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Two identical line-drawn trash bin symbols with no text or labels, crossed by black X marks (no text or symbols present)

EN: This symbol means that such electrical equipment or batteries must not be disposed of with normal household waste. You are legally obliged to hand in such items - free of charge - to a public collection point or distributor-created collection point for the recycling of electrical devices and expired bulbs and batteries within the scope of the Electrical and Electronic Equipment Act that are not encapsulated by or fixed into the appliance, and can be removed or separated from the appliance non-destructively, for disposal at the end of their service life. Use rechargeable batteries instead of single-use batteries wherever possible. The recovery and recycling of old appliances makes an important contribution

to protecting our environment. Improper disposal can result in toxic substances being released into the environment, which can have harmful effects upon people, animals and plants. Batteries with an increased pollutant content are also marked with the following symbols: Cd = cadmium, Hg = mercury, Pb = lead. Consumers are themselves responsible for deleting any personal data from appliances.
