USER MANUAL Aura Studio 4 HARMAN KARDON

harman/kardon® by HARMAN harman/kardon

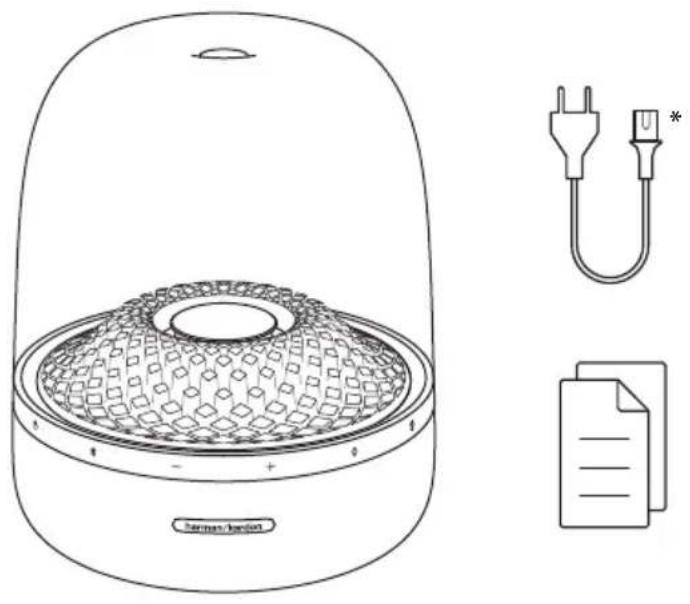

WHAT'S IN THE BOX

*Power cord quantity and plug type vary by regions.

Line drawing of a smart air conditioner unit with a paper outlet, plus an electrical plug and document icon (no text or symbols on main diagram)

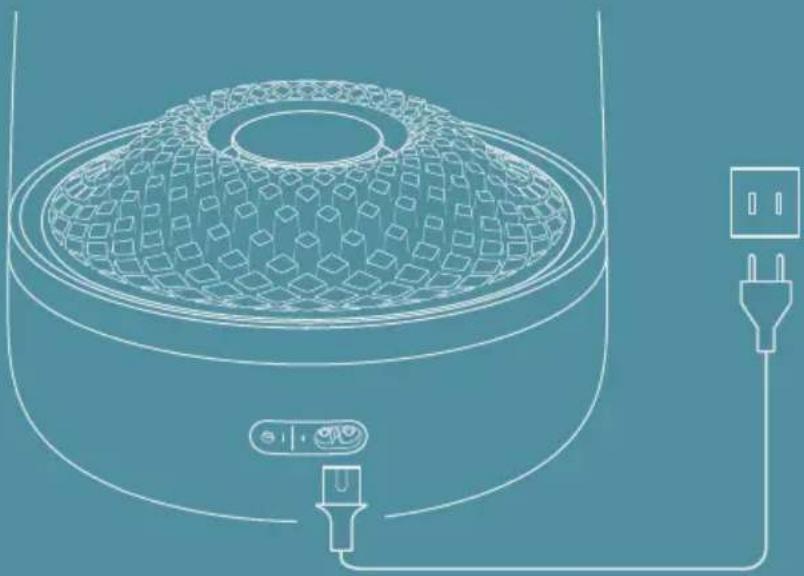

POWER ON/OFF

Line drawing of a cylindrical device with a grid-patterned top and power outlet, connected to a plug (no text or symbols)

Press ⏻ to switch on.

BLUETOOTH PAIRING

1.

SETTINGS DEVICES

Bluetooth

2.

HK Aura Studio 4 Connected ⓘ

Technical line drawing of a circular device with a textured top and central hole, labeled 'Dennis' (no text or symbols on the diagram itself)

Connecting Connected

Technical line drawing of a mechanical component with a circular top and textured base, labeled 'Batter/kerat' at bottom (no other text or symbols)

MUSIC STREAMING

Diagram of a speaker setup with sound waves and a circular grid pattern, no text or symbols present

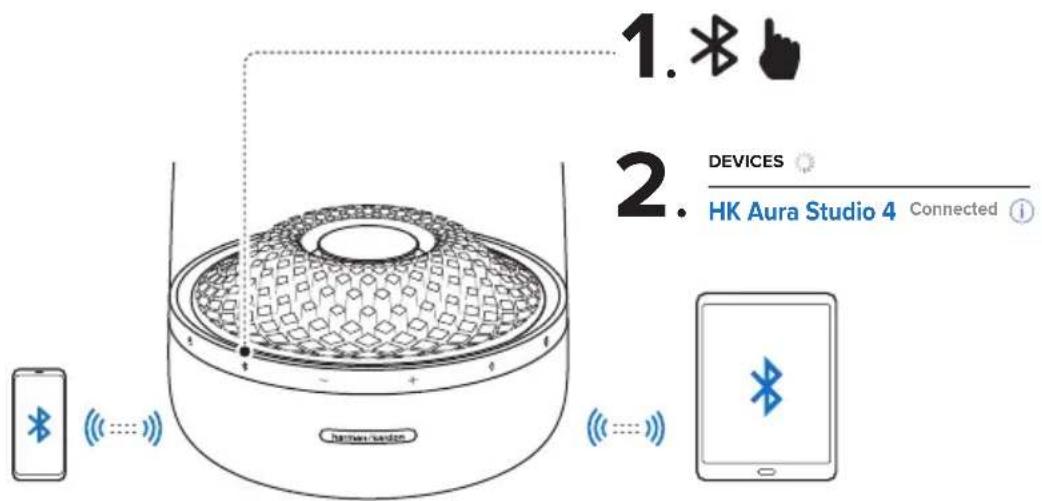

MULTI-POINT CONNECTION

* Maximum 2 devices.

1. Bluetooth 2. DEVICES 📷 HK Aura Studio 4 Connected ⓘ

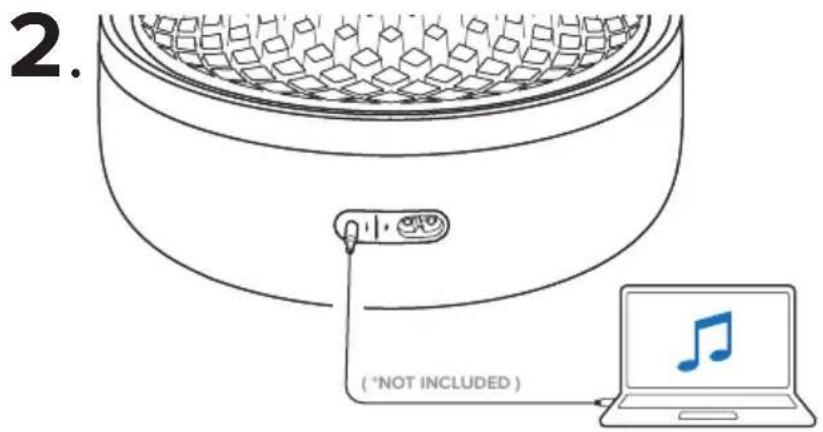

MUSIC PLAYBACK THROUGH AN AUDIO CABLE

After the audio cable is connected, ensure that no music plays through Bluetooth to start music playback through the audio cable.

2. (*NOT INCLUDED)

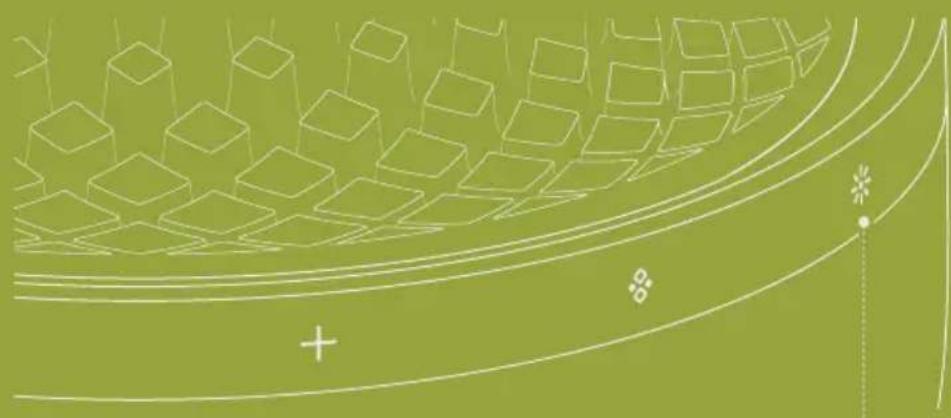

LIGHTING

Abstract green background with white geometric lines and scattered cubes, no text or symbols present

Brightness Level

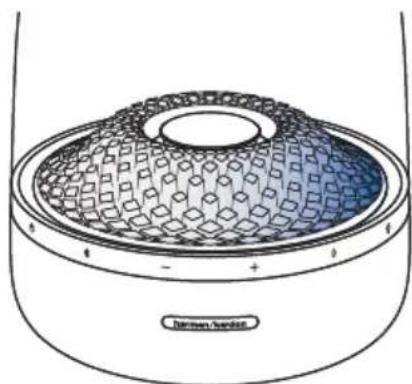

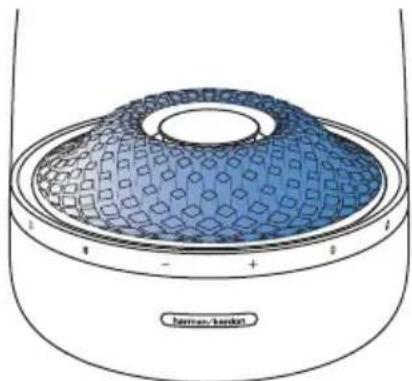

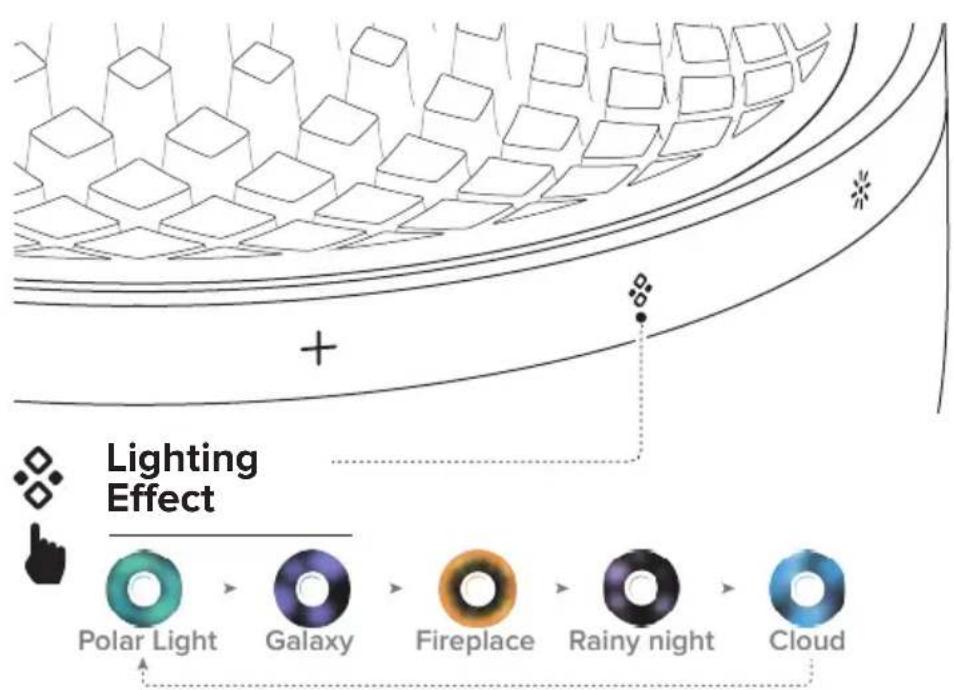

LIGHTING

Start music playback and the lighting will sync with your music.


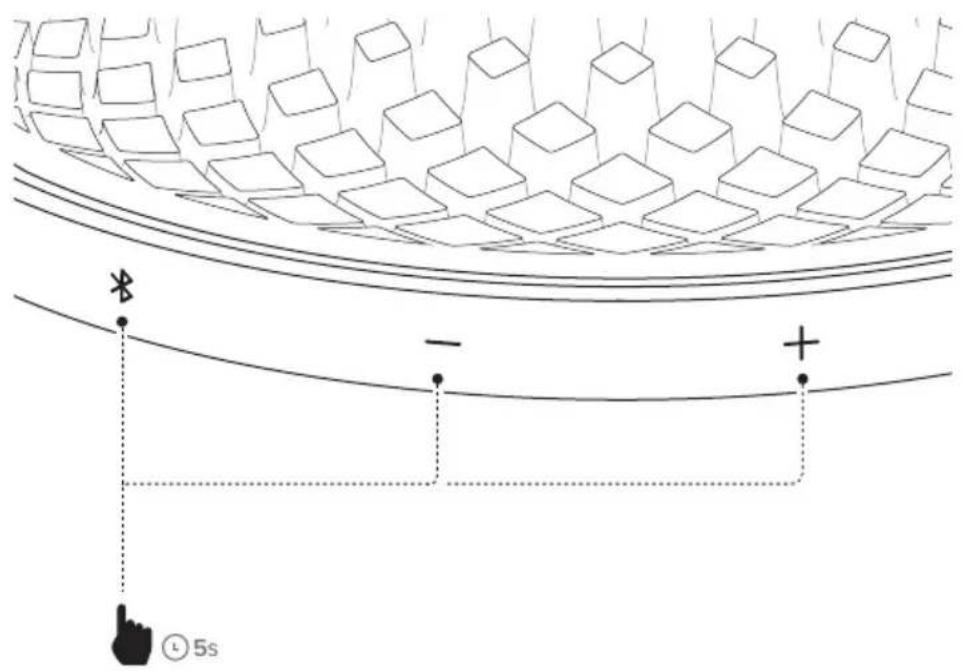

AUTO STANDBY

The speaker switches to standby automatically after 20 minutes if there is no music playback or key press. To disable the auto standby feature, press +, - and * for more than 5 seconds.

Diagram showing a mechanical or electrical component with labeled points and a 5-second indicator finger pointing to it.

TECH SPEC

• Bluetooth version: 4.2
  • Support:
  • Transducers: 40 mm x 6 pcs (Mid-high range); 130 mm x 1 pc (Subwoofer)
  • Rated power: 2 x 15 W RMS + 1 x 100 W RMS
  • Frequency response: 45 Hz – 20 kHz (-6 dB)
  • Signal to noise ratio: 80 dB at 15 W (Mid-high range); 80 dB at 100 W (Subwoofer)
  • Power supply: 100 – 240 V \~ 50/60 Hz
• Bluetooth transmitter power: ≤ 7 dBm
• Bluetooth transmitter frequency range: 2.400 – 2.4835 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
  • Dimension (H x W x D): 284 x 233 x 233 mm / 11.2" x 9.2" x 9.2"
  • Weight: 3.6 kg (7.9 lb)

FR

CONTENU DE LA BOÎTE

HVAD ER DER I AESKEN

PARRING MED BLUETOOTH

Forbindelse I Forbundet

STREAMING AF MUSIK

FLERPUNKTSFORBINDELSE

* Højst 2 enheder.

- Dimensões (A × L × P): 284 × 233 × 233 mm / 11,2" × 9,2" × 9,2"

- Peso: 3,6 kg (7,9 lb)

SK

ČO JE V KRABICI

FLERPUNKTSANSLUTNING

* Max 2 enheter.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
