Product type	Portable speaker
Brand	Harman Kardon
Model	Go + Play Micro
Dimensions (L x l x H)	178 x 65 x 58 mm
Weight	540 g
Power source	Rechargeable lithium-ion battery (via USB-C)
Battery life	Approximately 6 hours
Charging time	Approximately 3 hours
Connectivity	Bluetooth 4.2, 3.5 mm auxiliary input
Power output	2 x 5 W
Frequency response	80 Hz – 20 kHz
Key features	Wireless playback, hands-free speaker, touch controls
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use harsh chemicals.
Safety	Do not expose to water or moisture. Do not open the casing.
Spare parts and repairability	No spare parts available. Device not user-serviceable.
General information	User manual available online. Operating temperature: 0–35°C.

Frequently Asked Questions - Go + Play Micro HARMAN KARDON

How to turn on the speaker?

Press the power button on the back of the device until the indicator light turns on.

How to connect my device via Bluetooth?

Enable Bluetooth on your device, then select 'Harman Kardon Go + Play Micro' from the list of available devices.

How to charge the battery?

Connect the provided USB-C cable to the charging port on the back and plug the other end into a power adapter (not included). The indicator light flashes during charging and turns off when the battery is full.

What is the battery life?

The battery life is approximately 6 hours under normal use depending on volume.

How to reset the speaker?

Press and hold the volume + and - buttons simultaneously for 5 seconds until you hear a beep. Bluetooth settings will be cleared.

Can I use the speaker with a wired cable?

Yes, plug a 3.5 mm audio cable into the auxiliary input on the back and into your audio source. Bluetooth playback will be disabled.

How to clean the speaker?

Use a soft, dry cloth to wipe the surface. Do not use chemicals or water directly on the device.

What to do if the sound is distorted?

Check the volume of your source and the speaker. If the problem persists, lower the volume or move the device away from sources of interference.

Is the speaker water-resistant?

No, the Go + Play Micro is not waterproof. Avoid any contact with water and moisture.

Where can I find the full manual?

The manual is available for free download in PDF format at notice-facile.com. Search for 'Harman Kardon Go + Play Micro'.

USER MANUAL Go + Play Micro HARMAN KARDON

Important Safety Instructions

Please read the following precautions before use:

1. Read these instructions.
2. Keep these instructions.
3. I need all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, switches or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fill into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when
    from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Fairer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture. does not operate normally or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.

THE LIGHTING FLASH WITH AN ARMYNEAD SYMBOL AT THE AN TOLERANT FLASH, IS INTENDED TO ENTER THE USER TO THE FROSET OF DRUGATED DRUGSUS IN CHARGE WITH BUT IT PRODUCT'S SCHEDULE THAT NAME OF SPECIFIED IMAGE USED CONSTRUCTION OF ELECTRIC SHEETS TO BE PAGES

CAUTION

RISK OF ELECTRIC SHOC DO NOT OPEN

NATHA TO REDUCE THE BIG OF FIRE OR ELECTRIC SHOES, DO NOT EXPIED THIS PPARGUS TO INHER MOIST.

THE EXPLANATION POINT WITH AN EQUILATERAL TRAVELLE IS INTENDED TO SET THE INTERIOR OF THE DISTRICT OF INVESTMENT. FOR THE AND MOUNT WRITTEN ITEMS, RESISTUCTIONS IN THE LEVERAGE ACCOUNTYING THE PROCES

SEE WORKING ON BACK OF PRODUCT

Regulations

FCC Statement and Warning

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiatoradio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit - different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV -

technician for help.

MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT UNDER FOG RULES.

IC Statement and Warning

This Class B digital apparatus complies with Canadian ICES-003.

The Harman Kardon Go + Play Micro portable loudspeaker is the latest Innovation from Harman Kardon, a longtime leader In the manufacturing of high-end component audio systems. Harman Kardon audio heritage and continual research have resulted in the unique technologies found in this product.

The Harman Kardon Go + Play Micro portable; high-fidelity docking system for iPhone/iPod performs like a home theater system. With a groundbreaking design that's built for comfort, performance and freedom, the Harman Kardon Go + Play Micro will cradle your iPhone/iPod and surround it with luxurious Harman Kardon® sound. Carry the unit by its stainless-steel arch handle to enjoy the ultimate portable soundstage. Connected to your iPhone/iPod (not included), MP3 player or other music source, the system will provide clean, powerful sound while also charging your iPhone/iPod. The remote control provides complete control of your music experience. Enjoy the pinnacle of portable audio performance with the Harman Kardon Go + Play Micro system – it will kick your listening experience into the future.

Compatibility

The Harman Kardon Go + Play Micro system is a universal dock for iPhone/iPod (not included). iPhone 3Gs, iPhone 3G, iPhone, iPod nano 5th generation, iPod nano 4th generation, iPod nano 3rd generation. iPod touch. iPod classic, iPod nano 2nd generation. iPod 5th generation and iPod nano 1st generation are supported devices. Video and still-image playback requires a compatible iPod that supports video browsing. The additional stereo mini jack connection allows high-quality audio enjoyment from a variety of devices such as the iPod shuffle, MP3 and CD players, desktop computers (all platforms), laptops and satellite radio.

Remote

Volume controls – Just a touch increases, decreases or mutes the volume. Music controls – Manage the music lists on your iPhone/iPod with the Play/Pause, Next Track, Previous Track, Menu, Scroll Up and Scroll Down controls.

Advanced Technology

The Harman Kardon Go + Play Micro system combines many proprietary technologies to provide the highest-quality sound. It provides astonishing bass and clear, accurate sound from any direction. The four Odyssey and one Atlas™ transducers are driven by powerful neodymium magnets, and Odyssey tweeters provide accurate high frequencies.

COE (Computer-Optimized Equalization)

The Harman Kardon Go + Play Micro system equalization is computer-optimized to provide a rich, complete soundstage.

OCT (Optimized Compression Topology)

The Harman Kardon Go + Play Micro loudspeaker utilizes a proprietary compression technology to ensure clean, accurate sound at high output levels.

Unpacking

Carefully unpack your speaker system and identify all its components:

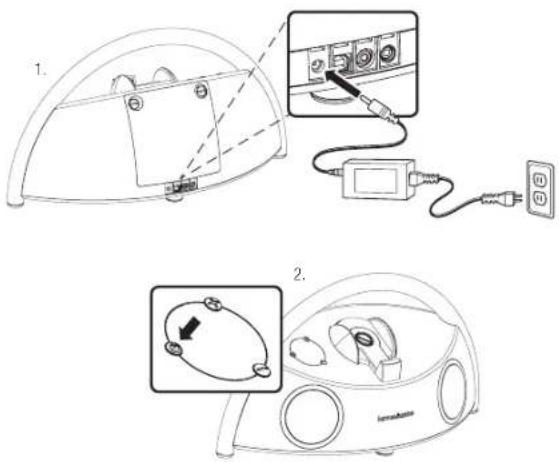

General Setup

Unpack the Harman Karden Go + Play Micro System and Its Power Supply

Plug the adapter into the 24V DC IN port on the back of the unit and then into a wall outlet. Turn on the power button on the top of the unit. The white indicator light will turn on. Remove the remote control battery protector before operating the remote control.3.

Volume Control (On-base Unit)

Volume Increase

Volume decrease

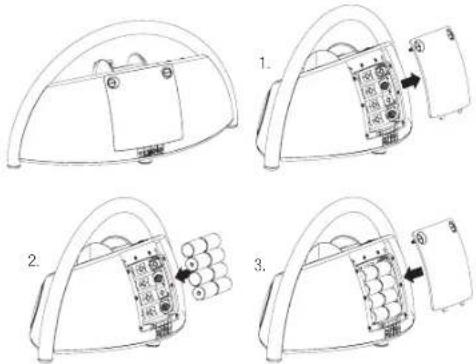

Battery Installation

Unscrew the two battery compartment cover screws counterclockwise to the unlocked 1. position; remove the battery compartment cover. Place eight (8) fresh C-cell batteries as shown.2. Replace the battery compartment cover. 3.

Note: System will not use battery power when using AC power.

DO NOT MIX BATTERY TYPES. DO NOT MIX CHARGED AND PARTIALLY CHARGED BATTERIES BATTERIES WILL NOT RECHARGE WHILE IN THE UNIT

Battery Disposal

Alkaline batteries are considered nonhazardous. Rechargeable batteries (i.e., nickel cadmium, nickel metal hydride, lithium and lithium-ion) are considered hazardous household materials and may pose an unnecessary health and safety risk.

In the European Union and other locations, it is illegal to dispose of any battery with household trash. All batteries must be disposed of in an environmentally sound manner. Contact your local waste management officials for information regarding the environmentally sound collection, recycling and disposal of used batteries.

Listening to Music from an iPhone/iPod

Press the power button on the top of the Harman Kardon Go + Play Micro system to turn the 1.

unit on

Dock the iPhone/iPod2.

Select and play music using the controls on the iPhone/iPod or send commands to the 3.

iPhone/iPod with the remote control. Adjust the volume using the "+" and "-" buttons located on the top of the Harman Kardon Go + Play Micro loudspeaker.

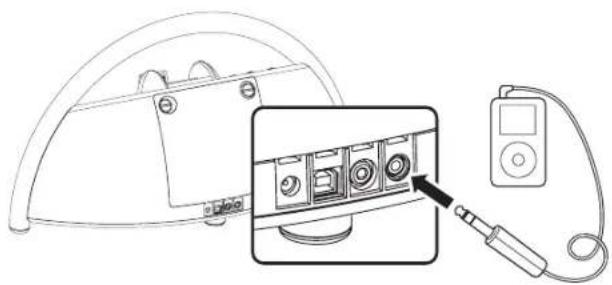

Listening to Music from an Auxiliary Device

The Harman Kardon Go + Play Micro system includes a 3.5mm mini jack cable for connection to any analog music player with either a 3.5mm or headphone output.

Connect the auxiliary device to the Harman Kardon Go + Play Micro system audio input port 1.

using a audio cable (not included).

1. Press the Power button on the top of the Harman Kardon Co + Play Micro system. A white light will indicate that the unit is on.

Control music playback through the auxiliary device.3.

Adjust the volume using the "+" and "-" buttons located on the top of the Harman Kardon Go 4.

+ Play Micro loudspeaker.

Diagram showing a device connected to an audio jack via cable, with no visible text or symbols.

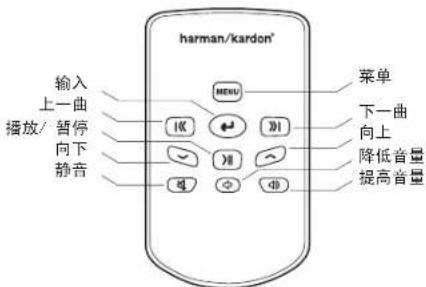

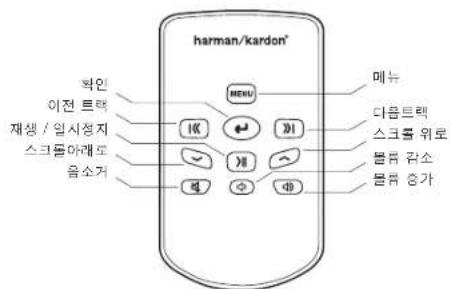

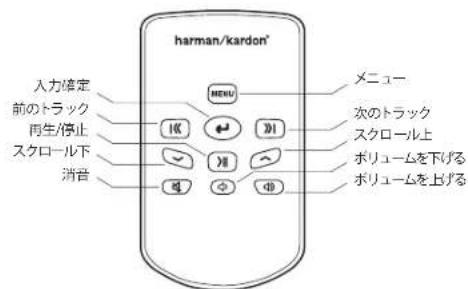

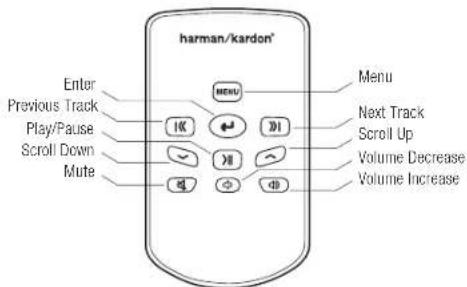

Remote Functionality

USB Synchronization and Charging

The Harman Kardon Go + Play Micro system features a USB synchronization and charge port. This feature allows synchronization of the Go + Play Micro system, with an iPhone/iPod clocked, to iTunes and provides a charge to the iPhone/iPod even when the Harman Kardon Go + Play Micro is only under battery power.

Connect the Harman Kardon Go + Play Micro USB port to a computer using a USB cable (not included).

Dock an iPhone/iPod Into the Harman Kardon Go + Play Micro.2.

iTunes will synchronize with the iPhone/iPod. 3.

Watching Video or Photos from an iPhone/iPod

The Harman Kardon Go + Play Micro system features a video output port. This feature allows viewing of videos or still images with a compatible iPhone or iPod

Connect the Harman Kardon Go + Play Micro video output port to a TV or video display using a video cable (not included).

Dock an iPhone/iPod into the Harman Kardon Go + Play Micro.2.

1. Play either iPhone/iPod video or photo content.

Troubleshooting

Symptom Possible Problem Solution Note
Sound Quality
There is no sound coming from the Harman Kardon Go + Play Micro unit.	No power to unit. Make sure that the wall outlet or power strip has power.Make sure that all switches for outlet/power strips are on and that all switches for the unit are on.	Is the LED on? If the LED is not on, power is not getting to your Harman Kardon Go + Play Micro unit. Try the solutions shown.
	Incorrect source selection. Make sure that the iPhone/iPod is properly docked or that the auxiliary cable is properly connected.Turn up the volume.Check the unit with a known good source.Connect the Aux In cable to the headphone jack of your iPhone/iPod.
Sound comes from only one side/channel.	iPhone/iPod or auxiliary cable is not sealed properly.	Make sure the iPhone/iPod is seated all the way into the docking station.Make sure the auxiliary cable is seated all the way into the jack.Try settling the iPhone/iPod.	If you are using a 3.5mm auxiliary adhesion cable, make sure it is a stereo cable.
iPhone volume is at lowest setting when undocked from Harman Kardon Go + Play Micro.	Sidowalls of Harman Kardon Go + Play Micro deck are depressing the iPhone's "Volume Down" button.	Increase the height adjustment of the Harman Kardon Go + Play Micro deck until the iPhone's "Volume Down" button is no longer depressed.

Symptom Possible Problem Solution Note
Sound Quality
Distortion (static, cracking or hissing sounds).	Audio source or source material may be the problem.	Test the Harman Kardon Go + Play Micro unit with another source.	Does the distortion occur with specific songs? If so, check the recording or record the source again.
	Volume level may be too high.	Check volume of source. Some devices will distort the output signal if the volume is set to maximum.
	EQ settling may be too high.	Check the EQ settling on your iPhone/Pod or source device.	It is recommended that the source device EQ be set to "Flat" or "Off."
Harman Kardon Go + Play Micro unit emits a loud burn or buzzing noise.	Input cable is not plugged in properly.	Check Input cable connection.
	Cable may be bad. Replace cable.
	Ground loop. Turn the Harman Kardon Go + Play unit off and connect it to another wall bullet.
Speaker system experiences radio-frequency interference or picks up a radio station transmission.	Input cable may be picking up interference.	Purchase a finite core and wrap the excess cable around it. A finite core can be purchased at your local electronics store.
Charging
iPhone/iPod will not charge. No power to unit. Make sure that your the wall outlet or power strip has power. Make sure that all switches for outlet/sower strip are on and that all switches for the unit are on.If the Go = Play Micro unit is commanded to a computer, make sure computer is an and the USB port has power.

Technical Specifications

Model: Harman Kardon Go + Play ^TM Micro

Available in: Black

Requirements: iPhone/iPod with docking connector;

3.5mm output jack for other devices

Drivers: Four Odyssey and one Atlas ^™ transducers

Power: Tweeters: 2 x 15 watts @ 1% THD

Woofers: 1 x 30 watts @ 1% THD

Frequency Response: 70Hz - 20kHz

Dimensions: Length: 20" (500mm)

Width: 9" (230mm)

Height: 9-1/2" (240mm)

Weight: 8.6 lb (3.9kg)

Input Impedance: >10K ohms

Signal-to-Noise Ratio: >85dB

External Power Supply

Input Voltage: 100 \~ 240V AC

Output Voltage: 24V DC @ 2.3A

H Harman International

Harman Consumer, Inc.

B500 Balboa Boulevard, Northridge, CA 91329 USA

516.255.4545 (USA only)

www.harmankardon.com

Made in R.P.C.

© 2010 Harman International Industries, Incorporated. All rights reserved.

Harman Kardon and Odyssey are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries. Harman Kardon Go + Play and Atlas are trademarks of Harman International Industries, Incorporated.

iPod and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc. "Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards. "Works with iPhone" means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPhone/iPod not included.

Features, specifications and appearance are subject to change without notice.

Part Number: 950-0278-001 Rev. B

VERWENDEN SIL STETS BATTERIEN GLLICHEN TYPS. KEINE NEUEN UND TEILWEISE CELADENEN BATTERIEN ZUSAMMEN VERWENDEN. AKKUS WERDEN NICHT AUTOMATISCH AUFGELADEN.

Batterieentsorgung

Line drawing of a device with an attached microphone and cable, showing a close-up of the internal components (no text or symbols)

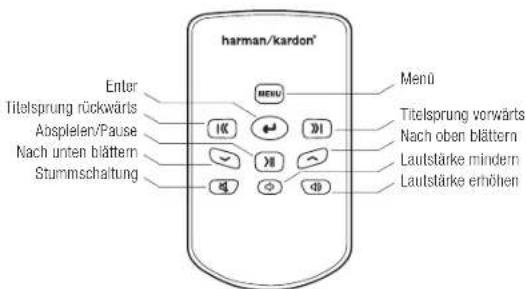

Fernbedienung

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

516.255.4545 (nur USA)

www.harmankardon.com

Hergestellt in R.P.C

© 2010 Hannan International Industries, Incorporated. Alle Rechte vorbehallen.

Line drawing of a portable radio with buttons and a display (no text or symbols)

Unité Harman Kardon Go + Play Micro

electrique

télécommande

Mise en route

NE PAS UTILISER DE PILLS DL TYPES DIFFÉRENTS. NE PAS MÉLANGER PILES NEUVES ET PILES PARTIELLEMENT DÉCHARGÉES. LES PILES NE SE RECHARGENT PAS LORSQU'ELLES SONT DANS L'APPAREIL.

Diagram showing a device connected to an audio jack via a cable, with no visible text or symbols.

Harman Consumer, Inc.

VEALASMAFCASEN LA PARTE REFICIO DEL PRODUCTO

Normas

COE (Computer-Optimized Equalization)

OCT (Optimized Compression Topology)

Line drawing of a portable electronic device with buttons and a display (no text or symbols)

NO MEZOLE BATERIAS DE DIFFERENTES TIPOS.

NO MLZCLL BATERIAS CARGADAS CON BATERIAS PARCIALMENTE CARGADAS. LAS BATERIAS NO SE RECARGARÁN MIENTRAS ESTÉN COLOCADAS EN LA UNIDAD

Line drawing of a device with an attached microphone and cable, showing a close-up of the internal components (no text or symbols)

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA 516.255.4545 (USA only)

www.harmankardon.com

Fabricado en R.P.C.

NARSHUWING, ON FETR SICD OF BRAND OF THEIRST & SOACHENIE ANDERIN, IT APPENDANT WITH DISPTEUR MAN.

HET UTRICEMIEN: IN DE GEJELKELDICE DIEDERCEK WAATSCHEWIT O SEEDINGSTRT TRILL OF LUND TIDHS VAREL LT PRODUCT BEINAGE, NET EIRGES, ONIONE, ENRIEN, ANIONE, GENT, ENRIEN,

TECHNOZENBERG OF OUDERZIPEWANHET APPARENT

Harman Kardon Go + Play™ Micro

Inleiding

COE (Computer-Optimized Equalization)

OCT (Optimized Compression Topology)

Volumeregeling (Op Go + Play Micro)

Lulder

Zachter

Inleggen Batterijen

Play Micro of via de aftsandsbediening.

Diagram showing a device connected to an audio jack via cable, with no visible text or symbols.

Woofers: 1 x 30 watt @ 1% THV

Frequentiebereik: 70Hz – 20kHz

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA 516.255.4545 (USA only)

www.harmankardon.com

Line drawing of a portable radio with buttons and a display unit (no text or symbols)

NON ASSINARE BATTERIE DI TIPO DIVERSO. NON ASSINARE BATTERIE CARICHE CON BATTERIE PARZIALMENTE SCARICHE. LE BATTERIE NON SI RICARICANO MENTRE SONO NELL'UNITÀ.

Line drawing of a device with an attached microphone and cable, showing a close-up of the internal components (no text or symbols)

Harman Consumer, Inc.

B500 Balboa Boulevard, Northridge, CA 91329 USA

YASHING FOR ATT MESSA RISHER FOR FLOWSAGE, FLORATION, SCLEAR, LICARE & OBLIGEN WITH CROSOEN, ELLER FORT.

UTROSPEKNET PRAV EN LNSID S TRIANGEL AT PÖR.ATT JEFW,STENKANNA,MAVPD,DAVE PA VETG,DAVE CCL,UNICHTIUS PASTIN,KEVINER SEM FRANS LT ECONOMET SOYA ANDION EUR PROJES EN

SE MARCHING P5 PRODUTER SUDESSICA

Harman Kardon Go + Play™ Micro

Inledning

Line drawing of a portable electric stove with control panel and buttons (no text or symbols)

Harman Kardon Go + Play Micro

Nätdel

Fjärrkontroll

Setup

BLANDA INTE BATTERITYPER. BLANDA INTE LADDADE OCH DELVIS LADDADE BATTERIER. BATTERIER LADDAS INTE I ENHETEN.

Diagram showing a device connected to an audio jack via a cable, with no visible text or symbols.

Fjärrkontrollens Funktioner

Harman Consumer, Inc.

B500 Balboa Boulevard, Northridge, CA 91329 USA

www.harmankardon.com

Framstält i R.P.C.

Line drawing of a portable air conditioner with control panel and buttons (no text or symbols)

Harman Kardon Go + Play Micro

Strømadaptor Fjembetjening

Generel opsætning

Niveauregulering (Direkte på apparatet)

Skru op

Skru ned

⊕

-

Batterimontering

DLAND IKKE FORSKELLIGE BATTERITYPER. BLAND IKKE OPLADTE OG DELVIST OPLADTE BATTERIER. BATTERIER VIL IKKE BLIVE GENOPLADT, MENS DE SIDDER - ENHEDEN.

Diagram showing a device connected to an audio jack via a cable, with no visible text or symbols.

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA 516.255.4545 (kun USA)

www.harmankardon.com

Producairel i R.P.C.

© 2010 Harman International Industries, Ale rettigheder forbeholdes.

Harman Kardon og Odyssey er varemarker, tilhørende Harman International Industries, Incorporated, registreret i de Amerikanske Forenatie Slater og tällar andre lands. Harman Kardon Go + Play og Atlas er varemarker, tilhørende Harman International Industries, Incorporated.

COE (Computer-Optimized Equalization)

Hanman Kardon Go + Play Micro-system for equalizere optimeres av en datamaskin for å gi en rik, komplett lyd.

OCT (Optimized Compression Topology)

Line drawing of a portable electronic device with buttons and a lid (no text or symbols)

Harman Kardon Go + Play Micro unit

IKKE BLAND BATTERTYPER. IKKE BLAND OPPLADELDE OG DELVIS OPPLADELDE BATTERIER. BATTERIER LADES IKKE OPP NÅR DE ER I ENHETEN.

Line drawing of a device with an attached microphone and cable, showing a close-up of the internal components (no text or symbols)

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

516.255.4545 (USA only)

www.harmankardon.com

Produsert I R.P.C.

© 2010 Hannan International Industries, Incorporated. Alle ralligheler reserved.

Harman Kardon og Odyssey er varemerker af Harman International Industries. Incorporated, registrert I USA ogveller andre land. Harman Kardon Go + Play og Atlas er varemerker for Harman International Industries, Incorporated.

Purl No.: 950-0278-001 Rev. B

KOLMICH SIGALLA CLENA SALAVATI, HUG 05/17 ALETTA TTEEN SALVITIA, DUTRISKAAT, ZHAN KON TIN, CHEN SHUER SWEET SALVITIA, MELITA VARELLA FELIX SHERGIGAR

VAROITUS

SAH-01 SKIN VAK3A A2A

VARCITUS: ALA ALTISTA LAITEITA SA'EELE TALIKINI: KOSTUCHEE, SILVNE SALTIGENT AHIETANIA PAOCHAI SAFICIS-201

RICHMON SIALLA CLENA HLUTOMENIO OSO TTA, ET A PARKEMERSSA CHIET-NTSCHYPTOS KENTO. TAI HUCUO CHIETA RICHETNTH. UHTYAL

H. COWO LAITTEESSA OLEANT VARGITIGERENPHILS

Harman Kardon Go + Play™ Micro

Esittely

Line drawing of a portable air conditioner with labeled components (no text or symbols on the device itself)

Harman Kardon Go + Play Micro-lalte

Virtalähde

Kaukosäädin

Yleiset asetukset

ÄLÄ SEKOITA ER PARISTOTTYPEJÄ KESKENÄÄN.

ÄLÄ SEKOITA TÄYSIN LADATTUJA JA OSITTAIN LADATTUJA PARISTOJA KESKENÄN, PARISTOT ENÄT LATAJDU LAITTESSA.

Diagram showing a device connected to an audio jack via a cable, with no visible text or symbols.

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

COE (Computer-Optimized Equalization)

OCT (Optimized Compression Topology)

Line drawing of a portable electronic device with buttons and a basket (no text or symbols)

Harman Kardon Go + Play Micro 스피커

연결하기

블룸컨트롤 (기본장치)

결류증가

본등감소

배터리장착

Diagram showing a device connected to an audio jack via a cable, with no visible text or symbols.

원격 제어 기능

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

516.255.4545(미국내)

www.harmankardon.com

중국에서 제주

© 2010 Harman International Industries, Incorporated. 도=권리 소유.

COE (Computer-Optimized Equalization)

OCT (Optimized Compression Topology)

Line drawing of a portable electronic device with buttons and a lid, no text or symbols present

ボリューム調整(本体)

ボリュームを上げる

ボリュームを下げる

電池の入れ方

Line drawing of a device with an attached microphone and cable, showing a close-up of the internal components (no text or symbols)

リモコンの機能

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

516.265.4545(米国のみ)

www.harman-multimedia.jp

Made in China(中国)

OCT (Optimized Compression Topology, 优化压缩布局)

Line drawing of a portable electronic device with buttons and a display (no text or symbols)

Harman Kardon Go + Play Micro 装置

电源

遥控器

一般设置

音量控制（在底座装置上）

提高音量

降低音量

电池安装

请勿混合使用不同型号的电池。

请勿混合使用电力充足和电力不足的电池。

当电池放在该装置中时候，不会被充电。

电池处理

Diagram showing audio equipment connected to a CD player with an attached microphone (no text or symbols present)

遥控功能

Harman Consumer, Inc.

6500 Balboa Boulevard, Northridge, CA 91329 USA

516.255.4545(仅限美国)

www.harmankardon.com

中国制造。

© 2010 Harman International Industries, 保留一切权利.

Line drawing of a portable kitchen appliance with buttons and a basket (no text or symbols)

Система Harman Kardon Go + Play Micro

Блок питания

Подключение

Распакуйте систему Harman Kardon Go + Play Micro.

Diagram showing a device connected to an audio jack via cable, with no visible text or symbols.

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

Line drawing of a portable electric stove with front panel and side doors (no text or symbols)

Harman Kardon Go + Play Micro unidade

Diagram showing a device connected to an audio jack via a cable, with no visible text or symbols.

Potência: Tweeters (Agudos): 2 x 15 watts @ 1% THD

Woofers (Graves): 1 x 30 watts @1% THD

Harman Consumer, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA 516.255.4545 (apanas EUA)

www.harmankardon.com

Fabricado na R.P.C.
