Product Type	Professional quartz infrared tube toaster oven
Brand	Roller Grill
Model	BAR 1000
External Dimensions	450 x 285 x 305 mm
Weight	9 kg
Power	2000 W
Power Supply Voltage	220-240 V ~
Number of Quartz Tubes	4
Preheating	Unnecessary, temperature rise in less than 30 seconds
Timer	15 minutes, with continuous operation possible
Switch	4 positions: Off, bottom tube only, top tube only, all tubes
Included Accessories	One tray, one cooking grid, one grid removal handle
Option	Sardine tongs
Main Functions	Cooking and reheating sandwiches, croque-monsieur, pizzas, quiches, gratins, toasts, baguettes, sliced bread
Operation Indicator Light	Orange, indicates appliance is running
Safety Distance	Minimum 10 cm from partitions or walls
Cleaning	Hot water and dishwashing liquid, avoid abrasive sponges; clean quartz tubes with a cloth soaked in alcohol
Cleaning Precautions	Never immerse the appliance, cord or plug; never clean under a water jet
Installation	On a flat, heat-resistant surface, sheltered from sun, frost and humidity
Connection	Earthed wall socket; fully unwind power cord
First Use	Heat outdoors to remove residual fumes; clean before use
Warranty	Commercial warranty from the distributor; exclusions for improper installation, inappropriate use, unqualified interventions
Repairability	Repairs by qualified personnel; use original spare parts
Standards	IEC/EN 60335-1, IEC/EN 60335-2-48, EN 55014-1/2, EN 61000-3-2/3
Disposal	Do not dispose of with household waste; take to a WEEE recycling center
Country of Manufacture	France

Frequently Asked Questions - BAR 1000 ROLLER GRILL

Do I need to preheat the BAR 1000 oven?

No, preheating is unnecessary because the temperature rises very quickly, in less than 30 seconds.

How do I clean the quartz tubes?

Never clean the quartz tubes when they are hot. Use a cloth soaked in alcohol and avoid touching them directly with your fingers.

Can I use the appliance without the supplied tray?

No, never use the toaster without the tray (n°4 in the photo). The tray is essential for collecting grease and protecting the appliance.

What do the switch positions mean?

The switch has 4 positions: 0 = off, 1 = bottom tube heating, 2 = top tube heating, 3 = all tubes heating.

What is the maximum cooking time?

The timer can be set up to 15 minutes. Continuous operation is possible by turning the timer to the left from the 0 position.

How do I turn off the appliance?

Set the timer to 0, position the switch to 0, let it cool down, then unplug the power cord.

What types of food can I cook with this oven?

The appliance is designed to cook or reheat sandwiches, croque-monsieur, pizzas, quiches, pastries, croissants, gratinée onion soup, and to toast baguettes and sliced bread.

What should I do in case of breakdown or damaged part?

Contact customer service and entrust any technical operation to a qualified person. Provide the full appliance reference (commercial designation, type and serial number) on the rating plate.

What safety distances must be respected?

The appliance must be placed at least 10 cm from partitions or walls. Do not install near combustible materials.

How do I maintain the appliance?

Unplug and wait for complete cooling. Clean external surfaces with hot water and dishwashing liquid, without abrasive sponge. Never immerse the appliance or use a water jet.

USER MANUAL BAR 1000 ROLLER GRILL

Exterior view of a standard electric toaster oven with heat sinks and control knobs (no text or symbols visible)

Fabrication française Fabrication française Made in France Made in France

Septembre 2015

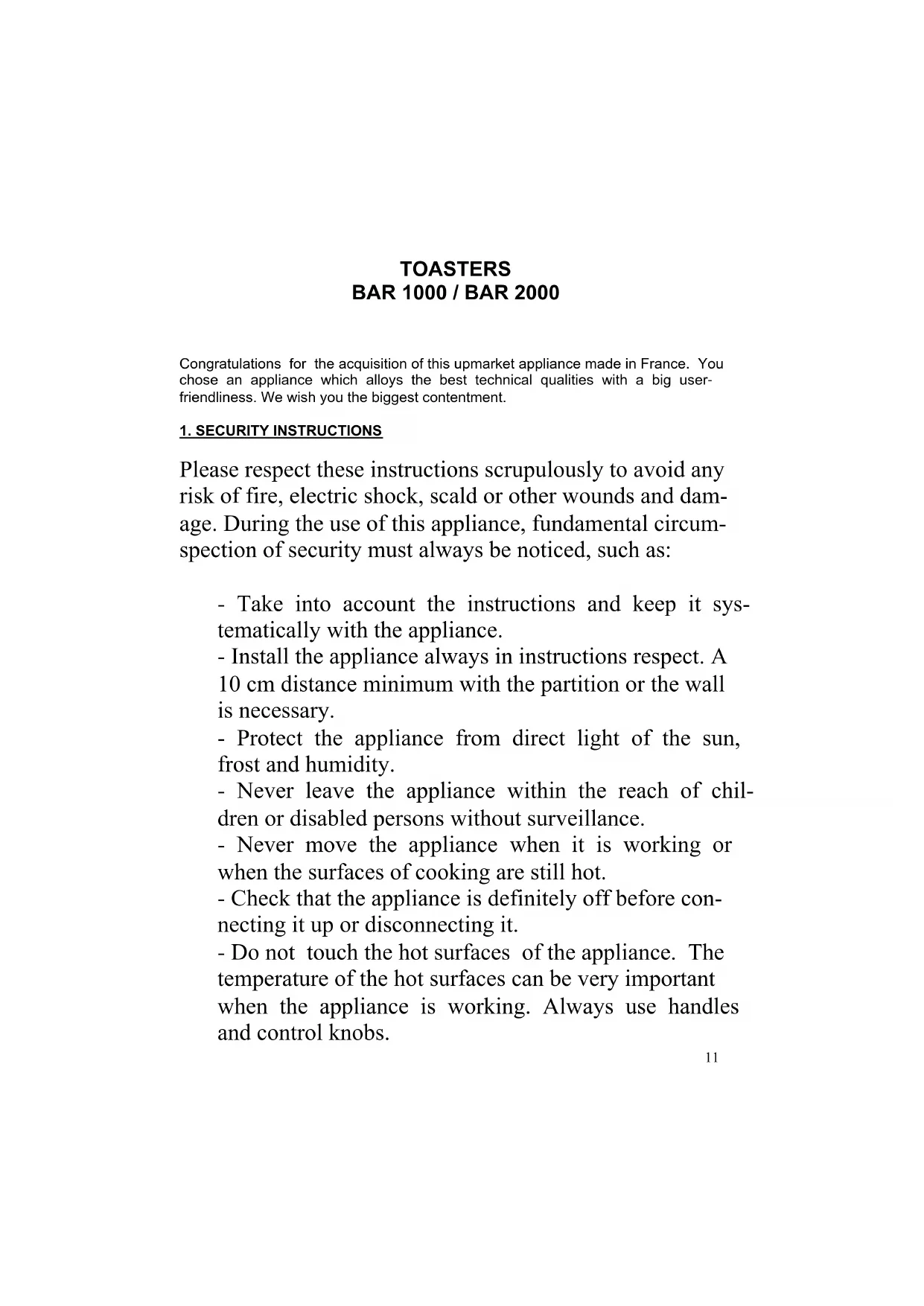

TOASTERS BAR 1000 / BAR 2000

Labeled diagram of a toaster oven with numbered parts for identification

Commutateur

Minuterie 15 min

Congratulations for the acquisition of this upmarket appliance made in France. You chose an appliance which alloys the best technical qualities with a big user-friendliness. We wish you the biggest contentment.

1. SECURITY INSTRUCTIONS

Please respect these instructions scrupulously to avoid any risk of fire, electric shock, scald or other wounds and damage. During the use of this appliance, fundamental circumspection of security must always be noticed, such as:

- Take into account the instructions and keep it systematically with the appliance.

- Install the appliance always in instructions respect. A 10 cm distance minimum with the partition or the wall is necessary.

- Protect the appliance from direct light of the sun, frost and humidity.

- Never leave the appliance within the reach of children or disabled persons without surveillance.

- Never move the appliance when it is working or when the surfaces of cooking are still hot.

- Check that the appliance is definitely off before connecting it up or disconnecting it.

- Do not touch the hot surfaces of the appliance. The temperature of the hot surfaces can be very important when the appliance is working. Always use handles and control knobs.

• Do not use the appliance for other functions than determined use.
• Do not leave the electrical cord in contact of hot surfaces.
• The appliance should not be used close to combustible materials.
• During use, look after not to obstruct hearings of aeration of the appliance
• To avoid any electric shock, never plunge the appliance, the cord or plug in water or quite other liquid.
• If the cord is harmed, it must be replaced by the producer, his after sale service or persons of similar skills to avoid any risk.
• Entrust repairs only to a skilled person.
• Use only spare parts of origin.
• At the end of cooking, before cleaning the appliance, do not forget to disconnect it.

2. CONTENTS OF CARDBOARD PACKAGING

Device: A toaster with protecting grids

Accessories: - One tray

• One cooking grid (BAR 1000)
• Two cooking grids (BAR 2000)
• One grid holder handle (BAR 1000 / BAR 2000)
• The present note

Option : Sandwich tong

See exploded views for BAR 1000 / BAR 2000 at the end of the document

3. CONFORMITY OF USE

Use the appliance only to cook or reheat sandwiches, croque-monsieur, pizzas, quiches, cheese/meat puffs, croissants....or to brown onion soups, to toast baguettes and bread.

4. WAY OF FUNCTIONING

These toasters exist in 2 versions (1 or 2 levels). According to the dimension of the machine, you can cook instantly at core with no smoke and odour thanks to the rays of the infrared quartz tubes from 150 to 300 toasts per hour.

Preheat is not necessary as the temperature rise is very fast, less than 30 sec.

To turn on the toaster, just action the commutator (n°1 on picture) on the desired position (from 2 to 4), turn on the timer (n°3 on picture) according the desired cooking time. The orange pilot light (n°2 on picture) ignites. Your machine is working

The selection of the cooking zone is made through the commutator

Never use the toaster without its tray (n°4 on picture)

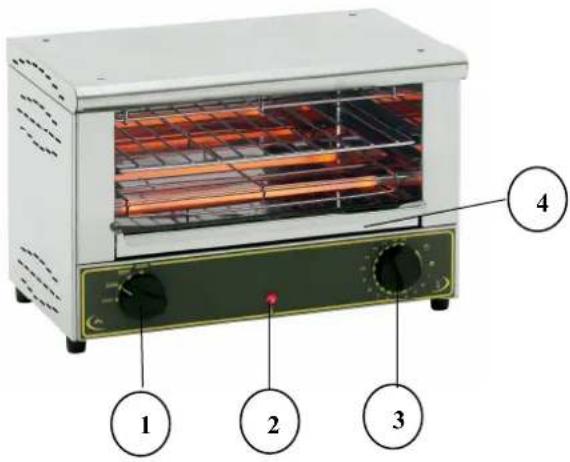

Labeled diagram of a toaster oven with numbered parts for identification

Commutator

Timer 15 min

On/off pilot light

Tray

5. FUNCTIONING / MANIPULATION

a) Installation / assembly:

• Unpack carefully the device of its packaging.
• Place it on a plane and heatproof surface.

• Never place the device near a wall or near a partition makes of combustible materials even if it is very well isolated.

• A distance of minimum 10 cm with the partition or the wall is necessary.

• Remove the protective films

b) First starting:

During the first use, warm your machine up outside to evacuate residual smokes of manufacturing oil from the metallic parts. This may emit a slight smell for a few moments.

First cleaning

Clean the device before the first use. (See 6. Cleaning)

Connection of the device

• Check that the tension and the frequency of the electricity network suit to the values indicated on the descriptive plate.
• Check that neither the cord nor the plug are damaged. If necessary, it has to be replaced by the manufacturer, its after sale service or any qualified person to avoid any risk.
• Make sure that every control knob is positioned on 0.
• Unwind completely the electric power cable and connect it in a plug connected with the earth.
• The device is connected.

NB: in case of connection of the device in a plug without earth protection or directly on the electricity network, confide its connection to a qualified person.

c) Use of device :

Elements of command and display

Command/Display Function
Commutator 4 positions (n° 1 on picture) : Position 1 Position 2 Position 3 Position 4	StopBottom quartz tubes onlyTop quartz tubes onlyAll the tubes warm
Orange pilot light (n°2 on picture)	Machine is on
Timer 15 min (n°3 on picture)	Cooking time

Putting on

Turn on the commutator ( n^1 on picture) on the wished position.

Turn on the timer control knob (n°3 on picture) on the wished cooking time

The orange pilot light ( n^2 on picture) ignites. The machine is on.

You can use your toaster in continuous by turning the timer on left side from position

1. Caution : do not forget to turn off your pizza oven after use.

Temperature setting

Set the power desired by positioning the commutator ( n^1 on picture) to the wished position.

Stopping the appliance

Set the timer (n°3 on picture) on 0

Set the commutator (n°1 on picture) on 0: the appliance is no longer functioning.

Disconnect the power cable.

Clean the appliance. (see 6. Cleaning)

d) Breakdown / repair:

In case of breakdown or of damaged part, please call your after-sales service and confide any technical operation to qualified person.

When you contact the after-sales service of your distributor or your store, give him the complete reference of your device (commercial name, type and serial number).

This information appears on the visible descriptive plate behind the device.

6. CLEANING AND MAINTENANCE

• Disconnect the device.
• Let cool completely the device before any technical intervention or cleaning.
• Never clean the quartz tubes when they are hot.
• Avoid touching quartz tubes with your fingers but use a cloth moistened with spirit.
• Clean regularly the external walls of your device with warm water and wash liquid: avoid the abrasive towelling. Rinse your device with a wet sponge.
• Never clean the device under a water jet, the infiltrations would risk to damage it in a irreparable way.
• Never immerse the device, the cord or the plug in the water or quite other liquid to avoid any electric shock.
• During a prolonged non-use, we recommend you strongly to keep the device shielded from the humidity.

7. TECHNICAL SPECIFICATIONS

Models	BAR 1000 BAR 2000
Outside dimensions	450x285x305 mm	450x285x420 mm
Weight	9 Kg 11 Kg
Power	2000 W	3000 W
Nb quartz tube	4	6
Current	8.7 A	13 A
Volt	220-240 V ~	220-240 V ~

Wires colours correspondence

Neutral Blue

Earth Yellow-Green

Phase

Brown/Black/Grey

8. NORMS AND LEGALS DISPOSALS

The device is conform to :

IEC/EN 60335-1

IEC/EN 60335-2-48

EN 55014-1 + 55014-2

EN 61000-3-2 + 61000-3-3

9. ELIMINATION OF THE ELECTRIC AND ELECTRONIC WASTE

The device respects the directives:

2002/96/CE (DEEE) N°34270064800021

2002/95/CE (ROHS)

2006/95 CE

2004/108 CE

Reach rule

Never put the device among household waste.

The device must be put down in a centre of recycling for the electric equipments.

The materials of the device are indeed reusable. By eliminating correctly the electric and electronic wastes, the recycling and quite other shape of re-use of worn equipments, you participate in a significant way in the environmental protection.

For any information about the collection of electric and electronic waste, please contact your distributor.

10. GUARANTEE

Conditions of guarantee

The guarantee applicable to any device is the commercial guarantee of the distributor or the retailer. Please contact the store where you bought your device to know the precise conditions.

The guarantee grants no right for damages.

The dispositions which follow are not exclusive of the profit of the legal guarantee planned by articles 1641 and following ones of the Civil code relative to the defects and the latent defects.

Exclusion clauses of the guarantee

Bad installation and bad maintenance, in particular if they do not respect current regulations or instructions appearing in this user guide.

Cannot benefit from the guarantee the repairs required as a result of false operations, of inappropriate use, of carelessness or of excess loads of the device, as well as those resulting from variations of the power supply, over tension or from defective installations.

The damage due to shocks, bad weather is not flatware by the guarantee. The material travels at the risks of the user; in case of delivery by carrier, the consignee has to have reservations towards the carrier before any delivery of the device.

The guarantee comes to an end in case of intervention, of repair, of modification by no qualified persons, or of use in inappropriate purposes.

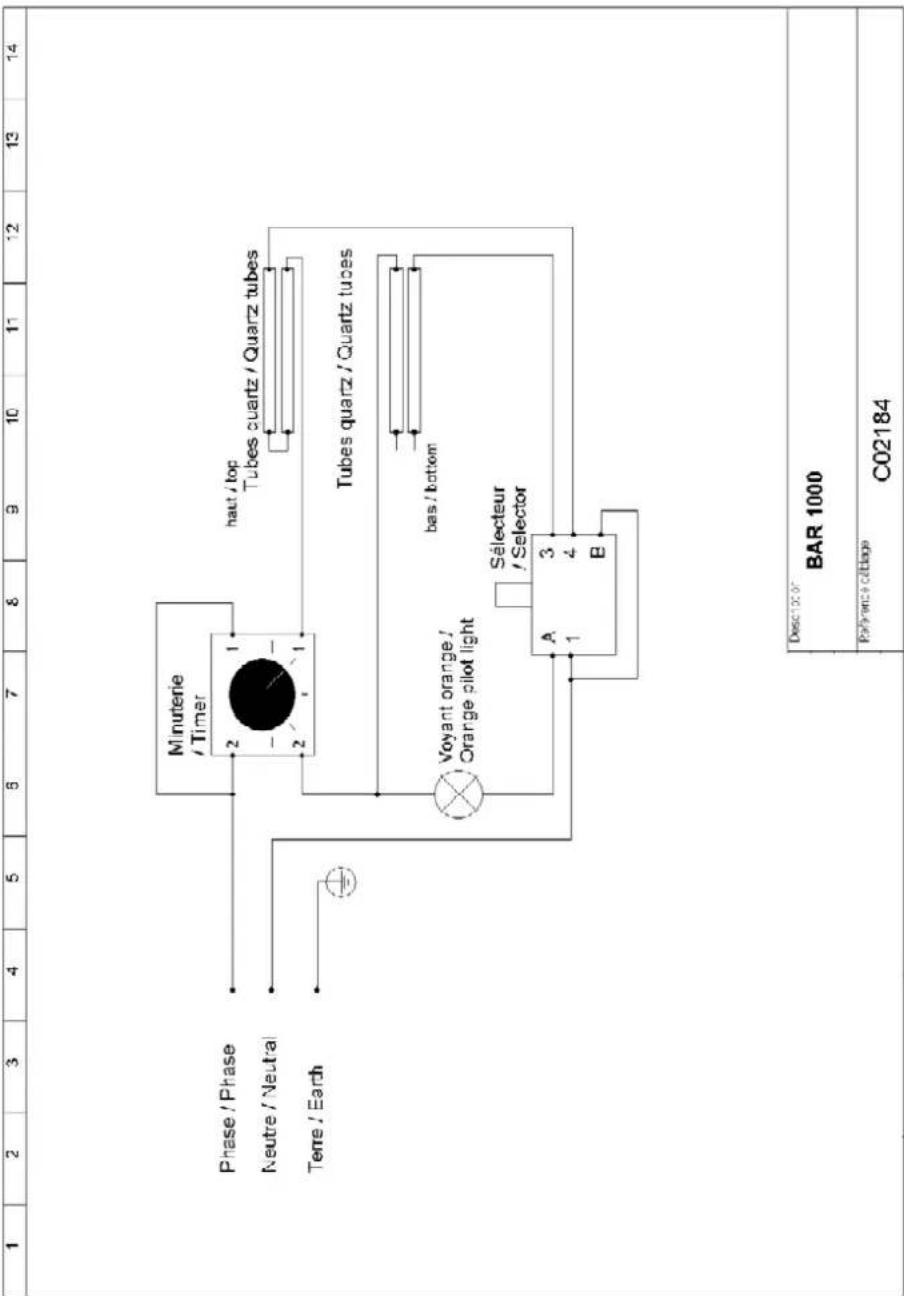


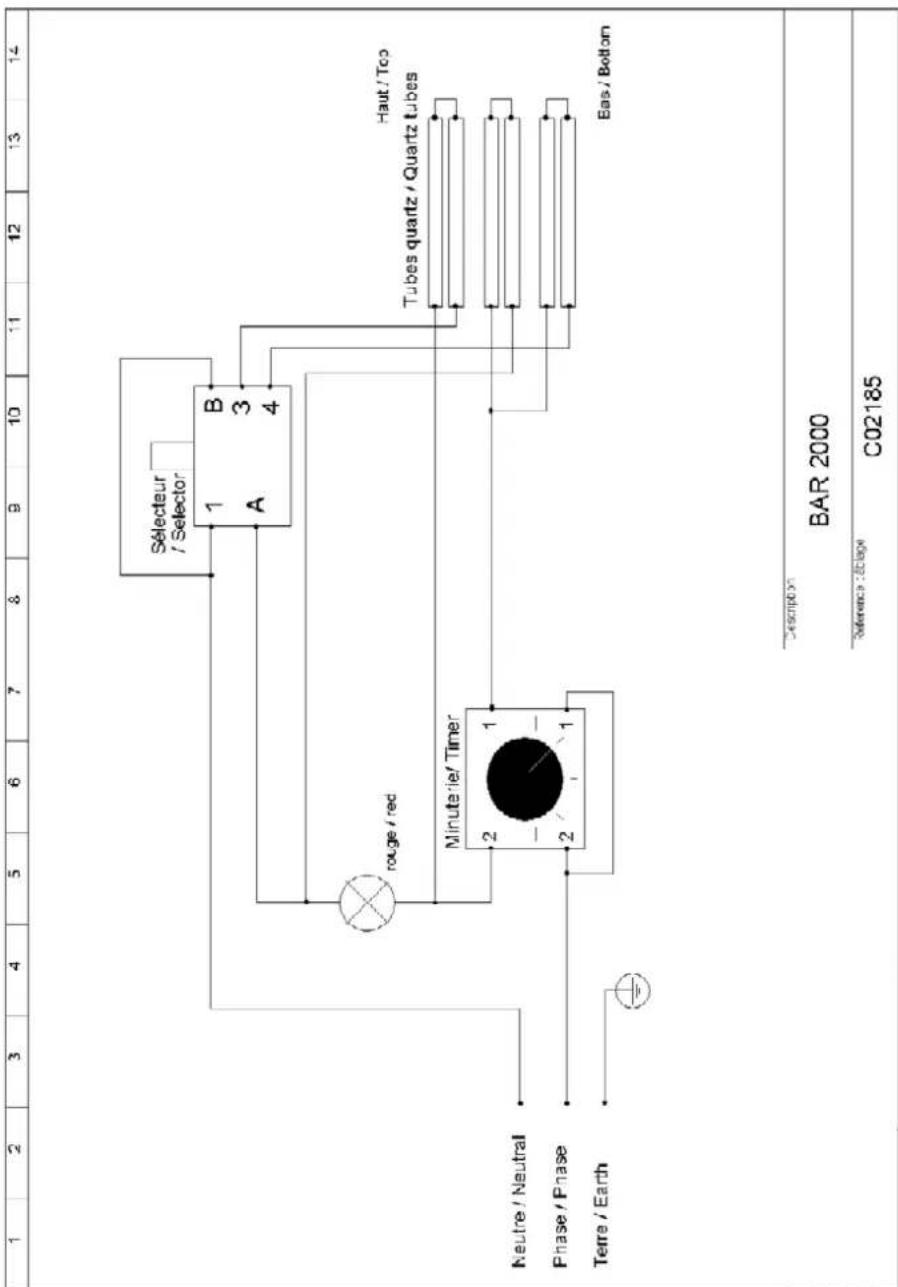

1 2 3 4 5 6 7 8 9 10 11 12 13 14 Sélecteur / Selector 1 B A 3 4 rouge / red Haut / Top Tubes quartz / Quartz tubes Neutre / Neutral Phase / Phase Terre / Earth Minuterie/ Timer 2 1 2 1 Bas / Bottom Description BAR 2000 Reference : Éclage C02185

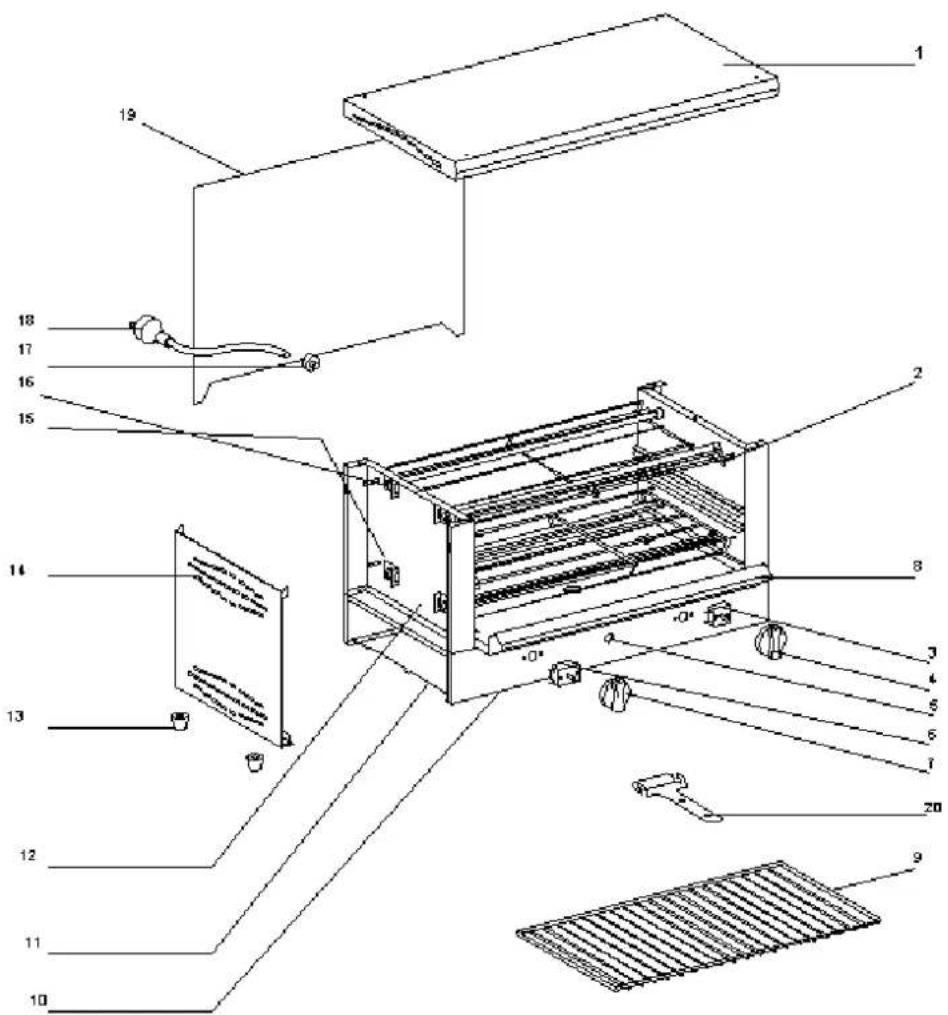

Nomenclature BAR 1000

Spare parts BAR 1000

Rep	Code	Qty	Pièce	Spare part
1	30030	1	Toit	Roof
2	F01052	2	Grille protège tubes	Tube protection grid
3	A02008	1	Minuterie	Timer
4	A14078	1	Bouton	Knob
5	A08003	1	Voyant orange	Orange pilot light
6	A01017	1	Commutateur	Commutator
7	A14078	1	Bouton	Knob
8	30036	1	Plat	Tray
9	F01056	1	Grille	Grid
10	30039	1	Socle	Base
11	30033	1	Fond de socle	Bottom enclosure
12	30034SE	2	Montant	Upright
13	A13003	4	Pied	Foot
14	30031	2	Flasque	Side casing
15	B07025	8	Clips	Clips
16	D04022	4	Résistance+tube quartz	Quartz tube assembly
17	A10001	1	Serre cable	Cord closer
18	C03002	1	Cordon avec prise	Cord with plug
19	30037	1	Arrière	Back
20	F03006	1	Polgnée support grille	Grid holder handle
	A16012	1	Bomier 2 plots	Two holes domino

BAR 1000

Technical diagram of a refrigerator with numbered parts for identification

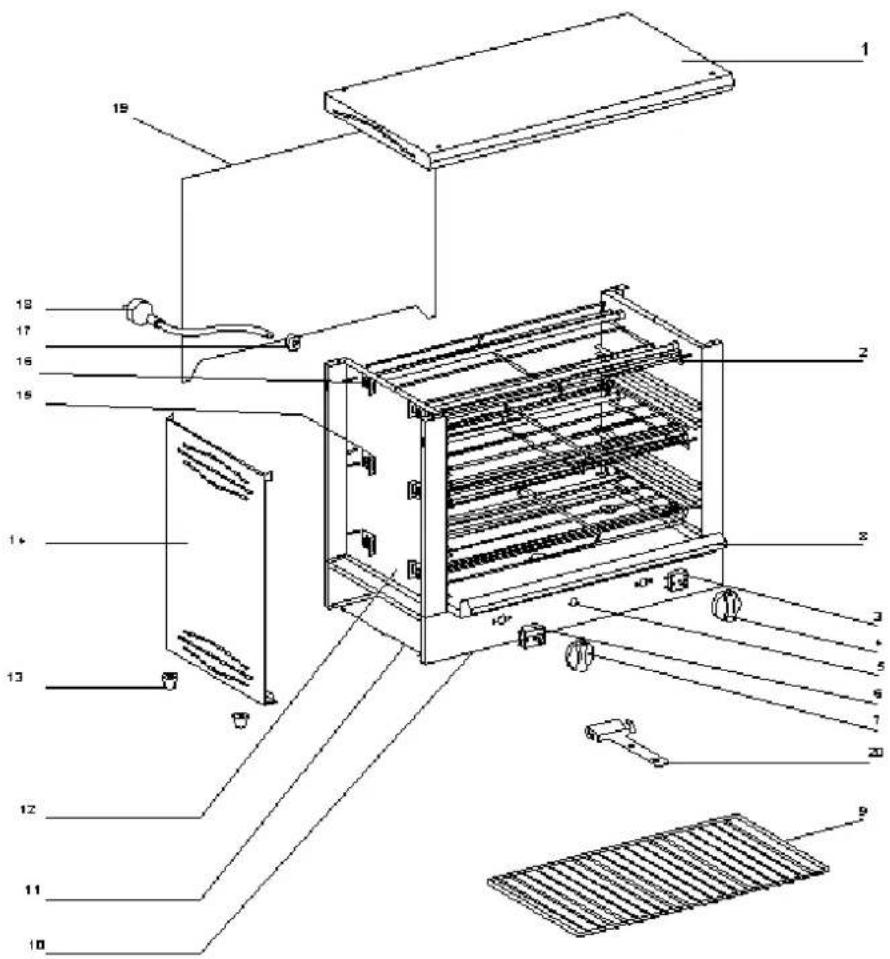

Nomenclature BAR 2000

Spare parts BAR 2000

Rep	Code	Qty	Pièce	Spare part
1	30030	1	Toit	Roof
2	F01052	4	Grille protège tubes	Tube protection grid
3	A02008	1	Minuterie	Timer
4	A14078	1	Bouton	Knob
5	A08003	1	Voyant orange	Orange pilot light
6	A01017	1	Commutateur	Commutator
7	A14078	1	Bouton	Knob
8	30036	1	Plat	Tray
9	F01056	2	Grille	Grid
10	30039	1	Socle	Base
11	30033	1	Fond socle	Bottom enclosure
12	30035SE	2	Montant	Upright
13	A13003	4	Pied	Foot
14	30032	2	Flasque	Side casing
15	B07025	12	Clips	Clips
16	D04022	6	Résistance+tube quartz	Quartz tube assembly
17	A10001	1	Seme cable	Cord closer
18	C03030	1	Cordon	Cord with plug
19	30038	1	Arrière	Back
20	F03006	1	Poignée support grille	Grid holder handle
	A16012	1	Bomier 2 plots	Two holes domino

BAR 2000

Technical diagram of an oven system with numbered components for identification
