USER MANUAL D812 Smart QLIMA

5. lf a vacuum is not possible, make a manifold so that refrigerant can be removed from

various parts of the system.

MISE AU REBUT DU PRODUIT

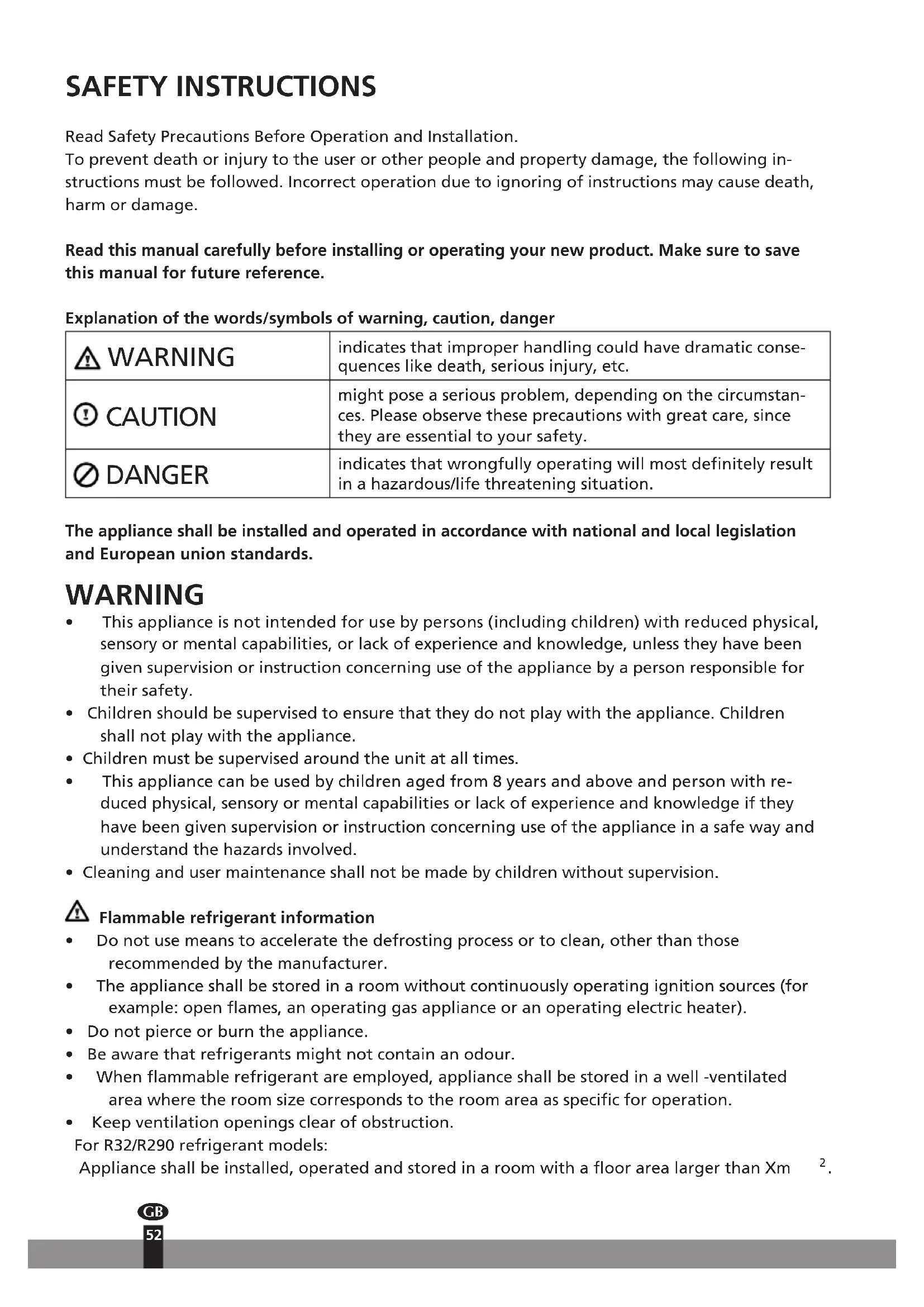

SAFETY INSTRUCTIONS Read Safety Precautions Before Operation and Installation. To prevent death or injury to the user or other people and property damage, the following in- structions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage. Read this manual carefully before installing or operating your new product. Make sure to save this manual for future reference. Explanation of the words/symbols of warning, caution, danger WARNING indicates that improper handling could have dramatic conse- quences like death, serious injury, etc. CAUTION might pose a serious problem, depending on the circumstan- ces. Please observe these precautions with great care, since they are essential to your safety. DANGER indicates that wrongfully operating will most denitely result in a hazardous/life threatening situation. The appliance shall be installed and operated in accordance with national and local legislation and European union standards. WARNING

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. Children shall not play with the appliance.

• Children must be supervised around the unit at all times.

• This appliance can be used by children aged from 8 years and above and person with re- duced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children without supervision. Flammable refrigerant information

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).

• Do not pierce or burn the appliance.

• Be aware that refrigerants might not contain an odour.

• When flammable refrigerant are employed, appliance shall be stored in a well -ventilated area where the room size corresponds to the room area as specific for operation.

• Keep ventilation openings clear of obstruction. For R32/R290 refrigerant models: Appliance shall be installed, operated and stored in a room with a floor area larger than Xm

Where X is the minimum room area depended on the refrigerant charge (please refer to the table below and the product rating label). Refrigerant charge (kg) Min. room area (m

• Reusable mechanical connectors and flared joints are not allowed indoors. (EN Standard Requirements).

• Mechanical connectors used indoors shall have a rate of not more than 3g/year at 25% of the maximum allowable pressure. When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re-fabricated. (UL Standard Requirements)

• When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re-fabricated. (IEC Standard Requirements)

• Mechanical connectors used indoors shall comply with ISO 14903.

• Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

• Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised.

• The appliance shall be stored so as to prevent mechanical damage from occurring.

• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certicate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specication.4

This symbol shows that this appliance used a ammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of re. CAUTION: This symbol shows that the user manual should be read carefully. CAUTION: This symbol shows that the installation manual should be read carefully. CAUTION: This symbol shows that the technical manual should be read carefully.

• In the regard of transport, marking, disposal, and storage of the equipment/appliance please make sure that it is in compliance with all national, local and European Standards. Service operations regarding Flammable refrigerant

• Checks to the area Prior to beginning work on systems containing ammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

• Work procedure Work shall be undertaken under a controlled procedure so as to minimise the risk of a am- mable gas or vapour being present while the work is being performed.

• General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in conned spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of ammable material.

• Checking for presence of refrigerant The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially ammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with ammable refrigerants, i.e. nonsparking, adequately sealed or intrinsically safe.

• Presence of re extinguisher If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate re extinguishing equipment shall be available to hand. Have a dry powder or

re extinguisher adjacent to the charging area.

• No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained ammable refrigerant shall use any sources4

of ignition in such a manner that it may lead to the risk of re or explosion. All possible ignition sources, including cigarette smoking, should be kept sufciently far away from the site of installation, repairing, removing and disposal, during which ammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no ammable hazards or ignition risks. “No Smoking” signs shall be displayed.

• Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

• Checks to the refrigeration equipment Where electrical components are being changed, they shall be t for the purpose and to the correct specication. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt consult the manufacturer’s technical department for assis- tance. The following checks shall be applied to installations using ammable refrigerants:

• the charge size is in accordance with the room size within which the refrigerant contain- ing parts are installed;

• the ventilation machinery and outlets are operating adequately and are not obstructed;

• if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;

• marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

• refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

• Checks to electrical devices Repair and maintenance to electrical components shall include initial safety checks and com- ponent inspection procedures. If a fault exists that could compromise safety, then no elec- trical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include:

• that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;

• that there no live electrical components and wiring are exposed while charging, recover- ing or purging the system;

• that there is continuity of earth bonding.

• Repairs to sealed components

1. During repairs to sealed components, all electrical supplies shall be disconnected from

the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

2. Particular attention shall be paid to the following to ensure that by working on electri-

cal components, the casing is not altered in such a way that the level of protection is af- fected. This shall include damage to cables, excessive number of connections, terminals not made to original specication, damage to seals, incorrect tting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of ammable atmospheres. Replacement parts shall be in accordance with the manufacturer’s specications, NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detec- tion equipment. Intrinsically safe components do not have to be isolated prior to working on them.4

• Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a ammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specied by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

• Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

• Detection of ammable refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked ame) shall not be used.

• Leak detection methods The following leak detection methods are deemed acceptable for systems containing am- mable refrigerants. Electronic leak detectors shall be used to detect ammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is conrmed. Leak detection uids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked ames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

• Removal and evacuation When breaking into the refrigerant circuit to make repairs – or for any other purpose – con ventional procedures shall be used. However, it is important that best practice is followed since ammability is a consideration. The following procedure shall be adhered to:

• purge the circuit with inert gas;

• purge again with inert gas;

• open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “ushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to ll until the working pressure is achieved, then venting to atmosphere, and nally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the nal OFN charge is used, the system shall be vented down to atmospheric pres- sure to enable work to take place. This operation is absolutely vital if brazing operations on the pipework are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.4

• Charging procedures In addition to conventional charging procedures, the following requirements shall be fol- lowed.

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrig- erant contained in them.

• Cylinders shall be kept upright.

• Ensure that the refrigeration system is earthed prior to charging the system with refrig- erant.

• Label the system when charging is complete (if not already).

• Extreme care shall be taken not to overll the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

• Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

1. Become familiar with the equipment and its operation.

2. Isolate system electrically.

3. Before attempting the procedure ensure that:

• mechanical handling equipment is available, if required, for handling refriger- ant cylinders;

• all personal protective equipment is available and being used correctly;

• the recovery process is supervised at all times by a competent person;

• recovery equipment and cylinders conform to the appropriate standards.

4. Pump down refrigerant system, if possible.

5. If a vacuum is not possible, make a manifold so that refrigerant can be removed from

various parts of the system.

6. Make sure that cylinder is situated on the scales before recovery takes place.

7. Start the recovery machine and operate in accordance with manufacturer’s instructions.

8. Do not overll cylinders. (No more than 80 % volume liquid charge).

9. Do not exceed the maximum working pressure of the cylinder, even temporarily.

10. When the cylinders have been lled correctly and the process completed, make sure that

the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.

11. Recovered refrigerant shall not be charged into another refrigeration system unless it

has been cleaned and checked.

• Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of re- frigerant. The label shall be dated and signed.Ensure that there are labels on the equipment stating the equipment contains ammable refrigerant.

• Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant re- covery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrig- erant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.4

The recovery equipment shall be in good working order with a set of instructions con- cerning the equipment that is at hand and shall be suitable for the recovery of ammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct re- covery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that ammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to acceler- ate this process. When oil is drained from a system, it shall be carried out safely. UV-C lamp(Applicable to the unit contains an UV-C lamp only) This appliance contains a UV-C lamp. Read the maintenance instructions before opening the appliance.

1. Do not operate UV-C lamps outside of the appliance.

2. Appliances that are obviously damaged must not be operated.

3. Unintended use of the appliance or damage to the housing may result in the escape of dan-

gerous UV-C radiation. UV-C radiation may, even in small doses, cause harm to the eyes and skin.

4. Before opening doors and access panels bearing the ULTRAVIOLET RADIATION hazard

symbol for the conducting USER MAINTENANCE, it is recommended to disconnect the power.

5. The UV-C lamp can not be cleaned, repaired and replaced.

6. UV-C BARRIERS bearing the ULTRAVIOLET RADIATION hazard symbol should not be re-

moved. WARNING This appliance contains an UV emitter. Do not stare at the light source.

• Installation must be performed according to the installation instructions. Improper installa- tion can cause water leakage, electrical shock, or re.

• Use only the included accessories, parts and specied tools for the installation.

• Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker (the fuse or circuit breaker needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on unit), have a qualied electrician install the proper receptacle.

• Install the unit on a at, sturdy surface. Failure to do so could result in damage or excessive noise and vibration.

• The unit must be kept free from obstruction to ensure proper function and to mitigate safety hazards.

• Do not modify the length of the power cord or use an extension cord to power the unit.

• Do not share a single outlet with other electrical appliances. Improper power supply can cause re or electrical shock.

• The appliance is only to be used and installed in resedential houses, indoors, and in a dry location. Exposure to water can cause electrical components to short circuit.4

• Do not install the unit in a location that may be exposed to combustible gas, as this could cause re.

• The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll over objects, as these could cause tipping.

• Do not operate a unit that it has been dropped or damaged. Return to an authorized service facility for examination and/or repair or discard the unit.

• The appliance with electric heater shall have at least 1 meter space to the combustible mate- rials.

• Do not touch the unit with wet or damp hands or when barefoot.

• If the unit is knocked over during use or layed horizontally, turn off the unit and unplug it from the main power supply immediately. Visually inspect the unit to ensure there is no damage and wait 24 hours. If you suspect the unit has been damaged, contact a technician or customer service for assistance.

• In a thunderstorm, the power must be cut off to avoid damage to the machine due to light- ning. Your appliance should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc. Do not place or store your appliance where it can fall or be pulled into water or any other liquid. Unplug immediately if it occurs.

• All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit.

• The unit’s circuit board(PCB) is designed with a fuse to provide overcurrent protection. The specications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc. When the water drainage function is not in use, keep the upper and the lower drain plug rmly to the unit to get rid of choking. When the drain plug is not in use, keep it carefully to prevent children from choking.

• Do not drink or use the water drained from the unit.

• Have any repairs and/or maintenance carried out by a recognized service engineer only.

• The main voltage and fequency must be checked before installation as it must be earthed and conform the connection voltage displayed on the product rating label.

• Make sure the airow of the appliance is not disrupted by other products in the room, for example gas burners.

• Do not use harsh detergents, solvents, or similar items to clean the unit. Use a soft cloth for cleaning. CAUTION

• This appliance incorporates an earth connection for functional purposes.

• If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or similarly qualied persons in order to avoid a hazard.

• Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.

• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from trafc area and where it will not be tripped over.

• To reduce the risk of re or electric shock, do not use this fan with any solid-state speed control device.

• The appliance shall be installed in accordance with national wiring regulations.

• Do not cover or obstruct the inlet or outlet grilles.

• Do not use this product for functions other than those described in this instruction manual.4

• Disconnect the power if any irregularities appear, such as strange sounds, smell or smoke.

• Only press the buttons with your ngers.

• Do not operate or stop the unit by inserting or pulling out the power cord plug.

• Always transport your appliance in a vertical position and stand on a stable, level surface during use.

• Turn off the product when not in use and unplug the appliance.

• Do not take the water reservoirout during operation. SIMPLIFIED CE-DECLARATION PVG hereby declares that this product complies with the following EU directives: Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU Electromagnetic Compatibility (EMC) Directive 2014/30/EU Ecodesign energy-related products Directive 2009/125/EC Low Voltage Directive (LVD) 2014/35/EU Radio Equipment Directive (RED) 2014/53/EU For the full conformity declaration, visit: https://www.qlima.com/assortment/dehumidication/dehumidiers/d810/ https://www.qlima.com/assortment/dehumidication/dehumidiers/d812-smart/

DISPOSING OF THE PRODUCT

In the EU this symbol indicates that this product should be disposed accordingly to the EU-WEEE legislation. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical applianc- es are disposed of in landlls or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge. Please dispose any batteries according to the local collection facilities. This equipment contains R290 refrigerant in the amount as stated on the unit’s rating label. Do not vent R290 into atmosphere: R290, is a uorinated greenhouse gas with a Global Warming Potential (GWP).4 61>
