Product Type	Guitar Amplifier (Head)
Technology	Tubes (All Tube)
Class	A (Pure Class A)
Output Power	1 W
Number of Inputs	1
Input Connectors	6.35 mm Jack
Input Impedance	1 MΩ
Number of Outputs	4
Output Connectors	6.35 mm Jack
Output Impedances	Speaker: 8 and 16 Ω; Simulated Output: 4 kΩ; Hi-Z Output: 3.3 MΩ
Potentiometers	Volume, Boost (push button), Tone
Effects Loop	No
Preamp Tube	ECC83
Power Amp Tube	ECC82
Rectifier	Solid State
Mains Voltage	110-230 V AC, 50 Hz (voltage selector)
Power Consumption	10 W
Chassis Material	Steel Sheet
Dimensions (W x H x D)	206 x 128 x 108 mm
Weight	2.47 kg
Cleaning	With a dry cloth only
Fuse	IEC type 127 (5 x 20 mm), specified rating
Warranty	Limited, 2 to 3 years depending on country (see terms)

Frequently Asked Questions - Peins Palmer

How do I connect my guitar to the Palmer Peins?

Connect your guitar to the INPUT (6.35 mm jack) on the front of the amplifier, using a good quality instrument cable.

What is the BOOST button for?

The BOOST button, when pressed, increases gain, which boosts output level, distortion, and compression.

How does the TONE control work?

The TONE potentiometer attenuates the treble. Turned to the right, the sound is brighter; to the left, it becomes darker and distortion and overall level decrease slightly.

Can I use the Peins without a speaker connected?

Yes, thanks to its built-in load, you can use the SIMULATED OUTPUT and HI-Z OUTPUT without connecting a speaker cabinet.

How do I connect a speaker cabinet to the Peins?

Use a good quality speaker cable with a 6.35 mm jack. Connect to the 8 Ω output for an 8 Ω cabinet, or to the 16 Ω output for a 16 Ω cabinet. Never use both outputs simultaneously.

What is the SIMULATED OUTPUT for?

The SIMULATED OUTPUT provides a line-level signal with speaker simulation (Palmer PDI-09 circuit). Ideal for direct recording or connection to a PA system.

How do I use the HI-Z OUTPUT?

The HI-Z output allows you to use the Peins as a preamp. Connect it to the input of a power amplifier or an instrument amplifier. You can also use it as an effects pedal with an effects loop switcher.

Can I change the tubes in the Peins?

Yes, you can try different tube combinations (ECC83, ECC82, ECC81) in sockets V1 (preamp) and V2 (power) to vary gain and volume level. Caution: call a qualified technician if you are unsure.

What are the important safety precautions?

Do not expose to water or moisture, do not open the chassis (risk of electric shock), always use a grounded outlet, unplug during thunderstorms, and do not block the ventilation slots. The unit gets hot during operation.

How do I clean the Palmer Peins?

Clean the unit with a dry cloth only. Never use liquids or abrasive cleaners.

USER MANUAL Peins Palmer

Palmer Musical Instruments

PENS

ALL TUBE GUITAR HEAD AMP

Black-and-white illustration of a portable electronic device with 'Palmer' branding and abstract dot patterns (no readable text or symbols)

USER'S MANUAL BEDIENUNGSANLEITUNG MANUEL D'UTILISATION MANUAL DE USUARIO

DEFINE YOUR TONE

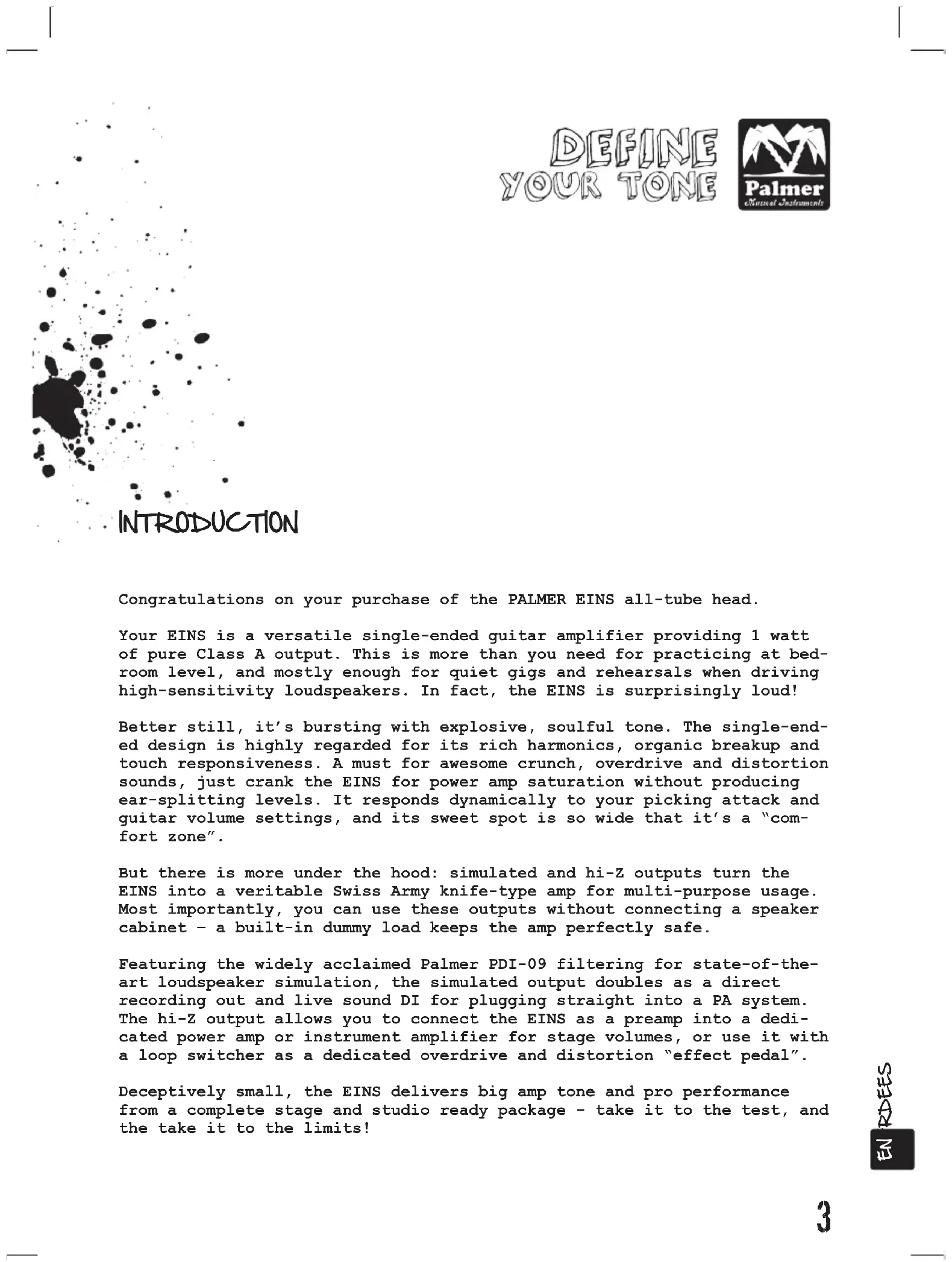

INTRODUCTION

DEFINE YOUR TONE

Congratulations on your purchase of the PALMER EINS all-tube head.

Your EINS is a versatile single-ended guitar amplifier providing 1 watt of pure Class A output. This is more than you need for practicing at bedroom level, and mostly enough for quiet gigs and rehearsals when driving high-sensitivity loudspeakers. In fact, the EINS is surprisingly loud!

Better still, it's bursting with explosive, soulful tone. The single-ended design is highly regarded for its rich harmonics, organic breakup and touch responsiveness. A must for awesome crunch, overdrive and distortion sounds, just crank the EINS for power amp saturation without producing ear-splitting levels. It responds dynamically to your picking attack and guitar volume settings, and its sweet spot is so wide that it's a "comfort zone".

But there is more under the hood: simulated and hi-Z outputs turn the EINS into a veritable Swiss Army knife-type amp for multi-purpose usage. Most importantly, you can use these outputs without connecting a speaker cabinet - a built-in dummy load keeps the amp perfectly safe.

Featuring the widely acclaimed Palmer PDI-09 filtering for state-of-the-art loudspeaker simulation, the simulated output doubles as a direct recording out and live sound DI for plugging straight into a PA system. The hi-Z output allows you to connect the EINS as a preamp into a dedicated power amp or instrument amplifier for stage volumes, or use it with a loop switcher as a dedicated overdrive and distortion "effect pedal".

Deceptively small, the EINS delivers big amp tone and pro performance from a complete stage and studio ready package - take it to the test, and the take it to the limits!

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions!
• Keep these instructions!
• Heed all warnings!
• Follow all instructions in this manual and on the apparatus!
• Do not use this apparatus near water, i.e. bathtubs, sinks, swimming pools, wet basements, etc.
• Do not expose this apparatus to dripping and splashing, and do not place objects filled with liquids, such as vases, on this product.
• Do not place naked flame sources, such as lighted candles, on the apparatus.
• Do not use this apparatus in dusty atmospheres, or in atmospheres containing flammable gases or chemicals.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with this apparatus. Use caution when moving the cart, stand, tripod, bracket, or table/apparatus combination to avoid injury from tipover and damage to the apparatus.
• Do not block any ventilation openings in the apparatus to ensure reliable operation and to prevent overheating. This apparatus should not be placed in a built-in installation unless proper ventilation is provided.
• Do not use this apparatus near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) producing heat.
• Use only the supplied power cord. If you are not sure of the type of power available, consult your dealer or local power company.
• THIS APPARATUS MUST BE EARTHED. Under no circumstances should the safety earth be disconnected from the mains lead.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from this apparatus. Do not place anything on the power cord.
• Power cords should always be handled carefully. Check power cords periodically for cuts and signs of stress, especially at the plugs and the point where they exit from the unit. If any part of the power cord set is damaged, the complete cord set should be replaced.
• The mains supply disconnect device is the mains plug. It must remain accessible so as to be readily operable when the apparatus is in use.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Turning off the power switch does not completely isolate this apparatus from the mains supply so remove the power plug from the mains outlet if not using it for extended periods of time.
• If this apparatus is mounted in an equipment rack, rear support must be provided.
• Do not push objects of any kind into this apparatus as they may touch lethal voltages and/or cause shorts resulting in electric shock and the risk of fire. Do not spill liquids of any kind on the apparatus.
• Do not attempt to service this apparatus yourself, as opening or remov-

DEFINE YOUR TONE

ing covers may expose you to lethal voltages and other risks. Refer all servicing to qualified service personnel.

- Clean only with dry cloth. - Unplug this apparatus from the mains outlet and refer servicing to qualified service personnel when

- the power cord or plug is damaged, - liquid has been spilled into the product, - objects have fallen into the product, - the product has been exposed to rain or moisture, - the product has been dropped or the cabinet has been damaged, - the product does not operate normally.

- Exposure to extremely high noise levels may cause permanent hearing loss. - Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

DURATION PER DAY IN HOURS SOUND LEVEL DBA, SLOW RESPONSE

8	90
6	92
4	95
3	97

2 100

1.5 102

1 105

0.5 110

0.25 or less 115

EN 5

IMPORTANT SAFETY INSTRUCTIONS

• According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss.
• Ear plug protectors in the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.
• Fuses: Replace with IEC type 127 (5 x 20 mm) and specified rating for best performance only. Do not use repaired fuses or short-circuit the fuse holder.

WARNING: TO REDUCE THE RISK OF FIRE AND SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO MOISTURE OR RAIN.

DO NOT OPEN CASE; NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: Do not touch surfaces with the "HOT" sign, rear panels and covers with air vents, heatsinks and their

covers, as well as tubes and their covers which are designed to dissipate heat and may cause burns.

CAUTION HOT

WARNINGS

The lightning flash with arrowhead symbol, is intended to alert the user to the presence of un-insulated „dangerous

voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTIONS

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

EUROPEAN MODELS

A power cord is supplied with an IEC molded socket at one end and a molded mains plug at the other end. If the fitted plug is unsuitable for your type of outlet sockets, it should be cut off and disposed of safely, in case it is inserted into a live socket elsewhere. If any part of the power cord set is damaged, the complete cord set should be replaced. The following information is for reference only.

The wires in the mains lead are coloured in accordance with the following code:

Earth (Ground): Green and Yellow (US - Green/Yellow)

Neutral: Blue (US - White)

Live (Hot): Brown (US - Black)

As the colours of the wires in the mains lead may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E, the earth symbol, or colored Green or Green and Yellow.

The wire which is coloured Blue must be connected to the terminal in the plug which is marked with the letter N or colored Black.

The wire which is coloured Brown must be connected to the terminal in the plug which is marked with the letter L or colored Red

Ensure that these colour codes are followed carefully in the event of the plug being changed. Ensure that all terminals are tightened securely and no loose strands of wire are present. Ensure that the cord grip is clamped over the outer jacket of the cable rather than over the wires.

CALIFORNIA U.S.A. ONLY

California 93120 Compliant for Formaldehyde. "The Airborne Toxic Control Measure to reduce Formaldehyde Emissions from Composite Wood Products." NOTICE REGARDING DISPOSAL (EU ONLY)

When this "crossed-out wheeled bin" symbol is displayed on the product, owner's manual, battery, or battery package, it signifies that when you wish to dispose of this product, manual, package or battery you must do so in an approved manner. Do not discard this product, manual, package or battery along with ordinary household waste. Disposing in the correct manner will prevent harm to human health and potential damage to the environment. Since the correct method of disposal will depend on the applicable laws and regulations in your locality, please contact your local administrative body for details. If the battery contains heavy metals in excess of the regulated amount, a chemical symbol is displayed below the "crossed-out wheeled bin" symbol on the battery or battery package.

DEFINE YOUR TONE

CONTENTS

1) FRONT PANEL DESCRIPTION
2) BACK PANEL DESCRIPTION
3) TUBE CHARACTERISTICS
4) TECHNICAL SPECIFICATIONS

Abstract black ink blot pattern on white background (no text or symbols)

1). FRONT PANEL DESCRIPTION

EINS INPUT VOLUME 000ST TONE POWER Palmer

1) INPUT

Connect your guitar to this socket using a quality instrument cable with 1/4" plugs.

2) VOLUME

This controls the amp's output level, breakup and saturation from low to mid volume cleans to crunch, overdrive and full-on distortion and compression.

The threshold of distortion varies depending on the tube complement (see TUBE OPTIONS below). Once you're in the "comfort zone" you can easily go from near-clean to rich, compressed distortion and everything in between by varying your touch or riding the guitar's volume control.

3) BOOST

This pushbutton increases gain in the "down" position for more output, distortion and compression.

4) TONE

This is basically a treble roll-off similar to the tone controls of most electric guitars.

However, it does more than just set the amp's tone. From sparkling bright (fully clockwise) to darker tones and muffled "blanket over the speaker" sounds, counterclockwise rotation also reduces distortion and overall output to some extent. This is fully intentional and provides additional breakup control for tweaking your overdrive and distortion tones to perfection - especially useful when recording!

5) PILOTLED

This lights up when the amp is "on" (power switch in "POWER" position).

6) POWER SWITCH

This rocker switch toggles the EINS on ("POWER" position) and off.

DEFINE YOUR TONE

2) BACK PANEL DESCRIPTION

7 8 AC 10, 50 - 10 & RINK, POWER MNG 30V 230V SIMULATED OUTPUT SHOCK HAZARD, DO NOT OPEN, NO USER SERVICABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONAL, THIS APPEARATUS MUST BE EARTHED. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSED THIS EQUIPMENT TO RUN ON MOUSTURE. LEAVE ENOUGH SHAPE FOR PROPER VENTILATION AT THE VEGETATION OPENING! HI Z OUTPUT 8 Ω 1b Ω SPEAKER OUTPUTS NEVER ARE MORE THAN WE OUTPUT AT THE SWEET TIRE. CE Palmer Electrical Instruments RECORDED BY SHEAR LONDON UNDEFINED IN CHINERY

7) IEC MAINS INPUT

Connect the included IEC cord to this socket for mains power supply.

Caution: Do not operate the amp without a protective grounding connection.

8) VOLTAGE SELECTOR

With this switch you can adjust the unit to the mains voltage of your country. Usually you will not have to operate this switch as the unit is generally pre-configured depending on the country it is delivered to. Be sure to disconnect the unit from the mains before operating this switch!

9) SIMULATED OUTPUT

This is a line output for direct recording and connection to a PA system. It uses the Palmer PDI-09's filter module for natural-sounding speaker simulation. Connect this output to your recording interface or PA console using a quality instrument cable (1/4" plug to interface / console connector type). Should you need a true DI-Output (balanced XLR out, Transformer isolated, Mic level signal), then you may connect a standard passive DI Box to this output.

Featuring a built-in dummy load, the EINS does not require speaker connection for DI use. Whether you want to lay down a smoking track in the studio, rip into a searing solo on stage or rehearse a new song with your band, just bring your EINS, dial in the dirt, and spank the plank!

(10) H-2 OUTPUT

This output transforms the EINS into a preamp or "effect pedal". Delivering all of the amp's power stage performance the hi-Z out takes single-ended tone to another level.

For preamp use, connect this output to a dedicated power amp using a quality instrument cable with 1/4" plugs. This setup provides pure Class A bliss at.volume levels limited by the power amp's output only.

Alternatively, run the EINS from the hi-Z out into any instrument amplifier ("host" amps may impart their own tone). Always connect loudspeakers to the power and instrument amps using quality loudspeaker cable.

For footswitchable "effect pedal" use you need a loop switcher (refer to the switcher manual for connection. The loop connectors are mostly labelled "send" and "return", or "receive". The former is the loop out which connects to the EINS input, the latter are the loop ins and connect to the hi-z output). Note: some stompboxes feature a built-in effects loop which can be used to kick in the EINS along with the pedal itself-experiment!

(1) SPEAKER OUTPUTS

This is where you connect speaker cabinets to the EINS.

Using a quality loudspeaker cable with 1/4" plugs, connect the 8Ω output to a cabinet rated at 8 ohms, OR connect the 16Ω output to a cabinet rated at 16 ohms.

If you don't require insane amounts of clean headroom and running into highly efficient speakers, the EINS can easily hang with a subdued bass player and toned-down drummer rhythm section. You may also daisy chain cabinets to either output provided the final ohms load matches that of the output used.

Caution: Never use the 8Ω and 16Ω outputs simultaneously!

3) TUBE OPTIONS

The Palmer EINS default tube complement consists of an ECC83 preamp tube (V1) and ECC82 (V2) power tube. For different breakup and response characteristics you may also use the complements below:

a) ECC83(V1) and ECC83(V2) -less volume, highest gain and earlier breakup for lead sounds
b) ECC83(V1) and ECC81(V2) -less volume than default but more than (a), higher gain and earlier breakup
c) ECC81(V1) and ECC82(V2) -more clean headroom, darker distortion sound
d) ECC81(V1) and ECC83(V2) -lowest volume of all, breaks up later than (a), extremely precise distortion control

4) SPECIFICATIONS

PRODUCT TYPE: guitar amplifiers

TYPE: head

TECHNOLOGY: tube

CLASS: A

POWER: 1 W

INPUTS: 1

INPUT CONNECTORS: 6.3 mm Jack

INPUT IMPEDANCE: 1 M Ohm(s)

OUTPUTS: 4

OUTPUT CONNECTORS: 6.3 mm Jack

OUTPUT IMPEDANCE: Speaker out: 8 & 16 Ohm, Simulated

out: 4k, HiZ out: 3,3M Ohm(s)

CHANNELS: 1

DISPLAY: Power

CONTROLS: tone, level

FX LOOP: no

PREAMP TUBES: ECC83

POWER AMP TUBES: ECC82

RECTIFIER: solid state

POWER SUPPLY: 110 - 230 V AC

POWER CONSUMPTION: 10 W

CABINET MATERIAL: sheet steel

DIMENSIONS (W X H X D): 206 x 128 x 108 mm

WEIGHT: 2,47 kg

Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

LIMITED WARRANTY

PALMER is a brand of the Adam Hall group.

This Limited Warranty applies to all products distributed through Adam Hall.

The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional independent warranty claims towards Adam Hall.

Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 3 years from the date of purchase.

The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your proof of the purchase date. Should products of the brands named above be in need of repair within the limited warranty period, you are entitled to warranty services according to the terms and conditions stated in this document.

This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not transferable to anyone, who obtains ownership of the Adam Hall branded product from the original purchaser. During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.

In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to provide you with a replacement unit of Adam Hall's choice that is at least equivalent to your Adam Hall branded product in hardware performance.

Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall branded product. This Limited Warranty does not apply, - to wear parts (e.g. accumulator) - to any product from which the serial number has been removed or that has been damaged or rendered defective as the result of an accident - in case of, misuse, abuse, or other external causes

- by operation outside the usage parameters stated in the user's documentation shipped with the product

- by use of spare parts not manufactured or sold by Adam Hall

- by modification or service by anyone other than Adam Hall

These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages. This limitation of liability however, will not apply to claims for personal injury.

This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to state or from country to country. You are advised to consult applicable state or country laws for a full determination of your rights.

REQUESTING WARRANTY-SERVICE

To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

EC DECLARATION OF CONFORMTY

These devices meet the essential requirements and further relevant specifications of Directives 2004/108/EC (EMC) and 2006/95/EC (LVD). For more information, see www.adamhall.com.

CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of

DEFINE YOUR TONE

material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

WEEE-DECLARATION

Your PALMER product was developed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

BATTERIES AND ACCUMULATORS

The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.

Abstract black ink blot on white background with scattered dots (no text or symbols)

DEFINE YOUR TONE

DEFINE YOUR TONE

EINFÜHRUNG

Abstract black ink blot on white background with scattered dots (no text or symbols)

DEFINE YOUR TONE

Palmer Musical Instruments

Abstract black ink blot on white background with scattered dots (no text or symbols)

WWW.PALMER-GERMANY.COM

PALMER IS A BRAND OF THE ADAM HALL GMBH

ADAM HALL GMBH. DAIMLERSTRASSE 9

61267 NEU-ANSPACH.GERMANY

FON: (+49) 6081 / 9419 - 0 . FAX: (+49) 6081 / 9419 - 1000

WWW.ADAMHALL.COM
