PDI05 - Guitar amp Palmer - Free user manual and instructions

Product type	Stereo speaker simulator
Number of channels	2
Input connectors	6.35 mm unbalanced jack
Output connectors	XLR balanced, unbalanced 6.35 mm jack
Output impedance (jack)	10 kohms
Output impedance (XLR)	600 ohms
Maximum power handling	200 W
Mains voltage	230 V / 115 V selectable
Dimensions (W x H x D)	480 x 44.5 x 44.5 mm
Weight	2.9 kg
Housing material	Steel sheet / aluminium
Housing finish	Paint / anodised
Sound correction filters	Yes (3 treble and 2 bass positions)
Headphone output	Yes, with dedicated volume control
Transformer isolated output	Yes
Maintenance and cleaning	Use a dry cloth. Do not open the device.
Safety	Do not expose to water or flames. Follow earthing instructions.
Manufacturer warranty	2 to 5 years depending on product (check purchase date)
Recycling	Do not dispose of with household waste. Follow local regulations.

Frequently Asked Questions - PDI05 Palmer

How do I connect the PDI05 to a combo amplifier?

Set the SPEAKER/LINE selector to SPEAKER (down) and connect the combo amplifier's speaker output to the INPUT of the PDI05. Then connect your cabinet or load to the THRU output.

What is the function of the DEEP/FLAT selector?

The DEEP/FLAT selector adjusts the bass response. In the DEEP position, you get the typical punch of a 4x12" cabinet, while FLAT simulates a closed 2x12" cabinet.

How do I use the PDI05 in stereo?

The PDI05 has two identical channels. For stereo use, connect your sources to the inputs of both channels and adjust the filters independently. The outputs can be sent to a mixer or stereo amplifier.

Can I use the PDI05 with an effects pedal?

Yes. Connect your effects pedal's output to the INPUT of the PDI05, and set the SPEAKER/LINE selector to LINE (up). Then use the OUTPUT to a mixer or amplifier.

What should I do if the fuse blows?

Replace the fuse with one of the same type and rating. If the problem persists, consult an authorised repair centre. Never use a fuse of a different value.

How do I clean the device?

Use a dry, soft cloth to clean the exterior. Never use liquids or abrasive products. Disconnect the device before cleaning.

What is the warranty on the PDI05?

The manufacturer's warranty is 2 to 5 years depending on the product. It covers component and manufacturing defects. To file a claim, contact Adam Hall or your authorised dealer.

How do I dispose of the product at end of life?

Do not dispose of the device with household waste. Take it to an authorised collection point for recycling electronic waste, in accordance with the WEEE directive.

Can I use the PDI05 with keyboards or drum machines?

Yes. Plug the instrument's output directly into the INPUT of the PDI05, with the selector set to LINE. This will add analog warmth to your digital sounds.

How do I set the input level on the PDI05?

Use the SPEAKER/LINE selector to match the level: SPEAKER position for speaker (power) signals, LINE position for line signals (preamp, pedals). Then adjust the volume using the VOLUME potentiometer.

USER MANUAL PDI05 Palmer

PD105 STEREOL SPEAKER SIMULATOR REISSUE

USER'S MANUAL BEDIENUNGSANLEITUNG MANUEL D'UTILISATION MANUAL DE USUARIO

DEFINE YOUR TONE

DEFINE YOUR TONE

2

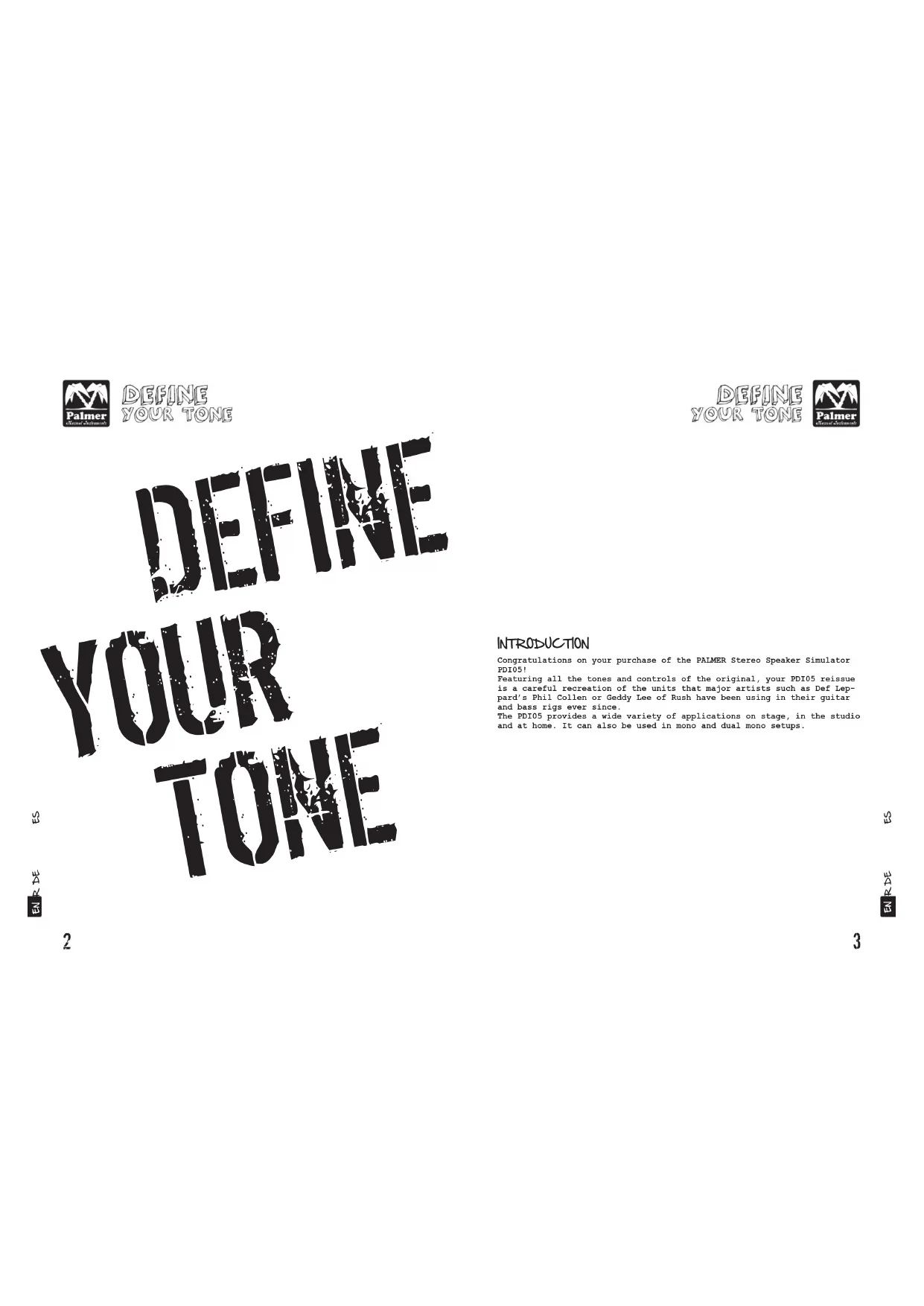

INTRODUCTION

Congratulations on your purchase of the PALMER Stereo Speaker Simulator
PDI05!
Featuring all the tones and controls of the original, your PDI05 reissue is a careful recreation of the units that major artists such as Def Leppard's Phil Collen or Geddy Lee of Rush have been using in their guitar and bass rigs ever since.
The PDI05 provides a wide variety of applications on stage, in the studio and at home. It can also be used in mono and dual mono setups.

3

DEFINETHYOUR TONE

SAFETYINFORMATION

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children

FOR EQUIPMENT THAT Connects TO THE POWER MAINS:

1. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective

DEFINETHYOUR TONE

ground. Never deactivate the protective ground of a power cord.
23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
26. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.
29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.
31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

CAUTION

Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

DEFINE YOUR TONE

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions.

CAUTION-HIGHVOLUMELEVELS WITH AUDIOPRODUCTS!

This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks.

Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.

CAUTION IMPORANT INFORMATION ABOUT LIGHTING PRODUCTS

1. Do not look into the beam from a distance of less than 40 cm.
2. Do not stare into the beam for extended periods at short-to-medium distances.
3. Do not view the beam directly with optical instruments such as magnifiers.
4. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.

6

DEFINETHYOUR TONE

FRONT-/BACKPANEL

7

DEFINETHYOUR TONE

FRONTPANEL SETTINGS

The channel 1 and 2 volume controls and filter switches and the phones output with dedicated volume control are located at the front of the unit for operating convenience.

FILTERVOLUME

Controls the speaker simulated output signal level.

2 DEEP/FLAT

This switch selects the low end EQ with the DEEP setting providing the typical punch of a closed back 4 × 12^ . The FLAT position simulates the airiness of an open back 2 × 12^ cabinet.

BRIGHT/NORMAL/MELLOW

This switch selects between three high frequency characteristics. Especially to overdriven signals, the BRIGHT setting lends clarity and transparency to rhythm parts and the cutting edge to lead lines. NORMAL generates the grainy upper midrange bite of a British loudspeaker, and the MELLOW position simulates the softer, singing "American" tones. Together, both switches select between 6 presets providing authentic simulation of various speaker and cabinet types. We recommend to experiment with different combinations to create new and unusual voicings, as well!

4 PHONES

Stereo headphones output with dedicated volume control. This provides the speaker simulated signal. Using a suitable adapter for connection, the integrated headphones amplifier is even capable of driving home stereo speakers!

E

8

DEFINETHYOUR TONE

BACK PANEL 串 CONNECTING

All connectors with the exception of the phones output are located at the rear of the unit.

5 MAINS

Connect the included mains cord to the IEC socket. The mains fuse holder is integrated into this socket. Make sure the MAINS VOLTAGE selector is set to your local mains supply voltage.

OUTPUT/INPUT CHANNEL 2 AND CHANNEL1

featuring identical connection and switching facilities both channels can also be used for mono applications.

OUTPUT

Zhe XLR and jack socket provide the speaker simulated signal for connection to a mixing console. Both outputs can be used simultaneously. The GROUND LIFT switch isolates pin 1 of the XLR from the chassis ground to eliminate ground loops.

(You can also connect the outputs to a power amp with loudspeakers to amplify and reproduce the filtered signal, e.g. a home stereo featuring AUX or LINE inputs.)

INPUT

use the IN sockets to connect preamps, effects units, combo amps, heads or power amps, and the SPEAKER/LINE switch to set the proper input levels (see WARNING below). The input signal is fed to the THRU sockets without filtering for further use (see Sample applications and connections below).

WARNING

Make sure the SPEAKER/LINE switch is in the SPEAKER position (down) when connecting the PD105 to the loudspeaker outputs of combo amps, heads or power amps, and that appropriate loudspeakers or dummy loads are connected to the THRU sockets!

For all connections from loudspeaker level outputs (e.g. of combo amps, heads or power amps) and to loudspeakers use high quality loudspeaker cable only. Use high quality instrument cable for line level connections.

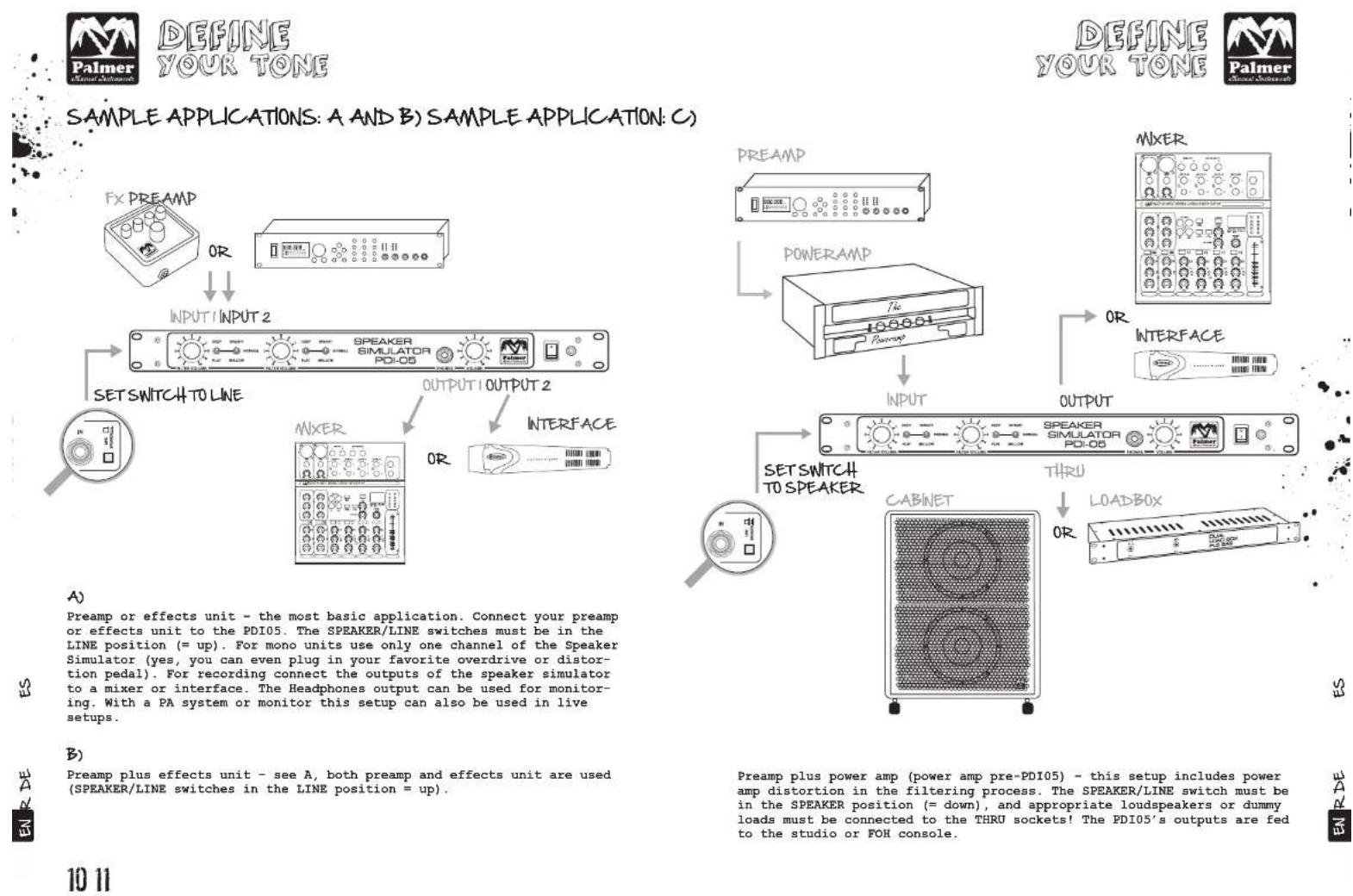

PLEASE NOTE THE FOLLOWING SAMPLE APPLICATIONS AND CONNECTIONS

9

DEFINE YOUR TONE

SAMPLE APPLICATION: D)

DEFINETHYOUR TONE

SAMPLE APPLICATION: E)

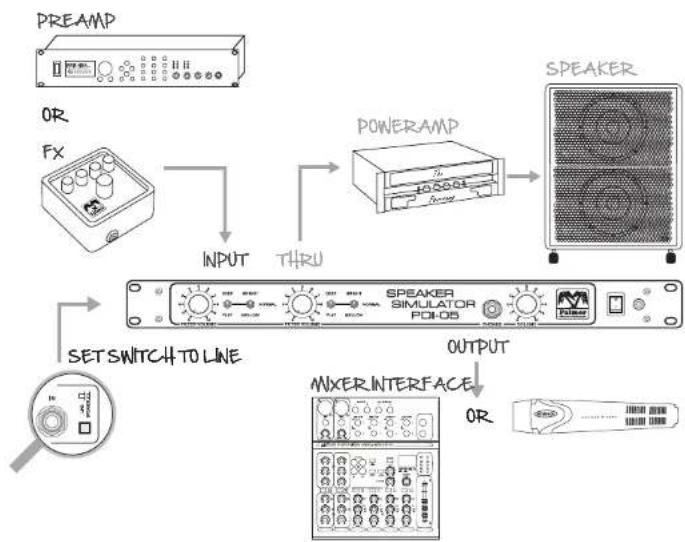

Preamp plus power amp (power amp post-FDI05) - only the preamp signal is processed by the Speaker Simulator. The SPEAKER/LINE switches must be in the LINE position (= up). A power amp is connected to the THRU sockets to amplify the unfiltered signal. Appropriate loudspeakers must be connected to the power amp.

Head or combo - see C. Use two heads or combos and AB switching for rhythm and lead, or clean and overdriven sounds. The SPEAKER/LINE switch must be in the SPEAKER position (= down), and appropriate loudspeakers or dummy loads must be connected to the THRU sockets!

12 13

DEFINE YOUR TONE

SAMPLE APPLICATION: F)

DEFINETHYOUR TONE

SAMPLE APPLICATION: G)

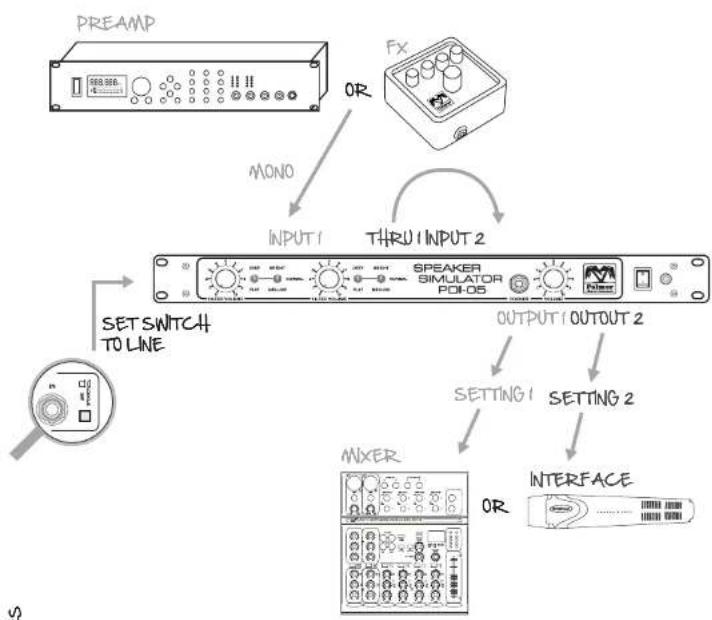

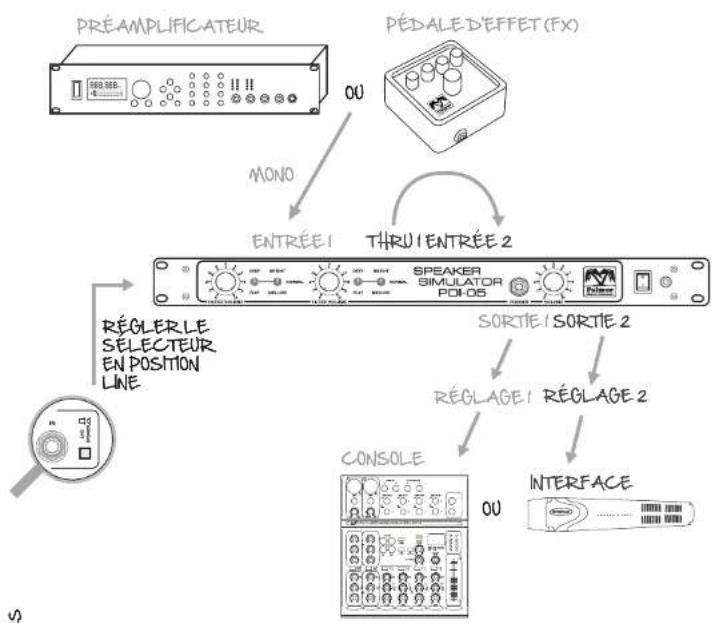

Double tracking with different sounds - connect your preamp, effects unit or preamp plus effects to CHANNEL 1 (mono only) and feed the signal from the THRU socket to the CHANNEL 2 input. The SPEAKER/LINE switches must be in the LINE position (= up). You can now use individual filter settings for each channel.

14 15

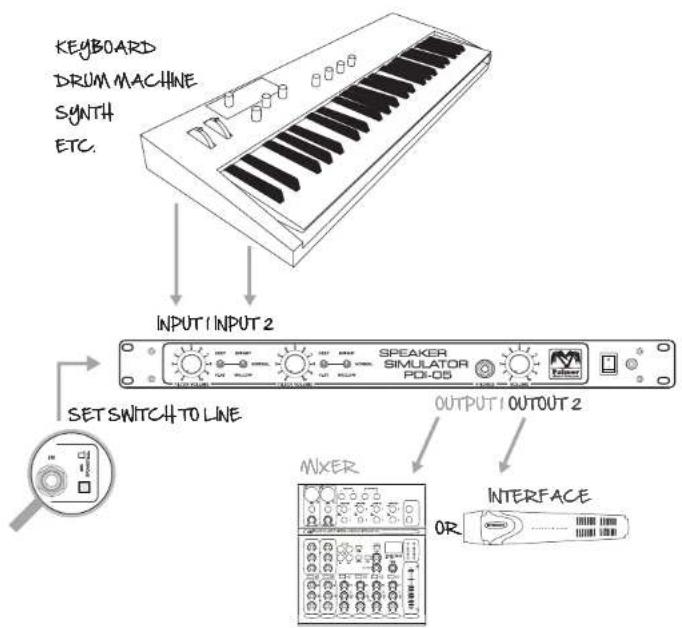

Keyboards and Drum Machines - use the PDI05 filtering both live and in the studio to lend digital keyboard and drum machine sounds a natural, analog warmth. When playing these instruments directly into the PDI05 or using the unit as insert the SPEAKER/LINE switches must be in the LINE position (= up).

DEFINE YOUR TONE

SPECIFICATIONS

Product type: speaker simulator
Type: aktive
Channels: 2
Input type unbalanced
Inputs: 2
Input connectors: 6,3 mm Jack
Output type: balanced, unbalanced
Outputs: 2
Output connectors: XLR, 6,3 mm Jack
Output impedance: 10 k (6,3 mm Jack), 600 (XLR) Ohm
Controls:	maits voltage selector, Power, phones level, voicing, ground lift, filter volume
Display: Power
Dummy load: no
Max. load: 200 W
Voicing filter: yes
Power attenuator: no
transformer isolated outputs: yes
cabinet material: sheet steel/aluminium
Cabinet / Housing surface: powder coated/anodized
Width (inch): 19
Höhe (U): 1
Dimensions (W x D x H): 480 x 180 x 44,5 mm
Power supply: 230 / 115 V AC
Weight: 2,9 kg

Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications.

16 17

DEFINETHYOUR TONE

MANUFACTURER'S WARRANTY

PALMER is a brand of the Adam Hall group.

This warranty covers the Adam Hall brands.

It applies to all products distributed by Adam Hall. This warranty declaration does not affect the statutory warranty claims against the manufacturer, but expands them with additional warranty claims vis-a-vis Adam Hall.

Adam Hall warrants that the Adam Hall product that you have purchased from Adam Hall or from an Adam Hall authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years (please inquire on a product-by-product basis) from the date of purchase.

The warranty period begins on the date on which the product was purchased, proof of which must be produced (through presentation of the invoice or the delivery note with the date of purchase) in the event of a warranty claim. Should products of the brands named above be in need of repair within the limited warranty period, you are entitled to warranty service according to the terms and conditions stated here.

During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. In the event of repair or replacement during the Limited Warranty Period, the replaced original parts and/or products become property of Adam Hall.

In the unlikely event that the product which you purchased has a recurring failure, Adam Hall has the right, at its discretion, to replace the defective product with another product, provided that the new product is at least equivalent to the product being replaced with regard to the technical specifications.

Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall branded product. The manufacturer's warranty does not cover - expendable parts (e.g., rechargeable batteries) - products from which the serial number has been removed or with a serial number that has been damaged as a result of an accident - damage due to improper use, user error or other external reasons

• damage to devices operated outside the usage parameters stated in the documentation included with the product

• damage due to the use of replacement parts not manufactured, sold or recommended by Adam Hall.

• damage due to modification or servicing by anyone other than Adam Hall. These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.

DEFINETHYOUR TONE

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any components that malfunction under conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and cannot be rescinded or changed by anyone. This limitation of liability will be effective even if you have advised Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however, in the event of claims for damages in connection with personal injuries.

This manufacturer's warranty grants you specific rights; depending on jurisdiction (nation or state), you may be entitled to additional claims. You are advised to consult applicable state or national laws for a full determination of your rights.

REQUESTING WARRANTY SERVICE

To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

ECDeclaration of Conformity

The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be found at www.adhamhall.com.

PROPER DISPOSAL OF THIS PRODUCT

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

(Valid in the European Union and other European countries with waste separation) This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled

18 19

waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal

ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION

Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.
