Brand	Scheppach
Model	WSE3500
Product type	Self-shielding flux-cored wire welding machine
Dimensions (L x W x H)	326 x 194 x 157 mm
Weight	5 kg
Mains voltage (U1)	230 V~ / 50/60 Hz
No-load voltage (U0)	31 V~
Operating voltage (U2)	15.5 - 18.5 V~
Welding current (I2)	30 - 90 A
Duty cycle (X)	20% at 90 A
Power consumption (P1)	3300 W
Energy efficiency	81%
Welding wire diameter	0.6 - 0.9 mm
Max. wire spool weight	1 kg
Protection class	IP21S
Insulation class	H
Cooling type	AF (forced ventilation)
Power consumption at idle	30 W
Main functions	Gasless MIG welding (self-shielding flux-cored wire), material thickness adjustment, overheating protection
Maintenance and cleaning	Clean regularly with compressed air or a brush; maintenance reserved for qualified personnel
Safety	Thermal overload protection, residual current device recommended (30 mA), mandatory personal protective equipment
Spare parts and repairability	Wear parts: earth terminal; repairs by after-sales service or a qualified electrician
General information	Domestic and leisure use; not suitable for intensive professional use

Frequently Asked Questions - WSE3500 SCHEPPACH

What type of wire to use with the Scheppach WSE3500 welding machine?

Use self-shielding flux-cored wire with a diameter of 0.6 to 0.9 mm. No additional shielding gas is needed as the gas is contained within the wire.

How to adjust the welding current?

Turn the material thickness adjustment potentiometer (ref. 4) to adapt the current according to the thickness of the workpiece. The device automatically adjusts the current and wire speed.

What to do if the overheating indicator lights up?

The overheating control indicator (ref. 2) indicates that the transformer has reached too high a temperature. Turn off the device and let it cool for at least 15 minutes before resuming welding.

How to install the welding wire spool?

Open the side cover, unlock the roller bearing (d), place the spool ensuring the wire unwinds from the guide side, then close the pressure roller. Guide the wire through the guide to the torch before pulling it out about 5 cm.

What protection to wear during welding?

Always wear a welding helmet with a DIN 9-10 protective glass, dry insulating gloves, cotton clothing, insulating shoes, and an apron. Avoid synthetic clothing.

Can I weld in the rain or outdoors?

No, welding in the rain or on a wet surface is strictly prohibited. Use the device in a dry place, sheltered from the weather. The machine has IP21S protection, but this is not sufficient for use in the rain.

What is the no-load voltage and is it dangerous?

The no-load voltage (U0) is 31 V~. It is below 113 V (peak) and therefore considered safe in environments with increased electrical risk. However, it can still cause shocks; never touch the electrode without protection.

How to clean the welding machine?

Always disconnect the device before cleaning. Use compressed air, a brush, or a dry cloth to remove dust and spatter. Never use water or solvents. Internal work should be reserved for a professional.

What to do if the machine does not produce an electric arc?

First check that the earth terminal is properly connected to the workpiece and the device. Make sure the main fuse has not blown and the mains socket is working. If the problem persists, contact after-sales service.

What is the duty cycle and what does it mean?

The duty cycle (X) is 20% at 90 A. This means that over a 10-minute period, you can weld continuously for 2 minutes, then must let it cool for 8 minutes. Exceeding this cycle may trigger thermal protection.

USER MANUAL WSE3500 SCHEPPACH

Exterior view of a black Skiepic electric shock absorber (no visible text or symbols on body)

https://www.scheppach.com/da/service scheppach

WSE3500

DE	FülldrahtschweißgerätOriginalbedienungsanleitung	04
GB	Cored-wire welding machineTranslation of original instruction manual	19
FR	Fil fourré - poste à souderTraduction des instructions d'origine	31
IT	Saldatrice a filo animatoLa traduzione dal manuale di istruzioni originale	44
NL	Vuldraad - lasapparaatVertaling van de originele gebruikshandleiding	57
ES	Aparato de soldadura de alambre con almaTraducción del manual de instrucciones original	70
PT	Arame tubular – Aparelho de soldaTradução do manual de operação original	84

12 13 78910 14 12345 scheppach EVOSFC90

schoppach EVOSFC90 schoppach A B C D E

3D model of a mechanical housing component with labeled parts (a, b, c), no text or symbols present.

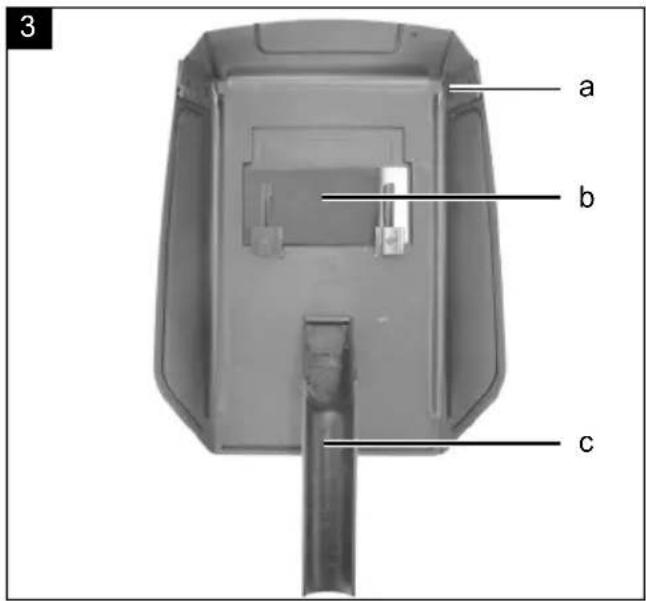

3 a b c

4 6 5

5 d e f g h

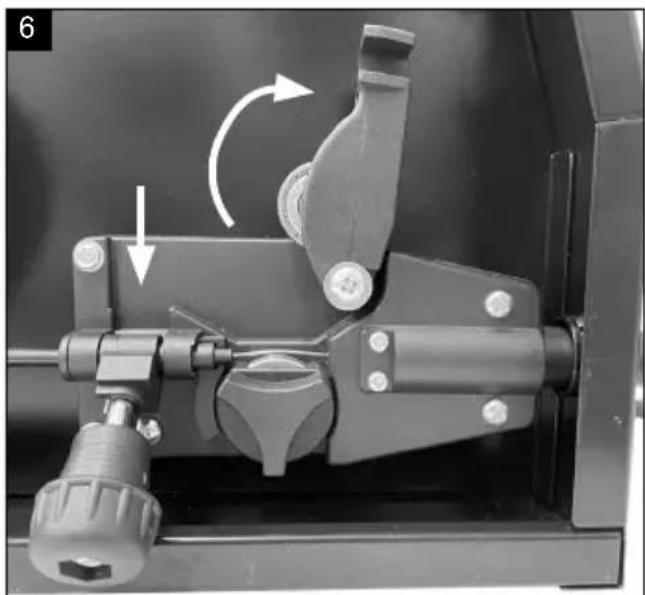

Mechanical assembly diagram showing a lever mechanism with directional arrows (no text or symbols)

7 11 12 10

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Read the operating and safety instructions before start-up and follow them!
EN 60974-1	European standard for welding machines for manual arc welding with limited duty cycle.
— —	Single-phase transformer
	Symbol for self-shielding cored-wire welding
	Suitable for welding under increased electrical risk
	Mains input; Number of phases as well as alternating current symbol and rated value of the frequency
[A360]	Off-load voltage
[T22C]	Mains voltage
[S15A]	Duty cycle
	Welding current
[S44CA]	Welding voltage [V]
[VW246]	highest rated of mains current
[3H0C]	Effective value of the largest mains current [A]
IP21S	Protection category
H	Insulation class
	Caution! Risk of electric shock!
	Inhaling welding fumes can be hazardous to health.
	Electromagnetic fields can interfere with the function of pacemakers.
	Welding sparks can cause an explosion or fire.
	Arc rays can damage the eyes and the skin.
	Do not use the device outdoors and never in the rain!
	Do not throw old equipment away with household waste.
	The product complies with the applicable European directives.
△ Attention!	We have marked points in these operating instructions that impact your safety with this symbol

Table of contents: Page:

1. Introduction....22
2. Device description (Fig. A) 22
3. Scope of delivery 22
4. Proper use 22
5. Safety information....23
6. Technical data....27
7. Unpacking 27
8. Assembly / Before commissioning 27
9. Start up 28
10. Electrical connection 28
11. Maintenance and cleaning 29
12. Transport....29
13. Storage 29
14. Disposal and recycling....30
15. Troubleshooting 30

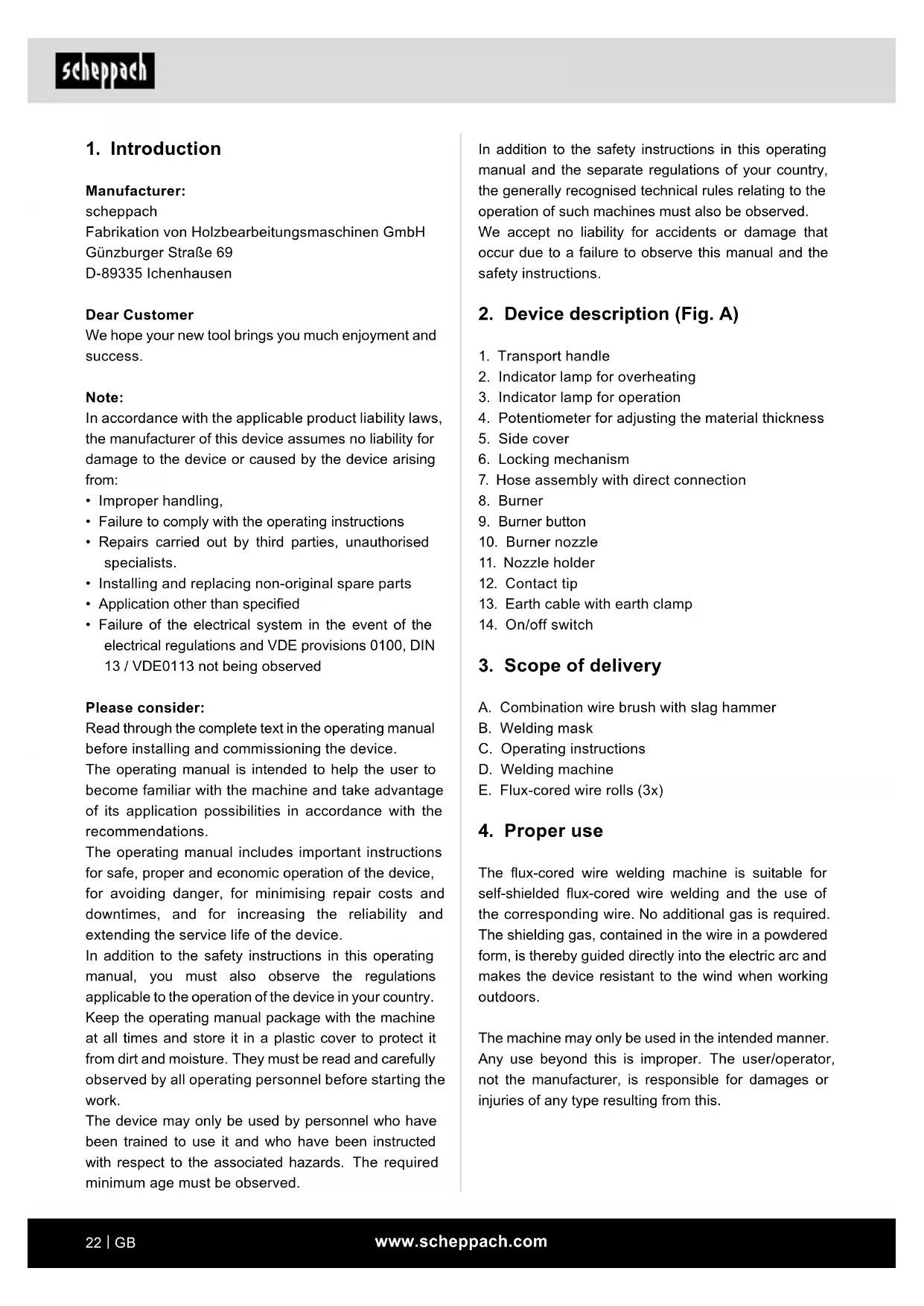

1. Introduction
