USER MANUAL 67501 HAMILTON BEACH

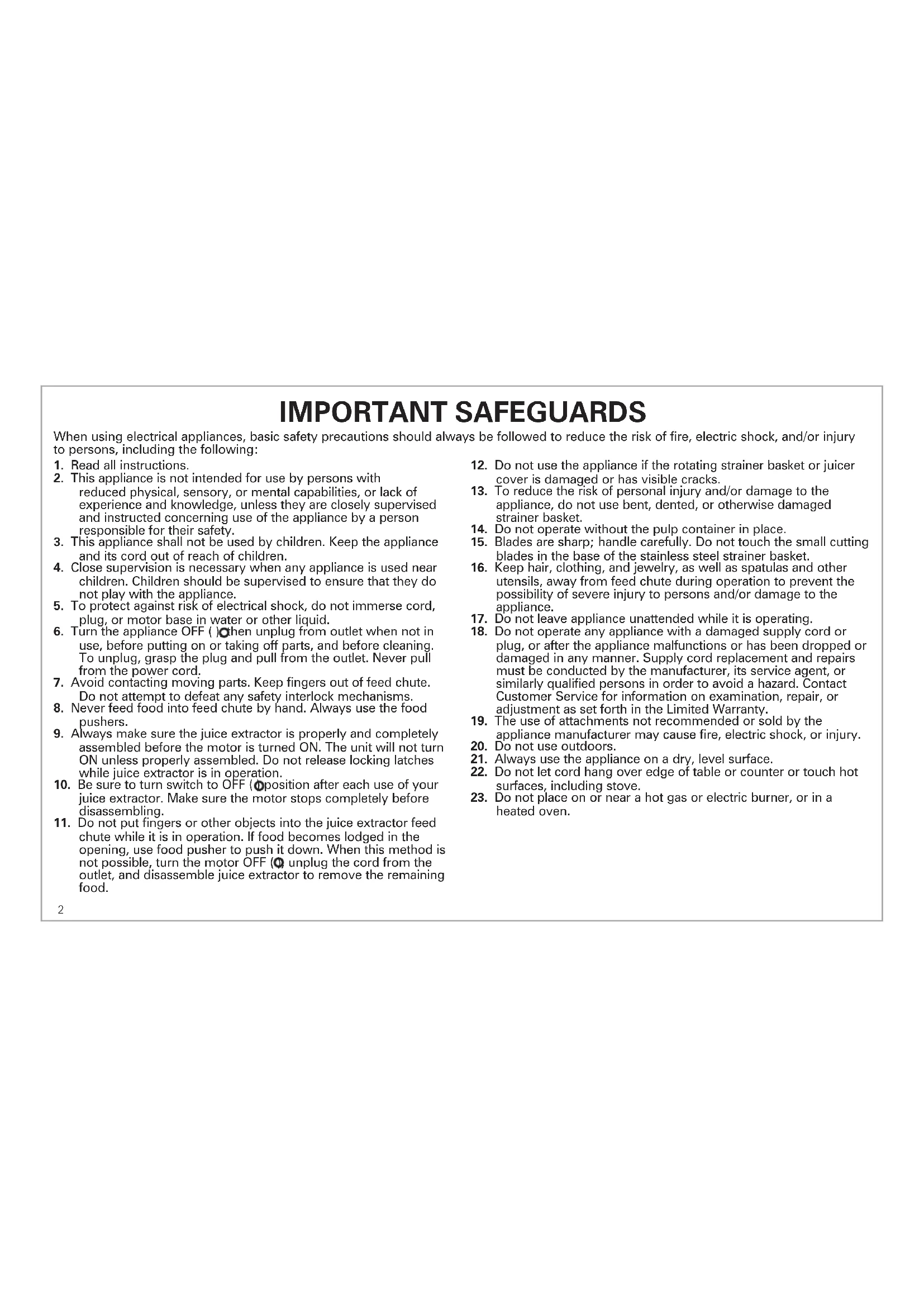

1. Read all instructions.

2. This appliance is not intended for use by persons with

reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. This appliance shall not be used by children. Keep the appliance

and its cord out of reach of children.

4. Close supervision is necessary when any appliance is used near

children. Children should be supervised to ensure that they do not play with the appliance.

5. To protect against risk of electrical shock, do not immerse cord,

plug, or motor base in water or other liquid.

6. Turn the appliance OFF ( ), then unplug from outlet when not in

use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

7. Avoid contacting moving parts. Keep fingers out of feed chute.

Do not attempt to defeat any safety interlock mechanisms.

8. Never feed food into feed chute by hand. Always use the food

9. Always make sure the juice extractor is properly and completely

assembled before the motor is turned ON. The unit will not turn ON unless properly assembled. Do not release locking latches while juice extractor is in operation.

10. Be sure to turn switch to OFF ( ) position after each use of your

juice extractor. Make sure the motor stops completely before disassembling.

11. Do not put fingers or other objects into the juice extractor feed

chute while it is in operation. If food becomes lodged in the opening, use food pusher to push it down. When this method is not possible, turn the motor OFF ( ), unplug the cord from the outlet, and disassemble juice extractor to remove the remaining food.

12. Do not use the appliance if the rotating strainer basket or juicer

cover is damaged or has visible cracks.

13. To reduce the risk of personal injury and/or damage to the

appliance, do not use bent, dented, or otherwise damaged strainer basket.

14. Do not operate without the pulp container in place.

15. Blades are sharp; handle carefully. Do not touch the small cutting

blades in the base of the stainless steel strainer basket.

16. Keep hair, clothing, and jewelry, as well as spatulas and other

utensils, away from feed chute during operation to prevent the possibility of severe injury to persons and/or damage to the appliance.

17. Do not leave appliance unattended while it is operating.

18. Do not operate any appliance with a damaged supply cord or

plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.

19. The use of attachments not recommended or sold by the

appliance manufacturer may cause fire, electric shock, or injury.

20. Do not use outdoors.

surfaces, including stove.

23. Do not place on or near a hot gas or electric burner, or in a

heated oven. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:3

24. Check that the appliance is OFF ( ) before plugging cord into

wall outlet. To disconnect, turn the control to OFF ( ); then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

25. Do not use appliance for other than intended purpose.

26. CAUTION! In order to avoid a hazard due to inadvertent resetting

of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. Other Consumer Safety Information This product is intended for household use only. w WARNING Electrical Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electrical shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. The electrical rating of this appliance is listed on the bottom panel of the unit. The strainer basket is a delicate screen. If bent or damaged, do not use, as it could break into small pieces and cause personal injury and/ or damage the appliance. Visit hamiltonbeach.com/parts to order a new basket. Replace basket when it shows signs of wear. This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in after 15 minutes to resume normal operation. w WARNING Cut or Crush Hazard. Feed chute. Do not place hands or fingers down feed chute. Always use the food pusher. Failure to follow this instruction can result in serious personal injury.

Parts and Features To order parts, visit: hamiltonbeach.com/parts w WARNING Laceration Hazard. Micro-mesh strainer basket may fly apart during use if it is damaged, resulting in the risk of cuts and bruises. To reduce the risk of personal injury:

• Always inspect micro-mesh strainer basket before each use.

• Never use a cracked, bent, or damaged micro-mesh strainer basket. 1 Food Pusher 2 Wide Feed Chute 3 Juicer Cover

How to Assemble Before first use: After unpacking Juice Extractor, remove cardboard from Basket and wash everything except Motor Base in warm, soapy water. Rinse and dry immediately. Never immerse Motor Base in water or other liquids; wipe it with a damp sponge. Strainer Basket Small Ridge Inside Feed Chute

1. Place Strainer Bowl on top

of Motor Base. Then place Stainless Steel Strainer Basket inside Strainer Bowl.

2. With hands on outer edge,

press Strainer Basket down firmly into position.

3. Place Juicer Cover over

Strainer Bowl, positioning Feed Chute over Strainer Basket, and lower into position.

4. Raise Locking Latches up to

5. Place Pulp Container into

position by tilting Container slightly.

6. Place a glass or other container under Juice Spout. Slide Food Pusher down Feed

Chute by aligning groove in Food Pusher with small ridge on inside of top of Feed Chute. HINT: To minimize cleanup, place a 100% compostable large storage bag or grocery bag in Pulp Container to collect pulp. (See page 6 for more information.)6 How to Use w WARNING Laceration Hazard. Never use fingers to push food down the feed chute or to clear the feed chute. Always use the food pusher provided. Wash fruits and vegetables. NOTE: Some fruits and vegetables, such as carrots and cucumbers, will not need to be cut since they will fit into feed chute whole. Pits should be removed from any stone fruits before juicing. It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in unit to minimize impact on juice flavor.

1. Ensure that unit is correctly

assembled (see page 5) and place a glass or container under Spout.

2. Plug into outlet. Press ON/OFF

(I/ ) Switch to ON (I).

3. With motor running, place

food down Feed Chute. Using Food Pusher, gently guide food down Feed Chute. To extract maximum amount of juice, always push Food Pusher down slowly. Juice will flow into glass or other container and separated pulp will accumulate in Pulp Container. NOTE: Pulp Container can be emptied during juicing by turning Juice Extractor OFF ( ) and then carefully removing Pulp Container. (Replace empty Pulp Container before continuing to juice.)

4. To minimize cleanup, place a

100% compostable large storage bag or grocery bag in Pulp Container to collect pulp. When juicing is completed, simply remove bag containing pulp. NOTE: Do not allow Pulp Container to overfill since this may prevent correct operation or damage unit.7 How to Disassemble

1. Turn Juice Extractor OFF

( ) and unplug. Allow Strainer Basket to stop turning.

2. Release Locking Latches. 3. Move Locking Latches down. 4. Lift off Cover.

5. Remove Pulp Container by

sliding away from Motor Base.

6. Lift off Strainer Bowl with

Strainer Basket still in place.

7. To remove Strainer Basket, turn Strainer Bowl upside down and

carefully remove Strainer Basket. (It is recommended to remove Strainer Basket over a sink.)8 Care and Cleaning w WARNING Electrical Shock Hazard. Do not immerse motor base in water or any other liquid.

2. Clean Strainer Basket immediately to prevent pulp from drying.

Hold Strainer Basket under running water and use a fine bristle brush to clean inside and outside of Strainer.

3. All removable parts are dishwasher-safe. DO NOT use “SANITIZE”

setting when washing in dishwasher. SANITIZE cycle temperatures could damage your product. Do not place Motor Base in dishwasher. Discoloration of the plastic may occur with some fruits and vegetables. To help prevent this, wash all parts immediately after use. Some part distortion may occur if your household dishwasher’s temperature is higher than normal or if parts are placed too close to heating element. NOTE: To assist with cleaning, soak Strainer Basket in hot, soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on basket it may clog fine pores of filter mesh, thereby lessening effectiveness of Juice Extractor.

4. Wipe Base of Juice Extractor with a soft, damp cloth and dry.

w CAUTION Laceration Hazard. The center of the strainer basket contains small, sharp blades to process fruits and vegetables during the juicing function. Do not touch blades when handling the strainer basket. A fine bristle brush is the most effective tool to clean the strainer basket. Using the brush, hold the strainer basket under running water and brush inside and outside of the basket. Always treat the strainer basket with care; it can be damaged easily.9 Juicing Tips, Techniques, and Recipes Purchasing and storing fruits and vegetables:

• Always wash fruits and vegetables before juicing.

• Always use fresh fruits and vegetables for juicing.

• To save money and obtain fresher produce, purchase fruits or vegetables that are in season.

• Keep your fruits and vegetables ready for juicing by washing them before storing.

• Most fruits and hardier-type vegetables can be stored at cool room temperature. More delicate and perishable items such as tomatoes, berries, leafy greens, celery, cucumbers, and herbs should be stored in refrigerator until required. Preparing fruits and vegetables:

• It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in juice extractor to minimize impact on juice flavor.

• All fruits with pits and large seeds such as nectarines, peaches, apricots, plums, and cherries MUST be pitted before juicing.

• For easier juicing of greens and herbs, roll in a tight ball and then juice in between hard fruits and/or vegetables to push them through. Hint: Your Juice Extractor makes invigorating, frothy orange juice. Simply peel oranges and juice. For best results, refrigerate oranges before juicing. Using pulp:

• Remaining pulp left after juicing fruits or vegetables is mostly fiber and cellulose which, like juice, contain vital nutrients neces- sary for daily diet and can be used in many ways. However, like juice, pulp should be used that day to avoid loss of vitamins.

• There are a number of recipes that use pulp. You can also use pulp to thicken casseroles or soups.

• Pulp is great used in gardens for compost. Soy milk, almond milk, and rice milk: Your Juice Extractor may be used to make soy milk, almond milk, and rice milk. One cup of soybeans, almonds, or rice must be soaked in four cups of water for 24 to 48 hours in refrigerator. Slowly pour one cup of soaked mixture at a time into Feed Chute. Liquid extracted from soaked mixture is “milk.” NOTES:

• Almonds must be soaked 24 to 48 hours before juicing.

• Soy milk should be boiled to improve flavor.

• Vanilla, honey, and sugar may be added to enhance flavor of each milk type.10 Recipes Apple Beet Juice Ingredients: 1 medium Granny Smith apple 1 large beet, trimmed 1 medium lemon, peeled Directions:

1. Cut ingredients as needed to fit through Feed Chute of Juice

2. Juice ingredients in order listed.

3. Stir and serve immediately.

Serves: 1–2 Apple Pear Banana Juice Ingredients: 1 medium banana, peeled (banana will be pureed, not juiced, by Strainer Basket) 1 large Granny Smith apple 1 large pear 1 teaspoon honey, if desired Directions:

1. Cut ingredients as needed to fit through Feed Chute of Juice

2. Juice ingredients in order listed.

3. Stir in honey and serve immediately.

Serves: 1–2 Carrot Apple Orange Juice Ingredients: 2 large carrots, trimmed 1 large apple 1 large orange, peeled Directions:

1. Cut ingredients as needed to fit through Feed Chute of Juice

2. Juice ingredients in order listed.

3. Stir and serve immediately.

Serves: 1–2 Kale Cucumber Cilantro Green Juice Ingredients: 6 large kale leaves 1 large cucumber 1 rib celery with leaves 1 medium lime, peeled 2 small handfuls cilantro 1 medium Granny Smith apple Directions:

1. Cut ingredients as needed to fit through Feed Chute of Juice

2. Juice ingredients in order listed.

3. Stir and serve immediately.

Serves: 1–211 Mango Pineapple Ginger Juice Ingredients: 1/4-inch slice (1-inch diameter) ginger 1/2 large mango, peeled and pitted 1/4 fresh pineapple, peeled Directions:

1. Cut ingredients as needed to fit through Feed Chute of Juice

2. Juice ingredients in order listed.

3. Stir and serve immediately.

Serves: 1–2 Recipes (cont.) Spicy Veggie Tomato Juice Ingredients: 2 broccoli florets with stalks 1/4 medium green pepper 1 large carrot 1 large rib celery 1 large tomato Hot pepper sauce to taste Directions:

1. Cut ingredients as needed to fit through Feed Chute of Juice

2. Juice ingredients in order listed except for hot pepper sauce.

3. Stir in hot pepper sauce and serve immediately.

Serves: 1–2 Spinach Kale Green Juice Ingredients: 4 medium kale leaves 2 medium carrots, trimmed 1/2 lemon, peeled 1-inch piece ginger 1 cup baby spinach leaves 1 medium Granny Smith apple Directions:

1. Cut ingredients as needed to fit through Feed Chute of Juice

2. Juice ingredients in order listed.

3. Stir and serve immediately.

Serves: 1–2 Triple Berry Juice Ingredients: 1/2 cup blueberries 1/2 cup raspberries 1/2 cup strawberries 1/2 cup green grapes Directions:

1. Juice ingredients in order listed.

2. Stir and serve immediately.

Serves: 1–212 Troubleshooting Machine will not work when switched ON (I).

• Locking Latches may not be correctly engaged. Check to see if Locking Latches are properly positioned in two grooves on either side of Juice Cover. Refer to page 5, Steps 3 and 4.

• This machine is equipped with motor overload protection. If motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in after 15 minutes to resume normal operation. Motor appears to stall when juicing.

• Juicing action may be too vigorous. Try a slower juicing action by pushing Food Pusher down more slowly. Refer to page 6, Step 3.

• Wet pulp can build up under Juicer Cover or Pulp Container. Turn unit OFF ( ) and unplug. Empty Pulp Container; then clean Juice Cover and Strainer Basket. Excess pulp building up in Micro-Mesh Strainer Basket.

• Turn OFF ( ) and unplug. Remove Strainer Basket and clean mesh walls with a fine bristle brush. This will remove excess fiber buildup which could be inhibiting juice flow. Refer to pages 7 and 8. Pulp is too wet and insufficient juice is produced.

• Gently push food with Food Pusher. Refer to page 6, Step 3.

• Turn OFF ( ) and unplug. Immediately remove Strainer Basket and hold under running water, and clean inside and outside of Strainer with a fine bristle brush. This will remove excess fiber buildup which could be inhibiting juice flow. Refer to pages 7 and 8. Juice sprays out of Spout.

• Gently push food with Food Pusher. Refer to page 6, Step 3. Juice drips out of Spout immediately after juicing.

• With motor ON (I), raise and lower Food Pusher in Feed Chute several times. The action forces remaining pulp and juice out of Strainer Bowl. Machine vibrates excessively.

• Buildup of pulp in mesh of Strainer Basket. Turn unit OFF ( ) and unplug. Immediately remove Strainer Basket, hold under running water, and clean inside and outside of Strainer with a fine bristle brush. Refer to page 7 and 8. If machine vibration continues after cleaning, this could be a sign of a damaged Strainer Basket; visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/ customer-service in Canada.13 This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and three (3) years from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/ customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance. Limited Warranty14
