USER MANUAL Big Mouth 67702 HAMILTON BEACH

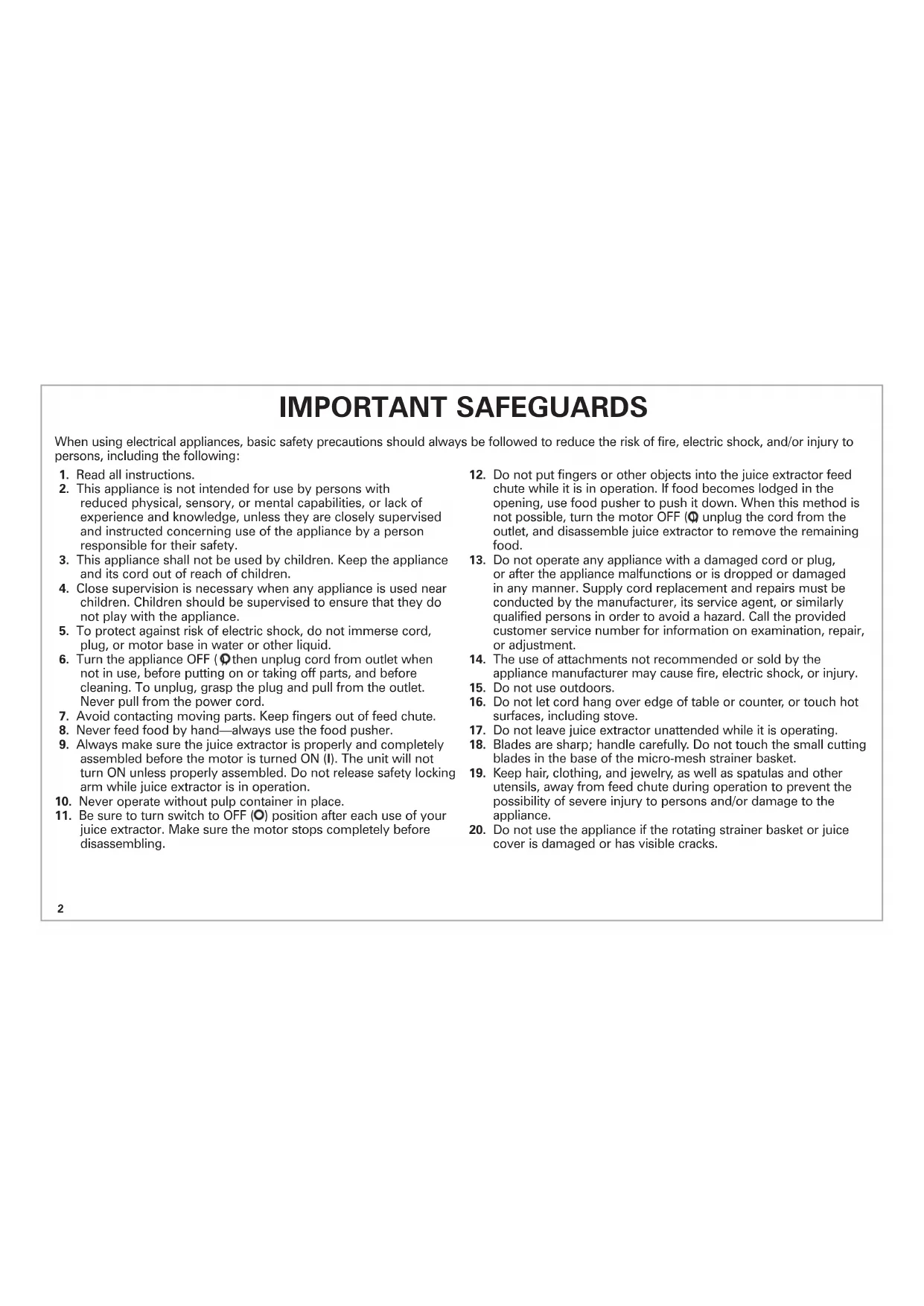

1. Read all instructions.

2. This appliance is not intended for use by persons with

reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. This appliance shall not be used by children. Keep the appliance

and its cord out of reach of children.

4. Close supervision is necessary when any appliance is used near

children. Children should be supervised to ensure that they do not play with the appliance.

5. To protect against risk of electric shock, do not immerse cord,

plug, or motor base in water or other liquid.

6. Turn the appliance OFF ( ), then unplug cord from outlet when

not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

7. Avoid contacting moving parts. Keep fingers out of feed chute.

8. Never feed food by hand—always use the food pusher.

9. Always make sure the juice extractor is properly and completely

assembled before the motor is turned ON (I). The unit will not turn ON unless properly assembled. Do not release safety locking arm while juice extractor is in operation.

10. Never operate without pulp container in place.

11. Be sure to turn switch to OFF ( ) position after each use of your

juice extractor. Make sure the motor stops completely before disassembling.

12. Do not put fingers or other objects into the juice extractor feed

chute while it is in operation. If food becomes lodged in the opening, use food pusher to push it down. When this method is not possible, turn the motor OFF ( ), unplug the cord from the outlet, and disassemble juice extractor to remove the remaining food.

13. Do not operate any appliance with a damaged cord or plug,

or after the appliance malfunctions or is dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

14. The use of attachments not recommended or sold by the

appliance manufacturer may cause fire, electric shock, or injury.

15. Do not use outdoors.

16. Do not let cord hang over edge of table or counter, or touch hot

surfaces, including stove.

17. Do not leave juice extractor unattended while it is operating.

18. Blades are sharp; handle carefully. Do not touch the small cutting

blades in the base of the micro-mesh strainer basket.

19. Keep hair, clothing, and jewelry, as well as spatulas and other

utensils, away from feed chute during operation to prevent the possibility of severe injury to persons and/or damage to the appliance.

20. Do not use the appliance if the rotating strainer basket or juice

cover is damaged or has visible cracks.3 Other Consumer Safety Information This appliance is intended for household use only. w WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. The electrical rating of this appliance is listed on the bottom panel of the unit. The strainer basket is a delicate screen. If bent or damaged, do not use, as it could break into small pieces and cause personal injury and/ or damage the appliance. Call the provided customer service number to order a new basket. Replace basket when it shows signs of wear. This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in after 15 minutes to resume normal operation. w WARNING Cut or Crush Hazard. Extra-wide feed chute. Do not place hands or fingers down feed chute. Always use the food pusher. Failure to follow this instruction can result in serious personal injury.

21. Always use the juice extractor on a dry, level surface.

22. Any maintenance other than cleaning should be performed

by an authorized service center.

23. To reduce the risk of personal injury and/or damage to the

appliance, do not use bent, dented, or otherwise damaged strainer basket.

24. Do not place on or near a hot gas or electric burner or in a

25. Do not use appliance for other than intended use.

26. Check that the appliance is OFF ( ) before plugging cord into

wall outlet. To disconnect, turn the control to OFF ( ); then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

27. CAUTION! In order to avoid a hazard due to inadvertent

resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS4

Parts and Features To order parts: US: 1.800.851.8900 www.hamiltonbeach.com Canada: 1.800.267.2826 Mexico: 01 800 71 16 100 w WARNING Cut Hazard. Micro-mesh strainer basket may fly apart during use if it is damaged, resulting in the risk of cuts and bruises. To reduce the risk of personal injury:

• Always inspect strainer basket before each use.

• Never use a cracked, bent, or damaged strainer basket. Extra-Wide Feed Chute Large Pulp Container Locking Latch Locking Latch ON (I)/OFF Switch Food Pusher Strainer Bowl Stainless Steel Micro-Mesh Strainer Basket Cleaning Brush Juicer Cover Motor Base Juice Spout5 How to Assemble Before first use: After unpacking the Juice Extractor, remove cardboard from Strainer Basket and wash everything except the Motor Base in warm, soapy water. Rinse and dry immediately. Never immerse the Motor Base in water or other liquids; wipe it with a damp sponge.

1. Place Strainer Bowl on top of the

Strainer Basket down firmly to latch into position.

3. Place the Juicer Cover over the

Strainer Bowl, positioning the Feed Chute over the Strainer Basket, and lower into position.

4. Raise the Locking Latches up to

under the Juice Spout.

5. Place the Pulp Container into

position by tilting the container slightly.

7. Slide the Food Pusher down

the Feed Chute by aligning the groove in the Food Pusher with the small ridge on the inside of the top of the Feed Chute. HINT: To minimize cleanup, place a plastic grocery bag in the Pulp Container to collect the pulp. (See page 6 for more information.) Small Ridge inside Feed Chute Strainer Basket6 How to Use Wash fruits and vegetables. NOTE: Most fruits and vegetables such as apples, carrots, and cucumbers will not need to be cut since they will fit into Feed Chute whole. It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in unit to minimize impact on juice flavor. Mangoes and other fruits with pits or large seeds like peaches, plums, and cherries MUST be pitted before juicing. w WARNING Laceration Hazard. Never use fingers to push food down the feed chute or to clear the feed chute. Always use the food pusher provided.

1. Ensure that unit is correctly

assembled (see page 5) and place a glass or container under Juice Spout.

2. Plug cord into 120-volt AC outlet.

Turn ON/OFF switch to ON (I).

3. With the motor running, place

food down the Feed Chute. Using Food Pusher, gently guide food down Feed Chute. To extract the maximum amount of juice, always push Food Pusher down slowly. Juice will flow into glass and separated pulp will accumulate in Pulp Container. NOTE: Pulp Container can be emptied during juicing by turning Juice Extractor OFF ( ) and then carefully removing Pulp Container. (Replace empty Pulp Container before continuing to juice.) TIP: To minimize cleanup, place a plastic grocery bag in Pulp Container to collect pulp. When juicing is completed, simply remove grocery bag containing pulp. NOTE: Do not allow Pulp Container to overfill since this may prevent correct operation or damage the unit.7 How to Disassemble

1. Turn Juice Extractor OFF ( ) and

unplug. Allow Strainer Basket to stop turning.

2. Release Locking Latches. 3. Move the Locking Latches down. 4. Lift off the Juicer Cover.

6. Lift off the Strainer Bowl with the

Strainer Basket still in place.

5. Remove the Pulp Container by

sliding away from Motor Base.

7. To remove the Strainer Basket,

turn the Strainer Bowl upside down and carefully remove the Strainer Basket. (It is recommended to remove the Strainer Basket over a sink.)8 Juicing Tips, Techniques, and Recipes PURCHASING AND STORING FRUITS AND VEGETABLES:

• Always wash fruits and vegetables before juicing.

• Always use fresh fruits and vegetables for juicing.

• To save money and obtain fresher produce, purchase fruits or vegetables that are in season.

• Keep your fruits and vegetables ready for juicing by washing them before storing.

• Most fruits and hardier vegetables can be stored at cool room temperature. More delicate and perishable items such as tomatoes, berries, leafy greens, celery, cucumbers, and herbs should be stored in the refrigerator until required. PREPARING FRUITS AND VEGETABLES:

• All fruits with pits and large seeds such as mangoes, nectarines, peaches, apricots, plums, and cherries MUST be pitted before juicing.

• It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in Juice Extractor to minimize impact on juice flavor. HINT: Your Juice Extractor makes invigorating, frothy orange juice. Simply peel the oranges and juice. For best results, refrigerate oranges before juicing. USING THE PULP:

• The remaining pulp left after juicing fruits or vegetables is mostly fiber and cellulose which, like the juice, contain vital nutrients necessary for the daily diet and can be used in many ways. However, like the juice, pulp should be used that day to avoid loss of vitamins.

• There are a number of recipes that use pulp. You can also use pulp to thicken casseroles or soups.

• Pulp is great used in the garden for compost. SOY MILK, ALMOND MILK, AND RICE MILK: Your Juice Extractor may be used to make soy milk, almond milk, and rice milk. One cup (100 g) of soybeans, almonds, or rice must be soaked in four cups (946 ml) of water for 24 to 48 hours in the refrigerator. Slowly pour one cup of the soaked mixture at a time into the food chute. The liquid extracted from the soaked mixture is the “milk.” NOTE:

• Soy milk should be boiled to improve the flavor. The following drink recipes yield a single serving of 6 to 10 ounces (170–300 ml): Eye-Opener 2 carrots 1 apple 1 tangerine, peeled Winter Blue Zing 2 apples 1/4 cup (59 ml) blueberries 1 orange, peeled Liquid Fire 1 medium tomato 1/2 jalapeño pepper 1 handful parsley 1/2 cucumber Orchard Blend 2 apples 2 pears Vineyard Pop 1 cup (237 ml) grapes 1 pear The Health Club 1/2 of a 6-ounce (170 g) bag spinach 3 carrots Sour Grapes 1 lime, peeled 2 cups (473 ml) red grapes9 Care and Cleaning w WARNING Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse motor base in water or any other liquid.

2. Under running water, clean Strainer Basket with Cleaning Brush

immediately after juicing, on inside and outside of Basket.

3. Food Pusher, Pulp Container, Strainer Basket, Strainer Bowl, Juicer

Cover, Juice Cup, and Cleaning Brush are dishwasher-safe on top rack only or hand-wash in hot, soapy water. Rinse and dry.

4. DO NOT use the “SANI” setting when washing in the dishwasher.

“SANI” cycle temperatures could damage your product. Do not place the Motor Base in the dishwasher. Some part distortion may occur if your household dishwasher’s temperature is higher than normal or if the parts are placed too close to the heating element.

5. Wipe Motor Base with a damp cloth. Never place in water or rinse

under running water or other liquid. Troubleshooting Machine will not work when switched ON (I).

• The Locking Latches may not be correctly engaged. Check to see if Locking Latches are properly positioned in two grooves on either side of the Juicer Cover.

• This machine is equipped with motor overload protection. If motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in after 15 minutes to resume normal operation. Motor appears to stall when juicing.

• Juicing action may be too vigorous. Press Food Pusher down slowly.

• Wet pulp can build up under the Juicer Cover or Pulp Container. Turn unit OFF

and unplug. Empty Pulp Container; then clean. Excess pulp building up in the Strainer Basket.

and unplug. Remove Strainer Basket and clean mesh walls with brush. This will remove excess fiber buildup which could be inhibiting juice flow. Refer to “How to disassemble” and “Care and cleaning.” Pulp is too wet and insufficient juice is produced.

• Try a slower juicing action.

and unplug. Remove Strainer Basket and clean with brush to remove excess fiber buildup which could be inhibiting the juice flow. Refer to “How to disassemble” and “Care and cleaning.” Juice sprays out of Juice Spout.

• Try a slower juicing action. Press Food Pusher down slowly. Juice drips out of Juice Spout immediately after juicing.

, raise and lower Food Pusher in Feed Chute several times. This forces remaining pulp and juice out. Machine vibrates excessively.

• Buildup of pulp in mesh of Strainer Basket . Turn unit OFF

and unplug. Clean Strainer Basket . If machine vibration continues after cleaning, this could be a sign of a damaged Strainer Basket . Call customer service number. Strong odor coming from Juicer.

• This is normal during first or heavy use. Smell should dissipate.10 Limited Warranty This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and three (3) years from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.11 Notes12
