Product type	Coffee machine with integrated grinder
Brand	Wolf
Model	EC2450TE/S
Country of design	United States (Wolf brand, subsidiary of Sub-Zero Group)
Beverage types	Espresso, espresso x2, doppio+, coffee, long coffee, coffee pot, americano, café au lait, macchiato, latte macchiato, cappuccino, cappuccino+, flat white, hot milk, hot water, steam
Water tank capacity	Estimated 1.5 L (not specified in the manual)
Removable water tank	Yes, located behind the service door
Integrated coffee grinder	Yes, with continuous grind adjustment (coarse to fine)
Bean container	Capacity not specified, whole bean compartment
Pre-ground coffee container	Yes, with dosing scoop
Milk container	Integrated, with adjustable frother (no foam, min, max)
Milk frother adjustment	Foam adjustment dial
Touch screen	Yes, color, with language options (English, Spanish, French, Italian, German, Dutch, Chinese)
Auto shut-off	Adjustable: 15, 30, 60, 120 or 180 minutes
Auto start	Yes, programmable up to 24 hours in advance
LED lighting	Yes, spout lighting
Water filter	Yes, replace every 2 months or every 3 weeks if not in use
Descaling	To be performed regularly with EcoDecalk solution (not included)
Cleaning the brewing unit	Monthly, removable, washable with water without detergent
Milk container maintenance	Liner dishwasher-safe, other parts hand wash
Housing material	Stainless steel
Warranty	2 years parts and labor, 5 years limited on specific components
Dimensions (approx.)	Estimated 30 x 40 x 45 cm (W x D x H)
Weight (approx.)	Estimated 15 kg

Frequently Asked Questions - EC2450TE/S WOLF

How to adjust the coffee grind?

To adjust the grind, run the grinder and turn the adjustment dial clockwise for a coarser grind (faster dispensing) or counterclockwise for a finer grind (slower dispensing). The change may require preparing three beverages before it is noticeable. Only change one parameter per grind.

How to use pre-ground coffee?

Press the icon several times until the pre-ground coffee symbol appears. Open the compartment, place a single scoop of ground coffee using the provided scoop, then close the lid. Select the size and type of beverage. Caution: only put one scoop to avoid blockage.

How to clean the milk container?

Remove the lid, intake tube, milk spout, and adjustment dial. Only the liner is dishwasher safe. Clean other parts by hand with warm water and mild detergent. Use a toothpick to remove debris from the dial groove.

How to descale the machine?

Empty the water tank, pour the EcoDecalk descaling solution up to line A, then add water up to line B. Install the water spout, place a large container of at least 2.5 L under the spout, then start the descaling cycle via the touch screen. The process lasts about 25 minutes, followed by rinsing.

How to program auto start?

From the touch screen, go to user options, select Auto-Start, set the desired time, then activate the option (On). The clock must be set correctly. The machine will perform rinsing and preheating before the programmed time.

What beverages can be prepared?

The machine can prepare: espresso, espresso x2, doppio+, coffee, long coffee, coffee pot, americano, café au lait, macchiato, latte macchiato, cappuccino, cappuccino+, flat white, hot milk, hot water and steam. Each beverage offers multiple sizes and strength settings.

How to replace the water filter?

Follow the on-screen instructions: go to user options, select Water Filter. Remove the old filter, run water through the new filter for one minute, immerse it in the water tank to remove bubbles, then insert it into its housing at the bottom of the tank. Replace it every two months.

Why is the coffee flowing too slowly?

If the coffee flows slowly, this indicates a grind that is too fine. Adjust the grind setting to a coarser setting (turn the dial clockwise). If the problem persists, check that the brewing unit is not clogged and clean it if necessary.

How to clean the brewing unit?

Turn off and unplug the machine. Open the service door, remove the drip tray and grounds container. Press both red buttons and remove the brewing unit. Soak it in water for 5 minutes, rinse and dry. Do not use detergent. Reinsert it by pushing until it clicks.

Where is the serial number?

The serial number and model number are on the product nameplate, located inside the machine (see page 6 of the manual). Note this information for customer service.

USER MANUAL EC2450TE/S WOLF

2 Coffee System
3 Safety Precautions
6 Quick Start Guide
9 Operation
12 Care Recommendations
14 Troubleshooting
15 Wolf Warranty

Customer Care

The enclosed product registration card includes the model and serial number. The product rating plate also includes both numbers. Refer to page 6 for rating plate location.

Register online at subzero-wolf.com/register or use the Sub-Zero Group Owner's App. Download the free app from the Apple App Store or Google Play.

For warranty purposes, the date of installation and the name of the authorized Wolf dealer are required. Record this information below for future reference.

If your product ever needs attention, use a Customer Care recommended Wolf Appliance Factory Certified Service provider, or select one from the list at http://subzero-wolf.com/locator.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certified Service Name

Certified Service Number

Authorized Dealer

Dealer Number

Important Note

To make sure this product is installed and operated safely and efficiently, take note of the following types of highlighted information throughout this guide:

IMPORTANT NOTE: highlights information that is especially important.

CAUTION

Indicates a situation where minor injury or product damage may occur if instructions are not followed.

WARNING

States a hazard that may cause serious injury or death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specified.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

• Make sure the voltage of your electrical system corresponds to the voltage shown on the machine.

• Persons that lack physical, sensory, or mental abilities or experience with the machine should not use it without supervision or instruction by a responsible person.

• Before service or maintenance, disconnect power at the main button and unplug the unit.

• Do not touch hot surfaces. Use handles or knobs.
  • To protect against electrical shock, do not immerse cord or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.

• Do not open the outer casing of the appliance.

• Unplug from outlet when not in use and prior to cleaning. Allow to cool before putting on or taking off parts.

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

• Do not place on or near a hot gas or electric burner or in a heated oven.

• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

• Do not allow the cord to hang over edge of table or counter or touch hot surfaces.
• Do not submerge the cord or plug in water or other liquids.
• Use extreme caution when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn any control to "off," then remove plug from wall outlet.

IMPORTANT SAFEGUARDS

• Do not use appliance for anything other than intended use.
• The appliance must be properly installed prior to operation to make sure no electrical components are accessible. Make sure power is not supplied to the appliance while installation work, repairs, or maintenance is done.
• A short power cord is provided to reduce risks of becoming entangled or tripping over the cord.

- Verify the appliance is properly installed and grounded by a qualified technician. To guarantee the electrical safety of this appliance, continuity must exist between the appliance and effective grounding system. It is imperative this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician. The manufacturer cannot be held responsible for damages caused by the lack, or inadequacy, of an effective grounding system.

• Do not use an extension cord to connect the appliance to electricity. Extension cord does not guarantee the required safety of the appliance (danger of overheating).
  • Installation work and repairs must be done by a trained technician in accordance with national and local safety regulations. Repairs and other work by unauthorized persons could be dangerous and may void the warranty.

• Use only original spare parts. Only then can the manufacturer guarantee the safety of this machine.

• Never open the outer casing of the appliance. Tampering with electrical connections or components and mechanical parts is dangerous and may cause machine damage.
• Do not install or use outdoors.
• Never use a steam cleaner to clean the appliance.

IMPORTANT SAFEGUARDS

• Fill the water tank only with cold, fresh tap water. Warm or hot water or any other liquids may damage the machine.
• The appliance must be maintained daily. Change the water daily to prevent bacteria or mold growth.

• Do not use mineral water. Do not fill anything but coffee beans into the beans container. Do not fill ground coffee in the beans container.

• Caramelized or otherwise pretreated coffee beans or other beverages containing sugar must not be put in the appliance.

• Never place a cup with an alcohol-coffee mixture underneath the coffee dispenser.

• The hot water and steam dispensed could cause scalding. These functions must be used carefully. Never hold any parts of the body under the steam nozzle or the hot water dispenser. Never use the machine to clean objects.

• Descale the appliance regularly with descaling solution. In areas with very hard water, the machine may need to be descaled more often. The manufacturer cannot be held responsible for damages resulting from insufficient descaling.

- Never make coffee, hot water, or steam when the appliance is removed from the opening. Always make sure the appliance is inactive before removing it. The only exception is adjusting the coffee mill, which must be done with the machine out.

WARNING

Do not look directly or with an optical instrument into the lighting.

WARNING

Risk of burns when dispensing hot beverages.

WARNING

PROPOSITION 65 FOR CALIFORNIA RESIDENTS Cancer and Repro- ductive Harm—www. P65Warnings.ca.gov.

Quick Start Guide

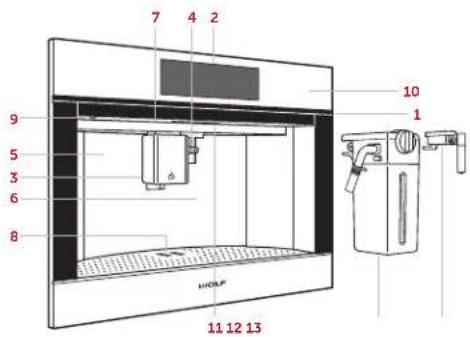

Coffee System Features

FEATURES

1	Product Rating Plate
2	Touchscreen
3	Coffee Spout
4	Water/Milk Spout Receptacle
5	Water Tank (behind service door)
6	Service Door
7	LED Lighting
8	Drip Tray
9	Standby Power Button
10	Main Power Button (behind control panel)
11	Handle (to slide unit forward)
12	Milk Container
13	Water Spout

6 | Wolf Customer Care 800.222.7820

Controls

The Wolf Coffee System uses touchscreen technology to select preferences and other options.

Prior to Use

1 Slide the unit forward and press the main power button.

2 Use the test strip provided to determine water hardness. Refer to User Options on page 9 to adjust the hardness setting.
3 Clean the unit thoroughly with hot water and a mild detergent.
4 Rinse and dry with a soft cloth.
5 Open the service door, then remove the water tank.

NOTE: If installed, the water spout must be removed to open the service door.

6 Fill the water tank with water.
7 Insert the hot water spout. Two beeps indicate the spout is installed correctly.

8 Place the rinse container below the spout.
9 Select the desired language. To select, scroll through the languages until the desired language appears, then touch the corresponding icon.

10 Touch. Hot water is dispensed from the hot water spout.

Quick Start Guide

Auto-Off

The unit turns off automatically after 30 minutes of inactivity. The duration is adjustable to 15, 30, 60, 120, or 180 minutes. Touch the standby power button to turn on the control panel touchscreen before use.

NOTE: Due to the rinsing process, place the rinse container below the spout before each use.

To adjust Auto-Off duration:

1Touch

2Touch or until "Auto-Off" appears on the touchscreen.

3 Touch "Auto-Off" until the desired duration appears.

4Touch. BACK

Milk Container

To froth milk:

1 Turn the knob on the milk container to "Insert."
2 Place the milk container into the receptacle. A beep indicates the container is installed correctly.
3 Turn the knob to the desired froth setting. Refer to the chart below.
4 Turn the knob to 'Clean' when dispensing is complete.
5 Follow the instructions on the touch-screen.
6 Remove the milk container and store in the refrigerator.

FROTH SETTING

The milk container dial is adjustable for optimum froth production.

SETTING AMOUNT

	No Froth
	Minimum Froth
	Maximum Froth

Coffee Drinks

IMPORTANT NOTE: Do not use oily, caramelized, or flavored beans.

To make coffee drinks:

1 Touch multiple times to select the desired strength.
2 Touch multiple times to select the desired size.
3 Touch the desired drink type to start the cycle.
4 Adjust the height of the coffee spout to be as close to the cup as possible.

NOTE: Near the end of the cycle, +Extra appears on the touchscreen. If desired, touch +Extra to continue dispensing water over the grounds to increase the drink volume. Touch STOP once the desired volume is dispensed

Cleaning

The Coffee System should be cleaned and maintained often to make sure it operates efficiently. Refer to Care Recommendations on page 12 for more information.

Beverage Options

BEVERAGE % COFFEE % MILK % WATER FROTH SMALL MEDIUM* LARGE X-LARGE

Espresso	100			1.0 oz (30 mL)	1.4 oz (41 mL)	1.6 oz (47 mL)	4.1 oz (121 mL)
Espresso x2 ^	100			2.0 oz (59 mL)	2.7 oz (80 mL)	3.2 oz (98 mL)	8.1 oz (240 mL)
Doppio+	100			3.2 oz (95 mL)	4.1 oz (121 mL)	4.9 oz (145 mL)	6.1 oz (180 mL)
Coffee	100			4.9 oz (145 mL)	6.1 oz (180 mL)	7.3 oz (216 mL)	8.1 oz (240 mL)
Long Coffee ^	100			4.3 oz (127 mL)	5.4 oz (160 mL)	6.5 oz (192 mL)	8.1 oz (240 mL)
Coffee Pot	100			10.1 oz (299 mL)	15.2 oz (450 mL)	20.3 oz (600 mL)	25.4 oz (751 mL)
Americano	25		75	4.1 oz (121 mL)	5.1 oz (151 mL)	6.1 oz (180 mL)	7.6 oz (225 mL)
Latte	20	80		None	8.1 oz (240 mL)	10.1 oz (299 mL)	12.2 oz (361 mL)
Macchiato	60	40		Max	1.4 oz (41 mL)	1.7 oz (50 mL)	2.0 oz (59 mL)
Latte Macchiato	20	80		Min	4.1 oz (121 mL)	5.1 oz (151 mL)	6.1 oz (180 mL)
Cappuccino**	55	45		Max	4.1 oz (121 mL)	5.1 oz (151 mL)	6.1 oz (180 mL)
Cappuccino Mix ^	55	45		Max	4.1 oz (121 mL)	5.1 oz (151 mL)	6.1 oz (180 mL)
Cappuccino+	65	35		Max	4.1 oz (121 mL)	6.4 oz (189 mL)	7.7 oz (228 mL)
Flat White	25	75		Min	7.0 oz (207 mL)	8.8 oz (260 mL)	10.5 oz (311 mL)
Hot Milk		100		Any	6.5 oz (192 mL)	8.1 oz (240 mL)	9.7 oz (287 mL)
Hot Water			100				8.5 oz (251 mL) ^
Steam			100				3.0 oz (89 mL) ^

*Default quantity. Touch ♥ to customize. †Intended for two separate cups. †Double strength. **Milk dispensed, then coffee. ¶Milk and coffee dispensed simultaneously.
"Touch stop at any time for smaller quantity.
NOTE: All quantities are estimates. Actual results ± 20%.

Operation

Water Filter

The water filter contains ion exchange resins and active carbons, which reduce limescale and absorb chlorine and other contaminants. Replace the filter every two months or every three weeks, if left unused.

To install the water filter:

1 Remove the new filter from the package.

2Touch

3 Touch ◀ or ▶ until "Water Filter" appears on the touchscreen.

4 Touch "Water Filter."

5 Turn the dial on the filter until the following two months numbers appear. "Turn the dial indicator until the next 2 months are displayed" appears on the touchscreen.

6Touch

7 Turn the filter upside down and place it under a running faucet for one minute. 'Run water into filter hole until it comes out from openings' appears on the touchscreen.

8Touch. >NEXT

9 Insert the filter into the (full) water tank for 10 seconds to allow bubbles to escape. "Immerse filter in the water tank letting air bubbles escape" appears on the touch-screen.

10Touch. ➤ NEXT

11 Align the filter with the housing at the bottom of the tank. "Insert filter into its housing and push it down to bottom" appears on the touchscreen.

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

12 Press to secure the filter to the housing. "Insert water tank" appears on the touchscreen.
13 Close the tank lid, then install the water tank on the machine. 'Place 0.5 L container under outlets, press OK to fill filter' appears on the touchscreen.
14 Place a container under the hot water spout and touch OK.
15 appears on the touchscreen to indicate the water filter reminder is turned on.

User Setup

The User Setup feature allows the user to select from the preferences listed below.

USER OPTIONS

Rinsing Start rinse cycle.

Descale Turn descale cycle on.

Water Filter Turn water filter reminder on or off.

Drink Settings View drink settings (Strength, Milk, Coffee).

Set Time Adjust time of day. Required for Auto-Start

Auto-Start Turns unit on, rinses, and heats at preset time.

Auto-Off Turn unit off after 15 min, 30 min, 1 hr, 2 hr, or 3 hr.

Energy Saving Turns energy saving mode on or off.

Coffee Adjust coffee temperature (Low, Temperature Medium, High, Max).

Water Adjust water hardness (1 softest, Hardness 4 hardest).

Set Language Select language (English, Spanish, French, Italian, German, Dutch, or Chinese)

Beep Turn audible tone on or off.

Cup Lighting Turn lights on or off.

Background Adjust touchscreen background color (Black, White).

Demo Mode Provides a demonstration for common functions.

Factory Settings Reset to factory default settings

Statistics View beverage production quantities.

Simple line drawing of a cylindrical container with a lid and spout, no text or symbols present.

Operation

User Setup

USER OPTIONS

To set user options:

1 Touch Ⓘ
2 Touch
3 Touch or to scroll through options.
4 Touch the desired option.
5 Touch to exit

AUTO-START

Auto-Start turns the unit on, rinses, and preheats at a specified time to decrease the time to prepare a drink. The clock must be set to the correct time to work properly. 🏠 appears on the touchscreen when Auto-Start is turned on.

To set Auto-Start:

1 Touch
2 Touch or, then touch "Auto-Start."
3 Touch or until the desired start time appears.
4 The unit defaults to 'Off.' Touch "Off" to toggle "On."
5 Touch OK

Coffee

To use whole beans:

1 Pull the unit forward.
2 Open the whole bean compartment lid.

3 Fill the compartment, then slide the unit back in.
4 Place a minimum 4 oz (120 mL) container below the spout.

5 Adjust the height of the spout to be as close to the cup(s) as possible.

6 The unit automatically rinses upon initial start-up and before turning off. A small amount of liquid dispenses from the spout during the rinse cycle. Place the rinse container under the spout, if desired.

Favorite

To save favorite drink settings:

1 Touch to select the desired user profile.
2 Touch
3 Select the desired drink option.
4 Touch + or - to select the desired strength.
5 Touch OK
6 Turn the milk container dial to
7 Milk is dispensed. Touch when the desired amount of milk is dispensed and to save the setting.
8 Coffee is dispensed. Touch ☐When the desired amount of coffee is dispensed and to save the setting.

Operation

Coffee Pot

CAUTION

Do not use pre-ground coffee. Use whole beans only.

The Coffee Pot option produces larger amounts of coffee.

The coffee strength and size are adjustable, or touch ♥ to customize. Refer to Beverage Options on page 8. Make sure the water tank is full and the grounds container is empty before starting the cycle.

Pre-Ground Coffee

CAUTION

More than one scoop causes the unit to clog.

To use pre-ground coffee:

1 Touch multiple times until appears.

2 Slide the unit forward and open the pre-ground coffee lid.

3 Use the provided scoop to place one scoop of preground coffee into the funnel, then close the lid.
4 Slide the unit back into position.
5 Touch multiple times to select the desired size.
6 Touch the desired drink type to start dispensing.
7 Adjust the height of the coffee spout as close to the cup as possible.

Hot Water

Dispense hot water to make tea or preheat cups. Preheating cups allow beverages to stay hot longer.

To dispense hot water:

1 Insert the hot water spout. Two beeps indicate the spout is installed correctly.

2 Place a cup under the spout.
3Touch to start dispensing water.
4 Touch when the desired amount is dispensed.

Grind Adjustment

CAUTION

Adjustment must be made while the mill is operating. The grind adjustment can take up to three drinks to become noticeable. Do not adjust more than one setting per grind.

Adjust the grind if coffee delivery is too fast or too slow. Turn the dial clockwise for faster delivery (coarser grind) or counterclockwise for slower delivery (finer grind).

Care Recommendations

Milk Container

CAUTION

Only the milk container liner is dishwasher safe. Do not place any other milk container parts in the dishwasher. Do not submerge the lid or the milk container in water.

Use hot water and a mild detergent to wash the lid and milk container.

To clean the milk container:

1 Press the tabs on both sides of the milk container lid, then remove the lid.
2 Pull the intake tube down to remove.
3 Pull the milk spout back to remove.

4 Rotate the froth adjustment knob to "Insert," then pull the knob to remove.
5 Use a toothpick to remove any debris from the channel on the knob.

6 Remove the liner from the milk container.

Technical line drawing of a mechanical component with labeled 'LINER' (no other text or symbols)

Descale

CAUTION

Only use EcoDecalk descaling solution.

To descale the unit:

1 Remove the water tank and empty completely.

Technical line drawing of a water tank with internal components and no visible text or symbols

2 Pour descaling solution into the tank to line 'A', then add water until it reaches line 'B.'
3 Install the water tank.
4 Install the water spout, then place a large, minimum 85 oz (2.5 L), container under the spout.
5 Touch
6 Touch or ▶ until 'Descale' appears on the touchscreen.
7 Touch

8 "Descaling" and a progress bar appear on the touchscreen.
9 After approximately 25 minutes, "Rinse and fill water tank up to max level" appears. Rinse and fill the water tank with water and empty the container.
10 Install the water tank and place the container under the spout.
11Touch. "Rinsing please wait" appears on the touchscreen. The water tank may need to be filled multiple times to complete the descale process.
12 When "Descale complete press OK" appears, fill the water tank, and touch OK.

Care Recommendations

Cleaning

Use the following information for simple cleaning recommendations.

STAINLESS STEEL

1 Use a non-abrasive stainless steel cleaner and apply with a soft lint-free cloth.
2 Lightly wipe the surface with a water-dampened microfiber cloth followed by a dry polishing chamois.
3 Always follow the grain of the stainless steel.

TOUCHSCREEN

1 Use a spray degreaser to remove fingerprints and food soil. Spray on a cloth before wiping the touchscreen.

COFFEE SPOUT

1 Clean periodically using a sponge.
2 Remove any coffee deposits in the holes with a toothpick.

WATER TANK

1 Clean periodically (about once a month) with a damp cloth and mild dish soap.
2 Rinse and towel dry.

DRIP TRAY AND GROUNDS CONTAINER

1 Empty and clean the drip tray before the water level indicator protrudes from the cup tray.
2 Empty and clean the grounds container when "Empty grounds container" appears.
3 Open the service door.
4 Remove and empty the drip tray and grounds container.

5 Wash with warm water and mild dish soap.
6 Rinse and towel dry.

PRE-GROUND COMPARTMENT

1 Check periodically to verify the pre-ground coffee funnel is not blocked.

INTERIOR

1 Open the service door.
2 Vacuum residue and remove coffee deposits with a sponge.

INFUSER

1 Clean the infuser at least once a month.
2 Turn the unit off.
3 Open the service door and remove the drip tray and grounds container.
4 Press the two red buttons inward and remove the infuser.

Technical line drawing of an indoor machine or storage unit with no visible text or symbols

5 Soak in water approximately five minutes, then rinse and towel dry. NOTE: Do not use detergent to clean the infuser. It will remove the lubricant on interior parts.
6 Slide the infuser onto the internal support and bottom pin, then press "Push" until it clicks.
7 Verify the red buttons are pushed out.

Troubleshooting

Troubleshooting

Before contacting Wolf Factory Certified Service, use these helpful tips to prevent the need for a service visit.

Coffee dispensed too slow.

1 Adjust the grind to coarser pre-ground coffee. Refer to Grind Adjustment on page 11.

Infuser cannot be removed.

1 Touch the standby power button to reset the infuser position.

Milk contains bubbles or little froth.

1 Use fully skimmed or semi-skimmed milk.
2 Adjust the froth setting.
3 Clean the milk container and lid.

SERVICE

• Maintain the quality built into your product by contacting Wolf Factory Certified Service.
• When contacting service, you will need the model and serial number of your product. Both numbers are listed on the product rating plate. Refer to page 6 for rating plate location.
• For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. This information should be recorded on page 2.

Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowflake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens. The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries. All other trademarks are properly of their respective owners in the United States and other countries.

Warranty

Wolf Appliance Residential Limited Warranty

FOR RESIDENTIAL USE

FULL TWO YEAR WARRANTY\*

For two years from the date of original installation, this Wolf Appliance product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided by Wolf Appliance under the above warranty must be performed by Wolf Factory Certified Service, unless otherwise specified by Wolf Appliance, Inc. Service will be provided during normal business hours.

LIMITED FIVE YEAR WARRANTY

For five years from the date of original installation, Wolf Appliance will repair or replace the following parts that prove to be defective in materials or workmanship: gas burners (excludes appearance), electric heating elements, blower motors (ventilation hoods), electronic control boards, magnetron tubes and induction generators. If the owner uses Wolf Factory Certified Service, the service provider will repair or replace these parts with the owner paying for all other costs, including labor. If the owner uses non-certified service, the owner must contact Wolf Appliance, Inc. (using the information below) to receive repaired or replacement parts. Wolf Appliance will not reimburse the owner for parts purchased from non-certified service or other sources.

TERMS APPLICABLE TO EACH WARRANTY

The warranty applies only to products installed for normal residential use. The warranty applies only to products installed in any one of the fifty states of the United States, the District of Columbia or the ten provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service or repair.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT WOLF APPLIANCE, INC. WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. WOLF APPLIANCE, INC. WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS, IMPLIED OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights that vary from state to state.

To receive parts and/or service and the name of Wolf Factory Certified Service nearest you, contact Wolf Appliance, Inc., P.O. Box 44848, Madison, WI 53744; check the Product Support section of our website, wolfappliance.com, email us at [e-mail] or call 800-222-7820.

*Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited 60-day parts and labor warranty for cosmetic defects.

*Replacement filters for ventilation hood recirculating kits are not covered by the product warranty.

Cafetera

Contenido

Simple line drawing of a cylindrical container with a lid and spout, no text or symbols present.

8Pulse

Technical line drawing of a mechanical assembly with no visible text or symbols

Descale (Desincrustar)

PRECAUCIÓN

Utilice solamente solución desincrustante EcoDecalk.

Technical line drawing of an indoor space with a labeled component 'INFUSOR' (no other text or symbols)

Simple line drawing of a cylindrical container with a lid and internal structure, no text or symbols present.

8Appuyezsur

NEXT.

Technical line drawing of a mechanical assembly with no visible text or symbols

WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820

9049763 REV-A 12/2021
