USER MANUAL HW-C460G SAMSUNG

HW-C450 / HW-C460 / HW-C460G

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Refer to the table below for an explanation of symbols which may be on your Samsung product.

	CAUTIONRISK OF ELECTRIC SHOCK.DO NOT OPEN.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product has included important literature concerning operation and maintenance.
	Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground). If this symbol is not present on a product with a power cord, the product MUST have a reliable connection to protective earth (ground).
[GCSZ]	AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

CAUTION

WARNING

- To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

- This apparatus shall always be connected to a AC outlet with a protective grounding connection.

- To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

- Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

- To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7\~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours or until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery.

CAUTION : Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

CONTENTS

01 Checking the Components 6

02 Product Overview 7

Front Panel / Top Panel of the Soundbar 7

Bottom Panel of the Soundbar 8

03 Using the Remote Control 9

Inserting Batteries before using the Remote Control (AAA batteries X 2) ____ 9

How to Use the Remote Control ____ 9

Using the Hidden Buttons (Buttons with more than one function) ____ 13

Output specifications for the different sound effect modes 13

Adjusting the Soundbar volume with a TV remote control 14

04 Connecting the Soundbar 15

Connecting Electrical Power 15

Connecting the Soundbar to the Subwoofer 16

Connecting the Samsung Wireless Rear Kit to your Soundbar 18

05 Using a wired connection to the TV 19

Connecting using an Optical Cable 19

06 Using a wireless connection to the TV 20

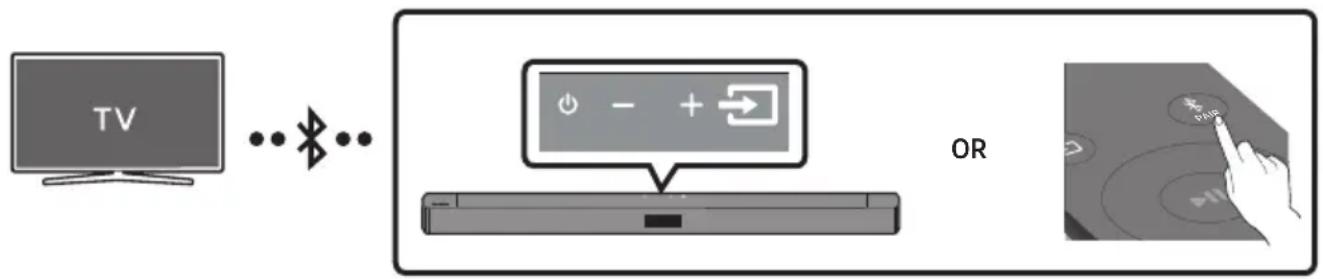

Connecting a TV via Bluetooth 20

07 Connecting an External Device 22

Connecting using an Optical Cable 22

08 Connecting a USB Storage Device 23

09 Connecting a Mobile Device 25

Connecting via Bluetooth ____ 25

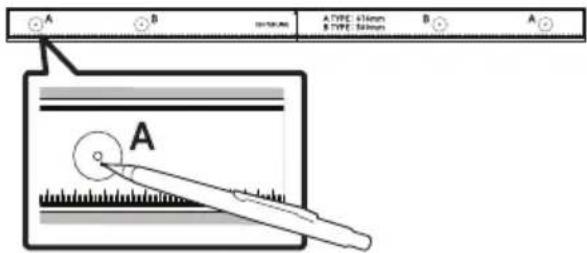

10 Installing the Wall Mount 28

Installation Precautions 28

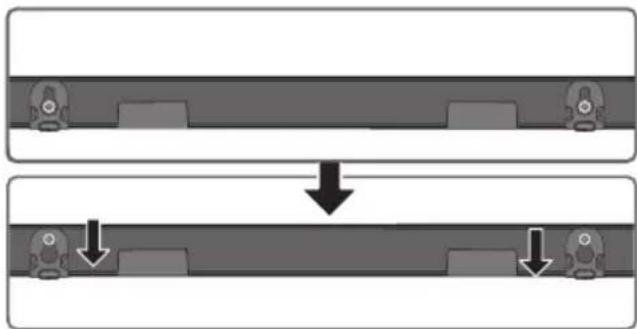

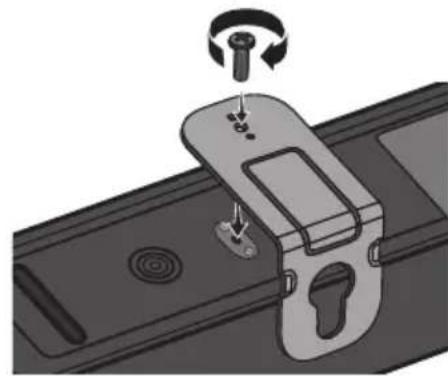

Wallmount Components 28

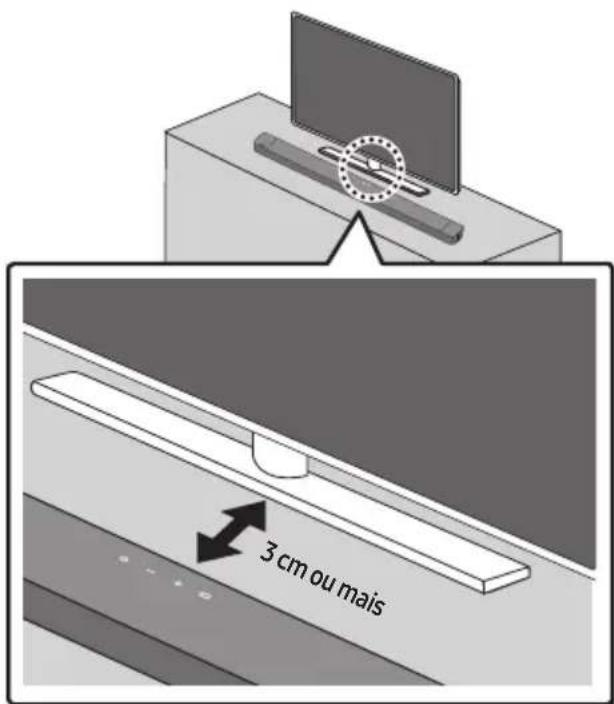

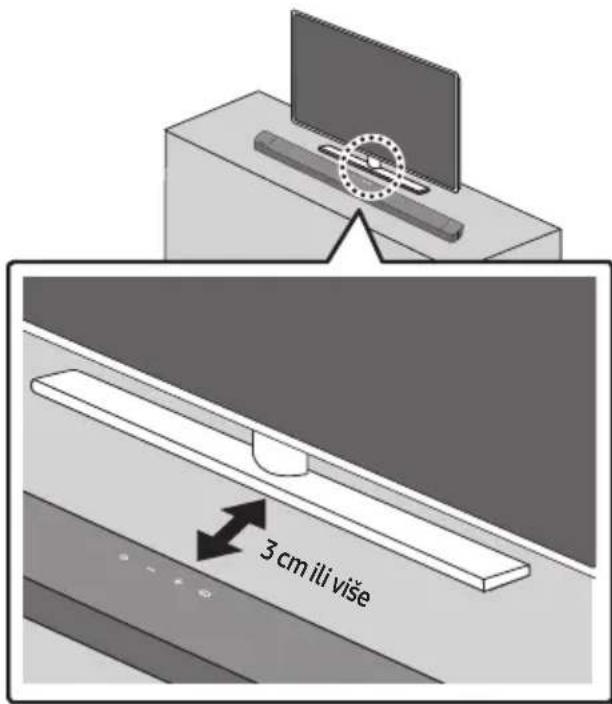

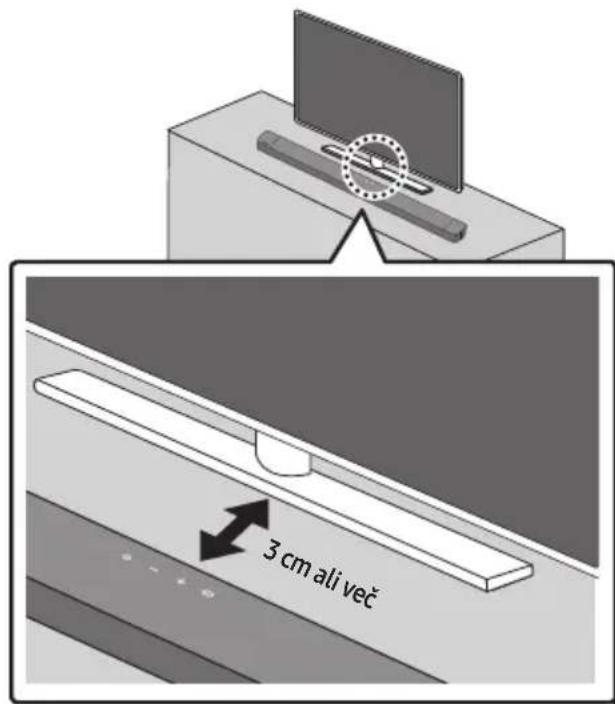

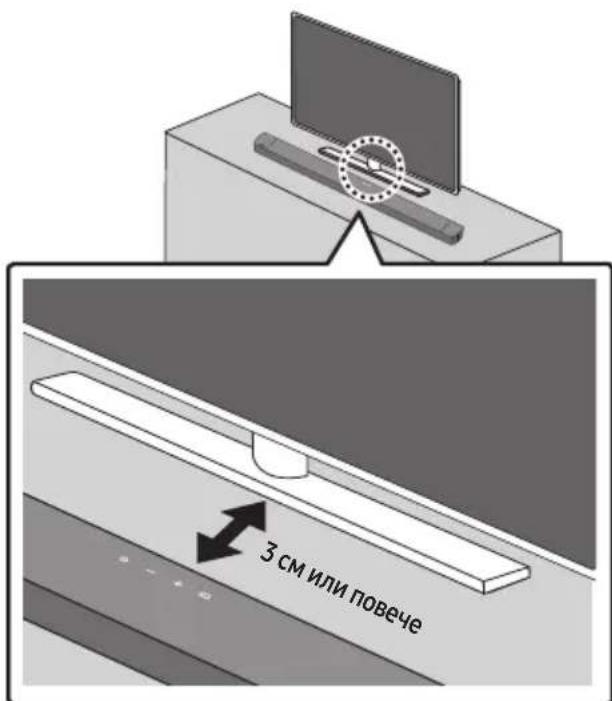

11 Placing the Soundbar on a TV stand 30

12 Software Update 31

Update Procedure 31

If UPDATE is not displayed 32

13 Troubleshooting 33

14 Licence 34

15 Open Source Licence Notice 35

16 Important Notes About Service 35

17 Specifications and Guide 36

Specifications 36

01 CHECKING THE COMPONENTS

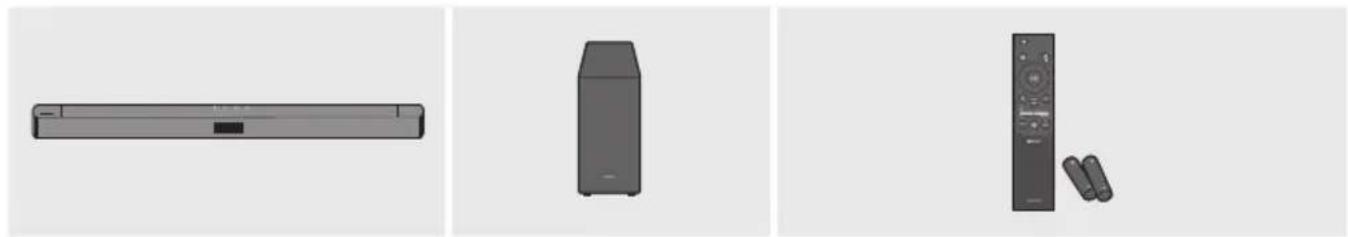

Three grayscale product photos showing different devices: a rectangular remote unit, a cylindrical tower, and a remote control with two small accessories (no text or symbols visible)

Soundbar Main Unit Subwoofer Remote Control / Batteries

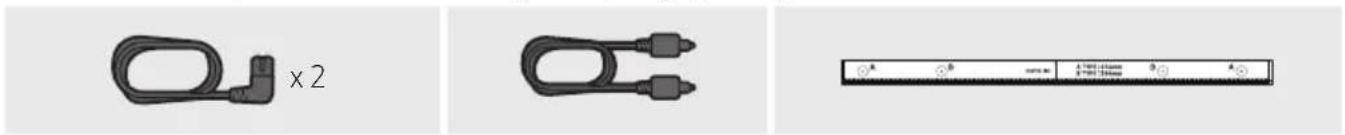

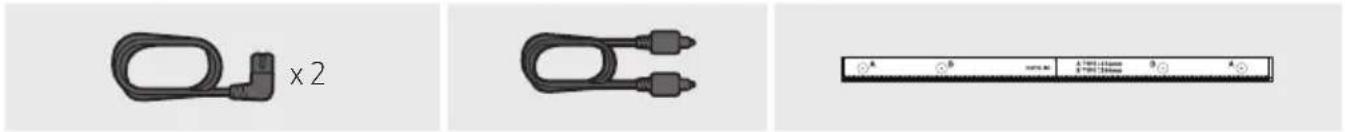

Three black cable connectors with sizes and connectors, shown from different angles (no text or symbols)

Power Cord (Subwoofer, Soundbar)

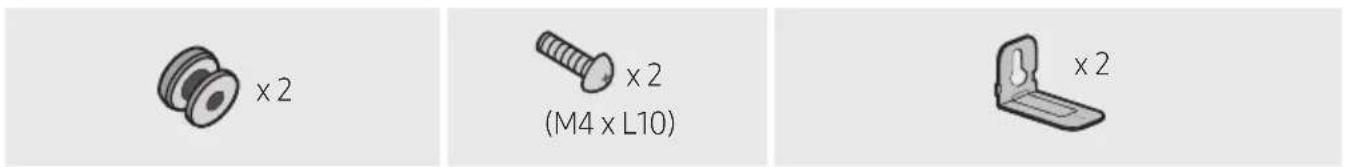

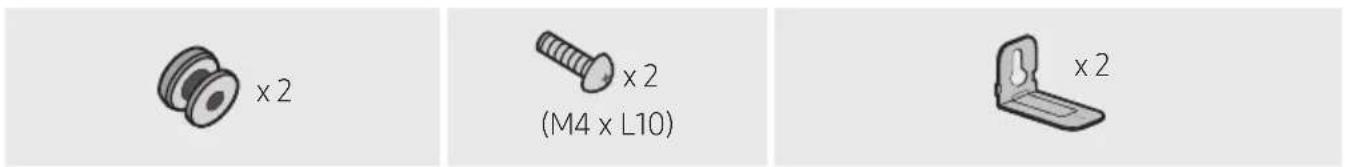

Holder-Screw Screw
Optical Cable Wall Mount Guide

Bracket-Wall Mount

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)
• To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.
• The appearance of the accessories may differ slightly from the illustrations above.
• Design and specifications are subject to change without prior notice.

02 PRODUCT OVERVIEW

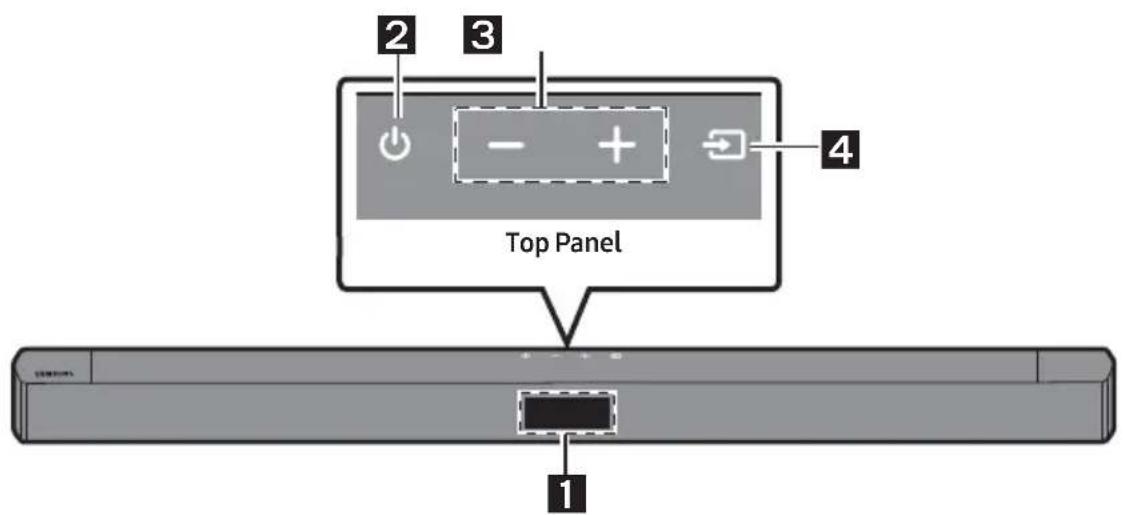

Front Panel / Top Panel of the Soundbar

1	DisplayDisplays the product's status and current mode.
2	(Power) ButtonTurns the power on and off.Auto Power Down FunctionThe unit turns off automatically in the following situations:In D.IN / BT / USB Mode : If there is no audio signal for 18 minutes.
3	+(Volume) ButtonAdjusts the volume.When adjusted, the volume level appears on the Soundbar's front display.
4	(Source) ButtonSelects the source input mode.
	Input mode Display
	Optical Digital input D.IN
	BLUETOOTH mode BT
	USB mode USB
	• To turn on "BT PAIRING" mode, change the source to "BT" mode in "BT READY" state and then press and hold the (Source) button for more than 5 seconds.

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

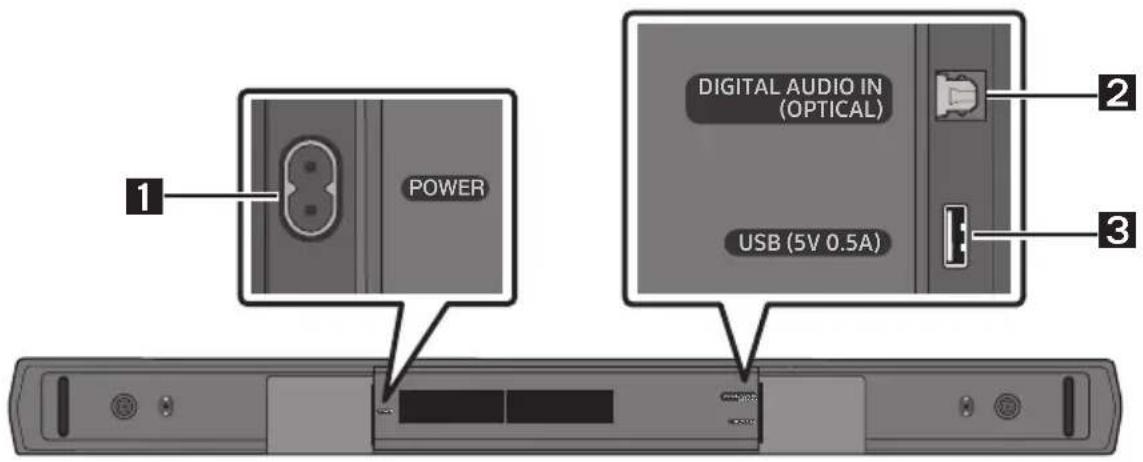

Bottom Panel of the Soundbar

1	POWERConnect the Soundbar's AC power cable.
2	DIGITAL AUDIO IN (OPTICAL)Connect to the digital (optical) output of an external device.

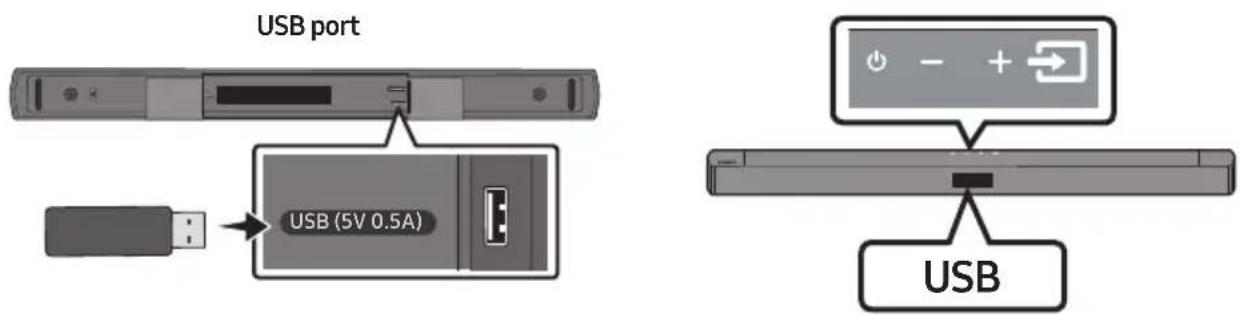

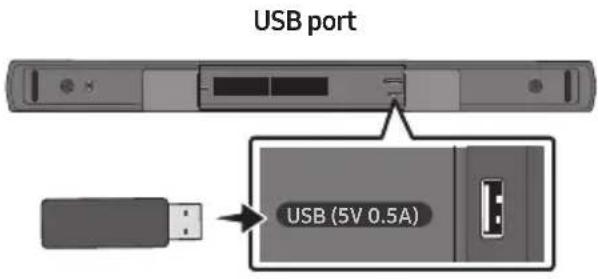

3	USB (5V 0.5A)Connect a USB device here to play music files stored on the USB device through the Soundbar.

• When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 USING THE REMOTE CONTROL

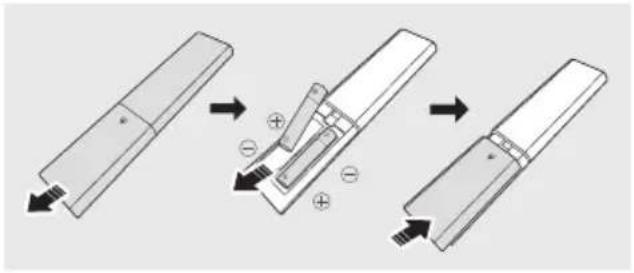

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the back cover in the direction of the arrow until it is completely removed.

Insert 2 AAA batteries (1.5V) so that their

orientation is correct. Slide the back cover back into position.

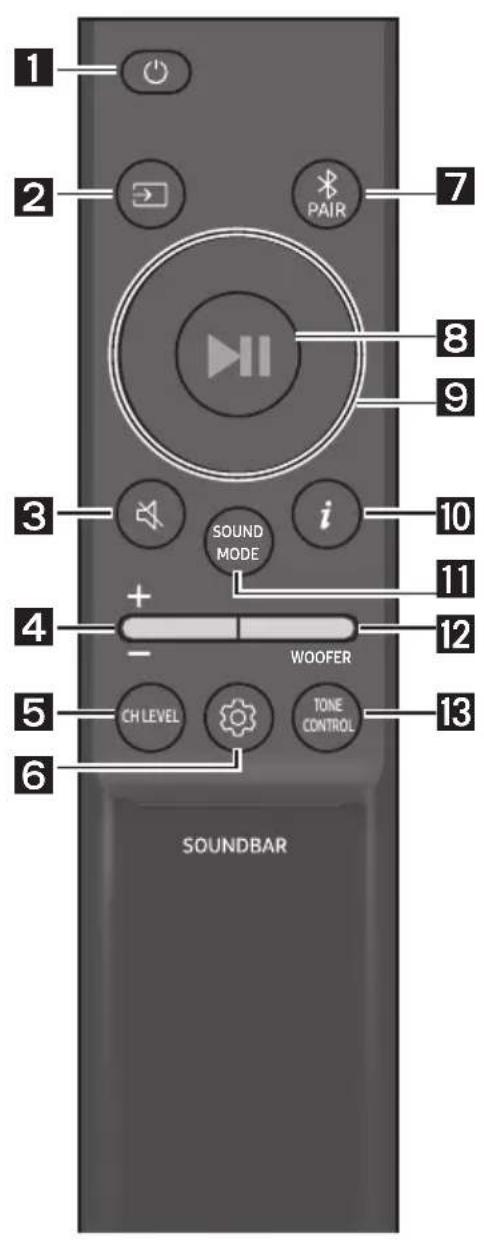

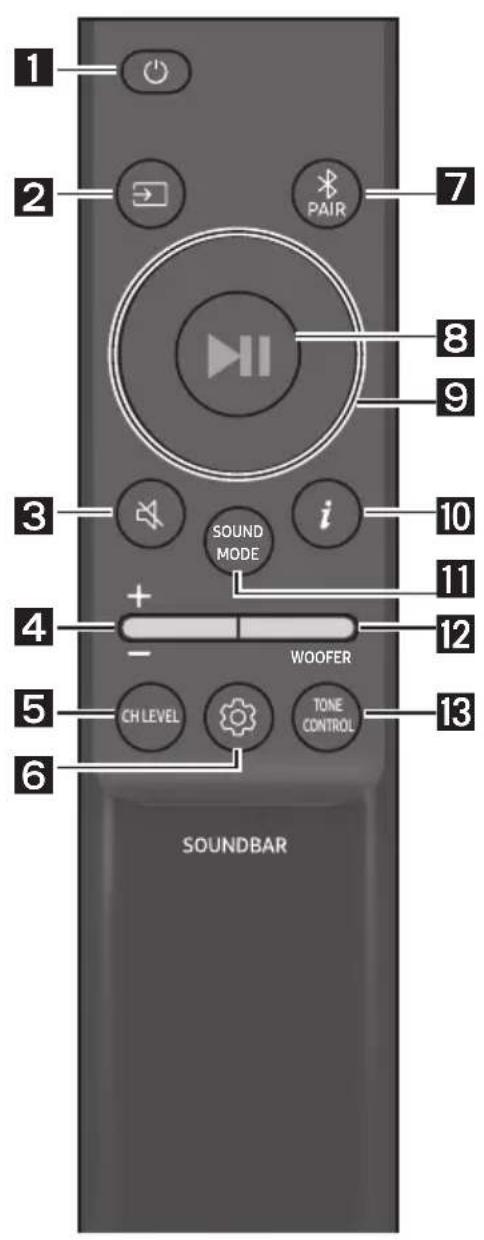

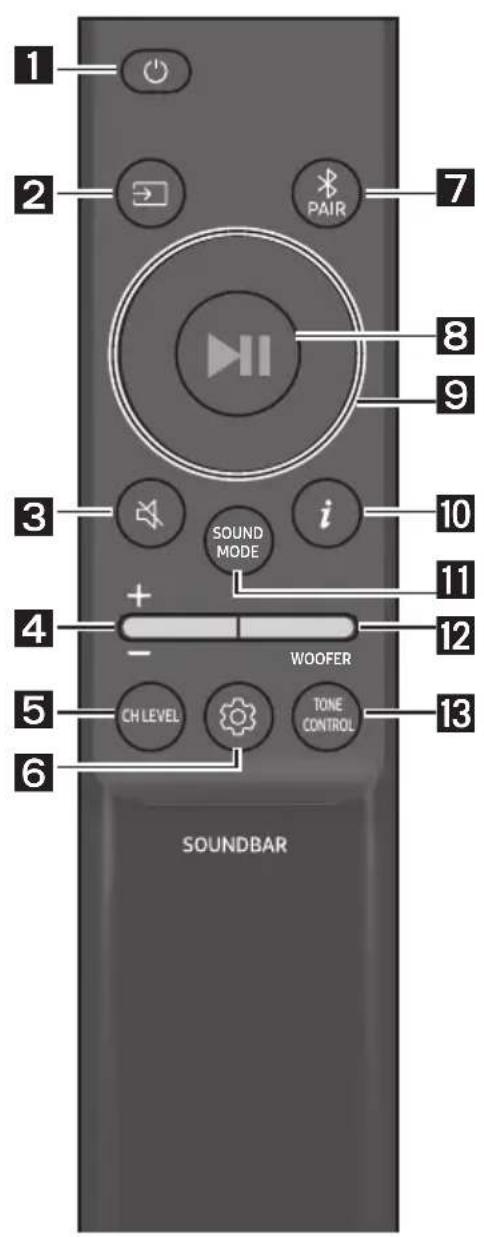

How to Use the Remote Control

1	Power	Turns the Soundbar on and off.
2	Source	Press to select a source connected to the Soundbar.
3	Mute	Press the (Mute) button to mute the sound. Press it again to unmute the sound.
4	Volume	Push the button up or down to adjust the volume.MutePress the Volume button in to mute the sound. Press it in again to unmute the sound.

5	CH LEVEL	By pressing the button, you can adjust the volume of each speaker.Press the button to selectVIRTUAL CENTER LEVELand then adjust the volume between -6~+6 by using theUp/Downbuttons.If the Rear Speakers (sold separately) are connected, the settingREAR LEVELis supported. To adjust the volume of theREAR LEVELbetween -6 to +6 by using theUp/Downbuttons.
9	Up/Down/Left/Right	Press the indicated areas to select Up/Down/Left/Right.Press Up/Down/Left/Right on the button to select or set functions.RepeatTo use the Repeat function in "USB" mode, press theUpbutton.Music SkipPress theRightbutton to select the next music file. Press theLeftbutton to select the previous music file.ID SETPress and hold theUpbutton for 5 seconds to completeID SET(when connecting to a wireless subwoofer or wireless rear speakers).
6	Sound Control	By pressing the button, you can set the audio function. The desired settings can be adjusted using theUp/Downbuttons.AUDIO SYNC → VOICE ENHANCE ON/OFF → NIGHT MODE ON/OFF-AUDIO SYNCIf the video on the TV and audio from the Soundbar are not synchronised, press the(Sound Control)button to selectAUDIO SYNCand then set the audio delay between 0~300 milliseconds by using theUp/Downbuttons. (Not available in "USB" or "BT" mode.)- VOICE ENHANCE ON/OFFThis mode is makes it easier to hear spoken dialog in movies and TV.- NIGHT MODE ON/OFFThis mode is optimized for nighttime viewing with the settings adjusted to bring the volume down but keep the dialog clear.The VOICE ENHANCE, andNIGHT MODEaudio function can be turnedON/OFFby using theUp/Downbuttons.Press and hold the(Sound Control)button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using theLeft/Rightbuttons and each can be adjusted to a setting between -6 to +6 using theUp/Downbuttons. (Make sure the Sound mode is set to"STANDARD".
7	BluetoothPAIR	Press the ✝PAIRbutton. “BT PAIRING” appears in the Soundbar’s display.You can connect the Soundbar to a new Bluetooth device in this mode by selecting the Soundbar from the Bluetooth device’s search list.
8	Play / Pause	Press the ▶IIbutton to pause a music file temporarily.When you press the button again, the music file will resume playing.
10	Info	Press the button to display information about the current function. (See page 7.)
11	SOUND MODE	By pressing the button, you can select the desired sound mode.SURROUND SOUND → GAME → ADAPTIVE → DTS VIRTUAL:X → BASS BOOST → STANDARD– SURROUND SOUNDProvides a wider sound field than standard.– GAMEProvides stereoscopic sound to immerse you in the action while gaming.– ADAPTIVEAnalyzes the content in real time and automatically provides an optimal sound field based on the characteristics of the content.– DTS VIRTUAL:XImmersive 3D sound from any content.– BASS BOOSTSound field mode with emphasis on bass sound.– STANDARDOutputs the original sound.• DRC (Dynamic Range Control)Lets you apply dynamic range control to Dolby Digital tracks. Press and hold the SOUND MODEbutton for more than 5 seconds while the Soundbar is powered off to turn DRC (Dynamic Range Control) on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.)• Bluetooth PowerThis feature automatically turns the Soundbar on when it receives a connection request from a previously connected TV or Bluetooth device. The setting is On by default.– Press and hold the SOUND MODEbutton for more than 5 seconds while the soundbar is powered on to turn off the Bluetooth Power function.
12	WOOFER WOOFER (BASS) LEVEL	Push the button up or down to adjust the level of the woofer (bass) to -12 or between -6 to +6. To set the woofer (bass) volume level to 0 (Default), press the button.
13	TONE CONTROL	By pressing the button, you can adjust the volume of the treble or bass sound.• Press the button to select TREBLE or BASS and then adjust the volume between -6~+6 by using the Up/Down buttons.

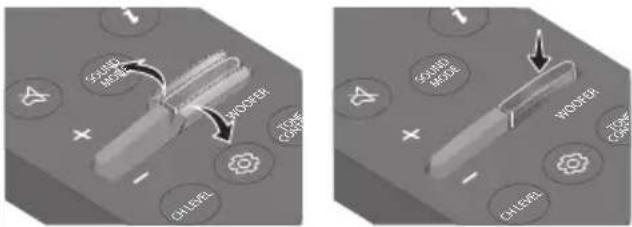

Using the Hidden Buttons (Buttons with more than one function)

Hidden Button		Reference page
Remote Control Button Function
WOOFER (Up)	TV remote control On/Off (Standby)	page 14
Left	TV Connect On/Off (BT Ready)	page 21
Up ID SET page 10
[24T2] (Sound Control)	7 Band EQ (Press and hold 5 seconds) page 10
	Reset (Press and hold 10 seconds) page 31
SOUND MODE	DRC ON/OFF (Standby) page 11
	Bluetooth Power page 11

Output specifications for the different sound effect modes

Effect Input			Output
			Without Wireless RearSpeaker Kit	With Wireless RearSpeaker Kit
SOUND MODE	SURROUNDSOUND	2.0 ch	2.1 ch	4.1 ch
		5.1 ch	2.1 ch	4.1 ch
	GAME	2.0 ch	2.1 ch	4.1 ch
		5.1 ch	2.1 ch	4.1 ch
	ADAPTIVE	2.0 ch	2.1 ch	4.1 ch
		5.1 ch	2.1 ch	4.1 ch
	DTS VIRTUAL:X	2.0 ch	2.1 ch	4.1 ch
		5.1 ch	2.1 ch	4.1 ch
	BASS BOOST	2.0 ch	2.1 ch	4.1 ch
		5.1 ch	2.1 ch	4.1 ch
	STANDARD	2.0 ch	2.1 ch	2.1 ch
		5.1 ch	2.1 ch	2.1 ch

• The Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from.

Adjusting the Soundbar volume with a TV remote control

Adjust the Soundbar volume using the TV's remote control.

• This function can be used with IR remote controls only. Bluetooth remote controls (remote controls that require pairing) are not supported.

• Set the TV speaker to External Speaker to use this function.
  • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA

• Turn Off the Soundbar.

• Push up and hold the WOOFER button for 5 seconds.

Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: "OFF-TV REMOTE" (Default mode), "SAMSUNG-TV REMOTE", "ALL-TV REMOTE".

Remote Control Button Display Status
		(Default mode)

04 CONNECTING THE SOUNDBAR

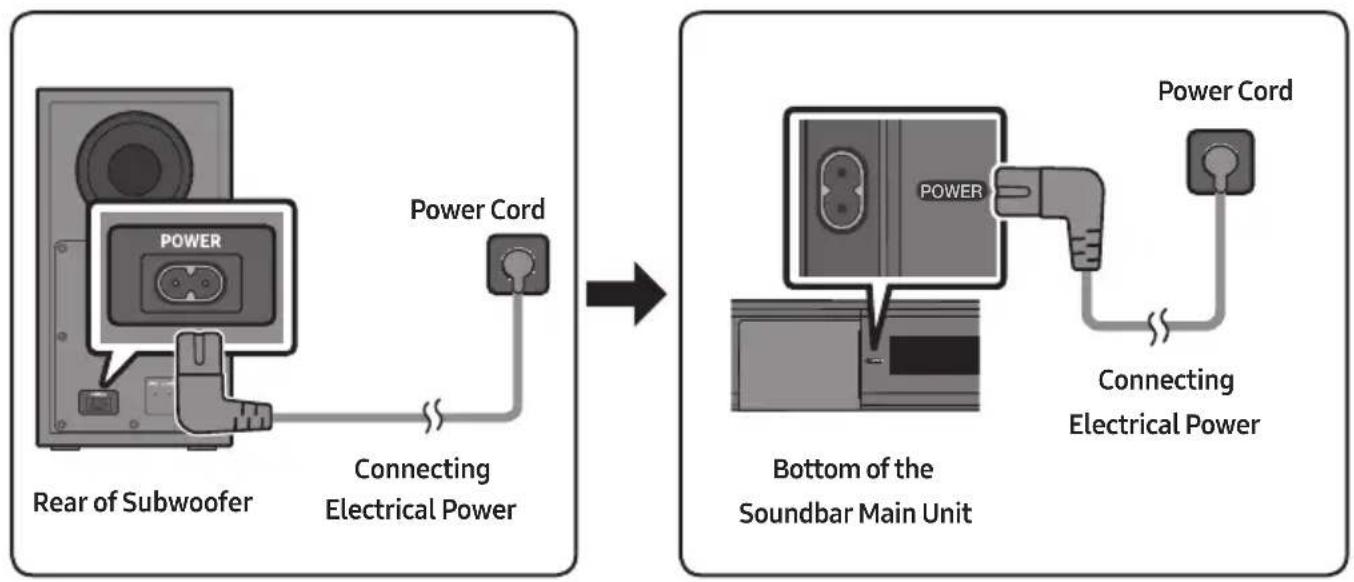

Connecting Electrical Power

Use the power components to connect the Subwoofer and Soundbar to an electrical outlet in the following order:

1. Connect the power cord to the Subwoofer.
2. Connect the power cord to the Soundbar.

See the illustrations below.

- For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the Subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the subwoofer is automatically connected to the Soundbar.

- When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

LED Indicator Lights on the Rear of Subwoofer

LED Status Description Resolution
	On	Successfully connected (normal operation)	-
	Blinking	Recovering the connection	Check if the power cable attached to the main Soundbar unit is connected properly or wait about 5 minutes. If blinking persists, try manually connecting the subwoofer. See page 17.
	On	Standby (with the Soundbar main unit turned off)	Check if the power cable attached to the main Soundbar unit is connected properly.
		Connection failed	Connect again. See the instructions for manual connection on page 17.
	Blinking Malfunction		See the contact information for the Samsung Service Centre in this manual.

Manually connecting the Subwoofer if automatic connection fails

Before performing the manual connection procedure below:

• Check whether the power cables for the Soundbar and subwoofer are connected properly.
  • Make sure that the Soundbar is turned on.

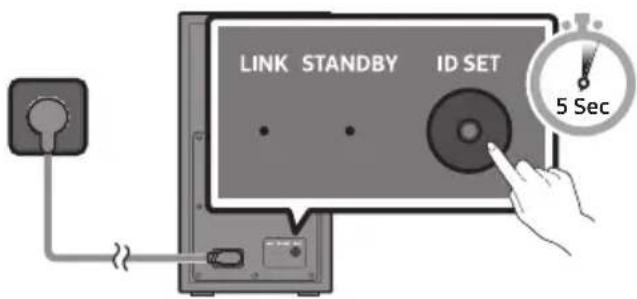

• Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.

- The red indicator on the rear of the subwoofer turns off and the blue indicator blinks.

Rear of Subwoofer

1. First, press the button on the remote control to turn on the display.

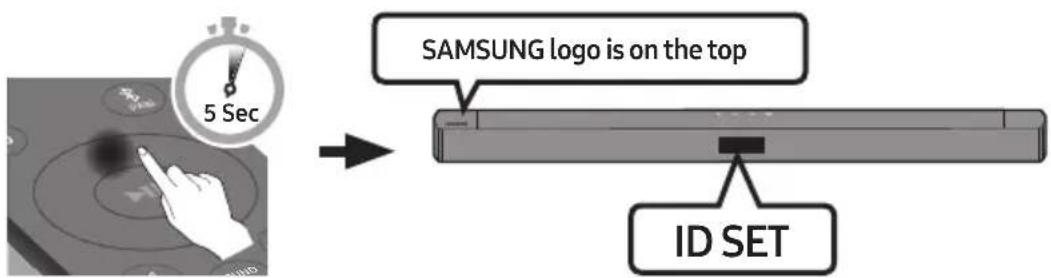

Press and hold the Up button on the remote control for at least 5 seconds.

• The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.
• The Soundbar will automatically power on when ID SET is complete.

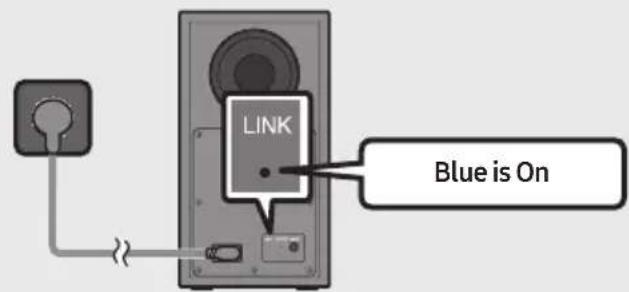

1. Check if the LINK LED is solid blue (connection complete).

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Subwoofer.

NOTES

• Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.
• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.
• If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the rear of the sub-woofer will turn red after blinking blue several times.
• If you use a device that uses the same frequency (5.8GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.
• The maximum transmission distance of the main unit's wireless signal is about 10 m, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all because the wireless signal cannot penetrate metal.

PRECAUTIONS

• Wireless receiving antennas are built into the wireless subwoofer. Keep the unit away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless subwoofer and the Wireless Receiver Module (sold separately) is clear of any obstructions.

Connecting the Samsung Wireless Rear Kit to your Soundbar

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9200S sold separately) to your Soundbar.

For detailed information on connections, see the Samsung Wireless Rear Speaker Kit manual.

05 USING A WIRED CONNECTION TO THE TV

Hear TV sound from your Soundbar through wired or wireless connections.

• When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV's remote control.
• This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable.
• This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

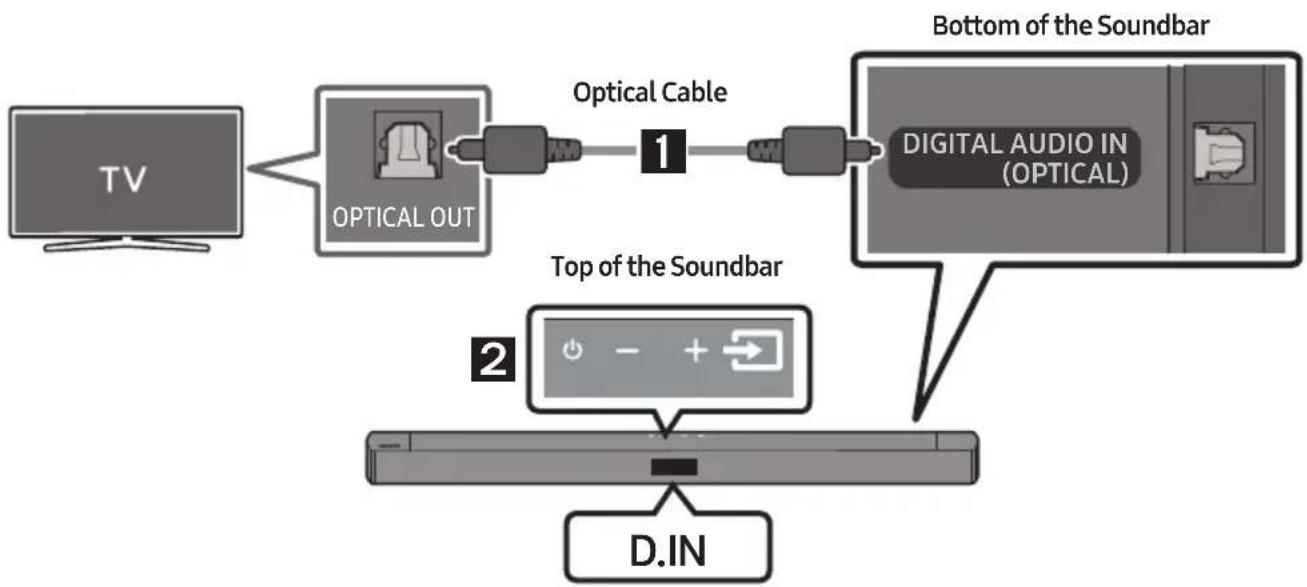

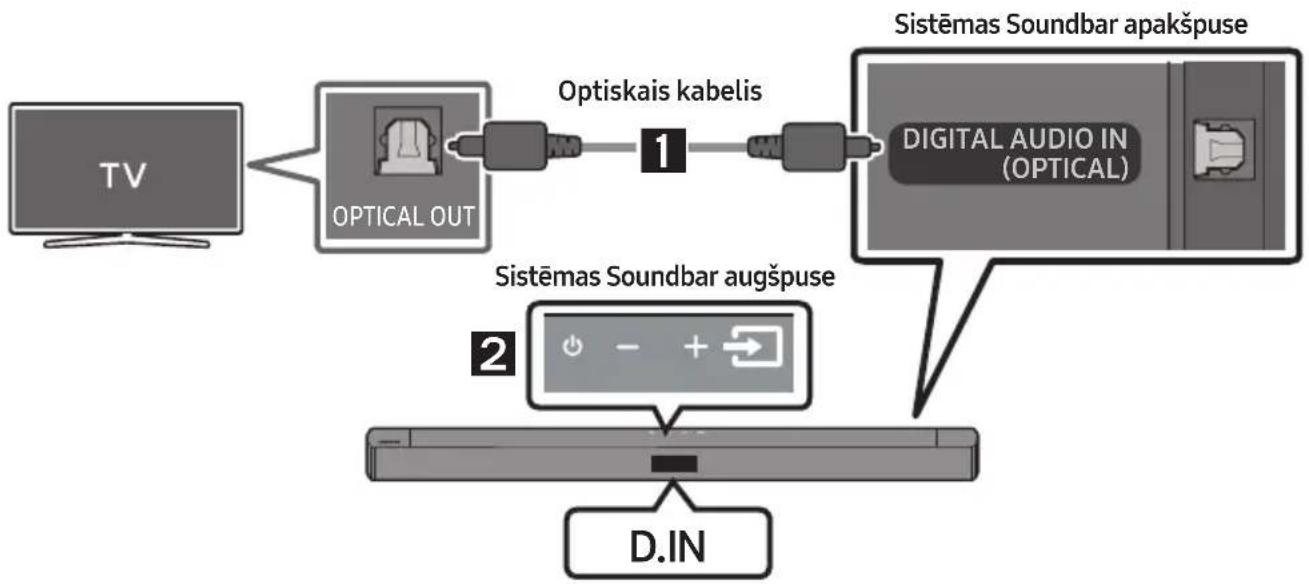

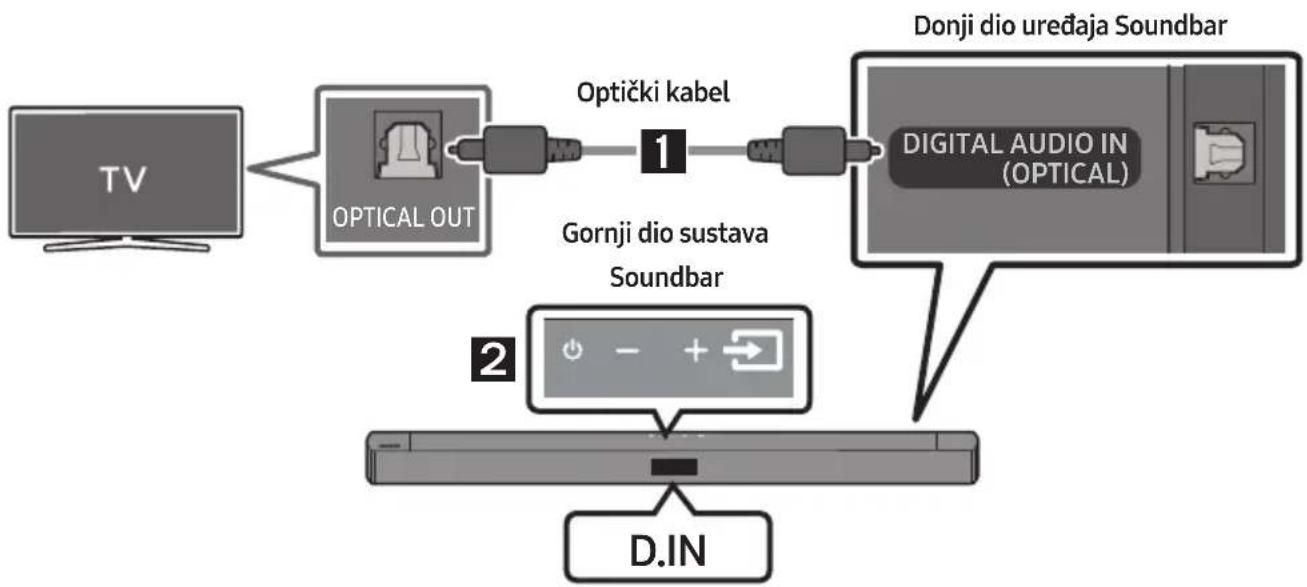

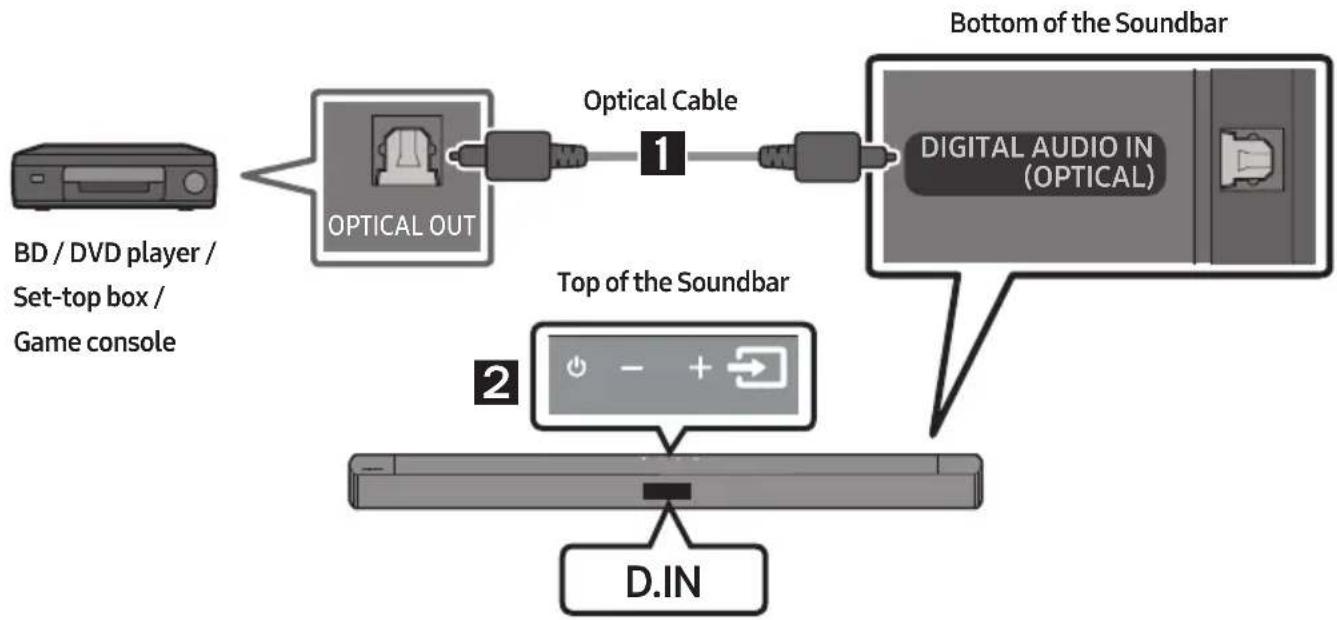

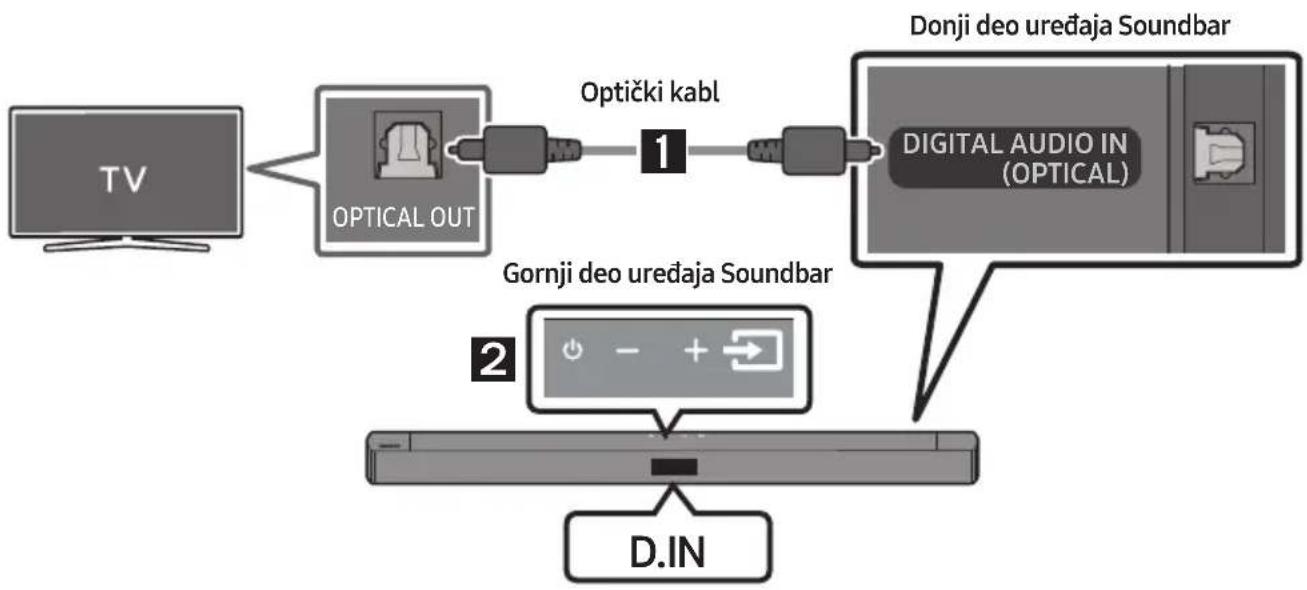

Connecting using an Optical Cable

When the audio in a broadcast is encoded in Dolby Digital and the "Digital Output Audio Format" on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)

Pre-connection Checklist

- When you use an optical cable and the terminals have covers, be sure to remove the covers.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

- When using an optical cable, it must be set to "D.IN" mode.

1. Connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar to the OPTICAL OUT port of the TV with a digital optical cable.
2. Press the → (Source) button on the top panel or remote control, and then select the "D.IN" mode.

06 USING A WIRELESS CONNECTION TO THE TV

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- Only one TV can be connected at a time.

The initial connection

1. Press the ✗PAIR button on the remote control to enter the "BT PAIRING" mode.

(OR)

a. Press the → (Source) button on the top panel and then select "BT".
"BT" changes to "BT PAIRING" in a few seconds automatically or changes to "BT READY" if there is a connect record.
b. When "BT READY" appears, press and hold the →(Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. Select Bluetooth mode on the TV. (For more information, see the TV's manual.)

Select "[AV] Samsung Soundbar C4-Series" or "[AV] Soundbar C4-Series" from the list on TV's screen.

An available Soundbar is indicated with "Needs Pairing" or "Paired" on the TV's Bluetooth device list. To connect the TV to the Soundbar, select the message, and then establish a connection.

- When the TV is connected, [TV Name] "BT" appears on the Soundbar's front display.

1. You can now hear TV sound from the Soundbar.

If the Soundbar is not found by the TV

• Connect the TV and Soundbar with an optical cable, and select the "D.IN" mode by pressing
  (Source) button on the top of the Soundbar. See if the audio output works normally, and proceed with the step 2 and 3.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar C4-Series" or "[AV] Soundbar C4-Series") appears in the list, delete it.
• Then repeat steps 1 through 3.

NOTE

- After you have connected the Soundbar to your TV the first time, use the "BT READY" mode to reconnect.

Disconnecting the Soundbar from the TV

Press the → (Source) button on the top panel or on the remote control and switch to any mode but "BT".

• Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.)
• To cancel the automatic Bluetooth connection between the Soundbar and TV, press the Left button on the remote control for 5 seconds with the Soundbar in "BT READY" status. (TV Connect On/Off)

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.
• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the ✗ PAIR button on the remote control or press and hold the ➕ (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode and in "BT READY" state.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 m.
• The Soundbar automatically turns off after 18 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

07 CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired connection or Bluetooth connection to play the external device's sound through the Soundbar.

Connecting using an Optical Cable

1. Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT port of the Source Device using a digital optical cable.
2. Select "D.IN" mode by pressing the → (Source) button on the top panel or on the remote control.

08 CONNECTING A USB STORAGE DEVICE

You can play music files located on USB storage devices through the Soundbar.

1. Connect the USB device to the USB port on the bottom of the product.
2. Press the → (Source) button on the top panel or on the remote control, and then select "USB".
3. "USB" appears in the display screen.
4. Play music files from the USB storage device through the Soundbar.

- The Soundbar automatically turns off (Auto Power Down) if no USB device has been connected for more than 18 minutes.

File Format Type Compatibility list

Extension Codec	Sampling Rate Bitrate
*.mp3 MPEG 1 Layer2	32kHz ~ 48kHz 32kbps~	320kbps
	MPEG 1 Layer3 32kHz ~ 48kHz 32kbps~320kbps
	MPEG 2 Layer3 16kHz ~ 24kHz 8kbps~160kbps
	MPEG 2.5 Layer3 8kHz ~ 12kHz 8kbps~160kbps
*.wma	WMA7/8/9	32kHz ~ 48kHz	32kbps~320kbps
*.ogg	Vorbis	32kHz ~ 48kHz	45kbps~500kbps
*.aac*.m4a*.mp4(Audio Only)	AAC-LC (MPEG2,/MPEG4)	32kHz ~ 48kHz 32kbps~320kbps
*.wav	LPCM	32kHz ~ 192kHz	1,024kbps~9,216kbps
*.flac	FLAC	32kHz ~ 192kHz	162kbps~8,100kbps
*.aiff	AIFF	32kHz ~ 192kHz	1,024kbps~9,216kbps

• If there are too many folders (about 256) and files (about 999) stored on the USB device, it may take the Soundbar some time to access and play files.
  • Supported USB file system : FAT16, FAT32, NTFS

09 CONNECTING A MOBILE DEVICE

Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- You cannot connect more than one Bluetooth device at a time.

The initial connection

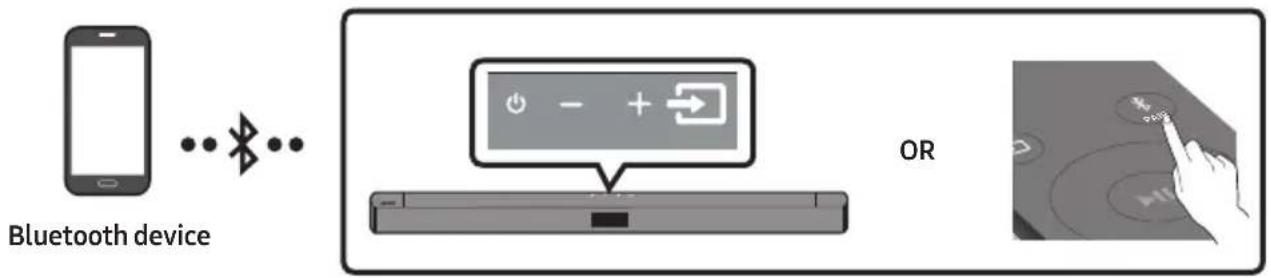

1. Press the ✗PAIR button on the remote control to enter the "BT PAIRING" mode.

(OR)

a. Press the →(Source) button on the top panel and then select "BT". "BT" changes to "BT PAIRING" in a few seconds automatically or changes to "BT READY" if there is a connect record.
b. When "BT READY" appears, press and hold the → (Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. On your device, select "[AV] Samsung Soundbar C4-Series" or "[AV] Soundbar C4-Series" from the list that appears.

- When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → "BT" appears in the front display.

1. Play music files from the device connected via Bluetooth through the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar C4-Series" or "[AV] Soundbar C4-Series") appears in the list, delete it.
• Then repeat steps 1 and 2.

NOTE

- After you have connected the Soundbar to your mobile device the first time, use the "BT READY" mode to reconnect.

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.
• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the remote control or press and hold the (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode and in "BT READY" state.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 m.
• The Soundbar automatically turns off after 18 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.

• If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
  • The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
• Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar C4-Series” or “[AV] Soundbar C4-Series” from the device’s scanned devices list will automatically change the Soundbar to “BT” mode.

- Available only if the Soundbar is listed among the Bluetooth device's paired devices.

(The Bluetooth device and the Soundbar must have been previously paired at least once.)

• The Soundbar will appear in the Bluetooth device's searched devices list only when the Soundbar is displaying "BT READY".
• The Soundbar cannot be paired to another Bluetooth device if already in Bluetooth mode and paired to a Bluetooth device.

Bluetooth Power On (SOUND MODE)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press and hold the SOUND MODE button for more than 5 seconds on the remote while the Soundbar is turned on.
2. "ON-BLUETOOTH POWER" appears on the Soundbar's display.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
- When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the → (Source) button on the top panel or on the remote control, and then change to any mode except "BT".

• Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 m.
• The Soundbar automatically turns off after 18 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if:
• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

10 INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.
- Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

- Diameter: M5

- Length: 35 mm or longer recommended.

- Connect cables from the unit to external devices before you install the Soundbar on the wall.

- Make sure the unit is turned off and unplugged from the power source before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Wall Mount Guide

Holder-Screw Screw

Simple 3D illustration of a bracket with a cutout and label 'x2' (no other text or symbols)

Bracket-Wall Mount

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level.

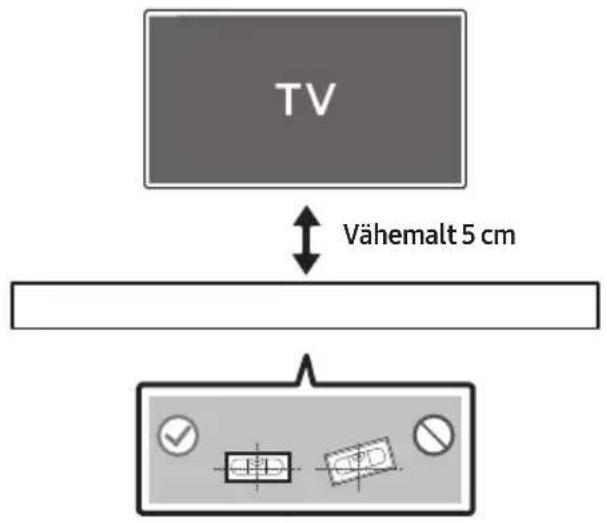

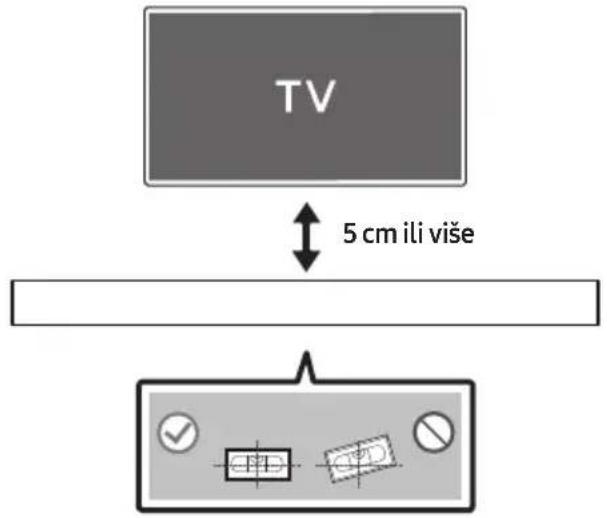

- If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

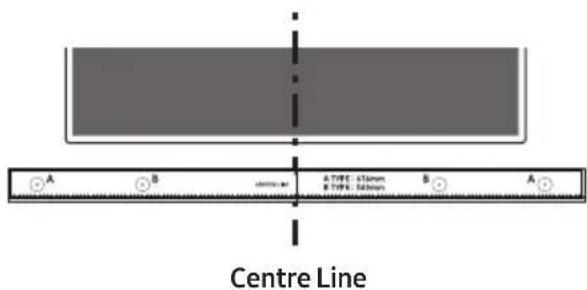

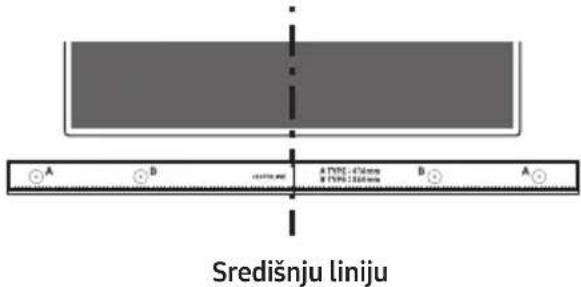

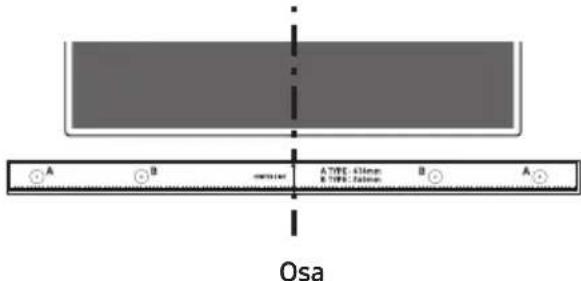

1. Align the Wall Mount Guide's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

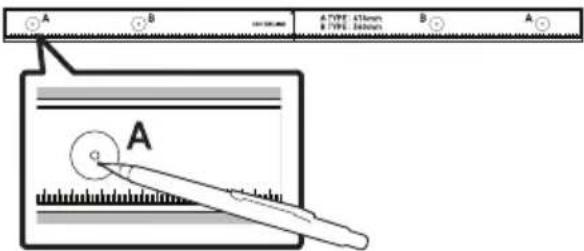

1. Push a pen tip or sharpened pencil tip through the centre of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors into the holes before you insert the support screws. If you use anchors, make sure the holes you drill are large enough for the anchors you use.

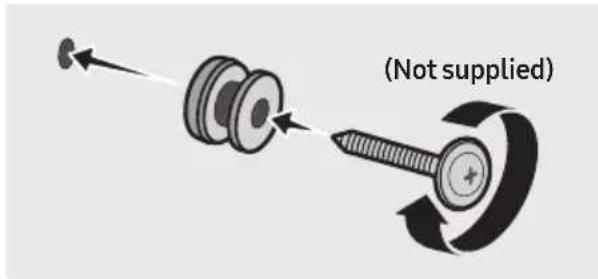

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws.

Mechanical assembly diagram showing a switch mechanism with rotating knob and mounting bracket (no text or symbols)

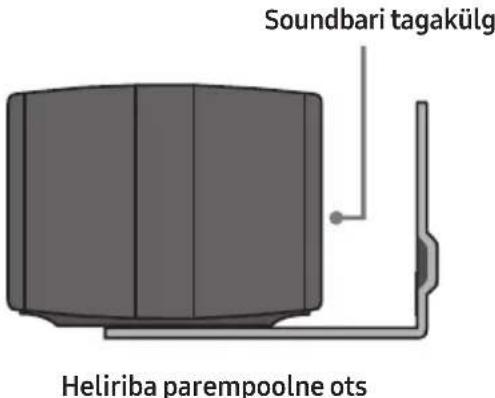

- When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

Right end of Soundbar

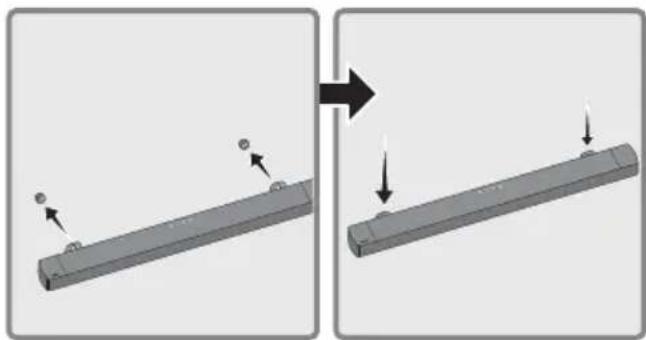

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

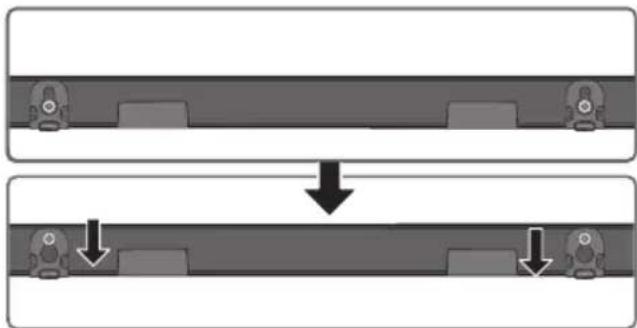

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

- Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 PLACING THE SOUNDBAR ON A TV STAND

Place the Soundbar on a TV stand.

As illustrated in the image, align the centre of the Soundbar with the centre of the TV, carefully place the Soundbar onto the TV stand. For optimal sound quality, position the Soundbar at least 3cm away from the TV front.

NOTE

- Make sure the Soundbar is placed on a flat and solid surface.

12 SOFTWARE UPDATE

Samsung may offer updates for the Soundbar's system firmware in the future.

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar. For more information about how to download update files, go to the Samsung website at www.samsung.com →Support.

Then, select the product type or enter the model number of your Soundbar, select the Software & Apps option, and then Downloads. Note that the option names can vary.

Update Procedure

Important: The update function erases all user settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating the firmware resets the subwoofer connection too.

1. Connect a USB thumb drive to the USB port on your computer.
   Important: Make sure there are no music files on the USB thumb drive. This may cause the firmware update to fail.
2. Go to (samsung.com) → select Enter Model Number and enter the model of your Soundbar. Select manuals and downloads and download the latest software file.
3. Save the downloaded software to a USB stick and select "Extract Here" to unzip the folder.
4. Turn off the Soundbar and connect the USB stick containing the software update to the USB port.
5. Turn on the Soundbar and change the source to "USB" mode. Within 3 minutes, "UPDATE" is displayed and the update begins.
6. When the update is complete, the Soundbar turns off. Turn on the Soundbar and then press the - + (Volume) button on the top panel for 5 seconds. "INIT OK" appears on the display and the Soundbar is reset.

7. This product has a DUAL BOOT function. If the firmware fails to update, you can update the firmware again. Soundbar AC code on when USB in with update file. Then update again but VFD no show anything, It will update finish after 2min.

8. Restore your settings on the Soundbar.

If UPDATE is not displayed

1. Turn off the Soundbar, disconnect and then reconnect the USB storage device that contains the update files to the Soundbar's USB port.
2. Disconnect the Soundbar's power cord, reconnect it, and then turn on the Soundbar.

NOTES

• The firmware update may not work properly if audio files supported by the Soundbar are stored in the USB storage device.
• Do not disconnect the power or remove the USB device while updates are being applied.
• After the update is completed, the user setup in the Soundbar maybe will be initialized. So we recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too.

If the connection to the subwoofer is not re-established automatically after the update, refer to page 16.

If the software update fails, check if the USB stick is defective.

• Mac OS users should use MS-DOS (FAT) as the USB format.
• Updating via USB may not be available, depending on the USB storage device manufacturer.

13 TROUBLESHOOTING

Before seeking assistance, check the following.

Soundbar does not turn on.

→Check whether the power cord of the Soundbar is correctly inserted into the outlet.

Soundbar works erratically.

→After removing the power cord, insert it again.
→Power the external device off/on and try again.
→If there is no signal, the Soundbar automatically turns off after a certain period of time. Turn on the power. (See page 7.)

If the remote control does not work.

→Point the remote directly at the Soundbar.
→Replace the batteries with new ones.

Soundbar does not output any sound.

→The volume of the Soundbar is too low or muted. Adjust the volume.
→When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device.
→For sound output of the TV, select Soundbar. (Samsung TV: Home (
Menu → Settings ( Ⓜ→ All Settings ( )
→ Sound → Sound Output → Select Soundbar)
→The cable connection to the Soundbar may be loose. Remove the cable and connect again.
→Remove the power cord completely, reconnect, and turn the power on.
→Reset the product and try again. (See page 31.)

Subwoofer does not output any sound.

→Check whether the LED indicator on the rear of the Subwoofer is on in blue.
Reconnect the Soundbar and Subwoofer if the indicator is blinking slowly in blue or turned red. (See page 17.)
→You may experience an issue if there is an obstacle between the Soundbar and Subwoofer. Move devices to an area away from obstacles.
→Other devices sending radio frequency signals in proximity may interrupt the connection. Keep your speaker away from such devices.
→Remove and reconnect the power plug.

The Subwoofer volume is too low.

→The original volume of the content you are playing may be low. Try adjusting the Subwoofer level. (See page 12.)
→Bring the Subwoofer speaker closer to you.

Soundbar does not appear on the Bluetooth device list of the TV.

→Disconnect the power cord of the Soundbar completely and reconnect, and then try searching again. (See page 20.)
→Connect the TV and Soundbar with an optical cable, and select the "D.IN" mode by pressing the → (Source) button on the top of the Soundbar. See if the audio output works normally, and try searching again. (See page 20.)

Soundbar does not connect via Bluetooth.

→When connecting a new device, switch to "BT PAIRING" for connection. (Press the
* PAIR button on the remote control or press the → (Source) button on the top of the soundbar for at least 5 seconds.)
→If the Soundbar is connected to another device, disconnect that device first to switch the device.
→Reconnect it after removing the Bluetooth speaker list on the device to connect.

(Samsung TV: Home ( → Menu →

Settings ( ⚙→ All Settings ( ) ➕ Sound → Sound Output → Bluetooth Speaker List)

→Remove and reconnect the power plug, then try again.
→ Reset the product and try again. (See page 31.)

Sound drops out when connected via Bluetooth.

→Some devices can cause radio interference if they are located too close to the Soundbar. e. g. microwaves, wireless routers, etc.
→If your device that is connected via Bluetooth moves too far away from the Soundbar, it may cause the sound to drop out. Move the device closer to the Soundbar.
→If a part of your body is in contact with the Bluetooth transceiver or the product is installed on metal furniture, sound may drop out. Check the installation environment and conditions for use.

Soundbar does not turn on automatically with the TV.

→When you turn off the Soundbar while watching TV, power synchronization with the TV is disabled. First turn off the TV.

14 LICENCE

Dolby AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
- Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 OPEN SOURCE LICENCE NOTICE

To send inquiries and requests for questions regarding open sources, contact Samsung Open Source (http://opensource.samsung.com)

16 IMPORTANT NOTES ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
• An administration fee may be charged if either
  (a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).
  (b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).
• You will be informed of the administration fee amount before a technician visits.

17 SPECIFICATIONS AND GUIDE

Specifications

Model Name HW-C450 / HW-C460 / HW-C460G
USB 5V/0.5A
Weight 1.4 kg
Dimensions (W x H x D) 858.8 x 59.0 x 75.0 mm
Operating Temperature Range +5°C to +35°C
Operating Humidity Range 10 % ~ 75 %
AMPLIFIERRated Output power	40W x 2, 6 ohm
Supported play formats(DTS 2.0 sound is played in DTS format.)	LPCM 2ch, Dolby AudioTM(supporting Dolby® Digital), DTS
Subwoofer Name PS-WC45T
Weight 4.5 kg
Dimensions (W x H x D) 184.0 x 343.0 x 295.0 mm
AMPLIFIERRated Output power	220W
Overall Standby Power Consumption (W) 2.0W
BluetoothPort deactivation method	Press and hold the SOUND MODE button for more than 5 seconds to turn off Bluetooth Power function.

NOTES

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.

- Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements. The full text of the declaration of conformity is available at the following internet address: http://www.samsung.com go to Support and enter the model name. This equipment may be operated in all EU countries and in the UK.

- WIRELESS DEVICE OUTPUT POWER

RF max transmitter power

100mW at 2.4GHz - 2.4835GHz

25mW at 5.725GHz - 5.825GHz

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit:

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

INFORMATIONS RELATIVES À LA SÉCURITÉ

AVERTISSEMENTS

Three grayscale product photos showing different devices: a rectangular remote, a cylindrical tower, and a multi- mounted TV with three small accessories (no text or symbols visible)

Three-panel image showing a U-shaped connector, two connected cables, and a ruler with measurement scales (no readable text or symbols)

Three-step diagram showing a mechanical component before and after rotation, with no visible text or symbols.

Simple line drawing of a bracket-like object with no text or symbols

Support de fixation murale

Diagram of a device with a scroll wheel and adjustment knob, no text or symbols present

Two-step diagram showing a mechanical component before and after modification, with arrows indicating movement (no text or symbols present)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 INSTALLATION DE LA SOUNDBAR SUR UN SOCLE DE TÉLÉVISEUR

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

- Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification. - Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVIS DE LICENCE LIBRE

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Simple line drawing of a 3D object resembling a bracket or seat (no text or symbols)

Mechanical assembly diagram showing a switch mounted on a device with a circular knob and adjustment knob (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 COLLOCAMENTO DELLA SOUNDBAR SUL PIEDISTALLO DI UNA TV

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVVISO DI LICENZA OPEN SOURCE

http://www.samsung.com/it/aboutsamsung/sustainability/environment/our-commitment/data/

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple line drawing of a chair or bench with no text or symbols

Pure electrical circuit lines without any symbols

Mechanical assembly diagram showing a switch mounted on a device with a circular component and rotating knob (no text or symbols)

Two-step diagram showing a mechanical component before and after modification, with arrows indicating movement (no text or symbols present)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVISO SOBRE LICENCIA DE CÓDIGO ABIERTO

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

INFORMAÇÕES DE SEGURANÇA

Three-panel image showing a remote control unit, a black tower, and a remote control with three batteries (no text or symbols visible)

Three technical diagrams showing a U-shaped connector, two connected cables, and a ruler with measurement scales (no text or symbols on the devices themselves)

Two technical diagrams: a wire clamp and a ruler with measurement markings (no text or symbols on the devices themselves)

Cabo ótico Guia de suporte de parede

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Mechanical assembly diagram showing a device with a knob and adjustment knob (no text or symbols)

Simple line drawing of a cylindrical tank connected to a vertical support (no text or symbols)

Mechanical assembly diagram showing a rod being adjusted, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 INSTALAR O SOUNDBAR SOBRE O SUPORTE DO TELEVISOR

Coloque o Soundbar sobre o suporte do televisor.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVISO DE LICENÇA DE OPEN SOURCE

Para enviar perguntas e pedidos de esclarecimento relativamente a fontes abertas, contacte a Samsung Open Source por e-mail (http://opensource.samsung.com)

16 NOTA IMPORTANTE SOBRE O SERVIÇO

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

VEILIGHEIDSINFORMATIE

VEILIGHEIDSINSTRUCTIES

OPEN NOOIT DE BEHUIZING VAN DIT APPARAAT, WANT DAN LOOPT U HET GEVAAR EEN ELEKTRISCHE SCHOK TE KRIJGEN. DE BEHUIZING BEVAT GEEN ONDERDELEN DIE U ZELF KUNT REPAREREN. LAAT ONDERHOUD OVER AAN DE VAKHANDEL.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Mechanical device with a knob and adjustment knob, showing a handle mechanism (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 DE SOUNDBAR PLAATSEN OP EEN TV-VOET

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

dts®

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
- Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 KENNISGEVING OPEN SOURCE- LICENTIE

• UITGANGSVERMOGEN DRAADLOOS APPARAAT

RF max. zendvermogen

100 mW op 2,4 GHz - 2,4835 GHz

25 mW op 5,725 GHz – 5,825 GHz

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

Three grayscale product photos showing different devices: a rectangular remote, a cylindrical tower, and a multi- mounted TV with three small accessories (no text or symbols visible)

Three-panel image showing a U-shaped connector, two connected cables, and a ruler with measurement markings (no readable text or symbols)

Stromkabel (Subwoofer, Soundbar)

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 PLATZIEREN DER SOUNDBAR AUF EINEM TV- STÄNDER

(Samsung-TV: Start (→ Menü →

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 BEKANNTMACHUNG ZU OPEN SOURCE LIZENZEN

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

SÄKERHETSINFORMATION

WARNING

FÖR ATT MINSKA RISKEN FÖR ELEKTRISKA STÖTAR SKALL DU INTE TA BORT HÖLJET (ELLER BAKSIDAN).

DET FINNS INGA DELAR INUTI SOM DU KAN REPARERA. ÖVERLÄMNA SERVICEÅTAGANDEN TILL KVALIFICERAD PERSONAL.

INNEHÅLLSFÖRTECKNING

01 Kontrollera komponenterna 6

Three-panel image showing a remote control unit, a TV tower, and a remote control with two remote devices (no text or symbols visible)

Three-panel image showing a U-shaped connector, two connected cables, and a ruler with measurement markings (no readable text or symbols)

Strömsladd (Subwoofer, Soundbar)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple 3D illustration of a bracket-like object with no text or symbols

Väggfäste

Mechanical assembly diagram showing a switch mechanism with rotating knob and mounting bracket (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 PLACERA SOUNDBAR PÅ ETT TV-STATIV

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 LICENSMEDDELANDE FÖR OPEN SOURCE

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

SIKKERHETSINFORMASJON

SIKERHETSFORANSTALTNINGER

FOR Å REDUSERE FAREN FOR ELEKTRISK ST∅T, TA IKKE AV BAKDEKSLET.

INNVENDIGE DELER KAN IKKE REPARERES AV BRUKEREN. OVERLAT ALL SERVICE TIL

KVALIFISERT PERSONELL.

Three grayscale product photos of remote control devices: a rectangular box, a vertical tower, and a remote control tower with three remote units (no text or symbols visible)

Three-panel image showing a U-shaped connector, two connected cables, and a ruler with measurement markings (no readable text or symbols)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple 3D illustration of a bracket-like object with no text or symbols

Veggfestebraketten

1. Plasser Veggfestestyring mot veggoverflaten.

Mechanical component diagram showing a switch mechanism with rotating knob and adjustment knob (no text or symbols)

Mechanical assembly diagram showing a rod being adjusted, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 PLASSERE SOUNDBAR PÅ ET TV-STATIV

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
- Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 LISENSMERKNADER OM ÅPEN KILDEKODE

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

TURVALLISUUSOHJEET

TURVAOHJEITA

SÄHKÖISKUVAARAN VÄHENTÄMISEKSI ÄLÄ IRROTA TAKAKANTTA.

EI SISÄLLÄ OSIA, JOITA KÄYTTÄJÄ VOISI

KORJATA. JÄTÄ HUOLTO- JA KORJAUSTYÖT

VALTUUTETUN HUOLTOLIIKKEEN TEHTÄVIKSI.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple 3D illustration of a bracket-like object with no text or symbols

Seinäkiinnittimien

Mechanical component diagram showing a switch mechanism with rotating knob and adjustment knob (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 SOUNDBAR- LAITTEEN SIJOITTAMINEN TV:N JALUSTAAN

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVOIMEN LÄHDEKIELEN LISENSSI- ILMOITUS

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

SIKKERHEDSINFORMATIONER

SIKKERHEDSINFORMATIONER

FOR AT MINDSKE RISIKO FOR ELEKTRISK ST∅D MÅ BAGBEKLÆDNINGEN IKKE AFTAGES.

ENHEDENS INDVENDIGE DELE MÅ KUN

EFTERSES AF FAGKYNDIGE. OVERLAD ALT

REPARATIONSARBJEDE TIL AUTORISEREDE

SERVICEFORHANDLERE.

Three grayscale product photos of remote control devices: a rectangular box, a vertical tower, and a multi- mounted remote tower (no text or symbols visible)

Three-panel image showing a U-shaped connector, two connected cables, and a ruler with measurement markings (no readable text or symbols)

Strømkabel (Subwoofer, Soundbar)

Subwooferens bagside

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Simple 3D illustration of a bracket-like object with no text or symbols

Mechanical assembly diagram showing a switch mounted on a device with a circular component and rotating knob (no text or symbols)

Diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 SÅDAN PLACERES SOUNDBAREN PÅ ET TV-M∅BEL

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

dts®

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 BEMAERKNING VEDR. OPEN SOURCE-LICENS

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

INFORMATII DE SIGURANTĂ

AVERTISMENTE PRIVIND SIGURANTA

PENTRU A REDUCE RISCUL DE ELECTROCUTARE, NU SCOATEȚI CAPACUL POSTERIOR (SAU DIN SPATE). ÎN INTERIOR NU EXISTĂ PIESE CARE POT FI REPARATE DE UTILIZATOR. PENTRU SERVICE, ADRESAȚI-VĂ PERSONALULUI CALIFICAT.

Three grayscale product photos showing different devices: a rectangular remote unit, a vertical tower, and a remote control with two small batteries (no text or symbols visible)

Three-panel image showing a U-shaped connector with a small inset and a ruler for scale (no text or symbols on the components)

Cablu de alimentare (Subwoofer, Soundbar)

Şurub suport Şurub
Cablu optic Ghidaj de montare pe perete

Suport de fixare pe perete

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple line drawing of a chair or bench with no text or symbols

Suport de fixare pe perete

Mechanical assembly diagram showing a device with a knob and adjustment knob (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 PLASAREA SISTEMULUI SOUNDBAR PE UN SUPORT DE TELEVIZOR

Plasati sistemul Soundbar pe un suport de televizor.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 NOTIFICARE DE LICENȚĂ OPEN SOURCE

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple 3D illustration of a bracket with no text or symbols

Скоба за монтаж на стена

Pure electrical circuit lines without any symbols

Mechanical assembly diagram showing a device with a knob and adjustment knob (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 ПОСТАВЯНЕ НА SOUNDBAR НА СТОЙКА ЗА ТЕЛЕВИЗОР

Поставете Soundbar на стойка за телевизор.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 БЕЛЕЖКА ЗА ЛИЦЕНЗА ЗА ОТВОРЕН КОД

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple 3D illustration of a bracket-like object with no text or symbols

Mechanical assembly diagram showing a device with a knob and adjustment knob (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 INSTALACJA LISTWY SOUNDBAR NA PODSTAWCE TELEWIZORA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 INFORMACJA O LICENCJI OPEN SOURCE

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

BEZPEČNOSTNÍ INFORMACE

BEZPEČNOSTNÍ VAROVÁNÍ

ABYSTE PŘEDEŠLI RIZIKU ÚRAZU ELEKTRICKÝM PROUDEM, NEODNÍMEJTE ZADNÍ KRYT PŘÍSTROJE.

UVNITŘ PŘÍSTROJE NEJSOU ŽÁDNÁ SERVISNÍ MÍSTA. OPRAVU SVĚŘTE KVALIFIKOVANÉMU SERVISNÍMU TECHNIKOVI.

Three grayscale product photos: a rectangular remote unit, a vertical tower, and a remote control with two small accessories (no text or symbols visible)

Three black cable connectors with sizes and connectors, shown from different angles (x2), alongside a scale bar for measurement.

Napájecí kabel (Subwoofer, Soundbar)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple 3D illustration of a bracket with cutout and label 'x 2' (no other text or symbols)

Mechanical device with a rotary knob and adjustment lever (no text or symbols visible)

Simple line drawing of a cylindrical device with a vertical pipe extending from its side (no text or symbols)

Mechanical assembly diagram showing a rod being adjusted, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 UMÍSTĚNÍ SOUNDBARU NA STOJAN TELEVIZORU

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 POZNÁMKA K LICENCI OTEVŘENÉHO SOFTWARU

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Simple 3D illustration of a bracket with no text or symbols

Mechanical assembly diagram showing a switch mounted on a device with a circular knob (no text or symbols)

Simple line drawing of a cylindrical device with a vertical pipe extending from its side (no text or symbols)

Pravý koniec zariadenia Soundbar

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 INŠTALÁCIA ZARIADENIA SOUNDBAR NA STOJAN TELEVÍZORA

Zariadenie Soundbar umiestnite na stojan televízora.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

- Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification. - Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 POZNÁMKA K LICENCII S OTVORENÝM ZDROJOVÝM KÓDOM

Three grayscale product photos of remote control devices: a rectangular box, a vertical tower, and a remote control tower with three remote units (no text or symbols visible)

Three-panel image showing a U-shaped connector with a small inset view of two connected cables (no text or symbols visible)

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Simple 3D illustration of a bracket-like object with no text or symbols

Fali Konzol

Mechanical assembly diagram showing a device with a knob and adjustment knob, no text or symbols present

Mechanical assembly diagram showing a rod being adjusted, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 A SOUNDBAR TV ÁLLVÁNYRA HELYEZÉSE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 NYÍLT FORRÁSKÓDÚ LICENC MEGJEGYZÉS

Three grayscale product photos showing different household appliances: a rectangular box, a vertical tower, and a remote control unit (no text or symbols visible)

Glavna jedinica Soundbar Subwoofer Daljinski upravljač / Baterije

Three-panel image showing a black cable connector, a U-shaped connector, and a ruler with measurement scales (no text or symbols on components)

Kabel za napajanje (Subwoofer, Soundbar)

Kako upotrebljavati daljinski upravljač

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

- Kada upotrebljavate optički kabel, on mora biti postavljen na način „D.IN”.

1. Spojite priključak DIGITAL AUDIO IN (OPTICAL) na uređaju Soundbar u priključak OPTICAL OUT televizora pomoću digitalnog optičkog kabela.
2. Pritisnite gumb 📄 (Izvor) na gornjoj ploči ili na daljinskom upravljaču, a zatim odaberite način „D.IN”.

06 BEŽIČNO POVEZIVANJE S TELEVIZOROM

Povezivanje TV-a putem tehnologije Bluetooth

Simple 3D illustration of a bracket-like object with no text or symbols

Zidni nosač

Pure electrical circuit lines without any symbols

1. Poravnajte Središnja linija vodilice zidnog nosača sa sredinom televizora (ako montirate Soundbar ispod televizora), a zatim trakom pričvrstite Vodilica zidnog nosača na zid.

- Ako ne postavljate ispod televizora, postavite Središnju liniju u sredinu područja za postavljanje.

1. Gurnite vrh kemijske olovke ili naoštrene olovke kroz sredinu slika A-TYPE na svakoj strani vodilice da biste označili otvore za potporne vijke, a zatim uklonite Vodilica zidnog nosača.

Mechanical component diagram showing a switch mechanism with a circular knob and adjustment knob (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 POSTAVLJANJE SUSTAVA SOUNDBAR NA POSTOLJE TV PRIJEMNIKA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 OBAVIJEST O LICENCI ZA UPORABU SOFTVERA OTVORENOG KODA

Želite li poslati upite i zahtjeve u vezi sa softverom otvorenog koda, obratite se grupi Samsung Open Source (http://opensource.samsung.com)

16 VAŽNA NAPOMENA VEZANA UZ SERVIS

• Slike u ovom korisničkom priručniku služe kao samo kao referenca i mogu se razlikovati od stvarnog izgleda proizvoda.
• Moguća je naplata administrativne pristojbe u slučaju

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

SIGURNOSNE INFORMACIJE

SIGURNOSNA UPOZORENJA

DA BISTE SMANJILI OPASNOST OD

ELEKTRIČNOG UDARA, NE SKIDAJTE POKLOPAC (ILI ZADNJU PLOČU).

UNUTRA SE NE NALAZE DELOVI KOJI SE MOGU

SERVISIRATI. SERVISIRANJE POVERITE

KVALIFIKOVANOM OSOBLJU SERVISA.

Pogledajte tabelu u nastavku za objašnjenje simbola koje možete naći na svom Samsung proizvodu.

	OPREZOPASNOST ODELEKTRIČNOG UDARA.NE OTVARATI.
	Ovaj simbol ukazuje na to da je unutar uređaja prisutan visoki napon. Svaka vrsta kontakta sa unutrašnjim komponentama ovog uređaja predstavlja opasnost.
	Ovaj simbol ukazuje na to da se uz proizvod isporučuje važna dokumentacija koja se odnosi na rukovanje i održavanje.
	Proizvod klase II: Ovaj simbol označava da povezivanje na zaštitno električno uzemljenje nije neophodno.Ako ovaj simbol ne postoji na proizvodu sa kablom za napajanje, proizvod MORA da ima pouzdanu vezu sa zaštitnim uzemljenjem.
	Naizmenična struja: Ovaj simbol označava da naizmeničnu struju.
	Jednosmerna struja: Ovaj simbol označava da jednosmernu struju.
	Oprez, videti uputstva za upotrebu: Ovaj simbol upućuje korisnika da u korisničkom priručniku pročita dodatne informacije u vezi sa bezbednošću.

OPREZ

UPOZORENJE

- Da biste smanjili opasnost od požara ili električnog udara, ne izlažite ovaj proizvod kiši ili vlazi.

OPREZ

Three grayscale product photos showing different devices: a rectangular remote, a cylindrical tower, and a multi- mounted TV with three small accessories (no text or symbols visible)

Glavni uređaj Soundbar Sabvufer Daljinski upravljač/baterije

Three-panel image showing a U-shaped connector, two connected cables, and a ruler with measurement markings (no readable text or symbols)

Kabl za napajanje (Sabvufer, Soundbar)

1	EkranPrikazuje status proizvoda i trenutni režim.
2	Dugme (Napajanje)Uključuje i isključuje napajanje.Funkcija Auto Power DownUređaj se automatski isključuje u sledećim situacijama.- D.IN / BT / USB režim : Ako nema zvučnog signala 18 minuta.
3	Dugme (Jatina zvuka)Podešava jačinu zvuka.Kada se podesi, nivo jačine zvuka se prikazuje na prednjem ekranu uređaja Soundbar.
4	Dugme (Izvor)Bira režim ulaza izvora.
	Režim ulaza Ekran
	Optički digitalni ulaz D.IN
	BLUETOOTH režim BT
	USB režim USB
	Da biste uključili režim „BT PAIRING" promenite izvor u režim „BT" u stanje „BT READY" pa zatim pritisnite dugme (Izvor) i držite ga duže od 5 sekundi.

Kako da koristite daljinski upravljač

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

- Kada koristite optički kabl, on mora biti podešen na režim „D.IN”.

1. Povežite konektor DIGITAL AUDIO IN (OPTICAL) na uređaju Soundbar sa konektorom OPTICAL OUT na televizoru koristeći digitalni optički kabl.
2. Pritisnite dugme ➞ (Izvor) na gornjem panelu ili na daljinskom upravljaču i potom izaberite režim „D.IN“.

06 UPOTREBA BEŽIČNE VEZE SA TV-OM

Povezivanje TV-a putem tehnologije Bluetooth

Kada je televizor povezan preko Bluetooth-a, možete da slušate stereo zvuk bez gnjavaže oko povezivanja kablova.

Simple 3D illustration of a bracket-like object with no text or symbols

Nosača za montažu na zid

1. Postavite Vodicu za montažu na zid na zidnu površinu.

2. Vodicu za montažu na zid mora biti nivelisana.

3. Postavite uređaj Soundbar najmanje 5 cm ispod televizora, ako je televizor montiran na zid.

1. Poravnajte Osu vodice za montažu na zid sa sredinom televizora (ako montirate uređaj Soundbar ispod televizora), a zatim pričvrstite Vodica za montažu na zid za zid koristeći traku.

- Ako ne montirate uredaj ispod televizora, postavite Osa na sredinu oblasti za montiranje.

Mechanical assembly diagram showing a component being inserted into a housing with a rotating knob (no text or symbols)

- Prilikom sklapanja noseći delovi Nosač za montažu na zid treba da se nalaze sa zadnje strane uređaja Soundbar.

Zadnja strana uređaja Soundbar

Simple line drawing of a cylindrical container connected to a vertical support (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 POSTAVLJANJE SOUNDBAR UREĐAJA NA STALAK ZA TELEVIZOR

Postavite Soundbar uređaj na postolje za televizor.

Kao što je prikazano na slici, poravnajte sredinu Soundbar-a sa sredinom TV-a i pažljivo postavite Soundbar u stalak za televizor.

Za optimalni kvalitet zvuka, Soundbar uređaj postavite najmanje 3 cm od prednje strane TV-a.

NAPOMENA

- Uverite se da je Soundbar uređaj postavljen na ravnu i čvrstu površinu.

12 AŽURIRANJE SOFTVERA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 OBAVEŠTENJE O LICENCI OTVORENOG IZVORNOG KODA

Da biste poslali pitanja i zahteve u vezi sa softverom otvorenog koda obratite se grupi Samsung Open Source (http://opensource.samsung.com).

16 VAŽNA NAPOMENA O SERVISIRANJU

• Slike i ilustracije koje su upotrebljene u ovom korisničkom uputstvu date su samo kao reference i mogu se razlikovati od vašeg proizvoda.
• Administrativni troškovi mogu biti naplaćeni u sledećim slučajevima:
  (a) tehničar je pozvan u vaš dom na vaš zahtev i ako proizvod nije u kvaru (tj. ako niste pročitali ovo korisničko uputstvo),
  (b) vi donesete uređaj u servisni centar, a proizvod nije u kvaru (tj. ako niste pročitali ovo korisničko uputstvo).
• I znos tih administrativnih troškova biće vam saopšten pre obavljanja bilo kakvih radova ili kućne posete.

17 SPECIFIKACIJE I VODIČ

Specifikacije

Naziv modela HW-C450
USB 5V/0,5A
Težina 1,4 kg
Dimenzije (Š x V x D) 858,8 x 59,0 x 75,0 mm
Opseg radne temperature +5°C do +35°C
Radni opseg vlažnosti vazduha 10 % ~ 75 %
POJAČALONominalna izlazna snaga	40W x 2,6 ohm
Podržani formati za reprodukciju(DTS 2.0 zvuk se reprodukuje u DTS formatu.)	LPCM 2ch, Dolby AudioTM(podržani Dolby® Digital), DTS
Naziv sabvufera PS-WC45T
Težina 4,5 kg
Dimenzije (Š x V x D) 184,0 x 343,0 x 295,0 mm
POJAČALONominalna izlazna snaga	220W
Ukupna potrošnja energije u režimu mirovanja (W)	2,0W
BluetoothNačin deaktivacije porta	Pritisnite i zadržite dugme SOUND MODE tokomviše od 5 sekundi kako biste isključili funkcijuBluetooth Power.

NAPOMENE

• Samsung Electronics Co., Ltd zadržava pravo da promeni specifikacije bez prethodne najave.
• Težina i dimenzije su približne.

- Kompanija Samsung ovim izjavljuje da je ova radio-oprema u skladu sa Direktivom 2014/53/EU i relevantnim zakonskim odredbama Ujedinjenog Kraljevstva. Ceo tekst izjave o usklađenosti dostupan je na sledećoj internet adresi: http://www.samsung.com; idite na stavku Podrška i unesite naziv modela. Ova oprema sme da se koristi u svim državama članicama EU i Ujedinjenom Kraljevstvu.

• IZLAZNA SNAGA BEŽIČNOG UREĐAJA

RF maks. snaga predajnika

100mW pri 2,4GHz - 2,4835GHz

25mW pri 5,725GHz - 5,825GHz

[Ispravno odlaganje baterija za ovaj uređaj]

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

VARNOSTNI PODATKI

VARNOSTNA OPOZORILA

ZARADI NEVARNOSTI ELEKTRIČNEGA UDARA NE ODPIRAJTE ZADNJEGA (HRBTNEGA) POKROVA.

NAPRAVA NIMA DELOV, KI BI JIH LAHKO POPRAVIL UPORABNIK. SERVIS NAJ OPRAVI USTREZNO USPOSOBLJENA OSEBA.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple 3D illustration of a bracket-like object with no text or symbols

Stenskega nosilca

Mechanical device with a knob and adjustment knob, showing a handle mechanism (no text or symbols visible)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

1. Zvočnik Soundbar potisnite dol, kot je prikazano spodaj, tako da se Stenski nosilci varno zasidrajo na Vijake nosilca.

- Vijake nosilca vstavite v širok (spodnji) del Stenskih nosilcev, nato pa Stenske nosilce potisnite navzdol, da se Stenski nosilci varno zasidrajo na Vijake nosilca.

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 NAMEŠČANJE ZVOČNIKA SOUNDBAR NA STOJALO ZA TELEVIZOR

Zvočnik Soundbar postavite na stojalo za televizor.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 OBVESTILO O ODPRTOKODNIH LICENCAH

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple line drawing of a bracket with no text or symbols

Mechanical component diagram showing a switch mechanism with rotating knob and mounting base (no text or symbols)

Two-step diagram showing a mechanical component before and after modification, with arrows indicating movement (no text or symbols present)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

- Izmantojot optisko kabeli, tas ir jäiestata uz režimu "D.IN".

Simple 3D illustration of a bracket-like object with no text or symbols

Mechanical assembly diagram showing a switch mounted on a device with a circular knob and adjustment knob (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 SISTEMAS SOUNDBAR NOVIETOŠANA UZ TELEVIZORA STATIVA

13 PROBLÉMU NOVĚRŠANA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 PAZIÑOJUMS PAR ATVÉRTÃ PIRMKODA LICENCI

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple 3D illustration of a bracket-like object with no text or symbols

Seinakinnituskronsteini

1. Asetage Seinakinnitusjuhik vastu seinapinda.

2. Seinakinnitusjuhik peab olema loodis.

3. Kui teler on seinale kinnitatud, paigaldage Soundbar vähemalt 5 cm telerist allapoole.

Mechanical assembly diagram showing a device with a knob and adjustment knob (no text or symbols)

- Kokkupanekul veenduge, et Seinakinnituskronstein riputusosad jääksid Soundbari taha.

1. Paigaldage Soundbar koos selle külge kinnitatud Seinakinnituskronstein, riputades Seinakinnituskronstein seinal olevatele Hoidikkruvi.

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

1. Libistage Soundbari alla, nagu on allpool näidatud, nii et Seinakinnituskronstein toetuksid Kruvihoidikutele.

- Sisestage Kruvihoidikutele Seinakinnituskronstein laia (alumisse) ossa ja seejärel libistage Seinakinnituskronstein allapoole, nii et Seinakinnituskronstein toetuksid kindlalt Kruvihoidikutele.

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 SOUNDBARI ASETAMINE TELERIALUSELE

Asetage Soundbar telerialusele.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVATUD LÄHTEKOODI LITSENTSI TEATIS

www.samsung.com/ee/aboutsamsung/sustainability/environment/our-commitment/data/

SAUGOS INFORMACIJA

SAUGOS ISPĖJIMAI

NENUIMKITE DANGTELIO (ARBA GALINĖS DALIES), KAD SUMAŽINTUMĖTE ELEKTROS SMŪGIO PAVOJŲ.

JRENGINYJE NÉRA DALIŲ, KURIŲ TECHNINĖ PRIEŽIŪRĄ GALI ATLIKTI NAUDOTOJAS. DĖL TECHNINĖS PRIEŽIŪROS DARBŲ KREIPKITĖS L KVALIFIKUOTUS TECHNINĖS PRIEŽIŪROS SPECIALISTUS.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Simple 3D illustration of a bracket with a cutout and label 'x2' (no other text or symbols)

Sieninis laikiklis

Pure electrical circuit lines without any symbols

Mechanical assembly diagram showing a device with a knob and adjustment knob (no text or symbols)

Two-step diagram showing a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

11 „SOUNDBAR“ GARSIAKALBIO PADĖJIMAS ANT TELEVIZORIAS STOVO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Confidential unpublished works. Copyright 1992-2019 Dolby Laboratories. All rights reserved.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

- Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification. - Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 ATVIROSIOS PROGRAMINĖS JRANGOS LICENCIJOS PRANEŠIMAS

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

© 2023 Samsung Electronics Co., Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country	Samsung Service Centre	Web Site
■Europe
UK 0333 000 0333		www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100		www.samsung.com/ie/support
GERMANY 06196 77 555 77		www.samsung.com/de/support
FRANCE 01 48 63 00 00		www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864)		www.samsung.com/it/support
SPAIN 91 175 00 15		www.samsung.com/es/support
PORTUGAL	210 608 098Chamada para a rede fixa nacionalDias úteis das 9h às 20h	www.samsung.com/pt/support
LUXEMBURG 261 03 710		www.samsung.com/be_fr/support
NETHERLANDS 088 90 90 100		www.samsung.com/nl/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY 21629099		www.samsung.com/no/support
DENMARK 707 019 70		www.samsung.com/dk/support
FINLAND 030-6227 515		www.samsung.com/fi/support
SWEDEN 0771-400 300		www.samsung.com/se/support
POLAND	801-172-678* lub [phone]*Specjalistyczna infolinia do obstugi zapytań dotyczących telefonów komórkowych: 801-672-678** (opłata według taryfy operatora)	http://www.samsung.com/pl/support/
HUNGARY 0680 SAMSUNG (0680-726-7864)		www.samsung.com/hu/support
AUSTRIA 0800 72 67 864 (0800-SAMSUNG)		www.samsung.com/at/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)

Country	Samsung Service Centre 📞	Web Site
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA 072 726	786	www.samsung.com/hr/support
BOSNIA	055 233 999	www.samsung.com/support
NORTH MACEDONIA	023 207 777	www.samsung.com/mk/support
MONTENEGRO	020 405 888	www.samsung.com/support
SLOVENIA 080 697	267 (brezplačna številka)	www.samsung.com/si/support
SERBIA	011 321 6899	www.samsung.com/rs/support
KOSOVO	038 40 30 90	www.samsung.com/support
ALBANIA 045 620	202	www.samsung.com/al/support
BULGARIA	0800 111 31 - Безплатен за всички оператори*3000 - Цена на един градски разговор или според тарифата на мобилният оператор09:00 до 18:00 - Понеделник до Петък	www.samsung.com/bg/support
ROMANIA	0800872678 - Apel gratuit*8000 - Apel tarifat în rețeaProgram Call CenterLuni - Vineri: 9 AM - 6 PM	www.samsung.com/ro/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA 800-7267		www.samsung.com/ee/support
