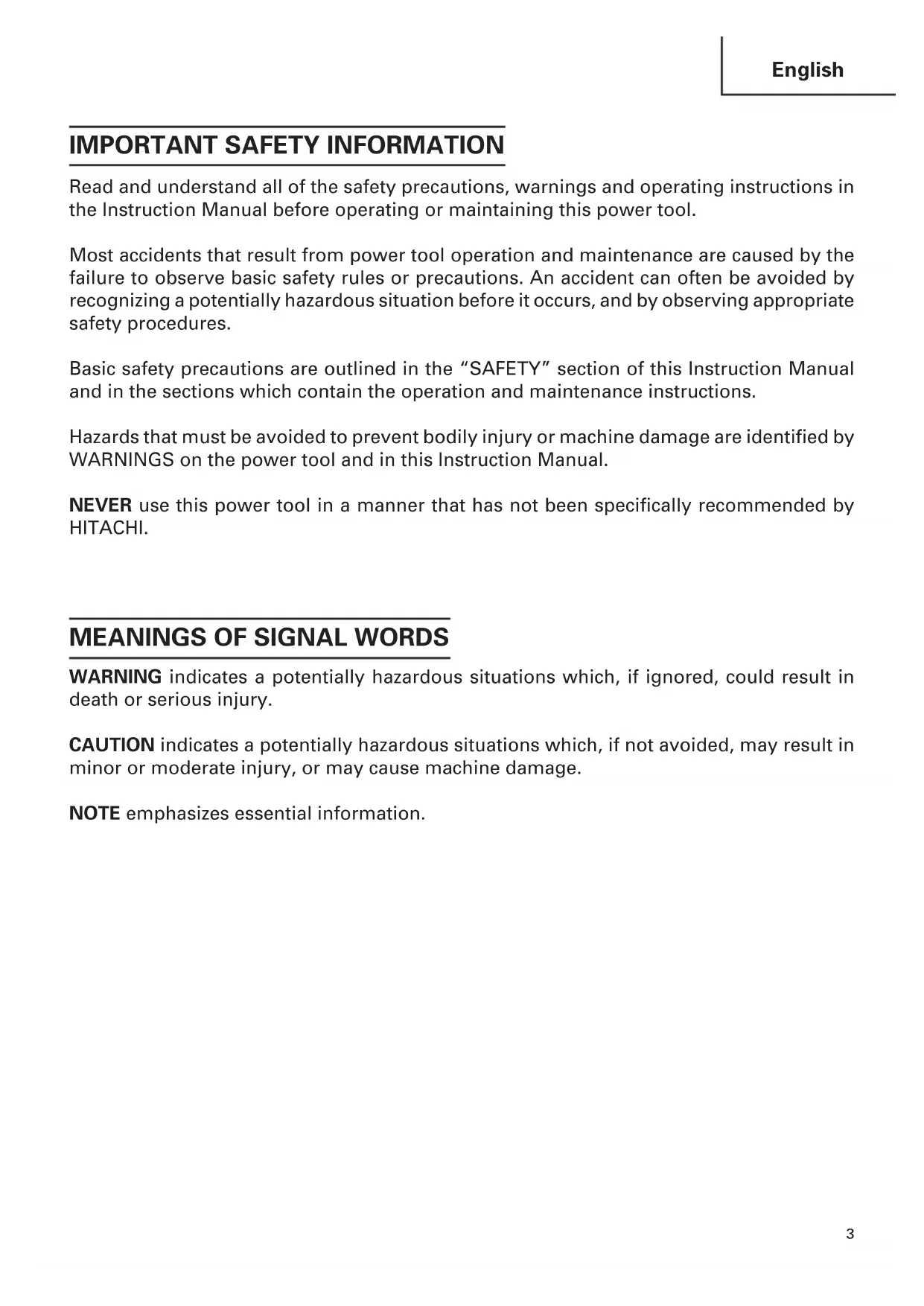

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL SAFETY RULES

⚠ WARNING: Read and understand all instructions.

Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

1. Work Area

(1) Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
(2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust of fumes.
(3) Keep bystanders children, and visitors away while operating a power tool. Distractions can cause you to lose control.

2. Electrical Safety

(1) Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any adaptor plugs. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. If the tools should electrically malfunction or break down, grounding provides a low resistance path to carry electricity away from the user.
(2) Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.
(3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
(4) Do not abuse the cord. Never use the cord to carry the tools or pull the plug from a receptacle. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
(5) When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of electric shock.

3. Personal Safety

(1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tires or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
(2) Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
(3) Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.

(4) Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.
(5) Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.
(6) Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.

4. Tool Use and Care

(1) Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
(2) Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
(3) Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
(4) Disconnect the plug form the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
(5) Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.
(6) Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control.
(7) Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool's operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.
(8) Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used with another tool.

5. Service

(1) Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.
(2) When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instruction may create a risk of electric shock or injury.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.

Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.

1. ALWAYS wear ear protectors when using the tool for extended periods.

Abstract black-and-white icon of a human head silhouette with a thermometer and dot, no text or symbols present.

Prolonged exposure to high intensity noise can cause hearing loss.

1. Handle the bits very carefully.
2. Check the bit carefully for cracks or damage before operation. Replace cracked or damaged bit immediately.
3. Avoid cutting nails. Inspect for and remove all nails from the workpiece before operation.
4. Hold the tool firmly with both hands.
5. Keep hands away from rotating parts.
6. Make sure the bit is not contacting the workpiece before the switch is turned on.
7. Before using the tool on an actual workpiece, let it run for a while. Watch for vibration or wobbling that could indicate improperly installed bit.

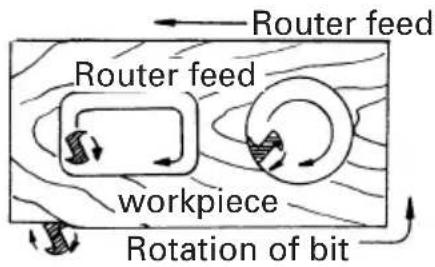

8. Be careful of the bit rotating direction and the feed direction.
9. Do not leave the tool running. Operate the tool only when hand-held.
10. Always switch off and wait for the bit to come to a complete stop before removing the tool from workpiece.
11. Do not touch the bit immediately after operation: it may be extremely hot and could burn your skin.
12. Always lead the power supply cord away from the tool towards the rear.
13. Never run the motor unit when it is not inserted in one of the router bases.

The motor is not designed to be handheld.

1. After changing the bits or making any adjustments, make sure the collet nut and any other adjustment devices are securely tightened.

Loose adjustment device can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.

1. Definitions for symbols used on this tool

V ...... volts

Hz ...... hertz

A ...... amperes

n_0 ...... no load speed

---/min ... revolutions per minute

...... alternating or direct current

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

●lead from lead-based paint.
●crystalline silica from bricks and cement and other masonry products.
●arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

USE OF EXTENSION CORD

Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw.

An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

MINIMUM GAGE FOR CORD SETS

	Total Length of Cord in Feet (Meter)
	0 – 25(0 – 7.6)	26 – 50(7.9 – 15.2)	51 – 100(15.5 – 30.5)	101 – 150(30.8 – 45.7)
Ampere Rating AWG
More Not More
Than Than
0 – 6	1	8	1	6
6 – 10 18 16 14 12
10 – 12 16 16 14 12
12 – 16 14 12 Not Recommended

WARNING:

Avoid electrical shock hazard. Never use this tool with a damaged or frayed electrical cord or extension cord.

Inspect all electrical cords regularly. Never use in or near water or in any environment where electric shock is possible.

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO

OTHER USERS

AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE:

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.

NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

NAME OF PARTS

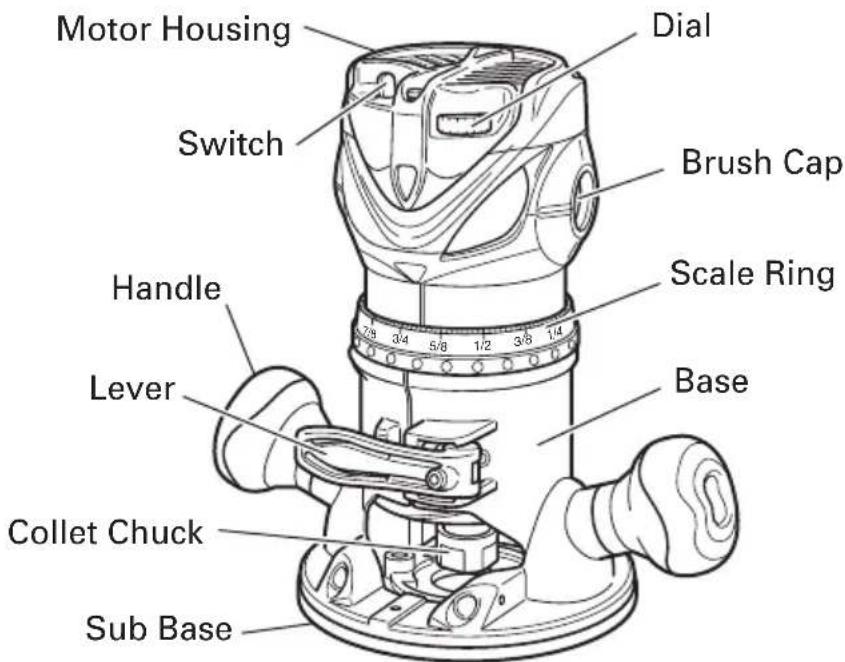

Motor Housing Switch Dial Brush Cap Scale Ring Handle Lever Collet Chuck Sub Base Base

Fig. 1

SPECIFICATIONS

Model M12VC M12SC
Motor Single Phase, Series Commutator Motor
Power source Single Phase 120V AC 60 Hz
Collet chuck capacity	1/2" (12.7 mm), 1/4" (6.35 mm)
Current 11 A
No-load speed 8000/min	-24000/min 24000/min
Weight (with cord) 7.3 lbs (3.3 kg)

ASSEMBLY AND OPERATION

APPLICATIONS

○Woodworking jobs centered on grooving and beveling.

For example, grooving beveling, cutting, copying, engraving, shape cutting, combinations and others.

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.

1. Power switch

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

1. Extension cord

When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

WARNING:

Damaged cord must be replaced or repaired.

1. Check the receptacle

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs.

If such a fautly receptacle is used, it may cause overheating, resulting in a serious hazard.

1. Confirming condition of the environment

Confirm that the work site is placed under appropriate conditions conforming to prescribed precautions.

INSTALLING AND REMOVING BITS

WARNING: Be sure to switch power OFF and disconnect the plug from the receptacle to avoid serious trouble.

1. Installing bits

(1) Remove the motor housing from base as follows.

(a) Open the lever. (Fig. 2)
(b) While holding the base, turn the motor housing counterclockwise.
(c) Turn it until the pin in the base is disengaged from the groove in the motor housing. Lift the motor housing free from the base.

(2) Clean and insert shank of bit into the collet chunk until shank bottoms, then back it out approximately 1/16" (approx. 2 mm).
(3) With the bit inserted and 16 mm wrench holding the armature shaft, use the 23 mm wrench to firmly tighten the collet chuck in a clockwise direction (viewed from under the router). (Fig. 3)
(4) When using the 1/4" diameter shank bit, replace the equipped collet chuck with the one for 1/4" diameter shank bit which is provided as the standard accessory.

CAUTION:

●Ensure that the collet chuck is firmly tightened after inserting a bit. Failure to do so will result in damage to the collet chuck.

2. Removing bits

When removing the bits, do so by following the steps for installing bits in reverse order.

Motor Housing Base Lever

Fig. 2

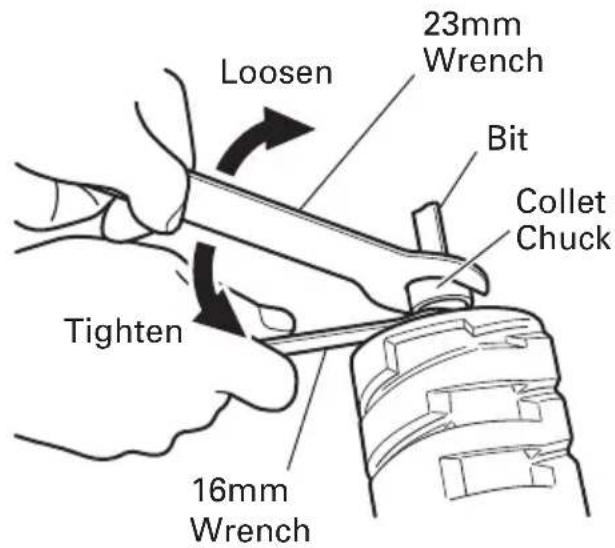

Loosen 23mm Wrench Bit Collet Chuck Tighten 16mm Wrench

Fig. 3

INSTALLING THE MOTOR HOUSING

WARNING: Be sure to switch power OFF and disconnect the plug from the receptacle to avoid serious trouble.

1. Installing the motor housing

(1) Open the lever.
(2) While holding the base, insert the motor housing into the base aligning the pin with the groove in the base.
(3) Confirm that the pin and the groove are aligning. Rotate the motor housing clockwise into the base.
(4) Close the lock lever.

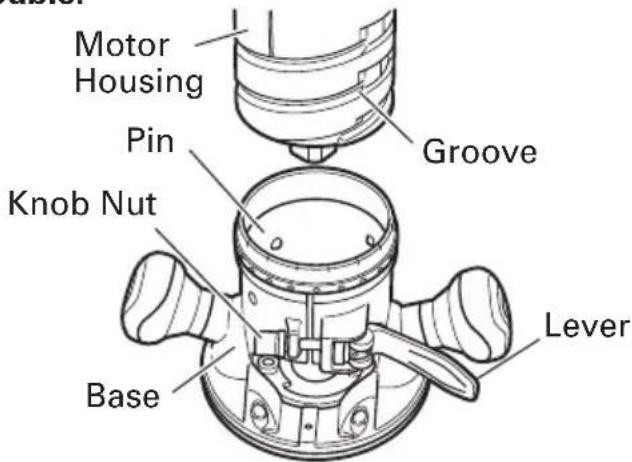

Motor Housing Pin Knob Nut Base Groove Lever

Fig. 4

CAUTION:

You should be able to clamp the locking lever without excessive force. Excessive force may damage the base. You should not be able to move the motor in the base when the lever is clamped. To adjust the lever's clamping force, open the locking lever and turn the knob nut in small increments. Turning the knob nut clockwise tightens the lever, while turning the knob nut counterclockwise loosens the lever.

HOW TO USE THE ROUTER

WARNING: Be sure to switch power OFF and disconnect the plug from the receptacle to avoid serious trouble.

1. Adjusting depth of cut

(1) Place the tool on a flat wood surface.
(2) Open the lever and turn the motor housing until the bit just touches the flat surface. (Fig. 5)
(3) Clamp the lever down until the point where a click can be felt. (Fig. 6)

NOTE:

The motor housing can be temporarily secured by clamping the lever (the motor housing does not slide down by its own weight).

If the motor housing slides down, make adjustments by tightening the knob nut. Turning the knob nut clockwise tightens the lever, while turning the knob nut counterclockwise loosens the lever.

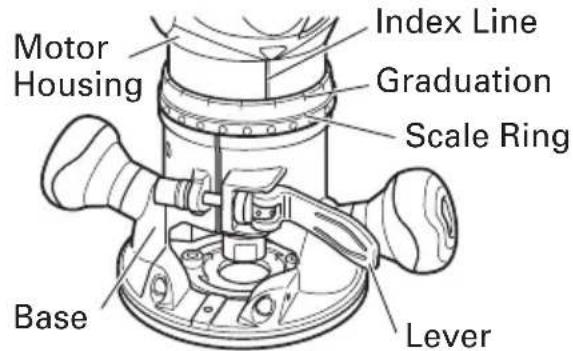

Motor Housing Index Line Graduation Scale Ring Base Lever

Fig. 5

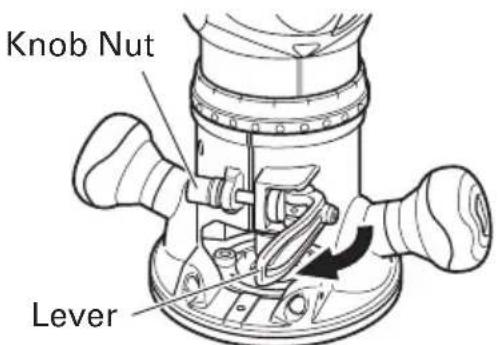

Knob Nut Lever

Fig. 6

(4) While holding up the base slightly, turn the motor housing clockwise until the index line on the motor housing reaches the desired depth indicated on the scale ring. (Fig. 5)

(5) Close the lever firmly.

1. Adjusting the rotation speed (Model M12VC only)

The M12VC have an electronic control system that allows stepless rpm changes. As shown in Fig. 7 dial position "1" is for minimum speed and position "6" for maximum speed.

1. Centering the template guide adapter

WARNING: Be sure to switch power OFF and disconnect the plug from the receptacle to avoid serious trouble.

(1) Loosen the 2 template guide adapter screws, so that the template guide adapter can be moved. (Fig. 8)
(2) Insert the centering gauge through the hole in the template guide adapter and into the collet chuck. (Fig. 9)
(3) Tighten the collet chuck by hand.
(4) Tighten the lever. (This aligns the center of the template guide adapter.)
(5) Tighten the template guide adapter screws, and pull out the centering gauge.

1. Guiding the router

(1) Template guide (M12VC, M12SC: Optional accessory)

Use the template guide when employing a template for producing a large quantity of identically shaped products. (Fig. 10)

As shown in Fig. 11, to install insert template guide in center hole in template guide adapter and secure in place with the lock nut.

A template is a profiling mold made of plywood or thin lumber. When making a template, pay particular attention to the matters cescred blow and illustrated in Fig. 12.

Dial

Fig. 7

Screw Template Guide Adapter

Fig. 8

Centering Gauge Template Guide Adapter Screw Collet Chuck Lever

Fig. 9

Template

Fig. 10

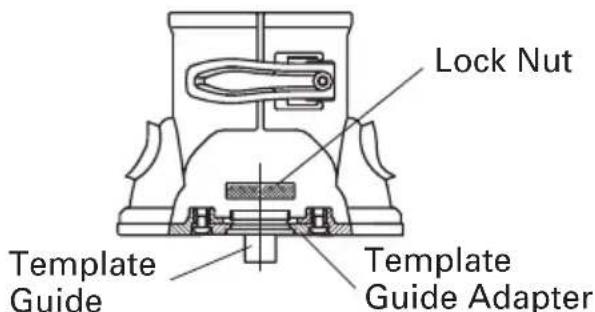

Lock Nut Template Guide Template Guide Adapter

Fig. 11

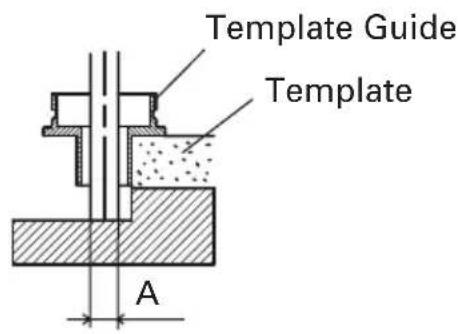

When using the router along the interior plane of the template, the dimensions of the finished product will be less than the dimensions of the template by an amount equal to dimension "A", the difference between the radius of the template guide and the radius of the bit. The reverse is true when using the router along the exterior of the template.

Secure the template to the workpiece. Feed the router in the manner that the template guide moves along the template as shown in Fig. 12.

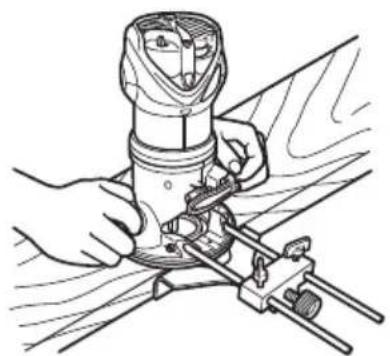

(2) Straight guide (optional accessory) Use straight guide for chamfering and groove cutting along the materials side.
①Insert the guide bar into the hole in the bar holder, then lightly tighten the 2 wing bolts (A) on top of the bar holder.
②Insert the guide bar into the hole in the base, then firmly tighten the 2 hex socket bolts (standard accessories).
③Make minute adjustments of the dimensions between the bit and the guide surface with the feed screw, then firmly tighten the 2 wing bolts (A) on top of the bar holder and the wing bolt (B) that secures the straight guide. (Fig.13)
④As shown in Fig. 14, securely attach the bottom of the base to processed surface of the materials. Feed the router while keeping the guide plane on the surface of the materials.

5. Cutting

Template Guide Template A

Fig. 12

Guide Bar Feed Screw Wing Bolt (A) Hex Socket Bolt Guide Plane Bar Holder Straight Guide Wing Bolt (B)

Fig. 13

Illustration of hands using a mechanical clamp or tool to adjust or install a component (no text or symbols visible)

Fig. 14

WARNING:

●Wear eye protection when operating this tool.
- Keep your hands, face and other body parts away from the bits and any other rotating parts, while operating the tool.

(1) The bit must be kept clear of the materials which are to be cut, when the power is being turned on. (Fig. 15)

(2) Then turn the tool on and wait until the bit attains full speed.

Separate

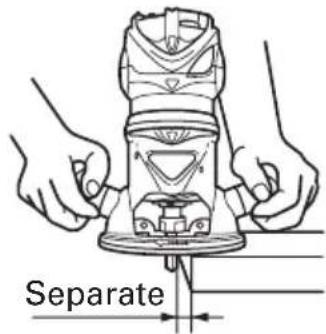

Fig. 15

(3) The bit rotates clockwise (arrow direction indicated on the base). To obtain maximum conformance with the feed directions shown in Fig. 16.

Fig. 16

NOTE:

● Moving the tool forward fast may cause a poor quality of cut, or damage to the bit or motor. Moving the tool forward too slowly may burn and mar the cut.
The proper feed rate will depend on the bit size, the kind of workpiece and depth of cut. Before beginning the cut on the actual workpiece, it is advisable to make a sample cut on a piece of scrap lumber. This will show exactly how the cut will look as well as enable you to check dimensions.
●Abnormalities and overloads will trigger the overload protector, and stop operation. Remove the load immediately, and turn the power off, then on. The rotation speed should return to normal.
●Do not use a power generator as the power source. It may cause the rotation speed to fluctuate.
- When using the straight guide, be sure to install it on the right side in the feed direction. This will help to keep it flush with the side of the workpiece.

MAINTENANCE AND INSPECTION

WARNING: Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.

1. Inspecting the screws

Regularly inspect all screws and ensure that they are fully tightened. Should any of the screws be loosened, retighten them immediately.

WARNING: Using this router with loosened screws is extremely dangerous.

1. Inspecting the carbon brushes (Fig. 17) The motor employs carbon brushes which are consumable parts. Replace the carbon brush with a new one when it becomes worn to its wear limit. Always keep carbon brushes clean and ensure that they slide freely within the brush holders.

Wear limit 43 (6mm) 0.24" 0.67" (17mm) No. of carbon

Fig. 17

CAUTION: Using this router with a carbon brush which is worn in excess of the wear limit will damage the motor.

NOTE: Use HITACHI carbon brush No. 43 indicated in Fig. 17.

1. Replacing carbon brushes

Remove the brush caps with a slotted screwdriver. The carbon brushes can then be easily removed. (Fig. 18)

1. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

1. Service parts list

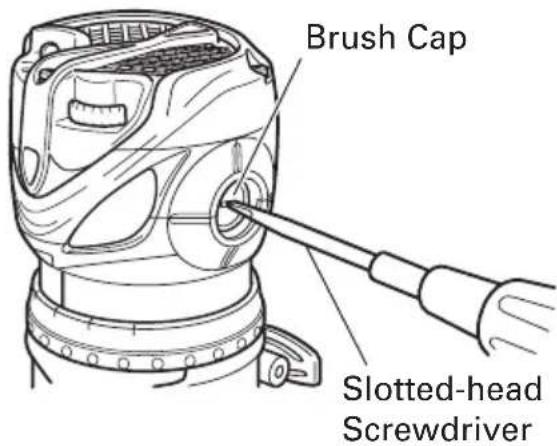

Brush Cap Slotted-head Screwdriver

Fig. 18

CAUTION: Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

6. Service parts list

A: Item No.
B: Code No.
C: No. Used
D: Remarks

CAUTION: Repair, modification and inspection of Hitachi Power Tools must be carried out by an Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

ACCESSORIES

WARNING:

ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE:

Accessories are subject to change without any obligation on the part of the HITACHI.

STANDARD ACCESSORIES

1. Model M12VC, M12SC

(1) 1/4" Collet Chuck (Code No. 323-293)
(2) Template Guide Adapter (attaches to the router) (Code No. 323-272)
(3) Centering Gauge (Code No. 323-296)
(4) 16 mm Wrench (Code No. 323-294)
(5) 23 mm Wrench (Code No. 323-295)

1. Model KM12VC, KM12SC

(1) 1/4" Collet Chuck (Code No. 323-293)
(2) Template Guide Adapter (attaches to the router) (Code No. 323-272)
(3) Centering Gauge (Code No. 323-296)
(4) 16 mm Wrench (Code No. 323-294)
(5) 23 mm Wrench (Code No. 323-295)
(6) Large Hole Sub Base (Code No. 323-297)
(7) Template Guide (Fig. 19)
(8) Lock Nut (Code No. 323-305)
(9) Chip Cover (Code No. 323-292)
(10)Case (Code No. 323-358)

A B C

Code No.	A	B	C
323-298	1/4"(6.5 mm)	5/16"(8 mm) (4 mm)	5/32"
323-299	9/32"(7 mm)	3/8"(9.5 mm) (8 mm)	5/16"
323-300	11/32"(8.7 mm)	7/16"(11.1 mm)	5/32"(4 mm)
323-301	13/32"(10.3 mm)	1/2"(12.7 mm)	5/16"(8 mm)
323-302	17/32"(13.5 mm)	5/8"(16 mm) (14.3 mm)	9/16"
323-303	21/32"(16.6 mm)	3/4"(19.1 mm)	9/16"(14.3 mm)
323-304	5/8"(16 mm)	51/64"(20.2 mm)	9/16"(14.3 mm)

Fig. 19

OPTIONAL ACCESSORIES .... sold separately

(1) Straight Guide Set (Code No. 323-342)

①Bar Holder (Code No. 323-343)
②Feed Screw (Code No. 956-793)
③Wing Bolt (Code No. 301-806)

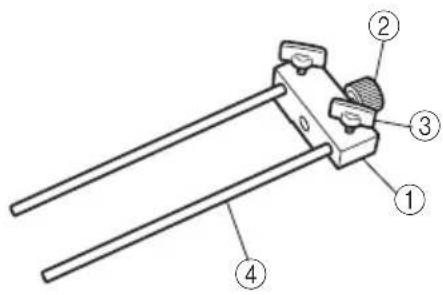

④Guide Bar (Code No. 323-345)
⑤Straight Guide (Code No. 323-344)

Technical diagram of a mechanical clamp or clamp device with numbered parts labeled 1 to 4

Technical line drawing of a mechanical bracket component (no text or symbols)

(2) Dust Collector Set (Code No. 323-346)

NOTE:

Specifications are subject to change without any obligation on the part of the HITACHI.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Abstract black-and-white icon of a human head silhouette with a thermometer inside, no text or symbols present.

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

⚠ AVERTISSEMENT:

Line drawing of a mechanical device with internal components and a tool inserted (no text or symbols)

Fig. 7

Illustration of hands using a mechanical clamp or clamp device to adjust or install a component (no text or symbols visible)

Fig. 14

Technical diagram of a mechanical clamp or clamp assembly with numbered parts labeled 1 to 4

Technical line drawing of a mechanical component with no visible text or symbols

Abstract black-and-white icon of a human head with a thermometer inside, no text or symbols present.

Black and white illustration of a hand with a lightning bolt symbol, no text or labels present.

ADVERTENCIA:

Line drawing of a mechanical device with hands operating it (no text or symbols)

Fig. 14

ADVERTENCIA:

Technical diagram of a mechanical clamp or tool with numbered parts labeled 1 to 4

Technical line drawing of a mechanical bracket component (no text or symbols)

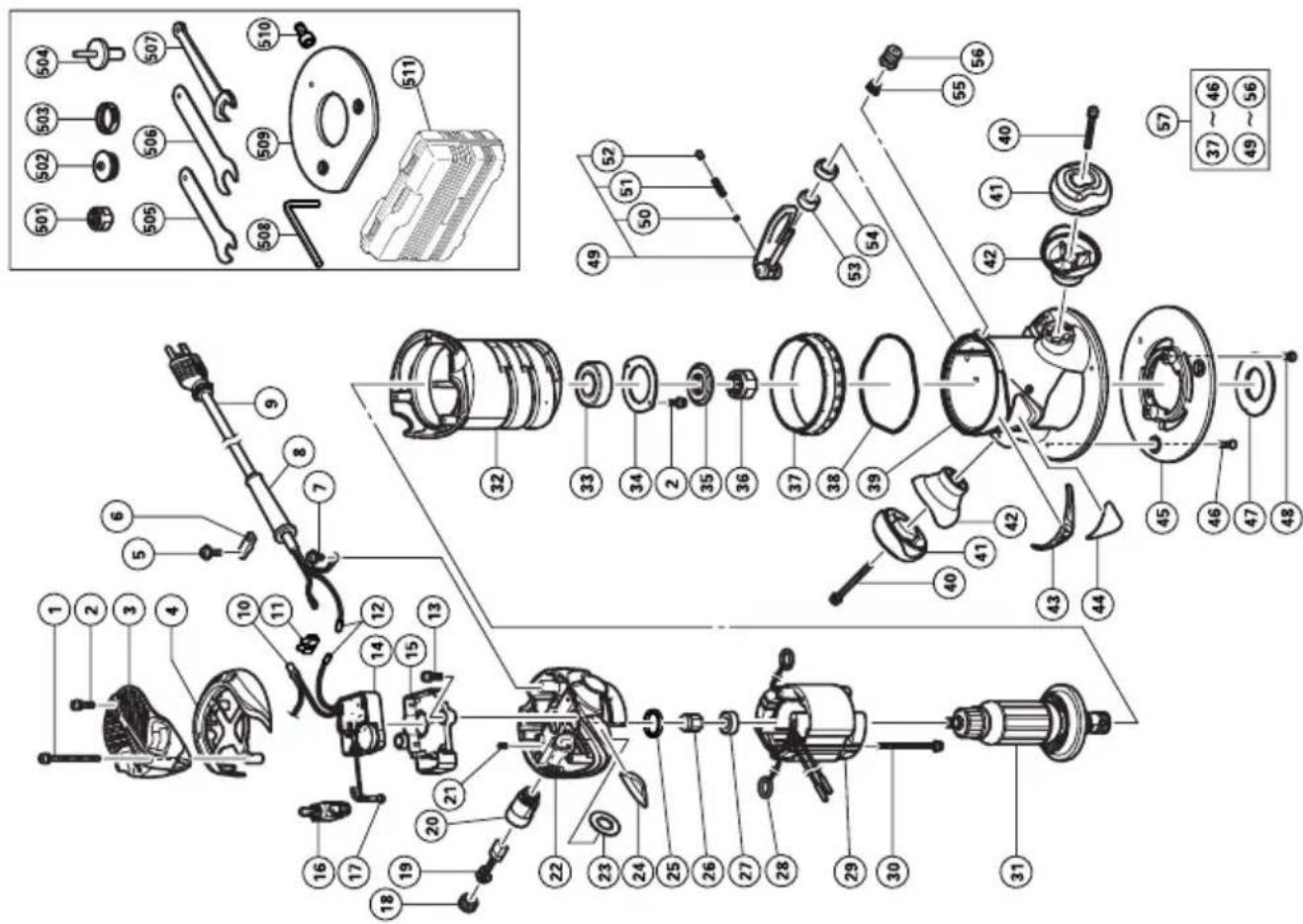

Exploded view diagram of a mechanical assembly with numbered parts and corresponding exploded view details.

KM12VC, KM12SC

Exploded view diagram of a mechanical assembly with numbered parts for identification

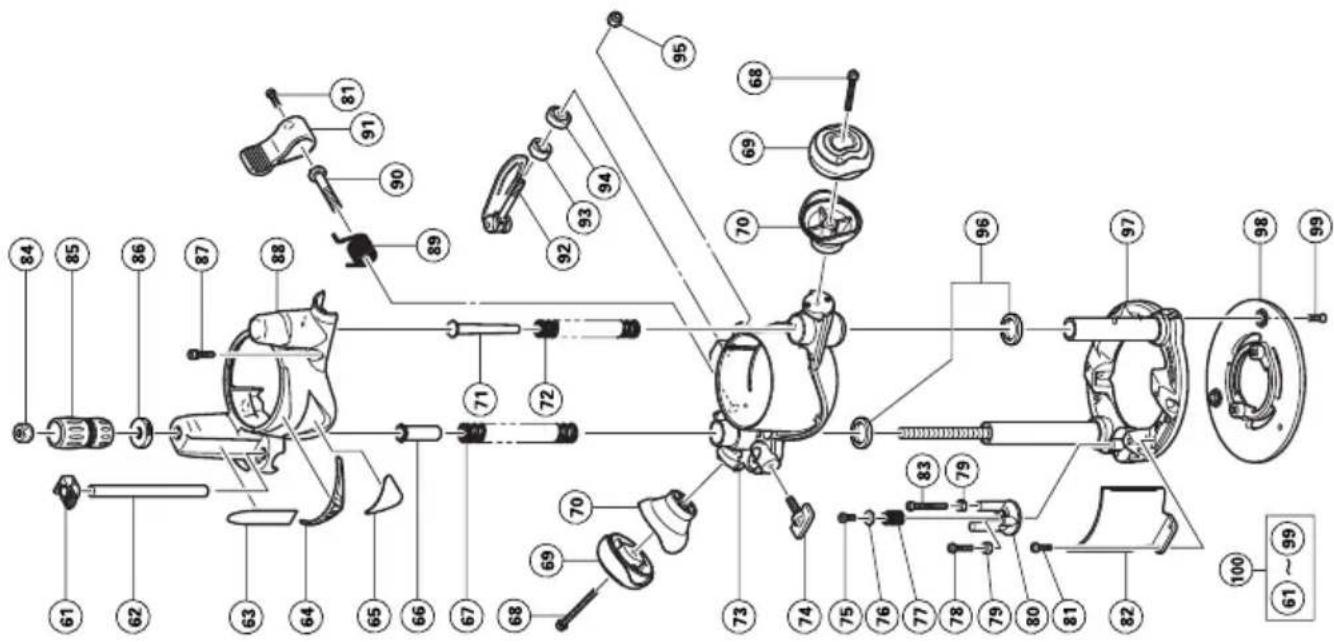

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

KM12VC, KM12SC

A	B	C	D	A	B	C	D	A	B	C	D
1 307-365 3	M4 × 15			41 323-261 2				84 949-560 1	M10
2 307-081 3	M4 × 12			42 323-262 2				85 323-278 1
3 323-267 1				43 ———— 1				86 ———— 1
4 323-266 1				44 ———— 1				87 307-294 4	M5 × 16
5 ————	2	M4 × 16		45 323-265 1				88 323-277 1
6 937-631 1				46 949-332 3	M5 × 12			89 323-284 1
7 317-333 1	M4 × 6			47 323-272 1				90 323-285 1
8 938-051 1	D10.1			48 949-234 2	M5 × 6			91 323-283 1
9 500-399Z				49 323-270 1	"50-52"			92 323-280 1
10 959-141 1				50 959-148 1				93 323-268 1
11 938-307 1				51 982-454 1				94 323-269 1
12 981-373 2				52 938-477 1				95 311-144 1	M6 × 40
13 307-081 2	M4 × 12			53 323-268 1				96 ———— 2
14 1 323-273 1	KM12VC			54 323-269 1				97 323-276 1
14 2 323-307 1	KM12SC			55 306-024 1				98 323-265 1
15 323-274 1				56 323-271 1				99 949-332 3	M5 × 12
16 955-509 1				57 ————	1	"37-46, 49-56"		100 ————	1	"61-99"
17 980-063 1				61 323-287 1				501 323-293 1	1/4"
18 935-829 2				62 323-286 1				502 1 323-298 1	D7.9
19 999-043 2				63 323-279 1				502 2 323-299 1	D9.5
20 957-051 2				64 ———— 1				502 3 323-300 1	D11.1
21 938-477 2	M5 × 8			65 ———— 1				502 4 323-301 1	D12.7
22 323-256 1	"20, 21"			66 323-288 1				502 5 323-302 1	D15.9
23 930-706 2				67 323-289 1				502 6 323-303 1	D19.1
24 ———— 1				68 323-263 2	M6 × 40			502 7 323-304 1	D20.2
25 ———— 1				69 323-261 2				503 323-305 1
26 307-093 1				70 323-262 2				504 323-296 1
27 608-VVM 1	608VVC2PS2L			71 323-290 1				505 323-294 1	16MM
28 930-703 2				72 323-291 1				506 323-295 1	23MM
29 340-595D 1	120V "28"			73 323-275 1				507 ———— 1	10MM
30 943-430 2	M5 × 60			74 301-806 1	M5 × 15			508 944-459 1	5MM
31 360-668U	1	120V "27, 33"		75 949-216 1	M4 × 10			509 323-297 1
32 323-255 1				76 323-282 1				510 949-818 2	M5 × 10
33 600-4VV 1	6004VVCMPS2L			77 971-858 1				511 323-358 1
34 323-257 1				78 ———— 1
35 323-258 1				79 ———— 2
36 ———— 1	1/2"			80 323-281 1
37 323-260 1				81 305-691 3	M4 × 12
38 323-264 1				82 323-292 1
39 323-259 1				83 ———— 1

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

●Lead from lead-based paints,
●Crystalline silica from bricks and cement and other masonry products, and
●Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

3950 Steve Reynolds Blvd.

Norcross, GA 30093

Hitachi Koki Canada Co.

6395 Kestrel Road

Mississauga ON L5T 1Z5

405

Code No. C99133061

Printed in China
