| Product Type | Orbital Rotary Sander |
| Brand | Hitachi |
| Model | SV13YST |
| Power Supply | Mains 120 V, 60 Hz |
| Current | 2.8 A |
| No Load Speed | 9,000 – 13,000 rpm |
| Pad Diameter | 122 mm (4-7/8") |
| Abrasive Paper Diameter | 125 mm (5") |
| Weight | 1.4 kg (3.1 lb) |
| Double Insulation | Yes |
| Speed Control | Variable with dial (positions 1 to 6) |
| Abrasive Paper Attachment | Velcro (hook and loop) |
| Dust Bag | Included (with adapter) |
| Applications | Sanding wood, metal, paint stripping, rust removal |
| Maintenance | Clean dust bag, inspect screws, replace brushes at authorized center |
| Safety | Wear goggles and dust mask; do not force; unplug before maintenance |
| Included Accessories | Sandpaper (2 pieces), dust bag, vacuum adapters |
| Repairability | Only by authorized Hitachi service center with original parts |
Frequently Asked Questions - SV13YST HITACHI
User questions about SV13YST HITACHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sander in PDF format for free! Find your manual SV13YST - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SV13YST by HITACHI.
USER MANUAL SV13YST HITACHI
WARNING
IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.
INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI
⚠ AVERTISSEMENT
IMPORTANT SAFETY INFORMATION ....3 MEANINGS OF SIGNAL WORDS ....3
SAFETY ....3 GENERAL POWER TOOL SAFETY WARNINGS ....3 SPECIFIC SAFETY RULES AND SYMBOLS ....4 DOUBLE INSULATION FOR SAFER OPERATION ....6
FUNCTIONAL DESCRIPTION ....7 NAME OF PARTS ....7 SPECIFICATIONS ....7
Page
ASSEMBLY AND OPERATION ....8 APPLICATIONS ....8 PRIOR TO OPERATION ....8 RANDOM ORBIT SANDER OPERATION ....11 HOW TO INSTALL THE OPTIONAL ACCESSORIES ....12 ATTACHING THE DUST COLLECTOR ....12
MAINTENANCE AND INSPECTION ....13
ACCESSORIES ....14 STANDARD ACCESSORIES ....14 OPTIONAL ACCESSORIES ....14
PARTS LIST....40
TABLE DES MATIÈRES
Français
Page
INFORMATIONS IMPORTANTES DE SÉCURITÉ ....15 SIGNIFICATION DES MOTS D'AVERTISSEMENT ....15
SECURITE ....15 AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX CONCERNANT LES OUTILS ÉLECTRIQUES .. 15 REGLES DE SECURITE SPECIFIQUES ET SYMBOLES ....17 DOUBLE ISOLATION POUR UN FONCTIONNEMENT PLUS SUR ....18
DESCRIPTION FONCTIONNELLE ....19 NOM DES PARTIES ....19 SPECIFICATIONS ....19
Page
ASSEMBLAGE ET FONCTIONNEMENT ....20 APPLICATIONS ....20 AVANT L'UTILISATION ....20 UTILISATION DE LA PONCEUSE ORBITALE ROTATIVE ....23 INSTALLATION DES ACCESSOIRES EN OPTION ....24 FIXATION DU CAPTEUR DE POUSSIÈRE ....24
ENTRETIEN ET INSPECTION 25
ACCESSOIRES ....26 ACCESSOIRES STANDARD ....26 ACCESSOIRES SUR OPTION ....26
LISTA DES PIÈCES....40
ÍNDICE
Español
Página

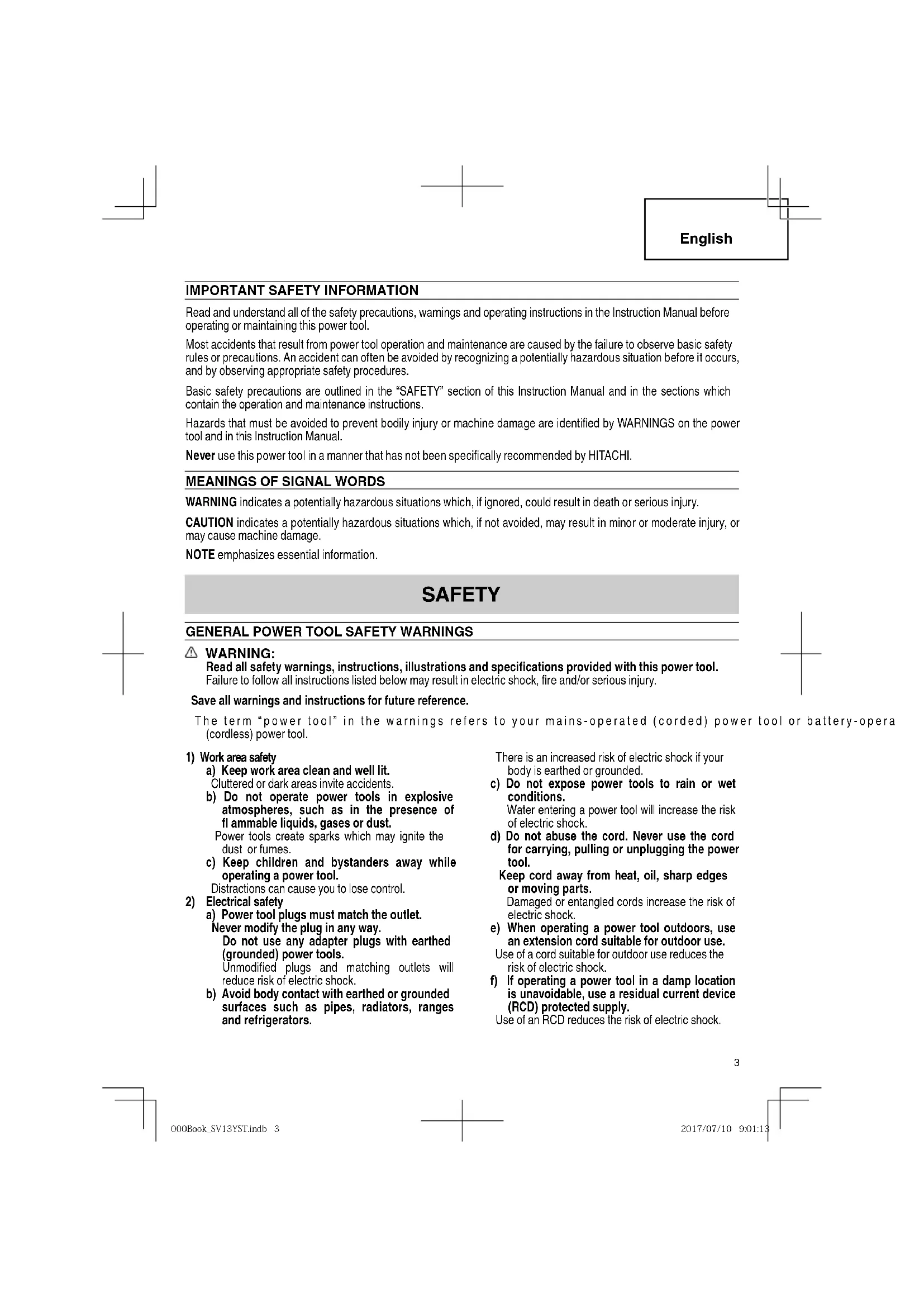

IMPORTANT SAFETY INFORMATION
Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.
Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.
Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.
Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.
Never use this power tool in a manner that has not been specifically recommended by HITACHI.
MEANINGS OF SIGNAL WORDS
WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.
CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.
NOTE emphasizes essential information.
SAFETY
GENERAL POWER TOOL SAFETY WARNINGS
WARNING:
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-opera (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
English
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.

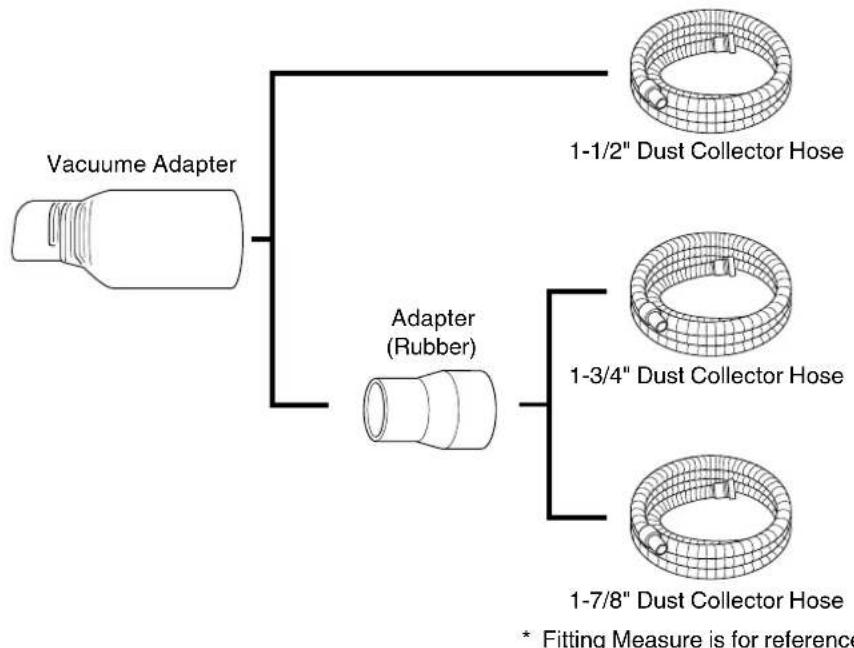

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
SPECIFIC SAFETY RULES AND SYMBOLS
- Hold tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
- ALWAYS wear ear protectors when using the tool for extended periods.
Prolonged exposure to high intensity noise can cause hearing loss.
- NEVER touch moving parts.
NEVER place your hands, fingers or other body parts near the tool's moving parts.
English
- NEVER operate without all guards in place.
NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.
- Use right tool.
Don't force small tool or attachment to do the job of a heavy-duty tool.
Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.
- NEVER use a power tool for applications other than those specified.
NEVER use a power tool for applications other than those specified in the Instruction Manual.
- Handle tool correctly.
Operate the tool according to the instructions provided herein. Do not drop or throw the tool. Never allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.
- Keep all screws, bolts and covers tightly in place.
Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.
- Do not use power tools if the plastic housing or handle is cracked.
Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.
- Blades and accessories must be securely mounted to the tool.
Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.
- Keep motor air vent clean.
The tool's motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.
- Operate power tools at the rated voltage.
Operate the power tool at voltages specified on its nameplate.
If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.
- NEVER use a tool which is defective or operating abnormally.
If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.
- NEVER leave tool running unattended. Turn power off.
Don't leave tool until it comes to a complete stop.
- Carefully handle power tools.
Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.
- Do not wipe plastic parts with solvent.
Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.
- ALWAYS wear eye protection that meets the requirement of the latest revision of ANSI Standard Z87.1.
-
NEVER leave the random orbit sander on floor and so on while spinning.
-

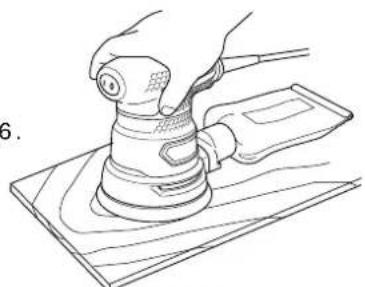

NEVER apply water or lubricating oil, otherwise hazards from electrical shocks may result.
-
NEVER push the random orbit sander too strongly onto a surface.
Pushing the random orbit sander too strongly may cause the sanding paper to tear or shorten the life of the sander itself.
- ALWAYS operate the random orbit sander safely for correct use.
This random orbit sander is a portable dry plane surface sander that was designed for finishing wood and metal surfaces and ground coats.
-

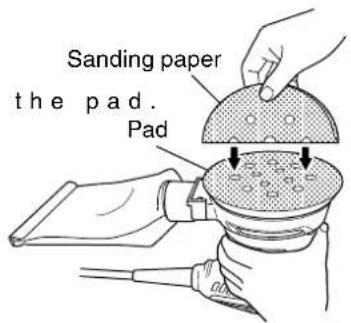

ALWAYS securely installing the sanding paper.
-
ALWAYS wear a protective mask when operating the random orbit sander.
Ventilate your work area adequately when you perform sanding operations.
- Definitions for symbols used on this tool
V.....volts
Hz......hertz
A.....amperes
n。……no load speed
W.....watt
回......Class II Construction
---/min......revolutions per minute
\~ ......Alternating current
In the following cases, clean the dust bag and fully remove any dust.
Dust remaining in the dust bag may cause ignition.
● Sanding steel sheets after sanding materials such as wood
● After completing sanding work
Do not throw sanding dust on an open fire because materials in fine particle form may be explosive:
To ensure safer operation of this power tool, HITACHI has adopted a double insulation design. "Double insulation" means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol "for the words "Double insulation" appear on the power tool or on the nameplate.
Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments.
To keep the double insulation system effective, follow these precautions:
○ Only HITACHI AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine HITACHI replacement parts should be installed.
○ Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.
SAVE THESE INSTRUCTIONS
AND
MAKE THEM AVAILABLE TO
OTHER USERS
AND
OWNERS OF THIS TOOL!
FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.
NAME OF PARTS
SPECIFICATIONS
| Model SV13YST | |
| Motor Single Phase, Series Commutator Motor | |
| Power source Single Phase 120V AC 60 Hz | |
| Current 2.8 A | |
| No-load speed 9,000 – 13,000/min | |
| Sanding pad size(Outer diameter) | 4-7/8" (122 mm) |
| Sanding paper size(Outer diameter) | 5" (125 mm) |
| Weight 3.1 lbs. (1.4 kg) | |
ASSEMBLY AND OPERATION
APPLICATIONS
○ Roughing or finishing of woodwork and metal surfaces.
○ Preliminary sanding of woodwork and metal surfaces before painting.
○ Paint removal.
○ Rust removal.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.
2. Power switch
Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.
3. Extension cord
When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
WARNING:
Damaged cord must be replaced or repaired.
4. Check the receptacle
If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs.
If such a faulty receptacle is used, it may cause overheating, resulting in a serious hazard.
5. Check your working environment
Ensure the following before operation;
○ No flammable gas, liquid, or object at worksite.
○ Sanding thin steel sheet may cause a high booming sound.
In this case, place a rubber mat under the workpiece.
- Take appropriate noise preventive measures to prevent adverse affects on the environment by electrical noise.
○ Clear the area of children or unauthorized personnel.
English
- Installing the sanding paper
Since the attachment is a hook-and-loop type, the sanding paper can be installed easily by just pressing it. When installing the sanding paper, in order to match it to the holes in the pad, gently fold it along the axis of two holes as shown in Fig. 2.
Next, use the holes along the fold as a guide to match the sanding paper and the pad. Finally, press the entire sanding paper uniformly onto the pad.
onto the pad.
WARNING:
Be sure to switch power OFF and disconnect the plug to avoid accidents.
CAUTION:
○ Use only sanding paper size specified on the product nameplate.
○ Do not use accessories with poor adhesion.
- Attaching and removing the dust bag
Attaching the dust bag to dust bag adapter.
As shown in Fig. 3, hold the dust bag adapter and push it in the direction of arrow A to attach it to the dust bag.
To attach the dust bag (Fig. 4):
(1) Unplug the sander.
(2) Align the raised rib on the dust bag with the grooves of the sander, and then attach the dust bag to the sander.
NOTE:
Make sure that the dust bag is secured to the tool before beginning operation.
To detach the dust bag:
(1) Unplug the sander.
(2) Pull up on the dust bag and remove it from the tool.
English
NOTE:
When placing the dust bag on the tool, be sure that the raised rib on the dust bag aligns with the groove on the sander and that the dust bag snaps into place properly. Improper attachment of the dust bag can cause damage to internal components.
8. Adjustment of speed
The sander is equipped with the electric control circuit which enables non-step speed control. To adjust the speed, turn the dial shown in Fig. 5. When the dial is set to "1", the sander operates at the minimum speed (9,000/min). When the dial set to "6", the sander operates at the maximum speed (13,000/min). Adjust the speed according to the material to be cut and working efficiency.
By adjusting the dial, match the speed to the material and type of work.
| Material | Grain | Dial scale | |
| Rough grinding Fine grinding | |||
| Paintwork: Sanding 180 400 3 – 6 Repairs (scratches, rust spots) 120 Stripping 40 80 2 – 4 | 240 2 – 4 | ||
| Wood: Softwood 60 – 80 240 3 – 6 Hardwood 60 180 3 – 5 Veneers 240 320 2 – 4 | |||
| Metals: Aluminium Steel Stainless steel | 80 240 2 – 460 240 3 – 6120 240 3 – 6 | ||
NOTE: Please use this table as a standard.
WARNING: Never apply water or grinding fluid when sanding. This could result in electrical shock.
- How to hold the random orbit sander While gripping the housing, lightly press the sander against the surface to be sanded so that the sanding paper uniformly contacts the surface, as shown in Fig. 6. DO NOT apply excessive pressure to the sander while sanding. Excessive pressure may cause overload of the motor, reduced service life of the sanding paper, and lowered sanding or polishing efficiency.
-
How to move the random orbit sander Move the sander by either moving it up and down or by moving it in circles while gradually progressing in a sideways direction. (Figs. 7 and 8)
-
Switching the sander ON and OFF The power can be turned on by setting the switch to ON (I) and turned off by setting the switch to OFF (O).
NOTE:
Never turn the power switch ON when the sander is contacting the surface to be sanded. This is necessary to preclude damage to the material. The same applies when switching the power OFF.
CAUTION:
- Immediately after use, always turn the sander off and unplug it.
● Since the sander may suck in dust and debris, be careful not to place it where there is much dust and debris when it is still spinning right after use.
- Looking from above, the sanding pad rotates clockwise during the loaded operation, but it may rotate counterclockwise during the no-load operation.
● Never run the tool without the sanding paper. You may seriously damage the support plate.
- Using the tool with the support plate edge contacting the workpiece may damage the support plate.
HOW TO INSTALL THE OPTIONAL ACCESSORIES
⚠ WARNING: Be sure to switch power OFF and disconnect the plug to avoid accidents.
○ Mounting the polyester buff Since the attachment is a hook-and-loop type as with the sanding paper, the polyester buff can be mounted by just pressing it onto the pad (Fig. 9).
ATTACHING THE DUST COLLECTOR
External extraction system:
Fit dust extraction nozzle (see chapter on Accessories). Connect a suitable extraction device. Use a suction hose with vacuum adapter and adapter. See Accessories section.
note right of A
* Fitting Measure is for reference
Fig. 10
MAINTENANCE AND INSPECTION
⚠ WARNING: Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.
-
Emptying and cleaning the dust bag If the dust bag contains too much dust, dust collection will be affected. Empty the dust bag when it gets full. Remove the dust bag, detach the closure band and dispose of the contents.
-
Inspecting the sanding paper Since use of worn-out sanding paper will degrade effi ciency and cause possible damage to the pad, replace the sanding paper as soon as excessive abrasion is noted.
-
Inspecting the screws Regularly inspect all screws and ensure that they are fully tightened. Should any of the screws be loosened, retighten them immediately.
⚠ WARNING: Using this random orbit sander with loosened screws is extremely dangerous.
-
Inspecting the carbon brushes For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a HITACHI AUTHORIZED SERVICE CENTER.
-
Service and repairs All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.
-
Service parts list
⚠️ CAUTION: Repair, modification and inspection of Hitachi Power Tools must be carried out by a HITACHI AUTHORIZED SERVICE CENTER.
This Parts List will be helpful if presented with the tool to the HITACHI AUTHORIZED SERVICE CENTER when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
ACCESSORIES
⚠ WARNING: ALWAYS use Only authorized HITACHI replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.
NOTE:
Accessories are subject to change without any obligation on the part of the HITACHI.
STANDARD ACCESSORIES
(1) Sanding paper (2 pcs) (2) | Dust bag (1 pc)(Code No. 371871) | |
(3) Dust bag adapter (1 pc)(Code No. 371873) | (4) Vacuum adapter (1 pc)(Code No. 371875) | (5) Adapter (1 pc)(Code No. 371874) |
OPTIONAL ACCESSORIES .... sold separately
○ Sanding paper
| Size (Outer diameter) Type Grit No. Code No. | |||
| 5" (125 mm) Velcro type | AA40 308516 | ||
| AA60 | 308517 | ||
| AA80 308518 | |||
| AA120 | 308519 | ||
| AA180 | 308520 | ||
| AA240 | 308521 | ||
| AA320 | 308522 | ||
| AA400 | 308523 | ||
○ Polyester buff (Code No. 308515)
NOTE:
Specifications are subject to change without any obligation on the part of the HITACHI.
14
INFORMATIONS IMPORTANTES DE SÉCURITÉ
REMARQUE:
Line drawing of a hand using a power tool on a wooden surface, labeled Fig. 6 (no text or symbols on the diagram itself)natural_image
Simple line drawing of a hand holding a curved pipe with an arrowhead, no text or symbols presentFig. 7
Simple line drawing of a quill pen in an inkwell, no text or symbols present
| 33 WASHER | 1 | |
| 34 SCREW M4x12 1 | ||
| 35 BEARING COVER | 1 | |
| 36 FAN GUIDE | 1 | |
| 37 BRAKE RING | 1 | |
| 38 BASE PAD | 1 | |
| 39 M4 SCREW | 4 | |
| 301 | SANDING PAPER#120 | 2 |
| 302 | DUST BAG ASS'Y | 1 |
| 303 | DUST BAG ADAPTER | 1 |
| 304 | ADAPTER | 1 |
| 305 | VACUUM ADAPTER | 1 |
| 306 | O-RING | 1 |
| No Part Name QTY | |
| 1 INTERNAL WIRE(A) 1 | |
| 2 INTERNAL WIRE(B) 1 | |
| 3 INTERNAL WIRE(C) 1 | |
| 4 TERMINAL(A) 1 | |
| 5 TERMINAL(B) 1 | |
| 6 CONTROL CIRCUIT ASS'Y 1 | |
| 7 SWITCH 1 | |
| 8 FIXING BOARD 1 | |
| 9 SWITCH COVER 1 | |
| 10 MONITORING LABEL 1 | |
| 11 CORD 1 | |
| 12 CORD ARMOR 1 | |
| 13 CORD BAND 1 | |
| 14 BRUCH HOLDER 2 | |
| 15 CARBON BRUSH | 2 |
| 16 RIGHT HOUSING ASS'Y | 1 |
| 17 TAPPING SCREW 4×20 | 4 |
| 18 CORD CLIIP | 1 |
| 19 TAPPING SCREW 3.5×16 | 2 |
| 20 STATOR ASS'Y | 1 |
| 21 BALL BEARING(626RS) | 1 |
| 22 PLAIN WASHER(A) | 1 |
| 23 ARMATURE ASS'Y | 1 |
| 24 PLAIN WASHER(B) | 2 |
| 25 BALL BEARING(629RS) | 1 |
| 26 O RING | 1 |
| 28 DUST FAN | 1 |
| 29 BEARING HODER | 1 |
| 30 PLAIN WASHER(C) | 1 |
| 31 BALL BEARING(6002DDW) 1 | |
| 32 LEFT HOUSING ASS'Y | 1 |
000Book_SV13YST.indb 42
2017/07/10 9:01:2
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
- Lead from lead-based paints,
- Crystalline silica from bricks and cement and other masonry products, and
- Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
AVERTISSEMENT:
Minato-ku, Tokyo 108-6020, Japan
Distributed by
Hitachi Koki U.S.A., Ltd.
PO Box 970
Braselton, GA 30517
Hitachi Koki Canada Corp.
450 Export Blvd. Unit B,
Mississauga ON L5S 2A4
Hitachi Power Tools de México, S. A. de C. V.
Code No. C99230361 O
Printed in China
