P18DSL - Sander HITACHI - Free user manual and instructions

Product type	Random orbital sander
Brand	Hitachi (now Metabo HPT)
Model	P18DSL
Power source	Cordless, 18 V lithium-ion battery
Battery type	Li-ion 18 V, compatible with Hitachi 18 V series
Pad diameter	125 mm (5 inches)
Orbital stroke	2 mm (5/64 inch)
No-load speed	6,000 – 11,000 RPM (variable)
Dimensions (L x W x H)	260 x 130 x 150 mm
Weight (without battery)	1.2 kg
Dust box capacity	Approx. 200 ml
Extraction system	Built-in dust collector or vacuum adapter
Main functions	Fine sanding, polishing, deburring
Speed control	Yes, dial adjustment
Disc brake	Yes, for quick stop
Abrasive type	Hook-and-loop (Velcro), 125 mm diameter
Housing material	Reinforced plastic
Sound level	82 dB(A) (uncertainty 3 dB)
Vibration	5.0 m/s² (uncertainty 1.5 m/s²)
Maintenance and cleaning	Clean the filter and dust box regularly; no lubrication required
Safety	Anti-restart safety coupling; trigger lock
Spare parts and repairability	Pad, backup pad, switch, brushes (brushless motor: no brush replacement)
General information	2-year warranty; Hitachi/Metabo HPT after-sales service

Frequently Asked Questions - P18DSL HITACHI

How to change the sanding pad on the Hitachi P18DSL sander?

Unscrew the center screw of the pad (if present) or peel off the used abrasive. Attach the new pad aligning the dust holes. Tighten the screw moderately. Use a 125 mm hook-and-loop abrasive.

Which battery to use with the P18DSL?

Use a Hitachi 18 V lithium-ion battery from the BSL18xx series. Ni-Cd batteries are not compatible. Recommended capacity is 3.0 Ah or higher for optimal runtime.

How to adjust the sanding speed?

Turn the adjustment dial on top of the sander. Number 1 corresponds to minimum speed (approx. 6,000 RPM) and number 6 to maximum speed (approx. 11,000 RPM). Adjust the speed to the material.

Why won't my sander start?

First check that the battery is charged and properly inserted. Make sure the safety lock is not engaged (side button). If the problem persists, the motor or electronics may be faulty.

How to clean the dust box?

Empty the dust box after each use. Remove it by pressing the side clips. Wash it with clean water and dry it completely before reinstalling. Also clean the foam filter.

Can I use the sander with a vacuum cleaner?

Yes, remove the dust box and connect the supplied vacuum adapter (or a universal adapter) to a vacuum cleaner. This improves extraction efficiency and reduces airborne dust.

What types of sanding are possible with the P18DSL?

This random orbital sander is suitable for fine sanding of wood, metal, plastic, as well as for polishing. Use fine-grit abrasives for finishing and coarse grit for deburring.

How to know if the brushes need replacement?

The P18DSL is equipped with a brushless motor, so no brush maintenance is required. If the motor does not run properly, check the battery or contact customer service.

What safety precautions to observe?

Always wear safety glasses, a dust mask, and gloves. Do not wear loose clothing. Secure the workpiece firmly. Disconnect the battery before changing abrasives.

How to store the P18DSL sander?

Remove the battery and clean the tool. Store it in a dry place, protected from frost and moisture. Keep it in its original case or in a safe place to avoid impacts.

USER MANUAL P18DSL HITACHI

Illustration of a Hitachi industrial power tool with labeled part (P 18DSL), no other text or symbols present.

Read through carefully and understand these instructions before use.

Simple geometric diagram with a grid pattern inside a polygon, labeled with numbers 2 and ② (no text or symbols within the diagram itself)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Illustration of hands using a screwdriver to adjust or install a component, with no visible text or symbols

Line drawing of hands holding a device on a base (no text or symbols)

	English Deutsch Français Italiano
1	Planing Hobeln Rabotage Plallatura

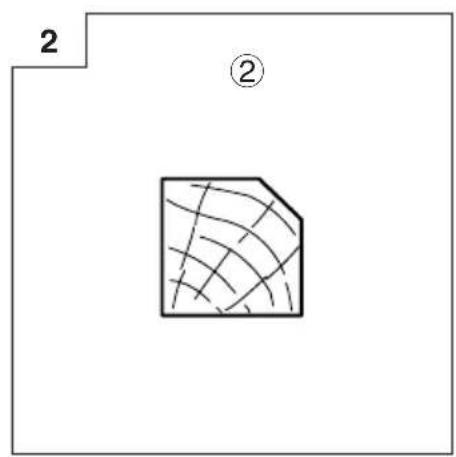

2	Beveling Abkanten Biseautage Smussatura
3	Rabberting Falzen Formation de feuillure Scanalatura
4	Tapering Abschrägen Formation de biais Rastrematura

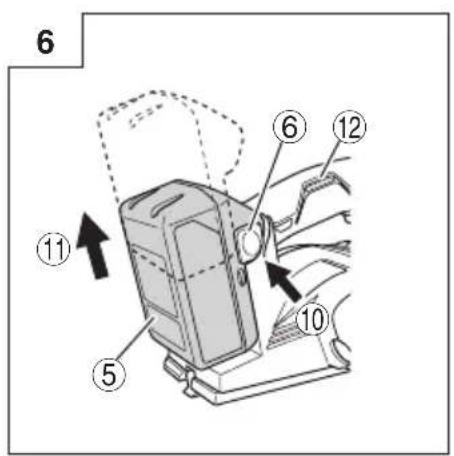

5	Rechargeable battery	Akkumulator	Batterie rechargeable	Batteria ricaricabile
6	Latch	Schnapper	Loquet	Fermo
7	Battery cover	Batterieabdeckung	Couvercle de batterie	Coperchio per la batteria
8	Terminals Anschlüsse	Bornes Terminali
9	Ventilation holes	Belüftungslöcher	Orifices de ventilation	Fori di ventilazione
10	Push	Drücken Pousser	Spingere
11	Pull out	Herausziehen	Tirer	Estrarre
12	Handle	Griff	Poignée	Impugnatura
13	Charger	Ladegerät	Chargeur	Caricatore
14	Pilot lamp	Kontrollampe	Lampe témoin	Spia
15	Switch lock	Schalterverriegelung	Verrou d'interrupteur	Bloqueo del interruptor
16	Switch trigger	Abzugschalter	Gâchette	Interruttore a grilletto
17	Remaining battery indicator switch	Ladezustand-Anzeigeschalter	Commutateur de puissance batterie résiduelle	Interruttore indicatore batteria restante
18	Remaining battery indicator lamp	Ladezustand-Kontrollleuchte	Témoin lumineux de puissance batterie résiduelle	Spia luminosa batteria restante
19	Knob	Knopf	Bouton Manopola
20	Scale	Skala	Échelle	Scala graduata
21	Mark	Markierung Marque	Segno

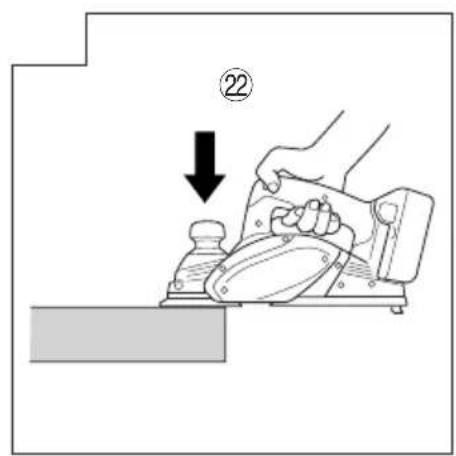

22	Beginning of cutting operation	Beginn des Hobelns	Début de l'opération de coupe	Inizio dell'operazione di piallatura
23	End of cutting operation	Ende des Hobelns	Fin de l'opération de coupe	Termine dell'operazione di piallatura
24	Stand	Ständer Support Supporto

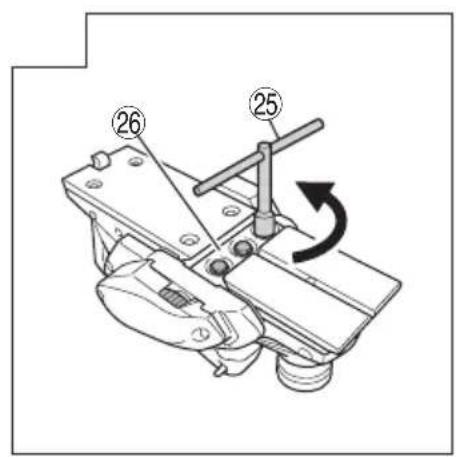

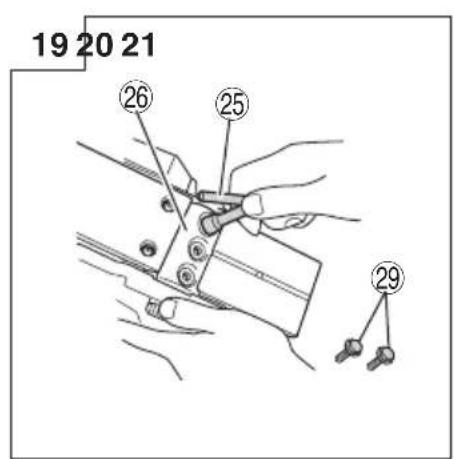

25	Box wrench	Steckschlüssel	Clef à béquille	Chiave fissa a collare
26	Blade holder	Hobeleisenhalter	Support de lame	Porta-lama
27	Carbide blade(Double edged blade type)	Hobeleisen mit Hartmetallschneide(Beidseitigen klingentyp)	Lame au carbure(Lames à deux tranchants)	Lama in carburo(tipo lama a doppio filo)

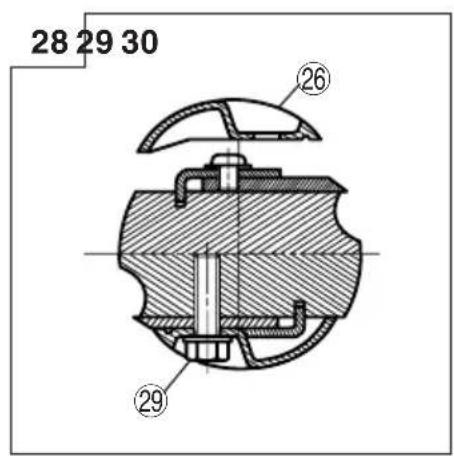

28	Set plate (B)	Einstellplatte (B)	Plaque de fixation (B)	Piastra di impostazione (B)
29	Bolt	Schraube	Boulon	Bulloni

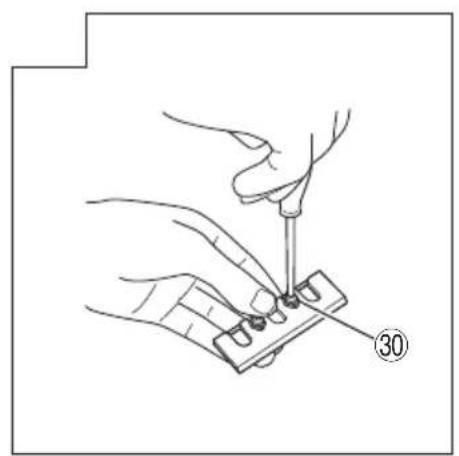

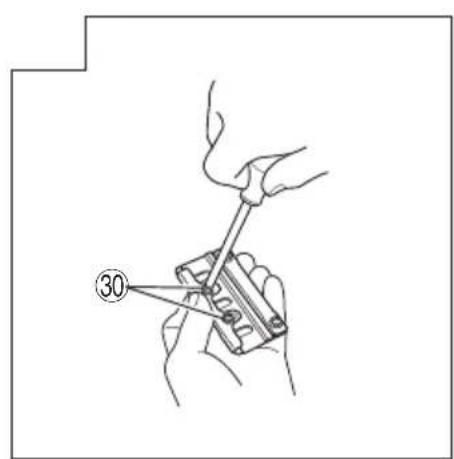

30	Machine screw	Maschinenschraube	Vis machine	Vite

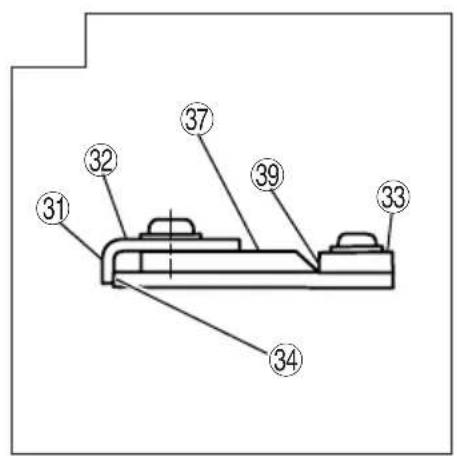

31	Turned surface	Gebogene Oberfläche	Surface tournée	Superficie curva
32	Set plate (A)	Einstellplatte (A)	Plaque de fixation (A)	Piastra di impostazione (A)
33	Set gauge	Einstell-Lehre	Jauge de fixation	Calibro di impostazione
34	Wall surface b	Wandoberfläche b	Surface du mur b	Superficie parete b
35	Flat portion of the cutter block	Flacher Teil des Schneidblocks	Section plate du bloc de lame	Parte piatta del blocco taglierina

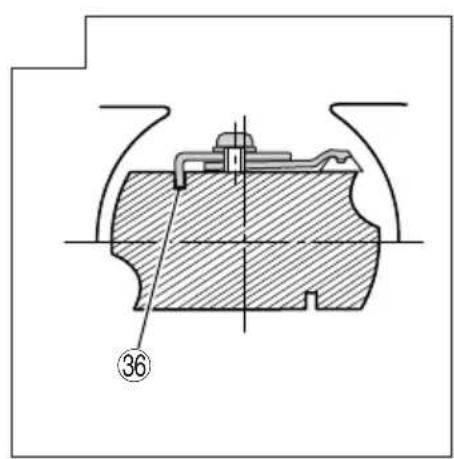

36	Groove Nut	Encoche	Scanalatura

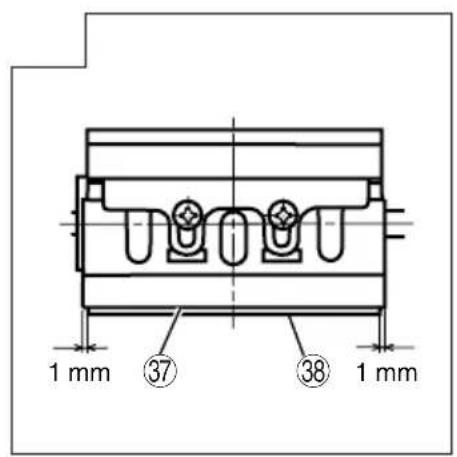

37	Blade(Resharpenable blade type)	Hobeleisen(schärfbarer Klingentyp)	Lame(lame de type réaffutable)	Lama (tipo lama riaffilabile)
38	Cutter block	Schneidblock	Bloc de coupe	Blocco della pialla
39	Wall surface a	Wandoberfläche a	Surface du mur a	Superficia parete a
40	Chip cover	Spanabdeckung	Écran anti-copeaux	Coperchio trucioli
41	Screw D4 × 16	Schraube D4 × 16	Vis D4 × 16	Vite D4 × 16
42	Dust adapter	Staubadapter	Adaptateur anti-poussière	Adattatore polvere
43	Elbow	Knie	Coude	Gomito
44	Dust bag	Staubbeutel	Sac à poussière	Sacchetto raccoglipolvere
45	Wear limit	Verschleißgrenze	Limite d’usure	Limite di usura
46	Nail of carbon brush	Klaue der Kohlebürste	Clou de balai en carbone	Chiodo di spazzola di carbone
47	Protrusion of carbon brush	Krempe der Kohlebürste	Saillie de balai en carbone	Sporgenza di spazzola di carbone

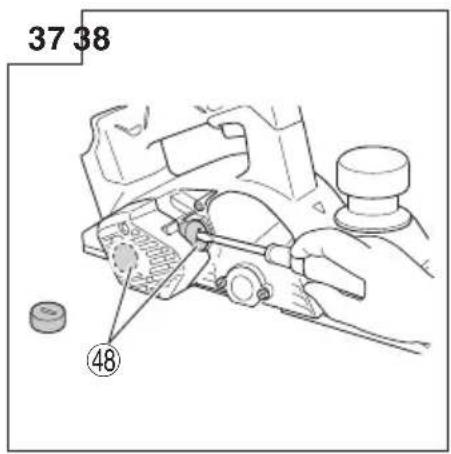

48	Brush cap	Motorsensenaufsatz	Bouchon de porte-balai	Coperchio della spazzola

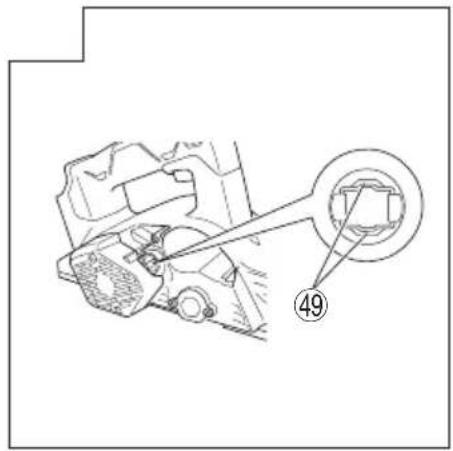

49	Contact portion outside brush tube	Kontaktteil außerhalb des Bürstenrohrs	Section de contact à l’extérieur du tube de balai	Parte di contatto fuori dal tubo spazzola

	Nederlands Español	Português
1	Schaven Cepillar		Aplainamento
2	Afbramen Biselar		Chanfragem
3	Groeven Ensamblar		Ranhuragem
4	Afschuinen Renatar		Estreitamento
5	Oplaadbare batterij Batería	recargable	Bateria de recarregável
6	Vergrendeling Enganche		Lingüeta
7	Batterijdeksel Tapa de batería		Tampa da bateria
8	Aansluitpunten Terminales		Terminais
9	Ventilatieopeningen	Orificios de ventilación	Orifícios de ventilação
10	Drukken Presionar		Apertar
11	Uittrekken Sacar		Retirar
12	Handgreep Mango		Cabo
13	Acculader Cargador		Carregador
14	Controlelampje Lámpara piloto		Lâmpada piloto
15	Vergrendeling Bloqueo del interruptor		Bloqueio do interruptor
16	Trekkerschakelaar Interruptor de gatillo		Gatilho do interruptor
17	Indicatieschakelaar resterende acculading	Interruptor de indicador de batería restante	Interruptor de indicação da autonomia da pilha
18	Indicatielampje resterende acculading	Indicador luminoso batería restante	Luz de indicação da autonomia da pilha
19	Knop	Botón	Manípulo
20	Schaal	Escala	Escala
21	Merkteken	Marca	Marca
22	Begin van het schaven	Principio de la operación de corte	Início da operação de corte
23	Einde van het schaven	Fin de la operación de corte	Fim da operação de corte
24	Standaard	Base	Suporte
25	Steeksleutel	Llave anular	Chave de bocas
26	Schaafijzerhouder	Sujetador de cuchilla	Suporte da lâmina
27	Koolstofmetaalmes (Mes met dubbele rand)	Cuchilla de carburo (Tipo de cuchilla de doble borde)	Lâmina de carboneto (Tipo de lâmina de fio duplo)
28	Gemonteerde plaat (B)	Placa de ajuste (B)	Placa do conjunto (B)
29	Schroef	Perno	Parafuso
30	Machineschroef	Tornillo de máquina	Parafuso da máquina
31	Gedraaid oppervlak	Superficie girada	Superfície torneada
32	Gemonteerde plaat (A)	Placa de ajuste (A)	Placa do conjunto (A)
33	Gemonteerd meetinstrument	Manómetro de ajuste	Manómetro do conjunto
34	Muuroppervlak b	Superficie de pared b	Superfície de parede b
35	Vlakke gedeelte van freeszwart	Parte plana del bloque del cortador	Parte plana do bloco cortador
36	Groef	Ranura	Ranhura
37	Mes (Slijpbaar mes)	Cuchilla (Tipo de cuchilla afilable)	Lâmina (Tipo de lâmina possível de afar)
38	Snijkop	Bloque del cortador	Bloco cortador
39	Muuroppervlak a	Superficie de pared a	Superfície de parede a
40	Spaankast Cubierta de virutas		Tampa de aparas
41	Schroef D4 × 16	Tornillo D4 × 16	Parafuso D4 × 16
42	Stofadapter Adaptador para el polvo		Adaptador para pó
43	Elleboogstuk Codo		Cotovelo
44	Stofzak Bolsa para el polvo		Saco para pó
45	Slijtagegrens Límite de uso		Limite de desgaste
46	Nagel van koolborstel	Uña de escobilla de carbón	Prego da escova de carvão
47	Uitsteeksel van koolborstel	Saliente de escobilla de carbón	Saliência da escova de carvão
48	Borstelkap Tapa del cepillo		Tampa da roçadora
49	Contact-gedeelte buiten de borstelbuis	Tubo exterior de la parte de contacto de la escobilla de carbón	Segmento de contato no exterior do tubo da escova

	English Deutsch	Français Italiano
	Symbols⚠WARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.	Symbole⚠WARNUNGDie folgenden Symbole werden für diese Maschine verwendet. Achten Sie darauf, diese vor der Verwendung zu verstehen.	Symboles⚠AVERTISSEMENTLes symboles suivants sont utilisés pour l’outil. Bien se familiariser avec leur signification avant d’utiliser l’outil.	Simboli⚠AVVERTENZADi seguito mostriamo i simboli usati per la macchina. Assicurarsi di comprenderne il significato prima dell’uso.
	Read all safety warnings and all instructions.Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.	Lesen Sie sämtliche Sicherheitshinweise und Anweisungen durch.Wenn die Warnungen und Anweisungen nicht befolgt werden, kann es zu Stromschlag, Brand und/oder ernsthaften Verletzungen kommen.	Lire tous les avertissements de sécurité et toutes les instructions.Tout manquement à observer ces avertissements et instructions peut engendrer des chocs électriques, des incendies et/ou des blessures graves.	Leggere tutti gli avvertimenti di sicurezza e tutte le istruzioni.La mancata osservanza degli avvertimenti e delle istruzioni potrebbe essere causa di scosse elettriche, incendi e/o gravi lesioni.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.	Nur für EU-LänderWerfen Sie Elektrowerkzeuge nicht in den Hausmüll!Gemäss Europäischer Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte und Umsetzung in nationales Recht müssen verbrauchte Elektrowerkzeuge getrennt gesammelt und einer umweltgerechten Wiederververtung zugeführt werden.	Pour les pays européens uniquementNe pas jeter les appareils électriques dans les ordures ménagères!Conformément à la directive européenne 2002/96/EG relative aux déchets d’équipements électriques ou électroniques (DEEE), et à sa transposition dans la législation nationale, les appareils électriques doivent être collectés à part et être soumis à un recyclage respectueux de l’environnement.	Solo per Paesi UENon gettare le apparecchiature elettriche tra i rifiuti domestici.Secondo la Direttiva Europea 2002/96/CE sui rifiuti di apparecchiature elettriche ed elettroniche e la sua attuazione in conformità alle norme nazionali, le apparecchiature elettriche esauste devono essere raccolte separatamente, al fine di essere reimpiegate in modo eco-compatibile.
n_0	no-load speed	Leerlaufdrehzahl	Vitesse à vide	Velocità a vuoto
/min or min^-1	Revolutions or reciprocations per minute	Umdrehungen oder Pendelbewegungen pro Minute	Tours ou mouvements alternatifs par minute	Rivoluzioni o reciprocazioni per minuto
---	Direct current	Gleichstrom	Courant continu	Corrente diretta
	Caution Achtung Attention	Attenzione
V	Volts Volt Volts Volt
kg	Kilograms Kilogramm Kilogrammes	Kilogrammi

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodifi ed plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools' operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

CORDLESS PLANER SAFETY WARNINGS

1. Wait for the cutter to stop before settling the tool down.

An exposed rotating cutter may engage the surface leading to possible loss of control and serious injury.

1. Use clamps or another practical way to secure and support the workpiece to a stable platform.

Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.

1. Do not use the Planer with the blades facing upward (as stationary type planer).

2. Always charge the battery at a temperature of 0 – 40°C. A temperature of less than 0°C will result in over charging which is dangerous. The battery cannot be charged at a temperature greater than 40°C. The most suitable temperature for charging is that of 20 – 25°C.

3. Do not use the charger continuously.

When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

1. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.

2. Never disassemble the rechargeable battery and charger.

3. Never short-circuit the rechargeable battery.

Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

1. Do not dispose of the battery in fire.

If the battery burnt, it may explode.

1. Do not insert object into the air ventilation slots of the charger.

Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

1. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

2. Using an exhausted battery will damage the charger.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops. In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution. WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.

During work make sure that swarf and dust do not fall on the battery.

○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

○ Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

1. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

2. Do not use an apparently damaged or deformed battery.

3. Do not use the battery in reverse polarity.

4. Do not connect directly to an electrical outlets or car cigarette lighter sockets.

5. Do not use the battery for a purpose other than those specified.

6. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.

7. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.

8. Keep away from fire immediately when leakage or foul odor are detected.

9. Do not use in a location where strong static electricity generates.

10. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

SPECIFICATIONS

POWER TOOL

Model P14DSL P18DSL
Cutting Width 82 mm
Max. Cutting Depth 2.0 mm
No-load speed 16000 min		-1
Rechargeable battery	2LSRK	BSL1430: Li-ion 14.4 V (3.0 Ah 8 cells)	BSL1830: Li-ion 18 V (3.0 Ah 10 cells)
	2LJRK	BSL1450: Li-ion 14.4 V (5.0 Ah 8 cells)	BSL1850: Li-ion 18 V (5.0 Ah 10 cells)
Weight*		3.2 kg (With BSL1430)	3.3 kg (With BSL1830)

* Weight: According to EPTA-Procedure 01/2003

CHARGER

Model UC18YFSL
Charging voltage	14.4 V – 18 V
Weight 0.5 kg

STANDARD ACCESSORIES

In addition to the main unit (1), the package contains the accessories listed in the table below.

P14DSL(2LSRK)(2LJRK)P18DSL(2LSRK)(2LJRK)	1 Box Wrench......1(for securing cutter blade)
	2 Set Gauge......1(for adjusting cutter height)
	3 Guide......1(with set screw)
	4 Carbide Blade ......2(Double edged Blade type)
	5 Charger ......1
	6 Battery......2[P14DSL] BSL1430 or BSL1450[P18DSL] BSL1830 or BSL1850
	7 Plastic case ......1
	8 Battery cover ......1
	9 Spare carbide Blade set ......1(Not supplied in all areas)
P14DSL (NN)P18DSL (NN)	1 Box Wrench......1(for securing cutter blade)
	2 Set Gauge ......1(for adjusting cutter height)
	3 Guide......1(with set screw)
	4 Carbide Blade ......2(Double edged Blade type)
	Without chager, battery, plastic case andbattery cover.

Standard accessories are subject to change without notice.

Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 5).

OPTIONAL ACCESSORIES (sold separately)

1. Battery

Line drawing of a cylindrical battery pack with internal slots and mounting holes (no text or symbols)

(BSL1430)
(BSL1440)
(BSL1450)

Line drawing of a mechanical device with internal components (no text or symbols)

(BSL1830)
(BSL1840)
(BSL1850)

1. Dust adapter

2. Elbow

3. Dust bag

Simple line drawing of a leaf with a curved stem (no text or symbols)

1. Carbide Blade (Double edged Blade type)

2. Blade (Resharpenable blade type)

Optional accessories are subject to change without notice.

APPLICATIONS

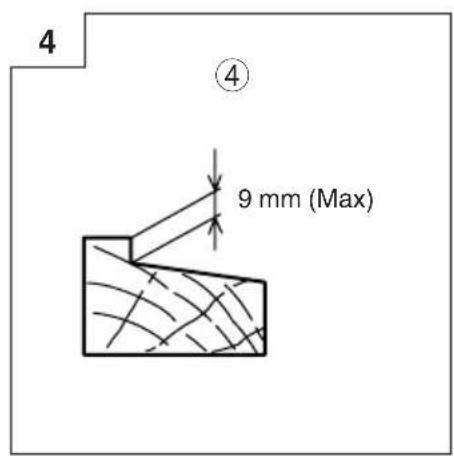

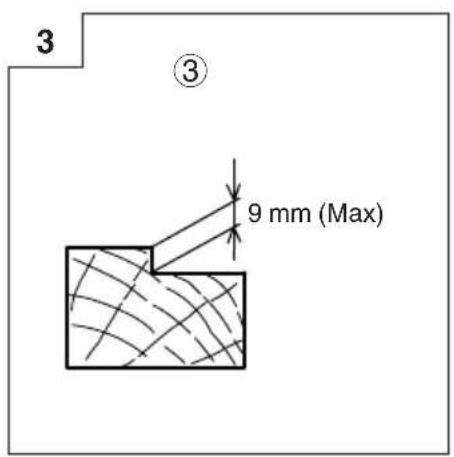

Planing various wooden planks and panels. (See Fig. 1-4)

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latch to remove the battery (see Figs. 5 and 6).

CAUTION

Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see Fig. 6).

CHARGING

Before using the power tool, charge the battery as follows.

1. Connect the charger's power cord to the receptacle. When the power cord is connected, the charger's pilot lamp will blink in red. (At 1-second intervals)

CAUTION

Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery into the charger.

Firmly insert the battery into the charger, as shown in Fig. 7.

3. Charging

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red.

When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals) (See Table 1)

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the pilot lamp
Pilot lamp(red)	Beforecharging	Blinks	Lights for 0.5 seconds. Does not lightfor 0.5 seconds. (off for 0.5 seconds)
	Whilecharging	Lights	Lights continuously
	Chargingcomplete	Blinks	Lights for 0.5 seconds. Does not lightfor 0.5 seconds. (off for 0.5 seconds)
	Overheatstandby	Blinks	Lights for 1 second. Does not lightfor 0.5 seconds. (off for 0.5 seconds)	Battery overheated.Unable to charge.(Charging will commencewhen battery cools)
	Chargingimpossible	Flickers	Lights for 0.1 seconds. Does not light for0.1 seconds. (off for 0.1 seconds)	Malfunction in the batteryor the charger

(2) Regarding the temperatures of the rechargeable battery The temperatures for rechargeable batteries are as shown in Table 2, and batteries that have become hot should be cooled for a while before being recharged.

Table 2 Recharging ranges of batteries

Rechargeable batteries	Temperatures at which the battery can be recharged
BSL1430, BSL1440, BSL1450, BSL1820, BSL1830, BSL1840, BSL1850	0^ - 40^

(3) Regarding recharging time

Depending on the combination of the charger and batteries, the charging time will become as shown in Table 3.

Table 3 Charging time (At 20°C)

Battery\Charger	UC18YFSL
BSL1820 Approx. 30 min.
BSL1430, BSL1830 Approx. 45 min.
BSL1440, BSL1840 Approx. 60 min.
BSL1450, BSL1850 Approx. 75 min.

NOTE

The charging time may vary according to temperature and power source voltage.

CAUTION

When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

4. Disconnect the charger's power cord from the receptacle.

5. Hold the charger firmly and pull out the battery.

NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

☐ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds). In such a case, first let the battery cool, then start charging.
When the pilot lamp flickers in red (at 0.2-seconds intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.
○ Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC18YFSL is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.
☐ If the pilot lamp does not blink in red (every second) even though the charger cord is connected to the power, it indicates that the protection circuit of the charger may be activated.

Remove the cord from the power and then connect it again after 30 seconds or so. If this does not cause the pilot lamp to blink in red (every second), please take the charger to the Hitachi Authorized Service Center.

PRIOR TO OPERATION

1. Setting up and checking the work environment

Check if the work environment is suitable by following the precautions.

2. Power switch

Ensure that the power switch is in the OFF position. If the battery is attached to the body while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

1. Prepare a stable wooden workbench suitable for planning operation. As a poorly balanced workbench creates a hazard, ensure it is securely positioned on firm, level ground.

PLANING PROCEDURES

1. Operation of switch (Fig. 8)

(1) For safe operation of the machine, a "switch lock" is provided on the side of a handle. If the "switch trigger" is pulled in a state where "switch lock" is pressed in the direction of the arrow mark, the main switch can be turned ON.
(2) After the switch is turned ON, even when you release your hand from the switch lock, the body continues running and the light continues being turned ON as long as you keep on pulling the switch trigger.
(3) If you release the switch trigger, you can turn OFF the switch and the "switch lock" returns to the original position automatically.

CAUTION

Do not fix and secure the switch lock. Besides, keep your finger off the switch trigger when the planer is being carried around. Otherwise, the main body switch can be inadvertently turned ON, resulting in unexpected accidents.

2. About remaining battery indicator

When pressing the remaining battery indicator switch, the remaining battery indicator lamp lights and the battery remaining power can be checked. (Fig. 9)

When releasing your finger from the remaining battery indicator switch, the remaining battery indicator lamp goes off. The Table 4 shows the state of remaining battery indicator lamp and the battery remaining power.

Table 4

State of lamp	Battery Remaining Power
[0847]	The battery remaining power is enough.
[1684A]	The battery remaining power is a half.
[1049]	The battery remaining power is nearly empty.Re-charge the battery soonest possible.

As the remaining battery indicator shows somewhat differently depending on ambient temperature and battery characteristics, read it as a reference.

NOTE

○ Do not give a strong shock to the switch panel or break it. It may lead to a trouble.
To save the battery power consumption, the remaining battery indicator lamp lights while pressing the remaining battery indicator switch.

3. Adjusting the cutter depth

(1) Turn the knob in the direction indicated by the arrow in Fig. 10 (clockwise), until the triangular mark is aligned with the desired cutting depth on the scale. The scale unit is graduated in millimeters.
(2) The cutting depth can be adjusted within a range of 0-2.0 mm.

4. Surface cutting

Rough cutting should be accomplished at large cutting depths and at a suitable speed so that shavings are smoothly ejected from the machine.

To ensure a smoothly finished surface, finish cutting should be accomplished at small cutting depths and at low feeding speed.

5. Beginning and ending the cutting operation

As shown in Fig. 11, place the front base of the planer on the material and support the planer horizontally. Turn ON the power switch, and slowly operate the planer toward the leading edge of the material. Firmly depress the front half of the planer at the first stage of cutting, as shown in Fig. 12, depress the rear half of the planer at the end of the cutting operation. The planer must always be kept flat throughout the entire cutting operation.

6. Precaution after finishing the planing operation

When the planer is suspended with one hand after finishing the planing operation, ensure that the cutting blades (base) of the planer do not contact or come too near your body. Failure to do so could result in serious injury.

7. Stand

Lift the back of the planer to extend the foot from the base. Having the stand extended when you put the planer down prevents contact between the blade and the material. (Fig. 13)

Work Precautions

○ About Continuous Operation

This tool is provided with a protective function to extend battery life.

The battery may become overheated during continuous operation or deep cutting operations, which may cause it to automatically stop.

Especially with any of the batteries listed below, the tool may stop operation before the battery starts to get hot to prevent rapid failure from overheating.

If this happens, stop operation, remove the battery from the tool and leave it in a well-ventilated location not exposed to sunlight until it is sufficiently cool.

The battery can be used again once it is cool.

(Applicable batteries: BSL1425, BSL1420, BSL1415, BSL1825, BSL1820, BSL1815 and old batteries)

○ Proper Battery Usage

When the tool is used with any of the batteries listed below, it should be used for light work to extend battery life.

Work example: Shallow depth finishing and chamfering work

(Applicable batteries: BSL1425, BSL1420, BSL1415, BSL1825, BSL1820, BSL1815 and old batteries)

CARBIDE BLADE ASSEMBLY AND DISASSEMBLY AND ADJUSTMENT OF CUTTER BLADE HEIGHT (FOR DOUBLE EDGED BLADE TYPE)

1. Carbide blade disassembly CAUTION

☐ To prevent accidents, ensure that the power tool is switched off and pull out the battery.

○ Be careful not to injure your hands.

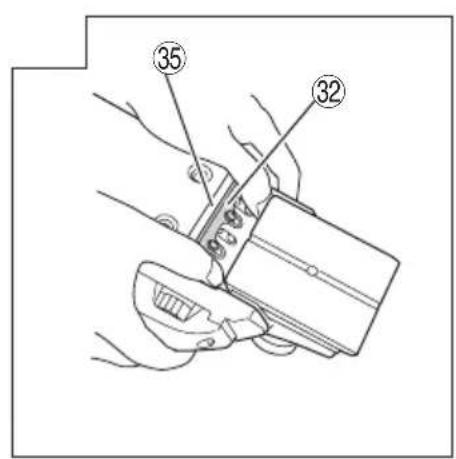

(1) As shown in Fig. 14, loosen the blade holder with the attached box wrench.

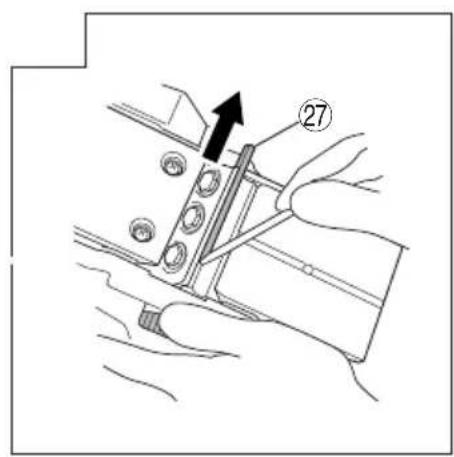

(2) As shown in Fig. 15, remove the carbide blade by sliding it with the attached box wrench.

2. Carbide blade assembly CAUTION

○ To prevent accidents, ensure that the power tool is switched off and pull out the battery.

○ Prior to assembly, thoroughly wipe off all swarf accumulated on the carbide blade.

(1) As shown in Fig. 16, lift set plate (B) and insert the new carbide blade between cutter block and set plate (B).

(2) As shown in Fig. 17, mount the new carbide blade by sliding it on the set plate (B) so that the blade tip projects by 1mm from the end of the cutter block.

(3) As shown in Fig. 18, fix the bolts at the blade holder after blade replacement has been completed.

(4) Turn the cutter block over, and set the other side in the same manner.

3. Adjustment of carbide blade height CAUTION

☐ To prevent accidents, ensure that the power tool is switched off and pull out the battery.

○ If the carbide blade's heights are inaccurate after above procedures have been completed, carry out the procedures described below.

(1) As shown in Fig. 19, use the box wrench to loosen the three bolts used to retain the carbide blade, and remove the blade holder.

(2) As shown in Fig. 20, after removing the carbide blade, slide set plate (B) in the direction indicated by the arrow to disassemble set plate (B).

(3) Loosen the 2 screws holding on the carbide blade and set plate (A), set plate (B).

(4) As shown in Fig. 21, 22, press the turned surface of set plate (A) to the wall surface b while adjusting the carbide blade edge to the wall surface a of the set gauge. Then, tighten them with the 2 screws.

(5) As shown in Fig. 23, 24, insert a turned portion of set plate (A) attached to set plate (B) into a groove on the flat portion of the cutter block.

(6) As shown in Fig. 25, place the blade holder on the completed assembly and fasten it with the three bolts. Ensure that the bolts are securely tightened. Follow the same procedures for the opposite side carbide blade.

BLADE ASSEMBLY AND DISASSEMBLY AND ADJUSTMENT OF BLADE HEIGHT (FOR RESHARPENABLE BLADE TYPE)

1. Blade disassembly CAUTION

☐ To prevent accidents, ensure that the power tool is switched off and pull out the battery.

○ Be careful not to injure your hands.

(1) As shown in Fig. 19, use the accessory box wrench to loosen the three bolts used to retain the blade, and remove the blade holder.

(2) As shown in Fig. 20, slide the blade in the direction indicated by the arrow to disassemble the blade.

2. Blade assembly CAUTION

☐ To prevent accidents, ensure that the power tool is switched off and pull out the battery.

○ Prior to assembly, thoroughly wipe off all swarf accumulated on the blade.

(1) Insert a turned portion of set plate (A) attached to the blade into a groove on the flat portion of the cutter block. (Fig. 23, 26)

Set the blade so that both sides of the blade protrude from the width of the cutter block by about 1 mm (Fig. 27)

(2) Place the blade holder on the completed assembly, as shown in Fig. 28, and fasten it with the three bolts. Ensure that the bolts are securely tightened.

(3) Turn the cutter block over, and set the opposite side in the same manner.

3. Adjustment of blade height

(1) Loosen the 2 screws holding on the blade and set plate (A). (Fig. 29)

(2) Press the turned surface of set plate (A) to the wall surface b while adjusting the blade edge to the wall surface a of the set gauge. Then, tighten them with the 2 screws. (Fig. 21, 30)

SHARPENING THE RESHARPENABLE BLADES

Use of the accessory Blade Sharpening Ass'y is recommended for convenience.

1. Use of Blade Sharpening Ass'y

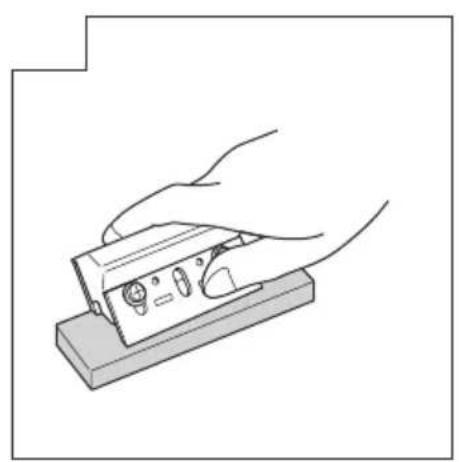

As shown in Fig. 31, two blades can be mounted on the blade sharpening ass'y to ensure that the blade tips are ground at uniform angles. During grinding, adjust the position of the blades so that their edges simultaneously contact the dressing stone as shown in Fig. 32.

2. Blade sharpening intervals

Blade sharpening intervals depend on the type of wood being cut and the cutting depth. However, sharpening should generally be effected after each 500 meters of cutting operation.

3. Grinding allowance of the cutter blades

As illustrated in Fig. 33, a grinding allowance of 3.5mm is provided for on the cutter blade. That is, the cutter blade can be repeatedly sharpened until its total height is reduced to 24.5 mm.

4. Grinding Stone

When a water grinding stone is available, use it after dipping it sufficiently in water since such a grinding stone may be worn during grinding procedures, flatten the upper surface of the grinding stone as frequently as possible.

ATTACHING AND DETACHING THE DUST ADAPTER (OPTIONAL ACCESSORY)

CAUTION

☐ To prevent accidents, ensure that the power tool is switched off and pull out the battery.
○ Follow the procedure below to mount the dust adapter securely. Failure to do so may result in the adapter coming off, causing injury.

1. Attaching the dust adapter

(1) Remove the screwD4 × 16 in the chip cover and remove the chip cover as shown in Fig. 34.

(2) Mount the dust adapter and secure with the screw D4 × 16. (Fig. 35)

NOTE

Take care not to break the catch when attaching or detaching the dust adapter and chip cover.

Technical line drawing of a mechanical bracket component (no text or symbols)

2. Removing the dust adapter

To remove the dust adapter, follow the procedure above in reverse order.

MAINTENANCE AND INSPECTION

1. Inspecting the blades

Continued use of dull or damaged blades will result in reduced cutting efficiency and may cause overloading of the motor. Sharpen or replace the blades as often as necessary.

2. Handling

CAUTION

The front base, rear base, and cutting depth control knob are precisely machined to obtain specifically high precision. If these parts are roughly handled or subjected to heavy mechanical impact, it may cause deteriorated precision and reduced cutting performance. These parts must be handled with particular care.

3. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard

4. Inspecting the carbon brushes (Fig. 36)

The motor employs carbon brushes which are consumable parts. Since and excessively worn carbon brush can result in motor trouble, replace the carbon brush with new ones when it becomes worn to or near the “wear limit”. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

NOTE

When replacing the carbon brush with a new one, be sure to use the Hitachi Carbon Brush Code No. 999017.

5. Replacing carbon brushes

After removing the chip cover, take out the carbon brush by first removing the brush cap and then hooking the protrusion of the carbon brush with a slotted head screw driver, etc., as shown in Fig. 37.

When installing the carbon brush, choose the direction so that the nail of the carbon brush agrees with the contact portion outside the brush tube. Then push it in with a finger as illustrated in Fig. 38. Lastly, install the brush cap.

CAUTION

Be absolutely sure to insert the nail of the carbon brush into the contact portion outside the brush tube.

(You can insert whichever one of the two nails provided.) Caution must be exercised since any error in this operation can result in the deformed nail of the carbon brush and may cause motor trouble at an early stage.

6. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

7. Cleaning on the outside

When the planer is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

8. Storage

Store the planer in a place in which the temperature is less than 40^ C and out of reach of children.

NOTE

Make sure that the battery is fully charged when stored for a long period (3 months or more). The battery with smaller capacity may not be able to be charged when used, if stored for a long period.

NOTE

Storing lithium-ion batteries

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

9. Service parts list

CAUTION

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

Important notice on the batteries for the Hitachi cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

GUARANTEE

We guarantee Hitachi Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a Hitachi Authorized Service Center.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Information concerning airborne noise and vibration

The measured values were determined according to EN60745 and declared in accordance with ISO 4871.

Measured A-weighted sound power level:

94 dB (A) (P14DSL)

95 dB (A) (P18DSL)

Measured A-weighted sound pressure level:

83 dB (A) (P14DSL)

84 dB (A) (P18DSL)

Uncertainty KpA: 3 dB (A).

Wear hearing protection.

Vibration total values (triax vector sum) determined according to EN60745.

Planing softwood:

Vibration emission value ah=2.6~m/s^2 (P14DSL)

3.0 m/s² (P18DSL)

Uncertainty K = 1.5 m/s ^4

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.

It may also be used in a preliminary assessment of exposure.

WARNING

The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used.

○ Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Line drawing of a mechanical device with internal components (no text or symbols)

(BSL1430)

(BSL1440)

(BSL1450)

Line drawing of a rectangular electronic device with internal components (no text or symbols)

(BSL1830)

(BSL1840)

(BSL1850)

Simple line drawing of a leaf with a curved stem (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

(BSL1430)
(BSL1440)
(BSL1450)

Line drawing of a mechanical device with internal components (no text or symbols)

(BSL1830)
(BSL1840)
(BSL1850)

Simple line drawing of a leaf with a curved stem (no text or symbols)

(Batteries applicables: BSL1425, BSL1420, BSL1415,

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Line drawing of a rectangular electronic device with internal components (no text or symbols)

(BSL1430)
(BSL1440)
(BSL1450)

Line drawing of a mechanical device casing with internal components (no text or symbols)

(BSL1830)
(BSL1840)
(BSL1850)

Simple line drawing of a leaf with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical bracket component (no text or symbols)

VEILIGHEIDSWAARSCHUWINGEN VOOR DE SNOERLOZE SCHAAF MACHINE

Line drawing of a mechanical device with internal components (no text or symbols)

(BSL1430)

(BSL1440)

(BSL1450)

Line drawing of a mechanical device with internal components (no text or symbols)

(BSL1830)

(BSL1840)

(BSL1850)

1. Stofadapter 3. Elleboogstuk 4. Stofzak

Simple line drawing of a leaf with a curved stem (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

(BSL1430)

(BSL1440)

(BSL1450)

Line drawing of a mechanical device casing with internal components (no text or symbols)

(BSL1830)

(BSL1840)

(BSL1850)

Simple line drawing of a leaf with a curved stem (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

(BSL1430)

(BSL1440)

(BSL1450)

Line drawing of a mechanical device with internal components (no text or symbols)

(BSL1830)

(BSL1840)

(BSL1850)

Simple line drawing of a leaf with a curved stem (no text or symbols)

Technical line drawing of a mechanical bracket component with an inset detail (no text or symbols)

1. Inspeccionar as lâminas

Line drawing of a quill pen in an inkwell (no text or symbols)

English Nederlands
GUARANTEE CERTIFICATE1 Model No.2 Serial No.3 Date of Purchase4 Customer Name and Address5 Dealer Name and Address(Please stamp dealer name and address)		GARANTIEBEWIJS1 Modelnummer2 Serienummer3 Datum van aankoop4 Naam en adres van de gebruiker5 Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar)
Deutsch Español
GARANTIESCHEIN1 Modell-Nr.2 Serien-Nr.3 Kaufdatum4 Name und Anschrift des Kunden5 Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		CERTIFICADO DE GARANTÍA1 Número de modelo2 Número de serie3 Fecha de adquisición4 Nombre y dirección del cliente5 Nombre y dirección del distribudor(Se ruega poner el sello del distribudor con su nombre y dirección)
Français Português
CERTIFICAT DE GARANTIE1 No. de modèle2 No de série3 Date d'achat4 Nom et adresse du client5 Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		CERTIFICADO DE GARANTIA1 Número do modelo2 Número do série3 Data de compra4 Nome e morada do cliente5 Nome e morada do distribuidor(Por favor, carimbe o nome e morada do distribuidor)
Italiano
CERTIFICATO DI GARANZIA1 Modello2 N° di serie3 Data di acquisto4 Nome e indirizzo dell'acquirente5 Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)
