Product type	Professional outdoor LED wash projector
Brand	Cameo
Model	ZENIT W600 SMD
Reference	CLZW600SMD
Light source	504 SMD LEDs 4-in-1 (RGBW)
Beam angle	118° horizontal (field 157°), 105° vertical (146°)
Protection rating	IP65
Electrical protection class	1
Operating voltage	100 - 240 V AC / 50 - 60 Hz
Power consumption (normal mode)	580 W
Power consumption (Boost mode)	1100 W
Luminous flux (normal mode)	21,000 lm
Luminous flux (Boost mode)	> 41,000 lm
Dimensions (W x H x D)	463 x 291 x 161 mm
Weight	12.4 kg
Housing material	Die-cast aluminum, black
Cooling	Fan (3 fans)
DMX connectors	5-pin XLR (input and output)
DMX functions	Dimmer, Strobe, RGBW, Color macros, Color temperature, Pixel control, Pattern, etc. (up to 87 channels)
Stand-alone modes	Auto, Color Macro, Static, Tunable White, User Color, Pixel, Timer
Maintenance	Clean the housing with a damp cloth; regularly clean air vents and fans
Safety	Do not look directly into the beam; minimum distance to illuminated surface 0.5 m; distance to flammable materials 0.3 m
Spare parts / Repairability	No user-serviceable parts; contact a qualified professional for repairs

Frequently Asked Questions - ZENIT W600 SMD Cameo

How to set the DMX starting address?

Press MODE to access the main menu, select DMX Address using UP/DOWN buttons, confirm with ENTER, then set the desired address (001-512) and confirm.

What DMX modes are available?

The device offers many DMX modes, from 2 to 87 channels: CCT, Color Macro, Factory-Calibrated, User-Calibrated, Full Access, Pixel control, etc. Refer to the channel assignment table in the manual.

Can I use this projector outdoors in the rain?

Yes, the IP65 protection rating protects it against water jets. Ensure to properly close the waterproof caps on unused connectors.

How to pair the projector in W-DMX mode?

In the Settings menu > Wireless Settings, enable W-DMX, select Receive, then execute Reset. On the transmitter, start Link to establish the connection.

What to do in case of missing DMX signal?

The screen flashes. You can configure the behavior in Settings > DMX Fail: Hold, Blackout, Full (100%), or Stand Alone.

How to clean the fans?

Disconnect the device. Unscrew the 4 screws of the fan cover on the back of the LED unit, remove it, carefully clean the fans (compressed air possible while blocking the blades). Reattach the cover.

What is the minimum distance to respect from surfaces?

Minimum distance to illuminated surface: 0.5 m. Minimum distance to normally flammable materials: 0.3 m.

Can I replace the light source myself?

No, the light source is fixed and cannot be replaced by the user. In case of defect, contact your dealer or an authorized service.

How to lock the control buttons?

Press and hold the UP and DOWN buttons simultaneously for about 5 seconds. To unlock, repeat the operation.

What accessories are included with the projector?

The projector comes with 2 omega brackets, a power cable, and the user manual. A barn door is available as an option.

USER MANUAL ZENIT W600 SMD Cameo

Black and pink Gaming Console with a glowing red LED screen (no visible text or symbols)

ZENIT® W600 SMD

PROFESSIONAL OUTDOOR WASHLIGHT

CLZW600SMD

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INFORMATION ON THIS USER MANUAL 5

APPROPRIATE USE 5

DEFINITIONS AND SYMBOL EXPLANATIONS 5

SAFETY INSTRUCTIONS 6

NOTES ON PORTABLE OUTDOOR DEVICES 10

INCLUDED 10

INTRODUCTION 10

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 11

OPERATION 13

SETUP AND INSTALLATION 24

CARE, MAINTENANCE AND REPAIR 25

OPTIONAL ACCESSORIES 26

DMX TECHNOLOGY 27

TECHNICAL DATA 29

EXPLANATION OF IP PROTECTION CLASS 30

MINIMUM DISTANCE TO ILLUMINATED SURFACE 31

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 31

DISPOSAL 31

MANUFACTURER'S DECLARATIONS 31

DEUTSCH

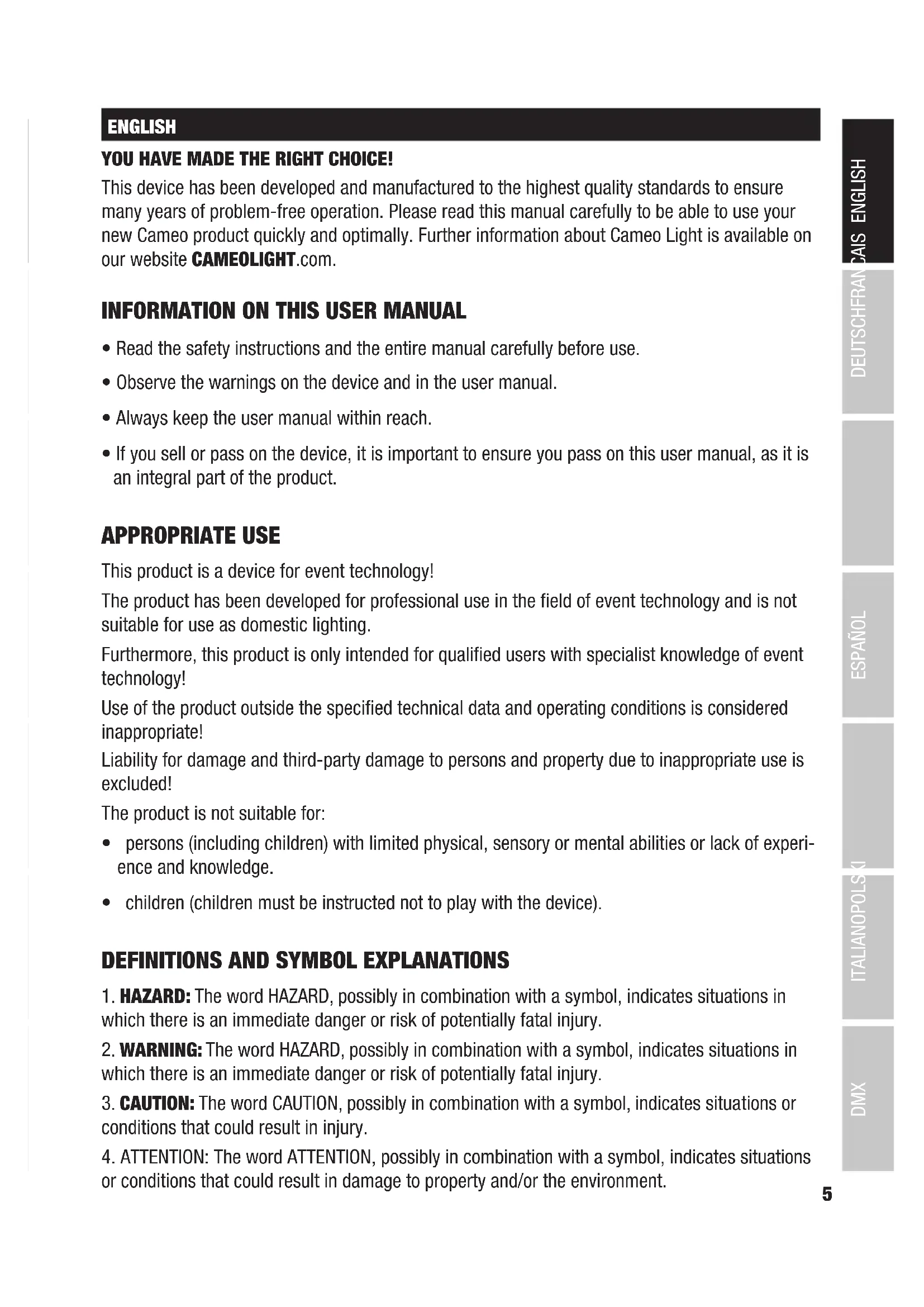

This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is available on our website CAMEOLIGHT.com.

INFORMATION ON THIS USER MANUAL

• Read the safety instructions and the entire manual carefully before use.
• Observe the warnings on the device and in the user manual.
• Always keep the user manual within reach.

- If you sell or pass on the device, it is important to ensure you pass on this user manual, as it is an integral part of the product.

APPROPRIATE USE

This product is a device for event technology!

The product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting.

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered inappropriate!

Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

• persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
• children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in which there is an immediate danger or risk of potentially fatal injury.
2. WARNING: The word HAZARD, possibly in combination with a symbol, indicates situations in which there is an immediate danger or risk of potentially fatal injury.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that could result in injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that could result in damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol identifies danger points or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol indicates a device in which there are no user-replaceable parts.

This symbol indicates additional information relating to use of the product.

SAFETY INSTRUCTIONS

HAZARD:

1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it has been damaged in any other way, switch it off immediately and disconnect it from the mains. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device must not be put into operation if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the power cord of the device is damaged, the device must not be used.
4. Permanently connected mains cables may only be replaced by a qualified person.

CAUTION:

1. Do not put the device into operation immediately if it has been exposed to extreme temperature fluctuations (for example, after transportation). Moisture and condensation can damage the device. Do not switch on the device until it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values specified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning strikes).
6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace pluggable mains cables with original cables only.

HAZARD

1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall down. Only use suitable stands or mountings (particularly for fixed installations). Make sure that accessories are correctly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid damage or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface that can be read on the device!

CAUTION:

1. Moving components such as mounting brackets may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due to the movement of the device. Sudden movement of the device can cause shock reactions.
3. The housing surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool down sufficiently before removal, maintenance work and charging etc.

CAUTION:

1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or other heat sources Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources, such as burning candles, near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shocks or impacts to the device.
6. Observe the IP rating and the ambient conditions such as temperature and humidity according to the specifications.
7. Devices can be further developed on an ongoing basis. In the event of deviating information on operating conditions, performance or other device properties between the user manual and the device labelling, the information on the device always has priority.
8. The device is not suitable for tropical climate zones and for operation at over 2000 m above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine conditions.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.

1. Stroboscopic effects may cause epileptic seizures in those susceptible!

1. A permanently installed lamp is installed in this lighting unit which must not be replaced by the user. In the event of a fault, please contact your sales partner.

SIGNAL TRANSMISSION BY RADIO (e.g. W-DMX or audio radio systems):

The quality and performance of wireless signal transmissions generally depends on the ambient conditions.

The following factors can impact range and signal stability, for example:

Shielding (e.g. masonry, metal structures, water)

High volume of radio traffic (e.g. powerful wireless LAN networks)

Interference

Electromagnetic radiation (e.g. LED video screens, dimmers)

All range specifications refer to free-field application with visual contact and without interference!

The operation of transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (e.g. radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sensitive areas in which radio operation can lead to potential detrimental effects. These include:

• hospitals, health centres or other healthcare facilities that provide patient treatment with skilled personnel and equipment.
  • Hazardous areas Class I, II and III
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

TRANSMISSION VIA W-DMX

WARNING: In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or traverse structures, DMX-controlled motors/lifts or lifting devices for operating DMX-operated platform lifts, hydraulic systems or comparable moving components.

Furthermore, wireless DMX transmission must not be used to trigger flame or pyrotechnic devices, explosion-driven effects, or to control gas or liquid effects. These include CO2 cannons, confetti shooters, water effects or similar.

NOTES ON PORTABLE OUTDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent structural installation, particularly outdoors, can impair the function, surfaces and seals and accelerate material fatigue.
3. Damage to the surface coating can impair the corrosion protection of the device. A damaged surface coating (e.g. scratches) must be promptly restored by means of suitable measures.

INCLUDED

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

Product includes:

Spotlight
Power cable
▶ 2 Omega brackets
▶ User manual

INTRODUCTION

ZENIT W600 SMD PROFESSIONAL OUTDOOR WASHLIGHT CLZW600SMD

CONTROL FUNCTIONS:

Master/slave operation

Standalone operation

W-DMX™

FEATURES:

504 4-in-1 SMD RGBW LEDs. IP65 protection rating. DMX512. W-DMX™. 16-bit dimmer. 4 dimmer curves. Adjustable LED PWM frequency. Fast Access Feature. 5-pin DMX connections. Plastic feet. 2x Omega mounting brackets included. Operating voltage 100–240 V AC.

Barn door available as an option.

The spotlight features the RDM standard (Remote Device Management). Remote device management allows the user to view the status and configuration of RDM terminals via an RDM-capable controller.

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

1 POWER IN

IP65 power input socket with rubber sealing cap. Operating voltage 100-240 V AC/50-60 Hz. Connection via supplied power cable (when not in use, always close with rubber sealing cap).

2 POWER OUT

IP65 power output socket with rubber sealing cap. Facilitates power supply to other CAMEO spotlights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A) (when not in use, always close with the rubber sealing cap).

3 DMX IN

Male IP65 5-pin XLR socket for connecting a DMX control device (e.g. DMX console; when not in use, always close with the rubber sealing cap).

4 DMX OUT

Female IP65 5-pin XLR socket for sending DMX control signal (when not in use, always close with the rubber sealing cap).

5 OLED DISPLAY

The OLED display shows the currently activated mode (main display), the menu items in the selection menu and the numerical value or status in the various menu items.

6 TOUCH-SENSITIVE CONTROLS

MODE

Press MODE to access the main menu. Press again or repeatedly to return to the main display.

ENTER

Select individual menu items in the main menu (DMX address, operating mode etc.) and in the submenus. Allow changes to the status or value in a menu item, such as the DMX address, as required.

UP and DOWN

- Select individual menu items in the main menu (DMX address, operating mode etc.) and in the submenus. Allow changes to the status or value in a menu item, such as the DMX address, as required.

PRESSURE EQUALISATION ELEMENT

The pressure equalisation element to prevent condensation inside the housing is in the device base, behind the cable feed for the LED unit. In order to ensure its proper function, the element must be protected from contamination.

HOUSING FAN

The 3 housing fans and the heat sink are on the back of the LED unit. In order to ensure good air circulation, do not cover the device and clean it regularly.

PLEASE NOTE

• As soon as the spotlight is connected, the following are displayed in succession: "Welcome to Cameo", the model name and the software version. During the start-up process, the previously set operating mode is activated and the spotlight is ready for operation after a short time.

• Before changing the device settings, ensure that the control panel is dry and free of dust in order not to impair its functionality.

• If one of the DMX operating modes is activated and there is no DMX signal to the DMX input, the currently programmed DMX address is displayed and the characters on the display will begin to flash.

• Press MODE to go up one level in the menu structure. To go to the main display in the menu structure, press MODE repeatedly.
• The main display is activated automatically if there is no input in the space of approximately one minute.

• Fast Access Feature: In order to simplify the menu guide, the device has an intelligent menu structure that allows direct access to previously selected menu items and submenu items.

• Press MODE and ENTER simultaneously for direct access to the last-edited submenu item, where you can make changes instantly as required (DMX starting address and all modes).

• Press MODE to go directly to the last selected and edited menu item. If you now repeatedly press ENTER, you can access the submenu items to make individual settings (DMX start address and all operating modes).
• The display can be rotated through 180^ by pressing UP when the main display is visible.
• To quickly change a value (e.g. DMX start address), press and hold the UP or DOWN button.

CAUTION: In order to provide protection from spraying water, in accordance with protection class IP65, special IP65-rated XLR connectors must be used correctly with the DMX input and output sockets, or they must be closed using the rubber sealing caps. When connected correctly, or when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT sockets are protected from spraying water, as in accordance with IP65.

OPERATION

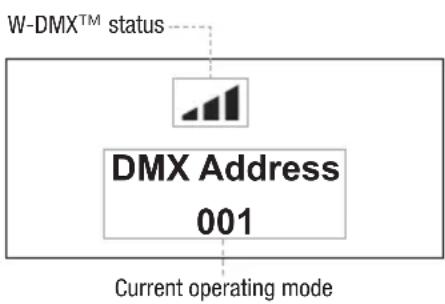

MAIN DISPLAY

The main display shows the following information: Current mode (in the example: DMX mode with start address 001) and W-DMX ^TM status.

W-DMX™

To pair a W-DMX receiver with a W-DMX compatible transmitter

, the Reset command must be executed in the menu item WDMX under Receiver (select Reset and confirm). The receiver is now in pairing standby and waiting for a pairing request from a transmitter. Start the pairing by selecting Link in the menu of the transmitter and confirming; the pairing now takes place automatically. In the same way, several receivers can be paired simultaneously or one after the other to a transmitter (e.g. for master / slave operation). A W-DMX connection is always maintained until the connection is disconnected by means of the Reset command in the receiver or the Unlink command in the transmitter, regardless of whether a device has been disconnected from the power supply in the meantime.

W-DMX™ STATUS

W-DMXTM deactivated	W-DMXTM activated as receiver, not paired	W-DMXTM activated as receiver and is paired to device, Transmitter is switched off or out of range	W-DMX activated and is paired to device, no DMX signal	W-DMXTM activated as receiver and is paired to device, DMX signal is present	W-DMXTM and transmission mode G3 is enabledUp arrow = Send operationDown arrow = Receive operationArrow flashes= Pairing processFlashing stops = Paired	W-DMXTM and transmission mode G4S activatedUp arrow = Send operationDown arrow = Receive operationArrow flashes= Pairing processFlashing stops = Paired

SETTING DMX START ADDRESS (DMX address)

Press MODE to access the main menu (--- Menu ---). Using UP and DOWN, select the menu item DMX Address (observe arrow) and confirm with ENTER. The display will show a three-digit number field and you can use the UP and DOWN controls to configure the desired DMX start address. Confirm the entry with ENTER and press MODE to return to the main display (in the example, „DMX address 001”).

---- Menu ---- ►DMX Address DMX Mode Stand Alone Slave Settings System Info 001 - 5xx DMX Address 001

CONFIGURING DMX MODE (DMX MODE)

Press MODE to access the main menu (--- Menu ---). Using UP and DOWN, select the menu item DMX Mode (observe arrow) and confirm with ENTER. In the submenu, you can now select the desired DMX mode with UP and DOWN.

Confirm your selection with ENTER. Tables with the channel assignments can be found in these instructions under DMX CONTROL.

---- Menu ---- DMX Address ► DMX Mode Stand Alone Slave Settings System Info

DMX Mode ■ 2CH CCT Fac.-Calib. 3CH Color Macro 3CH Factory-Calib. 4CH User-Calib. 6CH Factory-Calib. 8CH User-Calib. 10CH Full Access 15CH Full Access 39CH Full Pattern 36CH Pixel 42CH Pixel+Dim 48CH Pixel 54CH Pixel+Dim 87CH Full Access

CONFIGURE STANDALONE MODE

Press MODE to access the main menu (--- Menu ---). Using UP and DOWN, select the menu item Stand Alone (observe arrow) and confirm with ENTER. In the submenu you can now use UP and DOWN to select the standalone modes Auto, Color Macro, Static, Tunable White, User Color, Pixel and the Timer function. Confirm your selection with ENTER.

---- Menu ---- DMX Address DMX Mode ► Stand Alone Slave Settings System Info

Stand Alone ■ Auto Color Macro Static Tunable White User Color Pixel Timer

AUTO MODE (Auto Program 1 - 6)

The 6 different auto programs each comprise non-editable color-change sequences. Brightness and speed are independently adjustable. Select auto mode as described above under „CONFIGURE STANDALONE MODE” and confirm with ENTER. Now use UP and DOWN to select one of the 6 auto programs (observe arrow) and confirm with ENTER. To adjust brightness, use UP and DOWN to select the menu item Dim and confirm with ENTER, then use UP and DOWN to select the desired value between 000 and 255. Confirm with ENTER. Set the run speed by selecting the menu item Speed, confirm with ENTER, and then select the desired value between 001 and 100. Confirm with ENTER.

Stand Alone Auto Color Macro Static Tunable White User Color Pixel Timer Program 1 Program 2 Program 3 Program 4 Program 5 Program 6 Program x Dim <000 - 255> Speed <000 - 100> Dim Speed 000 001 . 255 100 Mode Auto

COLOR MACROS (Color Macro)

15 different preset color macros are available. Select Color Macro as described above under CONFIGURE STANDALONE MODE and confirm with ENTER. Using the UP and DOWN controls, now select the desired color preset (observe arrow) and confirm with ENTER (Color Off = blackout). A three-digit figure is shown on the display, and you can set the desired brightness on a scale from 000 to 100 using UP and DOWN. Confirm with ENTER.

Stand Alone Auto Color Macro Static Tunable White User Color Pixel Timer Color Macro Color Off <100> Red <100> Amber <100> Yellow Warm <100> Yellow <100> Green <100> Turquoise <100> Cyan <100> Color Macro Blue <100> Lavender <100> Mauve <100> Magenta <100> Pink <100> Warm White <100> White <100> Cold White <100> 000 - 100 Mode Color Macro

STATIC MODE (Static)

Static mode allows the Dimmer, Strobe and RGBW functions to be adjusted directly on the device with values between 000 to 255, similar to a DMX control unit. In this way, an individual scene can be created without an additional DMX controller. Select Static mode as per the procedure previously described in CONFIGURE STANDALONE MODE and confirm with ENTER. Now use UP and DOWN to select the menu item you wish to edit (observe arrow) and confirm with ENTER. The display will now show a three-digit number field, and you can use UP and DOWN to configure the desired value between 000 and 255. Confirm with ENTER.

Stand Alone Auto Color Macro Static Tunable White User Color Pixel Timer

Static Dimmer <000 - 255> Strobe <000 - 255> Red <000 - 255> Green <000 - 255> Blue <000 - 255> White <000 - 255>

000 - 255 Mode Static

COLOR TEMPERATURE (Tunable White)

The color temperature mode enables you to configure the color temperature from cold white to warm white (CCT) and the brightness (Dim) of the light directly on the device. Select the color temperature mode Tunable White mode as per the procedure previously described in CONFIGURE STANDALONE MODE and confirm with ENTER. Now use UP and DOWN to select the menu item you wish to edit (observe arrow) and confirm with ENTER. The display will now show a three-digit number field and you can use UP and DOWN to configure the desired value. Confirm with ENTER.

Stand Alone Auto Color Macro Static Tunable White User Color Pixel Timer Tunable White Dim <000 - 100> CCT <000 - 255> Mode Tunable White Dim CCT 000 000 - 100 255

USER PRESETS (User Color)

The operating mode “User Presets” allows you to store five individual color presets of overall brightness, strobe and a color mix of R, G, B and W directly in the device. Select User Color mode as per the procedure previously described in CONFIGURE STAND ALONE MODE and confirm with ENTER. Use UP AND DOWN to select one of the stored presets Color1 to Color5 and confirm with ENTER and select the submenu item you want to edit (see arrows). Confirm with ENTER. The display will show a three-digit number field and you can use the UP and DOWN controls to set the value as required between 000 and 255. Confirm by pressing ENTER again.

Stand Alone Auto Color Macro Static Tunable White User Color Pixel Timer Color1 Color2 Color3 Color4 Color5 Color1 Dimmer <000 - 255> Strobe <000 - 255> Red <000 - 255> Green <000 - 255> Blue <000 - 255> White <000 - 255> 000 - 255 Mode User Color

PIXEL MODE (Pixels)

Pixel mode allows you to set dimmers, patterns and speed directly on the device with values from 000 to 255. Dynamic patterns can be found from value 006 to 098 and static patterns from 128 to 234. The speed of the dynamic patterns is set from 006 (fast) to 126 (slow) and in the reverse direction from 128 (slow) to 255 (fast) (000 - 005 and 127 = stop). Select Pixel mode as per the procedure previously described in CONFIGURE STANDALONE MODE and confirm with ENTER. Now use UP and DOWN to select the menu item you wish to edit (observe arrow) and confirm with ENTER. The display will now show a three-digit number field, and you can use UP and DOWN to configure the desired value between 000 and 255. Confirm with ENTER.

Stand Alone Auto Color Macro Static Tunable White User Color ▶ Pixel Timer Pixel Dimmer <000 - 255> Pattern <000 - 255> Speed <000 - 255> Red <000 - 255> Green <000 - 255> Blue <000 - 255> White <000 - 255> 000 - 255 Mode Pixel

TIMER FUNCTION (Timer)

The timer function allows the standalone modes Color Macro, Static, Tunable White and User Color to be timer controlled in such a way that the fade-in time can be set from 0 to 60 minutes, the dwell time from 1 to 24 hours and the fade-out time from 0 to 60 minutes. Time control starts immediately after activating the timer function in the previously activated standalone mode and remains active even if the spotlight is switched off and restarted.

Select Timer as per the procedure described above under CONFIGURE STANDALONE MODE and confirm with ENTER. For the individual timer control settings, select Fade In, Dwell Time or Fade Out and confirm with ENTER. The display will show a three-digit number field in each case. Use UP and DOWN to set the value as required from 000 to 060 or 001 to 024. Confirm by pressing ENTER again. Once all settings have been configured as required, activate the timer function by selecting the submenu item Timer On/Off using UP and DOWN, confirm with ENTER, select On and confirm again with ENTER (to deactivate the timer function, please select Off and confirm).

Stand Alone Auto Color Macro Static Tunable White User Color Pixel Timer Timer On/Off Fade In < 1min> Dwell Time < 1h> Fade Out < 1min>

Please note: The timer function is suitable for use in master/slave mode via cable and W-D-MX ^TM .

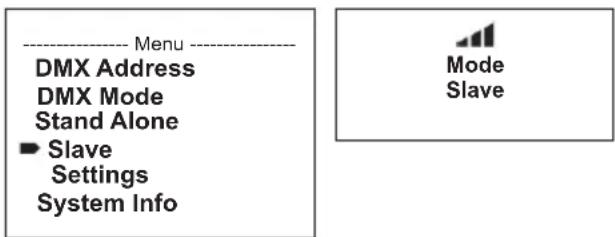

Press MODE to access the main menu (--- Menu ---). Using UP and DOWN, select the menu item Slave (observe arrow) and confirm with ENTER. Connect the slave and the master units (same model, same software version) with a DMX cable and enable a standalone mode on the master unit. The slave unit will now follow the master unit. If there is no control signal, the display characters will flash. Flashing stops as soon as a control signal is present.

---- Menu ---- DMX Address DMX Mode Stand Alone ► Slave Settings System Info Mode Slave

SYSTEM SETTINGS (Settings)

Press MODE to access the main menu (--- Menu ---). Using UP and DOWN, select the menu item Settings (observe arrow) and confirm with ENTER.

Menu

DMX Address

DMX Mode

Stand Alone

Slave

Settings

System Info

This will take you to the submenu for setting the following submenu items (see table, select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER):

Settings
Wireless Settings	= W-DMX Settings (Wireless DMX)		W-DMX On/Off	On = W-DMX activated
				Off = W-DMX deactivated
			Operating Mode	Receive = W-DMX module as receiver
				Transmit = W-DMX module as transmitter
			Transmitting Mode	G3 = G3 transmission standard
				G4S = G4S transmission standard
			Link Link = pair	with W-DMX devices. W-DMX must be activated on all devices and the pairing must be picked up by a transmitter (Receive Reset).
				Unlink = decoupling of all devices
			Receive Reset	No = Do not retain transmitter pairing
				Yes = Retain transmitter pairing
Display Reverse	= flip display On Rotate display by 180° (e.g. for overhead installation)
					Off No display rotation
Display Backlight	= Display lighting On Permanently on
				Off Deactivation	after approximately 1 minute of inactivity
DMX Fail = Operating status when DMX signal is interrupted			Hold Last command	and is retained
			Blackout Activates	blackout
			Full All the LEDs	are 100%
			Stand Alone	Spotlight switches to the Static standalone mode
Dimmer Curve	= Dimmer curve Linear	Light intensity increases linearly with DMX value
		Exponential Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
		Logarithmic Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
		S-curve Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
Power Mode	= Operating mode Normal	Constant brightness
		Boost Brief maximum brightness (Blinder function, approx. 3 seconds)
Dimmer response	= Dimmer response LED	Light responds abruptly to changes in DMX value
		Halogen Light behaves like a halogen spotlight with slight brightness changes
Color Calibration	= Color calibration RAW R, G, B and W with maximum value 255
							User Calibration	Individual color calibration. Cross-mode brightness setting of R, G, B, A and L with values from 000 - 255.
							Factory Calibration	Factory calibration of R, G, B and W (across all modes)
							Smart Calibration	Merging factory and RAW calibration
Autolock	= Automatic locking of the controls	On	Automatic locking of the controls after approximately 1 minute of inactivity. After attempted input the display shows: "Locked!" Unlock: press and hold UP and DOWN simultaneously for approx. 5 seconds
		Off	Automatic locking of the controls is disabled
PWM Frequency	= LED PWM frequency	800 Hz / 1200 Hz / 2000 Hz / 3600 Hz / 12 kHz / 25 kHz	Configuration of LED PWM frequency
Fan	= Adjust fan control	Auto Fan	Automatic fan speed control
		Silent Fan	Constant fan speed with adjusted brightness
		Off	Disabled fans at adjusted brightness
Mirror Pixel	= Mirror arrangement of pixel segments		Off No mirroring
			Vertical Mirror vertically
			Horizontal Mirror horizontally
			Vertical + Horizontal	Mirror vertically and horizontally
Factory Reset	= Restore factory settings		Reset Now? Rest	store factory settings: Confirm with ENTER. Cancel with MODE

Dimmer curves

SYSTEM INFORMATION (System Info)

Press MODE to access the main menu (--- Menu ---). Using the arrow keys, select the menu item System Info (observe arrow) and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode Stand Alone Slave Settings ► System Info

Use the UP and DOWN controls to select the desired submenu item, and press ENTER to display the corresponding information.

System Info
Firmware = Displays		Device Firmware	Main CPU	Vx.xx
			LED Driver1	Vx.xx
			LED Driver2	Vx.xx
Temperature = Temperature display LED unit			LED xx °C	/ xx °F
			Unit °C (=	display in degrees Celsius)
				°F (= display in degrees Fahrenheit)
Operation Hours	= Displays operating time		Unit Operation Time	xx:xx h	Displays total operating time in hours and minutes
			LED Operation Time	xx:xx h	Separate display of operating time of R, G, B and W in hours and minutes

MANUAL LOCKING FUNCTION

In addition to the ability to automatically protect the spotlight from accidental and unauthorised operation (see "Settings" - "Auto-lock"), the controls can also be locked manually. Press and hold the UP and DOWN controls simultaneously for approximately 5 seconds. If an attempt is made to change settings, "Locked!" will appear in the display, and changing the spotlight's settings via the controls is no longer possible. After approx. 1 minute, the current operating mode is displayed again. To unlock, press and hold the UP and DOWN controls simultaneously for approximately 5 seconds. The display will show the previously displayed information.

SETUP AND INSTALLATION

Thanks to its integrated plastic feet, the light can be positioned in a suitable location on a level surface. Mounting to a traverse is possible using an Omega bracket which is attached at the centre of the device base (A) or else by means of two Omega bracket, which are mounted at the outer attachment positions (B). 2 x Omega brackets are included. Suitable beam clamps are available as an option. Ensure firm connections and secure the spotlight to the designated location (C) with a suitable safety cable. The beam direction of the LED unit is set using the wing nuts on the side independently of the device base.

HAZARD: Overhead mounting requires extensive experience, including the calculation of the load limit values of the installation material and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk of incorrectly mounted and secured devices coming loose and falling down. This can cause serious injury or death.

C A B

CARE, MAINTENANCE AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, maintained. The maintenance requirement depends on the intensity of use and the environment in which it is used.

We generally recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable maintenance measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited in the event of defects resulting from inadequate maintenance.

CARE (CARRIED OUT BY USER)

WARNING! Before carrying out any maintenance work, the power supply and, if possible, all device connections must be unplugged.

PLEASE NOTE!!Improper care can lead to impairment of the device or even destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. In doing so, ensure that no moisture can penetrate into the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, care must be taken to ensure that damage to the device is prevented (e.g. fans must be blocked in this case, as they could otherwise over-rev).
3. Lines and plug contacts must be cleaned regularly and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used, otherwise the surface finish may be damaged.
5. Devices must generally be stored dry and protected from dust and dirt.
6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting apertures must be cleaned regularly.

MAINTENANCE AND REPAIR (by qualified personnel only)

HAZARD! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, e.g. due to charged capacitors.

PLEASE NOTE! There are no user-serviceable components in the device.

PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently qualified specialist personnel. If in doubt, consult a specialist workshop.

PLEASE NOTE!!Improperly performed maintenance work may affect warranty claims.

PLEASE NOTE! For conversion or retrofit sets provided by the manufacturer, it is essential to observe the installation instructions included.

CLEAN FAN

The three fans on the back of the LED unit of the spotlight must be regularly checked and, if necessary, cleaned. Disconnect the spotlight from the power supply. Loosen the 4 socket screws holding the fan cover to the LED unit using a suitable tool. Remove the fan cover from the LED unit, clean the fans and check that the fans can rotate freely. If compressed air is used, care must be taken to ensure that damage to the device is prevented (e.g. fans must be blocked in this case, as they could otherwise over-rev). Clean the ventilation openings of the fan cover and fasten the cover again with the previously loosened screws.

If a fan should become blocked despite cleaning, take the spotlight out of operation and contact an authorised service centre.

Technical line drawing of a mechanical fan assembly with multiple blades and mounting brackets (no text or symbols)

OPTIONAL ACCESSORIES

CLZW6004B

Barn door – tool-free mounting thanks to threaded locking bolts, safety cable included

Black open electrical device with a cable attached at the bottom (no text or symbols visible)

DMX TECHNOLOGY

DMX-512

DMX (Digital Multiplex) is the name for a universal communication protocol for communication between corresponding devices and controllers. A DMX controller sends DMX data to the attached DMX device(s). The DMX data transmission is always a serial data stream which is sent from one connected device to the next via the DMX

Coiled black cable with two connectors (no text or symbols visible)

IN and DMX OUT sockets on any DMX-enabled device (XLR connectors), whereby the maximum number of devices may not exceed 32. The last device in the chain must be equipped with a terminator.

DMX CONNECTION:

DMX is the common “language”, through which a wide variety of equipment types and models from different manufacturers can be connected and controlled via a central controller, as long as all the devices and the controller are DMX-compatible. For optimum data transmission, it is necessary to keep the connection cables between the individual devices as short as possible. The order in which the devices are integrated into the DMX network, has no influence on the addressing. In this way, the device with the DMX address 1 can be placed at any position in the (serial) DMX chain, at the beginning, end, or anywhere in the middle. If a device has been assigned the DMX address 1, the controller “knows” that it must send all the data associated with the address 1 to this device, regardless of its position in the DMX network.

SERIES CONNECTION OF SEVERAL SPOTLIGHTS

1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. a DMX controller).
2. Connect the female XLR connector of the DMX cable connected to the first spotlight to the DMX input (male XLR socket) of the next DMX device. Connect the DMX output of this device to the DMX input of the next device in the same way and so on. Please note that serial DMX devices can be interconnected in principle and the connections cannot be shared without an active splitter. The maximum number of DMX devices in a DMX chain must not exceed 32.

An extensive selection of suitable DMX cables can be found in the Adam Hall product lines 3 STAR, 4 STAR and 5 STAR.

DMX CABLE:

When preparing your own leads, it is essential to follow the diagrams on this page. Do not connect the shielding of the cable to the ground pin of the connector, and make sure that the shield does not come into contact with the XLR connector housing. If the shield has contact to ground it may lead to system errors.

CONNECTOR ASSIGNMENT:

DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pins 4 and 5 are not used.)

DMX TERMINATOR:

To avoid system failures, the last device in a DMX chain must be equipped with a terminating resistor (120 ohms, 1/4 watt).

3-pin XLR with terminating resistor: K3DMXT3

5-pin XLR with terminating resistor: K3DMXT5

CONNECTOR ASSIGNMENT:

3-pin XLR connector: 5-pin XLR connector:

DMX ADAPTER:

The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin ports in a DMX chain is also possible by using adapters.

CONNECTOR ASSIGNMENT

DMX adapter 5-pin male XLR to 3-pin female XLR: K3DGF0020

Pins 4 and 5 are not used.

CONNECTOR ASSIGNMENT

DMX adapter 3-pin male XLR to 5-pin female XLR: K3DHM0020

Pins 4 and 5 are not used.

TECHNICAL DATA

Product number: CLZW600SMD
Product type: LED wash light
Type: Outdoor spotlight
LED color spectrum: RGBW
Number of LEDs: 504
LED type: 4-in-1 SMD
LED PWM frequency: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz (adjustable)
Beam angle: 118° (157° field) horizontal, 105° (146°) vertical
Ports: 5-pin XLR In and Out
DMX mode: 2CH CCT factory-calibrated, 3CH color macros, 3CH factory-calibrated 8bit, 4CH user-calibrated, 6CH factory-calibrated 16bit, 8CH user-calibrated 16bit, 10CH full area-access 8bit, 15CH full area-access 16bit, 39CH full area pattern 16bit, 36 RGB pixel control-calibrated, 42CH RGB pixel control calibrated & master dim, 48RGBW pixel control user-calibrated, 54CH RGBW pixel control user-calibrated & master dim, 87CH full access pixel control & pattern
DMX functions: Dimmer, Dimmer Fine, RGBW, RGBW Fine, Stroboscope, Pixel Control, Color Macros, Color Temperature, Color Temperature Correction, Pattern, Pattern Speed, Color Crossfade, System Settings
Standalone functions:	Color mixing, color macros, master/slave operation, auto programs, static (RGBW), tunable white, user color, timer, strobe
System settings:	Rotate display by 180°, display lighting, DMX fail, dimmer curves, dimmer response, color calibration, LED PWM frequency, fan control, factory reset
Control:	DMX512, W-DMX, RDM
Operating elements: Mode, Enter, Up, Down
Display elements:	OLED display
Operating voltage:	100–240 V AC/50–60 Hz
Power supply connection:	TrueCon In + Out (Out max. 5A)
Electrical protection class:	1
Maximum power consumption:	Boost Mode: 1,100 W Normal Mode: 580 W
Light intensity (@ 1 m, without diffuser):	Boost Mode: 18,000 lx Normal Mode: 9,000 lx
Luminous flux:	Boost Mode: >41,000 lm Normal Mode: 21,500 lm
Ambient temperature (in operation):	-15°C to +40°C
Housing material:	die-cast aluminium
Housing color:	Black
Housing cooling:	Fan cooled

Protection class: IP65
Tilt Rotation 158° (manual)
Use position: As required
Minimum distance to illuminated surface:	0.5 m
Minimum distance to normal flammable materials:	0.3 m
Dimensions(W x H x D, without mounting bracket):	463 x 291 x 161 mm.
Weight (not including accessories):	12.4 kg
Accessories supplied: 2 Omega brackets + power cable
Optional accessories:	Barn door

EXPLANATION OF IP PROTECTION CLASS

1. An IP rating only reflects protection from solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature, etc.
2. The first identification digit indicates protection from dust, solid objects and contact:

IP2X Protected against solid foreign bodies ≥ 12.5 mm in diameter

IP3X Protected against solid foreign bodies ≥ 2.5 mm in diameter

IP4X Protected against solid foreign bodies ≥ 1.0 mm in diameter

IP5X Protected against dust in harmful quantities and completely protected against contact

IP6X Are dust-tight and completely protected against contact

1. The second identification digit indicates protection from water:

IPX0 no protection

IPX1 Protection against dripping water

IPX2 Protection against dripping water when the device is tilted up to 15°

IPX3 Protection against falling spray water up to 60° from the vertical

IPX4 Protection against splashing water on all sides

IPX5 Protection against water jets (nozzle) from any angle

IPX6 Protection against strong water jets

IPX7 Protection against temporary immersion

1. In addition, some device-specific measures such as covers and sealing caps are necessary in order to achieve the specified protection class (e.g. protective caps on unused connections).

The IP rating of the product can be found in the technical data and is printed on the device.

MINIMUM DISTANCE TO ILLUMINATED SURFACE

0.5 m This symbol with distance specification in metres (m) indicates the minimum distance between the light head and the illuminated surface. In this example the distance is 0.5 m.

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

·s D_0.5 m This symbol with distance specification in metres (m) indicates the minimum distance between the light head and normally flammable materials. In this example the distance is 0.5 m.

DISPOSAL

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally-friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY

Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach / E-mail [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

Contact your sales partner for service.

UKCA- CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable)

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032)

Radio Equipment Regulations 201 7(SI 2016/2015)

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail].

Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!

DEUTSCH

FARBTEMPERATUR (Tunable White)

BENUTZER-PRESETS (User Color)

Stand Alone Auto Color Macro Static Tunable White User Color Pixel Timer Timer On/Off Fade In < 1min> Dwell Time < 1h> Fade Out < 1min>

3D diagram of a mechanical component with labeled parts A, B, and C, showing internal structure and alignment (no text or symbols beyond labels)

Technical line drawing of a mechanical fan assembly with multiple blades and mounting brackets (no text or symbols)

OPTIONALES ZUBEHÖR

CLZW6004B

Black open electrical enclosure with a cable attached at the bottom (no text or symbols visible)

DMX TECHNIK

DMX-512

Coiled black cable with two connectors and a terminal connector (no text or symbols visible)

DMX-Adapter 5-Pol XLR male auf 3-Pol XLR female: K3DGF0020

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

Stand Alone ▶ Auto Color Macro Static Tunable White User Color Pixel Timer

Auto Program 1 Program 2 Program 3 Program 4 Program 5 Program 6

---- Program x ---- ■ Dim <000 - 255> Speed <000 - 100> Dim Speed 000 001

Mode Auto

MACROS DE COULEUR (Color Macro)

TEMPÉRATURE CHROMATIQUE (Tunable White)

Timer ▶ Timer On/Off Fade In < 1min> Dwell Time < 1h> Fade Out < 1min>

3D diagram of a mechanical component with labeled parts A, B, and C, showing internal structure and alignment indicators (no text or symbols beyond labels)

ENTRETIEN, MAINTENANCE ET RÉPARATION

Technical line drawing of a mechanical fan assembly with multiple blades and mounting brackets (no text or symbols)

ACCESSOIRES DISPONIBLES EN OPTION

CLZW6004B

Black plastic electronic device with open lid and cable connectors (no text or symbols visible)

TECHNOLOGIE DMX

DMX-512

Coiled black cable with two connectors, no visible text or symbols

RACCORDEMENT DMX :

Pilotage : DMX512, W-DMX, RDM

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

Directive CEM (2014/30/UE)

RoHS (2011/65/UE)

RED (2014/53/UE)

DÉCLARATION DE CONFORMITÉ CE

DNO OUT 4 2 POWER OUT

1 POWER IN

TEMPERATURA DE COLOR (Tunable White)

Timer ▶ Timer On/Off Fade In < 1min> Dwell Time < 1h> Fade Out < 1min>

Technical line drawing of a mechanical fan assembly with multiple blades and mounting brackets (no text or symbols)

Black plastic electrical enclosure with open top and side panels, partially connected by a wire (no text or symbols visible)

TECNOLOGÍA DMX

DMX-512

Coiled black cable with two connectors and a terminal connector (no text or symbols visible)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

TRANSMISJA SYGNAŁÓW W W-DMX

TEMPERATURA BARWOWA (Tunable White)

USTAWIENIA WSTĘPNE UŻYTKOWNIKA (User Color)

Stand Alone Auto Color Macro Static Tunable White User Color Pixel Timer Timer On/Off Fade In < 1min> Dwell Time < 1h> Fade Out < 1min>

3D diagram of a mechanical component with labeled parts A, B, and C, showing internal structure and alignment (no text or symbols beyond labels)

CZYSZCZENIE, KONSERWACJA I NAPRAWY

Technical line drawing of a mechanical fan assembly with multiple blades and mounting brackets (no text or symbols)

OPCJONALNE AKCESORIA

CLZW6004B

Black open electrical enclosure with a small wire strap attached at the bottom (no text or symbols visible)

TECHNIKA DMX

DMX-512

Coiled black cable with two connectors and a terminal connector (no text or symbols visible)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

PRESET UTENTE (User Color)

Stand Alone Auto Color Macro Static Tunable White User Color Pixel Timer Timer On/Off Fade In < 1min> Dwell Time < 1h> Fade Out < 1min>

Technical line drawing of a mechanical fan assembly with multiple blades and mounting brackets (no text or symbols)

ACCESSORI OPZIONALI

CLZW6004B

Black open electrical enclosure with a cable attached at the bottom (no text or symbols visible)

TECNOLOGIA DMX

DMX-512

Coiled black cable with two connectors and a terminal connector (no text or symbols visible)

COLLEGAMENTO DMX:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

39 CH Full Area Pattern 16 Bit	87 CH Full Access Pixel-control & Pattern	Function Values					Sub Group
1 1 Dimmer 000 - 255 0% to 100%							Dimmer
2	2	Dimmer fine	000	255		0% to 100%
3	3	Multi-functional Strobe	000	005 Strobe open			Strobe
			006	010 Strobe closed
			011	033 Pulse Random, slow -> fast
			034	056		Ramp up Random, slow -> fast
			057	079		Ramp down Random, slow -> fast
			080	102		Random Strobe Effect, slow -> fast
			103	127		Strobe Break Effekt, 5s......1s (short burst with break)
			128	250		Strobe slow -> fast <1Hz -> 20Hz
			251	255 Strobe open
4 4 Duration 000 - 255						Flash duration (short -> long)
5 5 Red 000 - 255 0% to 100%							Red
6 6 Red fine 000 - 255 0% to 100%
7 7	Green	000 - 255	0% to 100%				Green
8 8	Green fine	000 - 255	0% to 100%
9 9	Blue	000 - 255	0% to 100%				Blue
10	10	Blue fine	000	255 0%		to 100%
11	11	White	000	255 0%		to 100%	White
12	12	White fine	000	255 0%		to 100%

	13 Pixel	1 R 000 - 255	0% to 100%		Single Pixel Control
	14 Pixel	1 G 000 - 255	0% to 100%
	15 Pixel	1 B 000 - 255	0% to 100%
	16 Pixel	1 W 000 - 255	0% to 100%
	17 Pixel	2 R 000 - 255	0% to 100%
	18 Pixel	2 G 000 - 255	0% to 100%
	19 Pixel	2 B 000 - 255	0% to 100%
	20 Pixel	2 W 000 - 255	0% to 100%
	21 Pixel	3 R 000 - 255	0% to 100%
	22 Pixel	3 G 000 - 255	0% to 100%
	23 Pixel	3 B 000 - 255	0% to 100%
	24 Pixel	3 W 000 - 255	0% to 100%
	...... ......	...... - ......			...... In same order Pixel 4 to 11
	57 Pixel	12 R 000 - 255	0% to 100%
	58 Pixel	12 G 000 - 255	0% to 100%
	59 Pixel	12 B 000 - 255	0% to 100%
	60 Pixel	12 W 000 - 255	0% to 100%
13	61	Color Presets (override RGBW + Pixel)	000 - 005 Color off		Color Presets
			006 - 013 Red
			014 - 021 Amber
			022 - 029 Yellow warm
			030 - 037 Yellow
			038 - 045 Green
			046 - 053 Turquoise
			054 - 061 Cyan
			062 - 069 Blue
			070 - 077 Lavender
			078 - 085 Mauve
			086 - 093 Magenta
			094 - 101 Pink
			102 - 109 Warm White
			110 - 117 White
			118 - 125 Cold White
			126 - 127 Color Jumping Stop
			128 - 191		Color Jumping Speed slow -> fast / Color 1 -> 12
			192 - 255		Color Fading Speed slow -> fast / Color 1 -> 12

14 62		Color Temperature (works only correct if RGB + W are set to 100%)	000 - 005 Off		Color Temperature
			006 - 006 Warm White
			007 - 046 Warm White -> 2700K
			047 - 047 Bulb White (2700K)
			048 - 087 2700K -> 3200K
			088 - 088 Halogen White (3200K)
			089 - 128 3200K -> 4000K
			129 - 129 Neutral White (4000K)
			130 - 169 4000K -> 5600K
			170 - 170 Studio White (5600K)
			171 - 210 5600K -> 6500K
			211 - 211 Daylight White (6500K)
			212 - 251 6500K -> Cold Daylight
			252 - 255 Cold Daylight
15 63		Tint (affects Color Temperature)	000 - 005 Off		Tint
			006 - 127 Magenta -> Neutral
			128 - 128 neutral
			129 - 255 Neutral -> Green
16 64		Color Preset Crossfade	000 - 005 0s		Color Preset Crossfade
			006 - 105 0,1s - 10s (0,1s Steps)
			106 - 214 11s - 119s (1s Steps)
			215 - 244 2m - 4m50s (10s Steps)
			245 - 255 5m - 15m (1m Steps)
17 65 Pattern			000 - 005 Pattern off		Pattern
			006 - 255	See Tab Pattern (006-098 dynamic/ 128-234 static)
18 66		Speed dynamic Pattern	000 - 005 Effect Pattern Speed Stop
			006 - 126	Effect Pattern Speed, fast -> slow, forward
			127 - 127 Stop
			128 - 255	Effect Pattern Speed, slow -> fast, back
19 67		Step or Fade dynamic Pattern	000 - 005 off
			006 - 255	Fade Effect Pattern little -> much
20 68		Pattern Transition Crossfade	000 - 005 0s
			006 - 105 0,1s - 10s (0,1s Steps)
			106 - 214 11s - 119s (1s Steps)
			215 - 244 2m - 4m50s (10s Steps)
	Stop dynamic Pattern		245 - 255 5m - 15m (1m Steps)
21 69			000 - 005 Stop dynamic Pattern off
			006 - 255	Stop dynamic Pattern after x Steps are done
22 70		Background Dimmer	000 - 255			0-100%	Backgro- und (all bac- kground functions are ena- bled with enabled pattern)
23 71		Background Dimmer fine	000 - 255			0-100%
24 72		Background Multi- functional Strobe	000 - 005 Strobe open
			006 - 010 Strobe closed
			011 - 033 Pulse Random, slow -> fast
			034 - 056			Ramp up Random, slow -> fast
			057 - 079			Ramp down Random, slow -> fast
			080 - 102			Random Strobe Effect, slow -> fast
			103 - 127			Strobe Break Effect, 5s.....1s (short burst with break)
			128 - 250			Strobe slow -> fast <1Hz -> 20Hz
			251 - 255 Strobe open
25 73 Duration 000 - 255						Flash duration (short -> long)
26 74		Background Red	000 - 255			0% to 100%
27 75		Background Red fine	000 - 255			0% to 100%
28 76		Background Green	000 - 255			0% to 100%
29 77		Background Green fine	000 - 255			0% to 100%
30 78		Background Blue	000 - 255		0% to 100%	Backgro- und (all back- ground functions are enabled with enabled pattern)
31 79		Background Blue fine	000 - 255		0% to 100%
32 80		Background White	000 - 255		0% to 100%
33 81		Background White fine	000 - 255		0% to 100%
34 82		Backgro- und Color Presets (override Background RGBW)	000 - 005 Color off
			006 - 013 Red
			014 - 021 Amber
			022 - 029 Yellow warm
			030 - 037 Yellow
			038 - 045 Green
			046 - 053 Turquoise
			054 - 061 Cyan
			062 - 069 Blue
			070 - 077 Lavender
			078 - 085 Mauve
			086 - 093 Magenta
			094 - 101 Pink
			102 - 109 Warm White
			110 - 117 White
			118 - 125 Cold White
			126 - 127 Color Jumping Stop
			128 - 191		Color Jumping Speed slow -> fast / Color 1 -> 12
			192 - 255		Color Fading Speed slow -> fast / Color 1 -> 12
35 83		Background Color Tem- perature (works only correct if RGB + W are set to 100%)	000 - 005 Off
			006 - 006 Warm white
			007 - 046 Warm white -> 2700K
			047 - 047 Bulb White (2700K)
			048 - 087 2700K -> 3200K
			088 - 088 Halogen White (3200K)
			089 - 128 3200K -> 4000K
			129 - 129 Neutral White (4000K)
			130 - 169 4000K -> 5600K
			170 - 170 Studio White (5600K)
			171 - 210 5600K -> 6500K
			211 - 211 Daylight White (6500K)
			212 - 251 6500K -> Cold Daylight
			252 - 255 Cold Daylight
36 84		Background CCT Tint (affects Color Temperature)	000 - 005 Off		Backgro- und (all back- kground functions are enabled with enabled pattern)
			006 - 127 Magenta -> Neutral
			128 - 128 Neutral
			129 - 255	Neutral -> Green
37 85		Background Color Macro Crossfade	000 - 005 0s
			006 - 105 0,1s - 10s (0,1s Steps)
			106 - 214 11s - 119s (1s Steps)
			215 - 244 2m - 4m50s (10s Steps)
			245 - 255 5m - 15m (1m Steps)
38 86		Dimmer Curve	000 005 No function		Dimmer Curve
			006 - 063 Linear Dimmer Curve
			064 - 127 Exponential Dimmer Curve
			128 - 191 Logarithmic Dimmer Curve
			192 - 255 S-Curve Dimmer Curve
39 87		Device Settings(please read remark 1*)	000 - 057 no function			Control
			058 - 059 Pixel Mirroring Off (hold 3s)
			060 - 061		Pixel Mirroring Vertical (hold 3s)
			062 - 063		Pixel Mirroring Horizontal (hold 3s)
			064 - 065		Pixel Mirroring Vertical + Horizontal (hold 3s)
			066 - 077 no function
			078 - 079		Dimmer Response LED (hold 1,5s)
			080 - 081		Dimmer Response Halogen (hold 1,5s)
			082 - 085 No function
			086 - 087 Power Mode - Normal
			088 - 089 No function
			090 - 091 Power Mode - Boost
			092 - 097 No function
			098 - 099 Silent Fan (hold 3s)
			100 - 100 Auto Fan (hold 3s)
			101 - 101 Fan Off (hold 1,5s)
			102 - 119 No function
			120 - 121		LED Frequency 800Hz (hold 3s)
			122 - 123		LED Frequency 1200Hz (hold 3s)
			124 - 125		LED Frequency 2000Hz (hold 3s)
			126 - 127		LED Frequency 3600Hz (hold 3s)
			128 - 129		LED Frequency 12kHz (hold 3s)
			130 - 131		LED Frequency 25kHz (hold 3s)
			132 - 133 RAW (hold 3s)
			134 - 135 Factory Calibration (hold 3s)
			136 - 137 User Calibration (hold 3s)
			138 - 139 Smart Calibration (hold 3s)
			140 - 141 Display on (hold 3s)
			142 - 143 Display off (hold 3s)
			144 - 255 No function
48 CHRGBWPixelcontrolUser-Calibra-ted	54 CHRGBWPixelcontrolUser-Calibra-ted& Masterdim	Function Values				SubGroup
	1 Dimmer	000 - 255	0% to	100%		Dimmer
	2	Dimmerfine	000	255	0% to 100%
	3	Multi-functionalStrobe	000	005	Strobe open	Strobe
			006	010	Strobe closed
			011	033		Pulse Random, slow-> fast
			034	056		Ramp up Random,slow -> fast
			057	079		Ramp down Random, slow -> fast
			080	102		Random StrobeEffect, slow -> fast
			103	127		Strobe Break Effekt,5s......1s (shortburst with break)
			128	250		Strobe slow -> fast<1Hz - 20Hz
			251	255	Strobe open
	4 Duration	000 - 255				Flash duration (short-> long)
1 5 Pixel	1 R 000 - 255 0% to 100%					Single Pixel Control
2 6 Pixel	1 G 000 - 255 0% to 100%
3 7 Pixel	1 B 000 - 255 0% to 100%
4 8 Pixel	1 W 000 - 255 0% to 100%
5 9 Pixel	2 R 000 - 255 0% to 100%
6 10 Pixel	2 G 000 - 255 0% to 100%
7 11 Pixel	2 B 000 - 255 0% to 100%
8 12 Pixel	2 W 000 - 255 0% to 100%
9 13 Pixel	3 R 000 - 255 0% to 100%
10 14 Pixel	3 G 000 - 255 0% to 100%
11 15 Pixel	3 B 000 - 255 0% to 100%
12 16 Pixel	3 W 000 - 255 0% to 100%
...... ...... ...... - ......					...... In same orderPixel 4 to 11
45 49	Pixel 12 R 000 - 255 0% to 100%
46 50	Pixel 12 G 000 - 255 0% to 100%
47	51	Pixel 12 B 000 - 255 0% to 100%			255	0% to 100%
48 52	Pixel 12 W 000 - 255 0% to 100%
	53	Dimmer Curve	000 005 no function			Dimmer Curve
			006 - 063	Linear Dimmer Curve
			064 - 127		Exponential Dimmer Curve
			128 - 191		Logarithmic Dimmer Curve
			192 - 255	S-Curve	Dimmer Curve
	54	Device Settings (please read remark 1*)	000 - 057	no function		Control
			058 - 059		Pixel Mirroring Off (hold 3s)
			060 - 061		Pixel Mirroring Vertical (hold 3s)
			062 - 063		Pixel Mirroring Horizontal (hold 3s)
			064 - 065		Pixel Mirroring Vertical + Horizontal (hold 3s)
			066 - 077	no function
			078 - 079		Dimmer Response LED (hold 1,5s)
			080 - 081		Dimmer Response Halo-gen (hold 1,5s)
			082 - 085	No function
			086 - 087	Power Mode - Normal
			088 - 089	No function
			090 - 091	Power Mode - Boost
			092 - 097	No function
			098 - 099	Silent Fan (hold 3s)
			100 - 100	Auto Fan (hold 3s)
			101 - 101	Fan Off (hold 1,5s)
			102 - 119	No function
			120 - 121		LED Frequency 800Hz (hold 3s)
			122 - 123		LED Frequency 1200Hz (hold 3s)
			124 - 125		LED Frequency 2000Hz (hold 3s)
			126 - 127		LED Frequency 3600Hz (hold 3s)
			128 - 129		LED Frequency 12kHz (hold 3s)
			130 - 131		LED Frequency 25kHz (hold 3s)
			132 - 133	RAW (hold 3s)
			134 - 135	No function
			136 - 137	User Calibration (hold 3s)
			138 - 139	No function
			140 - 141	Display on (hold 3s)
			142 - 143	Display off (hold 3s)
			144 - 255	No function

EN: (1*) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call.
DE: (1*) Nachdem die Einstellungen vorgenommen wurden, stellen Sie den Wert auf 000 ein, um Störungen durch endlosen Funktionsaufruf zu vermeiden.
FR: (1*) Une fois les ajustements effectués, réglez la valeur sur 000 pour éviter les perturbations par appel de fonction sans fin.
ES: (1*) Después de realizar los ajustes, establezca el valor en 000 para evitar perturbaciones mediante una llamada de función sin fin.
PL: (1*) Po dokonaniu ustawień ustaw wartość na 000, aby uniknąć zakłóceń przez niekończące się wywołanie funkcji.
IT: (1*) Dopo aver effettuato le regolazioni, impostare il valore su 000 per evitare disturbi causati da una chiamata a funzione infinita.

PIXEL SEGMENTS / PIXEL SEGMENTE

12 Pixel Segments

1 2 3 4 5 6
7 8 9 10	11 12
