USER MANUAL CJ 90VST2 METABO

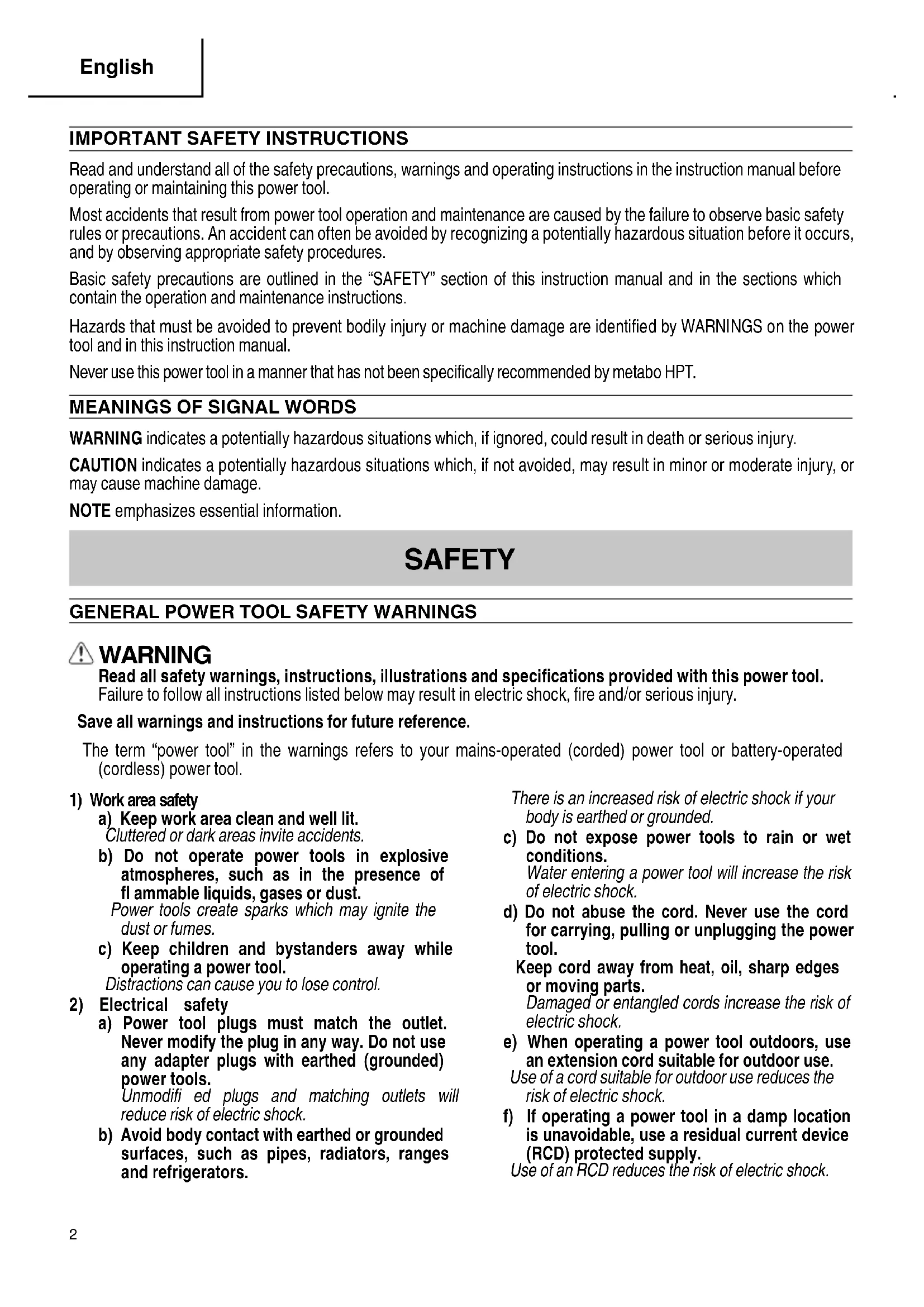

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

Read and understand all of the safety precautions, warnings and operating instructions in the instruction manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this instruction manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the power tool and in this instruction manual. Never use this power tool in a manner that has not been specifi cally recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 000BookCJ90VST2US.indb2000BookCJ90VST2US.indb2 2020/04/1510:11:512020/04/1510:11:513 English

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non- skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power toolʼs operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. PRECAUTION Keep children and infi rm persons away. When not in use, tools should be stored out of reach of children and infi rm persons.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

2. Use clamps or another practical way to secure

and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control. 000BookCJ90VST2US.indb3000BookCJ90VST2US.indb3 2020/04/1510:11:512020/04/1510:11:514 English

3. ALWAYS wear ear protectors when using the tool

for extended periods. Prolonged exposure to high intensity noise can cause hearing loss.

4. NEVER touch moving parts.

NEVER place your hands, fi ngers or other body parts near the tool’s moving parts.

5. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.

7. NEVER use a power tool for applications other

than those specifi ed. NEVER use a power tool for applications other than those specifi ed in the Instruction Manual.

8. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

9. Keep all screws, bolts and covers tightly in

place. Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

10. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

11. Blades and accessories must be securely

mounted to the tool. Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

12. Handle the blades very carefully.

13. Check the blade carefully for cracks or damage

before operation. Replace cracked or damaged bit immediately.

14. Avoid cutting nails. Inspect for and remove all

nails from the workpiece before operation.

15. Hold the tool fi rmly.

16. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely fl ow at all times. Check for dust build-up frequently.

17. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

18. NEVER leave tool running unattended. Turn

power off . Don’t leave tool until it comes to a complete stop.

19. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

20. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

21. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

22. ALWAYS wear a mask or respirator to protect

yourself from dust or potentially harmful particles generated during operation.

23. ALWAYS fi rmly grip the handle while operating.

24. ALWAYS be careful with buried object such as an

underground wiring. Touching these active wiring or electric cable with this tool, you may receive an electric shock. Confi rm if there are any buried object such as electric cable within the wall, fl oor or ceiling where you are going to operate here after.

25. Do not touch the blade immediately after

operation: it may be extremely hot and could burn your skin.

26. During use, do not touch the metal portion of the tool.

27. NEVER touch the blade with bare hands after

28. When working at elevated locations, clear the area of

other people and aware of conditions below you.

29. This Jig Saw employs a high-power motor. If the

machine is used continuously at low speed, an extra load is appplied to the motor which can result in motor seizure. Always operate the power tool so that the blade is not caught by the workpiece during operation. Always adjust the blade speed to enable smooth cutting. 000BookCJ90VST2US.indb4000BookCJ90VST2US.indb4 2020/04/1510:11:512020/04/1510:11:515 English

OPERATION To ensure safer operation of this power tool, metabo HPT has adopted a double insulation design. “Double insulation” means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol “ ” or the words “Double insulation” appear on the power tool or on the nameplate. Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments. To keep the double insulation system eff ective, follow these precautions:

Only metabo HPT Authorized Service Center should disassemble or assemble this power tool, and only genuine metabo HPT replacement parts should be installed.

Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve. 000BookCJ90VST2US.indb5000BookCJ90VST2US.indb5 2020/04/1510:11:512020/04/1510:11:516 English

USE OF EXTENSION CORD

Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

MINIMUM GAGE FOR CORD SETS

Total Length of Cord in Feet (Meter) 0 – 25 26 – 50 51 – 100 101 – 150 (0 – 7.6) (7.9 – 15.2) (15.5 – 30.5) (30.8 – 45.7) Ampere rating AWG More Not more than than 0 – 6 18 16 16 14 6 – 10 18 16 14 12 10 – 12 16 16 14 12 12 – 16 14 12 Not recommended WARNING Avoid electrical shock hazard. Never use this tool with a damaged or frayed electrical cord or extension cord. Inspect all electrical cords regularly. Never use in or near water or in any environment where electric shock is possible.

SAVE THESE INSTRUCTIONS

OTHER USERS AND OWNERS OF THIS TOOL! 000BookCJ90VST2US.indb6000BookCJ90VST2US.indb6 2020/04/1510:11:512020/04/1510:11:517 English FUNCTIONAL DESCRIPTION NOTE The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safey instructions contained in this manual. Some illustrations in this instruction manual may show details or attachments that diff er from those on your own power tool.

Cutting various lumber and pocket cutting

Cutting mild steel plate, aluminum plate, and copper plate

Cutting plastics, such as phenol resin and vinyl chloride

Cutting thin and soft construction materials

Cutting stainless steel plate (With No. 97 blade)

Ensure that the power source to be utilized conforms to the power source requirements specifi ed on the product nameplate.

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

When the work area is far away from the power source, use an extension cord of suffi cient thickness and rated capacity. The extension cord should be kept as short as practicable. WARNING Damaged cord must be replaced or repaired.

4. Check the receptacle

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs. If such a fautly receptacle is used, it may cause overheating, resulting in a serious hazard.

5. Confi rming condition of the environment:

Confi rm that the work site is placed under appropriate conditions conforming to prescribed precautions.

Be sure to switch power OFF and disconnect the plug from the receptacle when changing blades.

Do not touch the lever when plunger is moving.

Never touch the blade immediately after use. The metal is hot and can easily burn your skin. (1) Pull the lever in the direction indicated by the arrow. (Fig. 2-І) (2) With the lever pulled, insert the blade until it butts against the outlet of the blade holder tip. (Fig. 2-ІІ) (3) Release the lever. (Fig. 2-ІІІ) Fig. 2-І Fig. 2-ІІ Fig. 2-ІІІ Guide roller Lever Blade holder Blade Blade holder Guide roller Plunger Fig. 2 000BookCJ90VST2US.indb8000BookCJ90VST2US.indb8 2020/04/1510:11:522020/04/1510:11:529 English NOTE

Confi rm the protrusions of blade inserted to the blade holder surely.

Confi rm the blade located between the groove of guide roller. (Fig. 3) Blade Blade Guide roller Guide roller Fig. 3

7. Switch operation (Fig. 4)

The switch will activate when pulled and will deactivate when released. For continuous operation, pull the switch in all the way and press the stopper. To cancel continuous operation, once again pull the switch in all the way until the stopper is freed, and then release the switch. Stopper Switch trigger Fig. 4

8. Adjusting the blade operating speed

The jig saw is equipped with the electric control circuit which enables stepless speed control. To adjust the speed, turn the dial shown in Fig. 5. When the dial is set to “1”, the jig saw operates at the minimum speed (850 /min). When the dial set to “6”, the jig saw operates at the maximum speed (3 000 /min). Adjust the speed according to the material to be cut and working effi ciency. Dial Fig. 5 CAUTION

At low speed (dial setting: 1 or 2) do not cut a wood with a thickness of more than 5/16" (8 mm) or metal with a thickness of more than 1/32" (1 mm).

9. Adjusting the orbital operation

(1) This Jig Saw employs orbital operation which moves the blade back and forth, as well as up and down. Set the change knob shown in Fig. 6 to “0” to eliminate the orbital operation (the blade moves only up and down). The orbital operation can be selected in 4 steps from “0” to “III”. Change knob Fig. 6 (2) For the hard material, such as a steel plate, etc., decrease the orbital operation. For the soft material, such as lumber, plastic, etc., increase the orbital operation to increase work effi ciency. To cut the material accurately, decrease the orbital operation.

10. Cutting stainless steel plates

This Jig Saw can cut stainless steel plates by using No. 97 blade. Carefully read “Concerning cutting of stainless steel plates” for proper operation.

11. Splinter guard (Sold separately)

CAUTION Be sure to switch OFF and disconnect the plug from the receptacle. Using the splinter guard when cutting wood materials will reduce splintering of cut surfaces. Using the provided Hexagonal bar wrench, tighten the bolts in the lower area of the base, moving the base as far forward as possible. (Fig. 7) Base Hexagonal bar wrench Base bolt Fig. 7 000BookCJ90VST2US.indb9000BookCJ90VST2US.indb9 2020/04/1510:11:522020/04/1510:11:5210 English Insert the splinter guard in the space on the base, and push it completely. (Fig. 8) Splinter guard Base Blade Fig. 8

12. Sub base (Sold separately)

Used for curved cutting of pieces such as arcs and circles. Makes the task easier by eliminating any snags that may occur between the rear of the base and the material. Fit into position after hooking the sub base to the tip of the base. (Fig. 9) To detach, pull up. Base Sub base Fig. 9 NOTE When the sub base is attached, the blade’s protrusion from the material being cut will be reduced by 3 mm. When the blade has been moved down to the lowest point, check to make sure that it is protruding from the material.

Unscrew the four screws on the base to enable the base plate to be removed. Retighten the four screws securely after reattaching. (Fig. 10) Unscrew four screws Base Base plate Fig. 10

14. Prepare a work bench (Fig. 11)

Since the blade will extend beyond the lower surface of the material, place the material on a work bench when cutting. If a square block is utilized as a work bench, select level ground to ensure it is properly stabilized. An unstable work bench will result in hazardous operation. Base Lumber Work bench Blade Fig. 11 CAUTION To avoid possible accident, always ensure that the portion of material remaining after cutting is securely anchored or held in position. 000BookCJ90VST2US.indb10000BookCJ90VST2US.indb10 2020/04/1510:11:532020/04/1510:11:5311 English CUTTING CAUTION In order to prevent blade dislodging, damage or excessive wear on the plunger, please make sure to have surface of the base plate attached to the work piece while sawing.

1. Rectilinear cutting

When cutting on a straight line, fi rst draw a marking gauge line and advance the saw along that line. Using the guide (sold separately) will make it possible to cut accurately on a straight line. (1) Loosen the base bolt hexagonal bar wrench attached on base. (Fig. 12) Hexagonal bar wrench Base Base bolt Fig. 12 (2) Move the base fully forward, and tighten the base bolt again. (Fig. 12) (3) Attach the guide by passing it through the attachment hole on the base and tighten the M5 bolt. (Fig. 13) M5 bolt Guide Attachment hole Fig. 13 (4) Set the orbital position to “0”. NOTE To ensure accurate cutting when using the Guide (Fig. 14), always set the orbital position to “0”. Guide Change knob Fig. 14

2. Sawing curved lines

When sawing a small circular arc, reduce the feeding speed of the machine. If the machine is fed too fast, it could cause the blade to break. Set the orbital position to “0”.

3. Cutting a circle or a circular arc

The guide also will be helpful for circular cutting. After attaching the guide by same way noted as above, drive the nail or screw into the material through the hole on the guide, then use it for a axis when cutting. (Fig. 15) Set the orbital position to “0”. Wood screw or nail Change knob Sub base Guide hole Guide Fig. 15 000BookCJ90VST2US.indb11000BookCJ90VST2US.indb11 2020/04/1510:11:542020/04/1510:11:5412 English

The base can be swiveled to both sides by up to 45° for angular cutting. (Fig. 18) 45°

Scale Semi- circular part mark 45° Fig. 18 (1) Loosen the base bolt by hexagonal bar wrench attached on base and move the base fully forward. (Fig. 11) (2) Align the scale (from 0 degrees to 45 degrees by 15-degree increments) of the semi-circular part of the base with the [ ] mark on the gear cover. (Fig. 19) Scale Semi-circular part mark Fig. 19 (3) Tighten the base bolt again. (Fig. 12) (4) Set the orbital position to “0” - “ІІІ”. NOTE Angular cutting can not be done when adopting dust collector. NOTE Circular cutting must be done with the blade approximately vertical to the bottom surface of the base.

4. Cutting metallic materials (Fig. 16)

(1) Adjust the speed Dial between scales “3” and “4”. (2) Set the orbital position to “0” or to the position indicated in the fi gure. Dial Change knob

Oiler Fig. 16 NOTE Always use an appropriate cutting fl uid (spindle oil, soapy water, etc.). When a liquid cutting fl uid is not avaiable, apply grease to the back surface of the material to be cut.

5. Pocket cutting (Fig. 17)

Fig. 17 (1) Loosen the base bolt hexagonal bar wrench attached on base. (Fig. 12) (2) Move the base fully forward, and tighten the base bolt again. (Fig. 12) (3) Set the orbital position to “0”. <In lumber> Aligning the blade direction with the grain of the wood, cut step by step until a window hole is cut in the center of the lumber. <In other materials> When cutting a window hole in materials other than lumber, initially bore a hole with a drill or similar tool from which to start cutting. 000BookCJ90VST2US.indb12000BookCJ90VST2US.indb12 2020/04/1510:11:542020/04/1510:11:5413 English

CONCERNING CUTTING OF STAINLESS

STEEL PLATES When used with the No. 97 blade (sold separately), can cut stainless steel plates. Note the following to adjus the unit. NOTE Dial scale reading is for reference only. The higher the speed is, the quicker the material is cut. But the service life of the blade will be reduced in this case. When the speed is too low, cutting will take longer, although the service life will be prolonged. Make adjustments as desired.

2. Set the orbital position to “0”

NOTE When cutting use cutting fl uid (oil base cutting fl uid) to prolong the blade’s service life. Dial

Accessory blades To ensure maximum operating effi ciency and results, it is very important to select the appropriate blade best suited to the type and thickness of the material to be cut. The blade number is engraved in the vicinity of the mounting portion of each blade. Select appropriate blades by referring to Table 1 (page 16).

It is possible to house the axiliary hexagonal bar wrench on the base (Fig. 21). Base Hexagonal bar wrench Fig. 21 CAUTION

In order to prevent blade dislodging, damage or excessive wear on the plunger, please make sure to have surface of the base plate attached to the work piece while sawing.

Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Jig saw create sparks which may ignite the dust or fumes. When cutting stainless steel plates, adjust the unit as described below:

Blade Thickness of material Dial Scale No. 97 1/16" – 5/32" (1.5 mm – 2.5 mm) Middle groove position between scales “2” and “3” 000BookCJ90VST2US.indb13000BookCJ90VST2US.indb13 2020/04/1510:11:552020/04/1510:11:5514 English

CONNECTING WITH CLEANER

By connecting with cleaner (sold separately) through dust collection adapter and adapter (sold separately), most of dust can be collected. (Fig. 22) Dust collection adapter Adapter Base Nose Cleaner Fig. 22 (1) Loosen the base bolt hexagonal bar wrench attached on base. (Fig. 12) (2) Move the base fully forward, and tighten the base bolt again. (Fig. 12) (3) Connect the dust collection adapter with adapter. (Fig. 22) (4) Connect the adapter with the nose of cleaner. (Fig. 22) (5) Insert dust collection adapter into the rear hole of the base until the hook catches in the notch. (Fig. 23) (6) Press the hook to remove the dust collection adapter. Hook Notch Dust collection adapter Base Rear hole Adapter Fig. 23

MAINTENANCE AND INSPECTION

WARNING Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.

1. Inspecting the blade

Continued use of a dull or damaged blade will result in reduced cutting effi ciency and may cause overloading of the motor. Replace the blade with a new one as soon as excessive abrasion is noted.

2. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water. WARNING Using this Jig Saw with loosen screws is extremely dangerous.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. 000BookCJ90VST2US.indb14000BookCJ90VST2US.indb14 2020/04/1510:11:552020/04/1510:11:5515 English ACCESSORIES WARNING ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE Accessories are subject to change without any obligation on the part of the metabo HPT. STANDARD ACCESSORIES

No. 1 Blade (Long) (Code No. 879227)

No. 1 Blade (Super Long) (Code No. 321878)

No. 11 Blade (Code No. 963390)

No. 12 Blade (Code No. 963391)

No. 15 Blade (Code No. 963392)

No. 16 Blade (Code No. 963393)

No. 21 Blade (Code No. 963394)

No. 22 Blade (Code No. 963395)

No. 31 Blade (Code No. 879356)

No. 97 Blade (Code No. 963400)

Base plate (Steel) (Code No. 375855)

Dust collection adapter (Code No. 370492) NOTE Specifi cations are subject to change without any obligation on the part of the metabo HPT. 000BookCJ90VST2US.indb15000BookCJ90VST2US.indb15 2020/04/1510:11:552020/04/1510:11:5516 English No. 97 5/64–3/16 (2–5) 1/16–5/32 (1.5–2.5) Below 3/16 (5) Height up to 63/64 (25) 3/16–19/32 (5–15) 3/16–19/32 (5–15) 3/16–63/64 (5–25) 1/8–63/64 (3–25) No. 41 3/8–2-9/16 (10–65) No. 31 3/4–2-5/32 (20–55) No. 22 3/16–1-9/16 (5–40) 1/8–3/4 (3–20) Below 1/4 (6) 1/8–3/4 (3–20) 1/8–1-1/2 (3–40) 1/8–1-1/2 (3–40) No. 21 3/8–2-5/32 (10–55) 3/16–1-3/16 (5–30) 3/16–19/32 (5–15) 3/16–1-3/16 (5–30) 3/8–2-5/32 (10–55) 3/8–2-5/32 (10–55) No. 16 Below 1/8 (3) Below 1/8 (3) Below 1/4 (6) Below 3/16 (5) 1/8–63/64 (3–25) Below 1/4 (6) Below 1/4 (6) No. 15 1/8–15/64 (3–6) 1/8–15/32 (3–12) Height up to 63/64 (25) 3/16–3/4 (5–20) 3/16–3/4 (5–20) 3/16–63/64 (5–25) 1/8–63/64 (3–25) No. 12 Below 3/4 (20) Below 3/8 (10) Below 3/8 (10) 1/8–63/64 (3–25) 1/8–63/64 (3–25) No. 11 3/8–2-5/32 (10–55) 3/16–1-3/16 (5–30) 3/16–1-3/16 (5–30) 3/8–2-5/32 (10–55) 3/8–2-5/32 (10–55) No. 1 (Super Long) Below 3-9/16 (90) No. 1 (Long) Below 3-9/16 (90) Blade Material quality General lumber Plywood Mild steel plate Stainless steel plate Aluminium copper, brass Aluminium sash Phenol resin, melamin resin, etc. Vinyl chloride, acryl resin, etc. Foamed polyethylene, foamed styrol Card board, corrugated paper Hardboard Fiberboard Material to be cut Lumber Iron plate Nonferrous metal Plastics Pulp Table 1 List of appropriate blades NOTE

The minimum cutting radius of No. 1 (Long), No. 1 ( Super Long), No. 21, No. 22, No. 31 and No. 41 blades is 3-15/16" (100 mm).

Blades except No. 41 are sold separately. Thickness of material: inch (mm) 000BookCJ90VST2US.indb16000BookCJ90VST2US.indb16 2020/04/1510:11:552020/04/1510:11:5517 Français

No. 1 Lame (Long) (No. de code 879227)

Le rayon de coupe minimal des lames No. 1 (Long), No. 1 (Super Long), No. 21, No. 22, No. 31 et No. 41 est de 3-15/16" (100 mm).

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and other masonry products, and

• Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
