USER MANUAL EC36DAQ4 METABO

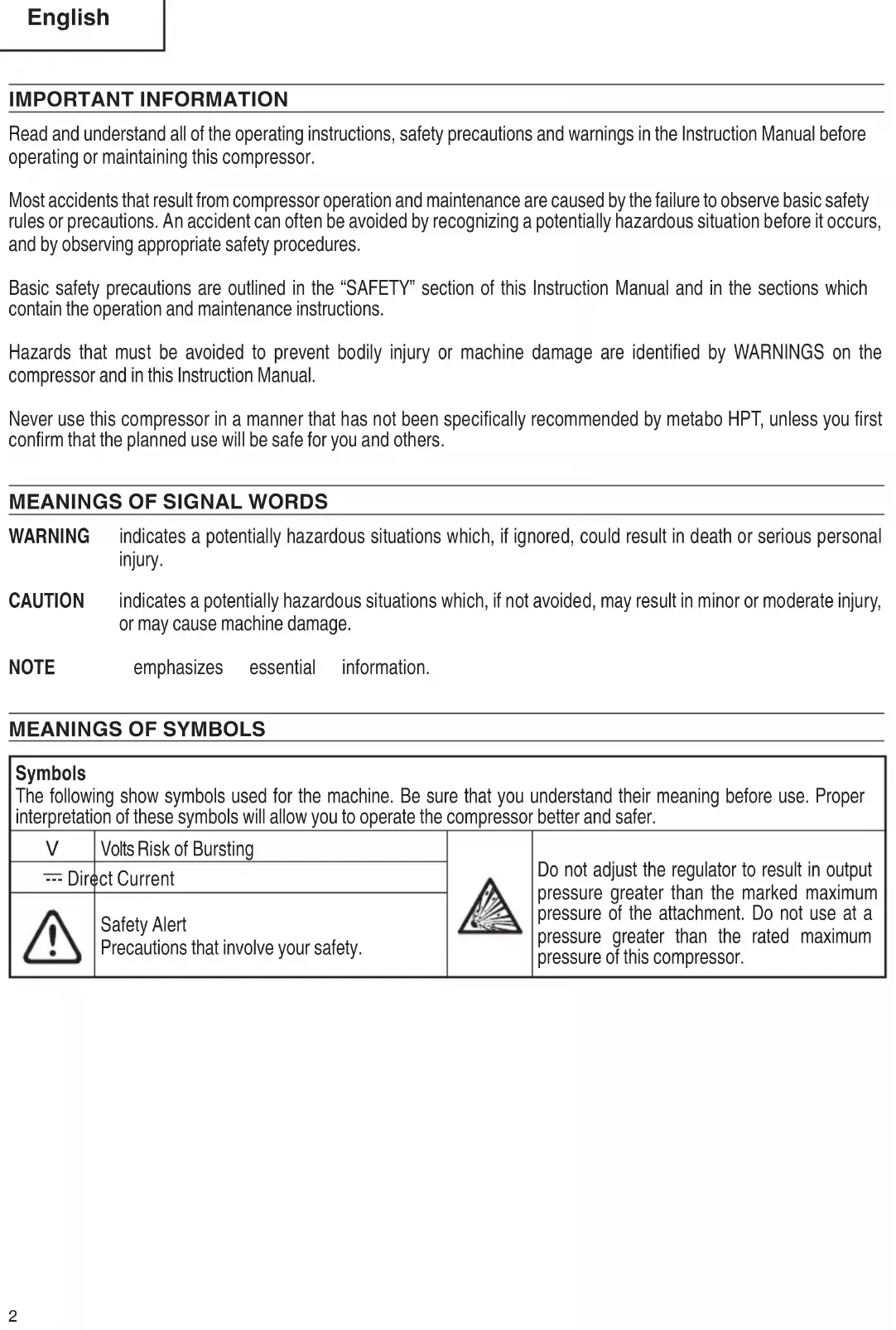

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious personal injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information.

Symbols The following show symbols used for the machine. Be sure that you understand their meaning before use. Proper interpretation of these symbols will allow you to operate the compressor better and safer.

Volts Risk of Bursting Do not adjust the regulator to result in output pressure greater than the marked maximum pressure of the attachment. Do not use at a pressure greater than the rated maximum pressure of this compressor. --- Direct Current Safety Alert Precautions that involve your safety. 00BookEC36DANA.indb200BookEC36DANA.indb2 2021/07/089:36:152021/07/089:36:153 English

1. NEVER TOUCH MOVING PARTS.

Never place your hands, fi ngers or other body parts near the compressor’s moving parts. Never insert your fi ngers or other objects into the shroud ventilator. Such an action invites the danger of injuries or electric shocks.

2. NEVER OPERATE WITHOUT ALL GUARDS IN

PLACE. Never operate this compressor without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety features, be sure to replace the guard or safety features before resuming operation of the compressor.

3. ALWAYS WEAR PROTECTION.

Risk of injury. Always wear ANSI Z87.1 safety glasses with side shields or equivalent eye protection. Compressed air must never be aimed at anyone or any part of the body. Use ear protection as air fl ow noise is loud when draining.

Always disconnect the compressor from the battery and remove the compressed air from the tank before servicing, inspecting, maintaining, cleaning, replacing or checking any parts.

6. AVOID UNINTENTIONAL STARTING.

Do not carry the compressor while it is connected to its battery or when the tank is fi lled with compressed air. Be sure the power switch in the “OFF” position before connecting the compressor to its battery.

7. STORE COMPRESSOR PROPERLY.

When not in use, the compressor should be stored in indoor dry place. Keep out of reach of children. Lock- out the storage area.

8. KEEP WORK AREA CLEAN.

Cluttered areas invite injuries. Clear all work areas of unnecessary tools, debris, furniture, etc.

9. CONSIDER WORK AREA ENVIRONMENT.

Keep work area well lit and well ventilated. Operate the compressor in an open area at least 18 inches (457 mm) away from any wall or object that could restrict the fl ow of fresh air to the ventilation openings. Do not place rags or other objects on or near these openings. Risk of fi re or explosion. Do not carry and operate the compressor or any other electrical device near the spray area. Do not use compressor in the presence of fl ammable liquids or gases. Never place objects against or on top of compressor. Compressor produces sparks during operation. Never use compressor in sites containing lacquer, paint, benzine, thinner, gasoline, gases, adhesive agents, and other materials which are combustible or explosive. Always operate the compressor in a stable and secure position to prevent accidental movement of the unit. Never operate the compressor on a roof or other elevated positon. Never use on a ladder or unstable support. Use an additional air hose to reach high locations. This compressor contains some components parts that tend to produce arcs or sparks, and therefore, when located in a garage, it should be in a room or enclosure provided for this purpose, and should be 18 inches (457 mm) or more above the fl oor.

10. KEEP COMPRESSORS AS FAR FROM THE

SPRAYING AREA AS POSSIBLE. Risk of fi re or explosion. Do not spray fl ammable liquid in a confi ned area. The spray area must be well ventilated. Do not smoke while spraying or spray where parks or a fl ame is present. Use spray gun hose at least 25 feet (7.6 m) long and keep the compressor/ motor at least 20 feet (6.1 m) away from explosive vapours. Do not use this air compressor to spray chemicals. Your lungs can be damaged by inhaling toxic fumes. SAFETY IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE COMPRESSOR

Death or serious bodily injury could result from improper or unsafe use of compressor. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

00BookEC36DANA.indb300BookEC36DANA.indb3 2021/07/089:36:152021/07/089:36:154 English A respirator may be necessary in dusty environments or when spraying paint. Do not carry while painting.

11. KEEP CHILDREN AWAY.

Do not let visitors contact compressor parts. All visitors should be kept safely away from work area.

Do not wear loose clothing or jewelry. They can be caught in moving parts. Wear protective hair covering to contain long hair.

13. MAINTAIN COMPRESSOR WITH CARE.

Please conduct maintenance in accordance with page 22.

Watch what you are doing. Use common sense. Never stand on the compressor. Do not allow the compressor to operate unattended. Do not operate compressor when you are tired. Compressor should never be used by you if you are under the infl uence of alcohol, drugs or medication that makes you drowsy.

15. CHECK DAMAGED PARTS AND AIR LEAK.

Before further use of the compressor, a guard or other part is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, air leak, and any other conditions that may aff ect its operation. A guard or other part that is damaged should be properly repaired or replaced by a metabo HPT authorized service center. Have defective power switches replaced by a metabo HPT authorized service center. Do not use compressor if power switch does not turn it on and off .

16. NEVER USE COMPRESSOR FOR APPLICATIONS

OTHER THAN THOSE SPECIFIED. Never use compressor for applications other than those specifi ed in the Instruction Manual. Following all safety precautions in this manual and the manufacturer’s instructions in the application manual. Never use compressed air for breathing or respiration.

17. HANDLE COMPRESSOR CORRECTLY.

Operate the compressor according to the instructions provided herein. Never allow the compressor to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

18. KEEP ALL SCREWS, BOLTS AND GUARDS

TIGHTLY IN PLACE. Keep all screws, bolts, and guards tightly mounted. Check their conditions periodically.

19. KEEP MOTOR AIR VENT CLEAN.

The motor air vent must be kept clean so that air can freely fl ow at all times. Check for dust build-up frequently.

20. NEVER USE A COMPRESSOR WHICH IS

DEFECTIVE OR OPERATING ABNORMALLY. If the compressor appears to be operating unusually, making strange noises or vibration, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

21. USE ONLY GENUINE metabo HPT REPLACEMENT

PARTS. Replacement parts not manufactured by metabo HPT may void your warranty and can lead to malfunction and resulting injuries. Genuine metabo HPT parts are available from your dealer.

22. DO NOT MODIFY THE COMPRESSOR.

Do not modify the compressor. Do not drill into, weld, patch or modify the tanks. Do not make adjustments to the components that control tank pressure. Do not make alterations to the factory operating pressure settings. Do not operate at pressures or speeds in excess of the manufacturer’s recommendations. Always contact the metabo HPT authorized service center for any repairs. Unauthorized modifi cation may not only impair the compressor performance but may also result in accidents or injury to repair personnel who do not have the required knowledge and technical expertise to perform the repair operations correctly.

23. TURN OFF THE POWER SWITCH WHEN THE

COMPRESSOR IS NOT USED. When the compressor is not used, turn off the power switch, remove the battery and open the drain valve to discharge the compressed air from the tank.

24. NEVER TOUCH HOT SURFACE.

To reduce the risk of burns, do not touch the delivery pipe, check valve or pump. These areas can remain hot for at least 45 minutes after this compressor is shutdown. Allow compressor to cool prior to servicing. 00BookEC36DANA.indb400BookEC36DANA.indb4 2021/07/089:36:152021/07/089:36:155 English

25. DO NOT DIRECT AIR STREAM AT BODY.

Risk of injury. Do not direct air stream at persons or animals.

Risk of bursting. Water will condense in the tank. If not drained, water will corrode and weaken the tank causing a risk of tank rupture. Drain tank daily or after 4 hours of use. To drain the tank, open valves slowly and tilt compressor to empty accumulated water. Keep face and the other body parts away from outlet of drain. Use ANSI Z87.1 safety glasses with side shields when draining as debris can be kicked up into face.

27. DO NOT STOP COMPRESSOR BY REMOVING

THE BATTERY. This could result in damage to the unit. Use the power switch.

28. MAKE SURE THE COMPRESSOR OUTLET

PRESSURE IS SET LOWER THAN THE MAXIMUM OPERATING PRESSURE OF THE TOOL. Too much air pressure causes a hazardous risk of bursting. Check the manufacturer’s maximum pressure rating for air tools and accessories. The regulator outlet pressure must never exceed the maximum pressure rating.

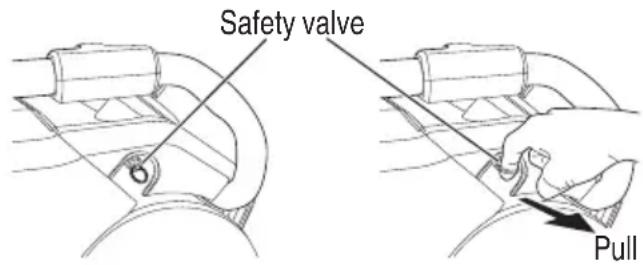

29. THE SAFETY VALVE MUST WORK PROPERLY.

Risk of bursting. Before starting the compressor, pull the ring on the safety valve to make sure that the safety valve operates smoothly. If the safety valve does not work properly, over-pressurization may occur, causing tank rupture or an explosion. Do not use compressor if the safety valve is stuck or does not operate smoothly. Have defective safety valve replaced by a metabo HPT authorized service center.

30. USE OF THIS PRODUCT WILL EXPOSE YOU

TO CHEMICALS KNOWN TO THE STATE OF CALIFORNIA. Some dust created by this product contains chemicals known to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: – compounds in fertilizers – compounds in insecticides, herbicides and pesticides – arsenic and chromium from chemically treated lumber To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to fi lter out microscopic particles. Use of this product will expose you to chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Avoid inhaling vapors and dust, and wash hands after using. This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

31. PROTECT MATERIAL LINES AND AIR LINES

FROM DAMAGE OR PUNCTURE. Keep the hose and power cord away from sharp objects, chemical spills, oil, solvents, and wet fl oors.

32. CHECK HOSES FOR WEAK OR WORN CONDITION

BEFORE EACH USE, MAKING CERTAIN ALL

CONNECTIONS ARE SECURE. Do not use if a defect is found. Purchase a new hose or notify an authorized service center for examination or repair.

33. RELEASE THE PRESSURE WITHIN THE SYSTEM

SLOWLY. Dust and debris may be harmful.

34. KEEP THE EXTERIOR OF THE AIR COMPRESSOR

DRY, CLEAN, AND FREE FROM OIL AND GREASE. Always use a clean cloth when cleaning. Never use brake fl uids, gasoline, petroleum-based products, or any strong solvents to clean the unit. Following this rule will reduce the risk of deterioration of the enclosure plastic.

35. MAKE SURE THE HOSE IS FREE OF

OBSTRUCTIONS OR SNAGS. Entangled or snarled hoses can cause loss of balance or footing and may become damaged.

OR HOSE THAT LEAKS AIR OR DOES NOT FUNCTION PROPERLY.

SERVICING A COMPRESSOR, OR WHEN A

COMPRESSOR IS NOT IN USE. 00BookEC36DANA.indb500BookEC36DANA.indb5 2021/07/089:36:152021/07/089:36:156 English WARNING The operation of any compressor can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning compressor operation, always wear safety goggles , safety glasses with side shields, or a full face shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1. REPLACEMENT PARTS When servicing use only identical replacement parts. Repairs should be conducted only by a metabo HPT authorized service center.

AND, IF DAMAGED, HAVE REPAIRED AT YOUR NEAREST AUTHORIZED SERVICE CENTER. Following this rule will reduce the risk of injury.

43. RECHARGE ONLY WITH THE CHARGER

SPECIFIED BY THE MANUFACTURER. A charger that is suitable for one type of battery may create a risk of fi re when used with another battery.

44. USE POWER TOOLS ONLY WITH SPECIFICALLY

DESIGNATED BATTERIES. Use of any other batteries may create a risk of injury and fi re.

45. WHEN BATTERY IS NOT IN USE, KEEP IT AWAY

FROM OTHER METAL OBJECTS LIKE PAPER

CLIPS, COINS, KEYS, NAILS, SCREWS, OR

TO ANOTHER. Shorting the battery terminals together may cause burns or a fi re.

WITH WATER. IF LIQUID CONTACTS EYES, ADDITIONALLY SEEK MEDICAL HELP. Liquid ejected from the battery may cause irritation or burns.

47. Because the cordless air compressor operates by

battery power, be aware of the fact that it can begin to operate at any time.

48. Do not use the product if the tool or the battery

terminals (battery mount) are deformed. Installing the battery could cause a short circuit that could result in smoke emission or ignition.

49. Keep the tool’s terminals (battery mount) free of swarf

Prior to use, make sure that swarf and dust have not collected in the area of the terminals.

During use, try to avoid swarf or dust on the tool from falling on the battery.

When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust. Doing so could cause a short circuit that could result in smoke emission or ignition.

OF PARTS, MOUNTING, AND ANY OTHER

CONDITIONS THAT MAY AFFECT ITS

CENTER. Following this rule will reduce the risk of shock, fi re or serious injury. 00BookEC36DANA.indb600BookEC36DANA.indb6 2021/07/089:36:152021/07/089:36:157 English

The term “charger or adapter” in the safety instructions refers to your battery charger or AC/DC adapter. WARNING Death or serious bodily injury could result from improper or unsafe use of charger or adapter. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating

instructions for battery charger Model UC18YSL3 or AC/DC adapter Model ET36A.

2. Before using charger or adapter, read all instructions

and cautionary markings on (1) charger or adapter, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge metabo HPT

rechargeable battery models of the multi volt series. Other models of batteries may burst causing personal injury and damage.

4. Use of an attachment not recommended or sold by

the charger or adapter manufacturer may result in a risk of fi re, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and cord,

pull by plug when disconnecting charger or adapter.

6. Make sure cord is located so that it will not be stepped

on, tripped over, or otherwise subjected to damage or stress.

7. An extension cord should not be used unless

absolutely necessary. Use of improper extension cord could result in a risk of fi re and electric shock. If extension cord must be used make sure: a. That blades of extension cord are the same number, size, and shape as those of plug on charger or adapter: b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for AC ampere rating of charger or adapter as specifi ed in Table 1.

11. To reduce risk of electric shock, unplug charger

or adapter from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

12. This AC/DC adapter is for use only with specifi c tools,

including EC36DA. The adapter might be suitable for use with other metabo HPT battery operated tools. It is necessary to confi rm suitability by referencing the instruction manual of the specifi c tool or by consulting our web site https://www.metabo-hpt.com/. Failure to confi rm suitability before using the adapter with specifi c tools could result in fi re hazard. Table 1

AC Input Rating Amperes* AWG Size of Cord Equal to or greater than but less than Length of Cord, Feet (Meter) 25 (7.5) 50 (15) 100 (30) 150 (45)

• If the input rating of a charger or adapter is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating–for example: 1,250 watts = 10 amperes 125 volts

8. Do not operate charger or adapter with damaged cord

or plug-replace them immediately.

9. Do not operate charger or adapter if it has received a

sharp blow, been dropped, or otherwise damaged in any way; take it to a qualifi ed serviceman.

10. Do not disassemble charger or adapter; take it to

a qualifi ed serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fi re. 00BookEC36DANA.indb700BookEC36DANA.indb7 2021/07/089:36:152021/07/089:36:158 English

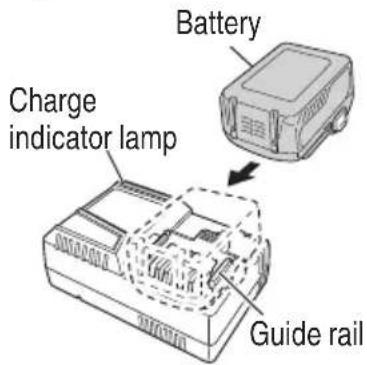

You must charge the battery before you can use the power tool. Before using the model UC18YSL3 battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual. REMEMBER: USE ONLY metabo HPT BATTERY MODELS OF THE MULTI VOLT SERIES. OTHER MODELS OF BATTERIES MAY BURST AND CAUSE INJURY! Follow these instructions to avoid the risk of injury: WARNING Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery or AC/DC adapter.

2. NEVER incinerate the battery or AC/DC adapter, even

if it is damaged or is completely worn out. The battery can explode in a fi re.

3. NEVER short-circuit the battery or AC/DC adapter.

4. NEVER insert any objects into the charger or

adapter’s air vents. Electric shock or damage to the charger or adapter may result.

5. NEVER use outdoors. Keep the battery or AC/DC

adapter away from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below 14°F

(-10°C) or above 104°F (40°C). (UC18YSL3) NEVER use when the temperature is below 32°F (0°C) or above 104°F (40°C). (ET36A)

7. NEVER connect two charger or adapter together.

8. NEVER insert foreign objects into the hole for the

battery or the charger or adapter.

11. NEVER store the battery or charger or adapter in

places where the temperature may reach or exceed 104°F (40°C) such as inside metal box or car.

12. NEVER expose the battery or charger or adapter to

rain or wet conditions.

13. ALWAYS operate charger or adapter on standard

household electrical power (120 volts). Using the charger or adapter on any other voltage may overheat and damage the charger.

14. ALWAYS wait at least 15 minutes between charges to

avoid overheating the charger.

15. ALWAYS disconnect the power cord from its

receptacle when the charger or adapter is not in use. [The information below applies only to ET36A]

16. Do not use the product if the tool or the AC/DC adapter

terminals (AC/DC adapter mount) are deformed. Installing the AC/DC adapter could cause a short circuit that could result in smoke emission or ignition.

Prior to use, make sure that swarf and dust have not collected in the area of the terminals.

During use, try to avoid swarf or dust on the tool from falling on the AC/DC adapter.

When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust. Doing so could cause a short circuit that could result in smoke emission or ignition.

18. The product is intended for Use in Pollution Degree

2 or PD2 environments. Operate only in areas of non-conductive pollution. A temporary conductivity caused by condensation is normally expected.

20. Do not use this product near a pacemaker or other

similar implanted device, which may be aff ected by a magnetic fi eld produced by this product.

21. The adapter, power supply box and the inside of the

DC cord generates a boosted high voltage of 380 V so please be careful of the following.

Do not disassemble the product.

Do not drop or expose to impact. In the event the product is damaged from strong impact, do not use the product.

Do not use the product in areas exposed to rain, snow, iron powder or wet condition.

Do not touch the product with wet hands.

Do not pull the cord with excessive force.

Use the product in a well-ordered work environment. CAUTION

1. When the mesh of the vent is plugged by objects such

as wood shavings, try to keep the objects out when you clear the mesh. (If not properly maintained, the temperature protective feature could shut the product off )

2. When the temperature protective feature frequently

cuts the power off , do not overload the machine with continued work, but let the machine rest for a little before continuing operation.

3. The machine does get hot. However, this does not

indicate an abnormality. Keep the electricity running and operate the internal fan to cool the machine before carrying it elsewhere. When carrying the product, make sure to use the cord armor. The case may be hot so please be careful. 00BookEC36DANA.indb800BookEC36DANA.indb8 2021/07/089:36:152021/07/089:36:159 English

4. During use, do not pull the cord to move the Box.

Doing so may result in damage.

5. Do not use more that a single cord reel of 30 meters.

Doing so may result in damage.

6. During use, if the machine stops running after the

Box’s LED lamp blinks, confi rm the power supply environment.

7. Do not drag the cord when using or carrying the

machine. Doing so may tear the cord insulation or break the cord which could result in electric shock.

8. Do not stretch the cord out any more than required.

When using tools such as gardening clippers or circular saws, always make sure of the power cord’s position to avoid cutting the cord during operation.

9. To use the AC/DC adapter after it shuts down due to

high temperature, disconnect the box’s power plug, wait for the LED lamp to go out and then reconnect the box’s power plug. If the machine cuts off even after suffi ciently cooling it off with the built-in fan, discontinue use as there may be a problem with the machine.

10. Do not use this product near a radio. Doing so could

cause noise from the radio, making it diffi cult to listen to a broadcast.

11. This is a power source for multi volt products. Do not

use with 18 V products or chargers. Doing so could result in damage.

12. Overload behavior may diff er when compared with

BSL36B18 battery use. With the battery where the LED should blink on the main unit, the LED on the AC/DC adapter may blink instead.

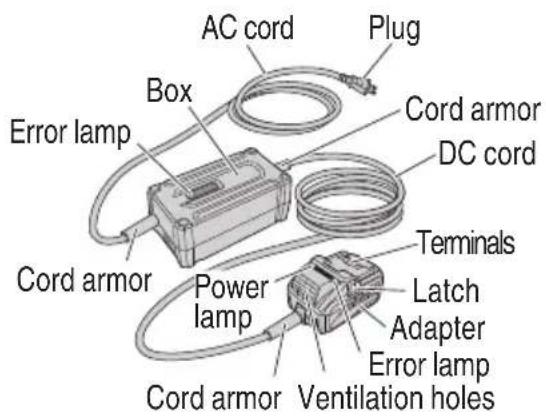

PRECAUTIONS FOR AC/DC ADAPTER

The adapter equips with the protection function to stop the output. In the cases of 1 to 2 described below, when using this product, even if you are turning on the power switch, the motor may stop. This is not the trouble but the result of protection function.

1. If the tool is overloaded, output may stop. In this case,

turn off the power switch of the tool and eliminate causes of overloading.

2. If the adapter is overheated under overload work,

output may stop. In situations like this, discontinue use of the adapter and detach it from the tool. Allow the adapter to cool in a location such as a shaded area with good air circulation.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are turning on the power switch, the motor may stop. This is not the trouble but the result of protection function.

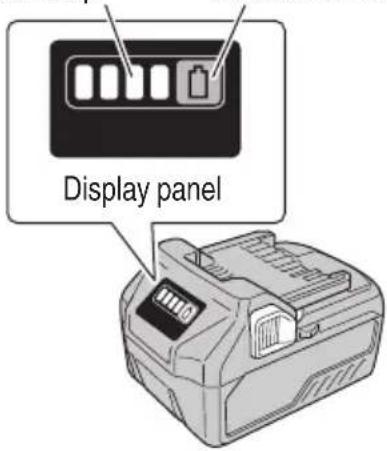

1. When the battery power remaining runs out, the motor

stops. In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In

this case, turn off the power switch of the tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

During work make sure that swarf and dust do not fall on the battery.

Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car

cigarette lighter sockets.

6. Do not use the battery for a purpose other than those

7. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures

or high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or foul

odor are detected. 00BookEC36DANA.indb900BookEC36DANA.indb9 2021/07/089:36:152021/07/089:36:1510 English

10. Do not use in a location where strong static electricity

11. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

12. Do not immerse the battery or allow any fl uids to fl ow

inside. Conductive liquid ingress, such as water, can cause damage resulting in fi re or explosion. Store your battery in a cool, dry place, away from combustible and fl ammable items. Corrosive gas atmospheres must be avoided. CAUTI ON

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. WARNING If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fi re. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (Fig. 3).

REGARDING LITHIUM-ION BATTERY

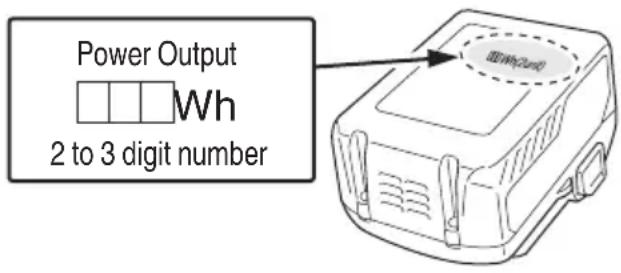

TRANSPORTATION When transporting a lithium-ion battery, please observe the following precautions. WARNING Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classifi cation of Dangerous Goods and will require special application procedures.

For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

If the BSL36B18 is installed in the power tool, the power output will exceed 100 Wh and the unit will be classifi ed as Dangerous Goods for freight classifi cation.

PRECAUTIONS When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product. Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

SAVE THESE INSTRUCTIONS

OTHER USERS OF THIS TOOL! 00BookEC36DANA.indb1000BookEC36DANA.indb10 2021/07/089:36:152021/07/089:36:1511 English FUNCTIONAL DESCRIPTION NOTE: The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the compressor. Never operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own compressor.

• Existing batteries (BSL3660/3626/3620, BSL18xx and BSL14xx series, etc.) cannot be used with this tool. If using the AC/DC adapter, please read and understand its manual before operating the power tool.

Model UC18YSL3 Input power source Single phase: AC 120 V 60 Hz Charging time (At a temperature of 68°F (20°C)) BSL36B18 : Approx.52 min Charging voltage DC 14.4–18 V Charging current DC 8.0 A Weight 1.3 lbs. (0.6 kg) NOTE: The charging time may vary according to temperature and power source voltage. 00BookEC36DANA.indb1200BookEC36DANA.indb12 2021/07/089:36:162021/07/089:36:1613 English

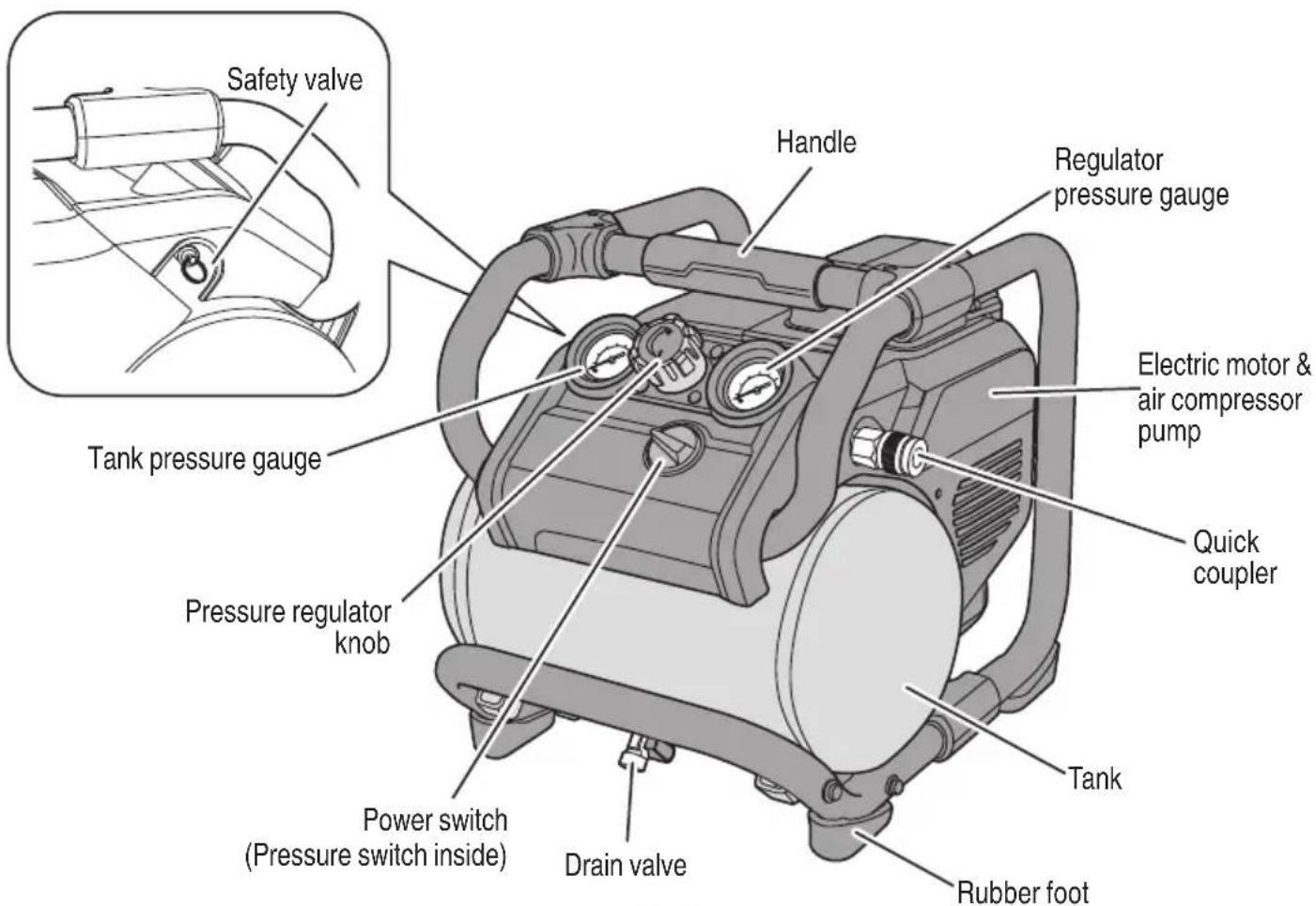

KNOW YOUR AIR COMPRESSOR

Before attempting to use this product, familiarize yourself with all operating features and safety rules. (Fig. 2)

OIL-FREE BRUSHLESS MOTOR

Your air compressor features permanently lubricated bearings. POWER SWITCH (Pressure switch inside) This switch is used to start or stop the air compressor. Moving the power switch to the (ON) position will provide automatic power to the pressure switch which will allow the motor to start when the tank pressure is below the factory set cut-in pressure. When in the (ON) position, the pressure switch stops the motor when the tank pressure reaches the factory set cut-out pressure. Moving the power switch to the (OFF) position will remove power from the motor and stop the air compressor.

ELECTRIC MOTOR & AIR COMPRESSOR PUMP

The motor is used to power the pump. The electric motor has a thermal overload protector. If the motor overheats for any reason, the thermal overload will cut off power, thus preventing the motor from being damaged. Wait until the motor is cool. Motor resets automatically. Air compressor pump: to compress air, the piston moves up and down in the cylinder. On the down stroke, air is drawn in through the air intake valve while the exhaust valve remains closed. On the upstroke, air is compressed, the intake valve closes and compressed air is forced out through the exhaust valve, into the discharge line, through the check valve and into the tank. SAFETY VALVE This valve is designed to prevent system failures by relieving pressure from the system when the compressed air reaches a predetermined level. The valve is preset by the manufacturer and must not be modifi ed in any way. DRAIN VALVE The drain valve is used to remove moisture from the tank.

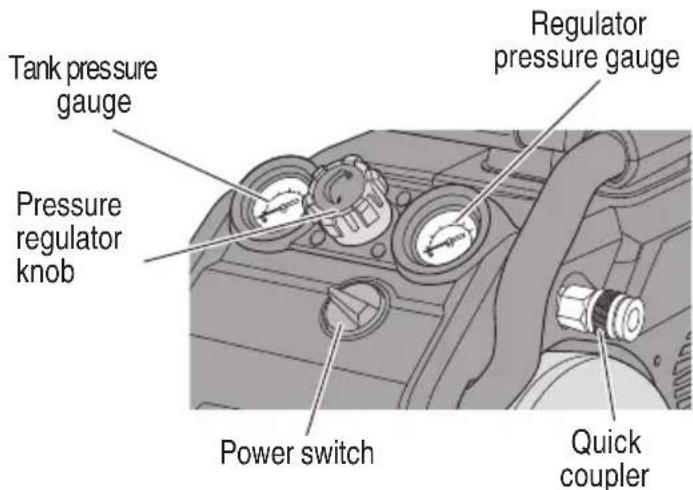

The tank pressure gauge indicates the pressure of the air in the tank.

REGULATOR PRESSURE GAUGE

The current line pressure is displayed on the regulator pressure gauge. This pressure can be adjusted by rotating the pressure regulator knob.

PRESSURE REGULATOR KNOB

Use the pressure regulator knob to adjust the amount of air being delivered through the hose. The air pressure coming from the tank is controlled by the regulator knob. Turn the pressure regulator knob clockwise to increase discharge pressure and counterclockwise to decrease discharge pressure. Follow tool operating instructions for recommended pressure range. TANK The tank is used to store the compressed air. QUICK COUPLER The outlet is used to connect the 1/4 in. NPT air hose. OVERLOAD PROTECTOR This air compressor is equipped with a thermal overload device which will turn the air compressor off automatically, if the air compressor becomes overheated. If the motor turns OFF repeatedly, check for the following possible causes fi rst: The battery is depleted. Lack of proper ventilation or outside air or room temperature too high. To reset the air compressor: (1) Turn the air compressor off . (2) Remove the battery and allow the air compressor to cool for 30 minutes. (3) Install the battery in the air compressor. (4) Turn the air compressor on. 00BookEC36DANA.indb1300BookEC36DANA.indb13 2021/07/089:36:162021/07/089:36:1614 English ASSEMBLY UNPACKING This product requires assembly.

Carefully remove the compressor and any accessories from the box. Make sure that all items listed in the packing list are included.

Inspect the compressor carefully to make sure no breakage or damage occurred during shipping.

Do not discard the packing material until you have carefully inspected and satisfactorily operated the compressor. PACKING LIST – Air Compressor – Instructions Manual – Intake Filter – Battery (BSL36B18)* .................................................1 – Battery Charger (UC18YSL3)* ...................................1 – Battery cover* ............................................................1

• (NN) specifi cations is excluded. WARNING If any parts are missing do not operate the compressor until the missing parts are replaced. Failure to do so could result in possible serious personal injury. WARNING Do not attempt to modify this compressor or create accessories not recommended for use with this compressor. Any such alteration or modifi cation is misuse and could result in a hazardous condition leading to possible serious personal injury.

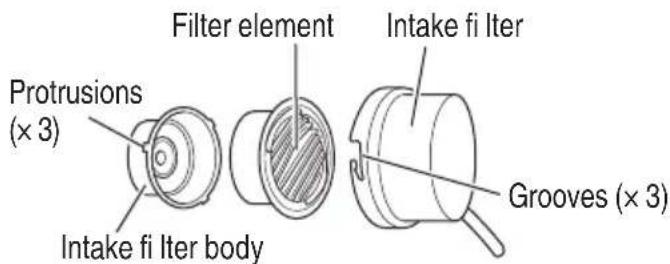

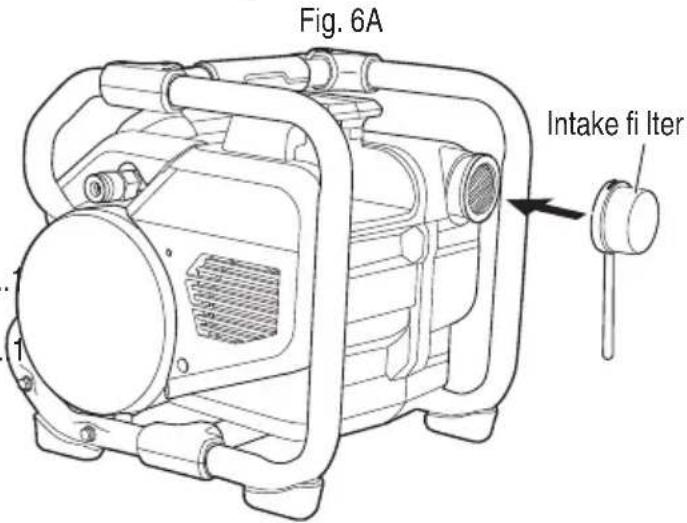

ATTACHING THE INTAKE FILTER

CAUTION Do not operate without the intake fi lter.

Turn off the power of the air compressor, and remove the battery.

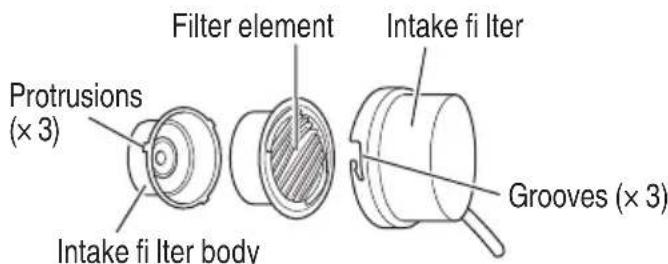

Turn the intake fi lter counter-clockwise until it stops and then remove the intake fi lter cap and fi lter element. (Fig. 6A)

Firmly screw in the intake fi lter body.

After inserting the fi lter element, match the grooves of the intake fi lter cap with the three protrusions on the intake fi lter body so that the hose points downward. Then, turn the intake fi lter cap clockwise until it stops.

Check to see if the intake fi lter cap is loose. If the fi lter is loose, remove and reinstall the fi lter. (Fig. 6B) Intake fi lter Intake fi lter body Filter element Grooves (× 3) Protrusions (× 3) Fig. 6A Intake fi lter Fig. 6B ATTACHING HOSE (sold separetely)

Insert the hose into the quick coupler already installed on the compressor (Fig. 7). WARNING Do not attach any tools to the open end of the hose until start-up has been completed.

Firmly grasp the open end of the hose; hold facing away from yourself and others. Power switch Quick coupler Regulator pressure gauge Pressure regulator knob Tank pressure gauge Fig. 7 00BookEC36DANA.indb1400BookEC36DANA.indb14 2021/07/089:36:162021/07/089:36:1615 English OPERATION

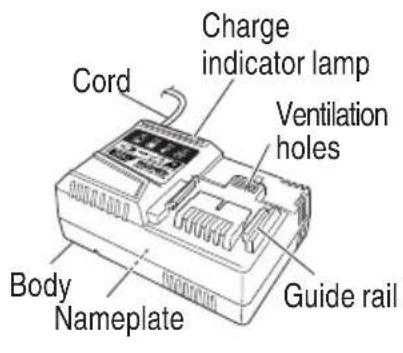

2. Insert the battery to the battery charger.

Firmly Insert the battery into the battery charger as shown in Fig. 9. Charge indicator lamp Guide rail Battery Fig. 9

When inserting a battery in the charger, the charge indicator lamp will blink in blue. When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 2) (1) Charge indicator lamp indication The indications of the charge indicator lamp will be as shown in Table 2, according to the condition of the battery charger or the battery.

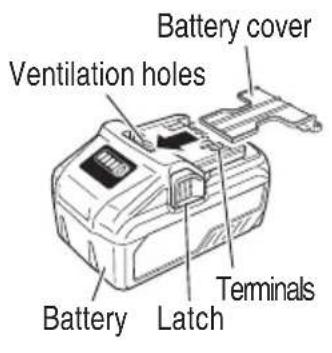

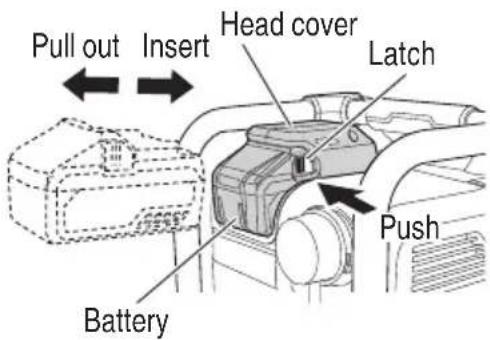

REMOVAL AND INSTALLATION METHOD

How to install the battery. Align the battery with the groove in head cover and slip it into place. Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing injury to you or someone around you (Fig. 8).

How to remove the battery. Withdraw battery from the head cover while pressing the latch (2 pcs) of the battery (Fig. 8). Latch Battery Head cover Insert Pull out Push Fig. 8 CHARGING METHOD NOTE Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.

The cord is not damaged. WARNING Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn out.

1. Connect the charger’s power cord to a receptacle.

When the power cord is connected, the charge indicator lamp will blink in red. (At 1-second intervals) WARNING Do not use the electrical cord if damaged. Have it repaired immediately. 00BookEC36DANA.indb1500BookEC36DANA.indb15 2021/07/089:36:162021/07/089:36:1616 English Table 2 Indications of the charge indicator lamp Charge indicator lamp (RED / BLUE / GREEN / PURPLE) Before charging Blinks (RED) Lights for 0.5 seconds. Does not light for

0.5 seconds. (off for 0.5 seconds)

Plugged into power source While charging Blinks (BLUE) Lights for 0.5 seconds. Does not light for 1 second. (off for 1 second) Battery capacity at less than 50% Blinks (BLUE) Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds) Battery capacity at less than 80% Lights (BLUE) Lights continuously Battery capacity at more than 80% Charging complete Lights (GREEN) Lights continuously (Continuous buzzer sound: about 6 seconds) Overheat standby Blinks (RED) Lights for 0.3 seconds. Does not light for

0.3 seconds. (off for 0.3 seconds)

Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible Flickers (PURPLE) Lights for 0.1 seconds. Does not light for

0.1 seconds. (off for 0.1 seconds)

(Intermittent buzzer sound: about 2 seconds) Malfunction in the battery or the charger (2) Regarding the temperature of the rechargeable battery. The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged. Table 3 Rechargeable batteries Temperatures at which the battery can be recharged BSL36B18 32°F–122°F (0°C–50°C) (3) Regarding recharging time (At 68°F (20°C)) Table 4 Charging time Charger Battery UC18YSL3 BSL36B18 Approx. 52 min NOTE The recharging time may vary according to the ambient temperature.

4. Disconnect battery charger from the receptacle.

CAUTION Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger. NOTE Be sure to pull out the battery from the battery charger after use, and then keep it. Regarding electric discharge in case of new batteries, etc. As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the fi rst and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times. 00BookEC36DANA.indb1600BookEC36DANA.indb16 2021/07/089:36:162021/07/089:36:1617 English How to make the batteries perform longer (1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter. (2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while. CAUTION

When the battery charger has been continuosly used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the charge indicator lamp of the charger lights for 0.3 seconds, does not light for 0.3 seconds (off for 0.3 seconds). In such a case, fi rst let the battery cool, then start charging.

When the charge indicator lamp fl ickers (at 0.2–second intervals), check for and take out any foreign objects in the charger’s battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

HOW TO RECHARGE USB DEVICE

When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product. Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device. WARNING

Prior to use, check the connecting USB cable for any defect or damage. Using a defective or damaged USB cable can cause smoke emission or ignition.

When the product is not being used, cover the USB port with the rubber cover. Buildup of dust etc. in the USB port can cause smoke emission or ignition. NOTE

The time required for charging will be longer when a USB device and battery are being simultaneously charged.

There may be an occasional pause during USB recharging.

When a USB device is not being charged, turn the USB power switch OFF and remove the USB device from the charger. Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents. (1) Select a charging method Depending on the charge method selected, either the battery is inserted into the charger or the power cord is plugged into an outlet.

Charging a USB device by battery (Fig. 10-a)

Charging a USB device from a electrical outlet (Fig. 10-b)

Charging a USB device and battery from a electrical outlet (Fig. 10-c) abc Fig. 10 (2) Turn the USB power switch ON (Fig. 11) When you turn the USB power switch ON, the USB power indicator lamp will light up. USB power switch USB power indicator lamp Rubber cover USB port USB cable Fig. 11 (3) Connect the USB cable. (Fig. 11) Pull back the rubber cover and fi rmly plug in a commercially available USB cable (appropriate to the device being charged) into the USB port. 00BookEC36DANA.indb1700BookEC36DANA.indb17 2021/07/089:36:172021/07/089:36:1718 English

When the power cord is not plugged into an outlet and the battery runs out of power, power output will stop and the USB power indicator lamp will shut off .

When the USB power indicator lamp goes out, change the battery or plug the power cord into an electrical outlet. (4) When charging is completed

The USB power indicator lamp will not go out when a USB device has been completely charged. To verify charge status, check the USB device.

Turn the USB power switch OFF and unplug the power cord from the electrical outlet. (Fig. 11)

Remove the battery from the charger and place the rubber cover over the USB port. APPLICATIONS Air compressors are utilized in a variety of air system applications. Match hoses, connectors, air tools, and accessories to the capabilities of the air compressor. You may use this compressor for purposes listed below:

Operating air powered tools requiring less than

Powering pneumatic nail guns, infl ating tires, cleaning / blowing with pressurized air. WARNING Do not allow familiarity with compressor and tools to make you careless. Remember that a careless fraction of a second is suffi cient to infl ict serious injury. WARNING Always wear safety goggles or safety glasses with side shields when operating compressor. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. CAUTION Do not use in an environment that is dusty or otherwise contaminated. Using the air compressor in this type of environment may cause damage to the unit.

CHECKING THE SAFETY VALVE

Before starting compressor, pull the ring on the safety valve to make sure that the safety valve operates smoothly. (Fig. 12) Do not use compressor if the safety valve is stuck or does not operate smoothly. Have defective safety valve replaced by a metabo HPT authorized service center. WARNING Drain tank to release air pressure before pull the ring on the safety valve. WARNING Risk of bursting. If the safety valve does not work properly, over- pressurization may occur, causing tank rupture or an explosion. Safety valve Pull Fig. 12

Temperature Operating temperatures are between 32°F and 104°F (0°C and 40°C). CAUTION Never operate in temperatures below 32°F (0°C) or above 104°F (40°C). WARNING Always ensure the power switch is in the OFF (O) position and the regulator pressure gauge reads zero before changing air tools or disconnecting the hose from the air outlet. Failure to do so could result in possible serious personal injury.

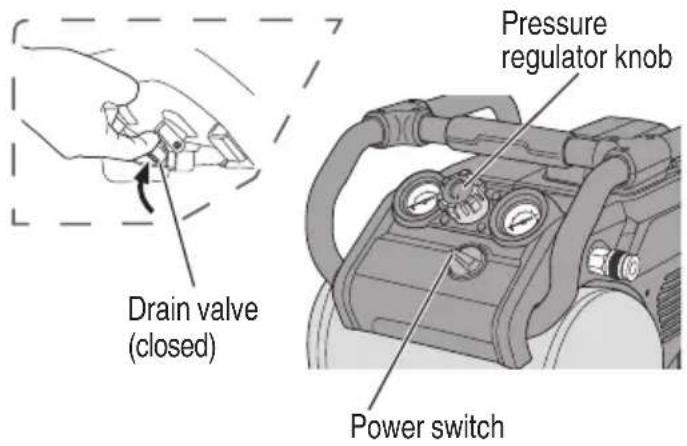

Ensure the drain valve is closed (Fig. 13).

Ensure the power switch is in the OFF (O) position and the battery is removed.

Ensure the pressure regulator knob is turned fully counterclockwise (Fig. 13). 00BookEC36DANA.indb1800BookEC36DANA.indb18 2021/07/089:36:172021/07/089:36:1719 English Drain valve (closed) Power switch Pressure regulator knob Fig. 13

If not already installed, attach the hose to the compressor.

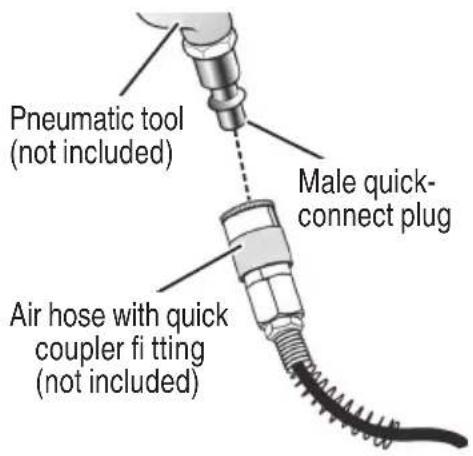

Connect the air powered tools to the air hose by inserting the male quick-connect plug to the quick- coupler at the end of the hose (Fig. 14). Pneumatic tool (not included) Air hose with quick coupler fi tting (not included) Male quick- connect plug Fig. 14

Install the battery.

Turn the power switch to the ON ( I ) position.

Adjustment of outlet pressure Pull the pressure regulator knob to allow the knob to rotate. Then, adjust the outlet pressure to the required level by turning the pressure regulator knob clockwise to increase the outlet pressure and counterclockwise to decrease it. A regulator pressure gauge is provided to show when the required pressure is reached. When adjusting the pressure, check and make sure that a tank pressure gauge for the tank has the pressure level that is higher than that of the pressure to be adjusted. It is also imperative that you make adjustment by slowly starting up the pressure from the level that is lower than the pressure to be adjusted. After adjusting the outlet pressure, push in the pressure regulator knob to lock the knob and use the tool. NOTE: Before connecting or disconnecting air tools, turn the regulator knob counterclockwise to stop the fl ow of air.

Following all safety precautions in this manual and the manufacturer’s instructions in the air tool manual, you may now use your air-powered tool.

If using an infl ation accessory with a quick-connect fi tting, control the amount of air fl ow with the pressure regulator knob. Turning the knob fully counterclockwise will completely stop the fl ow of air. NOTE: Always use the minimum amount of pressure necessary for your application. Using a higher pressure than needed will drain air from the tank more rapidly and cause the unit to cycle on more frequently.

When fi nished, always drain the tank and remove the battery. Never leave the unit plugged in and/or running unattended. WARNING Check the air tool manual to ensure the correct air pressure regulator setting for optimum operation of your air tools. If you are using an air tool not originally included in the package contents list (not necessarily supplied with the air compressor model you have purchased), your tool may require more air consumption than this air compressor is designed to supply. Always read your air tool owner’s manual to match the correct air supply to your air tool to avoid damage to the tool or risk of personal injury. NOTE: When the compressor is new, it will require a “break-in” period to reach maximum performance. The typical break-in period is four discharge cycles of the battery using the BSL36B18 battery.

To help prevent tank corrosion and keep moisture out of the air used, the tank of the compressor should be drained daily. To drain the tank: (Fig. 15)

Verify that the compressor is turned off .

Holding the handle, tilt the compressor toward the drain valve so that it’s set in a lower position.

Open the drain valve by rotating it 1/4 turn counterclockwise.

Keep the compressor tilted until all moisture has been removed.

Drain moisture from tank into a suitable container. 00BookEC36DANA.indb1900BookEC36DANA.indb19 2021/07/089:36:172021/07/089:36:1720 English NOTE: Condensate is a polluting material and should be disposed of in compliance with local regulations.

If drain valve is clogged, release all air pressure by pulling the safety valve. Remove and clean valve, then reinstall. WARNING Remove the battery from the air compressor and release all air from the tank before servicing. Failure to depressurize tank before attempting to remove valve may cause serious personal injury.

Close the drain valve by rotating it 1/4 turn clockwise. Drain valve (closed) Drain valve (open) Fig. 15

Turn the power switch to the OFF position.

Open the drain valve located at the lower part of the tank (Fig. 15). Tank pressure should be below 10 psi when draining the tank. WARNING Risk of bursting. When the tank gets corroded, there is a risk of breakdown. Water will condense in the tank. If not drained, water will corrode and weaken the tank causing a risk of tank rupture. Drain tank daily or after 4 hours of use. The drain contains moisture in the air, abrasion particles, rust, etc.. To drain tank open valve slowly and tilt compressor to empty accumulated water. Keep face and eyes away from drain cock.

Air hose should be disconnected from compressor and hung open ends down to allow any moisture to drain.

Compressor and hose should be stored in a cool, dry place.

ABOUT REMAINING BATTERY INDICATOR

You can check the battery’s remaining capacity by pressing the remaining battery indicator switch to light the indicator lamp. (Fig. 16, Table 5) The indicator will shut off approximately 3 seconds after the remaining battery indicator switch is pressed. It is best to use the remaining battery indicator as a guide since there are slight diff erences such as ambient temperature and the condition of the battery. When the battery’s remaining capacity is low, the motor may stop even if 1 light on the indicator lamp is lit up. This is not the trouble but the result of protection function. If this happens, recharge the battery as soon as possible. Display panel Remaining battery indicator lamp Remaining battery indicator switch Fig. 16 Table 5 State of lamp Battery Remaining Power Lights ; The battery remaining power is over 75%. Lights ; The battery remaining power is 50%–75%. Lights ; The battery remaining power is 25%–50%. Lights ; The battery remaining power is less than 25%. Blinks ; The battery remaining power is nearly empty. Recharge the battery soonest possible 00BookEC36DANA.indb2000BookEC36DANA.indb20 2021/07/089:36:172021/07/089:36:1721 English Blinks ; Output suspended due to high temperature. Remove the battery from the tool and allow it to fully cool down. Blinks ; Output suspended due to failure or malfunction. The problem may be the battery so please contact your dealer. NOTE

Remaining battery levels may vary between that shown on the battery and that of a product with its own battery level function.

Do not give a strong shock to the display panel or break it. It may lead to a trouble. OPERATIONAL CAUTIONS Resting the unit after continuous work (1) The power tool is equipped with a temperature protection circuit to protect the motor. Continuous work may cause the temperature of the unit to rise, activating the temperature protection circuit and automatically stopping operation. If this happens, allow the power tool to cool before resuming use. (2) After use for continuous work, rest the unit for 15 minutes or so when replacing the battery. The temperature of the motor, switch, etc., will rise if the work is started again immediately after battery replacement, eventually resulting in burnout. ABOUT ERROR LAMP OF AC/DC ADAPTER Table 6 Indications of the indicator lamp Status Power Lamp (GREEN) Error lamp (RED) Indicates Adapter Before use Blinks Light off Plugged into power source Power on Lights Light off Tool can be used Power suspended Blinks Lights Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Adapter cannot be used due to high temperature. (Can be used once the adapter is cooled) Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds) Overload Box Power suspended Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Cannot be used because the temperature in the box is too high (Can be used once the box is cooled) 00BookEC36DANA.indb2100BookEC36DANA.indb21 2021/07/089:36:172021/07/089:36:1722 English WARNING When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Always wear safety goggles or safety glasses with side shields during compressor operation or when blowing dust. If operation is dusty, also wear a dust mask. WARNING Always release all pressure, disconnect from power supply, and allow unit to cool to the touch before cleaning or making repairs on the air compressor GENERAL MAINTENANCE

Humidity in the air causes condensation to form in the tank. This condensation should be drained daily and/or every hour, using the instructions found in Draining the Tank.

The safety valve automatically releases air if the air receiver pressure exceeds the preset maximum. Check the safety valve before each use following the instructions found in Checking the Safety Valve.

Inspect the tank yearly for rust, pin holes, or other imperfections that could cause it to become unsafe.

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. WARNING Do not at any time let brake fl uids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. LUBRICATION All the bearings in this compressor are lubricated with a suffi cient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further lubrication of the bearings is required.

CLEANING THE INTAKE FILTER

WARNING Never clean fi lter element with a fl ammable liquid or solvent. Open the intake fi lter once a week and clean the inside of the intake fi lter and the fi lter element with compressed air (Fig. 17). Intake fi lter Intake fi lter body Filter element Grooves (× 3) Protrusions (× 3) Fig. 17 NOTE: Replace the fi lter element when it becomes dirty.

INSPECTION OF TERMINALS

(TOOL AND BATTERY) Check to make sure that swarf and dust have not collected on the terminals. On occasion check prior, during and after operation. CAUTION Remove any swarf or dust which may have collected on the terminals. Failure to do so may result in malfunction.

DISPOSAL OF THE EXHAUSTED

BATTERY WARNING Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal. MAINTENANCE 00BookEC36DANA.indb2200BookEC36DANA.indb22 2021/07/089:36:182021/07/089:36:1823 English STORAGE Storing in a place below 104°F (40°C) and out of the reach of children. NOTE Storing lithium-ion batteries Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

All quality compressors will eventually require servicing or replacement of parts because of wear and tear from normal use. To assure that only genuine replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, only. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. NOTE: Specifi cations are subject to change without any obligation on the part of the metabo HPT. Important notice on the batteries for the metabo HPT cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts). TROUBLESHOOTING GUIDE WARNING

To avoid injury from an accidental start, turn the power switch OFF and remove the plug from the power source or remove the battery or AC/DC adapter from the main body before making any adjustments.

All electrical or mechanical repairs should be done only by qualifi ed service technicians. Contact metabo HPT Authorized Service Center.

1. Cordless Air Compressor

Problem Possible Cause Remedy The compressor does not run. Loss of power or overheating. There is no electrical power being supplied to compressor or the power switch is in the OFF position. Thermal overload open. The power switch is bad. Tank is full of air. Check for proper use of battery. Check to be sure the battery is installed in and the power switch is in the ON position. First remove the battery and wait until it becomes cool. Replace the power switch. Compressor will turn on when tank pressure drops to cut-in pressure. 00BookEC36DANA.indb2300BookEC36DANA.indb23 2021/07/089:36:182021/07/089:36:1824 English Problem Possible Cause Remedy The thermal overload protector cuts out repeatedly. A poorly ventilated room is causing the motor to overheat. Move the compressor to well-ventilated area. The air receiver pressure drops when the compressor shuts off . The connections are loose or leaking (fi ttings, tubing, etc.). The drain valve is loose. The check valve is leaking. Check all the connections with soapy water and look for bubbles. Tighten any loose conections until the leak stops. Tighten the drain valve. Take the compressor to a service center. WARNING Do not disassemble check valve while air is in tank - empty the all the air out of the tank before dissasembly. There is excessive moisture in the air discharge. There is excessive water in the tank. The humidity is high. Drain the tank to remove water. Move the compressor to an area of less humidity or use an air line fi lter to reduce moisture discharge in the tank. Air is leaking from the compressor. The hose connection is loose or improperly sealed. The air hose is broken or damaged. Ensure connections are sealed with thread sealing tape and tightened. Replace the air hose. The compressor runs continuously The drain valve is open. The power switch is defective. The usage is excessive. Ensure the drain valve is closed. Take the compressor to a service center. Decrease the amount of tool run-time; the compressor is not large enough to supply the air requirement of the tool. The compressor vibrates. The compressor mounting bolts are loose. Tighten mounting bolts. The air output is lower than normal. The inlet valves are broken. The connections are leaking. Take the compressor to a service center. Apply thread sealing tape to fi tting and tighten. Battery cannot be installed Attempting to install a battery other than that specifi ed for the tool. Please install a multi volt type battery.

Symptom Possible cause Remedy The charge indicator lamp rapidly fl ickers purple, and battery charging doesn’t begin. The battery is not inserted all the way. Insert the battery fi rmly. There is foreign matter in the battery terminal or where the battery is attached. Remove the foreign matter. The charge indicator lamp blinks red, and battery charging doesn’t begin. The battery is not inserted all the way. Insert the battery fi rmly. The battery is overheated. If left alone, the battery will automatically begin charging if its temperature decreases, but this may reduce battery life. It is recommended that the battery be cooled in a well-ventilated location away from direct sunlight before charging it. 00BookEC36DANA.indb2400BookEC36DANA.indb24 2021/07/089:36:182021/07/089:36:1825 English Symptom Possible cause Remedy Battery usage time is short even though the battery is fully charged. The battery’s life is depleted. Replace the battery with a new one. The battery takes a long time to charge. The temperature of the battery, the charger, or the surrounding environment is extremely low. Charge the battery indoors or in another warmer environment. The charger’s vents are blocked, causing its internal components to overheat. Avoid blocking the vents. The cooling fan is not running. Contact a metabo HPT Authorized Service Center for repairs. The USB power lamp has switched off and the USB device has stopped charging. The battery’s capacity has become low. Replace the battery with one that has capacity remaining. Plug the charger’s power plug into an electric socket. USB power lamp does not switch off even though the USB device has fi nished charging. The USB power lamp lights up green to indicate that USB charging is possible. This is not a malfunction. It is unclear what the charging status of a USB device is, or whether its charging is complete. The USB power lamp does not switch off even when charging is complete. Examine the USB device that is charging to confi rm its charging status. Charging of a USB device pauses midway. The charger was plugged into an electrical socket while the USB device was being charged using the battery as the power source. This is not a malfunction. The charger pauses USB charging for about 5 seconds when it is diff erentiating between power sources. A battery was inserted into the charger while the USB device was being charged using a power socket as the power source. Charging of the USB device pauses midway when the battery and the USB device are being charged at the same time. The battery has become fully charged. This is not a malfunction. The charger pauses USB charging for about 5 seconds while it checks whether the battery has successfully completed charging. Charging of the USB device doesn’t start when the battery and the USB device are being charged at the same time. The remaining battery capacity is extremely low. This is not a malfunction. When the battery capacity reaches a certain level, USB charging automatically begins. 00BookEC36DANA.indb2500BookEC36DANA.indb25 2021/07/089:36:182021/07/089:36:1826 English

• Problem Possible Cause Possible Solution The adapter’s error lamp is blinking red and the tool does not operate when switched on. Output is suspended because the tool or the AC/DC adapter is overheated. Allow the tool and AC/DC adapter to suffi ciently cool down. The adapter’s error lamp rapidly blinks red and the motor does not operate when the tool is switched on. Output is suspended because the tool is overloaded. Remove the cause of the overload. During protective operation, the LED will blink diff erently for AC/DC adapter use and battery use. This is not a malfunction. ACCESSORIES WARNING ALWAYS use Only authorized metabo HPT replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE Accessories are subject to change without any obligation on the part of the metabo HPT. STANDARD ACCESSORIES EC36DA (WC) Intake fi lter (Code No. 377736) p. 1
• Battery (BSL36B18) p. 1
• Battery Charger (UC18YSL3) p. 1
• Battery cover (Code No. 329897) p. 1
• EC36DA (NN) Intake fi lter (Code No. 377736) OPTIONAL ACCESSORIES sold separately p. 1

1. Battery (BSL36B18)

2. Battery charger (UC18YSL3)

3. Battery cover (Code No. 329897)

4. AC/DC adapter (ET36A)

2.3 CFM (65.1 litros/min)

à 90 PSI (6.2 barias)

1.6 CFM (45.3 litros/min)

00BookEC36DANA.indb8300BookEC36DANA.indb83 2021/07/089:36:262021/07/089:36:26104 Code No. C99742761 Printed in China Issued by Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan Distributed by 1111 Broadway Ave, Braselton, Georgia, 30517 3405 American Drive, Units 9-10, Mississauga, ON, L4V 1T6 00BookEC36DANA.indb8400BookEC36DANA.indb84 2021/07/089:36:262021/07/089:36:26
