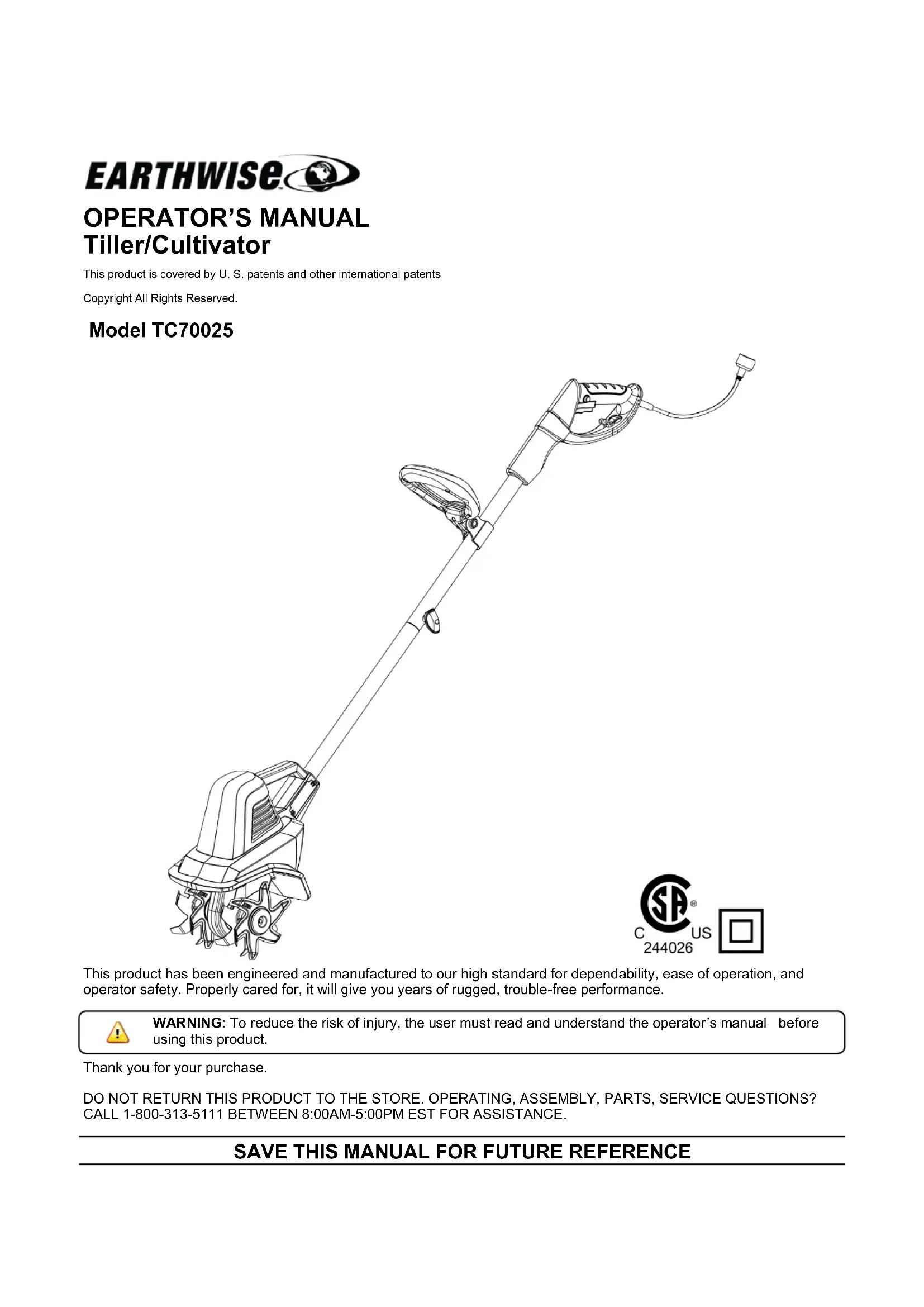

USER MANUAL TC70025 Earthwise
This product is covered by U. S. patents and other international patents
Copyright All Rights Reserved.
Model TC70025
This product has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for your purchase.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PARTS, SERVICE QUESTIONS? CALL 1-800-313-5111 BETWEEN 8:00AM-5:00PM EST FOR ASSISTANCE.
IMPORTANT SAFETY WARNINGS
TO REDUCE RISK OF INJURY: Before any use be sure everyone using this product reads and understands all safety instructions and other information contained in this manual.
CAUTION: Wear appropriate personal hearing protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.
WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following:
READ ALL INSTRUCTIONS
GENERAL SAFETY
CHECK FOR DAMAGED PARTS - Before further use of the product, any part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other condition that may affect its operation. Any part that is damaged should be properly repaired or replaced. For assistance call our customer service help line at 1-800-313-5111.
AVOID DANGEROUS ENVIRONMENTS - Don't use this product in rainy, stormy, damp or wet locations. Do not operate in gaseous or explosive atmospheres. Motors in these products normally spark, and the sparks might Ignite fumes.
KEEP CHILDREN AWAY - All visitors, children and pets should stay at a safe distance from the work area.
DRESS PROPERLY- Don't wear loose clothing or jewelry and wear protective hair covering to contain long hair. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors.
USE SAFETY GLASSES - Wear safety glasses with side shields or goggles that are marked to comply with ANSI Z87.1 standard when operating this product. Use face or dust mask if environment is dusty.
DOUBLE INSULATION - The tiller/cultivator has double insulation. This means that all external metal parts are insulated from the electrical supply. This is achieved by introducing an insulation layer between electrical and mechanical parts. The double insulation guarantees you the greatest possible safety.
REPLACEMENT PARTS - When servicing use only identical replacement parts.
EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord be sure it is heavy enough to carry the current your product will draw. An undersized extension cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.
| Minimum Gage for Cord Sets | |||||
| Volts | Total Length of cord in Feet | ||||
| 120V | 0-25 | 26-50 | 51-100 | 101-150 | |
| 240V | 0-50 | 51-100 | 101-200 | 201-300 | |
| Ampere Rating | |||||
| More | Not More | American wire Gage | |||
| Than | Than | ||||
| 0 | 6 | 18 | 16 | 16 | 14 |
| 6 | 10 | 18 | 16 | 14 | 12 |
| 10 | 12 | 16 | 16 | 14 | 12 |
| 12 | 16 | 14 | 12 | Not Recommended | |
WARNING: Use outdoor extension cords marked SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A, or SJTOWA. These cords are rated for outdoor use and reduce the risk of electric shock.
It is possible to tie the extension cord and power cord in a knot to prevent them from becoming disconnected during use. Make the knot as shown, then connect the plug end of the power cord into the receptacle end of the extension cord. This method can also be used to tie two extension cords together.
Be aware of the extension cord while operating the tiller/cultivator. Be careful not to trip on the cord. Always guide the cord away from the tines.
Don't Force Appliance - It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
GENERAL SAFETY
GROUND FAULT CIRCUIT INTERRUPTER (GFCI) protection should be provided on the circuit or outlet to be used for the tiller/cultivator. Receptacles are available having built-in GFCI protection and may be used.
DISCONNECT UNIT from the power supply when not in use or when servicing or cleaning. Do not leave unattended.
DON'T ABUSE CORD - Never carry this product by the cord or yank the cord to disconnect from the receptacle. Keep cord from heat, oil, and sharp edges.
USE RIGHT APPLIANCE - Do not use this product for any job except that for which it is intended.
DON'T OVERREACH - Guide the tiller/cultivator at a walking pace only. Keep proper footing and balance at all times.
LIGHTING - Only operate your tiller/cultivator in daylight or good artificial light.
STORE IDLE UNIT INDOORS - When not in use, the tiller/cultivator should be stored indoors in a dry area out of children's reach.
MAINTAIN UNIT WITH CARE - Keep clean for best performance and to reduce the risk of injury. Inspect extension cord periodically and replace if damaged. Keep handles dry, clean and free from oil.
POLARIZED PLUGS - To reduce the risk of electric shock, this product has a polarized plug. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not change the plug on the tool or the extension cord in any way.
Do not operate the tiller/cultivator on a slope that is too steep for safe operation. When on slopes, slow down and make sure you have good footing.
Before starting the tiller/cultivator make sure the times are not touching any object and are free to move.
Grip the tiller/cultivator firmly with both hands. Never operate the tiller/cultivator with one hand.
CAUTION: The tiller/cultivator may bounce upward and/or jump forward if the tines strike extremely hard packed soil, frozen ground, or buried obstacles such as large stones, roots or stumps.
STAY ALERT - Watch what you are doing. Use common sense. Do not operate the tiller/cultivator when you are tired or under the influence of drugs or medication.
WARNING: Do not operate the tiller/cultivator near underground electrical cables, telephone lines, pipes or hoses.
If the tiller/cultivator strikes a foreign body, turn it off immediately, wait for the tines to stop and check for damage. If necessary, repair before restarting.
If the tiller/cultivator starts to vibrate abnormally, turn it off immediately and check for the cause. Vibration is generally a warning of trouble.
DANGER: RISK OF CUT - Wear gloves and use caution when cleaning or performing maintenance on the tiller/cultivator.
Always turn off the tiller/cultivator, disconnect from the power supply and wait until the tines come to a complete stop before carrying out any maintenance or repairs.
CAUTION: Tines do not stop immediately after the tiller/cultivator is turned off.
CAUTION: Risk of injury. Do not put hands, feet or any body part or clothing near the rotating tines.
WARNING: California Proposition 65: This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
WARNING: Some dust and debris created by the use of this tool could contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Some examples of these chemicals are:
- chemicals in fertilizers
- compounds in insecticides, herbicides, and pesticides
- arsenic and chromium from chemically treated lumber
Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Save these instructions and review frequently prior to use and in instructing others.
PRODUCT SPECIFICATIONS
Model: TC70025
Power supply voltage:
120V-60HZ
Tine Speed:
280 RPM
Power Consumption: 2.5 Amp
Working width:
71/2-IN
Working depth MAX:
6 - IN

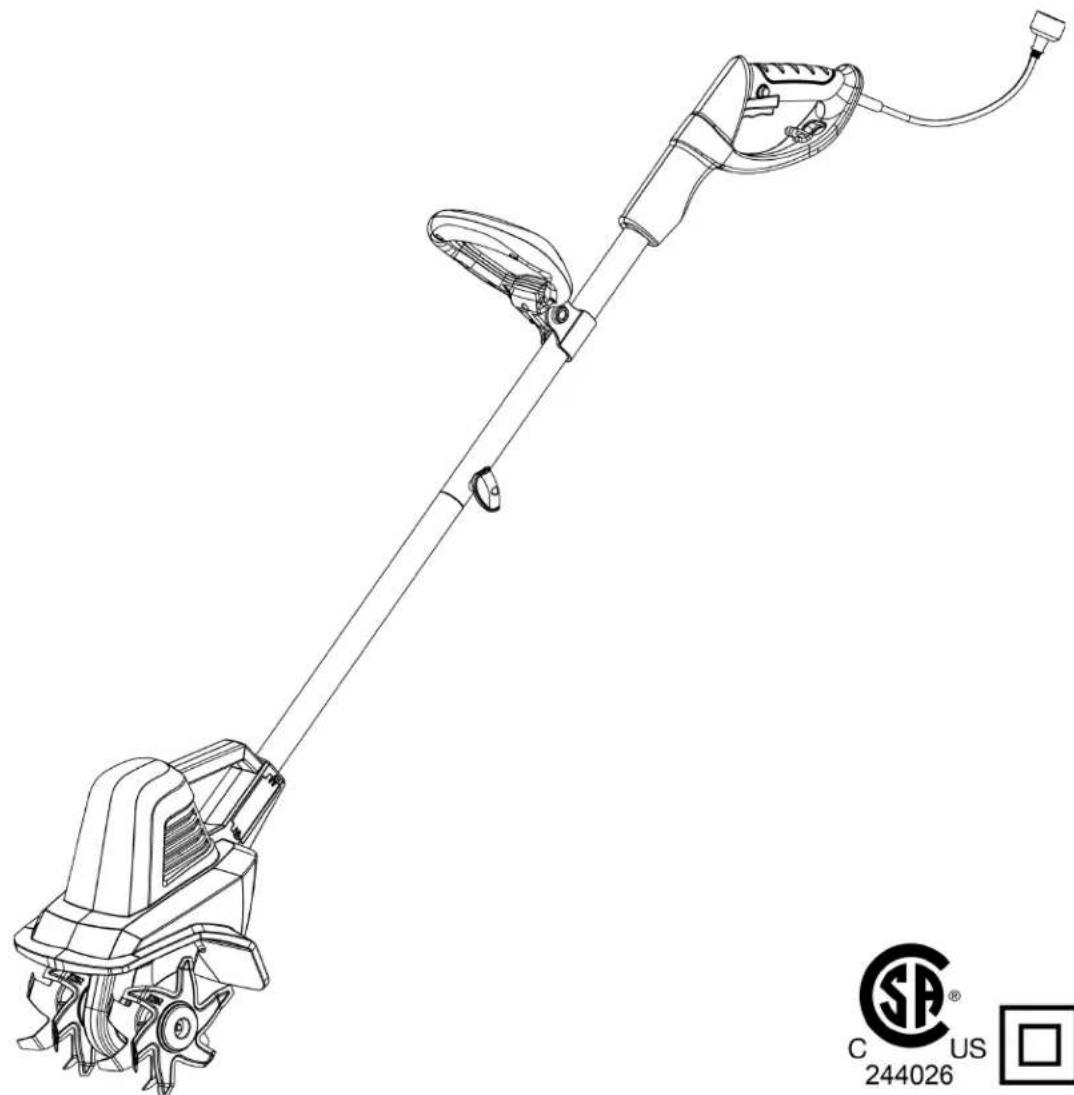

| No. | Description (P/N) | No. | Description (P/N) |
| 1 | On/Off Switch | 7 | Upper Handle |
| 2 | Power Cord | 8 | Lower Handle |
| 3 | Safety Button | 9 | Side Cover |
| 4 | Cord Retainer | 10 | Tilling Head |
| 5 | Auxiliary Handle | 11 | Tine 1 (JY2201-1) |
| 6 | Wing Nut | 12 | Tine 2 (JY2201-2) |
ASSEMBLY
UNPACKING
This product must be assembled correctly before use.
Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.

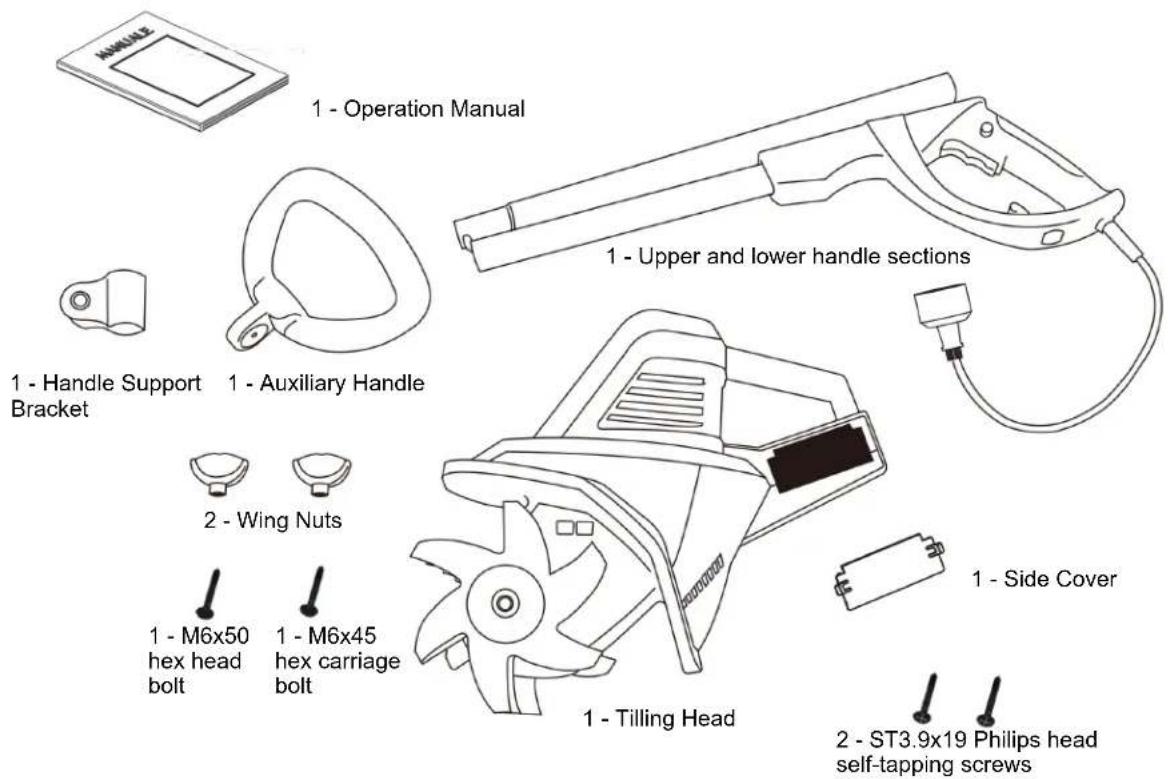

PACKING LIST (Fig. 2)
- Tilling head (1)
- Upper and lower handle sections (1)
-Auxiliary handle (1) - Handle support bracket (1)
-Wing nuts with bolts attached (2) - Philip head self-tapping screws (2)
- Side cover (1)
- Operation manual (1)
If any parts are damaged or missing, please call our customer service help line at 1-800-313-5111 for assistance.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
WARNING: If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury.
WARNING: Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
WARNING: Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.
2
PACKING LIST
ASSEMBLY
UPPER AND LOWER HANDLE SECTIONS (Fig. 3A)
Slide the lower handle section into the upper handle section. Line up the holes on each tube, and make sure the cable is clear of the mounting holes. Secure the two sections together with the M6x45 carriage bolt and wing nut.
AUXILIARY HANDLE (Fig. 3C)
Position the auxiliary handle so that the holes are in alignment with the holes in the handle support bracket. Insert the M6X50 hex head bolt into the hex shaped bolt hole of the bracket. Secure by tightening the wing nut onto the bolt.
Loosen the wing nut and adjust the angle and height of the handle to a safe and comfortable position. Secure into place by tightening the wing nut onto the bolt.
LOWER HANDLE WITH TILLING HEAD (Fig. 3B)
Align the notch on the lower handle with the rib on the tilling head, and push the lower handle into the tilling head. Align the side cover with the holes on the lower handle shaft and push the cover into place. Secure with the two ST3.9x19 Philips head self-tapping screws.
WARNING: When connecting the tilling head and lower handle using the two self-tapping screws supplied, make sure the screws are securely tightened. Screw heads should be recessed below the surface. DO NOT START THE UNIT UNTIL TILLING HEAD AND LOWER HANDLE ARE SECURELY CONNECTED.
Once the tilling head and lower handle are securely connected, do not remove the self-tapping screws or attempt to disassemble for any purpose. The self-tapping screws will lose their effectiveness of securing the assembly if removed and re-installed.
OPERATING

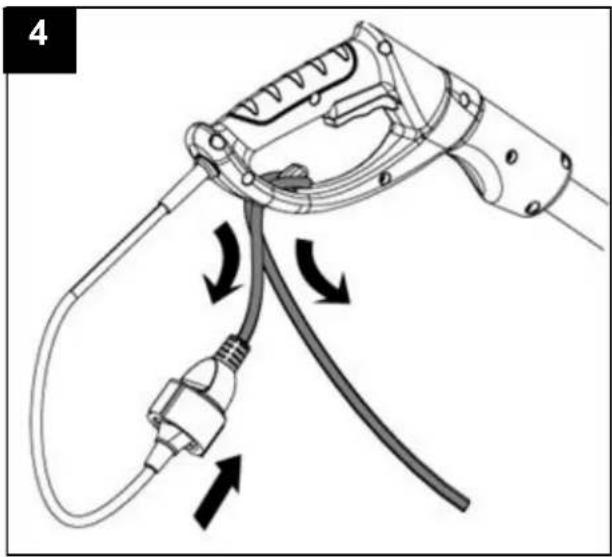

BEFORE STARTING
Loop the extension cord and feed it through the rear handle. Rest the cord around the cord retainer. This will help prevent you from disconnecting the extension cord from the product during operation. Plug the extension cord into the power cord plug on the tiller. (Fig. 4) Move the tiller/cultivator to the work area prior to
starting the motor.
WARNING: Do not start tiller with any person or object directly in its path.
Hold the tiller/cultivator firmly while starting. The tines will pull the tiller/cultivator forward during operation. Lower the tines slowly into the ground being tilled.

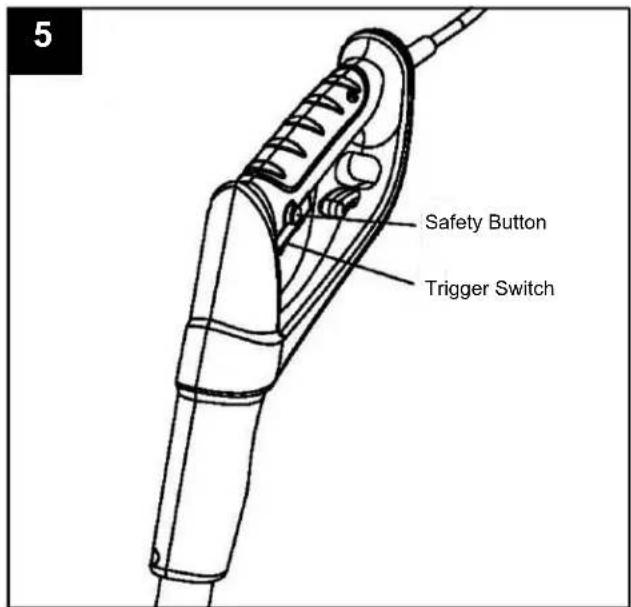

STARTING (Fig. 5)
WARNING: The tines start rotating immediately after the tiller/cultivator is switched on. Keep hands and feet away from the tines.
To switch ON, hold the tiller/cultivator firmly with two hands, make sure the tines are not touching any surface. Press the safety button while squeezing the On/Off trigger switch.
Once the tiller/cultivator is started, you can release the safety button.
To switch OFF, simply release the trigger.
Use the tiller/cultivator for breaking sod, preparing seed beds, and for cultivating gardens and flower beds. The tiller/cultivator can also dig small holes for planting saplings or potted plants.
For breaking sod or deep tilling, allow the tines to pull the tiller/cultivator forward to the end of your arm's reach, then firmly pull it back toward yourself. You will achieve the best results by repeatedly allowing it to move forward and pulling it back.
By pulling the tiller/cultivator back towards yourself, the tines will dig deeper and more aggressively.
JTION: To prevent tripping, take extra pre-tions when moving backwards and when pulling the r/cultivator back toward yourself.
If the tiller/cultivator digs deep enough to stay in one spot, gently rock it side to side until it starts moving forward again.
Never pass the tiller/cultivator over the extension cord.
Make sure the cord is always in a safe position behind you.
When working on inclines always stand diagonally to the incline to retain a firm, safe footing. Do not work on extremely steep slopes.
OPERATING

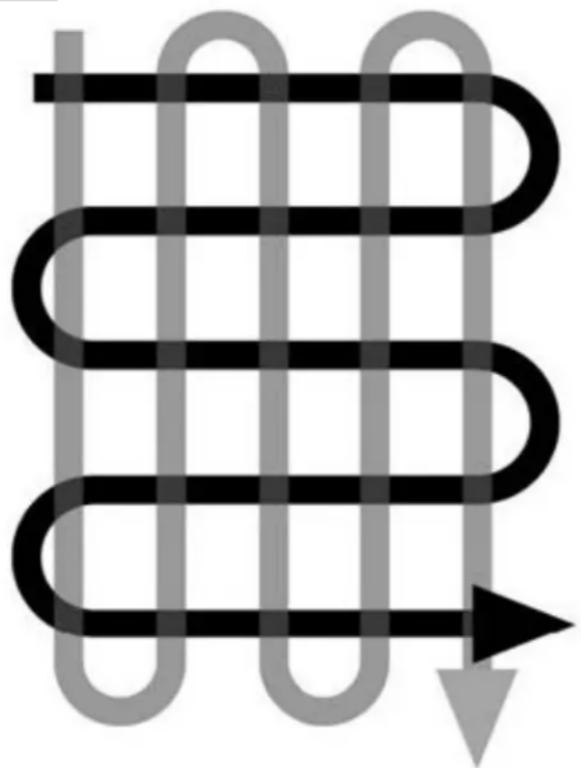

For preparing seed beds, we recommend using one of these tilling patterns (Fig. 6)
Tilling Pattern A- Make two passes over area to be tilled, the second at a right angle to the first.
Tilling Pattern B- Make two passes over area to be tilled, the second overlapping the first.
Before use, remove any visible stones or other foreign bodies from the area.
CAUTION: Before moving the tiller/cultivator from one area to another switch off the motor and wait for the tines to come to a complete stop. Be careful not to let the tines touch the ground while moving the tiller/ cultivator. The tines as well as the unit itself may be damaged even if the motor is switched off.
Clearing foreign objects:
During operation a stone or root could become lodged in the tines, or tall grass or weeds may become wrapped around the tine shaft. To clear the tines or tine shaft release the trigger lever, wait for the tines to come to a complete stop and unplug the tiller/ cultivator. Dislodge or remove the foreign matter from the tines or tine shaft.
6
A
B
MAINTENANCE
WARNING: Before carrying out maintenance operations, disconnect power supply.
Before each use check the extension cord for signs of damage or ageing. Replace the cable if it is cracked, split or otherwise damaged. Check the condition of the tines and ensure that all threaded connections are securely tightened. If the tines become dull or blunt, sharpen or replace them. Call our customer service help line at 1-800-313-5111 for assistance.
At the end of the season, check the tiller/cultivator for damage prior to storing. Repair or replace damaged or broken parts.
CAUTION: Always clean the tiller/cultivator after each use. Failure to carry out proper cleaning can result in damage to the tiller/cultivator or result in poor performance.
Clean the tines with a scrub brush, and a soft cloth dampened with a mild soap and water mixture. Never use a water hose to clean the tiller! To remove soil and debris from the tines, use a stiff brush or a dampened cloth. Clean the vents on the motor housing and remove any remaining grass or dirt. Once cleaned, wipe the tines dry and apply a light coat of oil to prevent rust.
WARNING: Injury can occur while working on the tines. Wear protective gloves.
Tines maintenance: Worn tines invite poor performance and overload of the motor. Check tines before each use. Sharpen or replace the tire assemblies with new ones when necessary. Call 1-800-313-5111 for assistance.
Tine Replacement
Tines are identified with part number JY2201-1 or JY2201-2 stamped on the tine blade.
Replace only the tines with the identical part number.

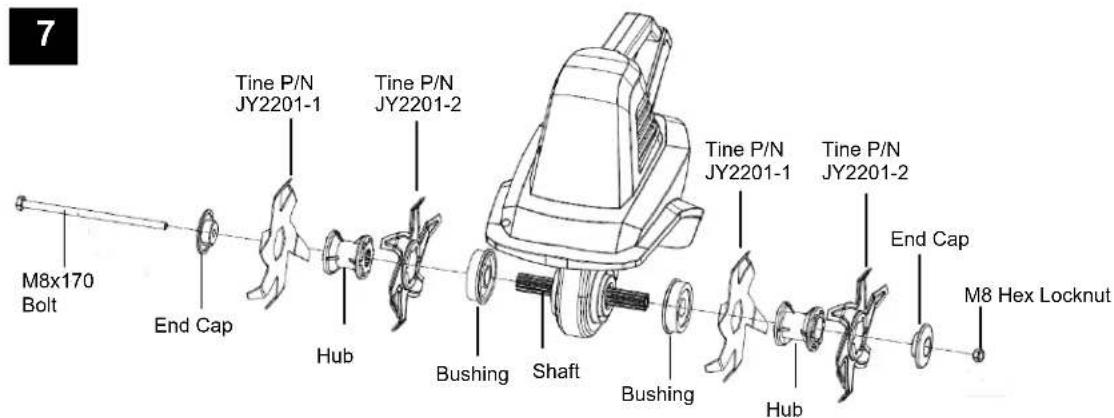

Tine Removal (Fig. 7)
- Remove the M8 hex locknut with a hex head wrench, and then remove the M8x170 bolt.
- Remove the end caps.
- Remove the tines and hubs at either end of the shaft.

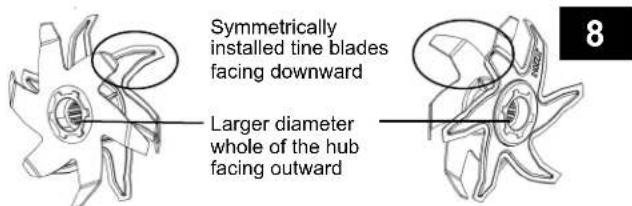

Tine Installation (Fig. 7)
- Install the new tire by pressing it onto the hub. The side with stamped part number must face outward. Be sure to install tines in the same sequence as shown in Fig 7. Position the hub so that the larger diameter whole is facing outward. Make sure the two tines on the same hub are installed symmetrically with the end of the tire blades facing downward (Fig. 8).
- Install the tines with hub onto the shaft. Ensure the larger diameter whole of the hub is facing outward. The left and right tine assemblies must be installed symmetrically (Fig. 8).
- Install the end caps.
- Install the M8x170 bolt. Secure the assembly by tightening the M8 hex locknut with a hex head wrench.
Replace worn or damaged parts with original replacement parts only. Parts from another tiller/ cultivator may not fit properly causing an unsafe situation.
Make sure all protective devices are secure and in good condition. Repair or replace if necessary.
STORAGE
Store the Tiller/Cultivator in a dry, clean area out of reach of children.
During extended periods of storage, ensure that the tiller/ cultivator is protected against corrosion and rust.
At the end of the season, or if the tiller/cultivator is not being used for longer than a month, wipe over all metal surfaces with an oil impregnated cloth to protect them from corrosion or spray with a fine coat of oil.
Do not expose to rain. Store indoors.
TROUBLESHOOTING
| Problem Possible causes | Remedy | |
| Motor does not start Unit | not plugged inNo electricityDefective cableDefective safety switch/plug | Plug in the unitCheck power supplyCheck cable. Repair or replace if requiredArrange for repair |
| Abnormal noises Tine is | jammedLubrication running outBolts, nuts or other components are loose. | Switch off. Wait till tines comes to a complete stop.Remove jammed objects.Tiller/cultivator must be repaired. Call our customer service help line at 1-800-313-5111 for assistance.Tighten all components. Arrange for repair if noises continue. |
| Abnormal vibrations Tines | damaged or wornWorking depth too large | Replace damaged or worn tines.Adjust working depth. |
| Poor results Working depth too smallWorn tines | Adjust working depth.Replace damaged or worn tines. | |
SERVICE
Now that you have purchased your Tiller/Cultivator, should a need ever exist for repair parts or service, simply contact us at 1-800-313-5111. Be sure to provide all pertinent facts when you call or visit.
REPAIR PARTS
Please record your serial number in the space provided below.
- NAME OF ITEM Tiller/Cultivator
- MODEL NUMBER TC70025
- SERIAL NUMBER
CALL US FIRST !!
Call us first with questions about operating or maintaining this product at 1.800.313.5111 between 8:00 a.m.- 5:00 p.m. Eastern Standard Time, or send emails to earthwise@reelin.com.
NOTES
OPERATOR'S MANUAL Tiller/Cultivator
This product is covered by U. S. patents and other international patents
Copyright All Rights Reserved.
WARRANTY POLICY
Two (2) year limited warranty on Earthwise outdoor power equipment.
Earthwise warrants to the original owner that each new product and service part is free from defects in materials and workmanship and agrees to repair or replace any defective product or part for the warranty period as stated above from the original date of purchase except for the conditions and circumstances listed below:
This warranty applies only to the original purchaser at retail and may not be transferred.
Warranty applies if the product is used for personal, household or family use. Warranty is void if product is used for commercial, industrial or rental purposes.
Warranty does not include repairs necessary due to operator's abuse or negligence (including overloading the product beyond capacity or immersion in water), or the failure to assemble, operate, maintain or store the product according to the instructions in the operator's manual.
This warranty is not transferable and only applies to product sold directly from an authorized retailer. This warranty does not apply to any product, new or used, purchased through unauthorized third-party channels.
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT IS NOT COVERED BY THE WARRANTY. Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
Products sold damaged or incomplete, sold "as is", or sold as reconditioned are not covered under the warranty.
Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring, improper maintenance, improper modification or the use of accessories and/or attachments not specifically recommended is not covered by this warranty.
Expendable items that become worn during normal use are not covered by the warranty.
Warranty does not cover damage caused by cold, heat, rain, excessive humidity, corrosive environments and materials, or other contaminants.
Warranty does not include installation, assembly or normal adjustments explained in the operator's manual.
The expense of delivering the product to the vendor and the expense of returning the product or replacement parts to the owner is not covered by the warranty.
The warranty does not cover normal deterioration of the exterior finish, including but not limited to scratches, dents, paint chips or any corrosion or discoloration caused by heat, abrasive and chemical cleaners.
Proof of purchase, original dated sales receipt, must accompany all warranty claims.
EARTHWISE
American Lawn Mower Company
The Great States Corporation
7444 Shadeland Station Way,
Indianapolis, IN 46256, USA
Phone 1-800-313-5111
www-earthwisetools.com
In a continued commitment to improve quality, the Manufacturer reserves the right to make component changes or design changes when necessary.
American Lawn Mower Company
The Great States Corporation
7444 Shadeland Station Way,
Indianapolis, IN 46256, USA
Phone 1-800-313-5111
www.earthwisethools.com
SPÉCIFICATIONS DU PRODUIT
Modèle : TC70025
American Lawn Mower Company
The Great States Corporation
7444 Shadeland Station Way,
Indianapolis, IN 46256, USA
Phone 1-800-313-5111
www.earthwisethools.com
