4732 - Mincer Hobart - Free user manual and instructions

Product Type	Professional Meat Grinder
Model	4732 (fixed pan) and 4732A (removable pan)
Motor Power	3 HP
Auger Rotation Speed	151 RPM
Grinding Capacity (first cut, 1/8 in plate)	35 to 40 lb/min (15.9 to 18.1 kg/min)
Grinding Capacity (second cut, 1/8 in plate)	25 to 30 lb/min (11.3 to 13.6 kg/min)
Knife and Plate Size	No. 32, diameter 18 in (45.7 cm)
Feeding Pan Dimensions	34 x 21 x 5 in (86.4 x 53.3 x 12.7 cm)
Feeding Pan Material	Stainless Steel
Hand Guard	Cast aluminum, permanently mounted
Working Height (standard legs 5 3/8 in)	27 in (68.6 cm) from floor to pan rim
Height Options (additional legs)	18 in or 21 in for floor model
Power Supply	See nameplate (standard three-phase)
Gear Oil Type	Mobil Spartan EP 460 (21 fl oz)
Available Accessories	Pusher, plates of different sizes, sausage stuffer
Safety	On/Off switch, hand guard, mandatory pusher, pan lock (4732A)
Maintenance	Daily cleaning, oil drain and refill if necessary
Repairability	Authorized Hobart service
Warranty	Refer to the complete manual

Frequently Asked Questions - 4732 Hobart

Which models are covered by this manual?

This manual covers models 4732 (fixed feeding pan) and 4732A (removable pan with lock).

What is the grinding capacity of the Hobart 4732 grinder?

The grinder can grind 35 to 40 lb/min (first cut) and 25 to 30 lb/min (second cut) with a 1/8 in plate.

How to install the grinder legs?

For standard 5 3/8 in legs, slide the dowel through the leg tip, screw into the base by hand, then add the neoprene foot. The 18 or 21 in legs are one-piece and slide into the base; adjust by turning the foot to level.

How to clean the grinder after use?

Turn off power. For model 4732A, unlock and remove the pan. Remove the deflector, adjusting ring, auger, knife, and plate. Loosen the cylinder nuts, remove the cylinder. Clean all parts with warm soapy water and sanitize. Wipe the housing. Apply a light coat of mineral oil before reassembly.

What type of oil to use for lubrication?

Use Mobil Spartan EP 460 for the gear housing. The quantity is 21 fluid ounces. Fill to the lower thread of the fill elbow.

When should the gear housing oil be changed?

Change the oil if it becomes milky brown, a sign of condensation. Drain completely, then refill with new oil.

What grinding plates are available?

The machine comes with an 18 in diameter plate. Plates with different hole sizes can be purchased separately. The fineness of grind depends on the hole size of the plate.

How to use the grinder safely?

Never put hands in the feed opening. Use the provided pusher. The hand guard must always be in place. The switch allows starting/stopping. On model 4732A, the pan must be locked for the machine to operate.

What to do if the grinder does not start?

Check the power supply. If the supply is correct, contact authorized Hobart service for repairs.

What optional accessories are available?

A sausage stuffer for pork or sheep casings is available. Additional grinding plates and leg sets of different heights (18 or 21 in) are also offered.

USER MANUAL 4732 Hobart

Industrial stainless steel meat processing machine with a central hopper and side legs (no visible text or symbols)

MODEL 4732 CHOPPER

4732 & 4732A CHOPPERS

MODEL

4732 ML-18887 (PAINTED, NON-REMOVABLE PAN)

ML-19282 (SST, NON-REMOVABLE PAN)

ML-19809 (SST, NON-REMOVABLE PAN)

4732A ML-19689 (PAINTED, REMOVABLE PAN)

ML-19690 (SST, REMOVABLE PAN)

HOBART

701 S. RIDGE AVENUE

TROY, OHIO 45373

937 332-3000

www.hobartcorp.com

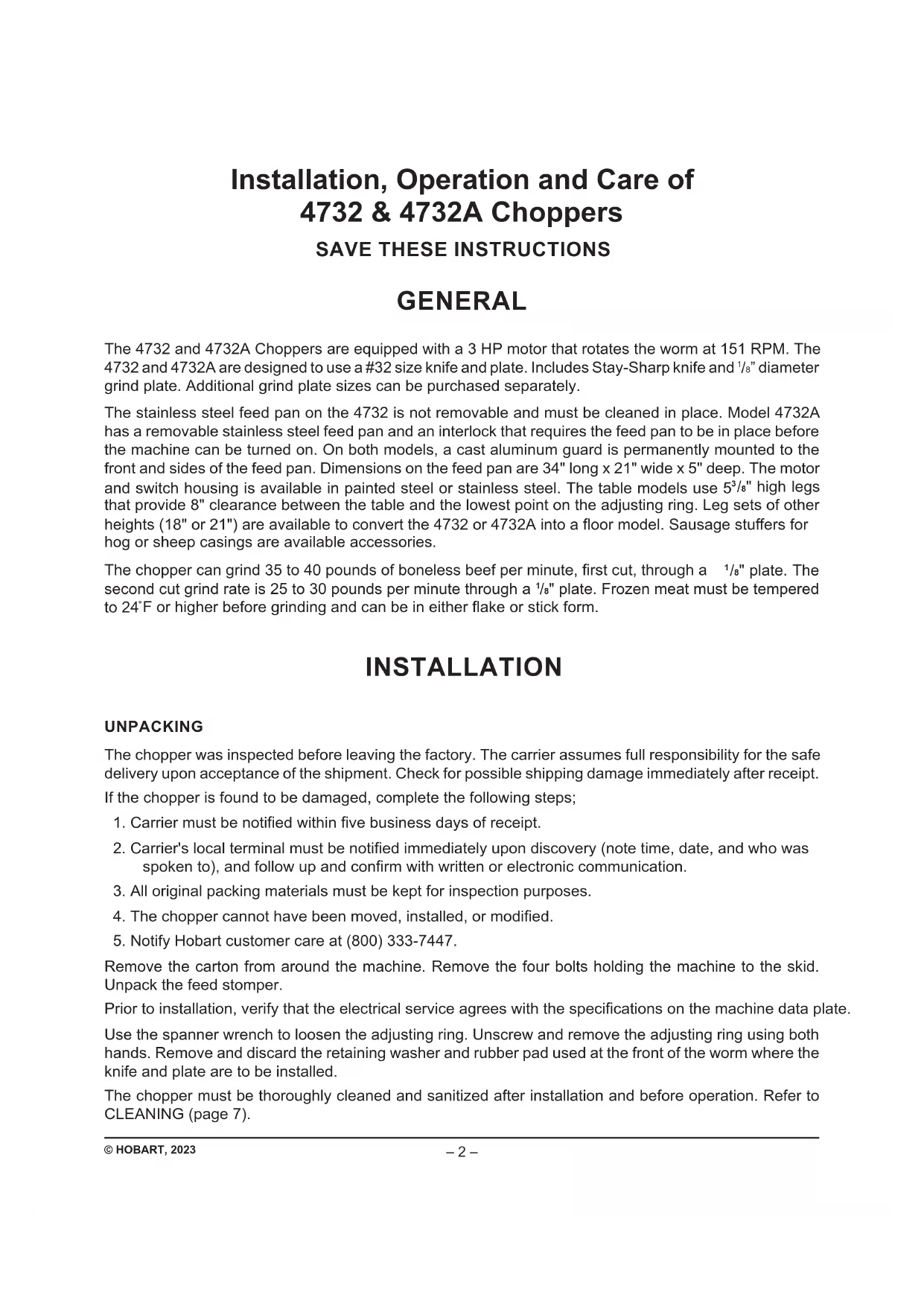

Installation, Operation and Care of 4732 & 4732A Choppers

SAVE THESE INSTRUCTIONS

GENERAL

The 4732 and 4732A Choppers are equipped with a 3 HP motor that rotates the worm at 151 RPM. The 4732 and 4732A are designed to use a #32 size knife and plate. Includes Stay-Sharp knife and 18 diameter grind plate. Additional grind plate sizes can be purchased separately.

The stainless steel feed pan on the 4732 is not removable and must be cleaned in place. Model 4732A has a removable stainless steel feed pan and an interlock that requires the feed pan to be in place before the machine can be turned on. On both models, a cast aluminum guard is permanently mounted to the front and sides of the feed pan. Dimensions on the feed pan are 34" long x 21" wide x 5" deep. The motor and switch housing is available in painted steel or stainless steel. The table models use 5^3/_8 " high legs that provide 8" clearance between the table and the lowest point on the adjusting ring. Leg sets of other heights (18" or 21") are available to convert the 4732 or 4732A into a floor model. Sausage stuffers for hog or sheep casings are available accessories.

The chopper can grind 35 to 40 pounds of boneless beef per minute, first cut, through a ^1/8 plate. The second cut grind rate is 25 to 30 pounds per minute through a ^1/8 plate. Frozen meat must be tempered to 24°F or higher before grinding and can be in either flake or stick form.

INSTALLATION

UNPACKING

The chopper was inspected before leaving the factory. The carrier assumes full responsibility for the safe delivery upon acceptance of the shipment. Check for possible shipping damage immediately after receipt. If the chopper is found to be damaged, complete the following steps;

1. Carrier must be notified within five business days of receipt.
2. Carrier's local terminal must be notified immediately upon discovery (note time, date, and who was spoken to), and follow up and confirm with written or electronic communication.
3. All original packing materials must be kept for inspection purposes.
4. The chopper cannot have been moved, installed, or modified.
5. Notify Hobart customer care at [phone].

Remove the carton from around the machine. Remove the four bolts holding the machine to the skid. Unpack the feed stomper.

Prior to installation, verify that the electrical service agrees with the specifications on the machine data plate.

Use the spanner wrench to loosen the adjusting ring. Unscrew and remove the adjusting ring using both hands. Remove and discard the retaining washer and rubber pad used at the front of the worm where the knife and plate are to be installed.

The chopper must be thoroughly cleaned and sanitized after installation and before operation. Refer to CLEANING (page 7).

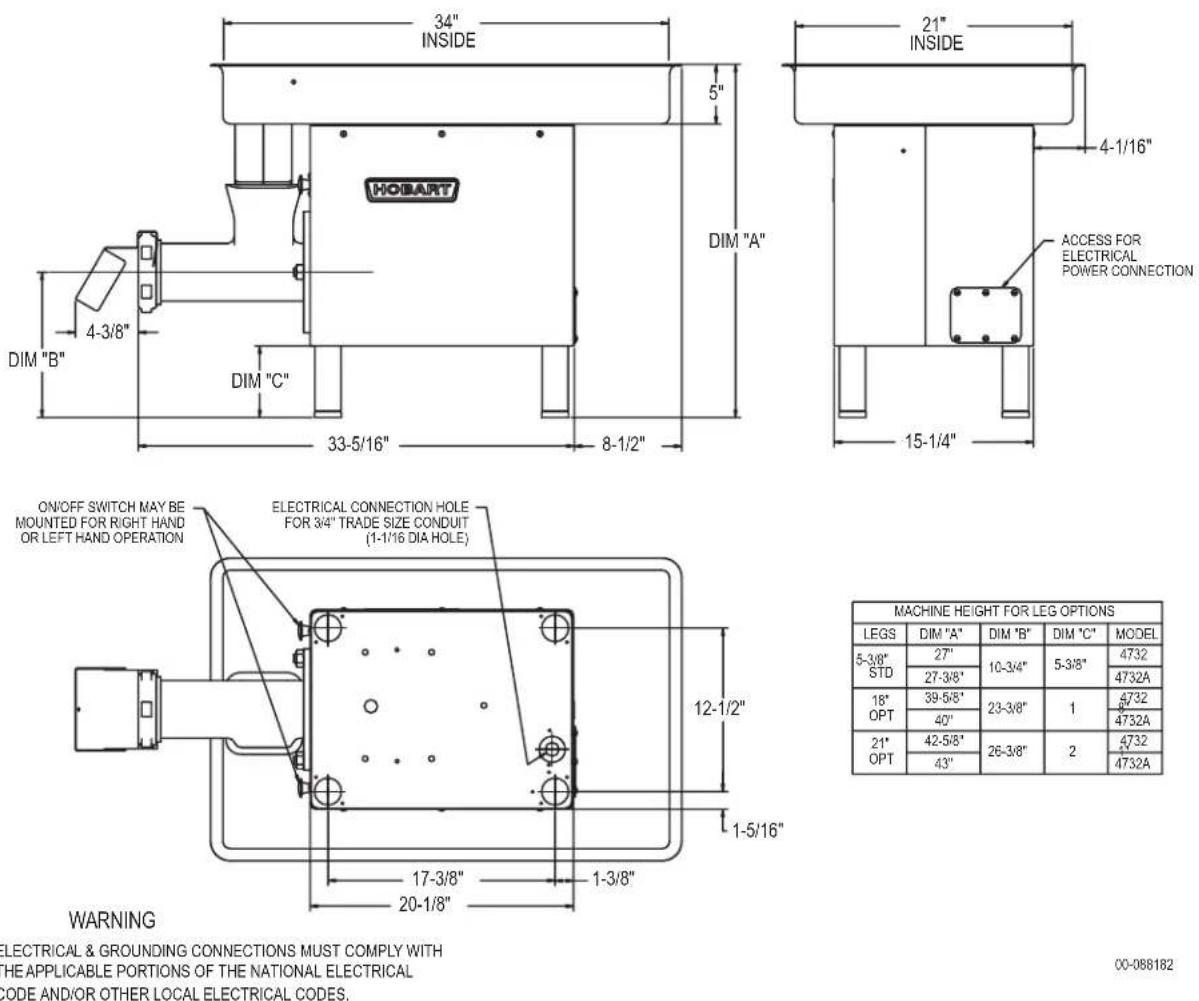

MACHINE HEIGHT FOR LEG OPTIONS
LEGS	DIM "A"	DIM "B"	DIM "C"	MODEL
5-3/8" STD	27"	10-3/4"	5-3/8"	4732
	27-3/8"			4732A
18" OPT	39-5/8"	23-3/8"	1	47328
	40"			4732A
21" OPT	42-5/8"	26-3/8"	2	47322
	43"			4732A

ELECTRICAL & GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL CODES.
00-088182

Fig. 1

LEGS (FIGS. 1 & 2)

The four leg assemblies are packed in a separate carton for shipment. The standard legs (5 ^3/8 " high) allow the rim of the feed pan on the table model to be 27" above the table surface. These legs have neoprene feet and require assembly. To assemble 5 ^1/8 " high legs: Slide the Leg Stud through the Leg End Cap and the Leg; then thread the Leg Stud into the base of the machine (Fig. 2). Do not overtighten; the legs need only be hand-tight. Thread the Neoprene Foot into the Leg Stud (Fig. 2).

Floor model choppers are equipped with optional 18" or 21" legs. Each Leg is one piece and threads into the base of the machine at the four corners. These Legs can be adjusted by threading the Feet in or out as necessary (Fig. 2) to level and stabilize the chopper.

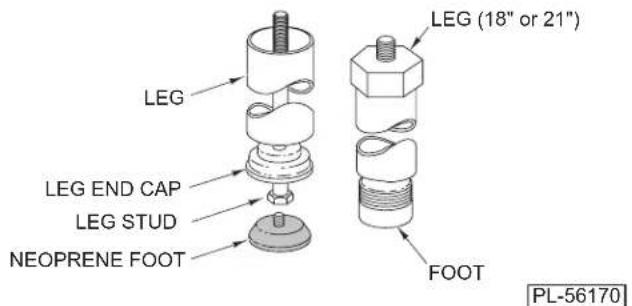

LEG LEG END CAP LEG STUD NEOPRENE FOOT LEG (18" or 21") FOOT PL-56170

Fig. 2

ELECTRICAL CONNECTION

⚠ WARNING Electrical and grounding connections must comply with the applicable portions of the national electrical code and/or other local electrical codes.
⚠ WARNING Disconnect electrical power supply and place a tag at the disconnect switch indicating the circuit is being worked on.

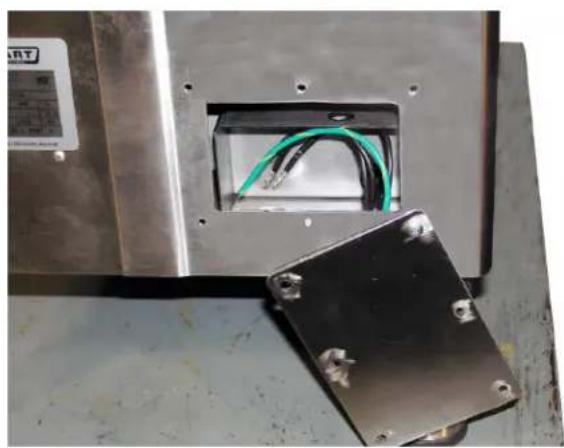

A 1^1/16 " diameter hole for ^3/_4 " trade size conduit is located in the bottom panel. Remove access panel from the back of the unit. Refer to the machine data plate and the wiring diagram located on the machine for proper sizing of branch circuit. Upon completion, fasten the access panel in place with screws.

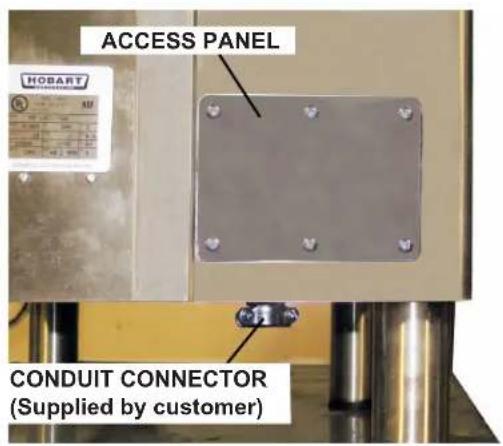

ACCESS PANEL CONDUIT CONNECTOR (Supplied by customer)

Close-up of a metallic electrical enclosure with exposed wiring and a separate metal bracket (no visible text or symbols)

THREE PHASE MACHINES

Three phase machines must be connected so that the attachment drive runs counterclockwise when facing the hub. To check the direction of rotation, turn the chopper on momentarily. If rotation is not correct, DISCONNECT ELECTRICAL POWER SUPPLY and interchange any two of the incoming power supply leads. Reconnect power to the chopper. Turn the chopper on momentarily to verify correct motor rotation.

OPERATION

⚠ WARNING Do not operate without guard over feed opening. Do not put hands into feed opening. Use feed stomper.

After cleaning, assemble chopper Cylinder, Worm, Knife, Plate and Adjusting Ring (and Feed Pan on model 4732A) as discussed in cleaning, page 7, and Fig. 3 or Fig. 4. Place the Deflector over the Adjusting Ring.

• To start the chopper, pull the Start-Stop Switch Knob (Fig. 3 or Fig. 4).
• To stop the chopper, push the Start-Stop Switch Knob.

The fineness of cut depends on the hole size of the chopper's Plate. The Knife and Plate must be kept clean and sharp for a fine cut. The tightness of the Adjusting Ring does not regulate fineness of cut; therefore only moderate tightness is recommended. The Adjusting Ring should be only hand-tight.

Cut the meat into chunks about the size of a fist and place in the Feed Pan. Feed meat under the guard and into the Feed Pan opening. Use the Feed Stomper to dislodge over-sized pieces or to dislodge meat which may become stuck in the Feed Pan opening or the cylinder opening. It is not necessary to force meat through the chopper.

When the product is run through the chopper a second time, more speed is attained by feeding small quantities at a time. Allow the machine to feed at its own rate.

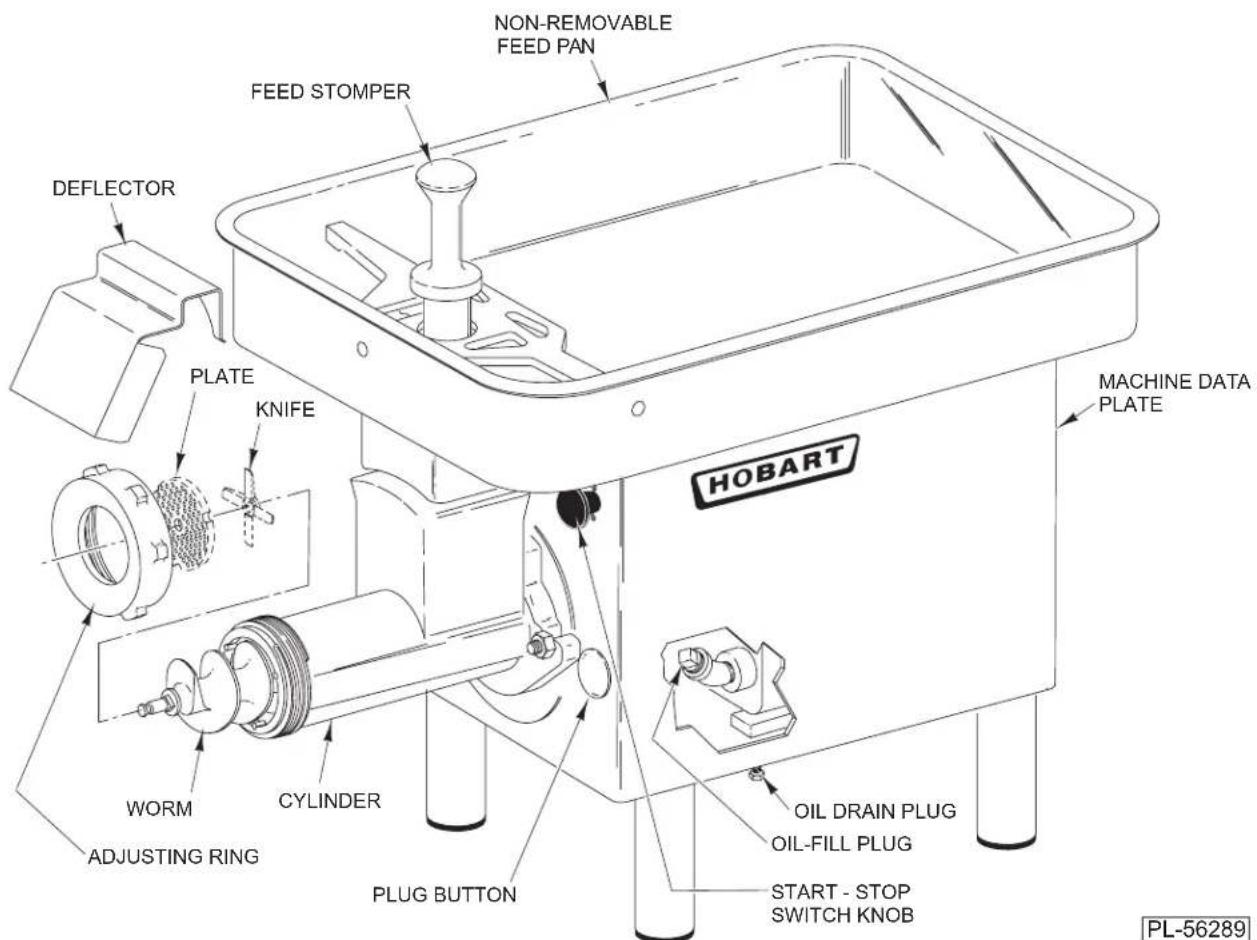

MODEL 4732

NON-REMOVABLE FEED STOMPER DEFLECTOR PLATE KNIFE WORM ADJUSTING RING CYLINDER PLUG BUTTON OIL DRAIN PLUG OIL-FILL PLUG START - STOP SWITCH KNOB MACHINE DATA PLATE HOBART PL-56289

Fig. 3

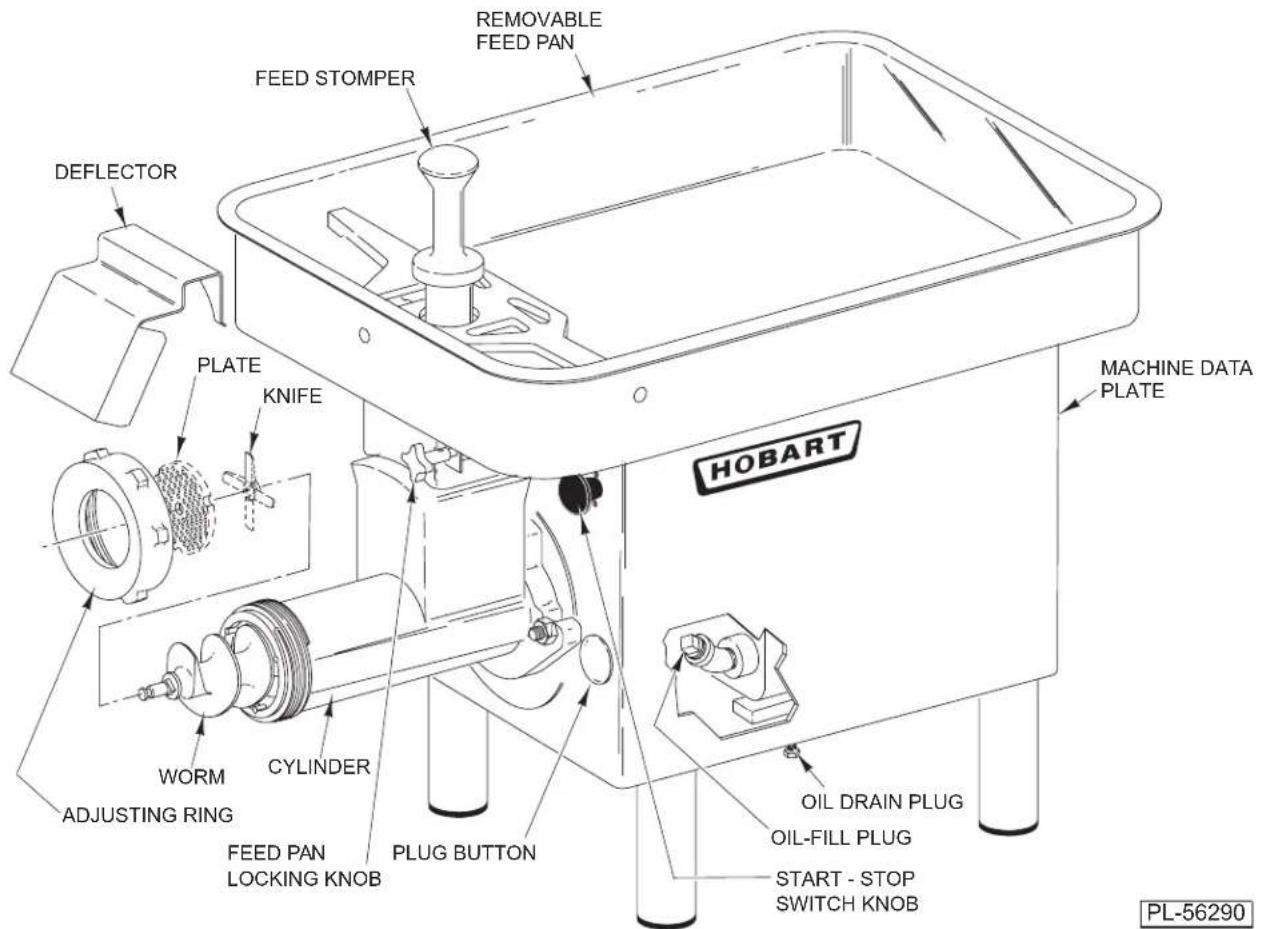

MODEL 4732A

DEFLECTOR PLATE KNIFE WORM ADJUSTING RING CYLINDER FEED PAN LOCKING KNOB PLUG BUTTON REMOVABLE FEED STOMPER OIL DRAIN PLUG OIL-FILL PLUG START - STOP SWITCH KNOB MACHINE DATA PLATE HOBART PL-56290

Fig. 4

CLEANING

⚠ WARNING Disconnect electrical power supply and place a tag at the disconnect switch indicating the circuit is being worked on before cleaning, servicing or removing parts.

The chopper should be thoroughly cleaned at the end of each day or any time it is not to be used for an extended period of time.

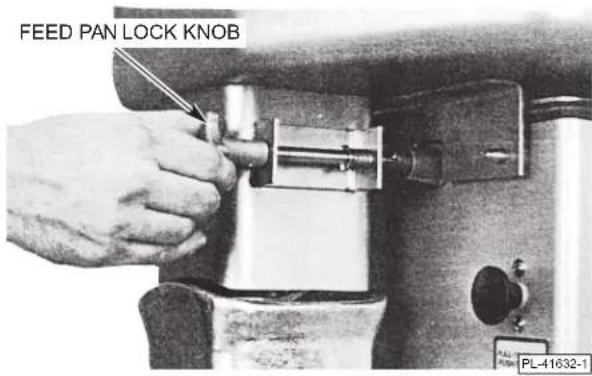

On model 4732A only, rotate the Feed Pan Lock Knob counterclockwise to unlock the pan (Fig. 5). Slide the Feed Pan toward the chopping attachment until the pan is free of the alignment brackets. Lift off the Feed Pan and take it to a sink for cleaning. On model 4732, the Feed Pan is permanently attached and must be cleaned in place.

Pull the Deflector straight up to remove it. Using the spanner wrench, loosen the Adjusting Ring. Unscrew and remove the Adjusting Ring with both hands. Hook the spanner wrench around the Worm stud and pull the Worm end out of the Cylinder. Remove the Knife and Plate and then the Worm. Place the removed parts in a sink for cleaning.

FEED PAN LOCK KNOB PL-41632-1

Fig. 5

Using the spanner wrench, loosen but do not remove the cylinder nuts. With one hand on bottom of Cylinder for support (it is heavy), turn the Cylinder clockwise and remove to a sink.

Thoroughly clean all removed parts in a sink using hot soapy water and sanitize them. Wipe machine housing with a damp cloth.

Prior to reassembly, apply a light coating of tasteless mineral oil to the inside of the Cylinder, the threads on the Cylinder and the Adjusting Ring, the Worm edges, the Knife and Plate and any other exposed (non-plated) metal surfaces.

To reassemble the machine, first install the Cylinder by rotating it counterclockwise until the ears are under the cylinder nuts. Tighten the cylinder nuts finger-tight.

Slide the Worm into the Cylinder and rotate it to engage the square shank with the attachment drive.

With the spanner wrench, tighten the cylinder nuts.

NOTICE Do not over-tighten the cylinder nuts.

Install the Knife (cutting edges out) and the Plate. Screw the Adjusting Ring on hand-tight.

To install the Feed Pan (model 4732A only), slide the alignment bracket (on the bottom of the pan) onto the alignment foot on the chopper housing. Make a visual check to make sure the Feed Pan is squarely on top of the machine. Push the Feed Pan Locking Knob in and rotate it 90° clockwise.

Store the Feed Stomper as shown in Fig. 3 or Fig. 4.

MAINTENANCE

LUBRICATION

During normal operation, gear case oil may require changing due to condensate mixing with the oil. Gear case oil that has mixed with condensate water will have a milky brown color. If this is present, the oil should be replaced.

To change the gear case oil, place a suitable catch pan under the machine and remove the Drain Plug (Fig. 3 or Fig. 4). When old oil is completely drained, replace the Drain Plug. Fill the gear case with 21 fluid ounces of Mobil Spartan EP 460 as follows: Remove the Plug Button (Fig. 3 or Fig. 4); then remove the Plastic Oil-Fill Plug (Fig. 6). Pour the proper amount of Mobil Spartan EP 460 into the elbow. The gear case is full when the oil is at the bottom thread level of the elbow (Fig. 6). Thread the Plastic Oil-Fill Plug back into the elbow, finger-tight. Press the Plug Button back into the hole of the chopper housing. The chopper requires no other lubrication maintenance.

PLASTIC OIL-FILL PLUG FULL LINE PL-56171

Fig. 6

TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSE
Chopper will not operate. Electrical power not connected.

SERVICE

Contact your local Hobart-authorized Service Office for any repairs or adjustments needed on this equipment.
