NuBlend BB185 - Blender Waring Commercial - Free user manual and instructions

Product Type	Commercial Blender
Brand	Waring Commercial
Model	NuBlend BB185
Bowl Capacity	1.3 L (polycarbonate) or 1 L (stainless steel)
Bowl Material	Polycarbonate or stainless steel
Speeds	2 speeds (HIGH and LOW) + pulse (PULSE)
Motor Type	Universal, permanently lubricated
Power Supply	120 V AC, 50/60 Hz, single phase
Cord Length	1.85 m
Grounding	Yes, 3-prong plug
Thermal Protection	Automatic shut-off in case of overheating
Features	Mixing hot liquids (max 250 ml), ice crushing
Warranty	2 years limited (motor guaranteed 2 years)
Maintenance and Cleaning	Detachable bowl and blades, clean after each use
Safety	Lid required, very sharp blades, thermal safety device
Included Accessories	Plastic spatula, sealing gasket

Frequently Asked Questions - NuBlend BB185 Waring Commercial

How to start the NuBlend BB185 blender?

Place the ingredients in the bowl, close the lid, plug in the appliance, press the ON/OFF button, then select the desired speed (HIGH, LOW or PULSE). The green indicator lights up when the appliance is powered on.

What to do if the blender stops during use?

This may be due to thermal protection in case of overheating. Stop and unplug the appliance, empty the bowl, let it cool down for about 5 minutes, then plug back in and continue. If the problem persists, contact an authorized service center.

How to safely mix hot liquids?

Do not mix more than 250 ml of hot ingredients. Remove the lid cap before starting to let hot air escape. Start at low speed and avoid standing above the appliance.

What is the maximum capacity of the bowl?

Do not exceed the MAX line indicated on the bowl. The polycarbonate bowl has a capacity of 1.3 L and the stainless steel bowl 1 L.

Can I crush ice with this blender?

Yes, use high speed (HIGH) to crush ice. You can also use the PULSE function for precise control.

How to clean the bowl and blades?

Unplug the appliance before cleaning. The bowl and blade assembly are detachable. Wash them with warm soapy water. The blades are very sharp, handle them with care.

What to do if the power cord is damaged?

Do not use the appliance. Send it to an authorized service center for inspection and repair.

Can I use a plug adapter?

For 120 V models, a temporary adapter may be used provided it is properly grounded. In Canada, the use of such an adapter is prohibited.

What is the warranty period?

The limited warranty is two years from the date of purchase, covering defects in materials and workmanship. The motor is guaranteed for two years. The warranty is valid in the United States and Canada.

Where can I get spare parts?

Contact the Waring Factory Service Center in Torrington, CT at [phone]. Parts for out-of-warranty repairs are also available.

USER MANUAL NuBlend BB185 Waring Commercial

Line drawing of a NuBlend blender with control buttons (no text or symbols on the device body)

BB185

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be followed including the following:

1. READ ALL INSTRUCTIONS
2. To protect against electrical hazards, do not immerse the blender base in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
6. Avoid contacting moving parts.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
8. The use of attachments including canning jars not recommended by the appliance manufacturer may cause hazards.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Keep hands and utensils out of container while blending, to prevent the possibility of severe personal injury and/or damage to the blender. A rubber scraper may be used, but must be used only when the blender is not running.

12. Blades are sharp. Handle carefully.

13. Your blender utilizes a removable jar base and blade assembly; to avoid injury, never place cutting assembly or cutting blades on base without container properly attached.

14. Always operate blender with cover in place.

15. When blending hot liquids, remove centerpiece of two-piece cover. See Hot Blending Instructions.

SAVE THESE INSTRUCTIONS

RESETTING THERMAL PROTECTION

- The Blender you have purchased is equipped with an Automatic Reset Switch to protect the motor from overheating.

- If your blender stops running under heavy use, turn the Power Switch “Off” and Unplug the Power Cord. Empty the blender container of all its contents and allow approximately 5 minutes for the motor to cool down.

- Plug the power Cord back into the outlet and continue blending.

- If your blender does not function properly following this procedure, discontinue use and contact a Certified Waring Customer Service Center.

BLENDER

ONE QUART CAPACITY SPECIFICATIONS

• Ratings 120 VAC- 50/60 Hz- single phase
- Motors Permanently lubricated series-wound universal type
- Container 44 oz. Polycarbonate or 32 oz. Stainless Steel
- Cord 6 foot 18 gauge three conductor grounding cord with strain relief
• cETLlisted 120 Volt models

GROUNDING INSTRUCTIONS

• For your protection, Waring®Commercial Blenders are equipped with a 3-conductor cord set.

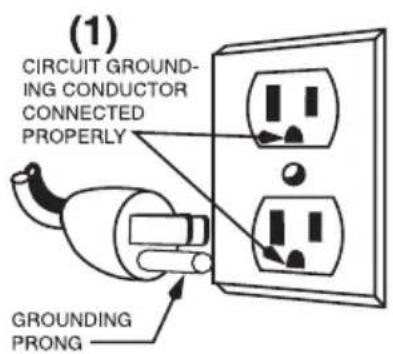

• 120 volt units are supplied with a molded 3-prong grounding type plug and should be used in combination with a properly connected grounding-type outlet, as show in Figure A.

If a grounding type outlet is not available, an adapter, shown in Figure B, may be obtained to enable a 2-slot wall outlet to be used with a 3-prong plug.

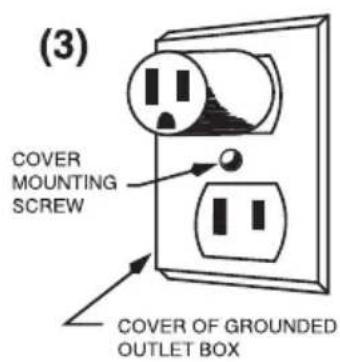

Referring to Figure C, the adapter must be grounded by attaching its grounding lug under the screw of the outlet cover plate.

CAUTION: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician.

Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada.

(1) CIRCUIT GROUND- ING CONDUCTOR CONNECTED PROPERLY GROUNDING PRONG

(2) ADAPTER GROUNDING LUG

(3) COVER MOUNTING SCREW COVER OF GROUNDED OUTLET BOX

OPERATION

1. Put ingredients into container and cover it. Always add liquid ingredients first, unless otherwise specified in recipe. Do not fill above MAX line.

2. Place container on blender. Be sure container is fully seated and that the drive coupling is properly engaged.

3. Plug the blender cord into outlet.

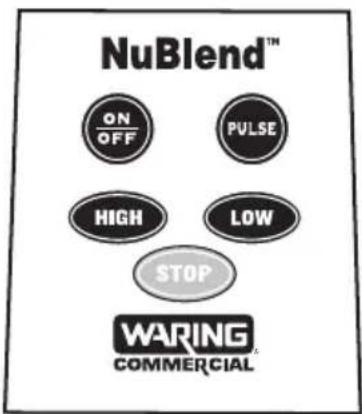

4. Press ON/OFF button. Green LED will illuminate.

5. This blender has 2 speed settings: HIGH HIGH and LOW LOW Press desired button. To crush ice, use HIGH speed setting.

6. This blender is equipped with a PULSE 📋 option. Press button to engage PULSE function. Unit will run on HIGH speed until the button is released.

7. When finished processing, press ON/OFF ON/OFF button.

8. Allow motor to come to a complete stop before removing container from blender.

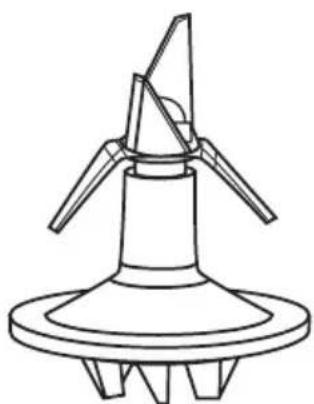

9. Note: Containers with removable bottoms have right-handed threads. When reassembling, be sure rubber seal

is positioned between the container and the flange of the blade assembly.

1. Safety Feature: If a power outage occurs, blender will turn off. Once the power returns, the blender will be in its OFF position. To turn unit back on, press the ON/OFF button, and then the desired speed.

Rubber Seal

Technical line drawing of a mechanical component with three blades and a central hub (no text or symbols)

NuBlend™ ON OFF PULSE HIGH LOW STOP WARING COMMERCIAL

IMPORTANT

HOT BLENDING INSTRUCTIONS

To minimize the possibility of being scalded when blending hot materials, the following precautions and procedures must be observed.

1. Limit the amount of materials processed to 1/2 pint.
2. Completely remove the center portion of the two-piece container lid before starting motor. (This will allow venting of the rapidly heated and expanding air present inside the container when blender is running.)
3. Always start blending at lowest speed setting, and then progress to desired speed.
4. Never stand directly over blender when it is being started or while it is running.

SERVICE

Refer to the list of Authorized Service Centers enclosed with your Waring® Commercial Blender for the name of the nearest Service Center, or write to:

Waring Factory Service Center F-Box 3201 Commercial Grasso Avenue

Torrington, CT 06790

[phone]

Ship blenders for repair to the above address or to an Authorized Service Center. Do not ship to a Waring Sales Office.

Note: If your application involves the processing of biologically active material, we request that any items returned for service be sterilized before being shipped. Such items must be clearly identified as having been sterilized, both by a tag on the item itself and by a statement in the accompanying correspondence. Waring will not accept delivery of any return unless it is so identified.

Replacement parts for your “Out of Warranty” repairs are obtainable at the above address.

LIMITED TWO YEAR WARRANTY

Waring warrants every new Waring Commercial Blender to be free from defects in material and workmanship for a period of two years from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semi-liquids, provided it has not been subject to loads in excess of the indicated rating. In addition, the motor in this appliance has a full two year warranty.

Under this warranty, the Waring Commercial Division will repair or replace any part which, upon our examination, is defective in materials or workmanship, provided the product is delivered prepaid to the Waring Service Center at: 314 Ella T. Grasso Ave. Torrington, CT 06790, or any Factory Approved Service Center.

This warranty does not: a) apply to any product which has become worn, defective, damaged or broken due to use or due to repairs or servicing by other than the Waring Service Center or a Factory Approved Service Center, or due to abuse, misuse, overloading or tampering; or b) cover incidental or consequential damages of any kind.

The two year warranty is applicable only to appliances used in the United States or Canada; this supersedes all other express product warranty or warranty statements. For Waring products sold outside of the U.S. and Canada, the warranty is the responsibility of the local importer or distributor. This warranty may vary according to local regulations.

Warning: This warranty is void if appliance is used on Direct Current (D.C.)

WARING COMMERCIAL

WARNING

. Grasso Ave.

COMMERCIAL

Torrington, CT 06790

NuBlend™ ON OFF PULSE HIGH LOW STOP WARING COMMERCIAL

NuBlend™ ON OFF PULSE HIGH LOW STOP WARING COMMERCIAL
