BXHBA600E - Hand blender BLACK & DECKER - Free user manual and instructions

Brand	Black & Decker
Model	BXHBA600E
Product Type	Immersion blender
Power	600 W
Voltage	220-240 V ~ 50/60 Hz
Speeds	Variable with electronic regulator
Turbo function	Yes
Measuring cup capacity	700 ml
Included accessories	Whisk, emulsifier beater, chopper, measuring cup
Blade material	Stainless steel
Body material	Plastic
Cable length	1 m
Cleaning	Removable parts dishwasher safe (delicate cycle)
Safety	Unplug before cleaning, sharp blades
Warranty	2 years (according to applicable law)
Weight	1.2 kg
Dimensions	40 x 10 x 10 cm
Use	Household use only

Frequently Asked Questions - BXHBA600E BLACK & DECKER

How to clean the Black & Decker BXHBA600E immersion blender?

Unplug the appliance and let it cool. Clean the motor body with a damp cloth. The accessories (measuring cup, chopper without blades, beater) can be washed in hot soapy water or in the dishwasher on a delicate cycle. Be careful with the blades as they are very sharp.

Can I blend hot liquids with this appliance?

Yes, but with caution. The volume of hot liquid should not exceed half of the measuring cup. Use the lowest speed to avoid steam splashes.

How to use the Turbo function?

The Turbo function (button C) activates the maximum motor power for optimal texture. Press the Turbo button during blending for a boost.

What accessories are included with the BXHBA600E?

The appliance comes with: a whisk, an emulsifier beater, a chopper with reduction gear, and a measuring cup.

Is the blender compatible with a meat grinder?

Yes, the chopper accessory allows chopping meat, vegetables, dried fruits, etc. Cut the food into 1 cm cubes for best results.

How to adjust the speed on the BXHBA600E model?

Use the speed regulator (A) on the motor body to adapt the speed to the preparation type. Turn it to increase or decrease speed.

Can I use the blender to make mayonnaise?

Absolutely. Place an egg, salt, vinegar or lemon in the measuring cup, fill with oil up to the indicated level, then blend at speed 10 for about 35 seconds without moving the appliance.

What to do if the appliance stops working?

Check the power supply and ensure the accessory is properly assembled. If the problem persists, do not disassemble the appliance. Contact an authorized technical support service.

Is the measuring cup dishwasher safe?

Yes, the measuring cup and other accessories (chopper without blades, beater) can be washed in the dishwasher on a delicate cycle. Dry them well before storing.

What is the maximum continuous operating time?

Do not exceed 1 minute of continuous operation. If necessary, allow at least 1 minute rest between cycles to avoid overheating.

USER MANUAL BXHBA600E BLACK & DECKER

www.blackanddecker.eu

Line drawing of a black and decker electric shaver with no text or symbols

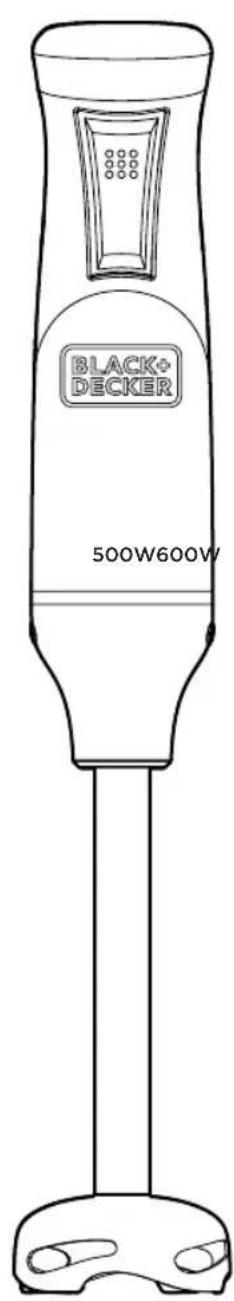

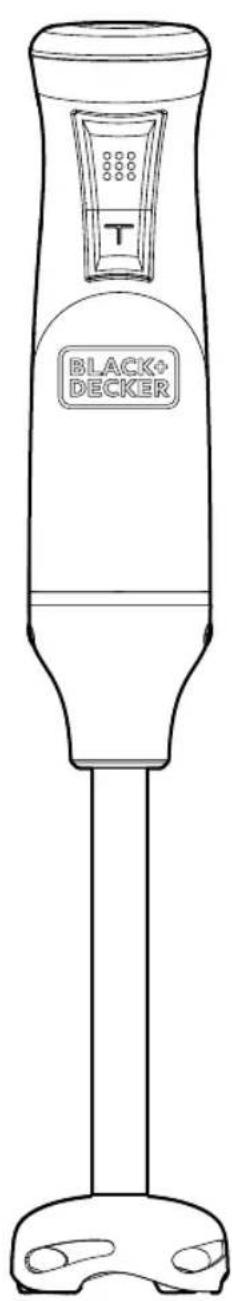

BXHB500E BXHBA600E

BXHB500E

BXHBA600E

Fig.1

Fig.1.1 Fig.1.3 Fig.1.2

Fig.2

Fig.2

Line drawing of a hand using a handheld device to handle a container with liquid (no text or symbols)

Fig.2.4 Fig.2.5

Fig.3

Fig.3.1 Fig.3.2

Line drawing of a hand using a digital brush to interact with a beaker containing a whisk, showing fluid level (no text or symbols)

Fig.3.3

ENGLISH

(Original instructions)

HAND BLENDER BXHB500E BXHBA600E

Dear customer,

Many thanks for choosing to purchase a Black & Decker brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

SAFETY ADVICE AND WARNINGS

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  ◆ Blades are sharp and could cause

harm, be careful and avoid direct contact with the blades' cutting edges.

• Pay special attention when handling the blades, during assembly and disassembly operations, emptying the bowl and during cleaning.
• Always switch off the a+pliance and disconnect from supply if it is left unattended and before changing accessories or approaching parts that move in use, assembling, disassembling and cleaning.
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
  If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

• This appliance is for household use only, not professional, industrial use.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

• Connect the appliance to a socket that can supply a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
• Keep children and bystanders away when using this appliance.
• Do not use the appliance if the cable or plug is damaged.
  ◆ If any of the appliance casings breaks, immediately

(Original instructions)

ENGLISH

disconnect the appliance from the mains to prevent the possibility of an electric shock.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance with damp hands or feet, or when barefooted.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not wrap the power cord around the appliance.

Do not clip or crease the power cord.

- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

- Do not use or store the appliance outdoors.

Do not touch the plug with wet hands.

Take the necessary measures to avoid starting the appliance involuntarily.

- Do not touch any of the appliance's moving parts while it is operating.

USE AND CARE

◆ Fully unroll the appliance's power cable before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

- Do not use the appliance if the on/off switch does not work.

- Do not use the appliance if it is tipped up and do not turn it over.

- Do not turn the appliance over while it is in use or connected to the mains.

- Respect the MAX level indicator of the measuring cup.

When using hot liquids do not fill the jug more than half way. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

• Never use boiling liquids.
• Never leave the appliance connected and unattended if

is not in use. This saves energy and prolongs the life of the appliance.

• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with frozen goods or those containing bones.
  Do not use the appliance for longer than 1 minute at a time, or to complete cycles lasting more than 1 minutes. In the latter case always ensure rest periods of at least 1 minute between cycles. Never keep the appliance working for longer than the required time.

The annexed illustrative table shows a number of recipes, including the amount of food to be processed, the recommended time to prepare each recipe, as well as the maximum operation time of the device under each of these load conditions.

SERVICE

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

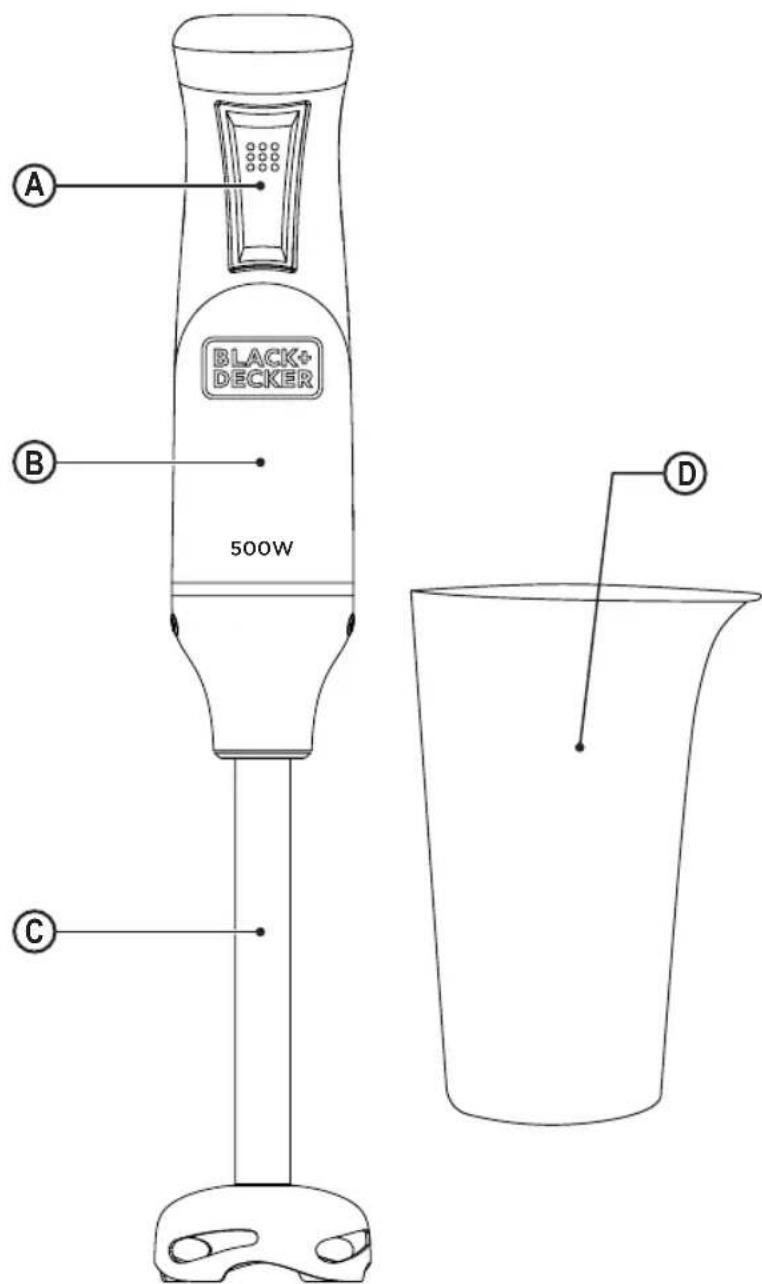

DESCRIPTION BXHB500E

A Button

B Motor body

C Stick-blender accessory

D Measuring cup

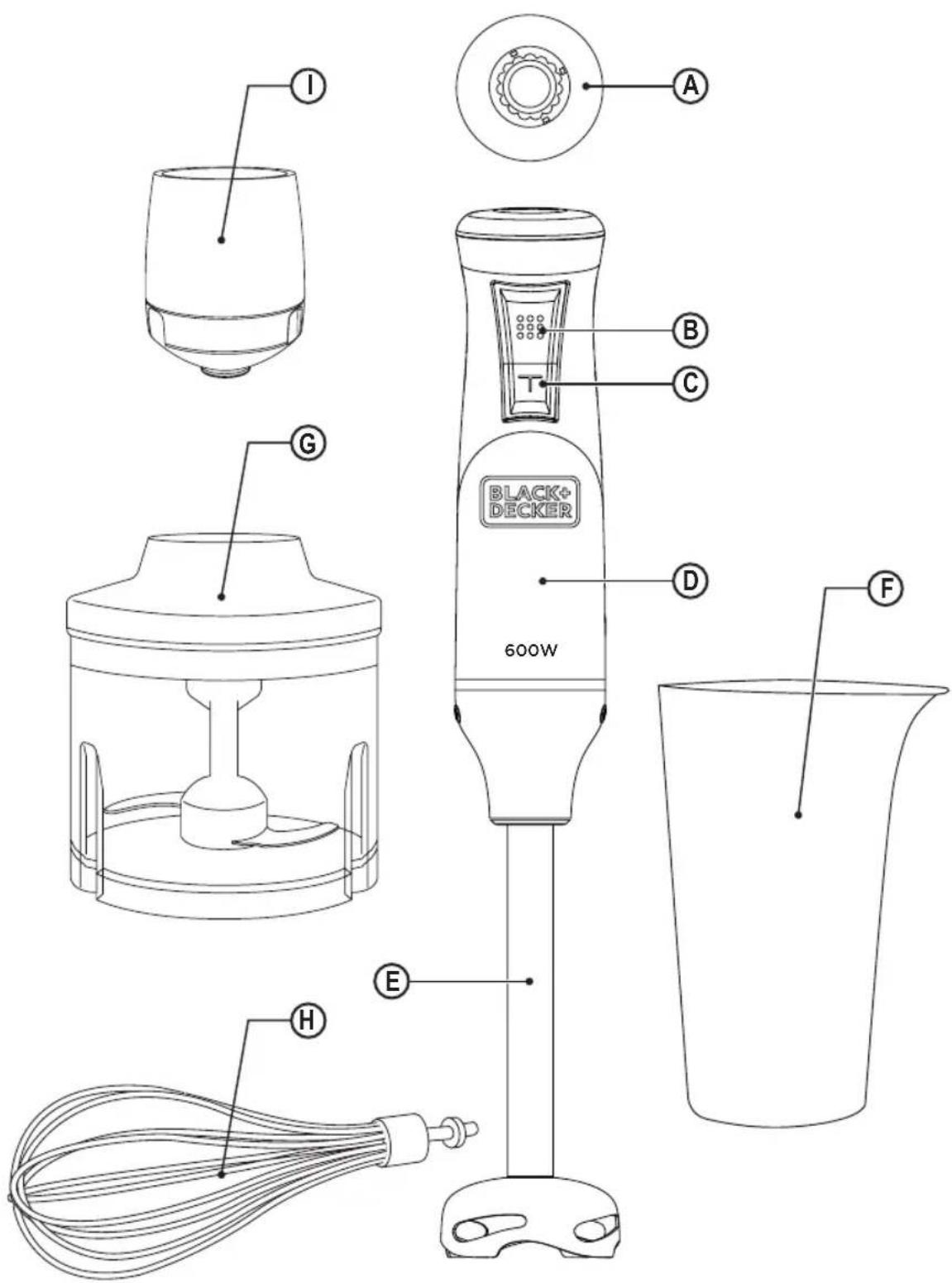

DESCRIPTION BXHBA600E

A Speed control regulator

B Button

CTurbo

DMotor body

E Stick-blender accessory

F Measuring cup

GChopper

HWhisk

I Adapter fitting

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Instructions for use

Before use:

• Make sure that all the product's packaging has been removed.
  Before using the product for the first time, clean the parts that will come into contact with food in the manner

ENGLISH

(Original instructions)

described in the cleaning section.

- Prepare the appliance according to the function you wish to use.

Use:

◆ Unroll the cable completely before plugging it in.
- Connect the appliance to the mains.
- Turn the appliance on using the on/off switch.
- In the model with speed control regulator, select the desired speed.
◆ Work with the food you want to process.

Electronic speed control (MODEL BXH-BA600E):

The speed of the appliance can be regulated simply by using the speed regulator control (A). This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

Turbo function (MODEL BXHBA600E):

- The appliance has a Turbo function. By activating the Turbo function (C) all the power of the motor becomes available, thus obtaining a finer finish in the final texture of the product.

Once you have finished using the appliance:

• Stop the appliance by releasing the pressure on the on/off button.
  ◆ Unplug the appliance to the mains.
• Clean the appliance

Accessories:

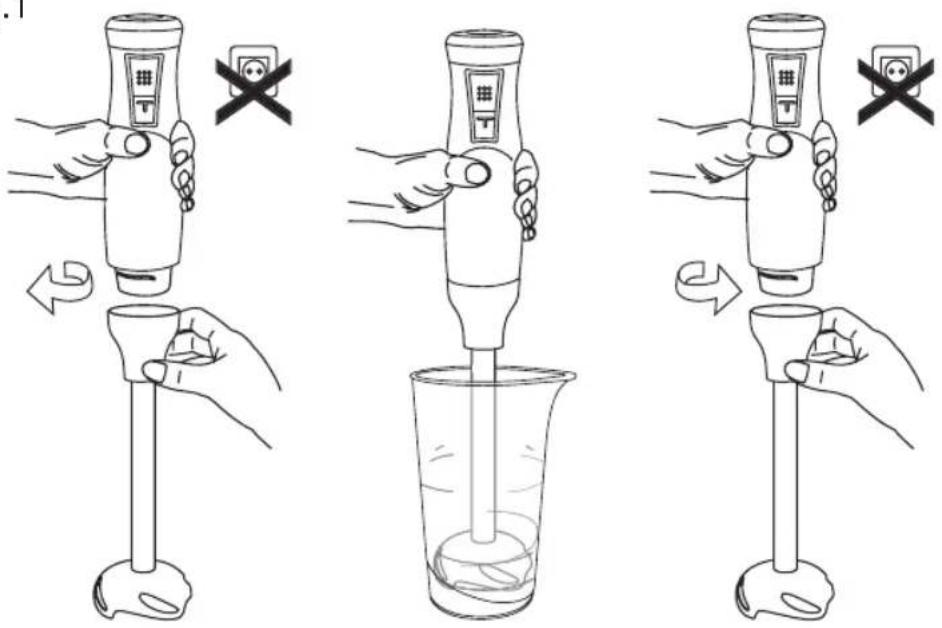

Stick blender accessory (Fig.1):

• This accessory is used to make sauces, soups, mayonnaise, milkshakes, baby food...
• Attach the stick blender to the motor body by turning it in the direction indicated by the arrow (Fig. 1.1).
• Pour the foodstuffs into the measuring cup and operate it by pressing the start button.
• Detach the stick blender by turning it in the opposite direction to the arrow and remove it for later cleaning.

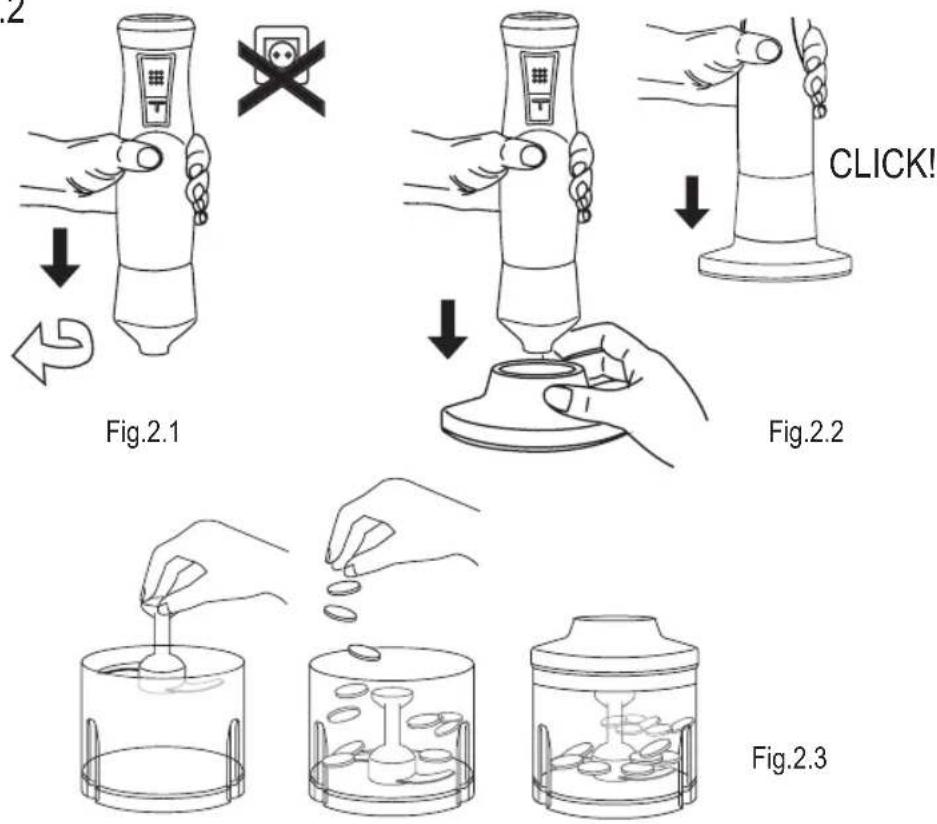

Chopping accessory (MODEL BXHBA600E) (Fig.2):

• This accessory is used to chop vegetables, nuts, meat...

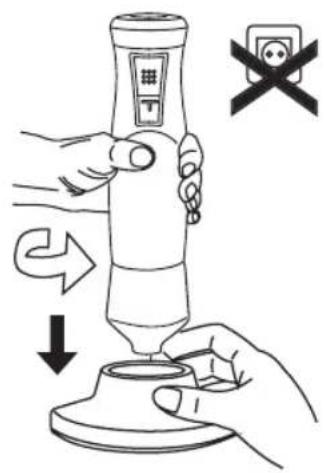

  ◆ Fit the adapter fitting to the motor unit by turning it in the

direction of the arrow (Fig. 2.1).

◆ Attach the unit to the cover until hear the clic (Fig. 2.2).
Put the food to be prepared in the chopping container and attach the cover firmly.

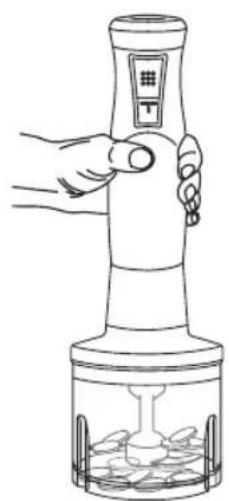

- Switch the appliance on (be careful: do not switch the appliance on if the whole unit is not properly fitted and connected together).
- Stop the appliance when the food reaches the desired texture.
- Detach the unit from the lid, and release the adapter fitting.

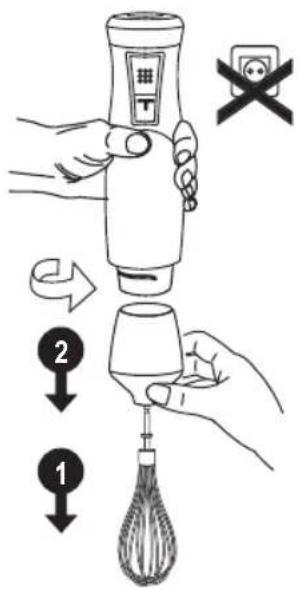

Whisk accessory (Fig.3):

• This accessory is used to whip cream, beat egg whites...

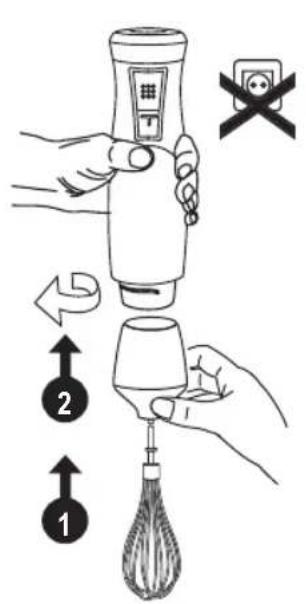

• Insert the whisk into the adapter fitting. Fit the adapter fitting to the motor unit by turning it in the direction of the arrow. (Fig. 3.1).

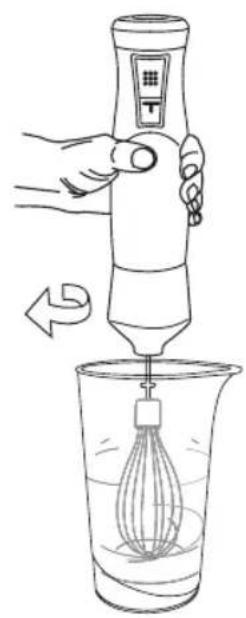

• Place the food in a wide container and turn on the device. For optimum results, move the whisk clockwise.
• Remove the whisk accessory and release the adapter fitting (Fig. 3.2).
  Note1: Do not work at high speeds with this accessory attached, as this would cause defects in the whisk (spinning its wires).
  Note2: To free the whisk (H) from the adapter fitting (I), pull the ring on the whisk.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
  Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
  During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.
  If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The following pieces may be washed in a dishwasher (using a soft cleaning program):
• Measuring cup

- Chopper (without Blades)

Whisk

- The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily.

- Then dry all parts before its assembly and storage.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

WARRANTY AND TECHNICAL ASSISTANCE

- This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://www.2helpu.com/.

- You can also request related information, by contacting us (see the last page of the manual).

- You can download this instruction manual and its updates at http://www.2helpu.com/.

For EU product versions and/or in the case that it is requested in your country: ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products

FOOD PREPARATION

Recipe	Recommended accessory	Quantity	Method Speed Time
Mayonnaise 250 ml			Add 1 egg, salt, some drops of vinegar or lemon to the receptacle. Fill with oil up to the level indicated and switch on, do not move or agitate until the oil has been bound.	10 35s
Fruit milks-hakes		---- Add	the fruit and mix with blender until smooth. 15 ----
Béchamel sauce		600 ml	Melt 30g of butter in a saucepan over a low heat, add 100g of lour and 30g of fried onion (beforehand chop using the mincer attachment) and gradually add 500ml of milk.	10 15 s
Whipped cream		250 ml	Place cold cream (0 to 5°C) into a cold receptacle and beat with blender, making vertical movements. Be careful not to overbeat as the cream will turn to butter.	1-5 2 min
Whipped egg whites		3 whites	Add the whites to a receptacle and whip with blender, making vertical movements.	5	2-4 min
Mashed potatoes		400 g	Potatoes can be blended while still in the saucepan.	20 30 s
Baby food 300 g			Cut up 100g of apples, 100g of banana, 50g of biscuits and place into a receptacle. Add orange juice and blend.	20 25 s
Grated bread 50 g			Cut up stale bread and place into goblet. Blend until desired consistency is achieved.	20	1,5 min
Grated cheese 100 g			Cut into 1cm cubes and blend until desired consistency is achieved.	20	30-50 s
Minced boiled egg		2 eggs	Cut into four pieces and blend until desired consistency is achieved.	20 10 s
Minced meat (raw or cooked)		150 g Before blending, cut into 1cm cubes. 20 30 s
Carrot 200 g			Peel, dice and blend until desired consistency is achieved.	20 30 s
Nuts 200 g			Remove shell and blend until desired consistency is achieved.	20 30 s
Chopped Spanish Serrano ham		35 g	Previously chop into 1 cm chunks Mince until the desired texture is obtained	20 3 s
