USER MANUAL ED885RB90E/01 SIEMENS
Safety during operation 15
Safety during cleaning 16
Safety during maintenance and repairs 16
Your new appliance. 17
Gas cooktop 17
Control knob 17
Wok burner control knob 17
Special accessories 18
Operation 18
Switching on automatically. 18
Switching on manually. 18
Switching off. 18
Thermoelectric flame monitoring 19
Settings table and tips 19
Tips for cooking and roasting 19
Cooking in the wok 20
Cookware recommendations 20
Suitable cooking vessels. 20
Precautions for use 20
Care and cleaning 21
Cleaning. 21
Burnt-in residues 22
Do not use these cleaners. 22
Trouble shooting 23
After-sales service 24
Packaging and old appliances 24
Environmental protection. 24
Safety information
Please read these instruction carefully. Keep the instructions in a safe place for reference or for the subsequent owner.
General notes
Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transport.
This appliance is intended for domestic use only. Only use the appliance for preparing food, not for heating rooms.
Adults and children must not operate the appliance without supervision, if they are physically or mentally incapable of doing so, or if they lack the knowledge and experience required to operate the appliance correctly and safely. Do not let children play with the appliance or the packaging material.
This appliance is not intended for operation with an external timer or an external remote control.
The manufacturer accepts no responsibility for damage which arises as a result of disregarding the instruction manual.
Safety during operation
Risk of burns!
The appliance becomes hot during operation. Keep children away from the appliance.
Risk of fire!
Overheated food can cause fires. Only operate the appliance when its use can be supervised.
Risk of fire!
Gas burners operated without cookware in position produce a great amount of heat. The appliance or an extractor hood fitted above it may be damaged or set on fire. Only operate gas burners with cookware in position.
Risk of burns!
Empty cookware becomes extremely hot if placed on gas burners when they are in operation. If touched, hot cookware could cause burns. Under no circumstances heat empty cookware.
Risk of fire!
Overheated fat or oil is highly inflammable. Only prepare food cooked in fat or oil when cooking can be fully supervised. Under no circumstances attempt to extinguish burning fat or oil with water. Choke the fire using a lid or fire blanket.
Risk of fire!
Flammable materials may catch fire from an open gas flame or from heat. Do not store or use flammable materials (e.g. spray cans, cleaning agents) underneath or in the immediate vicinity of the hob. Under no circumstances place flammable objects on the hob.
Risk of injury!
Unsuitable pan sizes, damaged or incorrectly positioned pans can cause serious injury. Observe the instructions which accompany the cookware.
Risk of short circuit!
The cable insulation of electrical appliances can melt. Under no circumstances place the mains cable on the burners when they are still hot.
Caution!
Heat damage to adjacent appliances or kitchen units: Heat and moisture are produced if the appliance is operated over a prolonged period. Additional ventilation is required. Open windows and switch on an extraction hood which conducts into the open air.
Caution!
Appliance damage caused by heat accumulation: Do not heat roasting dishes, pans or grill stones on more than one burner at the same time.
Caution!
Malfunction: Always turn control knobs to the off position when the appliance is not in operation.
Safety during cleaning
Risk of burns!
The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.
Risk of electric shock!
Do not use high pressure washers or steam cleaners to clean the appliance.
Caution!
Damage to the seal: Do not clean the gap around the stainless steel surface with sharp objects.
Caution!
Damage to the appliance: Do not pull off the control knobs to clean them.
Safety during maintenance and repairs
Risk of injury!
In the event of a malfunction or if the appliance is damaged, unscrew the fuses (or switch off the circuit breakers). Shut off the gas supply. Contact the after-sales service.
Risk of injury!
Considerable injuries may be caused by faulty repairs. Repairs to the appliance must only be carried out by a trained technician. If a repair is required, please call the after-sales service.
Risk of injury!
A damaged electricity cable or gas hose must be replaced as soon as possible by the manufacturer, sales subsidiary, after-sales service or a trained technician.
For conversion to another type of gas, please call the after-sales service.
Your new appliance
Your new appliance and its accessories are described in this section.

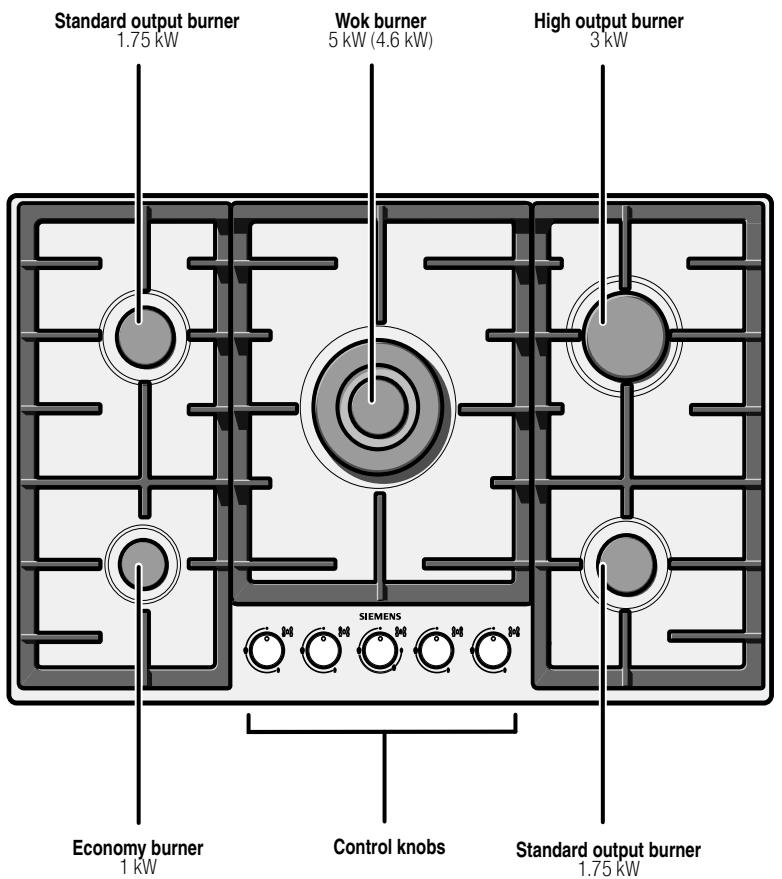

Gas cooktop
Control knob
The markings show the position of the corresponding burner and the setting between high and low heat. The flame setting is infinitely variable between high and low.
Wok burner control knob
Turning the wok burner control knob beyond the middle flame symbol activates the outer flame ring.
Special accessories
You can order the following special accessories from our after-sales service or on our website:
Wok pan (469744)
Wok pan, with curved base.
Wok ring (647660)
(comes as a standard accessory with some models)
For use on the wok burner with a wok pan.
Coffee maker support (088903)
Only use the coffee maker support on the economy burner with cooking vessels no more than 9cm in diameter (e.g. coffee maker).
Simmering plate (648786)
Only use the simmering plate on the economy burner. This accessory has been designed to reduce the heat at the lowest power setting (low heat).
Place the simmering plate on the pan support with the cones facing upwards, never directly on the burner. Centre the pan over the simmering plate.
Simmering cap (616229)
Only use the simmering cap on the economy burner. This accessory has been designed for cooking over a low heat. Remove the economy burner and replace it with the simmering cap.
Only use the accessories as specified. The manufacturer accepts no liability if these accessories are used incorrectly.
Operation
The markings on the control knobs show the position of the corresponding burner and the setting between high and low heat. The flame setting is infinitely variable between high and low heat.
Notes
Only light a burner if all pan supports and burner parts are properly assembled.
Make sure the burners and ignition sparkers are clean and dry.
Only use the recommended accessories. Do not cover the stainless steel cooktop base (e.g. with aluminium foil).
Switching on automatically
Your cooktop features ignition sparkers for automatic ignition.
- Place a suitable pot or pan on the corresponding cooking position.
- Fully press down the corresponding control knob and turn it anticlockwise to the required position. The burner lights automatically.
- Keep the control knob pressed for a few seconds after ignition.
The flame size can be set continuously between high and low by slowly turning the control knob.
Switching on manually
During a power cut you can ignite the burners manually.
- Place a suitable pot or pan on the chosen burner.
- Press the corresponding control knob and turn it anticlockwise to the required setting. Keep the control knob pressed.
- Use a gas lighter or a match to ignite the burner. Keep the control knob pressed for a few seconds after ignition.
Switching off
Turn the corresponding control knob clockwise to the OFF position.
Thermoelectric flame monitoring
For your safety, this cooktop features thermoelectric flame monitoring. This prevents gas escaping, if a burner accidentally goes off during use (for example from a draught).
Should a burner accidentally go off during use, turn the control knob to the OFF position and wait at least 30 seconds before re-igniting the burner.
Settings table and tips
| Cooking level | Cooking method | Examples |
| High heat | Boiling | Water |
| Searing | Meat | |
| Heating | Fat, liquids | |
| Boiling | Soup, sauce | |
| Blanching | Vegetables | |
| From to | Roasting | Meat, fish, potatoes |
| Baking | Pancakes, egg dishes | |
| Simmering in open pot | Dumplings, sausages, beef for making soup | |
| Simmering | Sweet sauces, sauces | |
| Boiling with closed lid | Soup, potatoes | |
| Steaming | Vegetables, fish | |
| Stewing | Vegetables, fruit, fish | |
| Braising | Goulash, roasts, vegetables | |
| Low heat | Thawing | Frozen foods |
| Slow cooking | Rice, pulses | |
| Reheating | Soup, casserole, vegetables in a sauce |
Tips for cooking and roasting
The values given in the settings table must be looked upon as recommended values. The heat required depends not only on the type and condition of the food, but also the size and contents of the pot.
Due to the high performance of the cooktop, fat and oil will heat up quickly. Never leave the cooktop unattended, fat can ignite, food can burn.
Preferably use the rear cooking zones to prepare meals, that need longer to cook. Preferably use the high output burners or the wok burner for brief cooking, deep fat frying and searing of large quantities.
Cooking in the wok
Note: Always place the wok ring on the pan support above the wok burner when cooking in a wok. Make sure that the wok is positioned safely on the wok ring while cooking.
We recommend using a round-bottom wok. You can order a high-quality wok pan as a special accessory (order number 469744).
Only use oil that is suitable for frying at high temperatures, for example peanut oil. Fry the food quickly on a high heat while stirring continuously. Vegetables should stay crispy.
Use a heat resistant, flat ladle with a long handle to stir the food and take it out of the wok pan.
Cookware recommendations
The following tips can help you save energy and avoid damage to your cookware.
Suitable cooking vessels
| Burner | Pot base, recommended diameter | Pot base, minimum diameter |
| Economy burner | 100 - 180 mm | 100 mm |
| Standard burner, rear | 180 - 220 mm | 140 mm |
| Standard burner, front | 180 mm for pots | 140 mm |
| 160 mm for pans | ||
| High output burner | 220 - 240 mm | 140 mm |
| Wok burner | 220 - 240 mm | 200 mm |
| Only use wok pan with wok ring. | For diameter < 220 mm: only use the inner burner ring. |
Precautions for use
Use pans which are the right size for each burner.
Do not use small pans on large burners. The flame must not touch the sides of the pan.
Do not use damaged pans, which do not sit evenly on the hob. Pans may tip over.
Only use pans with a thick, flat base.
Do not cook without using a lid and make sure the lid is properly fitted. This wastes energy.
Always place the pan right over the burner, not to one side. Otherwise it could tip over.
Do not place large pans on the burners near the control knobs. These may be damaged by the very high temperatures.
Place the pans on the pan supports, never directly on the burner.
Make sure that the pan supports and burner caps are correctly positioned before using the appliance.
Pans should be placed on the hob carefully.
Do not strike the hob and do not place excessive weight on it.
Care and cleaning
In this chapter you will find tips on how to maintain and clean your cooktop correctly.
Risk of burns!
The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.
Risk of electric shock!
Do not use high pressure washers or steam cleaners to clean the appliance.
Cleaning
Clean the appliance after every use once it has cooled down. Remove spills immediately. Burnt in residues may be difficult to remove.
Assemble the burner parts and pan supports after cleaning and drying them. Make sure all burner parts are properly fitted. Burner ring and burner cover must lock in place and lie evenly flat.
| Part/surface | Recommended cleaning method |
| Stainless steel surfaces | Clean with a soft cloth and some soapy water; polish dry with a soft cloth. Do not use too much water to avoid water entering the appliance. Caution! Damage to the seal: Do not clean the gap around the stainless steel surface with sharp objects. Only clean with a soft brush. To remove stubborn residues or discolouration because of the heat, you can order a stainless-steel cleaner (order number 464524) from your specialist retailer or our after-sales service. |
| Pan support | Carefully take off pan supports for cleaning. Soak in soapy water. Clean with a brush and some detergent. Be careful when cleaning around the rubber rests to ensure they do not come loose. Rinse with clear water. Carefully dry pan support before assembly. Do not clean in a dishwasher! |
| Control knobs | Clean with a soft, moist cloth and some soapy water; do not use too much water. Caution! Damage to the appliance: Do not pull off the control knobs to clean them. |
| Burner parts | Rinse with clear water. Carefully dry burner parts before assembly. Do not clean in a dishwasher! |
| Ignition sparkers | If required, clean with a fine brush. |
Burnt-in residues
To remove stubborn, burnt-in residues you can order the grill cleaning gel (order number 463582) from your specialist retailer or from our after-sales service. You can use it to clean the pan supports, the
burner parts and the stainless steel cooktop base. If necessary apply the gel and leave overnight. Please observe the manufacturer's instructions.
Do not use these cleaners
scouring or chemically aggressive cleaners
cleaners containing acid (e.g. vinegar, citric acid, etc)
■ cleaners containing chloride or with a high content of alcohol
oven cleaner
- hard and scratchy sponges, brushes or scouring pads
carefully rinse new sponge clothes before the first use
Trouble shooting
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
| Fault | Possible cause | Solution |
| Malfunction of the general electrical system. | The household fuse has tripped. | Check the fuse box if the fuse has tripped. |
| The electric ignition does not work. | There may be food or cleaning products stuck between the ignition sparkers and the burners. | The space between the ignition sparker and the burner must be clean. |
| The burners are wet. | Dry the burner caps carefully. | |
| The burner caps are not correctly positioned. | Check that the burner caps are correctly positioned. | |
| Power cut | Ignite the burner with a lighter or a match. | |
| The burner flame is not uniform. | The burner components are not correctly positioned. | Ensure the components are correctly positioned. |
| The grooves on the burner are dirty. | Clean the grooves on the burner. | |
| The gas flow is not normal or there is no gas. | The gas supply is blocked via gas taps. | Open all gas taps. |
| If the gas is supplied from a gas cylinder, check that this is not empty. | Change the gas cylinder. | |
| The kitchen smells of gas. | There may be a leak in the gas cylinder coupling. | Check that the coupling is sound. |
| The burner goes off after ignition. | The control knob was not held down for long enough. | Once the burner is on, hold the control knob down a few seconds longer. Fully press control knob. |
| The grooves on the burner are dirty. | Clean the grooves on the burner. |
After-sales service
In the event of repairs or if you need further accessories or spare parts, please contact our after-sales service.
You can find the addresses in the enclosed after-sales service directory.
When contacting the after-sales service, please specify the E-number and FD-number of the appliance. You can find these on the rating plate on the bottom of
the appliance. For future reference you can note the data of your appliance and the telephone number of our after-sales service here.
Please note that you will be charged for calling out an after-sales service technician, even within the warranty period, should the problem result from an operating error.
E-Nr.
FD-Nr.
After-sales service
Packaging and old appliances
Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.
Please dispose of the individual parts separated according to type.
Please ask your dealer or inquire at your local authority about current means of disposal.
Environmental protection
This appliance is labelled in accordance with the European Directive 2002/96/EU concerning used electrical and electronic appliances (WEEE - waste electrical and electronic equipment). The guideline determines the framework for the return and recycling of used appliances as applicable.
