Product Type	Electric Contact Grill
Brand	Girmi
Model	BQ11
Power Supply	230 V~50 Hz
Power	2000 W
Heating Element Type	Sheathed Steel
Thermostat	Adjustable, with indicator light
Safety Device	Safety button integrated in handle
Cooking Surface	Metal grid, adjustable height (contact or 2 cm)
Water Tray	Capacity: 200 to 400 ml
Drip Tray	Aluminum, removable
Legs	4 screw-in legs, included
Usage	Indoor and outdoor (under shelter)
Recommended Foods	Meat, fish, vegetables and any food to grill
Cleaning the Grid	Hand wash with non-abrasive sponge and detergent
Cleaning the Drip Tray	Wash with warm water and detergent, dry thoroughly
Cleaning the Heating Element	Do not immerse or rinse under water
Precautions	Do not use charcoal, do not cover, do not leave unattended
Spare Parts	Grid, tray, heating element, thermostat, legs
Repairability	Repair by authorized technical service only

Frequently Asked Questions - BQ11 GIRMI

How to assemble the Girmi BQ11 barbecue?

Turn the base (1) upside down and screw the four legs (3) with the provided screws. Place the aluminum tray (4) into the base. Insert the metal support (6) into the holes in the base. Then, place the thermostat/handle (9) into the cavity (5) making sure the safety lock fits into the handle hole to activate the safety. Install the heating element (8) on the support. Finally, place the grid (7) at the desired height.

How to adjust the grid height?

The grid can be placed in direct contact with food by inserting its supports into the large holes of the base, or at a height of 2 cm using the small holes for gentler cooking.

Do I need to put water in the tray?

Yes, always fill the tray (4) with water before cooking (minimum 200 ml, maximum 400 ml) to prevent smoke and unpleasant odors. Check the water level regularly.

Why is there smoke during first use?

It is normal for the grids to produce some smoke during initial uses. This will stop after a few cooking sessions.

How to clean the barbecue?

Unplug the appliance and let it cool. The grid (7) can be washed like dishes with a non-abrasive sponge and dish soap. The aluminum tray (4) washes with warm water and soap, then rinse and dry thoroughly. The heating element must never be immersed or rinsed under water.

Can I use charcoal or liquid fuels?

No, this appliance is electric. Never use charcoal, briquettes, or solid/liquid fuels with this barbecue.

Is the appliance safe for children?

Children under 8 years old must not use the appliance. Keep it and its cord out of reach of children. Children over 8 years old may only use it under supervision. Never leave the appliance unattended while it is operating.

What to do if the heating element does not heat?

Check that the thermostat handle is correctly engaged in the cavity (5): the safety lock must fit into the handle hole. If not, the safety device blocks heating. Also ensure the appliance is plugged in and the thermostat is set to a position other than 0.

Can I use an external timer or remote control?

No, the appliance is not designed for use with an external timer or remote control system. Do not plug the appliance into a timer-controlled outlet.

What types of food can I cook with this barbecue?

This contact grill is ideal for grilling meat, fish, vegetables, and any food requiring grilling. Thaw food before cooking for best results.

USER MANUAL BQ11 GIRMI

Technical model: YD301F

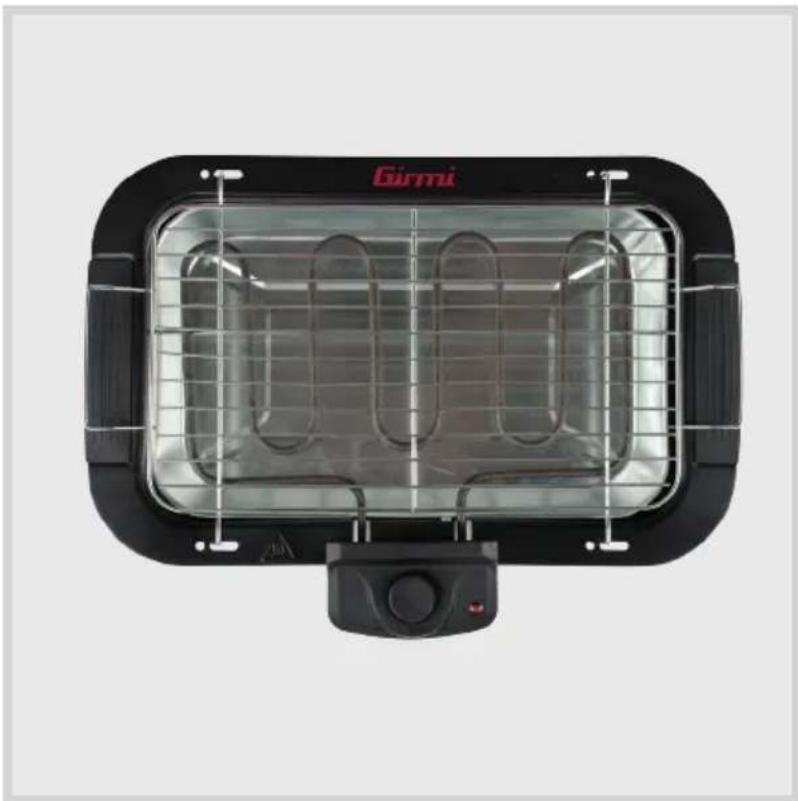

Exterior view of a black square grater with visible internal grating and a 'Girmi' logo on top (no other text or symbols)

Barbecue

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 8

General information.... p. 10

Description....p. 11

Assembling the unit.... p. 11

Operating p. 12

Cleaning....p. 12

Technical features.... p. 12

Waste of electric and electronic equipment (WEEE

Directive) p. 12

PORTUGUES:....p. 12

FRANCAIS:....p. 18

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the

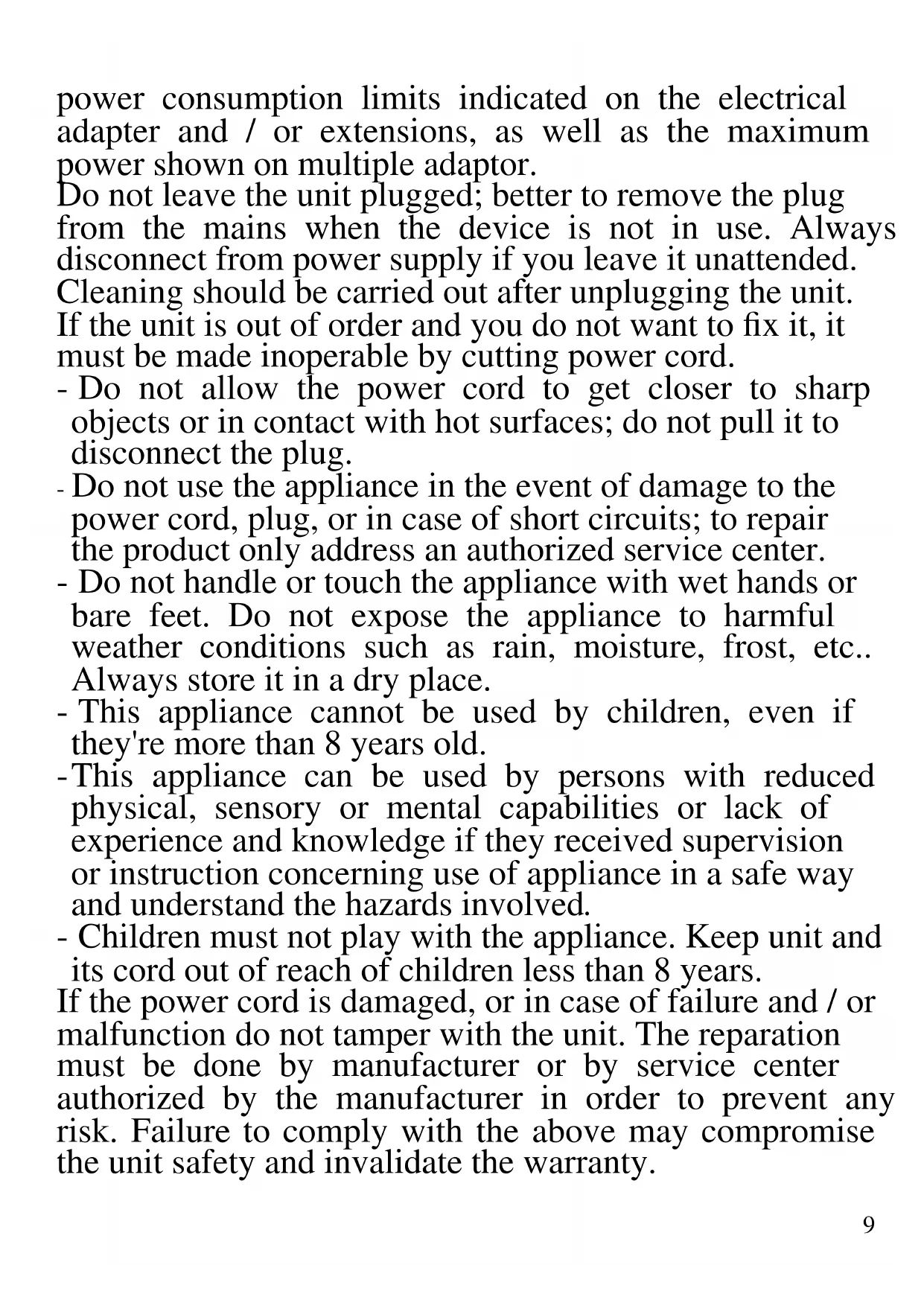

power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning should be carried out after unplugging the unit. If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance cannot be used by children, even if they're more than 8 years old.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.

- Children must not play with the appliance. Keep unit and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• Before every use, unroll the power cord.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

ATTENTION: During use do not cover, do not use lids or cook on trays and pans

GENERAL INFORMATION

When you first turn on the unit, the grills may emit some smoke. Do not worry since after few uses the smoke will disappear. At first use, clean the parts that will be in contact with food (ie the cooking grills).

CAUTION: to avoid risks of burns, after turning on the unit, avoid touching the slots as they become very hot. Handle with care freshly-cooked food.

Only touch handles and trigger key when the unit is on.

Fill the tray with an inch of tap water to limit smoke and bad odors. Do not put wrapped food on the grill.

For better cooking, defrost foods before cooking.

Once finished using unit, unplug it and wait for complete

cooling of each part before cleaning.

Never leave the appliance unattended while it is running. Do not immerse heating elements in water or other liquids. Do not leave it under the stream of tap water.

Place the unit on a stable and heat-resistant shelf. When unit is working, leave enough space on the sides.

Do not use as a shelf support for objects.

Do not use as a heating unit.

Clean the unit using a soft sponge, categorically avoiding metal sponges. All parts except the heating element can be cleaned with common detergents.

Make sure that the water is kept above the minimum mark during use. CAUTION: do not overfill the tray because hot water may leak during use.

Do not add water when using the appliance, because the heating elements may not be in contact with water.

Do not use coal or other solid and/or liquid fuels.

Before moving the unit, make sure it has cooled down.

Empty the oil tray with the remaining water, before transporting the item.

Cleaning operations cannot be done by children unless they are over 8 years old and supervised

Always fill the tray with water (min 200 cc, max 400cc).

Make sure on every occasion that the water does not drop below the minimum level indicated in the tray.

DESCRIPTION BQ11

1. Base / Pan 2. Water level indication 3. Resting feet

2. Aluminum oil tray 5. Thermostat housing with safety lock

3. Cooking grill 8. Heating element

4. Metal support for oil tray

5. Temperature control knob

ASSEMBLING THE UNIT

- Turn the pan (1) upside down and install the feet (3) by tightening the 4 screws, squeezing them with care. Place the product on a flat, stable and heat resistant surface.

- Place the aluminum tray (4) in the base (1). Insert the metal support (6) in the holes of the pan (1).

- Add water in the tray (min 200cc, max 400 cc). Place the temperature control unit (9) on it housing (5) in the front part of the pan (4) and place the heating element (8) on the metal support (6).

WARNING: the safety lock (5) must enter in the hole present in the bottom of the handle (9), otherwise the safety switch in the handle will not turn on the appliance.

- The cooking grill (7) can be placed in 2 different positions as indicated below:

• Grab the handles of the cooking grill, insert the pins into the bigger slots on the pan (1) and lock the rack in position.
• Insert the support pins of the grill (7) on the small holes of the pan (1) to place the cooking grid at 2 cm high. This position is suitable for more delicate cooking.

- The product is properly assembled and ready for use.

OPERATING THE UNIT

This contact grill is suitable for cooking and heating meat, fish, grilled vegetables and all kind of food requiring a grill cooking. CAUTION: before you start cooking, fill the tray with some water to prevent the formation of smoke and odors.

• Connect the electric plug to the power outlet. Turn the thermostat knob (9) clockwise to the desired level: the indicator light on the handle of the heating element (8) will switch on.
• Food can be placed directly on the grill (7).
• During cooking, is recommended to check the status of food and turn it to avoid burning.
• After cooking, turn the thermostat knob (9) to "0" and unplug the unit.
• Wait for the complete cooling of each part before cleaning.

CAUTION: after cleaning, that must be carried out by following the instructions in the cleaning paragraph, store the unit away from heat sources and out of the reach of children.

CLEANING - Unplug the unit from the electrical outlet and allow complete cooling of each part before carrying out any cleaning operations.

Do not immerse the appliance in water or leave it under the stream of tap water.

The cooking grill (7) can be washed by hand as normal dish, with a non-abrasive sponge and mild detergent.

The oil tray (4) can be washed by using a non abrasive sponge, mild-detergent and warm water. It is advisable to dry it carefully before assembling the unit.

Do not spill water on the heating element to prevent serious damage.

CAUTION: do not use flammable cleaning products or sprays on any part of the appliance.

TECHNICAL FEATURES

• Power supply: AC 230V\~50Hz. Max power 2000W
• Stainless steel heating element
• Cooking temperature regulation, Safety device

WASTE OF ELECTRIC AND ELECTRONIC EQUIPMENT

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

PORTUGUES: ADVERTÊNCIAS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.
