BQ12 - Barbecue GIRMI - Free user manual and instructions

Product type	Electric contact grill
Brand	Girmi
Model	BQ12
Power supply	230 V ~ 50 Hz
Power	2000 W
Cooking grid dimensions	24.5 x 34 cm
Cooking levels	2 (grid adjustable to two heights)
Water tray capacity	300 to 600 ml
Thermostat	Adjustable (from 0 to max)
Operating indicator light	Yes
Safety	Safety button on handle, locking (LOCK position)
Materials	Metal frame, ceramic plate, metal grid, handle with button
Cleaning	Removable, clean with non-abrasive sponge and detergent; do not immerse the heating element
Maintenance	Wipe with a soft cloth, avoid metallic sponges
Spare parts	Accessories and original parts available
Repairability	Repair by authorized services only
Usage	Domestic and similar applications

Frequently Asked Questions - BQ12 GIRMI

How to assemble the BQ12 barbecue?

Install the protective frame on a flat, heat-resistant surface. Place the ceramic plate in the frame, then the heating element by engaging the handle in the designated space. Finally, put the cooking grid by inserting its ends into the holes of the grid supports.

How to turn on the appliance?

Plug in the appliance, then press the safety button under the handle all the way (otherwise the appliance will not turn on). Turn the thermostat clockwise to the desired level. The operating indicator light turns on.

What foods can I cook?

This contact grill is suitable for cooking and heating meat, fish, vegetables, and any foods that need to be grilled.

How to adjust the grid height?

The grid can be placed on two levels: the deep holes (level 1) for fast cooking (meat), the shallower holes (level 2) for gentler cooking (fish). Insert the ends of the grid into the corresponding holes.

Why does smoke come out during first use?

It is normal for the grids to emit a little smoke during the first few uses. This disappears after a few uses.

How to clean the appliance?

Unplug the appliance and let it cool down. It is completely dismountable. Clean the parts (except the heating element) with a non-abrasive sponge and detergent. Do not immerse the heating element or use the dishwasher.

How much water to put in the tray?

Always fill the tray with water between 300 ml (minimum) and 600 ml (maximum). Check that the level does not drop below the minimum during use.

What to do if the appliance does not turn on?

Make sure the safety button is fully pressed. Check that the appliance is plugged in and the thermostat is not set to 0. If the problem persists, contact an authorized support service.

Can I use the appliance in the dishwasher?

It is better not to use the dishwasher. Wash the parts by hand with a non-abrasive sponge and detergent.

How to store the barbecue after use?

After complete cooling, clean the appliance and store it in a dry place, away from heat and out of reach of children.

USER MANUAL BQ12 GIRMI

Safety instructions. p. 7

General information. p. 10

Description. p. 11

Assembling. p. 11

Operating the unit. p. 11

Cleaning. p. 11

Technical features. p. 11

Waste of electric and electronic equipment (WEEE

Directive) p. 26

PORTUGUES: p. 12

ESPAÑOL p. 16

FRANCAIS p. 21

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

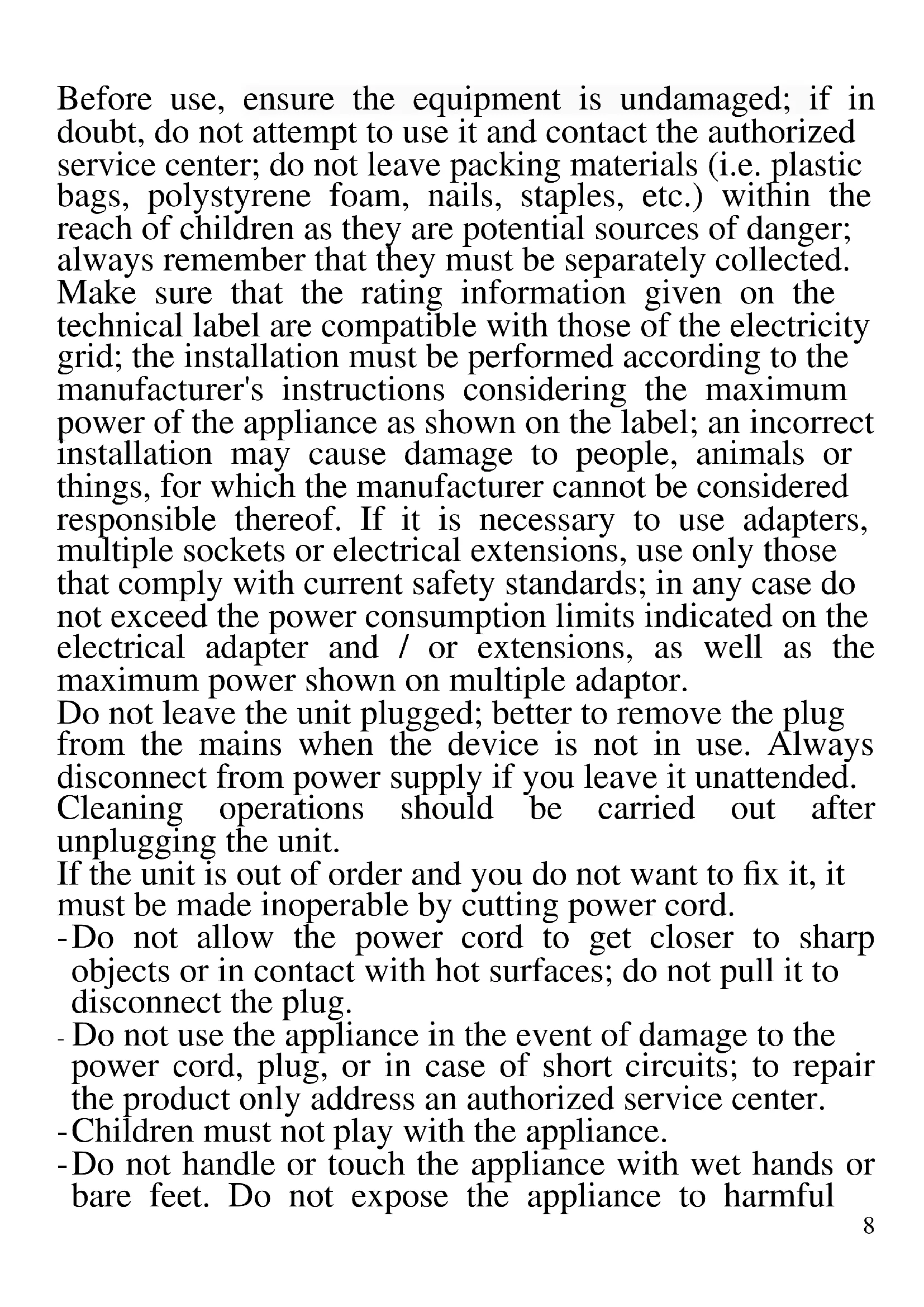

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof. If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Children must not play with the appliance.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful

weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

• This appliance cannot be used by children, even if they're more than 8 years old. Keep the appliance and its cord out of reach of children less than 8 years.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• Before every use, unroll the power cord.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not subject the product to strong impacts, serious damages may result.
• Use original spare parts and accessories only.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

ATTENTION: During use do not cover, do not use lids or cook on trays and pans

GENERAL INFORMATION

When you first turn on the unit, the grills may emit some smoke. Do not worry since after few uses the smoke will disappear. At first use, clean the parts that will be in contact with food (ie the cooking grills).

CAUTION: to avoid risks of burns, after turning on the unit, avoid touching the slots as they become very hot. Handle with care freshly-cooked food.

Only touch housing and knobs when the unit is on.

Fill the tray with tap water to limit smoke and bad odors.

Do not put wrapped food on the grill.

For better cooking, defrost foods before cooking.

Never leave the appliance unattended while it is running.

Once finished using unit, unplug it and wait for complete cooling of each part before cleaning.

Do not immerse heating elements in water or other liquids. Do not leave it under the stream of tap water.

Clean the unit using a soft sponge, categorically avoiding metal sponges. All parts except the heating element can be cleaned with common detergents.

Place the unit on a stable and heat- resistant shelf. When unit is working, leave enough space on the sides.

Don't use as support for objects or as heating unit.

Always fill the tray with water (min 300 cc, max 600cc).

Make sure on every occasion that the water does not drop below the minimum level indicated in the tray.

Don't use coal or other solid or liquid fuels.

CAUTION: do not overfill the tray because hot water may leak during use.

Do not add water when using the appliance, because the heating elements may not be in contact with water.

Before moving the unit, make sure it has cooled down.

Empty oil tray from remaining water, before moving. Cleaning operations cannot be done by children unless they are over 8 years old and supervised.

DESCRIPTION BQ12

1 Main body 2 Oil collector tray 3 Cooking grill
4 Heating elements 5 2 levels grill support 6 Handle with safety switch
7 Temperature knob 8 Working light 9 Heater block knob

ASSEMBLING

• Place the main body (1) on a flat, stable and heat resistant surface.
• Insert the porcelain tray (2) inside the main body (1). Add water in the tray (min 300cc, max 600 cc).
• Place heating element (4) above the tray (2) by inserting the handle (6) in the slot placed in the body (1).
• Mount the cooking grill (3) by inserting the end into the holes on the supports (5).

Use deeper holes (Level 1, the grill is closed to the heating element) when you want to cook meat or for a faster cooking.
- Use shallow holes (Level 2, the grill is raised above the heating element) for fish or slower cooking. Since safety switch is placed under the handle (6), push all the way down the asset or the unit won't turn on. It is possible to block the heating element bringing the knob (9) in position "LOCK". In this way you will avoid to accidentally detach the heating element from unit.

Caution: before you start cooking, fill tray with some water to prevent formation of smoke and odors.

OPERATING THE UNIT

This contact grill is suitable for cooking and heating meat, fish, grilled vegetables and all kind of food requiring a grill cooking.

• Connect the electric plug to the power outlet. Turn the thermostat knob (7) clockwise to the desired level: the indicator light on the handle of the heating element (8) will switch on.
• Food can be placed directly on the grill (3).
• During cooking, is recommended to check the status of food and turn it to avoid burning.
• After cooking, turn the thermostat knob (7) to "0" and unplug the unit.
• Wait for the complete cooling of each part before cleaning.

After cleaning, that must be carried out by following the instructions in the following paragraph, store the unit away from heat sources and out of the reach of children.

CLEANING - Unplug the unit from the electrical outlet and allow complete cooling of each part before carrying out any cleaning operations.

Unit can be completely disassembled making cleaning operations easier and faster.

• Do not immerse the appliance in water or leave it under the stream of tap water.
  Porcelain tray (2) and cooking grill (3) can be washed by hand as normal dishes, with a non-abrasive sponge and mild detergent. They are not dishwasher-safe.
• Do not spill water on the heating element to prevent serious damage.

TECHNICAL FEATURES

Power supply: AC 230V~50Hz. Power 2000W
- Cooking grill dimensions: 24.5 × 34 cm
- Cooking temperature regulation, Safety device

PORTUGUES: ADVERTÉNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RESIDUOS DE APARELHIOS ELECTRICOS E ELECTRONICOS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.
