MCCP-90 - Refrigerator Mestic - Free user manual and instructions

Product type	Compressor portable refrigerator
Brand	Mestic
Model	MCCP-90
Capacity	90 L
DC power supply	12 / 24 V DC
AC power supply	100-240 V AC (AC adapter included)
Rated power	45 W (estimated)
Cooling type	Compressor
Temperature range	+10 °C to -18 °C (adjustable)
Display	Digital LED screen
USB port	Yes (for charging devices)
Battery protection	3 levels (Low, Medium, High)
Defrosting	Manual
Cleaning	Damp cloth, non-abrasive detergent
Safety	Reverse polarity protection, 15 A fuse
Included accessories	DC cable (12/24V), AC cable (100-240V), instruction manual
Dimensions (L x W x H)	Approximately 70 x 40 x 45 cm
Weight	Approximately 15 kg
Color	White/Gray (depending on model)
Mobile use	Yes (car, camping, etc.)
Repairability	Repair by professional only

Frequently Asked Questions - MCCP-90 Mestic

How to turn the refrigerator on and off?

Press and hold the On/Off button for about 2 seconds. The appliance turns on or off. A green (Eco) or blue (MAX) indicator lights up depending on the mode.

How to adjust the temperature?

Press the SET button until the temperature flashes, then use the arrows to adjust. The range is from +10 °C to -18 °C. The Eco (green) or MAX (blue) mode can also be selected.

How to switch from Celsius to Fahrenheit?

Press the + and - buttons simultaneously located on the right side of the control panel. The display toggles between °C and °F.

How to use battery protection?

Press the Battery protection button (often marked with a battery icon). Hold it down and release to scroll through levels: Low (cut-off at 9.6V), Medium (10.4V), High (11.1V) in 12V. Choose the level appropriate for your vehicle.

What to do if the refrigerator is not cooling?

First check the power supply: is the cord properly connected? Is the polarity correct? If using 12V, the battery must have sufficient voltage. Check the battery protection level: if it is too high, the appliance may shut off automatically. Also ensure the ventilation slots are not blocked.

How to defrost the refrigerator?

Unplug the appliance and open the lid. Let the frost melt naturally or use a cloth to absorb water. Never scrape ice with a sharp object and do not use an electrical appliance to speed up defrosting. The frequency of defrosting depends on humidity.

Can I use the USB port to charge my phone?

Yes, the USB port provides a 5V output to charge devices such as a smartphone. Note that it only works when the refrigerator is powered via the DC cable (12/24V).

What is the difference between the left and right zones (Dual Zone)?

The MCCP-90 is a Dual Zone model: each compartment can be adjusted independently. The left display shows the temperature of the left compartment (larger), the right one for the right compartment. You can thus refrigerate and freeze separately.

How to clean the interior?

Before cleaning, unplug the appliance and remove food. Use a soft cloth slightly dampened with a non-abrasive detergent. Then dry with a dry cloth. Avoid any harsh chemicals or sharp objects.

Does the refrigerator work on a car battery?

Yes, it is designed for 12V/24V DC power via the cigarette lighter socket. Ensure the battery is sufficiently charged and set the battery protection to an appropriate level to avoid excessive discharge. Do not use it with the engine off if the battery is low.

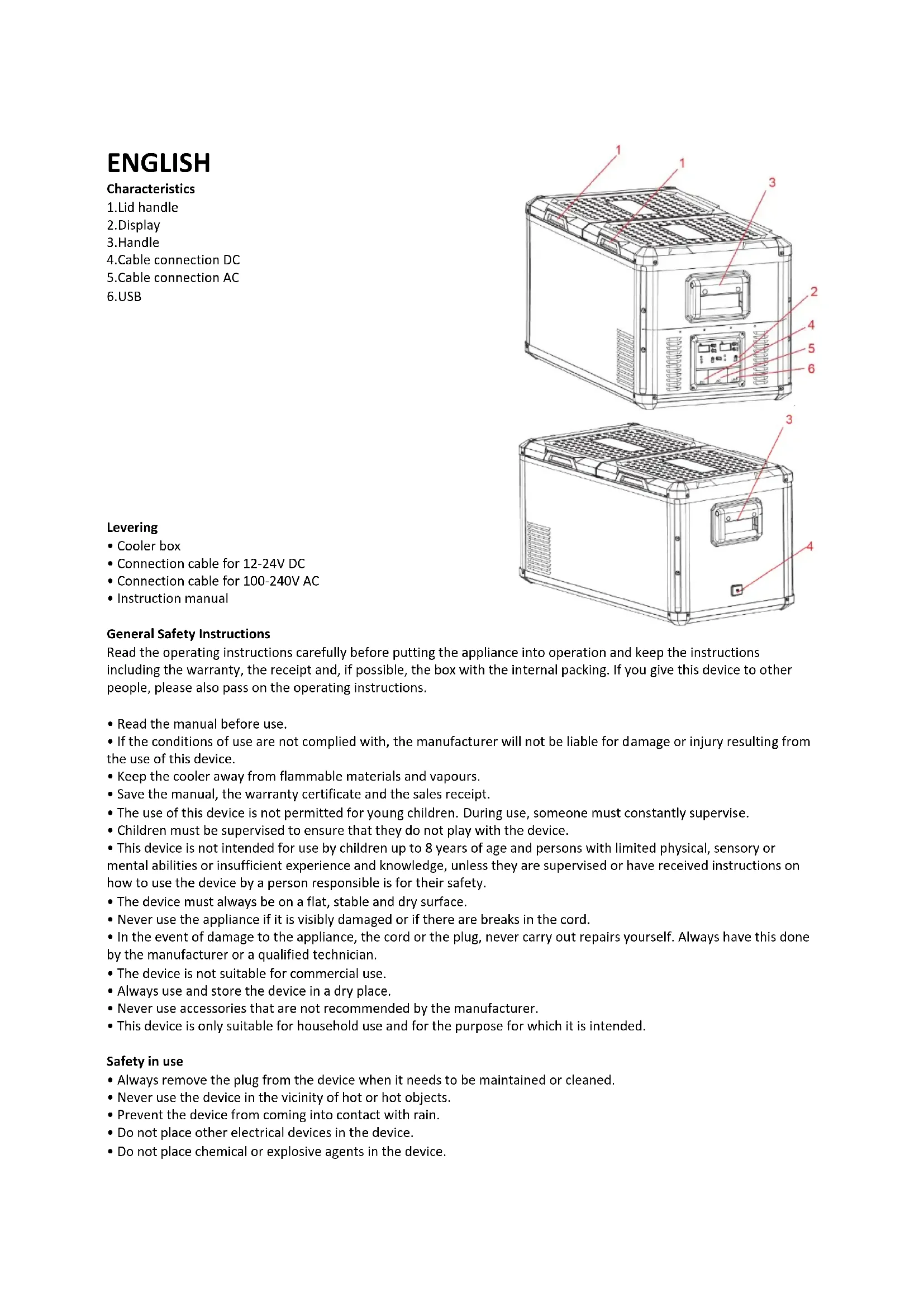

USER MANUAL MCCP-90 Mestic

Cool box compressor MCCP 35-45-60 & 75-90 DZ

NEDERLANDS

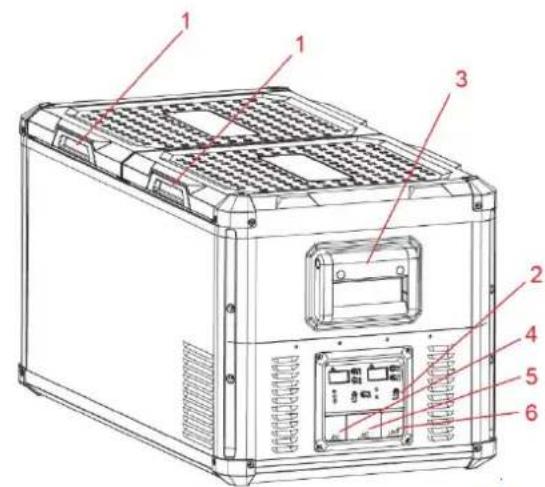

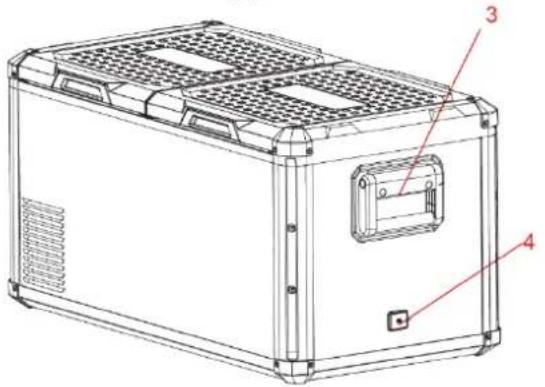

Kenmerken

1.Lid handle
2.Display
3.Handle
4.Cable connection DC
5.Cable connection AC
6.USB

Levering

Cooler box
- Connection cable for 12-24V DC
- Connection cable for 100-240V AC
- Instruction manual

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• Read the manual before use.
  If the conditions of use are not complied with, the manufacturer will not be liable for damage or injury resulting from the use of this device.
• Keep the cooler away from flammable materials and vapours.
• Save the manual, the warranty certificate and the sales receipt.
• The use of this device is not permitted for young children. During use, someone must constantly supervise.
  Children must be supervised to ensure that they do not play with the device.
• This device is not intended for use by children up to 8 years of age and persons with limited physical, sensory or mental abilities or insufficient experience and knowledge, unless they are supervised or have received instructions on how to use the device by a person responsible for their safety.
• The device must always be on a flat, stable and dry surface.
• Never use the appliance if it is visibly damaged or if there are breaks in the cord.
• In the event of damage to the appliance, the cord or the plug, never carry out repairs yourself. Always have this done by the manufacturer or a qualified technician.
• The device is not suitable for commercial use.
  Always use and store the device in a dry place.
• Never use accessories that are not recommended by the manufacturer.
• This device is only suitable for household use and for the purpose for which it is intended.

Safety in use

• Always remove the plug from the device when it needs to be maintained or cleaned.
• Never use the device in the vicinity of hot or hot objects.
• Prevent the device from coming into contact with rain.
• Do not place other electrical devices in the device.

• Do not place chemical or explosive agents in the device.

• Only use the DC 12V or 230V connection cable (not included).

• Defrost the device regularly to ensure that the device functions optimally.
  Note: do not use any electrical device to defrost the cool box.
• Do not pull on the connecting cord, but pull on the plug to remove the cord from the socket.
• If the cool box is connected to the DC socket, disconnect your cool box and other consumers from the battery before you connect a fast charger
• If the cool box is connected to the DC socket; switch off the cool box or break the connection when you switch off the engine. The battery can be discharged otherwise.
• Pay attention! That the heat that arises during the operation of the cool box can be properly dissipated.
• Enough distance between product and objects and walls.
• Never immerse the device in water
• Ventilation slots are not covered at all times.

Use

• Remove all packaging materials from the device.
• Place the device on a flat and stable surface with at least 10cm of free space on each side.
• Do not switch the appliance on immediately after you transport it, where the cool box has been tilted more than -30^ .

This could cause damage to the cooling system. The device must first stand upright for 24 hours so that the coolant can be collected again in the compressor. This prevents the compressor from running dry.

• Look at the above user conditions before use.
• For hygienic reasons, you must clean the inside and outside of the appliance with a damp cloth before using your cool box. (see paragraph
• Connect the cooler box.

AC and DC connection

• The unit is equipped with an electronic control system that will prevent polarity reversal. In the event that the battery polarity is reversed, the unit will not start or operate. The power inlet socket is fitted with a 15A fuse for protection. Plug the 12/24V connection cable into the DC voltage socket and then connect it to the cigarette lighter or a suitable 12V or 24V power source.
• The unit is equipped with a multi-voltage power supply with a priority circuit for connecting to an AC voltage source of 230V. The power supply automatically switches to mains power when the device is connected to 230V AC, even if the 12/24V connection cable is still plugged in. The power inlet socket is fitted with a fuse for protection. Plug the 230V connection cable into the AC voltage socket and connect to a suitable 230V AC power source.

Note: The USB connector only works when the cool box is being charged through the DC power cord.

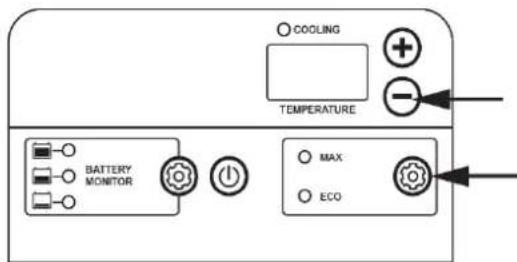

Control

button, the refrigerator will now start or switches off

• Switching on and off: press and hold the on / off

to quickly switch between cooling mode MAX and

• Fast cooling / energy saving mode: press the set button energy saving mode ECO. Green is Eco and blue is MAX

• Temperature adjustment: press the now set.

button to adjust the temperature, The temperature is

Dual Zone only:

• The temperature shown on the left display, corresponds to the larger left cooling compartment. The temperature shown on the right display corresponds to the right cooling compartment.

• Setting Celsius/Fahrenheit: press the and button (positioned at right side of control panel) at the same time to select Celsius or Fahrenheit.

• Battery protection: press, hold and release button to select the desired setting.

Battery power detection

The device features a multi-level battery guard that protects your vehicle battery from excessive discharge when the device is connected to the built-in DC power supply. If the cooler is operated with the vehicle ignition off, the cooler will shut off automatically when the power supply voltage drops below a set level. The cooler will turn back on once the battery is charged to the restart voltage level. The compressor will restart automatically in a few minutes when the voltage returns to normal values.

1. Method for adjusting the battery protection:

Protection	12V		24V
	Cut off Voltage	Cut in Voltage	Cut off Voltage	Cut in Voltage
Low	9.6V	10.9V	21.3V	22.7V
Middle	10.4V	11.7V	22.8V	24.2V
High	11.1V	12.4V	24.3V	25.7V

Cleaning

• Before cleaning, remove the products from the device and remove the plug from the power supply. Only clean with a slightly damp cloth, if necessary a non-aggressive cleaning agent can be used. After cleaning, always dry all wet surfaces with a dry cloth.
• Never use sharp or abrasive products to clean the device.
• Defrost the cool box: frost can settle on the evaporator or inside of the cool box due to humidity, this can reduce the cooling capacity. The cool box must be defrosted in time. As follows
  Take the products out of the cool box
• Switch off the device
• Open the lid
• Sweep up the melt water or drain the melt water through the plug.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment. This means that this product must be handled pursuant to European Directive (2012/19/EU) in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances..

Declaration of conformity

Hereby Gimeg Nederland B.V. declares that the device MCCP-35/45/60/75/90 applies all basic requirements and other relevant regulations listed in the European directive for electromagnetic compatibility (2014/30/EU) and low voltage directive (2014/35/EU). If you require a full declaration of conformity, you can contact the adress listed on the backside of this manual
