Brand	Bosch
Model	Unlimited 7 ProAnimal
Category	Cordless stick vacuum
Battery type	Lithium-ion, Power for ALL 18 V series
Compatible battery capacities	2.5 Ah, 3.0 Ah, 4.0 Ah Power+, 5.0 Ah
Maximum runtime	Up to 45 min (Eco mode, 4.0 Ah battery)
Charging time	Varies depending on battery
Power modes	Eco, Auto, Turbo
Floor brush	Universal brush with parking function
Filter	Lamella filter and plush filter, washable
Dust container capacity	Not specified
Noise level	Not specified
Operating radius	Cordless
Weight (with battery)	Approximately 2.8 kg
Dimensions (H x W x D)	Approximately 110 x 25 x 20 cm
Base station included	Yes, with wall mount
Charger included	Charging cable and fast charger
Filter maintenance	Regular cleaning, do not use liquid on the filter
Warranty	Consult after-sales service
Use	Private household, enclosed rooms, up to 2000 m altitude
Usage prohibitions	Do not vacuum people, animals, wet, hot, or flammable substances
Child safety	Use under supervision, children aged 8 and above
Spare parts	Battery, charger, filter, brush, dust container
Repairability	Repairs by qualified personnel with original parts

Frequently Asked Questions - Unlimited 7 ProAnimal BOSCH

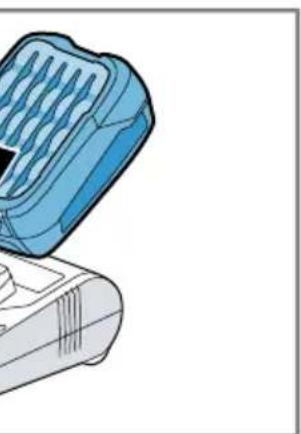

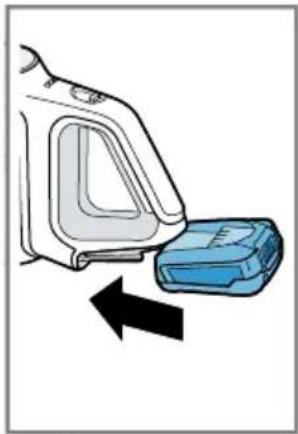

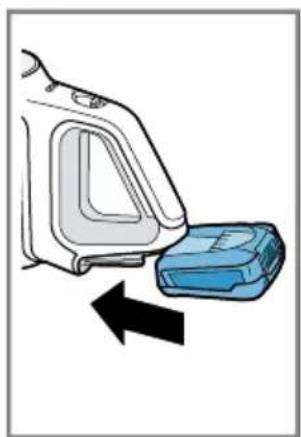

How to charge the battery of the Bosch Unlimited 7 ProAnimal vacuum?

Use only the original charging cable or fast charger. Plug the charger into a mains socket and connect it to the vacuum or directly to the battery. Charging is optimal between 0°C and 45°C.

What is the runtime of the Unlimited 7 ProAnimal vacuum?

The runtime depends on the battery used and the mode. With a 4.0 Ah Power+ battery and in Eco mode, the runtime can reach up to 45 minutes. Auto and Turbo modes reduce this duration.

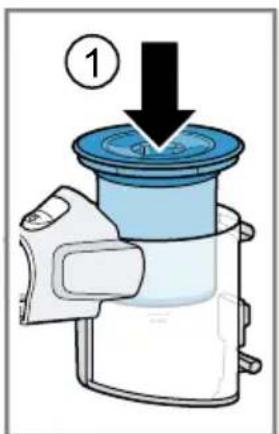

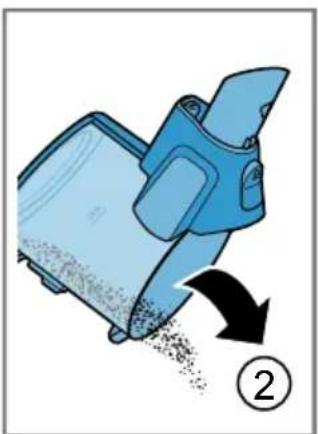

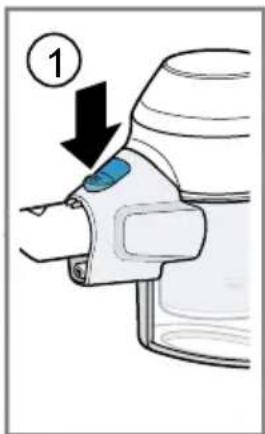

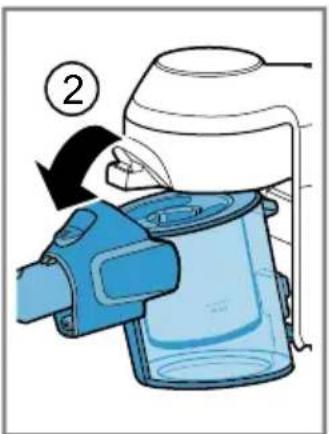

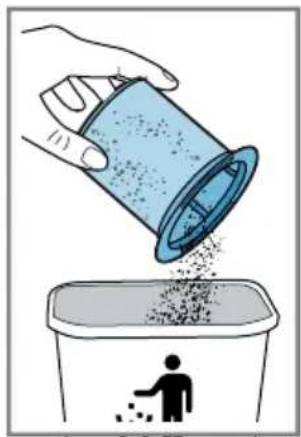

How to empty the dust container?

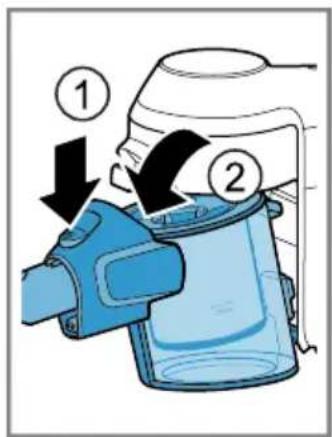

Press the release button on the dust container to remove it. Open the lid and empty the contents into a trash bin. It is advisable to clean the container regularly to maintain performance.

How to clean the filters of the vacuum?

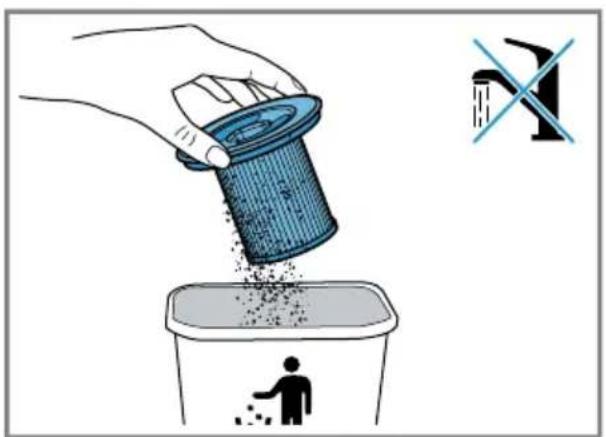

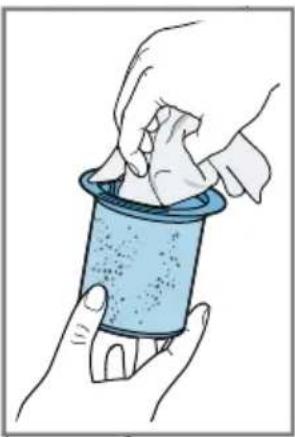

Remove the complete filter unit. The lamella filter and plush filter can be cleaned dry or rinsed with cold water (never put liquid on the filter). Allow to dry completely before reassembling.

What to do if the suction power decreases?

First check if the dust container is full, if the filters are clogged, or if the brush is blocked. Clean the affected parts. If the problem persists, turn off the device and let it cool down.

Can I use the vacuum on hard floors and carpets?

Yes, the universal floor brush is suitable for all floor types. It has a parking function that allows height adjustment according to the surface.

How to install the base station on the wall?

Choose a location near a socket, with no electrical line in the drilling area. Use the provided wall plugs. Mount the station horizontally, not above or next to a power socket.

Can the vacuum suck up liquids?

No, the vacuum must not be used to suck up liquids, wet substances, or ashes. This could damage the device.

What accessories are included with the Unlimited 7 ProAnimal?

The vacuum is delivered with an angled suction tube, a universal floor brush, and the base station. Other accessories may be available depending on the kit.

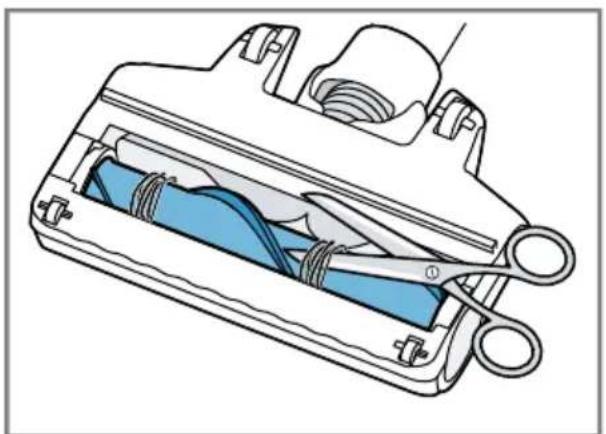

How to maintain the rotating brush?

Regularly clean the brush bristles by removing tangled hair or threads. You can disassemble the brush for deeper cleaning. Never operate the vacuum without the brush.

USER MANUAL Unlimited 7 ProAnimal BOSCH

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratın veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[hu]	Olvassa be a QR-kódot vagy keresse fel a weboldalt a kibővített használati utasítás megnyitásához. Ott ki-egészítő információkat talál a készülékkel vagy tartozékkal kapcsolatban.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.
[ro]	Scanați codul QR sau accesăți site-ul web pentru a obține mai mult recomandări privind utilizarea. Acolo veți găsi mai multe informații privind aparatul dumneavoastră sau accesoriiile.
[cs]	Pro další informace k používání načtěte QR kód nebo navštivte webovou stránku. Tam najdete další informace ke spotřebiči nebo příslušenství.

QR code image containing encoded data, no visible human-readable text

https://digitalguide.bsh-group.com?mat-no=8001222557

Diagram of a vacuum cleaner with numbered parts and component labels in Chinese

CLICK

Diagram illustrating the installation of a mechanical component with labeled parts and warning indicators

Technical line drawing of a mechanical device with three views: top view, front view, and side view (no text or symbols)

CLICK

2

Illustration of a blue plastic container being inserted into a white plastic container, with an arrow indicating flow direction (no text or symbols)

CLICK

3

CLICK

CLICK

4

Blue industrial machine component with a black arrow indicating assembly or inspection (no visible text or symbols)

Mechanical component diagram showing a lever mechanism with a highlighted section (no text or symbols)

5

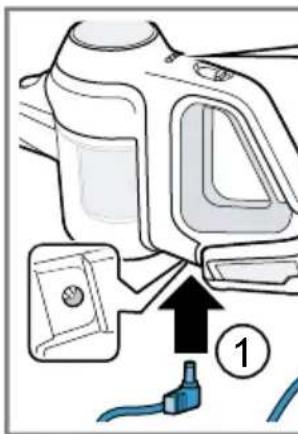

Diagram showing a car interior with a blue connector labeled '1' pointing to a valve or plug, indicating a step in the process.

Diagram showing a device connected to an electrical socket with a warning symbol and numbered instructions.

6

Diagram of a car interior with a blue plastic component and a numbered label (1) pointing to the nose area (no text or symbols on the diagram itself)

Diagram showing a hand cleaning a blue plastic bag with an arrow and number 2 indicating step 2

7

Illustration of a robotic device with a blue cover and black handle, no text or symbols present

Illustration of a blue plastic device with internal grid pattern, partially stacked on a white base (no text or symbols)

8
9

Illustration of a car interior with a blue plastic container and directional arrow (no text or symbols)

10

CLICK

Diagram of a device with battery and lightning symbol, no text or labels present

11

Diagram showing a car interior with a highlighted sensor or sensor device and an arrow pointing to the sensor component.

12

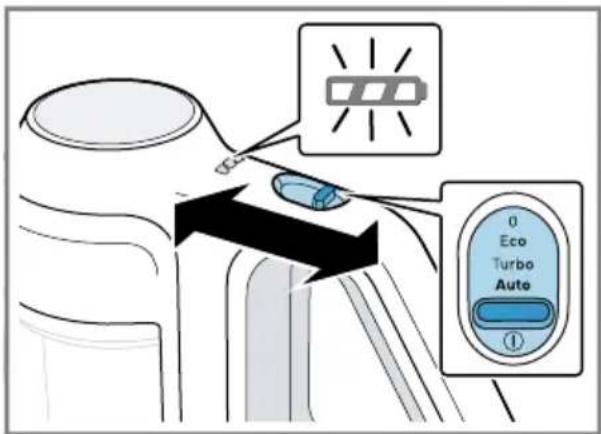

0 Eco Turbo Auto ①

The image is too blurry to recognize any text content.

Diagram showing a hand using a blue tool to adjust a component, labeled with step numbers ① and ②.

14

CLICK CLICK

The image is too blurry to recognize any text content.

Diagram of a washing machine with two blue plastic connectors and an upward arrow indicating motion (no text or symbols)

16

CLICK

Diagram illustrating a manual tool interacting with a pipe, showing step-by-step instructions and a click button.

The image is too blurry to recognize any text content.

CLICK

Illustration of a pen tip and a blue connector with bidirectional arrows indicating movement (no text or symbols)

CLICK

CLICK

18

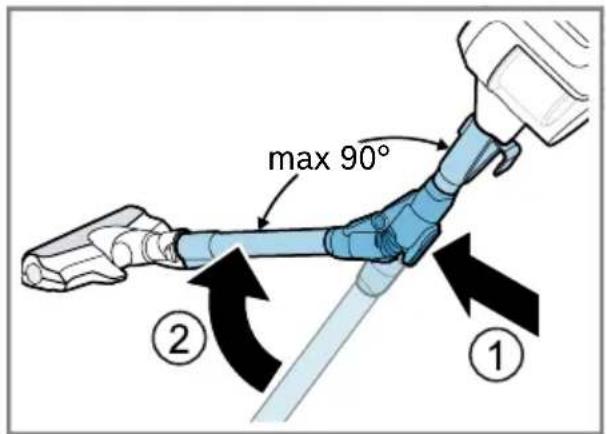

max 90° ② ①

Line drawing of a robotic arm interacting with a small mechanical component, placed on a floor near a cabinet (no text or symbols)

20

CLICK

Diagram showing two robotic arm states with numbered annotations indicating movement or positioning steps.

CLICK

22

Illustration of a person's foot using a blue ergonomic lift device, showing the foot and leg positioning (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating motion or movement.

24

CLICK

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force directions.

Diagram of a blue ergonomic device with labeled parts and directional arrows indicating movement or adjustment.

26

Diagram of a car interior with a blue plastic component and a numbered label (1) pointing to the side, no text or symbols present.

Diagram showing a car interior with a blue plastic container and an arrow pointing to it, labeled with number 2 (no text or symbols on the diagram itself)

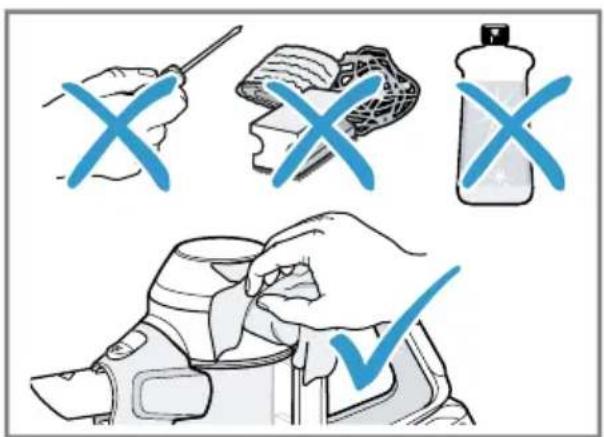

Illustration showing three blue 'X' marks above a hand holding a pen, a plastic bag, and a bottle, with a hand adjusting the tool to check.

28

max

29

①

Diagram showing a device being processed with a blue container, labeled with step number ②

30

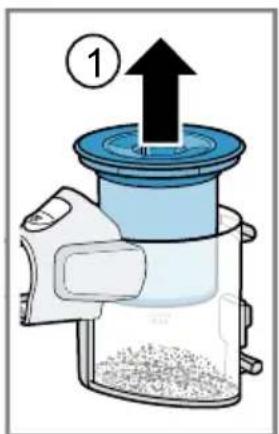

Diagram of a vacuum cleaner with labeled component and upward arrow indicator

Illustration of a blue mechanical device emitting particles, with a black arrow indicating particle flow (no text or symbols)

31

①

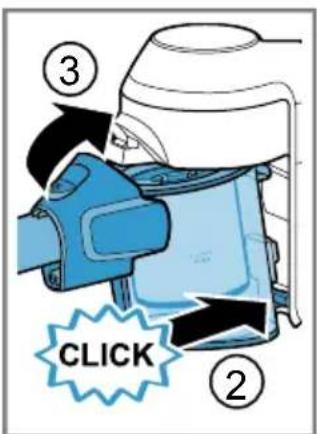

③ CLICK ②

32
33

Diagram showing two labeled steps of a device or component with arrows indicating direction, likely illustrating a process or assembly.

Illustration of a hand pressing down on a blue component with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a blue spool and upward arrow, no text or symbols present

34

Diagram illustrating a lock mechanism with labeled arrows and a numbered step indicator

Diagram showing a hand using a brush to press a cylindrical component, labeled with number 2 and an arrow indicating upward motion.

Illustration showing a hand pouring granular material into a trash bin with a 'no waste' symbol, indicating environmental or waste management.

36

Illustration of a hand pouring granular material into a trash bin with a person symbolizing disposal (no text or labels)

Illustration of hands holding a blue container with granular material, no text or symbols present

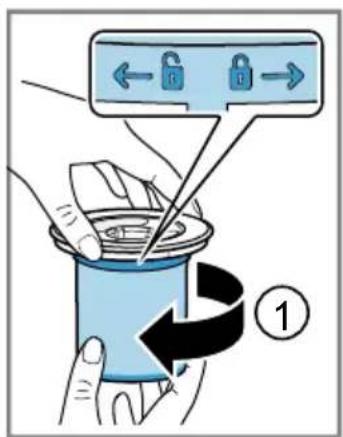

Diagram of a mechanical knob with labeled parts and directional arrows indicating motion or movement

Diagram illustrating a hand holding a box with lock icons and directional arrows, labeled with number 2.

38

①

③ CLICK ②

39

Cross-sectional diagram of a mechanical device with internal blue components and metal clips (no text or symbols)

40
41

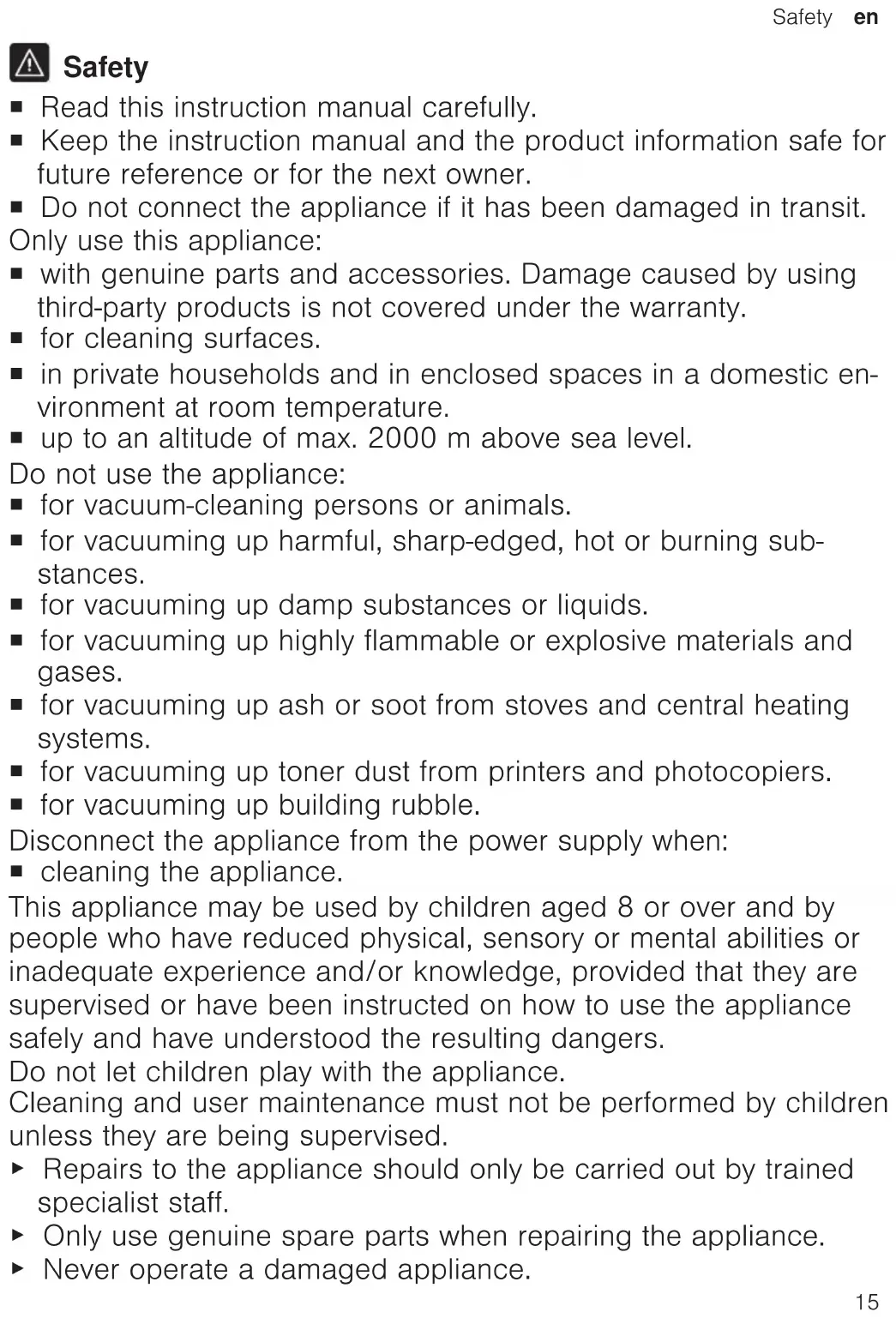

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

■ Do not connect the appliance if it has been damaged in transit. Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.

■ for cleaning surfaces.

■ in private households and in enclosed spaces in a domestic environment at room temperature.

■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  ▶ Never operate a damaged appliance.

en Safety

▶ Never operate an appliance with a cracked or fractured surface.
▶ Call customer services. → Page 19
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the charging cable ^1 and the quick charger ^1 only in accordance with the specifications on the rating plate.
- Connect the charging cable ^1 and the quick charger ^1 to a power supply with alternating current only via a properly installed socket with earthing.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
- Ensure that children do not play with the appliance, even when it is in the base station ^1 .
▶ Persons with electronic implants must stand at least 10 cm away from the appliance.
- Keep packaging material away from children.
▶ Do not let children play with packaging material.
▶ Protect the battery against fire, heat and constant sunlight.
▶ Protect the battery against water and penetrating moisture.
▶ Never open the battery.
- When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws.
▶ Supply fresh air.
▶ If there are any problems, seek medical advice from a doctor.

▶ If these come into contact with the skin, wash immediately with cold water.
▶ If these come into contact with the eyes, seek medical help.

Preventing material damage

▶ Check and clean any wet objects.
▶ Replace damaged objects.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never use the nozzle without the brush roller in place.
▶ Never operate the appliance without the filter unit.

Overview

You can find an overview of the parts of your appliance here.

→ Fig. 1

1	Dust container
2	Fluff filter
3	Cartridge filter

4	Power control and on/off switch
5	Status display
6	Dust container release button
7	Storage hook
8	Flexible suction pipe
9	Foot release
10	Universal floor nozzle with free-standing function

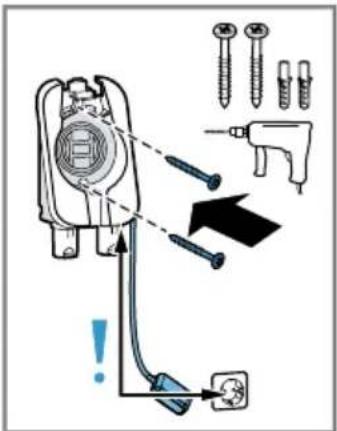

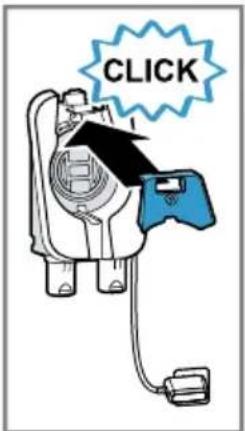

Installing the base station

▶ Check whether any household wiring could be damaged in the installation area.
- Do not install the base station horizontally or vertically above, below or next to a socket.
Fig. 2 - 3

Battery runtimes

You can find an overview of the battery runtimes, depending on the battery that is used, here.

Notes

■ The appliance features intelligent battery detection. With 2.50 Ah and 3.0 Ah batteries from the Power for ALL 18 V series, the appliance is designed for everyday cleaning tasks. The 4.0 Ah Power + battery from the Power for ALL 18 V series optimises the appliance for the runtime. With the 5.0 Ah battery in the Power for ALL 18 V series, the appliance is designed for particularly difficult cleaning tasks.

■ The following modes affect the battery runtime:

• Mode 1: Eco mode with non-electrical accessory
• Mode 2: Eco mode with electrical floor nozzle
• Mode 3: Auto mode with electrical floor nozzle
• Mode 4: Turbo mode with electrical floor nozzle

Runtime 2,5 Ah 3,0 Ah 4,0 Ah Power+ 5,0 Ah
Mode 1 up to min.	35 40 45 35
Mode 2 up to min.	25 30 35 30
Mode 3 up to min.	12 15 20 25

Runtime 2,5 Ah 3,0 Ah 4,0 Ah Power+ 5,0 Ah

Mode 4 up to 8 10 10 12 min.

Notes

■ Like every Li-ion battery, the batteries from the Power for ALL 18 V series wear out over time, meaning that the battery capacity and the runtime decrease. This is a natural aging process and not the result of a material error, manufacturing error or material defect.
■ You can delay the natural wear by using the following measures:

• Only charge the battery in the temperature range between 0^ and 45^ .
• Only store the battery in the temperature range between -20 °C and 50 °C.
• Do not store the battery for an extended period of time if it is fully charged or fully discharged.

Operation

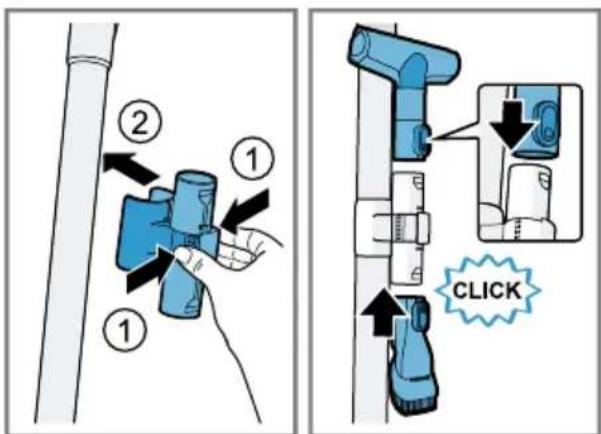

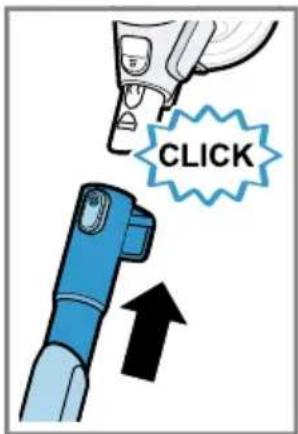

Installing the appliance

→ Fig. 4 - 5

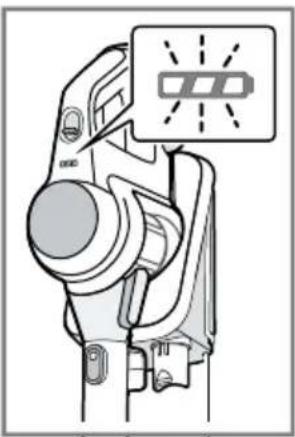

Charging the appliance

▶ Only charge the battery in chargers that are recommended by the manufacturer.
▶ Only use the battery in connection with the Bosch appliance.
- Charge the battery using the original charging cable ^1 or the original quick charger ^1 .
▶ Only use batteries from the Power for ALL 18 V series.
- Ensure that children do not play with the appliance, even when it is in the base station ^1 .

→ Fig. 6 - 10

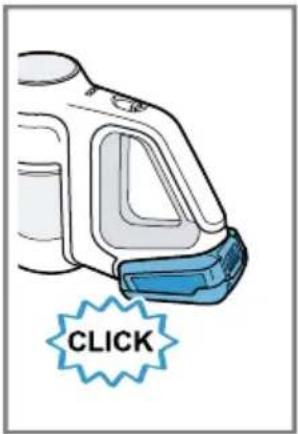

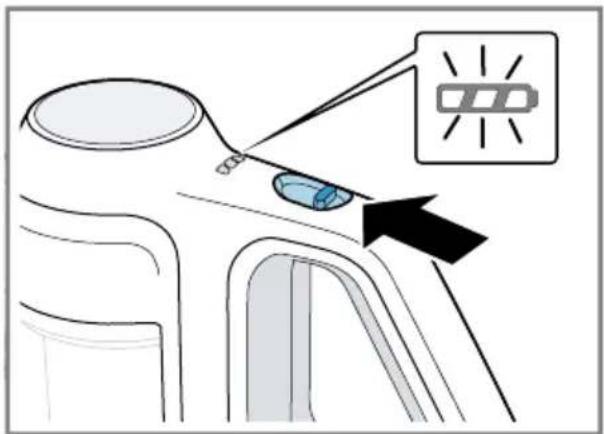

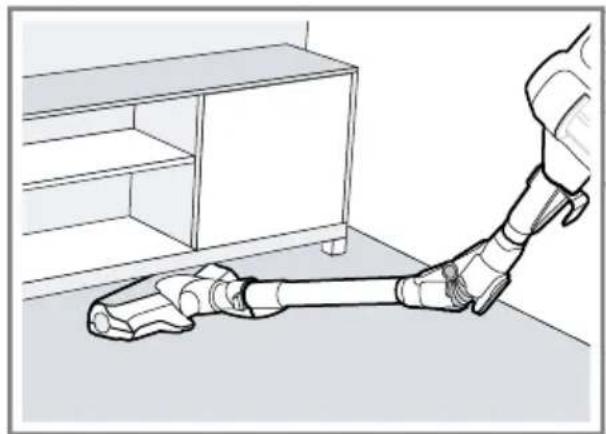

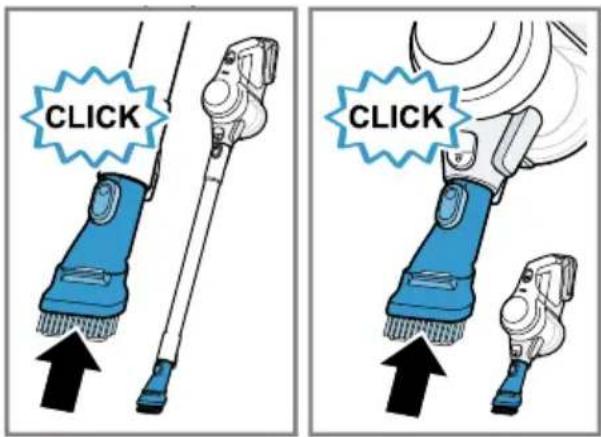

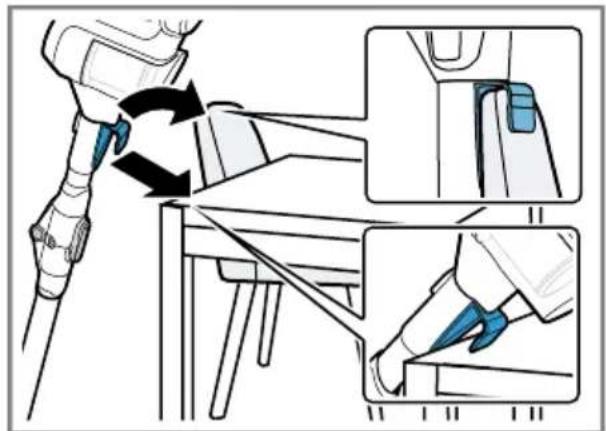

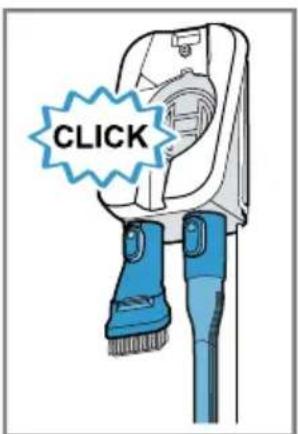

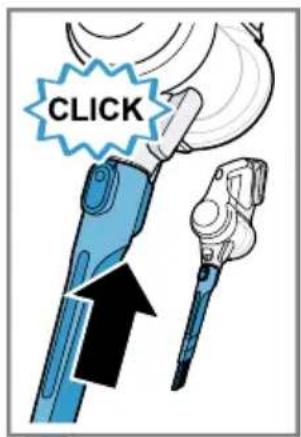

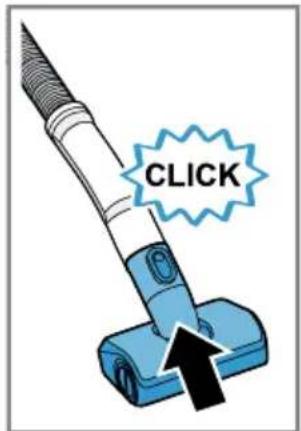

Operating the appliance

→ Fig. 11 - 25

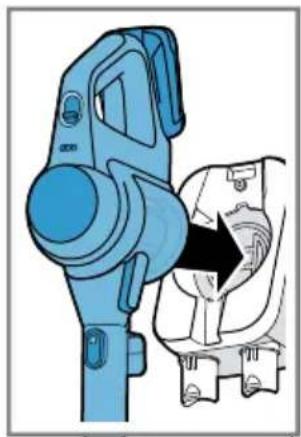

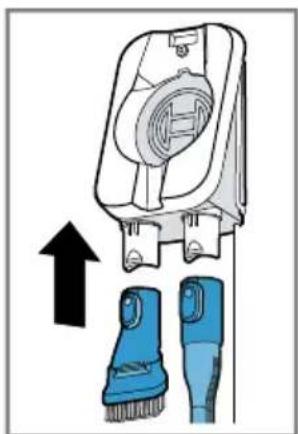

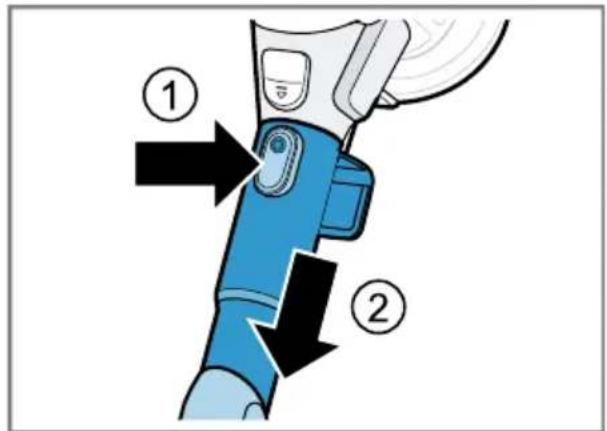

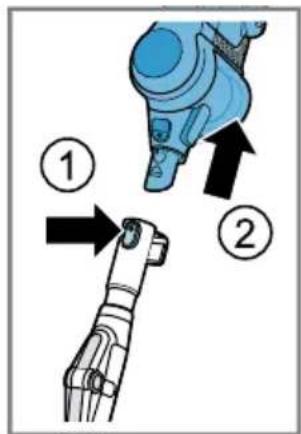

Removing the appliance

→ Fig. 26 - 28

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Cleaning the appliance

→ Fig. 29 - 29

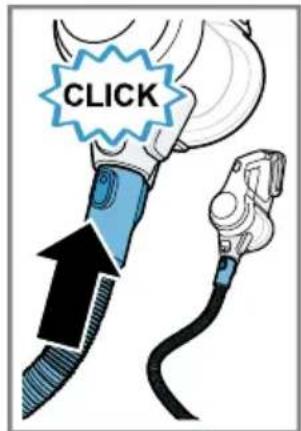

Emptying the dust container

→ Fig. 30 - 33

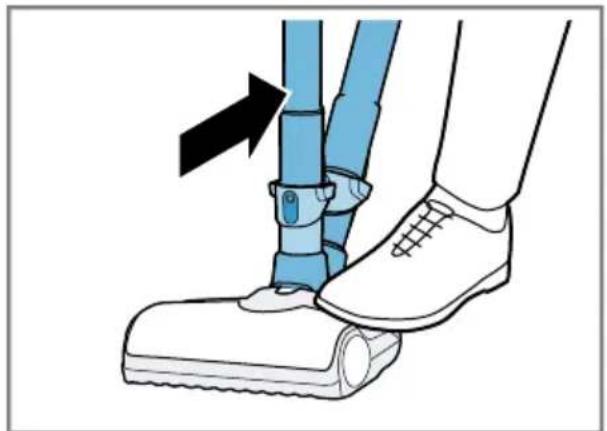

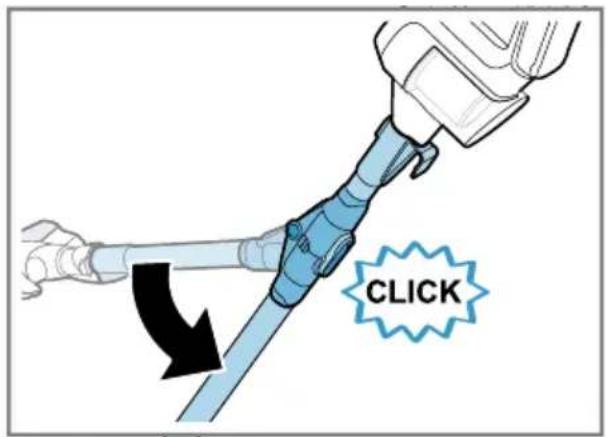

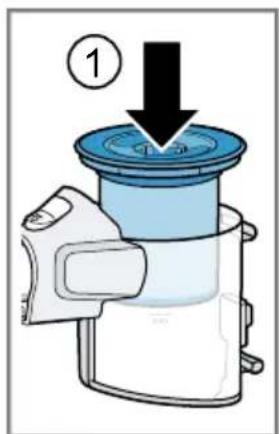

Cleaning the filter unit

▶ Never allow the filters to come into contact with liquids.

→ Fig. 34 - 40

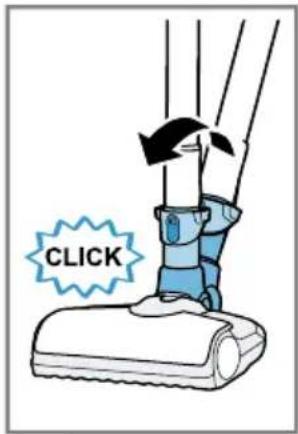

Cleaning the floor nozzle

→ Fig. 41 - 41

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.

The appliance is not working.

The battery status display does not show any status.

The battery has not been inserted correctly.

- Insert the battery correctly.

The battery has not been charged.

▶ Charge the battery.

The red fault indicator lights up for 10 seconds.

The battery has overheated or overcooled.

1. Switch off the appliance and disconnect the appliance from the power supply.

2. Wait until battery has reached room temperature.

The appliance has overheated or overcooled.

1. Switch off the appliance and disconnect the appliance from the power supply.
2. Wait until the appliance has reached room temperature.

No charging function.

Incorrect charger was used.

▶ Only use the charger that is included.

The dust container cannot be inserted.

The filter unit is not complete.

- Check whether the filter unit is complete.

The filter unit or dust container is not positioned correctly.

- Check whether the filter unit and dust container are inserted correctly.

Suction is reduced.

The filter is blocked.

1. Switch off the appliance and disconnect the appliance from the power supply.
2. Clean the filter unit.

The nozzle is blocked.

1. Switch off the appliance and disconnect the appliance from the power supply.
2. Check whether the air channel from the nozzle to the appliance is blocked.
3. Empty the dust container.
4. Clean the filter unit.
5. Once the appliance has cooled down, switch the appliance back on.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

- Dispose of batteries in an environmentally friendly manner.

According to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Sécurité

Accu is oververhit of onderkoeld.

Apparaat is oververhit of onderkoeld.

Duração 2,5 Ah 3,0 Ah 4,0 Ah Power+ 5,0 Ah

QR code image containing encoded data, no visible human-readable text

Siguranța

Doba provozu 2,5 Ah 3,0 Ah 4,0 Ah Power+ 5,0 Ah

Režim 1 až min. 35 40 45 35

Režim 2 až min. 25 30 35 30

Režim 3 až min. 12 15 20 25

Režim 4 až min. 8 10 10 12

Poznámky

electrical and electronic

.(equipment - WEEE
