Product Type	Steam Iron
Brand	Proctor Silex
Model	17515
Power Supply	120 V ~ 60 Hz
Power	1500 W (typical estimate)
Water Tank Capacity	250 ml (4 oz)
Soleplate Type	Scratch-resistant coating (estimate)
Main Functions	Dry ironing, steam ironing, steam burst, spray
Temperature Settings	Rotary dial with settings for synthetics, wool, cotton, linen
Steam Settings	Rotary dial with off, low, medium (steam), high steam positions
Safety	Automatic shut-off after 15 minutes of inactivity, polarized plug, power indicator light
Care and Cleaning	Empty tank after use, wipe soleplate with soapy cloth, do not use abrasive cleaners
Cord Type	Retractable cord with free rotation
Weight	1.2 kg (estimate)
Dimensions (L x W x H)	30 x 12 x 15 cm (estimate)
Warranty	1 year against defects in materials and workmanship
Country of Manufacture	Not specified, likely China
Repairability	Do not disassemble yourself, contact technical support

Frequently Asked Questions - 17515 PROCTOR SILEX

Why does my iron smoke during first use?

It is normal for the iron to emit a little smoke during first use. This stops quickly and does not indicate a defect.

How do I fill the water tank?

Unplug the iron, then pour 250 ml of ordinary tap water into the filling opening. Do not exceed the maximum capacity.

What type of water should I use?

Use ordinary tap water. If your water is very hard, alternate between tap water and distilled water.

How do I activate the auto shut-off?

The auto shut-off activates automatically after 15 minutes of inactivity. The iron turns off and the indicator lights up. To reactivate, press the reset button.

What if the iron spits water while ironing?

This is normal during first uses with tap water. It stops after a few uses. If the problem persists, wait 5 seconds between presses of the steam button.

How do I clean the iron's soleplate?

Let the iron cool, then wipe the soleplate with a soapy cloth. Do not use abrasive cleaners or metal scouring pads.

What if the iron does not heat up?

Check that the iron is plugged in and that the temperature dial is not set to 'O'. If the problem persists, contact technical support.

How do I empty the water tank?

Unplug the iron, let it cool, then gently tilt the iron over a sink so that water drains out through the filling opening.

How do I store the iron after use?

Unplug the iron, let it cool completely, loosely wrap the cord around the iron, and store it in an upright position on its heel.

Can I use an extension cord?

Yes, if needed, use an extension cord with a rating at least equal to that of the iron (15 A). Place it to avoid tripping hazards.

USER MANUAL 17515 PROCTOR SILEX

840158402 Ev02.qxd:840145300 Ev00.qxd 8/30/12 12:13 PM Page

Iron Page 2

Line drawing of a steam iron with handle and side panel (no text or symbols)

READ BEFORE USE.

LIRE AVANT UTILISATION.

LEA ANTES DE USAR.

ProctorSilex

COMMERCIAL

840158402

www.commercial.hamiltonbeach.com

8/12

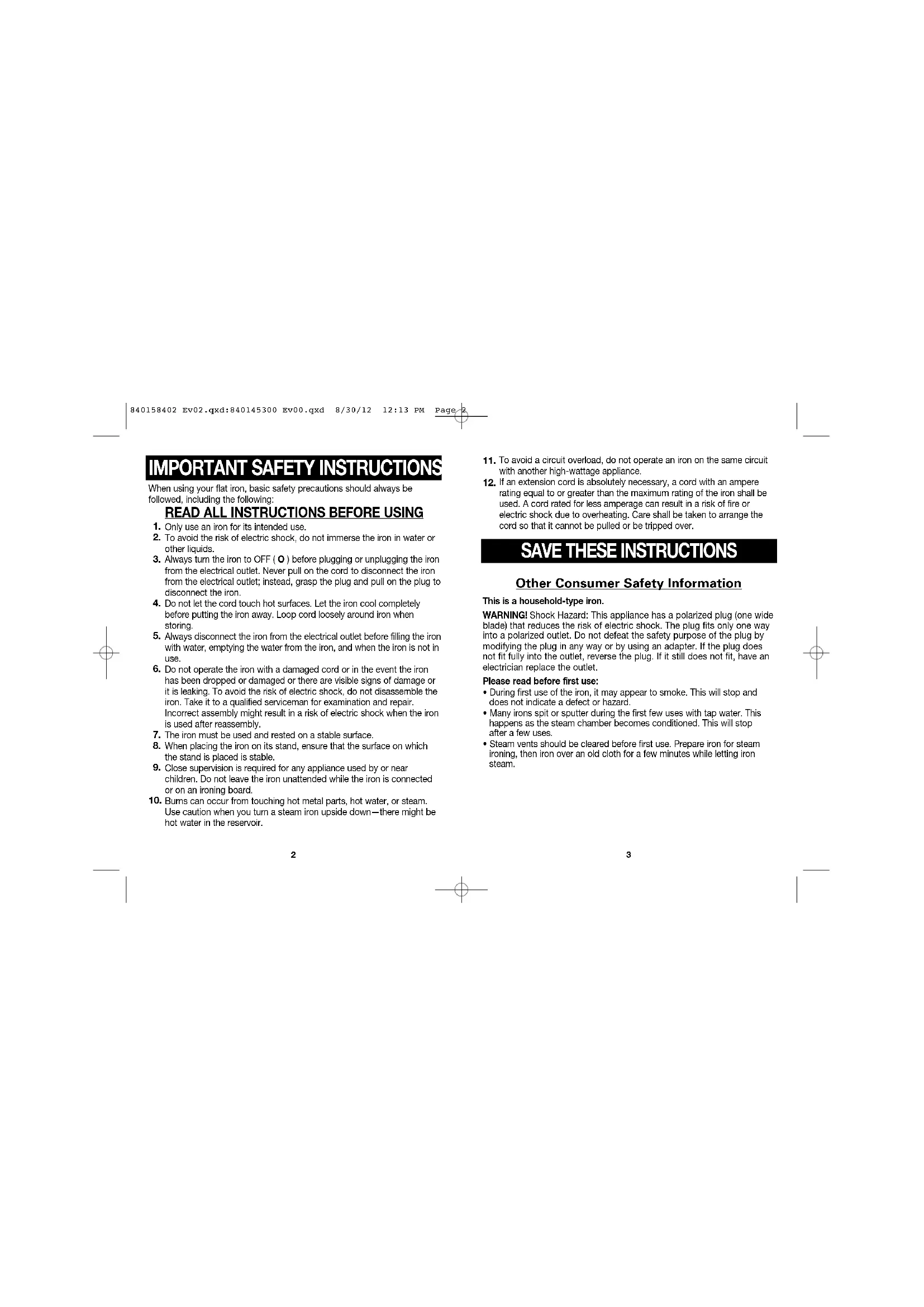

IMPORTANT SAFETY INSTRUCTIONS

When using your flat iron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Only use an iron for its intended use.
2. To avoid the risk of electric shock, do not immerse the iron in water or other liquids.
3. Always turn the iron to OFF (O) before plugging or unplugging the iron from the electrical outlet. Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.
4. Do not let the cord touch hot surfaces. Let the iron cool completely before putting the iron away. Loop cord loosely around iron when storing.

5. Always disconnect the iron from the electrical outlet before filling the iron with water, emptying the water from the iron, and when the iron is not in use.

6. Do not operate the iron with a damaged cord or in the event the iron has been dropped or damaged or there are visible signs of damage or it is leaking. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair. Incorrect assembly might result in a risk of electric shock when the iron is used after reassembly.

7. The iron must be used and rested on a stable surface.

8. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

9. Close supervision is required for any appliance used by or near children. Do not leave the iron unattended while the iron is connected or on an ironing board.

10. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down—there might be hot water in the reservoir.

11. To avoid a circuit overload, do not operate an iron on the same circuit with another high-wattage appliance.

12. If an extension cord is absolutely necessary, a cord with an ampere rating equal to or greater than the maximum rating of the iron shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This is a household-type iron.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

Please read before first use:

• During first use of the iron, it may appear to smoke. This will stop and does not indicate a defect or hazard.
• Many irons spit or sputter during the first few uses with tap water. This happens as the steam chamber becomes conditioned. This will stop after a few uses.
• Steam vents should be cleared before first use. Prepare iron for steam ironing, then iron over an old cloth for a few minutes while letting iron steam.

840158402 Ev02.qxd:840145300 Ev00.qxd 8/30/12 12:13 PM

Parts and Features

1. Water Tank Opening
2. Adjustable Steam Dial
3. Spray and Steam Buttons
4. Auto Shutoff Reset Button

5. Swivel Power Cord

6. Heel Rest

7. Power ON Light and
   Auto Shutoff Light
8. Soleplate
9. Temperature Control Dial

How to Dry Iron

1. Turn the Adjustable Steam Dial to ✗
2. Turn Temperature Control Dial to desired temperature. Allow two minutes for iron to reach desired temperature.

How to Steam Iron

1. Unplug iron. Pour 4 ounces (½ cup) of ordinary tap water into water tank opening. Plug iron into outlet.
2. Turn Temperature Control Dial to desired setting in the steam range. Allow 2 minutes for the iron to reach desired temperature.
3. Turn the Adjustable Steam Dial to desired steam setting. Water: Please use ordinary tap water. If you have extremely hard water, alternate between tap water and distilled water for use in the iron.

Steam Settings

NOTE: When ironing Synthetics or Silk, set the Adjustable Steam Dial to ☒When ironing Cotton/Linen, set the Adjustable Steam Dial to 🔒. If light steam is needed (example: Wool), place the Adjustable Steam Dial halfway between ☒ and 🔒.

Adjustable Steam Dial

Temperature Control Dial

Features

Auto Shutoff Reset Button

This light comes on when the iron is first plugged in. After 15 minutes, the iron will shut off and the light will go out. Push the Reset Button to turn the iron back on for another hour of ironing.

Power ON Light and Auto Shutoff Light

This light comes on when the iron is plugged in and remains on until the iron is unplugged. The light stays on even if Temperature Control Dial is turned to Off. This light also functions as the Auto Shutoff Light.

Spray and Steam Buttons

Push Steam Button for an extra blast of steam. To avoid water spitting from the iron, do not push the Steam Button more frequently than every 5 seconds. Push Spray Button to release a fine spray of water for difficult wrinkles in cotton or linen.

Caring and Cleaning

Iron

1. Turn Temperature Control Dial to Off (O). Unplug and let cool. The iron takes longer to cool down than it does to heat up.
2. To empty water from iron, slowly tilt pointed end of iron down over a sink. Water will run out of water tank opening.
3. Wrap cord loosely around iron and store iron in an upright position. Do not store iron laying flat on soleplate.

Soleplate

1. Never iron over zippers, pins, metal rivets, or snaps, as these may scratch the soleplate.
2. To clean occasional buildup on the soleplate, wipe with a sudsy cloth. Do not use abrasive cleansers or metal scouring pads.
3. Always store iron upright in the heel rest position.

840158402 Ev02.qxd:840145300 Ev90.qxd 8/30/12 12:13 PM Page

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase.

If you have a claim under this warranty, please contact our TECHNICAL SERVICES DEPARTMENT at 866-285-1087 or 910-693-4277. For faster service, locate the model, type, and series numbers on your appliance.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse, or subjecting it to any voltage and waveform other than as specified on the rating label (for example, 120V \~ 60 Hz).

This warranty extends only to the original purchaser. Keep the original sales receipt, as proof of purchase is required to make a warranty claim, or the warranty term will be based on the date of manufacture plus one (1) year.

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty.

All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.
