USER MANUAL 17075 PROCTOR SILEX

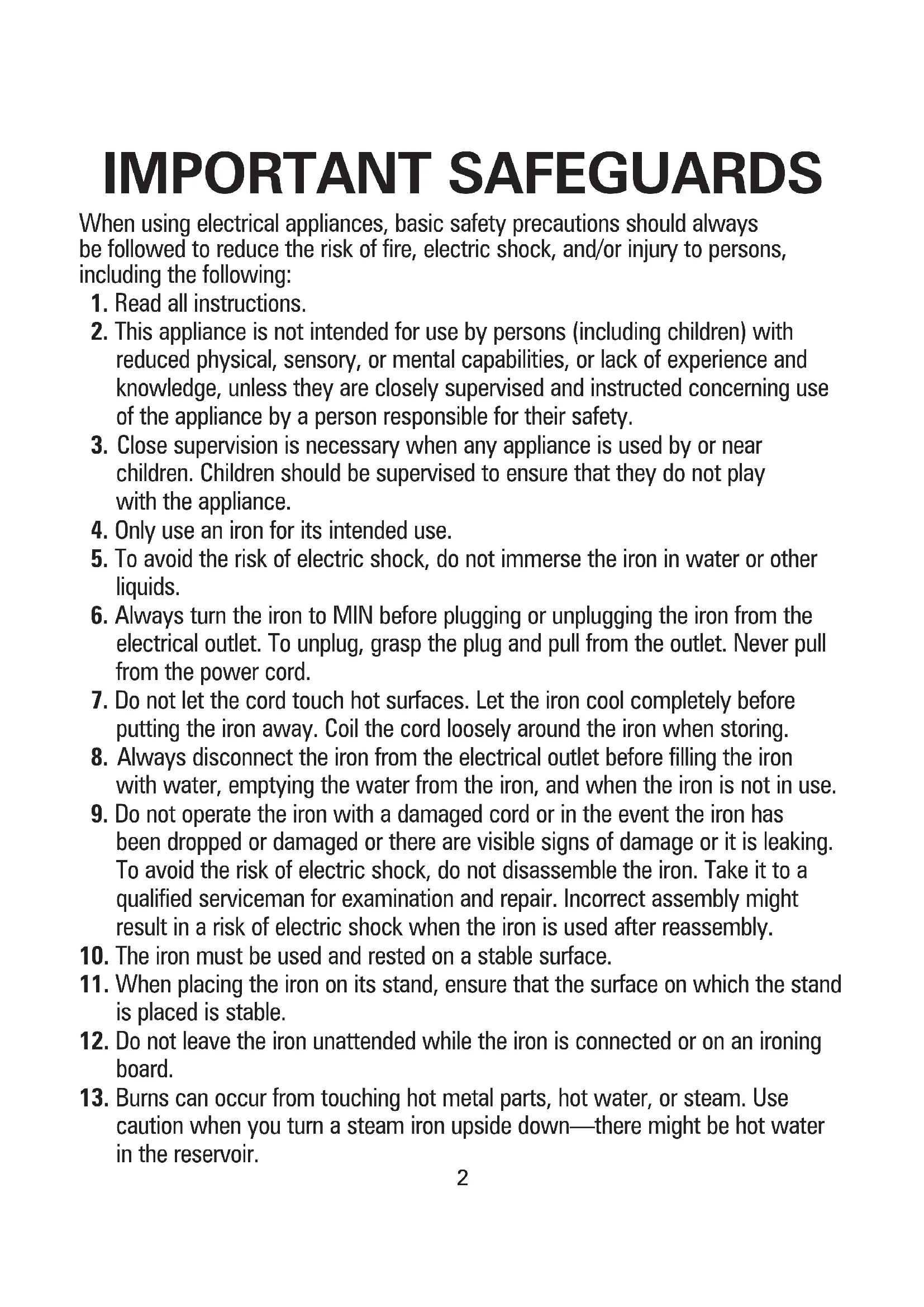

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.

2. This appliance is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by or near

children. Children should be supervised to ensure that they do not play with the appliance.

4. Only use an iron for its intended use.

5. To avoid the risk of electric shock, do not immerse the iron in water or other

6. Always turn the iron to MIN before plugging or unplugging the iron from the

electrical outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

7. Do not let the cord touch hot surfaces. Let the iron cool completely before

putting the iron away. Coil the cord loosely around the iron when storing.

8. Always disconnect the iron from the electrical outlet before filling the iron

with water, emptying the water from the iron, and when the iron is not in use.

9. Do not operate the iron with a damaged cord or in the event the iron has

been dropped or damaged or there are visible signs of damage or it is leaking. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair. Incorrect assembly might result in a risk of electric shock when the iron is used after reassembly.

10. The iron must be used and rested on a stable surface.

11. When placing the iron on its stand, ensure that the surface on which the stand

is placed is stable.

12. Do not leave the iron unattended while the iron is connected or on an ironing

13. Burns can occur from touching hot metal parts, hot water, or steam. Use

caution when you turn a steam iron upside down—there might be hot water in the reservoir. IMPORTANT SAFEGUARDS3 This appliance is intended for household use only. w WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

14. To avoid a circuit overload, do not operate an iron on the same circuit with

another high-wattage appliance.

15. If an extension cord is absolutely necessary, a cord with an ampere rating

equal to or greater than the maximum rating of the iron shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.To order parts: US: 1.800.851.8900 www.proctorsilex.com Canada: 1.800.267.2826 Mexico: 800 71 16 100 Parts and Features How to Dry Iron NOTE: To dry iron, ensure that there is no water in Water Reservoir.

1. Plug into outlet.

2. Rotate the Adjustable Temperature Dial

clockwise from MIN to select desired temperature. Allow 2 minutes to reach desired temperature.

3. Rotate the Adjustable Temperature Dial

counterclockwise until the arm reaches MIN. Unplug. How to Steam Iron w CAUTION Burn Hazard. Attempting to steam iron on a lower temperature setting or failing to allow the iron to preheat for 2 minutes can result in hot water dripping from soleplate. Use untreated tap water. If you have extremely hard water, mix 50% untreated tap water with 50% distilled water for use in irons.

1. Make sure Iron is unplugged and

Temperature Dial is at MIN. Set Iron upright on Heel Rest.

2. Open Water Reservoir Fill Door. Using a

cup, slowly pour tap water into opening to MAX Fill Line.

3. Plug into outlet. Rotate Temperature

Dial clockwise from MIN to desired temperature in blue steam range using Temperature Guide. Allow 2 minutes to reach temperature.

4. To turn off, rotate Temperature Dial

counterclockwise to MIN. Unplug.

2. Adjustable Temperature Dial with

7. Water Window with MAX and MIN

5. Open Water Reservoir Fill Door and turn

Iron upside down to remove water. NOTE: Use caution when removing water. Water can be hot. Vertical Steam

1. Follow steps 1-4 in “How to Steam

2. Hang garment in a location that is not

susceptible to damage from heat or moisture. Do not hang by wallpaper, window, or mirror.

3. Holding Iron about 6 inches (15.2 cm)

away from garment, begin steaming at top of garment. Slowly move Iron up and down to cover entire garment. Press and release Blast or Spray Button to steam out wrinkles. Do not press Blast or Spray Button more than once every 2 seconds. w CAUTION Burn Hazard. Steam is hot. Always point soleplate away from yourself and others. Never steam clothes while they are being worn.

4. To turn off, rotate Temperature Dial

counterclockwise to MIN. Unplug.

5. Open Water Reservoir Fill Door and turn

upside down to remove water. NOTE: Use caution when removing water. Water can be hot. Care and Cleaning Iron

1. Unplug and let cool.

2. Drain water. Store in an upright position.

NOTE: Use caution when turning a steam iron upside down. There may be hot water in the Water Reservoir. Soleplate

1. Never iron over zippers, pins, metal

rivets, or snaps since these may scratch the soleplate.

2. To clean buildup, wipe with a sudsy

cloth or preheat iron to highest temperature setting and iron over a damp, 100% cotton cloth. This creates heavy steam and transfers grime to the cloth. Do not use abrasive cleansers or metal scouring pads.6 Limited Warranty This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call

1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the

U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.7 Notes8
