USER MANUAL DOM483 LIVOO

Thank you for choosing a Livoo product! Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day. That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible. Find our entire collection on our website www.livoo.en. Livoo, your daily companion till social networks

Safety Instructions Please, take time to read well the instruction sheet before the first use and keep them for a future use. A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

1. Make sure the power used corresponds with the

one indicated on the rating label and the socked has effective earth connection.

2. Use the iron only for needed use as descried in the

3. Do not use this appliance outside

4. Close supervision is necessary when any

appliance is used near children.

5. Burns can occur from touching hot metal parts,

6. Keep the iron out of reach of children.

7. The iron must not be left unattended while it is

connected to the supply mains.

8. The iron must be used and rested on a flat, stable

surface to avoid any risk of falling. when placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

9. The filling aperture must not be opened during

10. The plug must be removed from the sock-outlet

before the water reservoir is filled with water.

11. Unplug the iron from the mains electrical supply :

- Before cleaning - Before filling with water or emptying the water tank - Immediately after useManual de instrucciones

12. Do not pull the cord to unplug the appliance.

13. Never operate the iron with damaged power cord

or plug, or after it has fallen or been damaged in any way. To avoid the risk of electric shock, do not disassemble the iron, take it to a qualified serviceman for examination and repair.

14. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (*)

15. Do not let cord touch hot surfaces.

16. The appliance is not intended to be operated by

means of external timer or separate remote control system.

17. Never use the appliance with the damaged wall

18. The device must be connected to a ground

19. If you use the iron with an extension cord, make

sure it has a earth plug and that it supports the power of the unit. Pay attention that no one gets in the way.Manual de instrucciones

20. To protect against a risk of electric hazards, do

not immerse the iron in water or any other liquid.

21. Do not handle the device or plug with wet hands.

22. The iron is not to be used if it has been dropped, if

there are visible signs of damage or if it is leaking.

23. This appliance can be used by children aged from

8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

24. Keep the iron and its cord out of reach of children

less than 8 years of age when it is energized or cooling down.

25. Only qualified and authorized persons are

authorized to carry out repairs to your appliance. Any repairs not in accordance with standards could significantly increase the level of risk for the user!Manual de instrucciones

liquid to the tank; it can damage the appliance.

27. Risk of burns: The soleplate becomes extremely

hot during use. Do not touch it because you could get burned. Be careful when using the steam function as well. it could burn you.

28. The iron must only be used with the stand

29. This appliance is intended to be used in

household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments

• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. Technical Specifications Voltage:

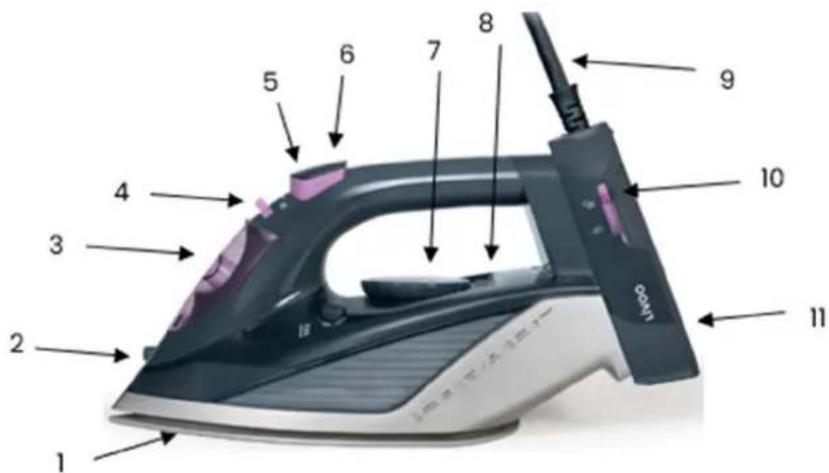

Surfaces are liable to get hot during use Drawing of the device (figure 1) 1 Soleplate 7 Thermostat knob

Steam and self clean knob

1. This iron can be used with tap water or ideally distilled or demineralized water.

2. Do not use chemically descaled water or any other liquids for refilling.

HOW TO FILL IN WATER

4. Unplug the iron from the wall outlet, and wait for the iron to cool down.

5. Open the filling cover

6. Fill up to the maximum level “MAX” of the water tank.

Attention! Never fill in the tank when the appliance is plugged.

2. If the ironing instructions are missing, then the table below may help you.

3. If the fabric consist of various kinds of fibers (e.g. cotton with polyester) you must always select the

ironing temperature for the material with the lowest advised temperature. IRONING LABEL KIND OF TEXTILE THERMOSTAT SETTING

1. Insert the plug in the wall socket and stand the iron upright.

2. Turn the thermostat button to the desired temperature setting.

3. The desired temperature has been reached when the pilot light has turned off. The pilot light will turn

on and off from time to time, indicating that the selected temperature is being maintained. STEAM IRONING Steam is regulated by steam knob move to the required position.

Warning: the iron gives off steam continuously only if you hold the iron horizontally. You can stop the

continuous steam by placing the iron in a vertical position or by putting steam knob (4) on position. As indicated on the thermostat knob, you can only use steam at the highest temperatures. If the selected temperature is too low, water may drip onto the plate. CONTINUOUS STEAM The temperature knob is adjusted to the maximum Start the steam switch and move the product When the steam switch is turned on, the product remains stationary for 3 seconds and the steam is recovered when the product is moved!

This function provides an extra amount of steam to remove stubborn wrinkles. Press the burst button to generate a powerful burst of steam that can penetrate the fabrics and smooth the most difficult and tough creases. Wait for a few seconds before pressing again By pressing the burst button at intervals you can use also iron vertically (curtains, hung garments, etc.)

Warning: the shot-steam function can only be used at high temperatures. Stop the emission when the

plate temperature control light comes on, than start ironing again only after the light has gone off. DRY IRONING

1. Connect the iron to a suitable mains supply outlet.

2. Ensure that the steam knob (4) is on position .

3. Select the setting with temperature knob.

4. When the light turns off, the required temperature is reached. The iron is ready for use.

Spray Function Make sure that there is water in the reservoir. Press the spray button (6) slowly (for a dense spray) or quickly (for a vaporized spray) CORDLESS USEManual de instrucciones

This item is usable both with and without cord.

1. Use the lock/release switch (10) to unlock the unit from the base.

2. The first heating up time is 55 seconds.

3. The iron can be used continues without cord for 30 seconds.

4. Put the iron back on the base, the recharging time is 20 seconds.

5. After recharging it can be used without cord for 30 seconds again for steam ironing and 3 minutes

6. Put the iron back on base, lock it using the lock/release switch.

7. With the base locked on the unit it can be used as a normal steam iron with cord.

We advise you to use the iron in the corded position if you intend to steam iron for a length of time and when you apply numerous shots of steam, as this can cause the soleplate to cool down considerably. ANTI-DRIP SYSTEM With the anti-drip system, you can perfectly iron even the most delicate fabrics. Always iron these fabrics at low temperatures. In these cases, the Anti-drip system automatically activates to prevent vaporization, so that you can iron the most delicate fabrics without risk of spoiling or staining them. ANTI-SCALE SYSTEM Your iron contains an anti-scale cartridge to reduce scale deposits. This considerably prolongs the operational life of your iron. The anti-scale cartridge is an integral part of the water tank and does not to be replace. SELF-CLEANING The self-cleaning feature cleans inside the plate, removing impurities. We recommend using it every 10-15days.

1. Fill the reservoir up to the maximum level indicated and set the steam button (4)

2. Set the thermostat knob to the maximum temperature and wait for the light to turn off.

3. Hold the iron horizontally over a washbasin or a heat resistant tank, move the steam button cursor to

the left side. Repeat until all the boiling water, steam, and impurities come out. Cleaning and maintenance Turn the temperature control on “MIN” then disconnect the iron from the wall outlet and let it cool down completely. Deposits and other residues on the sole plate can be removed with a cloth soaked in a vinegar/water solution or alcohol. The casing may be wiped with a damp cloth and then polished with a dry one. Never use any abrasives to clean the sole plate. Keep the sole plate smooth; avoid contact with metal objects.Manual de instrucciones

Correct disposal of the unit (Electrical and Electronic Equipment). (Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.

• Non contractual illustration

• Product information is subject to change without prior notice.
