Product Type	Film Camera
Brand	Kodak
Model	Advantix F320
Dimensions	10.9 x 6.9 x 3.9 cm
Weight (without batteries or film)	140 g
Power	2 AAA alkaline batteries
Film Type	KODAK ADVANTIX Film (color or black and white)
Lens	KODAK EKTANAR 24 mm, 3 hybrid elements
Viewfinder	Galilean type with C, H, and P format display
Flash	Built-in, automatic, range (200 ISO): 1 m to 4.3 m
Shutter Speed	Programmed, 1/60 to 1/250 second
Aperture	f/6.4 (fixed)
Film Speed	100, 200, 400 ISO (DX coded)
Self-Timer	Yes, with indicator light
Photo Formats	Classic (C), Group/HDTV (H), Panoramic (P)
Rewinding	Automatic at end of film, manual possible
Maintenance	Clean the lens with a blower and soft cloth; do not use solvents
Safety	Do not disassemble; remove batteries if not used for extended periods

Frequently Asked Questions - Advantix F320 KODAK

What type of film to use with the Kodak Advantix F320?

Use a KODAK ADVANTIX (Advanced Photo System) film, color or black and white. The speed can be 100, 200, or 400 ISO.

How to load the film into the camera?

Open the film compartment by sliding the latch. Insert the cassette fully, with the status indicator facing up. Close the cover; the film advances automatically.

Which batteries to use and how to install them?

Install two AAA (alkaline) batteries in the designated compartment, respecting polarity. Use the provided pull tab to remove old batteries.

How to take a photo with flash?

Open the lens cover. Frame your subject at a distance of 1 m to 5.5 m depending on film speed (see table). Wait until the flash indicator turns green, then press the shutter button.

How to use the self-timer?

Mount the camera on a tripod. Press the self-timer button; the icon appears on the screen. Press the shutter button, then get into the frame. The indicator flashes and the photo is taken after about 10 seconds.

What to do if the flash does not fire?

Wait for the flash to recharge (indicator turns green). If the problem persists, check the batteries. A low battery symbol on the screen indicates they need to be replaced.

How to select the photo format (C, H, P)?

Use the format selector (10) to choose between Classic (C), Group/HDTV (H), and Panoramic (P). The frame in the viewfinder adjusts accordingly.

How to remove the film after taking all photos?

The film rewinds automatically after the last photo. Wait for the motor to stop, then open the compartment and remove the cassette. For manual rewind, press the rewind button (12).

How to clean the lens of the Advantix F320?

Blow gently on the lens to remove dust, then wipe with a soft, lint-free cloth. Never use solvents or chemical cloths for glasses.

What to do if the camera does not turn on?

Check the installation and condition of the batteries (2 AAA batteries). If the batteries are low, replace them. Make sure the lens cover is open. If nothing works, consult the manual or contact Kodak customer service.

USER MANUAL Advantix F320 KODAK

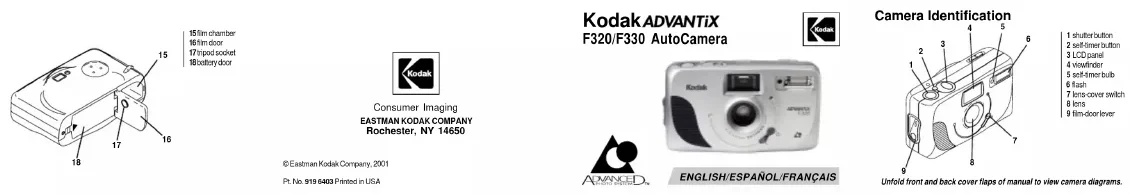

Camera Identification

1

2.11.10.10

3LCDs

A

1. solubility

6JAP

71

812

9fmm-door car

1. take a bath
   switch
2. drive
   200
3. drive
4. drive
5. sleep
6. sleep

This device competes with part 10 of the FCC Rules. Operation is easy and in the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undervalue operation.

NOTE: Your mobile camera has been turned off and, to some extent, will comply with the limits for Class C digital video, pursuant to Part 15 of the FCC Rules. These limits provide reasonable protection against unauthorized access to the system. The system also requires that the radio cable frequency energy and, if used, an accordance with the instructions, may cause interference to radio communications. There is no guarantee that interference will not occur. If your camera does cause interference to radio or television reception, which would be avoided by turning the camera off and/or turn on, you may reduce the interference to the following.

• Record or理科 the receiving accounts.
• Increase the separation between the camera and the receiver.
• Check all the data in the system to ensure that the data is not corrupted on human for support.
• Change or modifications are not approved by the timely responsible for compliance once you've the user's authority to operate the equipment.
• This Class 8 digital apparatus must meet all requirements of the Canadian Interference Containing Equipment Regulations.

LCD Panel

19 self times indicator 20 picture counter 21 battery symbol

Kodak ADVANTiX F320/F330 Auto Camera

NEED HELP WITH YOUR CAMERA OR MORE INFORMATION ABOUT THE ADVANCED PHOTO SYSTEM?

Go to our Web site at http://www.kodak.com (for US) or http www.kodak.ca (for Canada) or call: Kodak (US only) from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday through Friday at 1-800-242-2424.

Kodak (Canada only) from 8:00 a.m. to 5:00 p.m. (Eastern time) Monday through Friday at 1-800-465-6325, ext. 36100; for the Toronto area, call 416-766-8233, ext. 36100. When you call, please have your camera available.

For warranty purposes, please keep your sales receipt as proof of the date of purchase.

CONTENTS

CAMERA FEATURES 3

ATTACHING THE STRAP 4

LOADING THE BATTERIES ...... 5

Low-batteries indicator. 6

Battery tips 6

Power shutdown 7

LOADING THE FILM 8

TAKING PICTURES 10

Typical print sizes

(formats) 12

Tips for better pictures .... 13

TAKING FLASH PICTURES .... 14

Flash-to-subject distance .. 15

USING THE SELF-TIMER 15

UNLOADING THE FILM 16

Automatic rewind 16

Manual rewind 17

CARING FOR

YOUR CAMERA 18

TROUBLESHOOTING 19

SPECIFICATIONS 21

CAMERA FEATURES

Three Print Formats

• You can take three different size pictures: Classic (C), Group/HDTV (H), and Panoramic (P) pictures from the same film cassette. The viewfinder changes to show the selected picture size.

Double Exposure Protection (DEP)

• You don't need to worry about accidentally re-exposing your film. Your camera reads the Film Status Indicator (FSI) on the film cassette to prevent double exposures.

Easy, Drop-in Loading

• Easy, drop-in loading is fast and virtually error-free. The camera uses KODAK ADVANTIX Film. The film cassette communicates the status of film and becomes the carrier and storage container for the processed film.

Safety-Locked Film Door

After you close the safetyinterlocked film door and the film starts to prewind, you cannot open the door until the film is completely rewound into the film cassette.

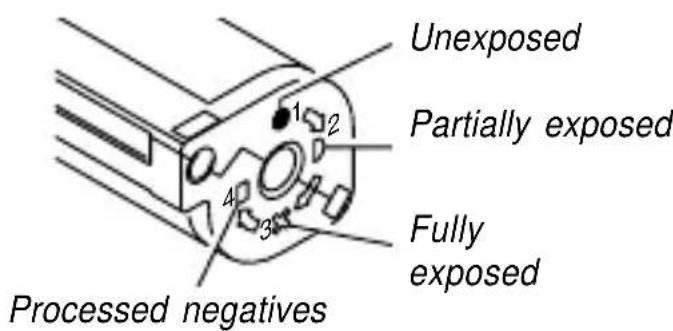

Film Status Indicator (FSI)

• A highlighted indicator advances from one symbol to another to identify the status of the film inside the cassette.

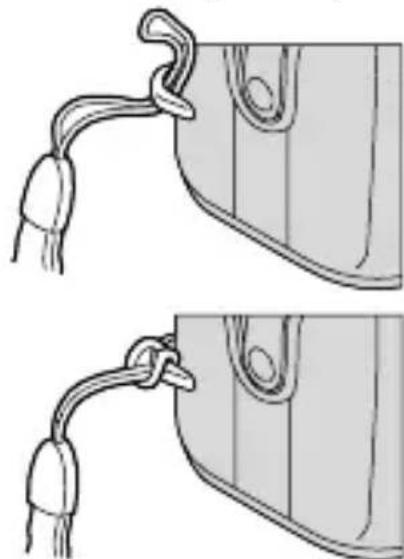

ATTACHING THE STRAP

Thread the shorter looped end of the strap under the strap post (14); pull the longer end through the shorter loop and pull it tight.

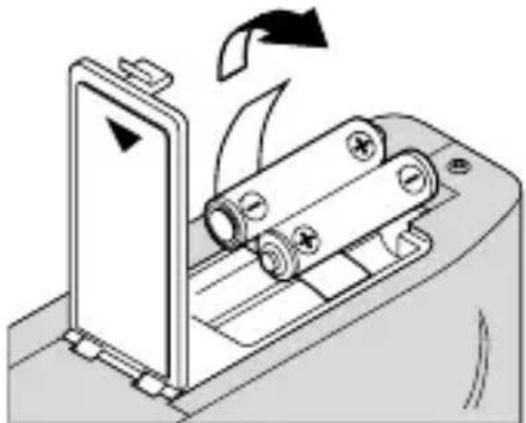

LOADING THE BATTERIES

This camera uses 2 AAA-size batteries that supply power for all camera operations.

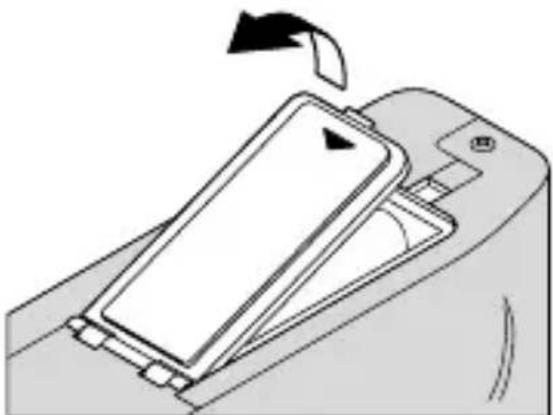

1. Open the battery door (18).

• Before you remove the old batteries, close the lens cover.

• Place the batteries over the battery-pull strap and insert into the chamber as shown.

1. Snap the battery door closed.

NOTE: Insert the batteries into the camera before you load the film.

Low-batteries indicator

It's time to replace the batteries when the battery symbol (21) appears on the LCD panel (3) or when the flash-ready lamp (13) takes longer than 12 seconds to turn on.

Battery tips

• Dispose of batteries according to local and national regulations.
  Remember to keep spare batteries with you at all times.

• Read and follow all warnings and instructions supplied by the battery manufacturer.

• Keep batteries away from children.

• Do not try to take apart, recharge or short circuit the batteries, or subject them to high temperature or fire.
• Do not use rechargeable batteries.
• Store batteries in their original packaging prior to use.
• Remove the batteries from the camera when the camera is not going to be used for an extended length of time.

• Replace all batteries with the same brand and grade and as a set at the same time.

• In the unlikely event that battery fluid leaks onto your skin, contact Kodak Health, Safety and Environment Information at 1-716-722-5151 in the U.S. Customers outside the U.S. can contact their local health care provider.

• In the unlikely event that battery fluid leaks inside the camera, U.S. customers can contact the Kodak Information Center (KIC) at 1-800-242-2424. Customers outside the U.S. can contact their local Kodak Customer Service representative.

Automatic Energy Saving Features

Power shutdown

To conserve battery power, the camera automatically goes into a sleep mode if it is not operated for more than 4 minutes. You can awaken the camera by taking a picture or by closing and reopening the lens cover. When the camera will not be used for an extended length of time, close the lens cover to completely turn off the camera.

LOADING THE FILM

You can load film into the camera with the camera ON or OFF. Insert the batteries into the camera before you load the film.

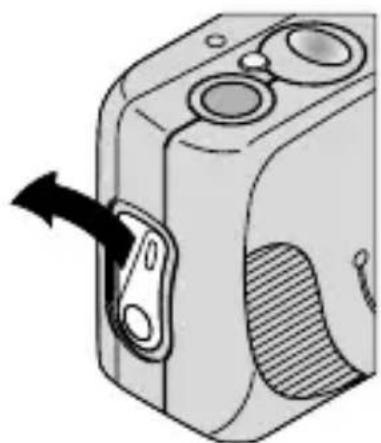

1. Move the film-door lever (9) to open the film door (16).

The film door opens only when the film chamber is empty or the film in the camera is completely rewound into the film cassette.

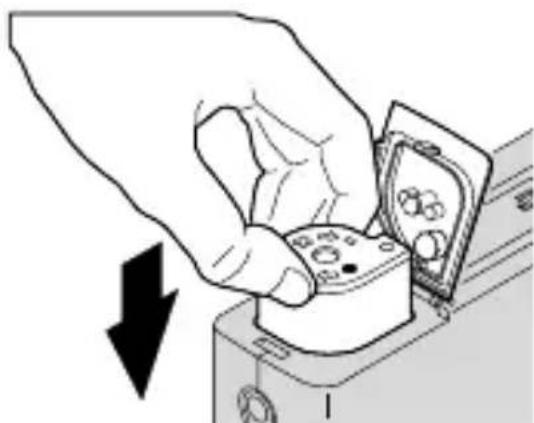

1. Insert the film cassette completely into the film chamber (15).

Make sure the Film Status Indicator (FSI) on the film cassette is at (#1 position) for a new cassette.
- Do not force the film cassette into the film chamber.

1. Close the film door to start the automatic film prewind. The picture counter (20) on the LCD

panel (3) displays the number of pictures remaining on the film.

After you close the safetyinterlocked film door and the film starts to prewind, you cannot open the door until the film is completely rewound into the film cassette.

Look for this logo to be certain that the film you buy is made for this camera.

Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.

TAKING PICTURES

You can take Classic (C), Group/HDTV (H)^* and Panoramic (P) pictures on the same film cassette. Your photo-processing cost may be based on the format size(s) that you use to expose the film.

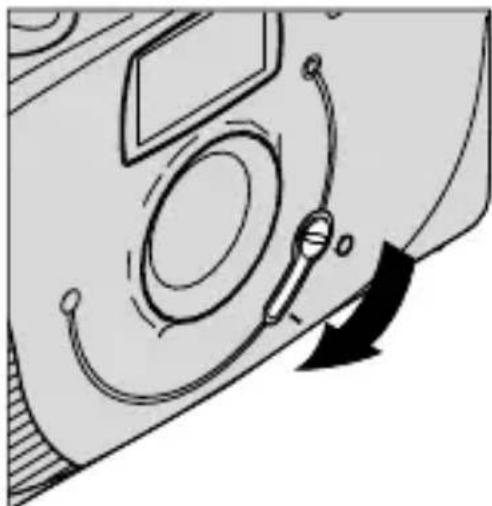

1. Slide the lens-cover switch (7) to uncover the lens (8) and to turn on the camera.

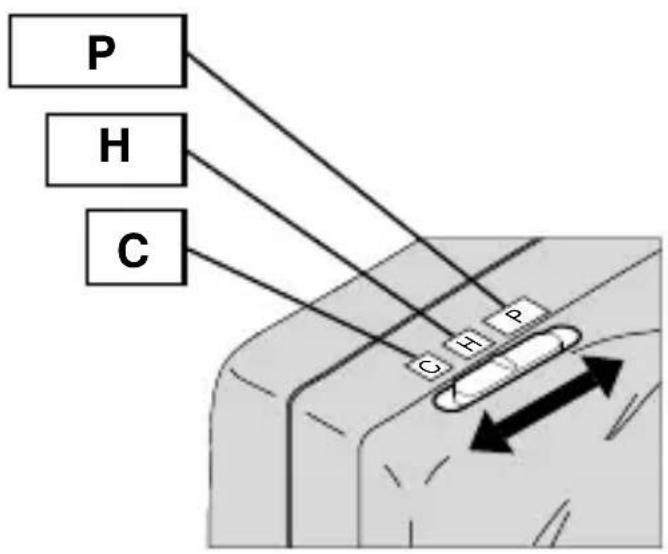

1. Move the print-format switch (10) to select C, H, or P format. The viewfinder changes to show the selected field of view.

1. Frame your subject within the viewfinder eyepiece (11). For a sharp picture, stand at least 3.3 ft (1.0 m) from your subject.

2. For low-light conditions, wait until the flash-ready lamp (13) turns green.

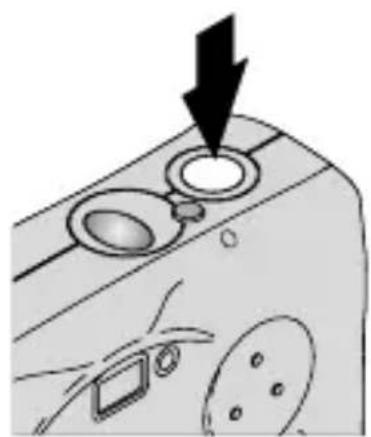

3. Press the shutter button (1) to take the picture.

Typical print sizes (forms)

C

H

P

Classic Group (HDTV) Panoramic

3.5 x 5 in. or 4 x 6 in. 3.5 x 6 or 4 x 7 in. 3.5 x 8.5 in. to 4 x 11.5 in.

(88.9 x 127 mm or (88.9 x 152 mm or (88.9 x 216 mm to

102 × 152 mm( 102 × 178 mm) ( 102 × 292.7 mm)

NOTE: Your photofinisher generally provides 4 x 6, 4 x 7, and 4 x 11.5 in. (102 x 152, 102 x 178, and 102 x 292.7 mm) sizes. Some local printers may offer 3.5 x 5, 3.5 x 6, and 3.5 x 8.5 in. (88.9 x 127, 88.9 x 152, and 88.9 x 216 mm) sizes. 12

Tips for better pictures

• Hold your camera steady by keeping your elbows close to your body when you press the shutter button to avoid blurry pictures.
• Keep your pictures simple. Move close enough to your subject so that it fills the viewfinder but not closer than 3.3 ft (1.0 m).
  Take pictures at the subject's level. Kneel down to take pictures of children and pets.

• Keep the sun behind you. This provides the best subject illumination.

• Hold your camera vertically to capture tall, narrow subjects, such as a waterfall, skyscraper, or a single person.

• Add interest to your picture by framing it with a tree branch, a window, or even the rails of a fence.
• Stand at an angle to shiny surfaces like windows or mirrors to avoid flash reflection and bright spots in your pictures.
• Turn on all the room lights and have your subject look at the lights. This helps to reduce red eyes in flash pictures.

TAKING FLASH PICTURES

In dim light, such as indoors or outdoors in heavy shade, or on dark overcast days, you need flash. Your camera has a built-in automatic flash that fires as needed.

1. Slide the lens-cover switch (7) to uncover the lens (8) and to turn on the camera.
2. Frame your subject within the viewfinder eyepiece (11).

3. Keep the subject within the distance range for the speed of film in your camera (see Flash-to-subject distance).

4. Don't take pictures beyond the maximum distance or your pictures will be dark.

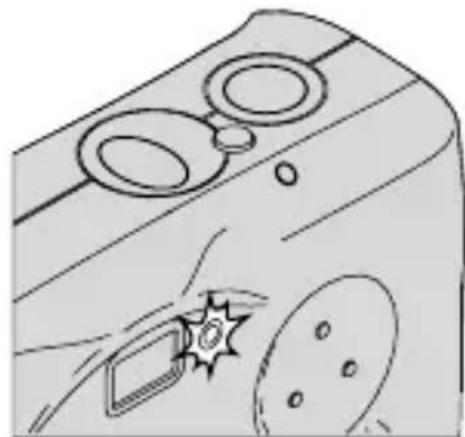

5. Wait for the flash-ready lamp (13) to turn green.

1. Press the shutter button (1) to take a picture.

Flash-to-subject distance

ISO film Flash-to-subject speed distance

100 3.3 to 10 ft (1.0 to 3.1 m)

200 3.3 to 14 ft (1.0 to 4.3 m)

400 3.3 to 18 ft (1.0 to 5.5 m)

USING THE SELF-TIMER

Use this feature to include yourself in pictures.

1. Attach a tripod to the camera tripod socket (17) or place it on a firm support.

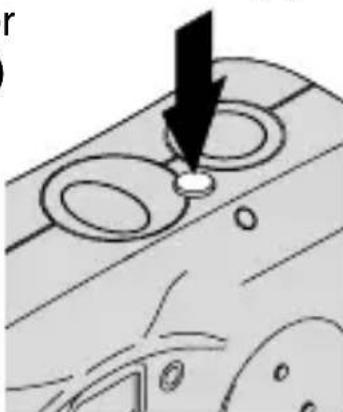

2. Press the self-timer button (2).

The self-timer indicator (19) appears on the LCD panel (3).

1. Frame your subject within the viewfinder eyepiece (11) and allow room

1. Hold the camera steady and gently press the shutter button (1).

2. Quickly position yourself in the composed picture making sure that you see the self-timer bulb (5).

3. The self-timer bulb glows and then blinks during the last two seconds of countdown.

4. To cancel the self-timer selection before the shutter releases, close the lens cover.
5. The self-timer automatically turns off after the shutter releases.

UNLOADING THE FILM

Automatic rewind

The camera automatically rewrites the film into the cassette after the last exposure.

1. Wait for the camera motor to stop to ensure that the film is completely rewound into the film cassette.
2. The picture counter (20) on the LCD panel (3) displays "0." The picture-counter display disappears when the lens cover is closed.

3. Move the film-door lever (9) to open the film door (16).

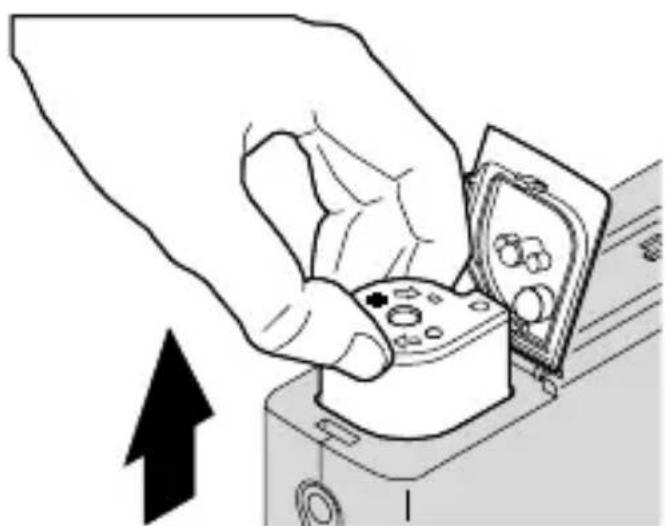

4. Remove the film cassette from the camera and reload with new KODAK ADVANTIX Film.

5. The FSI on the fully-exposed film cassette is at × (#3 position).

Manual rewind

If you don't want to take pictures on the entire film, you can manually actuate the automatic rewind.

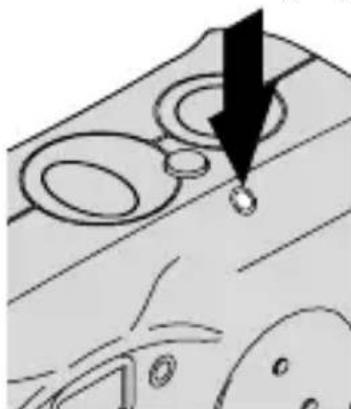

1. Press the film-rewind button (12)

to start the auto-film rewind.

1. See Automatic rewind, steps 1-3.

NOTE: You cannot reload partially exposed film into this camera to continue taking pictures.

CARING FOR YOUR CAMERA

• Protect the camera from dust, moisture, sudden impact, and excessive heat.
  CAUTION: Do not use solvents or harsh or abrasive cleaners on the camera body.
• If the lens appears dirty, breathe on it to form a mist and wipe the surface gently with a soft, lintless cloth or a camera lens-cleaning tissue. Never wipe a dry lens.

CAUTION: Do not use solvents or solutions not designed for cleaning camera lenses. Do not use chemically treated tissues intended for cleaning eyeglasses.

• Remove the batteries when you store the camera for an extended time.

CAUTION: To prevent possible damage and electrical shock, do not attempt to disassemble or repair the camera or flash unit by yourself.

TROUBLESHOOTING

What happened Probable cause Solution
Camera will There are not operate pictures	are no more Rewind film and remaining remove from camera
	Batteries weak, Replace dead, missing, or the batteries improperly inserted	or reload
Film does not Batteries weak, Replace or reload advance or dead, missing, or the batteries rewind improperly inserted		load
LCD panel Batteries is blank dead, missing, or the batteries improperly inserted
LCD panel is Camera blank (continued)	a in sleep mode Take a picture or close and reopen lens cover
	Lens cover closed Open lens cover
Flash does Flash not fully charged Wait for flash-ready not fire lamp to turn green
Film cassette does loaded exposed ( ), Load only new film ( ) not fit completely or processed film ( ) into the camera into film chamber; in film door does not close

SPECIFICATIONS

Film Type: KODAK ADVANTIX Film for color prints

Lens: KODAK EKTANAR Lens; 24 mm, 3-elements hybrid with protective lens cover

Focus System: Fixed focus

Focus Range (Daylight): 3.3 ft (1.0 m) to infinity

Lens Aperture: f / 6.4

Viewfinder: Reverse galilean with C, H, & P format display

Film-Speed:DXIX (ISO)100-400

Flash Unit: Built-in, automatic flash

Flash Range (ISO 200): 3.3-14 ft (1.0-4.3 m)

Aperture: Fixed at f/6.4

Shutter Speed: Programmed 1/60-1/250 seconds

Power Source: 2 AAA-size alkaline batteries; 7 seconds flash-recycle time with fresh battery

Dimensions: 4.3 in. x 2.7 in. x 1.5 in. (108.8 mm x 69.7 mm x 39.3 mm)

Weight (without batteries and film): 5 oz. (140 g)
